UNIT XR Series Rental LED Display
XR SERIES
Dual Service Frontal Rear Rental LED Display
Ultra-lightweight and space-saving, With a number of core technologies. Innovative structural design, avant-garde body lines, Seamless Display and Visual Effects
Ultra HD Rental LED Display

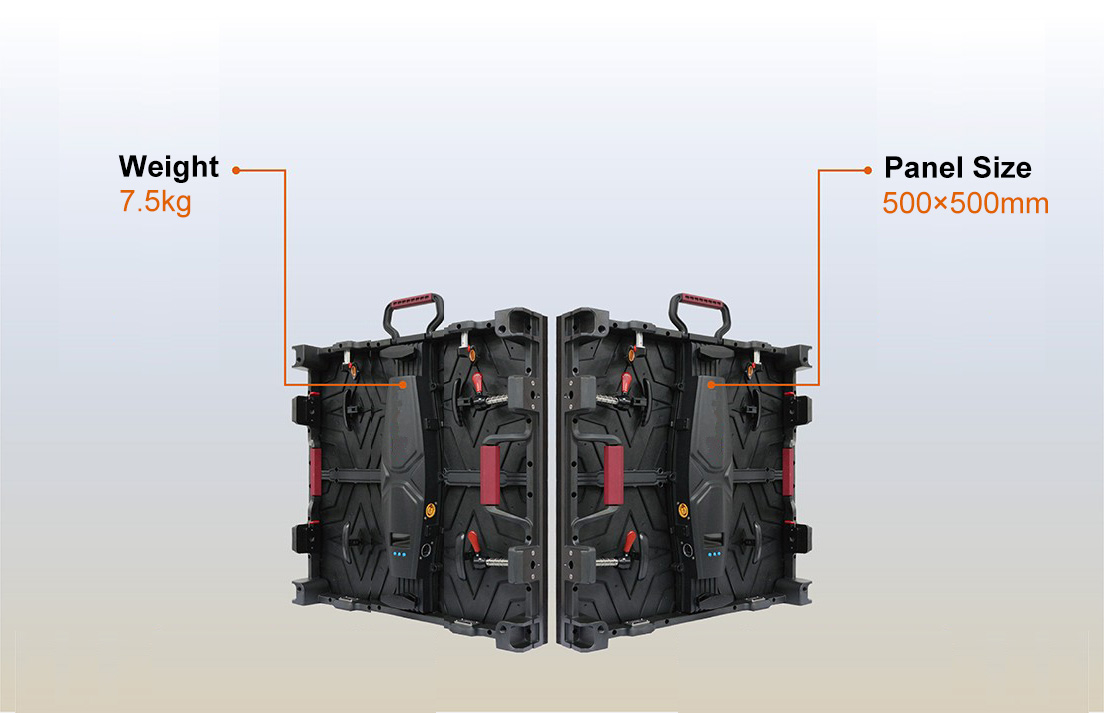

XR Series Rental LED Display New design incorporates many aesthetic elements and adopts High strength die-casting aluminum,
only 7.5kg per cabinet. Better performance with high-definition visual display.
Inquiry Now
Lightweight and Thin

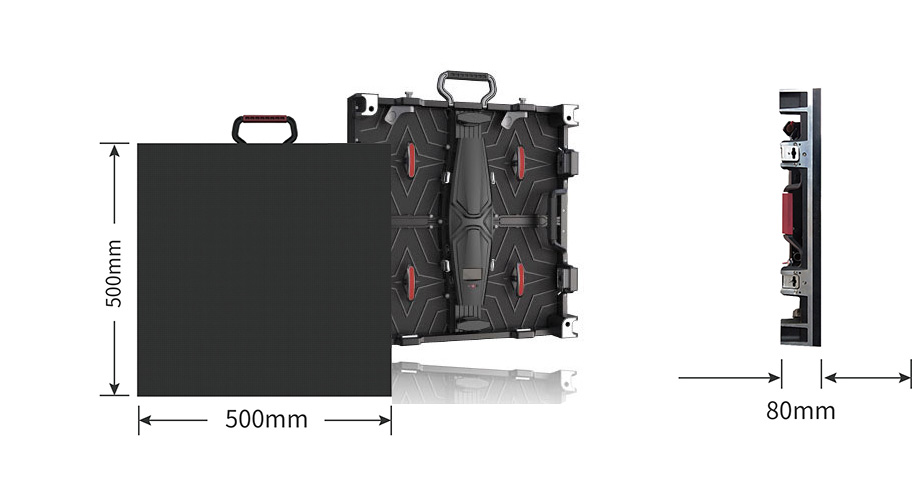

Unit XR series Rental LED display with ultra-thin cabinet design, the thickness is only 80mm.
Die-cast aluminum cabinet design light and easy to transport. It has good flatness and is seamless.
Perfect Structure
UNIT has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies.
Innovative structural design and avant-garde body lines give you an extraordinary experience.
Fast Installation
Auto-locking system for fast and easy 1 man installation with ultimate safety and pixel protection
Inquiry Now
Double Maintenance Service
XR Series Rental LED Display is a dual maintenance product, not only 100% front accessible but also can do rear service.
The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, save your cost and labor
Seamless Display and Better Visual Effects
High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience you desire from any angle. The picture quality confronts viewers with an entirely new sensory experience.
Inquiry Now

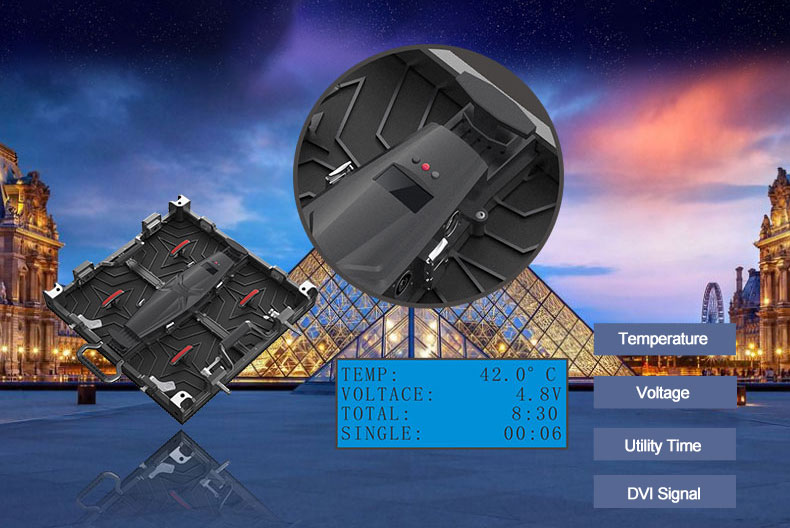

Intelligent Management
XR Series Rental LED Display cabinet backside with status LED display which can show the working conditions
such as working temperature, working voltage, the screen lifespan, and the DVI signal.

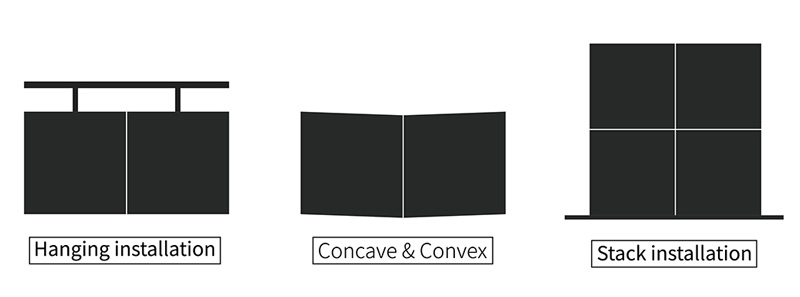

Multi Installation Ways of Cabinet
Support 3 installation ways of cabinet with hanging installation, concave& convex installation, and stack installation.
XR SERIES LED Display
- 500*500mm Cabinet Standard Size
- SMD 3 in 1 LED Encapsulation Technology
- Dual Service with Frontal and Rear Maintenance
- 7680HZ Refresh Rate, 236HZ Frame Frequency
- CE,Rohs Approved
- 3 Year Warranty and 5% Spare Part
Get Price Now
Specification
| Pixel pitch | 2.315mm | 2.604mm |
| Pixels per cabinet | 216×216 (HxV) | 192×192 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |
| Brightness | ≥1000 nits: | |
| Module size | 250*250mm | |
| Module resolution | 108*108dots | 96*96dots |
| Refresh rate | 7680Hz | |
| Hor. vicewing angle | 140° +/-5° (@50% brightness) | |
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |
| Brightness uniformity | > 98% | |
| Dimming | 0-100% | |
| Grey Level | 16 bits | |
| Avg Power consumption | 350 W/㎡ | 320 W/m” |
| Max Power consumption | 680 W/㎡ | 640 W/m2 |
| Operation power voltage | 100-240V / 50-60Hz | |
| Operational temperature | -10℃ to +40℃ / 14℉ to 104℉ | |
| Operational humidity | 10-80% | |
| IP rating | IP54 for Indoor | |
| Dimensions | 500 x 500 x 80 mm (WxHxD)/19.6x 19.6x 3.14 inch (WxHxD) | |
| Weight / Tile | 7.5kg/ 16.53 Ibs | |
| Serviceability | Front and back service | |
| Certifications | CE, FCC, ULRoHs | |
| Warranty | 3 Years standard product warranty | |
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
