UNIT NG1000 Series Rental LED Display
NG500/1000
Dual Service Frontal Rear Rental LED Display
Ultra-lightweight and space-saving, With several core technologies. Innovative structural design, Seamless display & Excellent visual effects, Support right angle installation

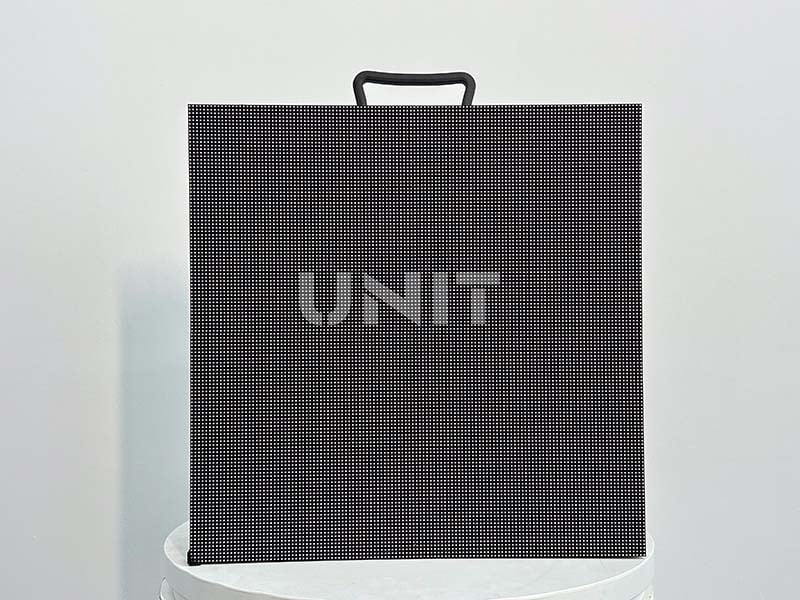

NG1000 Series Rental LED Screen

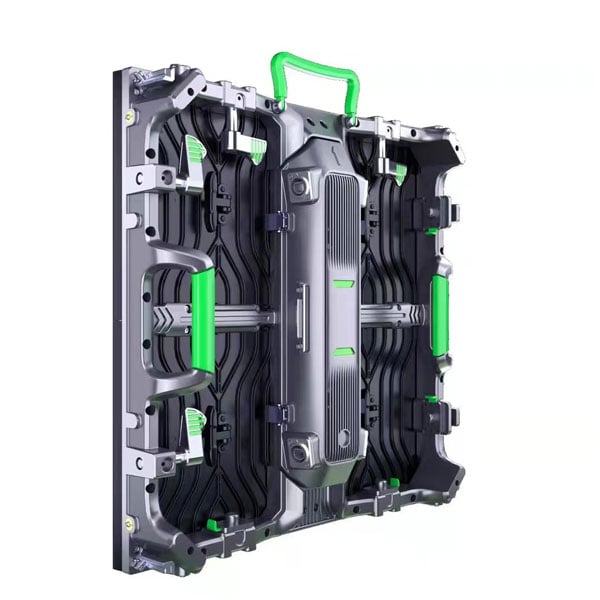

UNIT NG500/1000 Series Rental LED Display New design incorporates many aesthetic elements. Adopts high-strength die-casting aluminum, only 7.5kg per cabinet. Better performance with high-definition visual display.

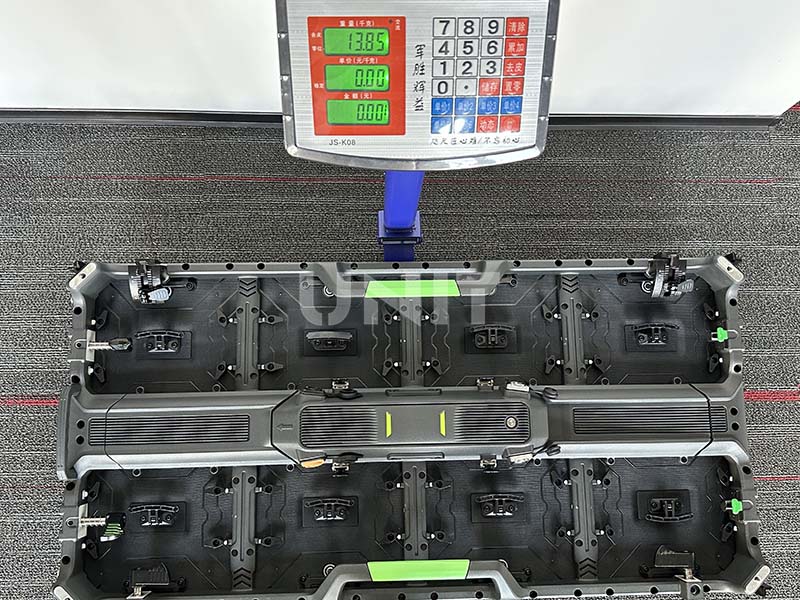

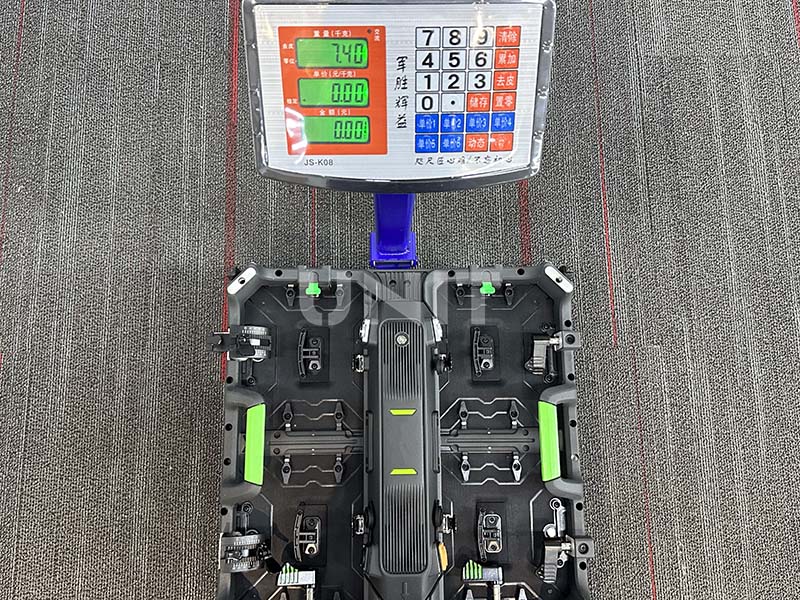

Lightweight and Thin
Portable and good stability with weight of 7.5kg/cabinet and thickness of 80mm. The lightweight cabinet makes the LED display easy to carry, transport, and install, saving a good amount of money on your labor costs.

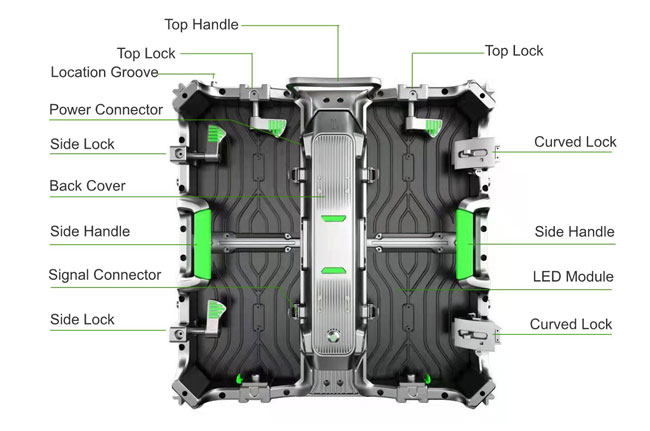

Perfect Structure
UNIT has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies. Innovative structural design and avant-garde body lines give you an extraordinary experience

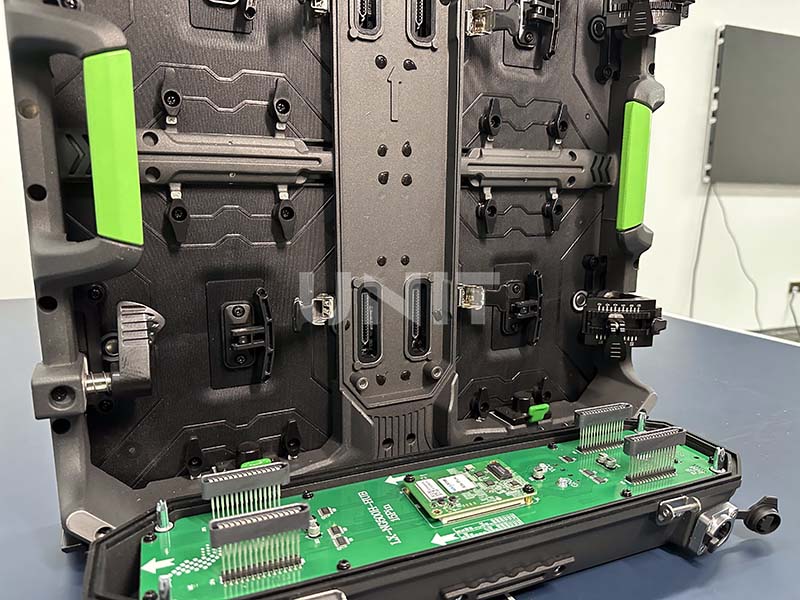

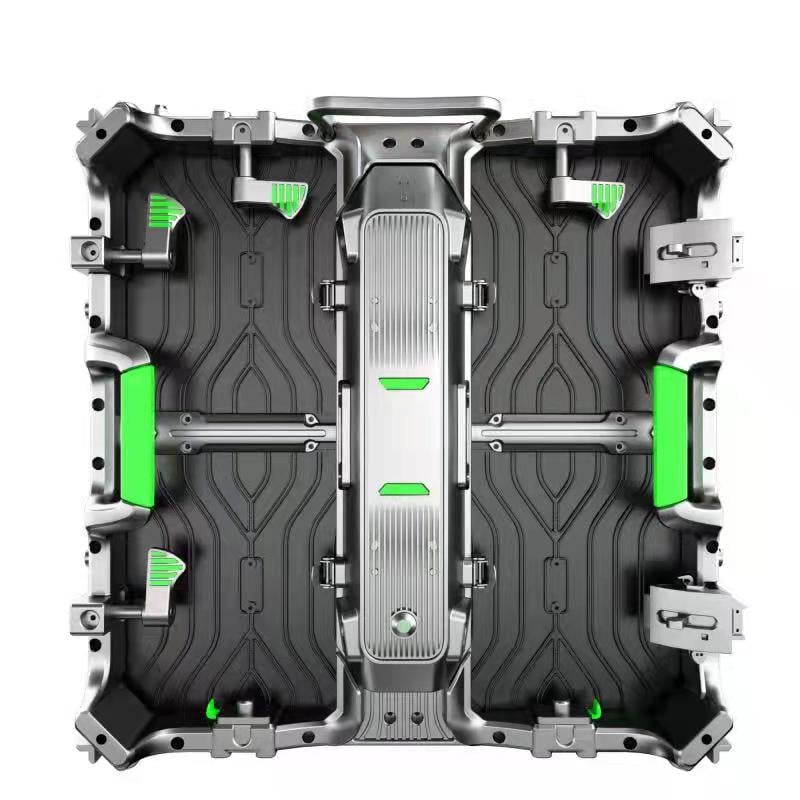

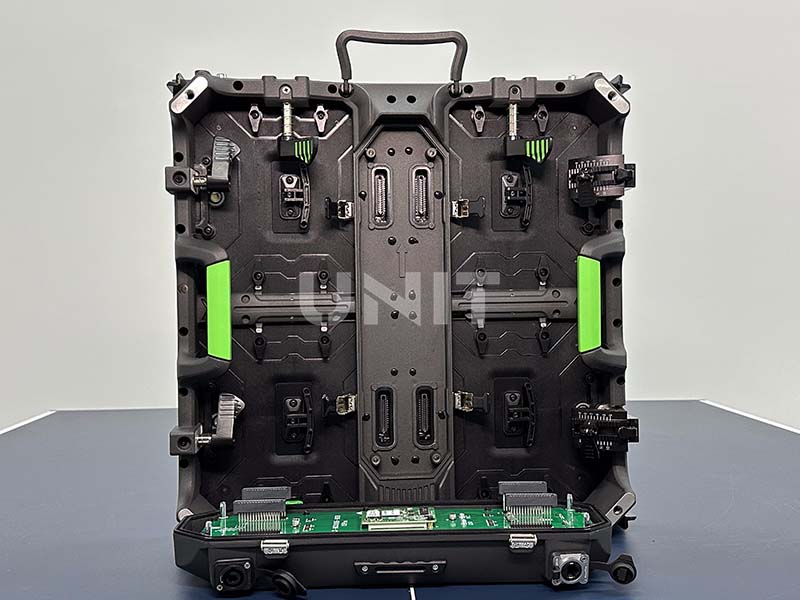

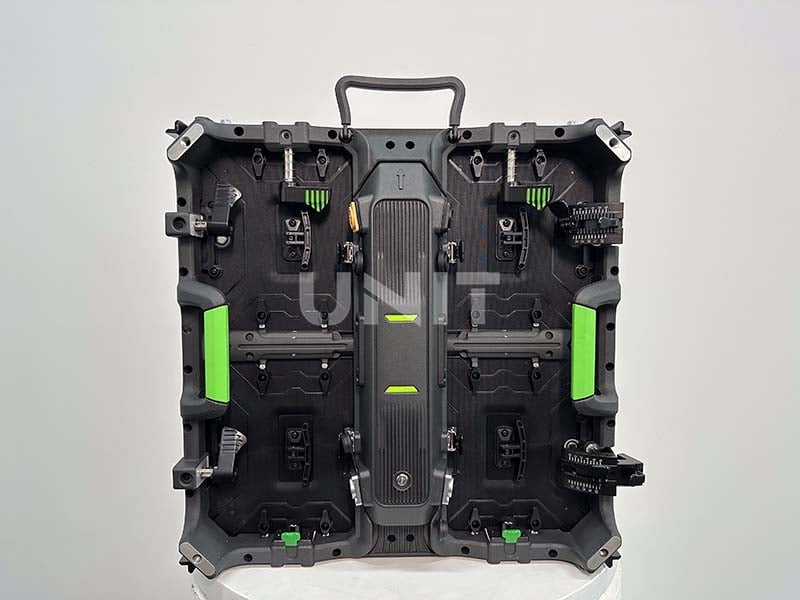

Detachable Back Cover
Adopts Optimized Control Box with Quick removable without any tools optional. the back box (includes power supply and control cards) is removable quickly for replacement and maintenance.

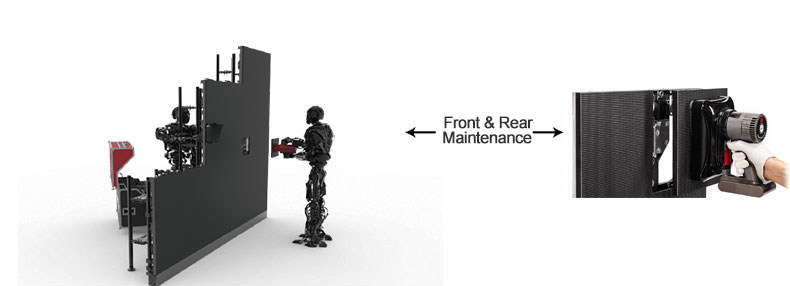

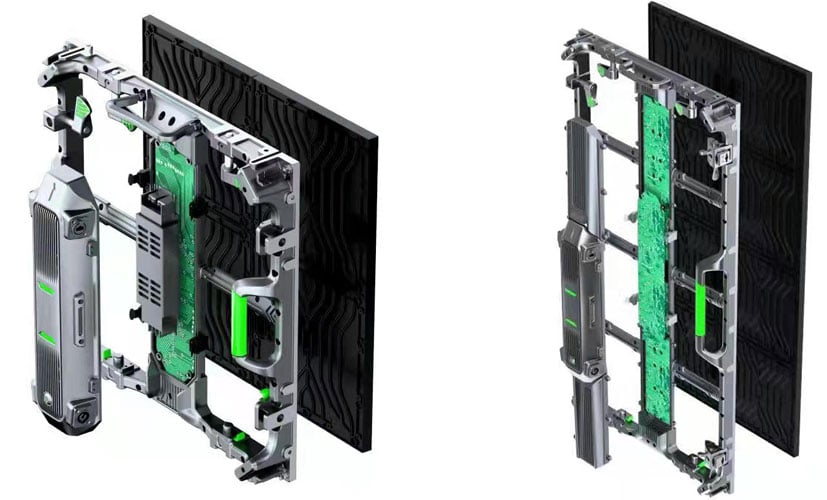

Front & Rear Maintenance
NG500 Series Rental LED Display is a dual maintenance product, not only 100% front accessible but also can do rear service. The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, saving your cost and labor.

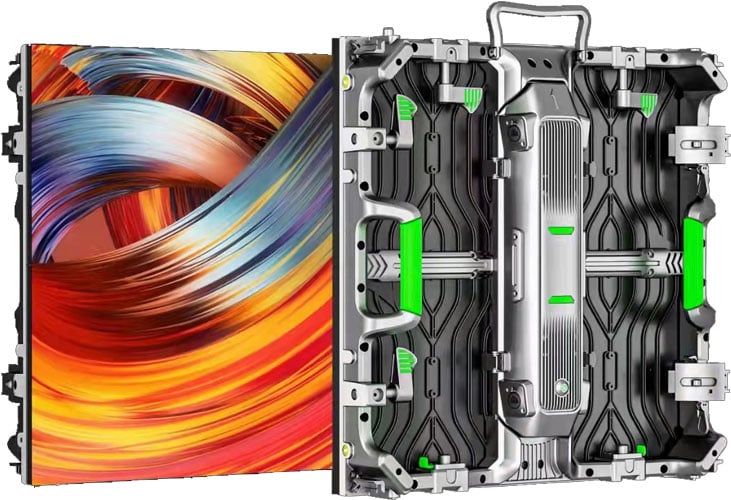

Seamless Display and Better Visual Effects
High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience you desire from any angle. The picture quality confronts viewers with an entirely new sensory experience.

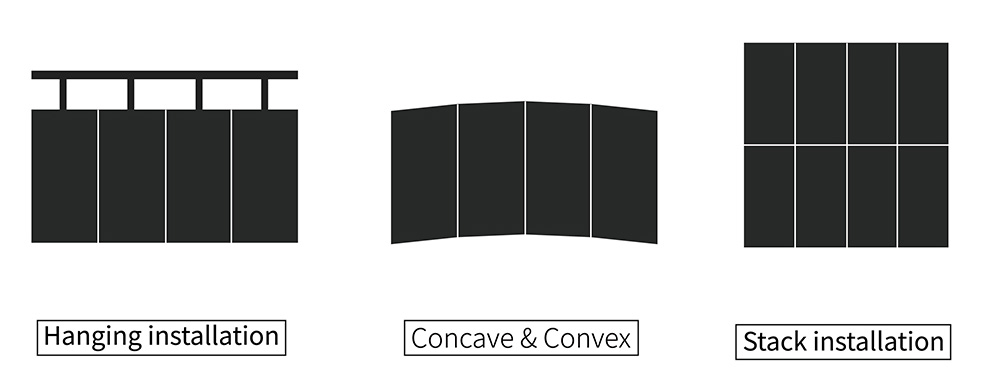

Multi Installation Way of Cabinet
Support 3 installation ways of cabinet with hanging installation, concave& convex installation, and stack installation.

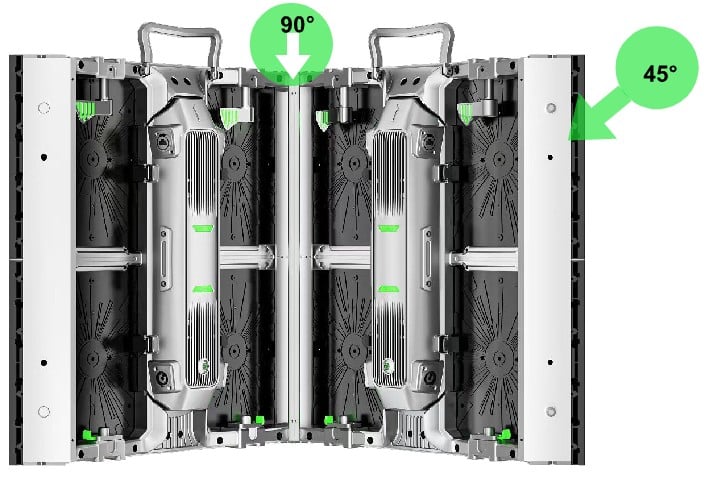

Support Right Angle Installation (Optional)
Supports 90° right angle LED display installation. It can meet some special buildings and applications.
https://youtu.be/IwZmyvvqdLMhttps://youtu.be/SkB0hX6yGM0
NG right-angle LED display
NG right-angle LED display
NG beveled edge cabinet

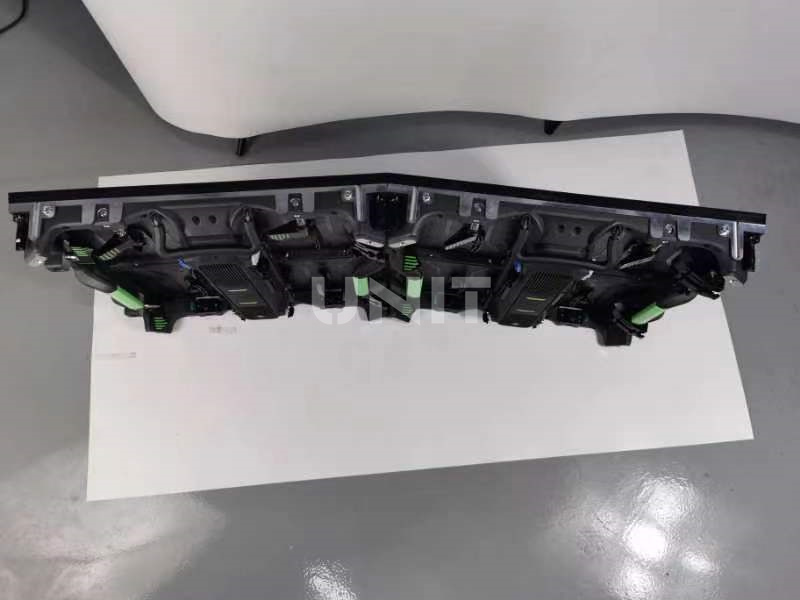

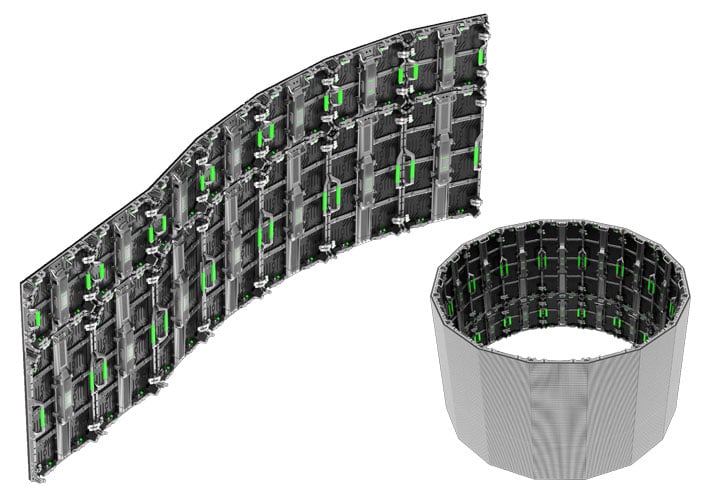

Curved Installation (Optional)
To meet the various aspects of the LED screen field. NG500/1000 series LED display design for Curved Installation. Curved with every 2.5° between -10°and 15°, which can make convex and concave.
https://youtu.be/LDXdygW9-gwhttps://youtu.be/y0BLaoar7O4
Concave LED Screen
Concave Screen
Convex Screen
Convex Screen

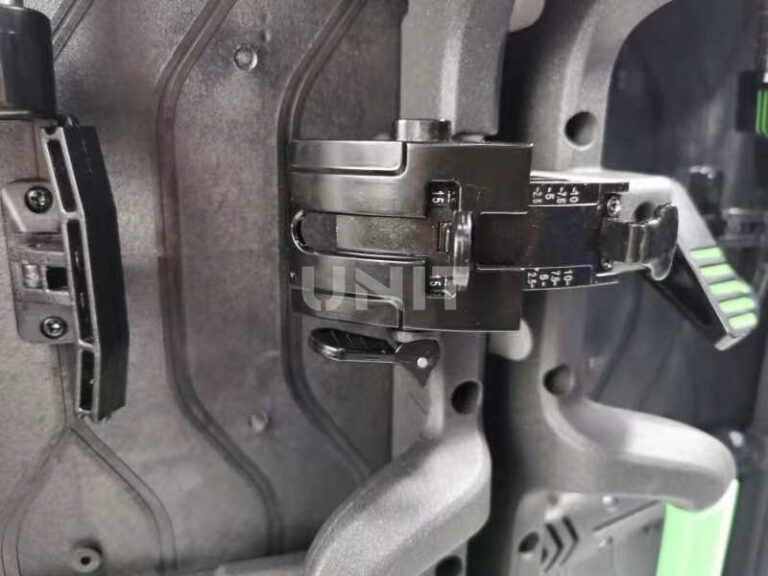

Curved Lock
NG LED Cabinets
NG500/1000 Series Cases
https://youtu.be/NqKlZuQV-dQhttps://youtu.be/qMvJnVApeREhttps://youtu.be/JLN4efdSwhchttps://youtu.be/WYzjFswz9PYhttps://youtu.be/slZTpzB5jfghttps://youtu.be/bmw8jcoLY54https://youtu.be/sc0sdLqpgCghttps://youtu.be/gIHMDF9V_6shttps://youtu.be/ji0k_2CEdtI
How to Use or Maintain?
https://youtu.be/7meAwk3KJpghttps://youtu.be/ReFrh5QW04Ihttps://youtu.be/9IVgIOtvqNUhttps://youtu.be/Ps3r_p149t4https://youtu.be/u4X8KzM7qYYhttps://youtu.be/2y7CNtscLX8?si=35igRmkrzwvogAw9https://youtu.be/qpaUpp2iEUYhttps://youtu.be/CwUEReohDy0https://youtu.be/kVnnawHSqF8?si=0ztc7kdleIhTpJ94
NG500/NG1000 Rental LED Display
- 500*1000mm Cabinet Standard Size
- SMD 3 in 1 LED Encapsulation Technology
- Dual Service with Front and Rear Maintenance
- Support Right Angle Installation
- Detachable Back Cover Box
- Indoor & Outdoor is Available
- CE,Rohs Approved
- 3 Years Warranty and 5% Spare Part
Get Price Now
NG500/1000 Cabinet Details
Specification
|
Pixel pitch |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
|
Pixels per cabinet |
192×192 (HxV) |
168×168 (HxV) |
128×128 (HxV) |
104×104 (HxV) |
|
LED lifetime |
100,000h |
|||
|
Brightness (nits) |
Indoor: 800; Outdoor: 4500 |
Indoor: 700; Outdoor: 4500 |
||
|
Module size |
250*250mm |
|||
|
Module resolution |
96*96dots |
84*84dots |
64*64dots |
52*52dots |
|
Refresh rate |
3,840Hz |
|||
|
Hor. viewing angle |
140° +/-5° (@50% brightness) |
|||
|
Vert. viewing angle |
140° +/-5° (@50% brightness) |
|||
|
Brightness uniformity |
>98% |
|||
|
Dimming |
0-100% |
|||
|
Grey Level |
14 bits |
|||
|
Avg Power consumption |
350 W/m² |
320 W/m² |
300 W/m² |
280 W/m² |
|
Max Power consumption (Indoor) |
450 W/m² |
450 W/m² |
450 W/m² |
450 W/m² |
|
Max Power consumption (Outdoor) |
640 W/m² |
640 W/m² |
640 W/m² |
640 W/m² |
|
Operation power voltage |
100-240V/50-60Hz |
|||
|
Operational temperature |
-10°C to +40°C/14°F to 104°F |
|||
|
Operational humidity |
10-80% |
|||
|
IP rating |
IP50 for Indoor, IP65 for Outdoor |
|||
|
Dimensions |

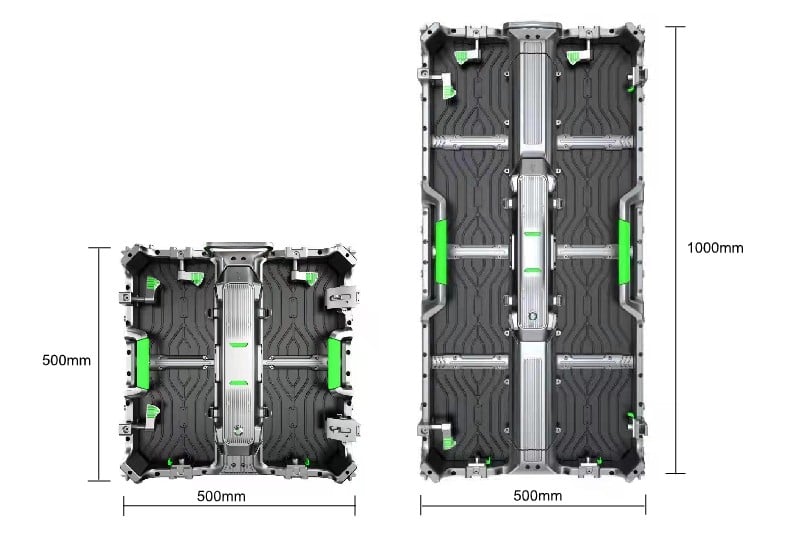

500 x 500 x 80mm/500 x 1000 x 80mm (WxHxD) |
|||
|
Weight / Tile |
7.5kg/14kg |
|||
|
Serviceability |
Front and back service |
|||
|
Certifications |
CE, UL, FCC class A, RoHS, WEE, REACH |
|||
Product Introduction
Download Product Manual
Details of NG Series
Products
P2.604
96*96 dots/module
250*250mm Panel
500*1000mm
Indoor Display
P2.976
84*84 dots/module
250*250mm Panel
500*1000mm
Indoor Display
P3.91
64*64 dots/module
250*250mm Panel
500*1000mm
Indoor & Outdoor Display
P4.81
52*52 dots/module
250*250mm Panel
500*1000mm
Indoor & Outdoor Display
Tech Support
UNIT LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
