UNIT MA500 Series Rental LED Display
MA500
Magnesium Alloy 500mm Series Rental LED Display
Ultra-lightweight and space-saving, With several core technologies. Innovative structural design, avant-garde body lines, Seamless Display, and Good Visual Effects
Inquiry Now
Features
Specification
Related Products

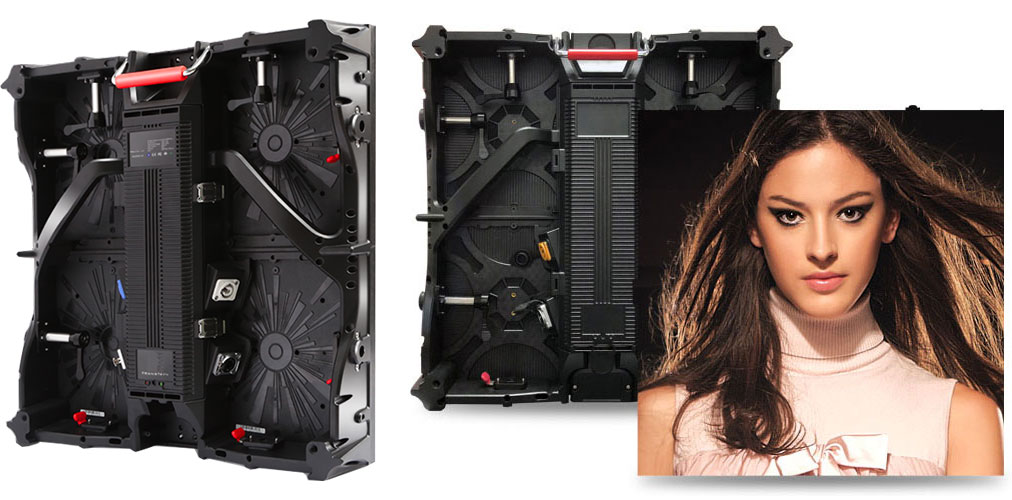

Magnesium Alloy 500mm Series LED Display

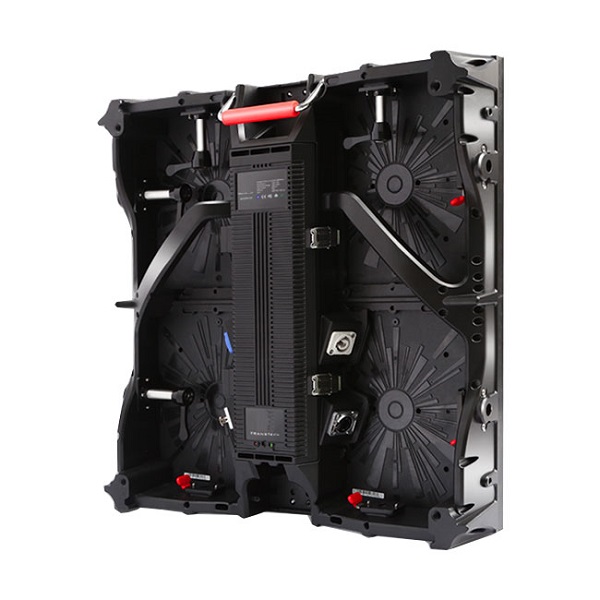

UNIT magnesium alloy LED display 500mm series New design incorporates many aesthetic elements, adopts magnesium alloy, only 7.85kg per cabinet. Good heat dissipation saves energy and maintains the stability of the display. Unlike indoor fixed LED displays and outdoor fixed LED displays, UNIT magnesium alloy LED display cabinets are machined from top-grade, high-tensile magnesium alloy.
Inquiry Now
Ultra lighweight, Slim design
Unit magnesium alloy 500mm series LED display cabinet is very thin which makes it ultra-lightweight and space-saving. It Can be installed in any area without requiring much space. The lightweight 8kg/panel LED screen is easy to carry, transport, and install, saving a good amount of money on your labor costs.
Perfect Structure
UNIT has the domestic top design team, and the design innovation has its unique philosophy, with several core technologies.
Innovative structural design and avant-garde body lines give you an extraordinary experience.
Excellent Quality
Unit magnesium alloy 500mm series LED display features four high technologies and point-to-point correcting.
High refresh rate, high gray scale level,
high definition, and high contrast rate present excellent quality picture output in every condition.
Inquiry Now
Double Maintenance Service

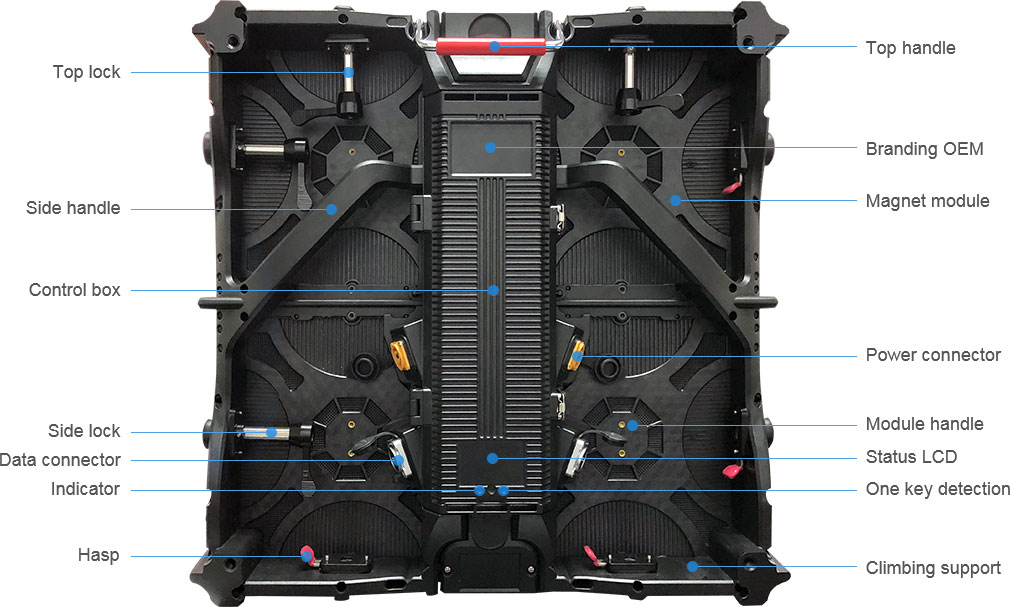

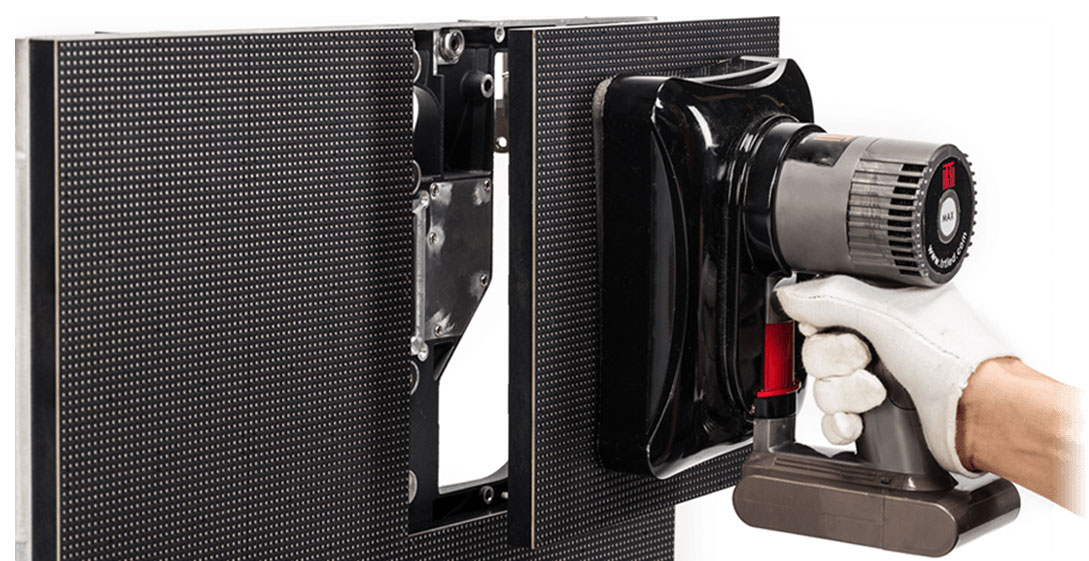

UNIT MA500 series indoor LED display supports frontal and rear service. The magnet LED modules can be removed
by tools on the front side for only 5 seconds. easy and convenient, saving your cost and labor. MA500 outdoor LED display only supports rear maintenance.
Seamless Display and Visual Effects
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display.
The picture quality remains high due to the best display material.
Inquiry Now

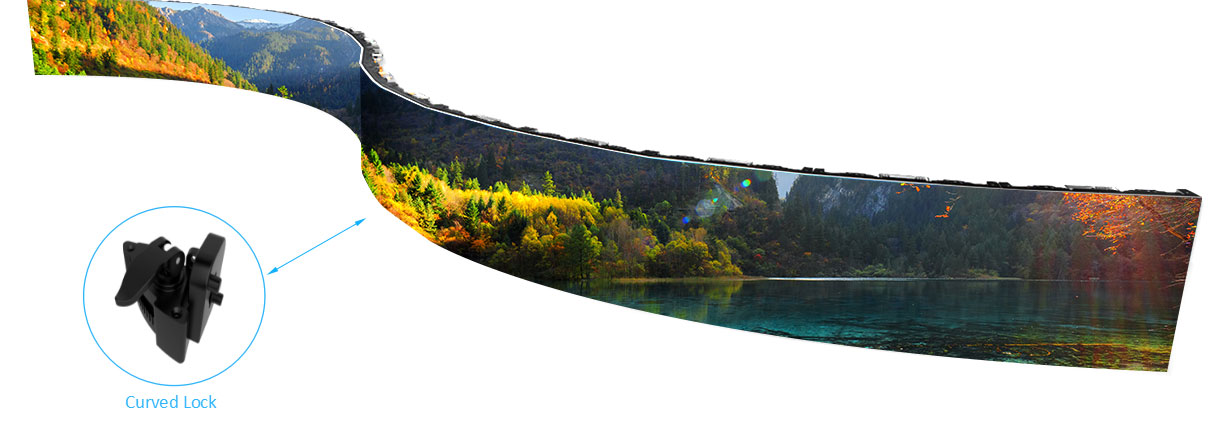

Curved Installation
To meet the various aspects of the LED screen field. UNIT magnesium alloy 500mm series LED display design for Curved Installation.
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Wide Viewing Angle
The viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Image Gallery
Video Center

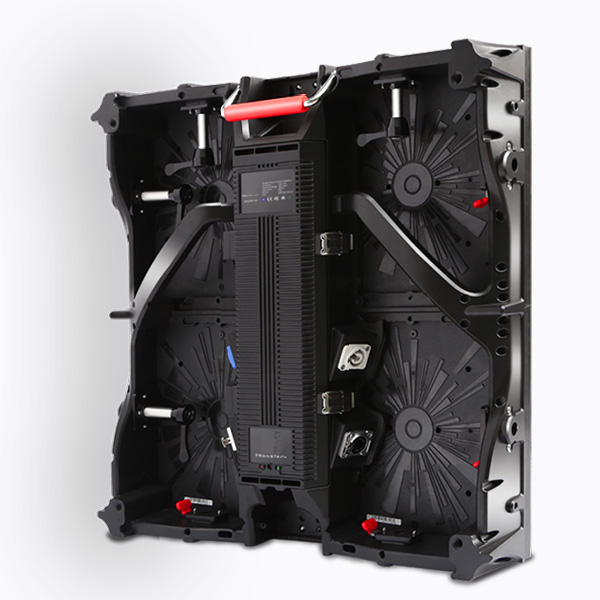

MA500 Magnesium Alloy LED Display
500*500mm Cabinet Standard Size
SMD 3 in 1 LED Encapsulation Technology
Dual Service with Frontal and Rear Maintenance
Magnesium Alloy Cabinet
Seamless Display and Visual Effects
CE,Rohs Approved
3 Years Warranty and 5% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
Specification
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | ≥3840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 90 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
Download Product Manual
Products
P2.60496*96 dots/module
250*250mm Panel
500*500mm
Indoor Display
P2.97684*84 dots/module
250*250mm Panel
500*500mm
Indoor Display
P3.9164*64 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
P4.8152*52 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
