UNIT MA250 Series Indoor LED Display Screen
MA250
MA250 Indoor LED Display Screen
Frontal service indoor LED display screen, Ultra-thin and ultra-light cabinet, Supports split-screen multi-module display, Good color saturation and contrast
UNIT 1000x250mm Indoor LED Display Screen
The new product 1000x250mm series LED display is suitable for LED video walls for indoor applications. Fine pixels, perfect design. Front-end service for LED power supplies, cards, and modules in an ultra-lightweight, die-cast aluminum cabinet design. Good flatness, easy to install and disassemble.
Inquiry Price Now

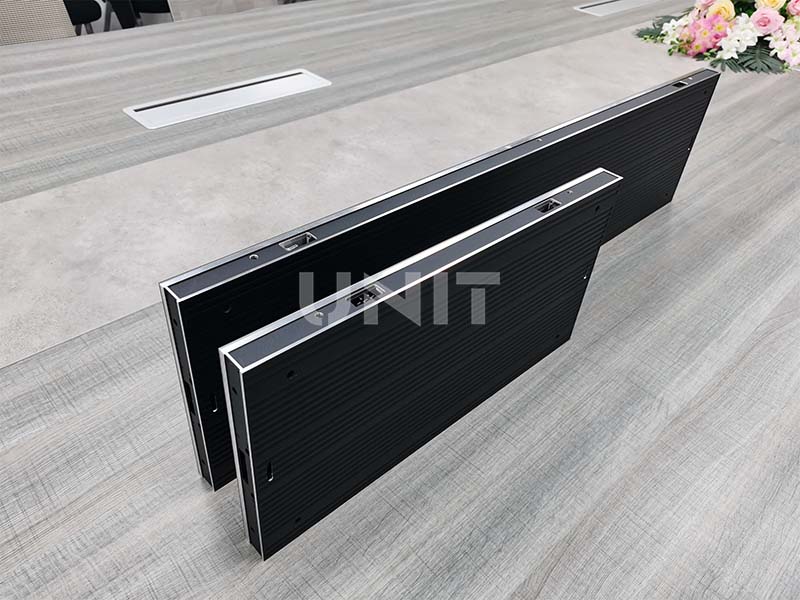

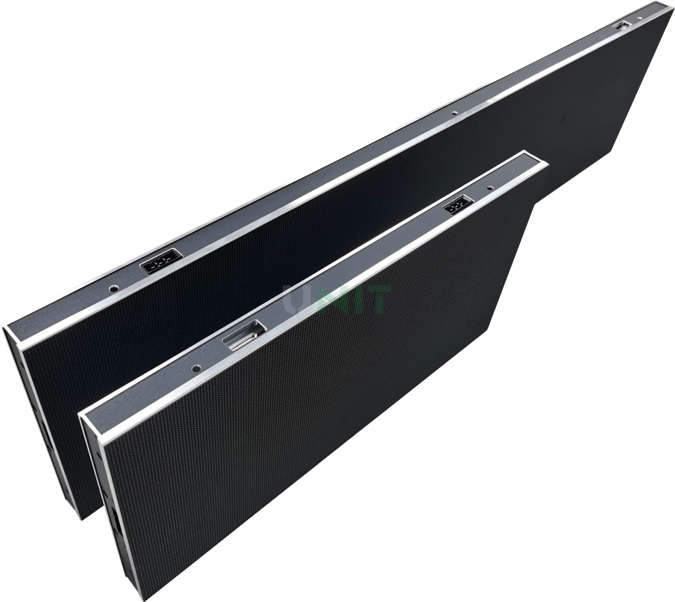

Ultra-light & Ultra-thin Cabinet

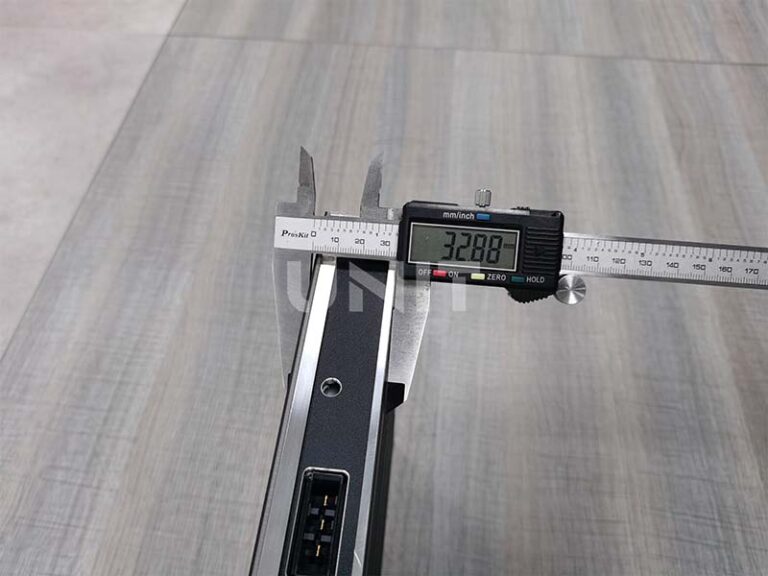

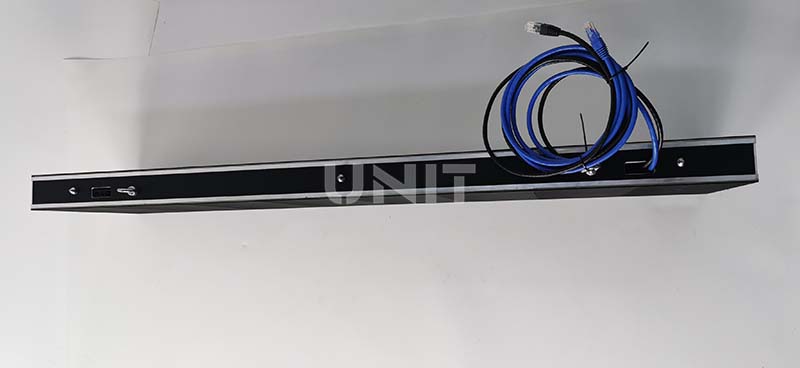

The thickness of the UNIT MA250 series cabinet is only 33mm. The ultra-light and ultra-thin cabinet is convenient for transportation and installation.
The cabinet size can be customized, such as 1000X500mm/1000x250mm/750x250mm/500X250mm.
The weight of a single cabinet is as follows: 9.8kg/5.0kg/4.0kg/3.0kg.
Perfect Structure

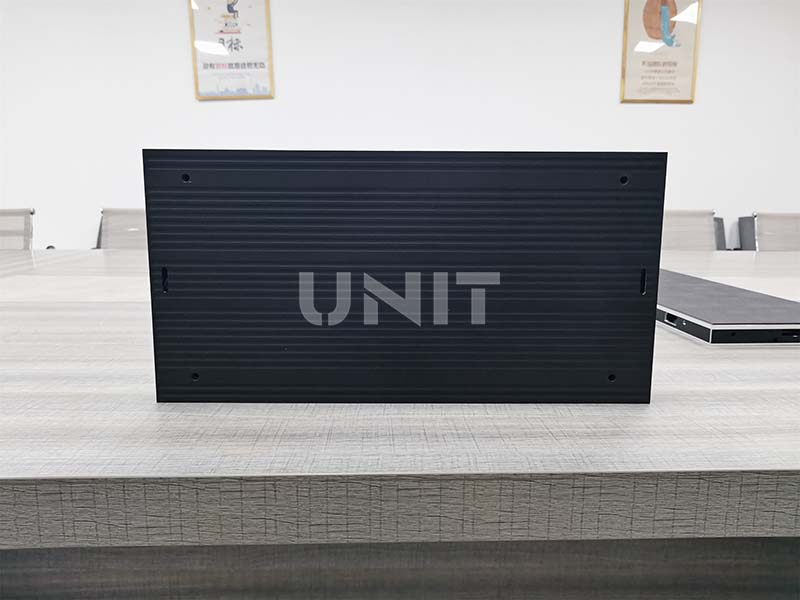

The appearance of the aluminum profile box is stylish and simple, ultra-thin, and beautiful. The aluminum cabinet frame is characterized by high strength and precision. At the same time has excellent heat dissipation performance.
Hard Connection & No Cables

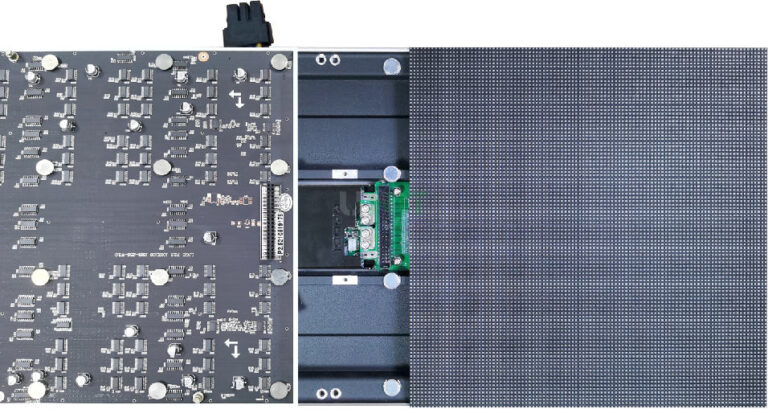

The design of the hard connection between the module and the cabinet completely gets rid of the shackles of the wires.
Modules and cabinets are absorbed by multiple magnetic columns, which are firm and do not fall off.
The hard connection design makes MA250 indoor fixed LED display more reliable and safer.
Inquiry Price Now
Full Front Service

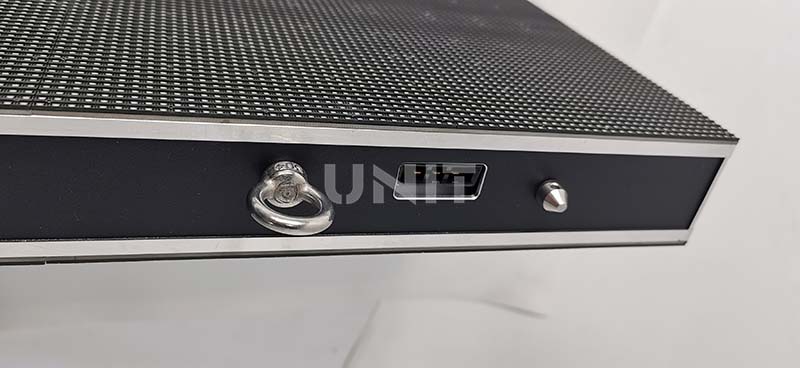

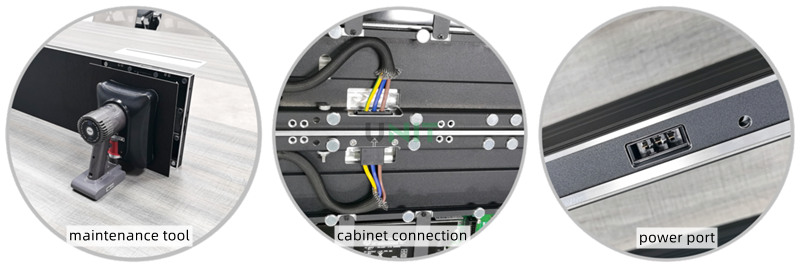

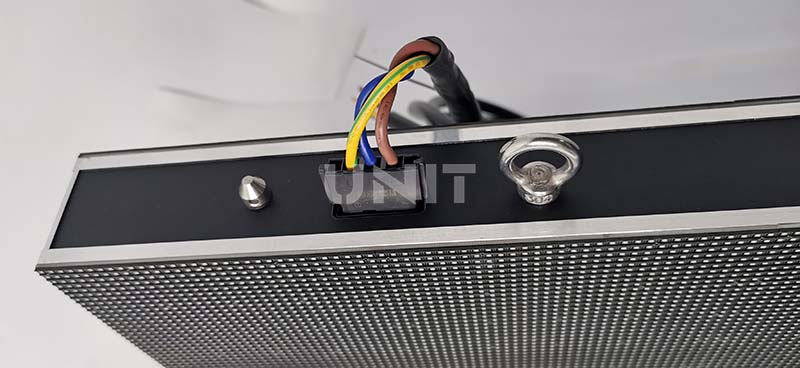

The front maintenance design saves your labor and costs. The perfect design is reflected in many aspects: humanized maintenance tools, cabinet connections, and power ports.

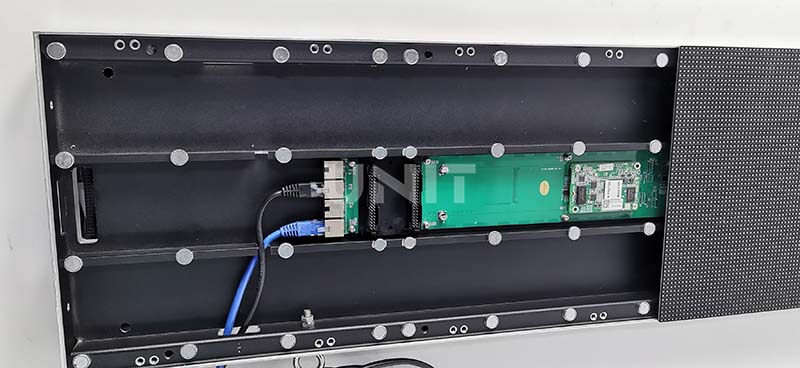

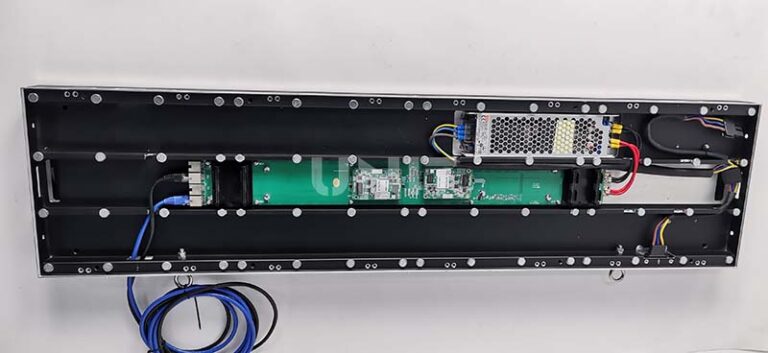

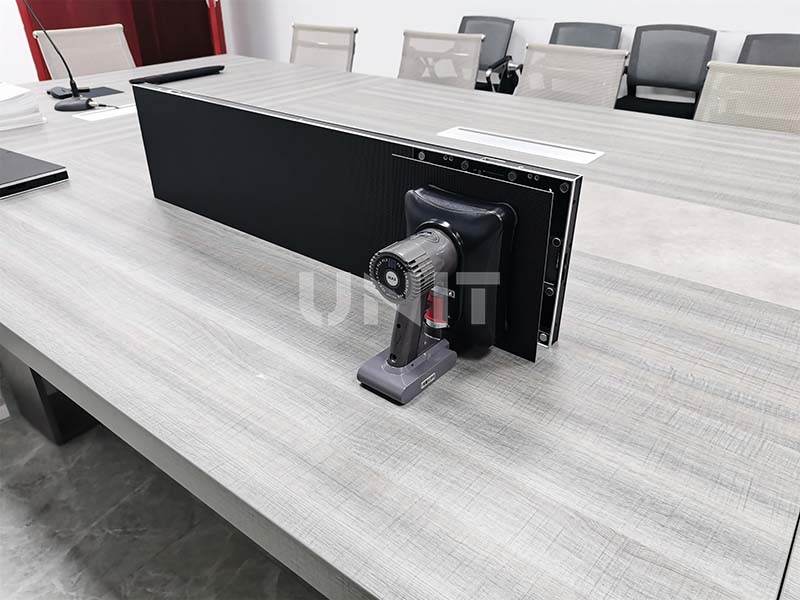

The magnetic LED module can be quickly removed from the front with maintenance tools. Both the power box and the receiving card support front maintenance.
90° Right-angle Installation
Supports 90° right-angle splicing. The seamlessly spliced pillar LED display screen is suitable for displaying information in limited spaces,
such as squares, shopping malls, subway stations and other places

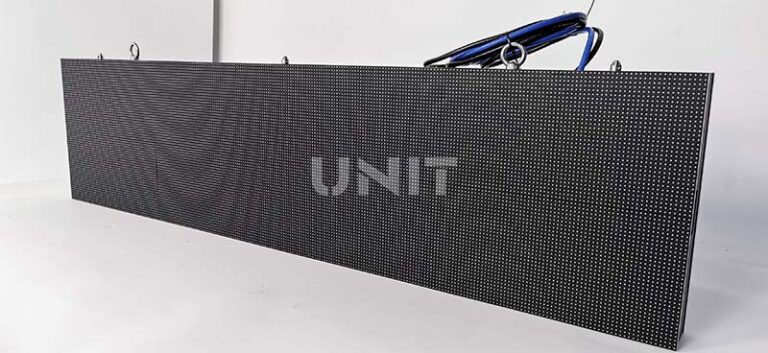

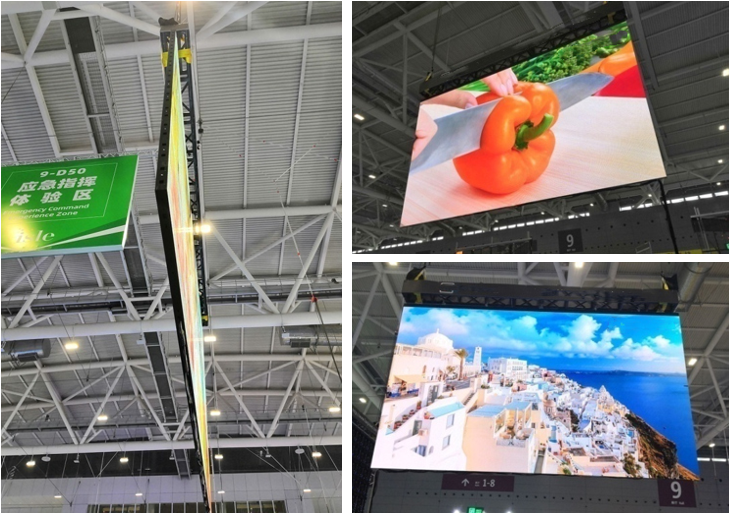

Hanging Installation
Ultra-light and ultra-thin UNIT 250x1000mm LED Display is very suitable for hanging installation.
UNIT MA250 indoor LED display allows more people to see your content.
MA250 Indoor LED Display
- 1000*250mm Cabinet Standard Size
- Support Split-screen Multi-module Display
- SMD 3 in 1 LED Encapsulation Technology
- Front Maintanance
- Aluminum Cabinet Frame
- CE,Rohs Approved
- 3 Years Warranty and 5% Spare Part
Get Your Price Now
Image Gallery

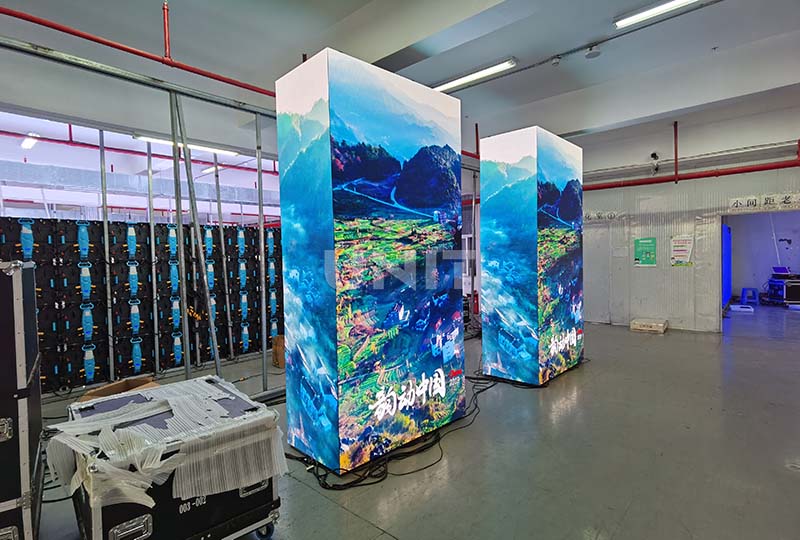

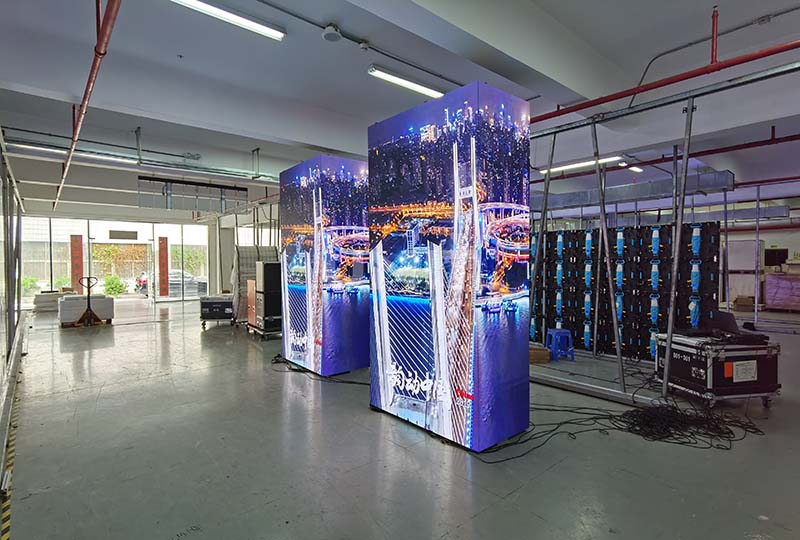

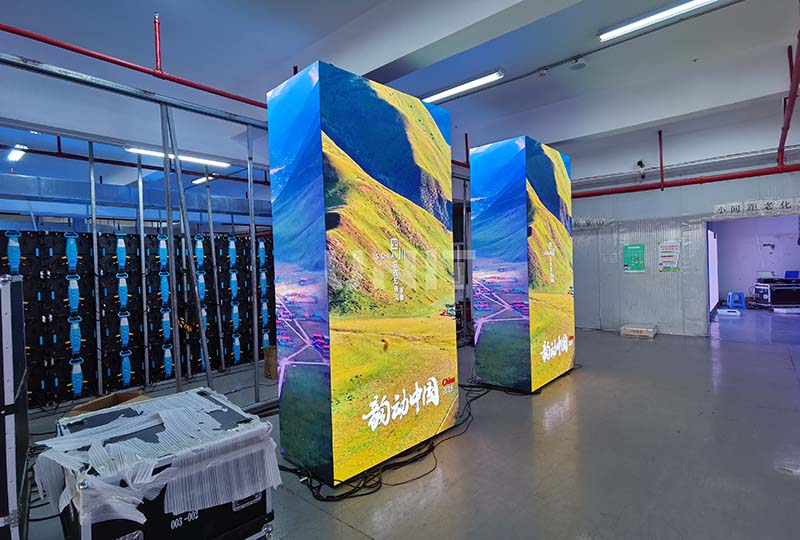

MA250 Series P2.5mm Pillar LED Screen
MA250 Series Video Center
https://youtu.be/pPMd1iGHQFEhttps://youtu.be/Hek9ypSBQpkhttps://youtu.be/WoWvDAuynvQhttps://youtu.be/E7f8ISHfKSYhttps://youtu.be/ALqh9vxcV1k?si=74SpxDgnUCxjuoFRhttps://youtu.be/H3thpnZTxZc?si=b_Mkec403jx2rhUShttps://youtu.be/Cu2kH5doo8khttps://youtu.be/ofikAzqtNOQhttps://youtu.be/FMgAbUnvwpU
Specification
|
P1.25(GOB) |
P1.56(GOB) |
P1.95 |
P2.5 |
P2.976 |
P3.91 |
|
|
LED Type |
SMD1010 |
SMD1212 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2121 |
|
Module Resolution |
200×200 |
160×160 |
128×128 |
100×100 |
84×84 |
64×64 |
|

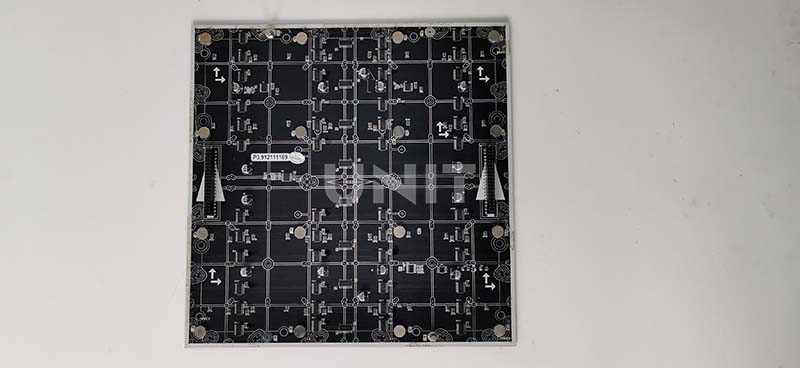

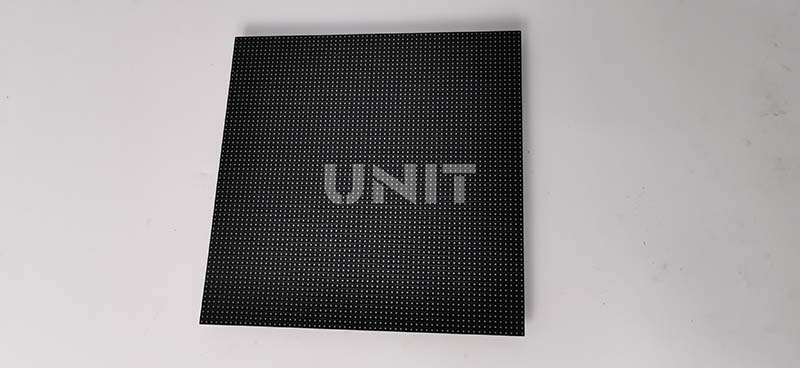

Module Size（mm） |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
|
Panel Resolution |
800×200 |
640×160 |
512×128 |
400×100 |
336×84 |
256×64 |
|
Maintenance Mode |
Front |
Front |
Front |
Front |
Front |
Front |
|
Cabinet Frame |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
Brightness(cd/m²) |
500 |
600 |
800 |
800 |
800-1000 |
1000-1200 |
|
Color Temperature(K) |
3200-9300 |
3200-9300 |
3200-9300 |
3200-9300 |
3200-9300 |
3200-9300 |
|
Grey Level(bit) |
14/16 |
14/16 |
14/16 |
14/16 |
14/16 |
14/16 |
|
View Angle(H/V) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Contrast Ratio |
5000:1 |
5000:1 |
5000:1 |
5000:1 |
5000:1 |
5000:1 |
|
Frame Frenquency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
Drive Mode |
1/50 Scan |
1/40 Scan |
1/32 Scan |
1/25 Scan |
1/28 Scan |
1/16 Scan |
|
Max Power Consumption（w/m²） |
450 |
450 |
450 |
450 |
450 |
450 |
|
Avg Power Consumption（w/m²） |
150 |
150 |
150 |
150 |
150 |
150 |
|
Power Requirment |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
