Soft & Bendable Flexible LED Module in Stock!
LED Panel

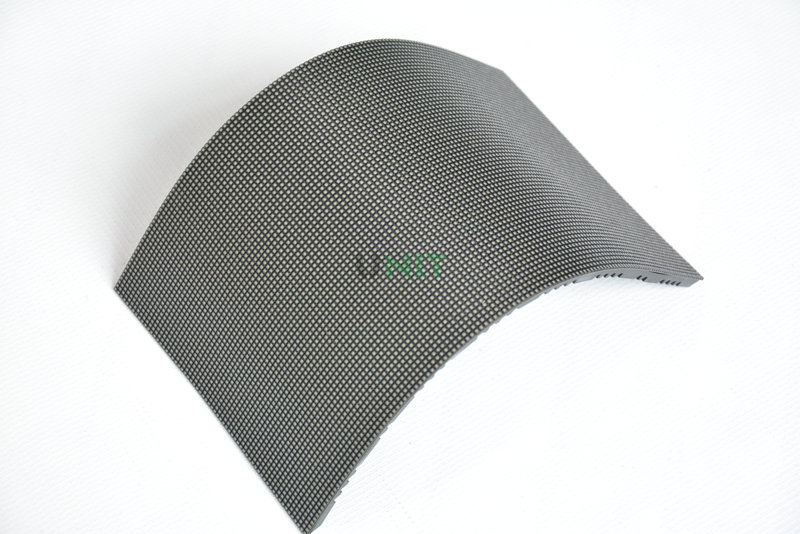

Soft Flexible LED Module Panel
High-quality Soft Flexible LED Display Panel Module Including the Data Power Cables and 2 Years Warranty. All Flexible LED Modules Have the Best Contrast And Color Uniformity to Ensure the LED Display Has an Excellent Visual Effect.
High Flexibility
SMD LED
2 Years Warranty
Inquiry Now
FLEXIBLE LED DISPLAY MODULE
3 In 1 SMD LEDs
Adopting highly reliable SMD1010, SMD1212, SMD1515, and SMD2121 to ensure flexible LED screen modules with high refresh rates 1920Hz or 3840Hz.
High Flexibility
The bendable soft led module is highly flexible and ideal for creating creative led displays with unique shapes.
It can form special-shaped LED displays as you like to make the screen more fashionable and attractive.
72 Hours Aging Test
72 hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the indoor LED display modules and ensure the LED modules are without broken LEDs.
All Pixels Available
UNIT LED offers various pixels for flexible LED panels ranging from P1.875mm, P2mm, P3mm, P4mm to P5mm. The panel sizes can be 240*120mm, 320mm*160mm, and 256*128mm.
P0.9mm
240*120mm, High Flexibility, 256*128dots
Learn More

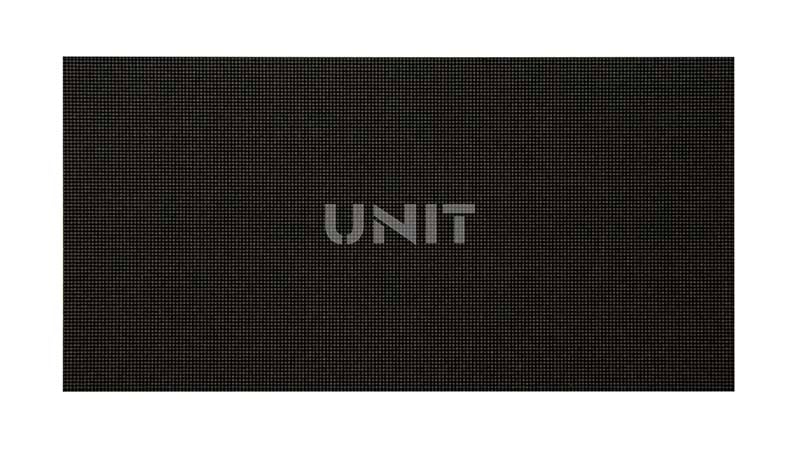

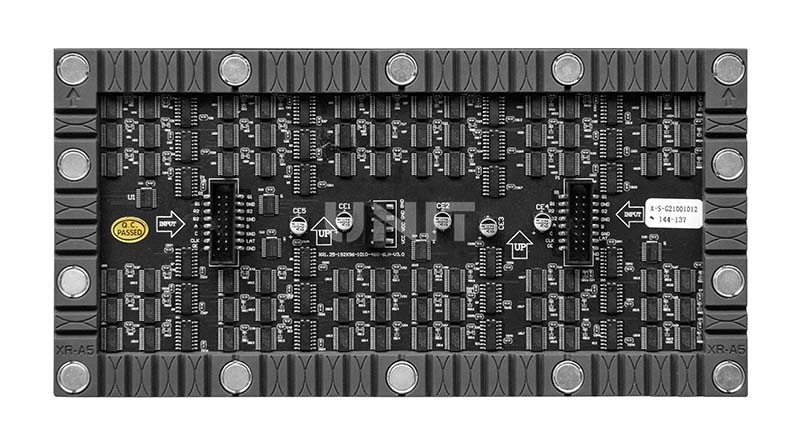

P1.25mm
240*120mm, High Flexibility, 192*96dots
Learn More
P1.579mm
240*120mm, High Flexibility, 152*76dots
Learn More
P1.66mm
240*120mm, High Flexibility, 144*72dots
Learn More

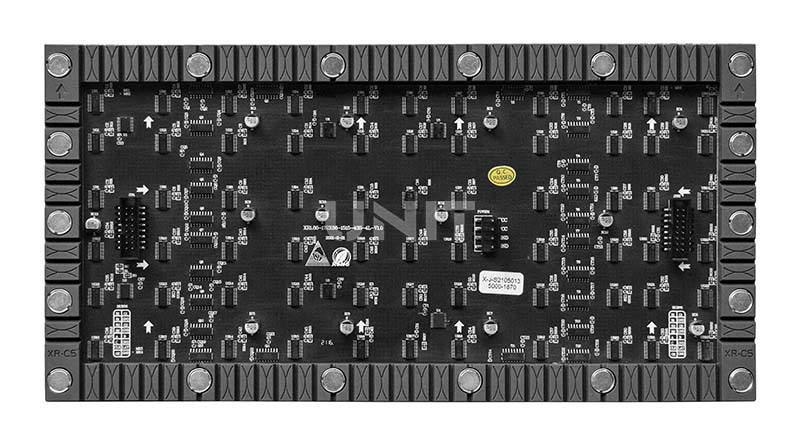

P1.86mm
320*160mm, 300*168mm
16:9 Design
Learn More
P1.875mm
240*120mm, High Flexibility, 128*64dots
Learn More
P2mm
240*120mm, 256*128mm, 320*160mm
Learn More
P2.5mm
240*120mm, 320*160mm, High Flexibility
Learn More
P3mm
240*120mm, 320*160mm, High Flexibility
Learn More
P4mm
240*120mm, 256*128mm, 320*160mm
Learn More
P4mm Outdoor Flexible LED Module
P4mm 320*160mm outdoor high brightness 3840Hz flexible LED display module for special shape projects
Learn More
outdoor
FLEXIBLE SOFT LED DISPLAY MODULE SPECIFICATION
LED Module
240*120mm Sereies
| Pixel Pitch | LED Type | Density（dot/㎡） | Module Pixel | Module Size（mm） | Driving Mode | Brightness(Nits) |
| 1.25mm | SMD1010 | 640000 | 192*96 | 240*120mm | 1/48Scan | 650 |
| 1.579mm | SMD1010-1212 | 409600 | 152*76 | 240*120mm | 1/38Scan | 650-700 |
| 1.667mm | SMD1010-1212 | 360000 | 144*72 | 240*120mm | 1/36Scan | 650-700 |
| 1.875mm | SMD1515 | 284444 | 128*64 | 240*120mm | 1/32Scan | 750 |
| 1.875mm | SMD1515 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 120*60 | 240*120mm | 1/30Scan | 750 |
| 2.5mm | SMD1515 | 160000 | 96*48 | 240*120mm | 1/24Scan | 750 |
| 3mm | SMD2121 | 111111 | 80*40 | 240*120mm | 1/20Scan | 900 |
| 4mm | SMD2121 | 62500 | 60*30 | 240*120mm | 1/15Scan | 850 |
LED Module
320*160mm Sereies
| Pixel Pitch | LED Type | Density（dot/㎡） | Module Pixel | Module Size（mm） | Driving Mode | Brightness(Nits) |
| 1.86mm | SMD1515 | 288906 | 172*86 | 320*160mm | 1/43Scan | 700-750 |
| 2mm | SMD1515 | 250000 | 160*80 | 320*160mm | 1/40Scan | 700-750 |
| 2.5mm | SMD1515 | 160000 | 128*64 | 320*160mm | 1/32Scan | 700-750 |
| 3mm | SMD1515 | 105625 | 104*52 | 320*160mm | 1/26Scan | 650-750 |
| 4mm | SMD2020 | 62500 | 80*40 | 320*160mm | 1/20Scan | 700-750 |
LED Module

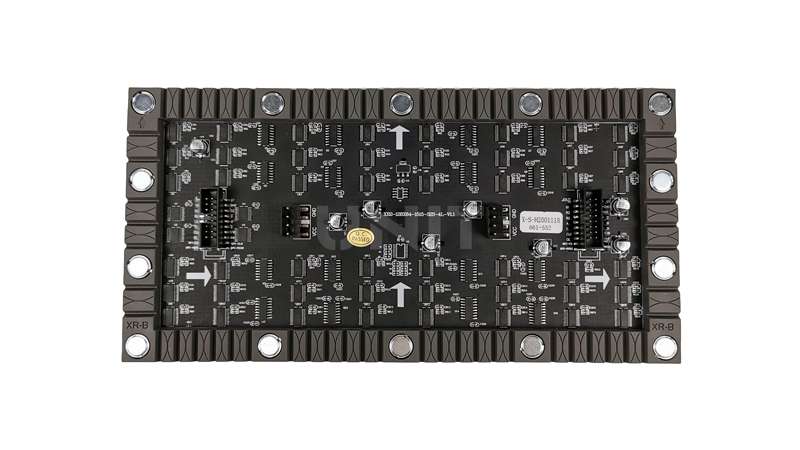

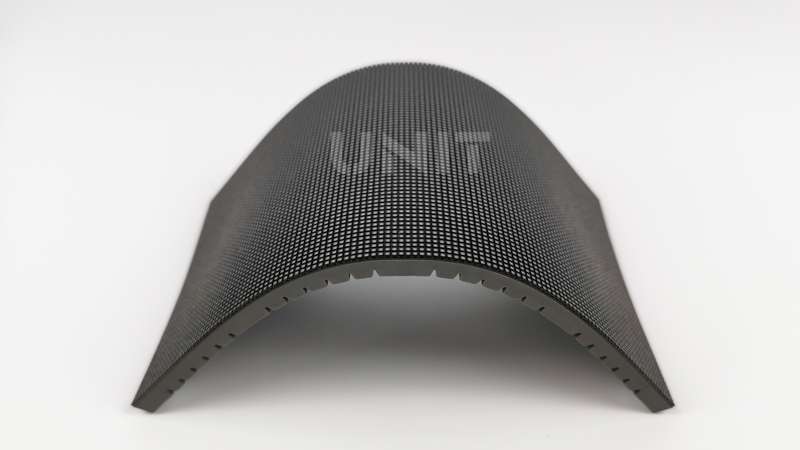

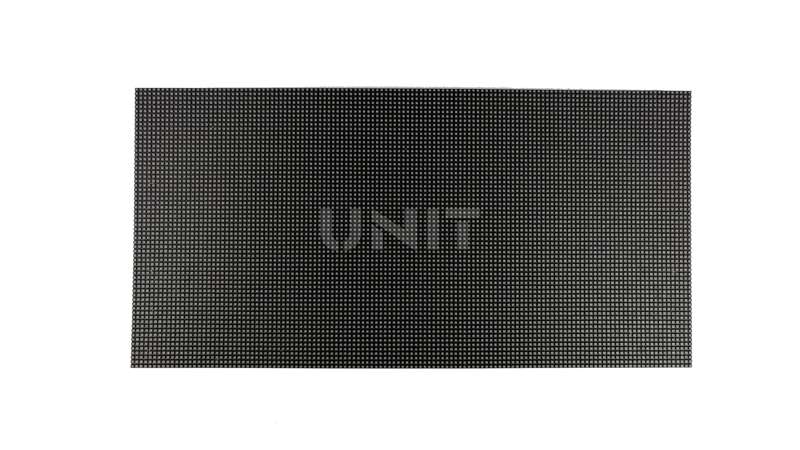

256*128mm Sereies
| Pixel Pitch | LED Type | Density（dot/㎡） | Module Pixel | Module Size（mm） | Driving Mode | Brightness(Nits) |
| 2mm | SMD1515 | 250000 | 128*64 | 256*128mm | 1/32Scan | 750-800 |
| 4mm | SMD 2020 | 62500 | 64*32 | 256*128mm | 1/16Scan | 800-850 |
Download Product Manual
FLEXIBLE LED SCREEN CASE GALLERY
Playlist
1:52
0:09
0:25
0:52
1:32
0:59
1:10
2:38
CONTACT US
Order soft flexible LED modules? Please feel free to contact us at any time, and we will respond to you within 24 hours.
Name
Phone
Message
Send
Flexible LED Module: Best for Creative LED Screen Solutions [2026 Guide]
Have you ever drawn attention to a cylindrical LED display in a shopping mall or hotel lobby? Have you ever marveled at the novel shape of those spherical, wavy displays? These creative LED displays are made with flexible LED module.
Flexible LED display modules break free from the rigid limitations of traditional LED panels. Unlike conventional LED modules that require flat and fixed mounting surfaces, soft LED modules can bend, curve, and conform to complex structures while maintaining high brightness, color accuracy, and stability. These advantages make it an excellent helper for creating curved LED displays.
If you want to make your event or venue more attractive, flexible LED modules will meet your needs. In this post, we will give you a comprehensive introduction to the relevant knowledge of the flexible LED display module.
Table of Contents
1. What Is Flexible LED Module?

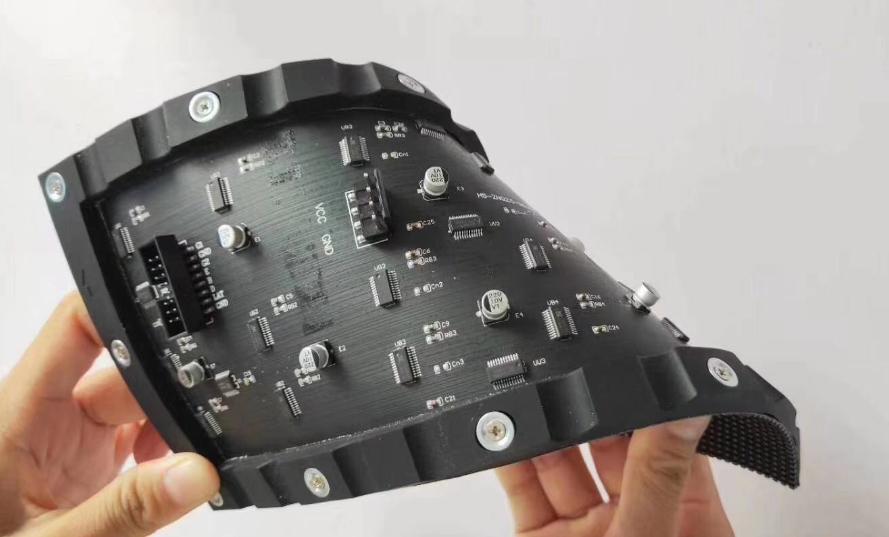

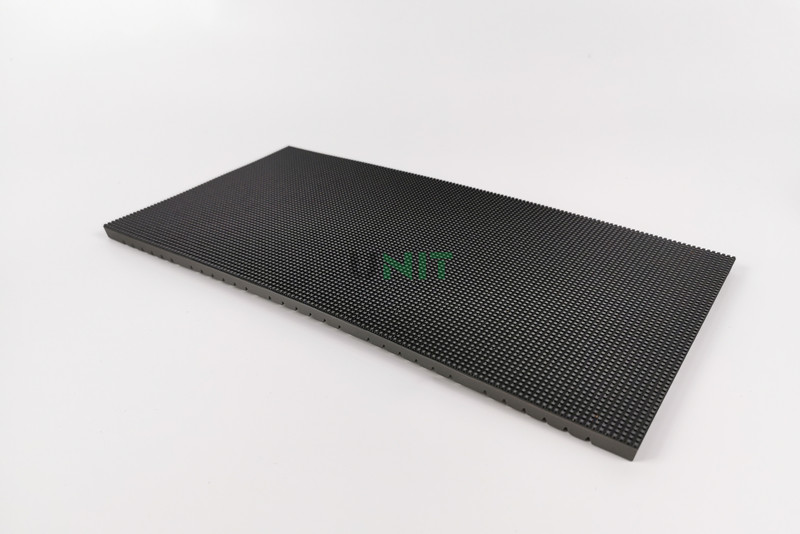

What is a flexible LED module? A flexible LED module, also known as a soft LED module, is an LED display module constructed on a soft, bendable PCB rather than a rigid substrate. This flexible structure allows the module to conform to curved, cylindrical, wave-shaped, or irregular surfaces while maintaining stable electrical performance.
The outstanding feature of the flexible LED panel module is that it has high flexibility and can be bent. Conventional LED modules use hard-board PCB boards and hard-shell masks. Therefore, the conventional LED display module panel has no flexibility.
A standard flexible LED display module typically includes:
High-quality SMD LEDs
Flexible PCB with controlled bending radius
Integrated power and data connectors
Magnetic or screw-based mounting system
Optional surface protection coating
Multiple flexible LED modules are assembled to form customized LED screens tailored to specific project requirements. Bendable modules can better adapt to different positions at different angles.
2. How Flexible LED Display Modules Work?
Flexible LED display modules are designed to deliver high-quality visuals while adapting to curved and creative structures. They operate on the same fundamental principles as standard LED displays, but with enhanced structural adaptability.
Here’s how flexible LED display modules work in practice:
Flexible Base Structure
Each module is built on a soft, bendable circuit board. This allows the module to follow curved, cylindrical, or irregular surfaces without damaging internal components.
Uniform LED Pixel Layout
High-quality LED chips are evenly arranged on the flexible module. This ensures consistent brightness, accurate colors, and clear images, even when the display is bent into shape.
Stable Signal and Power Transmission
Integrated connectors link each module together, allowing video signals and power to flow smoothly across the entire screen.
Standard Control System Compatibility
Flexible LED display modules work with mainstream LED control systems, making content management simple and reliable.
When assembled, multiple flexible LED display modules form a seamless flexible LED panel screen. This combination of flexibility, performance, and ease of control makes flexible LED modules an ideal solution for creative, architectural, and commercial LED display projects.
3. Key Features of Soft LED Module
If you want to buy an LED display for your venue to get more traffic, then you must not miss the soft LED display. Compared with traditional rigid LED panels, they offer several key features that make them ideal for creative and architectural display projects.
(1) Ultra-High Flexibility
Flexible LED modules can bend horizontally or vertically to fit curved, cylindrical, and irregular surfaces, allowing you to create custom LED screens shaped to your design needs.
(2) Lightweight & Ultra Thin Design
Built on a soft, bendable substrate, these modules are lightweight and slim, reducing the structural load and simplifying installation in tight spaces or on complex surfaces.
(3) Excellent Visual Performance
High refresh rates, vibrant colors, high contrast, and uniform brightness deliver smooth, clear visuals even on curved surfaces, ensuring an engaging audience experience.
(4) Seamless Assembly & High Quality Control
Precise module design ensures seamless splicing with minimal gaps, while rigorous aging tests ensure stable performance and reliability before shipment.
(5) Easy Installation & Maintenance
Magnetic or screw-based mounting and front-access service make installation and servicing fast and efficient, reducing time and labor costs.
(6) Variety of Pixel Options
Multiple pixel pitch choices (from fine to standard) and module sizes support different viewing distances and application needs.
With these features, flexible LED modules provide a reliable and creative display solution for retail spaces, exhibitions, corporate environments, and customized LED display projects.
4. Types of Flexible LED Modules
Flexible LED modules are available in different types to meet various design, installation, and application requirements. Choosing the right type depends on the display shape, viewing distance, and project environment.

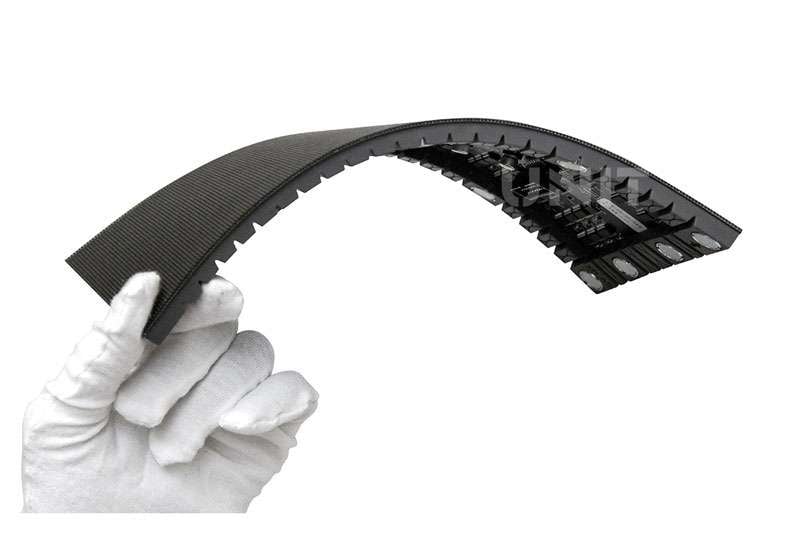

① Indoor Flexible LED Module
Indoor flexible LED modules are designed for controlled environments such as shopping malls, exhibition halls, corporate lobbies, and retail spaces. They typically feature fine pixel pitch, high refresh rate, and excellent color accuracy.
With a thin and light design, flexible modules, and bright colors, indoor flexible LED display modules are wonderful for making various special-shaped LED displays, such as wave-shaped LED displays, spherical LED displays, and tunnel LED displays.
High Flexibility
Horizontal or vertical bending is supported. The ultra-high plasticity and flexibility allow it to present a perfect display in complex installation environments.
Excellent Visual Performance
It has high brightness, high contrast, and a high refresh rate. Good color uniformity brings a better visual experience.
Wide Application Field
With the flexible LED display screen, you can get a variety of creative LED displays with different shapes. Such as a large led arc screen, Mobius ring, imitation screen, etc.
Ultra Light and Thin
UNIT soft flexible led modules have a lightweight design. Ultra-thin led display modules can reduce transportation costs and labor costs.
Simple Maintenance
There are magnets on the back of the Soft module. The magnetic suction module is convenient for installation and post-maintenance.
A Variety of Packaging Methods
We offer a variety of packaging methods: carton, wooden, and flight cases. A strict packaging process ensures that you receive the mod in good condition.
High-definition display, modular design, constant current static drive, bright true color output, clear picture without jitter. UNIT LED soft modules became the first choice for making special-shaped LED displays.

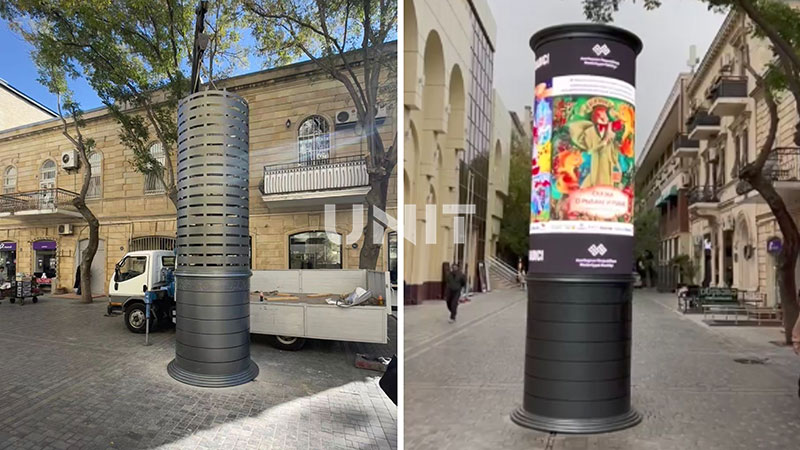

② Outdoor Flexible LED Module
Want your outdoor venue to easily attract more people’s attention? Want to use creative LED displays to bring more popularity to large squares or shopping malls? The high protective performance of outdoor flexible LED modules allows creative displays to move from indoor to outdoor scenes!
Outdoor LED soft modules are widely used in building facade decoration, billboards, stage backgrounds, landscape lighting, and other fields because of their flexibility, lightness, and high waterproof performance.
Its main advantages include:
(1) Flexibility: adapts to the needs of various curved surfaces and irregular shapes, enabling more diverse design effects.
(2) Lightweight: Compared with traditional hard LED modules, soft modules are lighter and easier to install, reducing the requirements for support structures.
(3) High waterproof level: The LED soft module adopts a special waterproof design and has good waterproof performance. It can cope with the changeable outdoor weather and ensure the normal operation of the creative LED screen.
(4) Energy saving and environmental protection: The LED soft module uses LED as the light source, which has the characteristics of energy saving and environmental protection, and is in line with the development trend of modern green lighting.
(5) Easy maintenance: Compared with traditional light boxes or hard LED modules, soft modules are easier to maintain and replace, reducing maintenance costs.
In general, outdoor LED soft modules have good adaptability and flexibility and can meet various outdoor creative design needs.
UNIT LED display provides high-quality outdoor waterproof soft flexible LED modules to help your outdoor creative display projects. For example:
P4mm Outdoor Flexible LED Module
P4mm 320*160mm outdoor high brightness 3840Hz flexible LED display module for special shape projects
Learn More
outdoor
③ GOB Flexible LED Module
GOB (Glue on Board) flexible LED modules feature a protective glue layer on the LED surface.
GOB soft LED module combines the characteristics of GOB and soft modules. This design improves resistance to moisture, dust, and physical impact while enhancing long-term reliability. It is suitable for outdoor use under various harsh weather conditions.
④ Customized Flexible LED Module
Customized flexible LED modules can be tailored in size, pixel pitch, bending radius, and mounting method to meet complex architectural or creative design requirements.
Contact to Custom Solution
5. LED Flexible Screen vs Normal LED Screen
LED flexible screen and normal LED screen are two different types of LED display screen, they have some differences in structure, application and characteristics. So what is the specific difference between LED flexible screen and normal LED screen, which one is more durable?
(1) Difference between LED Flexible Screen and Normal LED Screen
① Structure:
LED flexible screen uses flexible substrate as the base, can be bent and folded, the screen can present various shapes and sizes, such as curved, cylindrical and so on.
While the normal LED screen uses a rigid substrate, can not be bent, and generally can only display a flat rectangular screen.

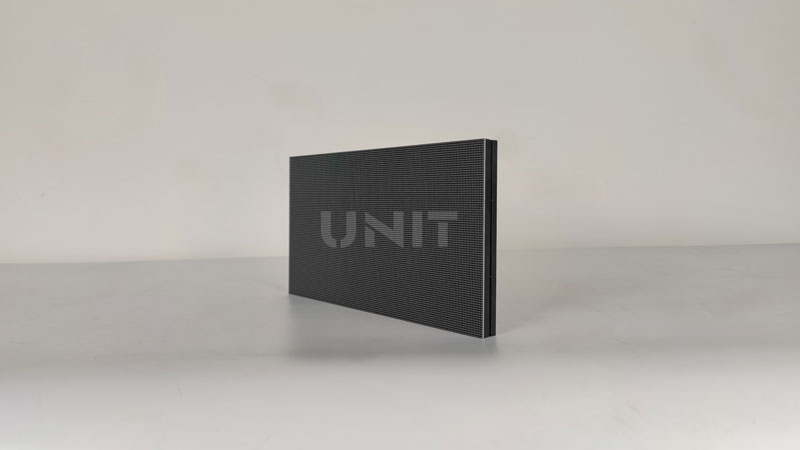

Normal LED Screen Panel
Flexible LED Screen Panel
② Installation:
Flexible screen can be more conveniently installed on curved or irregular surfaces, suitable for curved stages, cylindrical buildings, etc.
The normal LED display screen is suitable for flat installation, such as indoor and outdoor billboards, and large screen displays.
③ Reliability:
A flexible screen relative to the normal screen, more resistant to shock, pressure, impact resistance, can to a certain extent reduce the damage caused by external forces. The normal screen is relatively fragile and requires careful use and maintenance.
④ Viewing angle:
A flexible screen usually has a larger viewing angle, you can watch the screen content in a wider range of angles, while the viewing angle of the normal screen is relatively small.
(2) Comparison Table
|
Feature |
LED Flexible Screen |
Normal LED Screen |
|
Display Shape |
Curved, cylindrical, custom shapes |
Flat, rectangular |
|
Module Structure |
Soft, flexible PCB |
Rigid PCB or cabinet |
|
Design Flexibility |
Very high |
Limited |
|
Weight |
Lightweight |
Heavier |
|
Installation |
Adapts to complex surfaces |
Requires flat structure |
|
Typical Applications |
Creative displays, columns, curved walls |
Standard video walls, billboards |
|
Cost Level |
Higher for customized designs |
More cost-effective |
|
Visual Performance |
Excellent on curved surfaces |
Excellent on flat surfaces |
(3) Flexible LED screen vs Normal LED Screen: Which Is More Durable?
Normal LED screen connection is more reliable, and not prone to leakage and other problems, if a long time not to move or not go to different forms of display, a rigid LED screen can be used for a longer time. Of course, when choosing a product, not only need to consider the life, but also to consider the cost-effective.
A flexible LED screen is a more cost-effective advantage. On the occasion of the choice is not particularly high requirements, flexible LED display price advantage is still obvious. The same area size, LED flexible screen price than the normal LED display screen expensive by about 10% ~ 30%. But for the pursuit of the effect of the business, the flexible LED screen is not an unattainable brand.
To sum up, normal LED display and flexible LED screen have their own characteristics. But in terms of pixel density, brightness and colour performance, there is no obvious difference between the two, which should be decided according to the specific application scenarios and needs. LED flexible screens are the ideal choice for projects that require creative freedom and unique visual impact. In contrast, normal LED screens remain a practical solution for traditional flat display applications.
If it is a commercial plaza, building facade advertising and other places of traditional use, it is recommended to choose the traditional normal LED display. If the stage design, science and technology museum exhibition hall and other requirements of beautiful personalized display, then choose LED flexible screen may be better.
6. Amazing Flexible LED Modules Solutions
What can soft modules do for you? Undoubtedly, it can be a unique sight to attract more foot traffic to your venue. UNIT LED offers a variety of Amazing Flexible led module solutions.

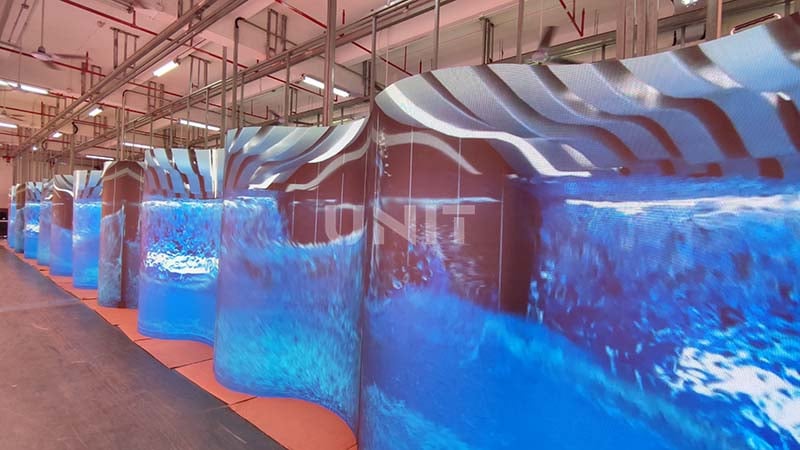

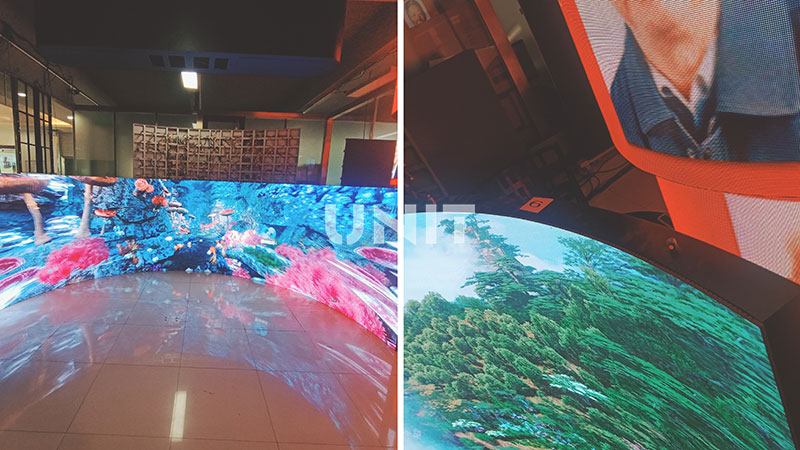

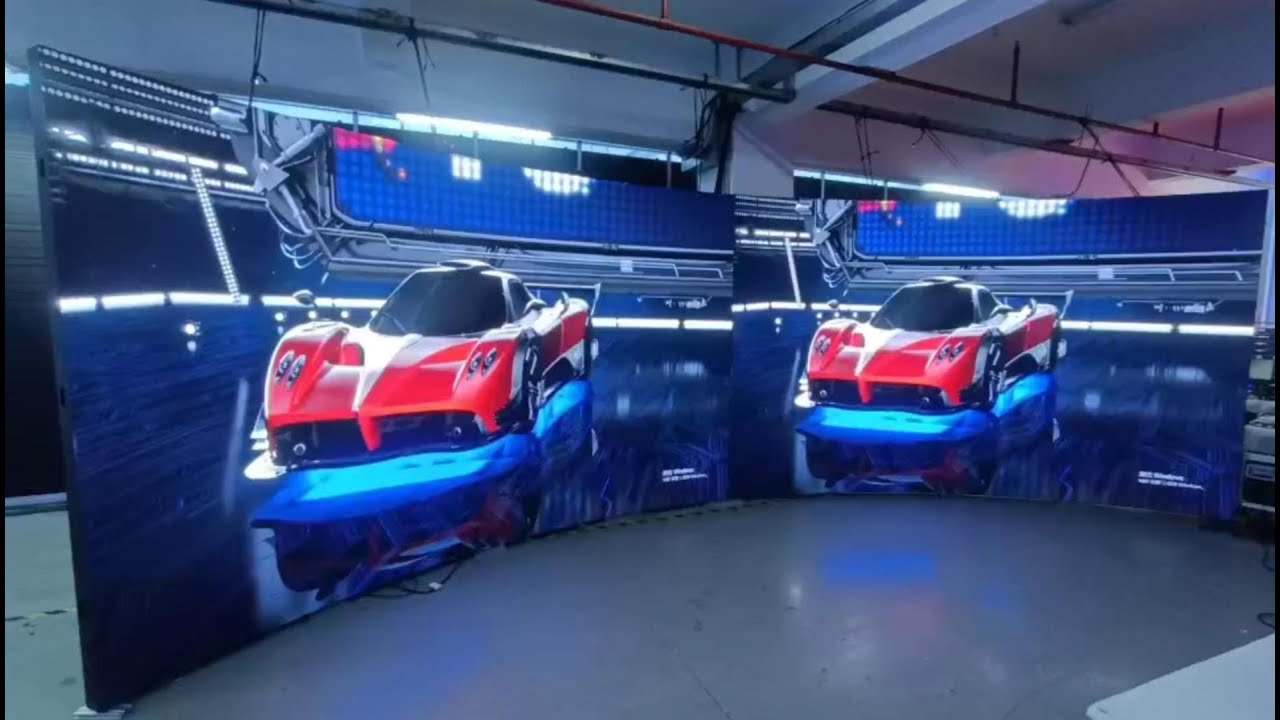

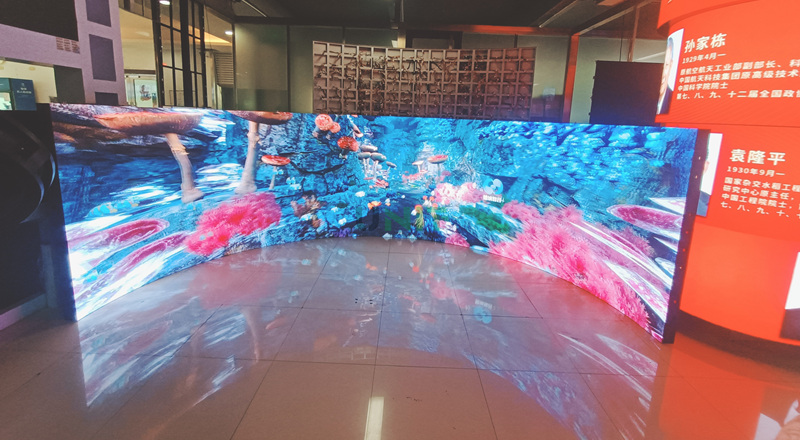

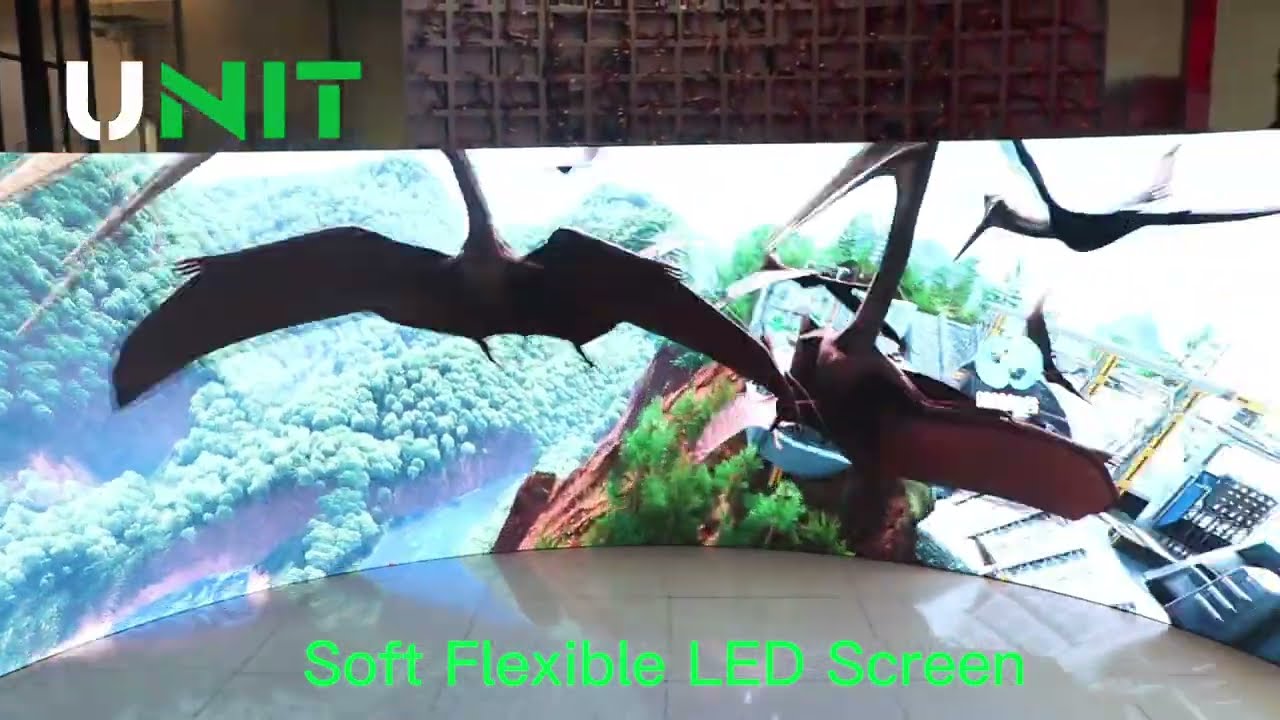

① Curved LED Display
Curved LED displays are designed with flexible panel structures to form concave, convex, or even wave-like shapes.
These displays break away from traditional flat screens, enabling creative installations that fit architectural curves or stage designs.
Whether installed in shopping malls, theaters, or live event backdrops, curved LED screens deliver a more immersive visual experience and offer greater design freedom for impactful presentations.
These curved panels can be combined with modular LED screens for a smooth transition from flat at corners. UNIT LED has rich experience in the LED display industry, welcome to consult.
② Tunnel LED Display
LED tunnel displays are immersive installations that cover the ceiling and sides of a walkway or enclosed space with LED panels, creating a tunnel-like visual experience.
LED tunnel designs offer a memorable experience that amplifies brand storytelling and audience interaction.
The LED time tunnel display screen includes an inner spherical 180° display screen and a 360° cylindrical inner arc display screen. It can realize human-screen interaction through VR technology and interactive devices. LED time tunnel display + interactive LED floor tile screen create an immersive visual space. It is mostly used for the entrance of major scenic spots and playgrounds.

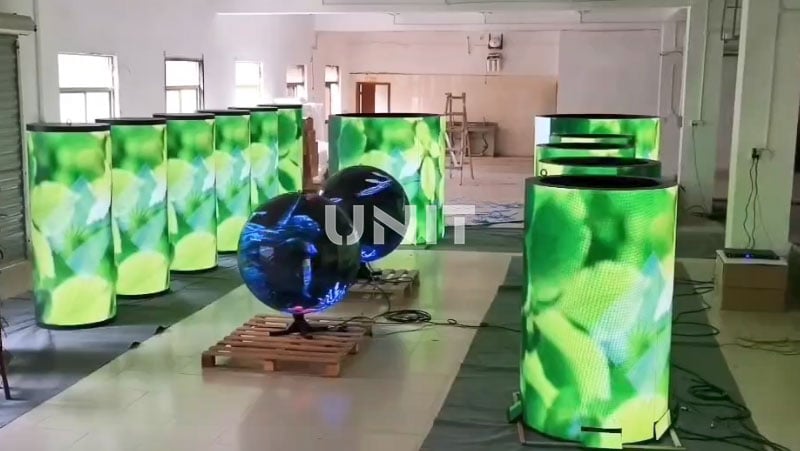

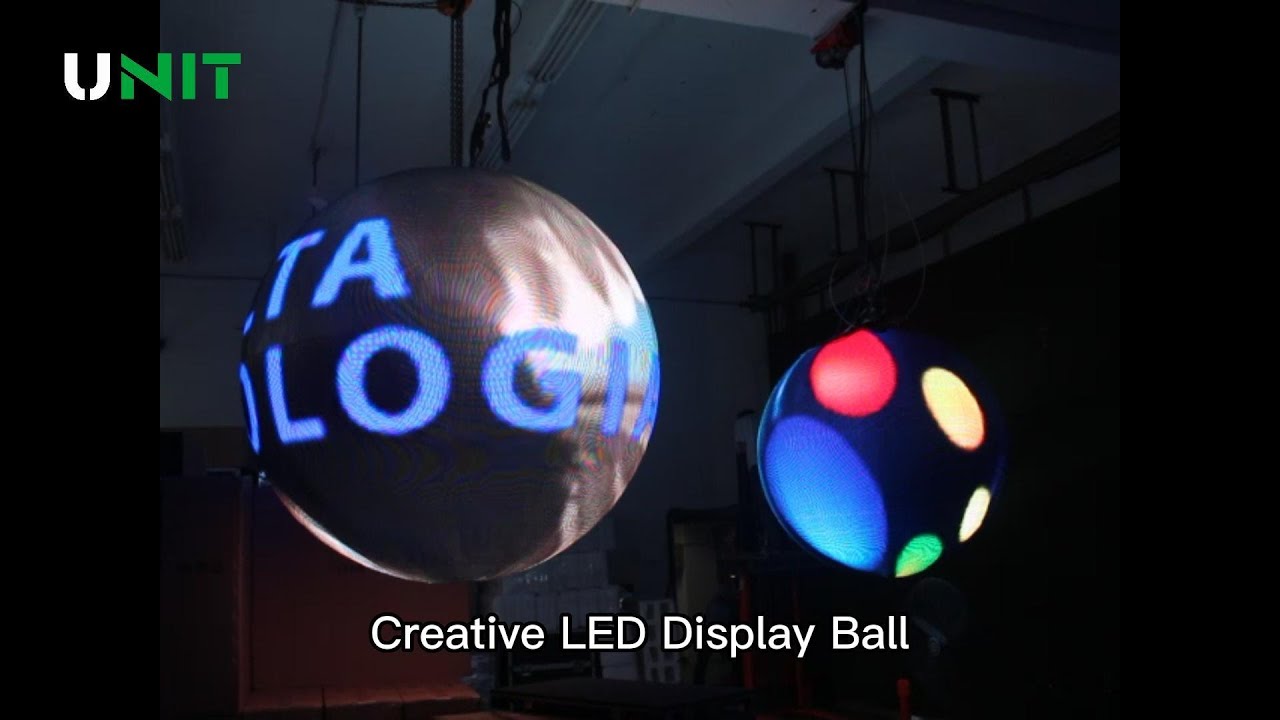

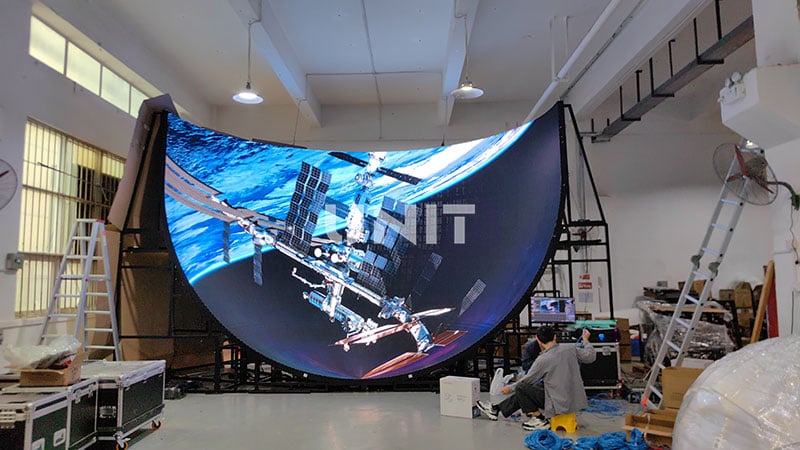

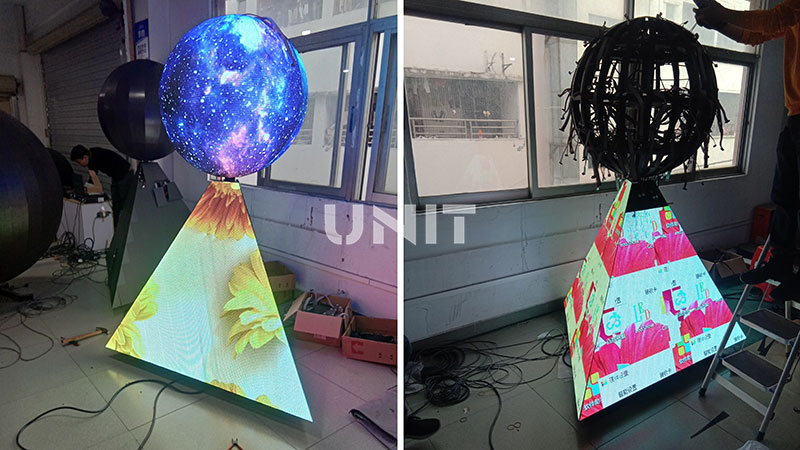

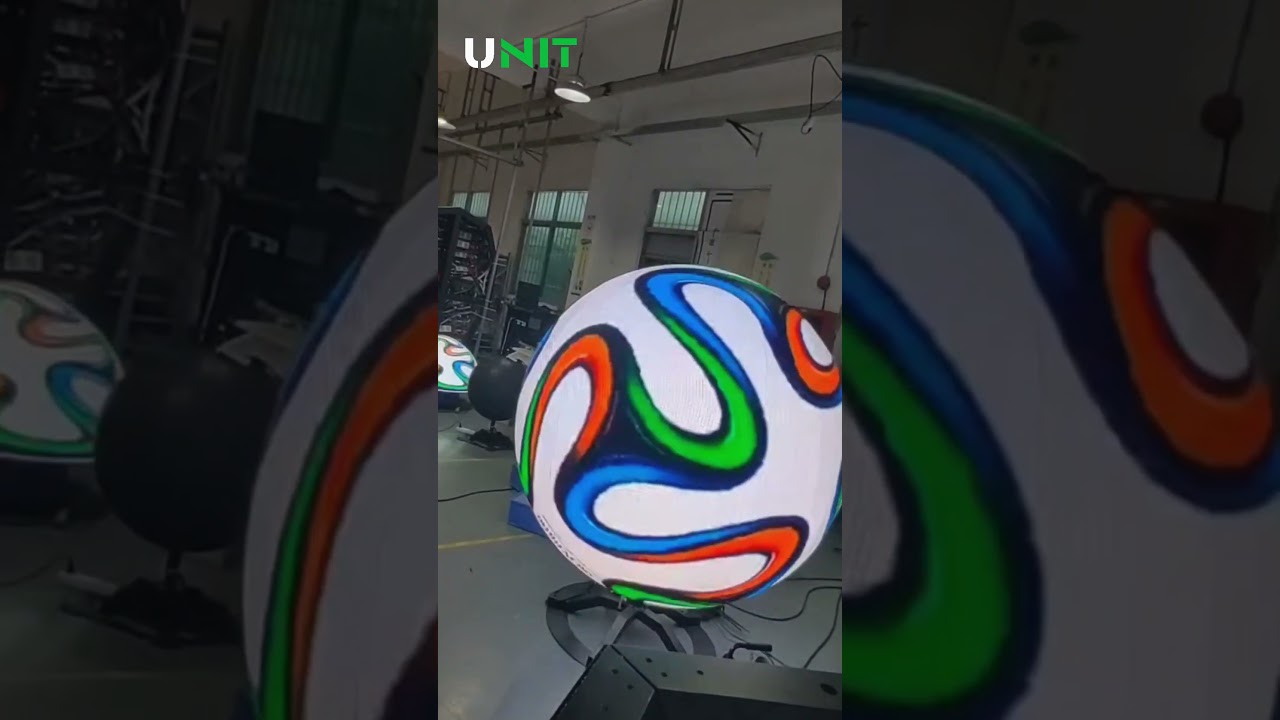

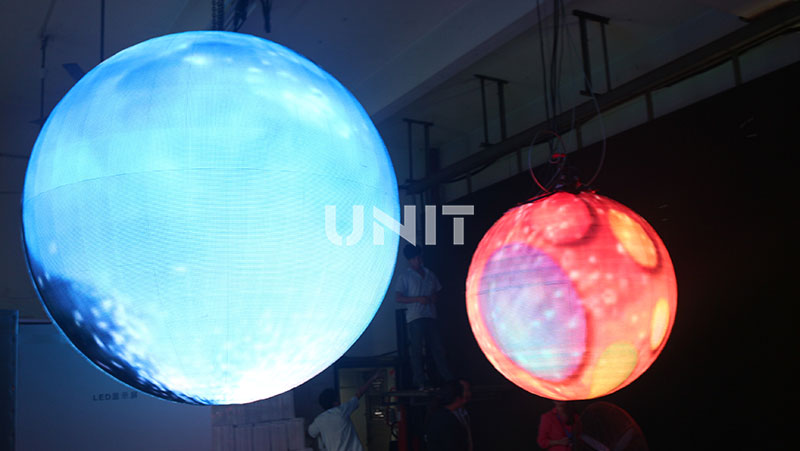

③ LED Sphere Display
The LED sphere display is a fully spherical screen that offers a 360-degree viewing experience.
Its eye-catching design and immersive visual performance make it ideal for museums, science centers, showrooms, and event venues.
The spherical shape allows seamless playback of dynamic content from all angles, creating a futuristic and highly engaging display solution that captivates audiences instantly.

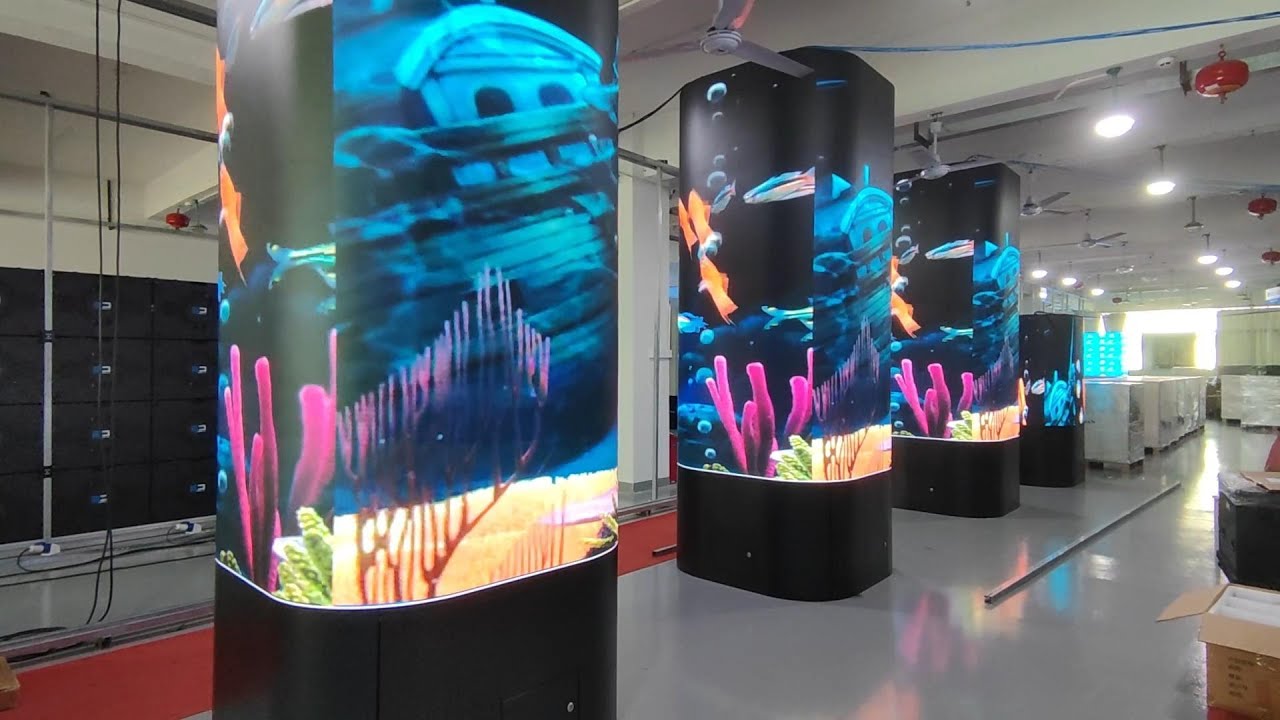

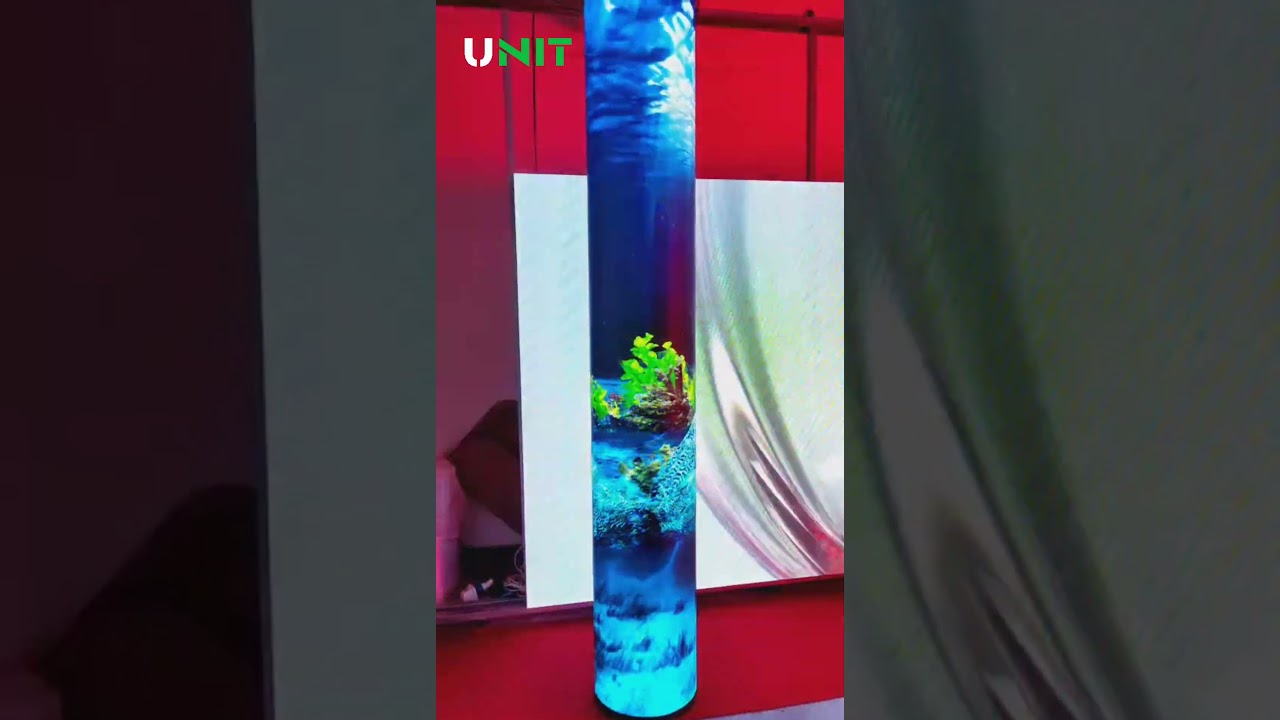

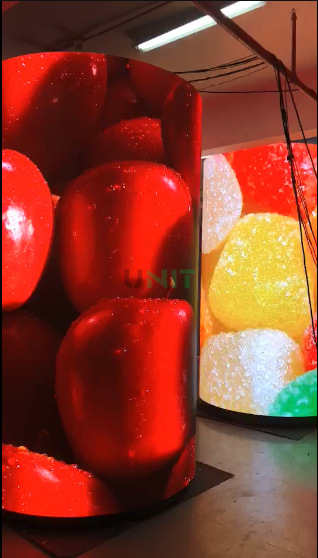

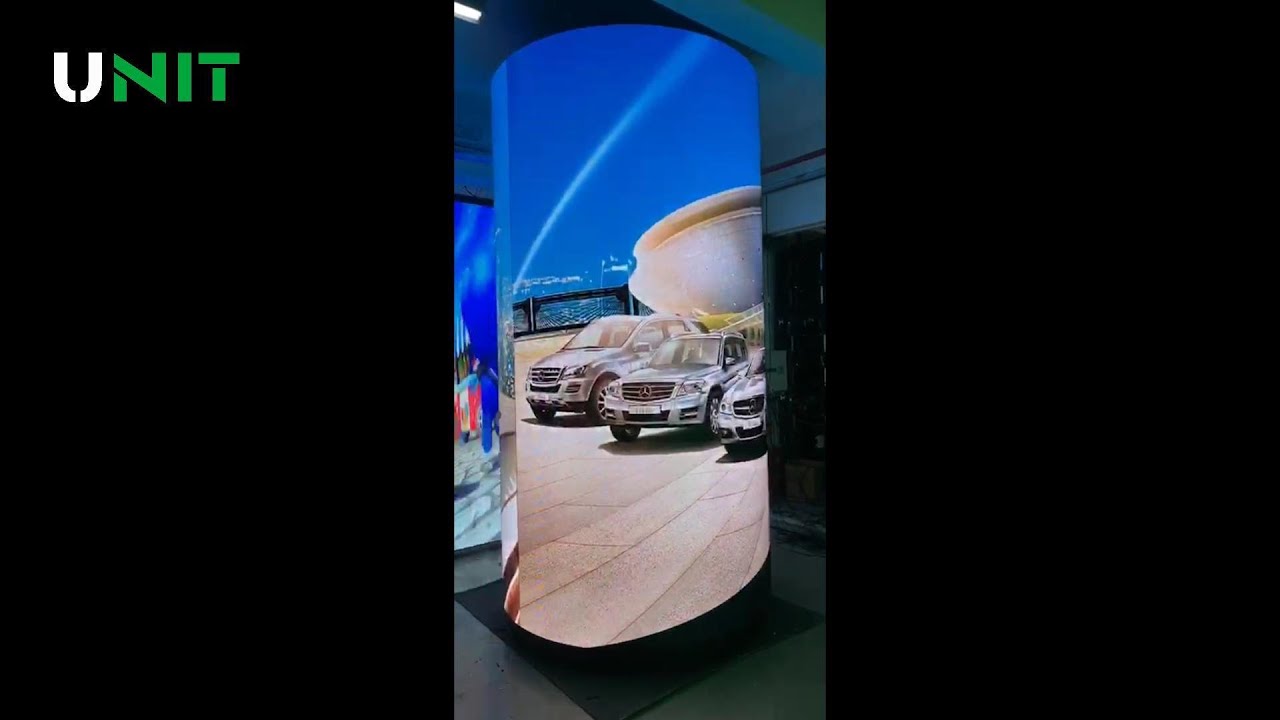

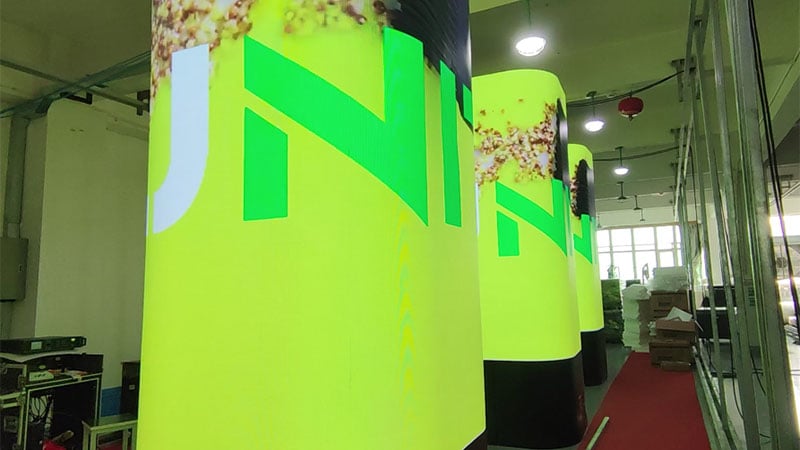

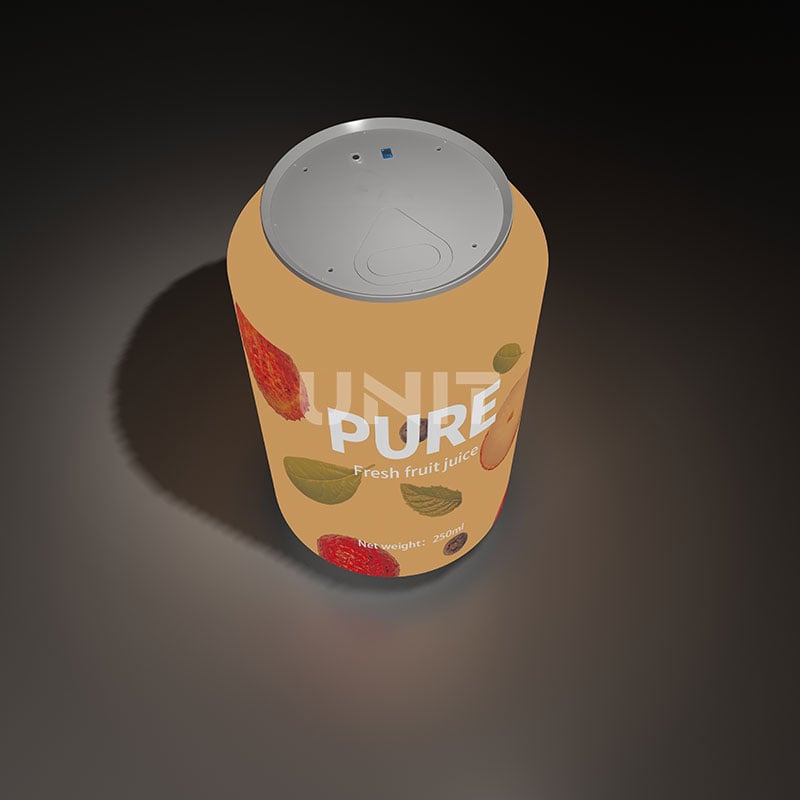

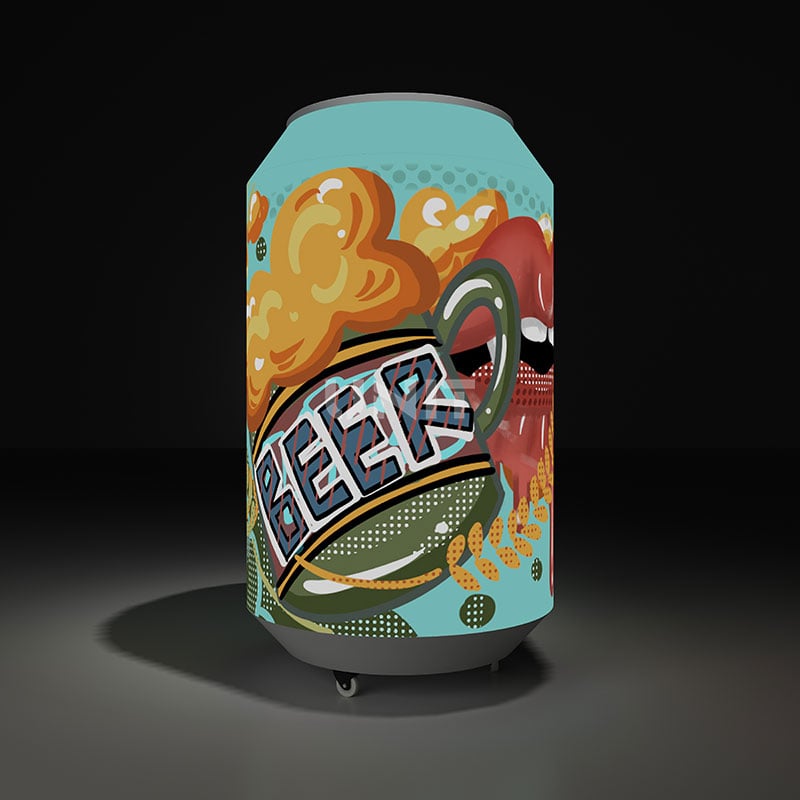

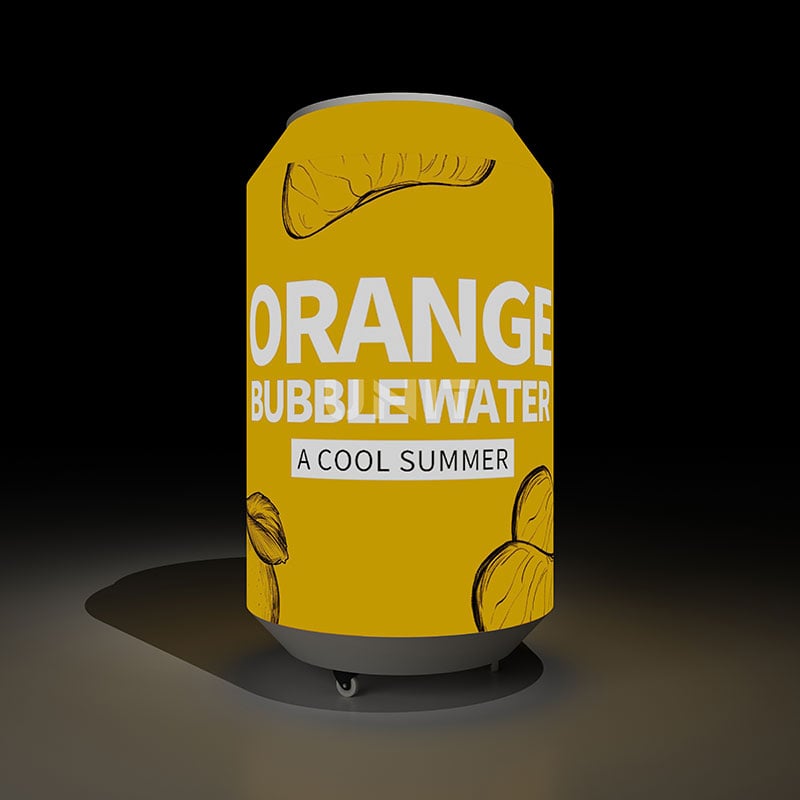

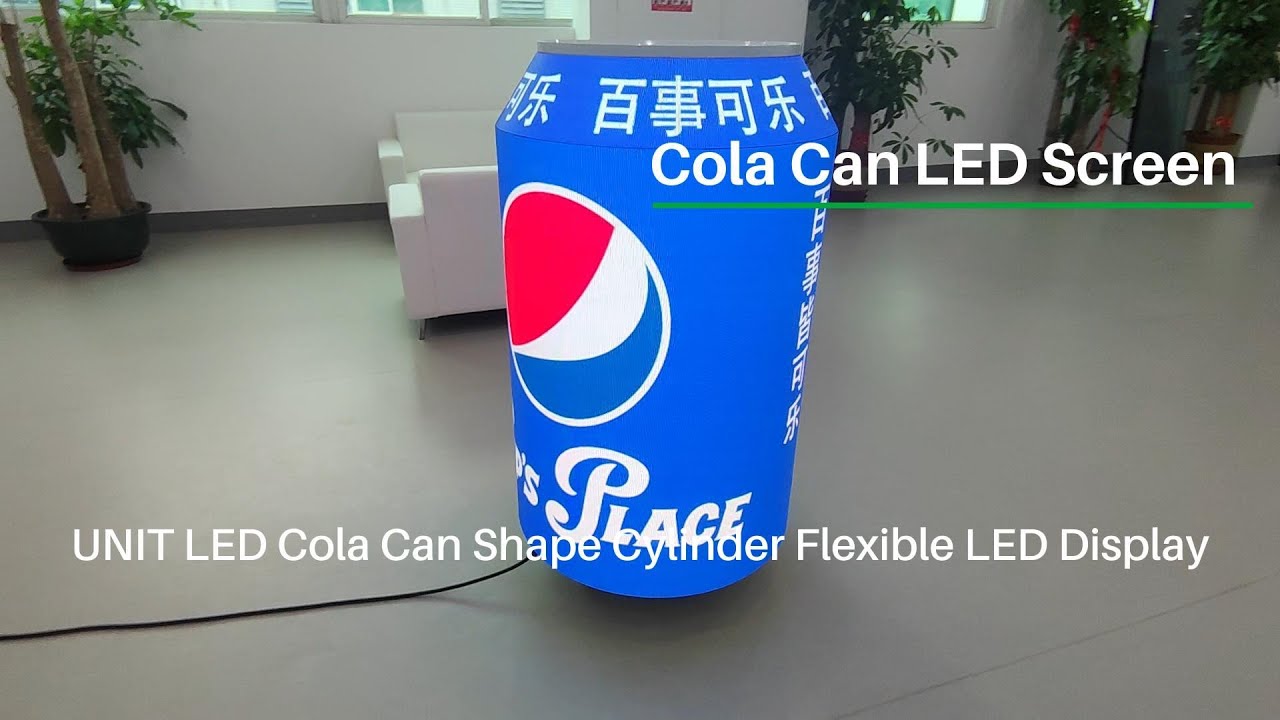

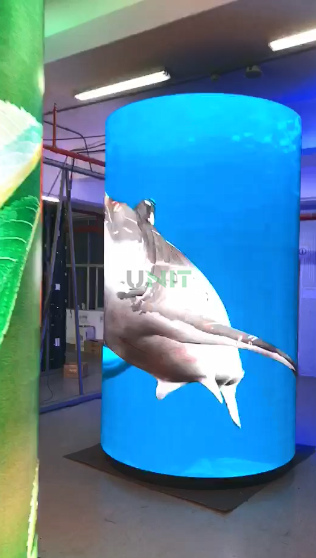

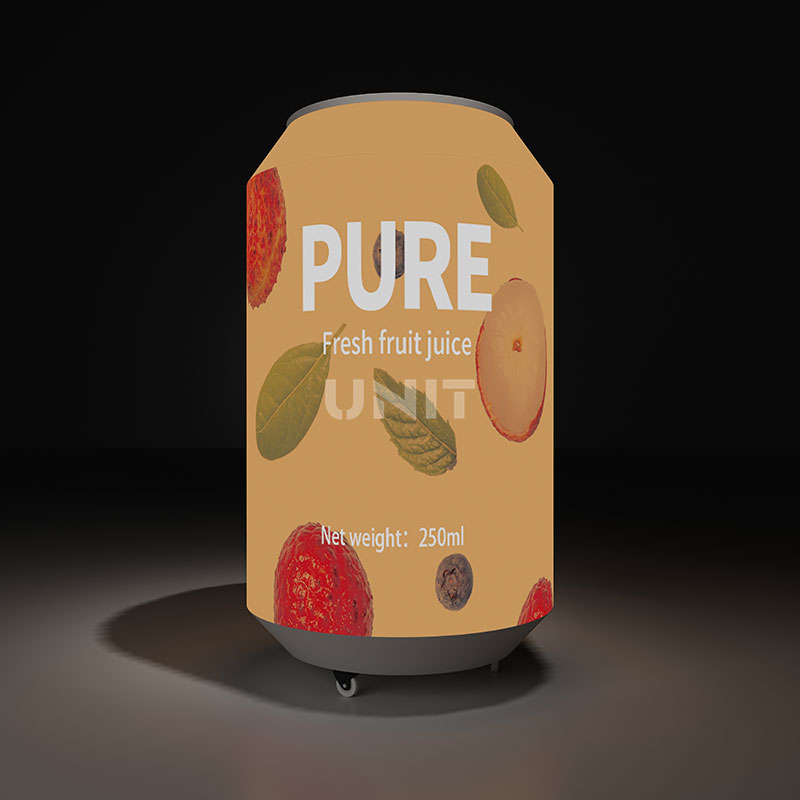

④ Cylindrical LED Display
In some hotels, bars, and subway passages, there will be some cylindrical LED displays. They can play some special videos. It can not only improve the decoration grade but also achieve the purpose of advertising.

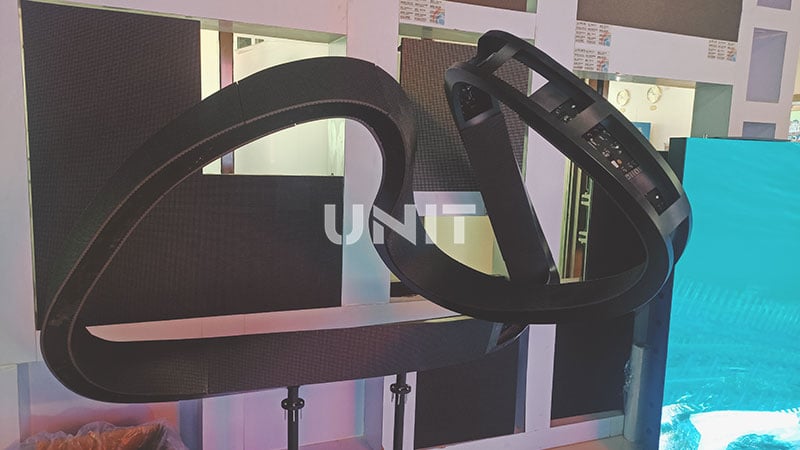

⑤ Mobius Strip LED Display
A Möbius ring has no beginning and end planes. UNIT LED provides a unique Mobius strip LED display solution. It is both a led display and a work of art.
Mobius strip LED display is a solution for personalized reality needs. The unique shape can quickly attract people’s attention.

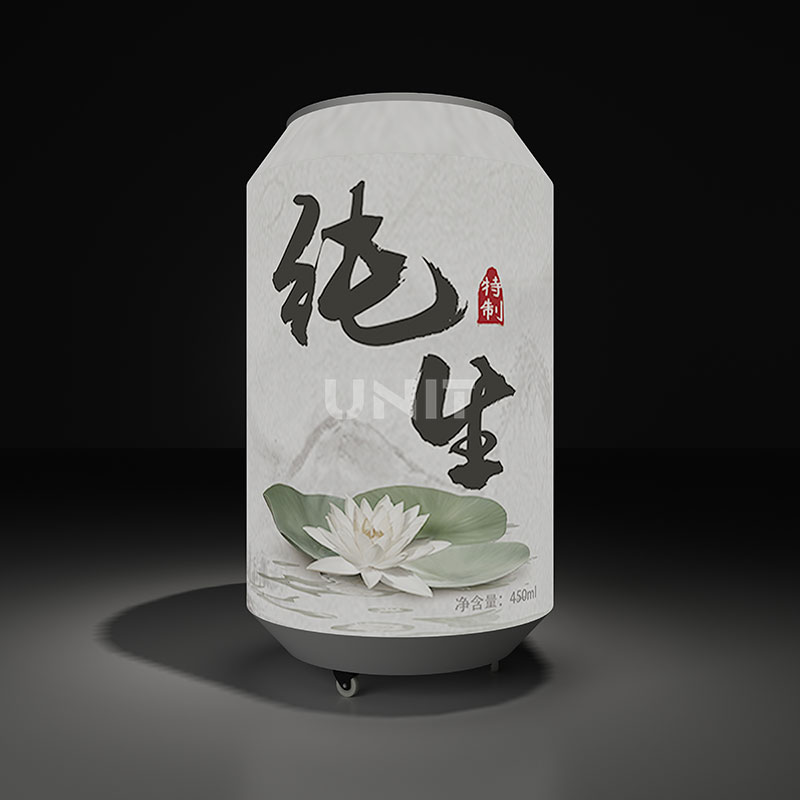

⑥ Other Creative LED Display
Flexible LED displays use ultra-thin, bendable modules that can conform to a variety of non-traditional shapes, including columns, arches, and custom artistic installations.
With a lightweight and slim structure, these displays are easy to install and perfect for creative environments like luxury retail, art exhibitions, and high-end interiors. Their adaptability helps bring bold, imaginative concepts to life through vibrant and fluid visuals.

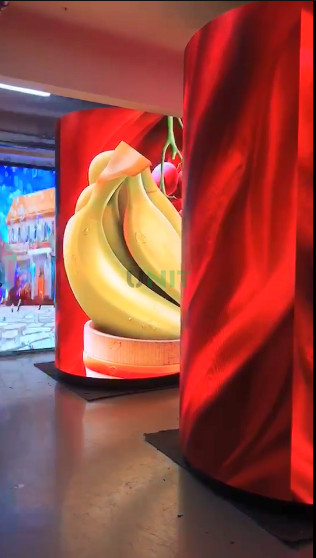

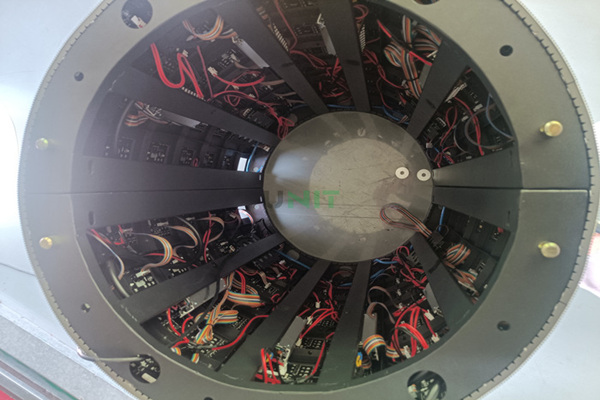

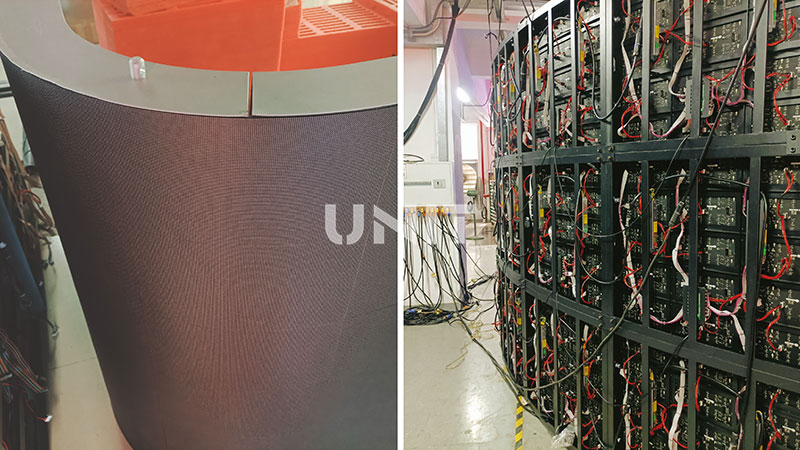

7. How to Make a Cylinder LED Display Screen?
Cylindrical LED display can meet the display of 390-degree complete image content without dead angle. It is the new favorite of many media exhibition venues such as exhibition venues, shopping malls, stage bars, casino game halls, and other public places.
(1) Installation Environment
For different installation environments, we can recommend different types of led modules to you. In bars, restaurants, shopping malls, and other places with large traffic, GOB LED modules with ultra-high waterproof and anti-collision capabilities are a good choice.
Indoor and outdoor Outdoor flexible led modules have different waterproof levels. Prices vary.
(2) Module Specifications
The pixel pitch affects the viewing distance of the cylindrical screen. And the price is different. If you don’t know how to be sure, you can consult a professional.
|
Common pixel pitch for outdoor full color led display |
P3.91, P4, P5, P6, P8 |
|
Common pixel pitch for indoor full-color led display |
P1.25、P1.667、P1.875、P2、P2.5、P3 |
The size of the module affects the resolution of the display. If you have not determined the exact size of the cylindrical screen, then the size of the module is very important.
(3) LED Display Area
You can provide the information on the cylindrical screen, and then we will provide you a detailed solution and quotation. If you want to make a cylindrical screen or other creative led screen and you are not sure where to start, please contact us.

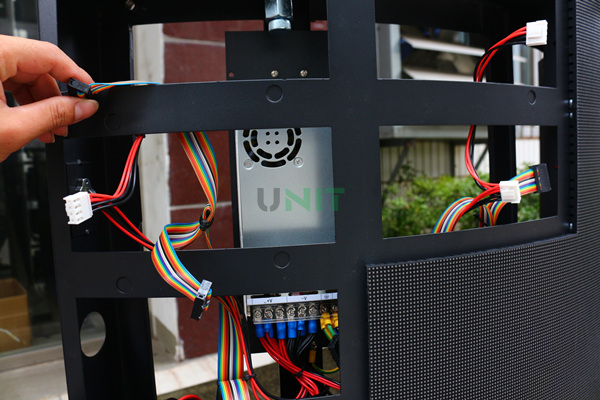

(4) Making a Fixed Steel Structure
The soft module adopts magnetic pre-maintenance and installation and needs to make a fixed steel structure.
So what should be paid attention to before installation?
① Check whether the structure is firm.
② Check whether the width and height of the steel structure are accurate.
③ Ensure that the size of the structure is within the controllable error range. The accuracy of the dimensions of the steel structure will affect the integrity of the screen.
④ Whether the fixation between the steel structure and the wall is firm. It ensures the safety of the screen.
8. Flexible LED Module Price
The price of a flexible LED module can vary significantly depending on several key factors. Unlike standard LED panels, flexible LED display modules are often customized to suit specific design requirements.
As a result, pricing is not a one-size-fits-all figure; it depends on the technical specifications, project needs, and environmental conditions.
Key Factors Affect Flexible LED Module Price
① Pixel Pitch
Smaller pixel pitches (e.g., P1.5, P1.8) require more LEDs per square meter, resulting in higher image quality and cost.
② Module Size and Resolution
Larger module dimensions and higher total resolution increase material and manufacturing complexity.
③ Brightness and Application Environment
Indoor flexible LED modules and outdoor/semi-outdoor versions with higher brightness levels may have different pricing due to the use of enhanced components.
④ Protection Level (e.g., GOB / Water-Resistant Coating)
Extra protective features, such as GOB (Glue On Board) or weather-resistant coatings can affect cost and long-term reliability.
⑤ Customization Requirements
Custom pixel pitches, special shapes, and unique mounting systems tailored to specific architectural designs will influence the final price.
Flexible LED modules are often engineered to meet unique project specifications. For example, a curved indoor LED installation may have very different requirements from a semi-outdoor cylindrical display, and each will affect the overall cost.
UNIT LED specialize in custom LED display solutions tailored to your exact requirements. Our team will respond with a detailed, project-specific quotation and professional recommendations. Contact us today to get your personalized price and technical guidance.
Request a Quote Now
9. Boost Your Business with Flexible LED Display
Want to get more business value? One of the best investment tools is an led display. Moving videos with bright colors will always attract more customers’ attention than still pictures or text.
You might consider investing flexible LED video wall. It can use the full visual advantage of catching people’s eye. People use flexible led displays to get the message that you want to convey.
(1) Realize creative design
With the increasing demand for personalized led screens, creative led screens are gaining popularity in the led market. flexible led display module gives you a platform to show your ideas.
The UNIT’s LED display provides the best image results. Besides, you can give full play to your creativity. We offer a variety of modules with sizes and spacing.
(2) Good advertising effect
The soft flexible led display comes in handy when you want to use the displays to attract new customers for your business. It’s a great advertising vehicle. Because it has a memorable shape and excellent visual presentation.
(3) Cost friendly
Before starting an investment, the enterprise decision-maker must first consider whether the cost is proportional to the benefit. Due to the continuous progress of led display technology and the gradual maturity of the soft module process, their prices are generally more friendly.
When used correctly, a high-quality led display will result in great investment reporting for your business.
(4) Trend of intelligence
The flexible screen is suitable for all kinds of artistic modeling. With the development of naked eye 3D, VR/AR, human-screen interaction, and other emerging technologies, Flexible led display is gradually becoming intelligent. There is no denying that the development of soft modules has become an irresistible trend.
10. China Flexible LED Module Manufacturer Recommended
UNIT LED is a professional LED display and LED module supplier. UNIT high-quality indoor flexible led screen panels have good display performance and a wide range of applications.
Choose UNIT indoor/outdoor flexible LED modules, and you will get unique creative LED screen solutions.
High-quality LED Chips
UNIT indoor/outdoor flexible led display modules use high-quality led chips. Examples include Nationstar and Kinglight. Well-known led light-emitting chips to guarantee excellent color reduction and a high refresh rate.
SMD 3-in-1 and GOB Technology
The Indoor soft SMD LED module adopts SMD1010, SMD1212, and SMD1515 lamp beads to ensure the high reliability of the module. GOB technology can be applied to the led soft module. This feature can perfectly protect soft LEDs as soft LED panels don’t have masks.
Strict Module Aging
We have perfect aging machines and professional aging workshops. Professional burn-in testing helps us identify problems and resolve them before shipping. The strict testing process only provides you with high-quality products.
Excellent Flexibility
The flexible LED display panel adopts highly magnetic magnets, which makes front service available for the flexible LED display. With its high flexibility, it can form special-shaped led displays as you like.
11. Conclusion
In this post, we introduce some knowledge of soft flexible LED module panels. A large flexible LED screen will make your places more eye-catching. As one of the best flexible led module factories, UNIT LED is ready to provide you with a better soft led screen price!
Name
Phone
Message
Send
