LED P2.5 Indoor Module 160x80mm
160x80mm LED P2.5 Indoor Module
Pixel Pitch: 2.5mm
LED Type: SMD2121
Module Size: 160*80 mm
Module Resolution: 64*32
In Stock
Description
P2.5mm indoor led display module SMD LED Screen Panel
160x80mm LED P2.5 indoor module with 64*32 dots
FEATURES:
- LED Module Including the Data & Power Cables.
- Epistar LEDs, 2 Years Warranty, Ship in 24 hours, Free Online Support.
- High Contrast for LED display.
- Driving LEDs with a constant current.
High-quality SMD
Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level
Strict Aging Testing
UNIT provides72 hours aging test and 24 hours video aging to ensure the LED display moudles have best stability.
|
Model |
P2.5-64×32 |
|
Resolution |
64(H)×32(V) |
|
Pitch |
2.5mm |
|
LED Arrangement |
SMD2121 |
|
Driver Mode |
Dynamic 1/16 Duty constant current |
|
Size |
160mm×80mm |
|
Mask |
Pure Black mask-high contrast screen |
|
3. Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥1000cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
2.5m-25m |
|
Gray Scale |
8bits input, correction with 16bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
700 W/m2 |
|
Average Power Consumption |
300 W/m2 |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60Hz |
|
Screen Refresh Frequency |
480-960Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
|
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP40 |
|
Out of Control Pixel Rate |
0.01% |
More Details

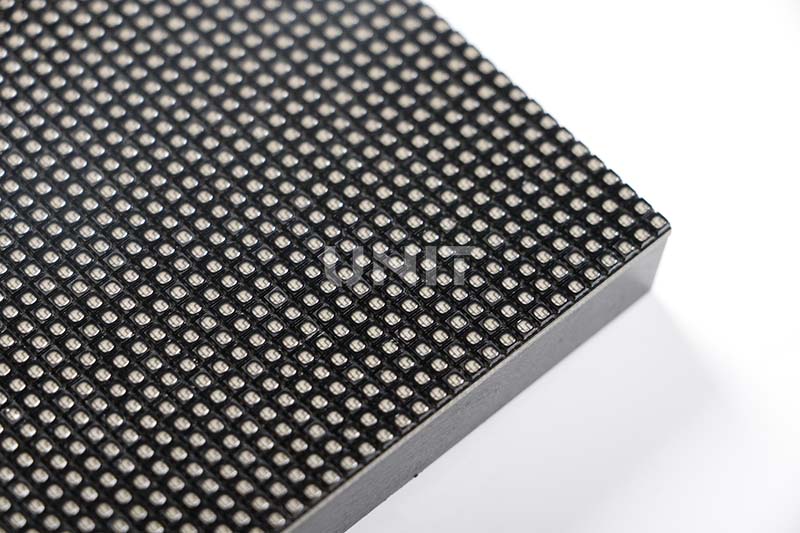

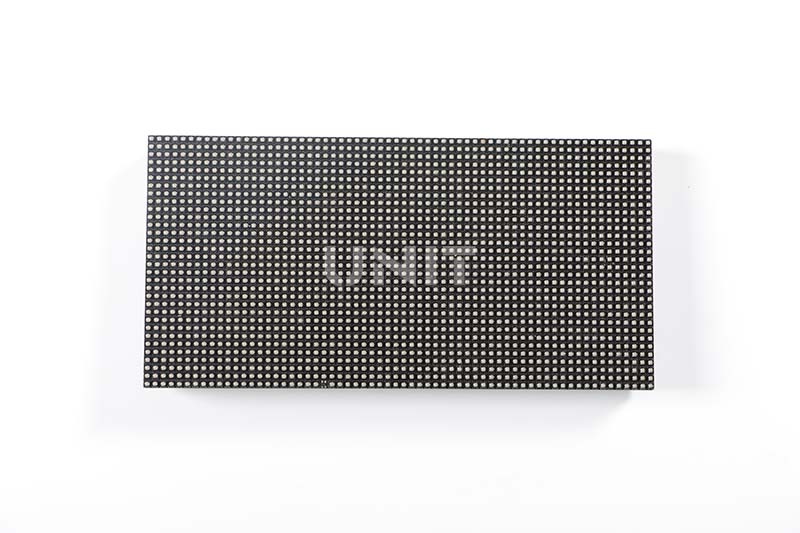

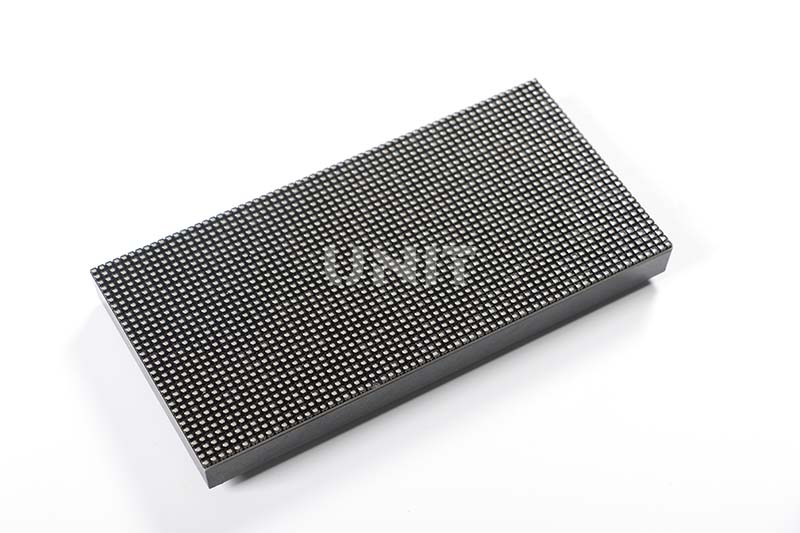

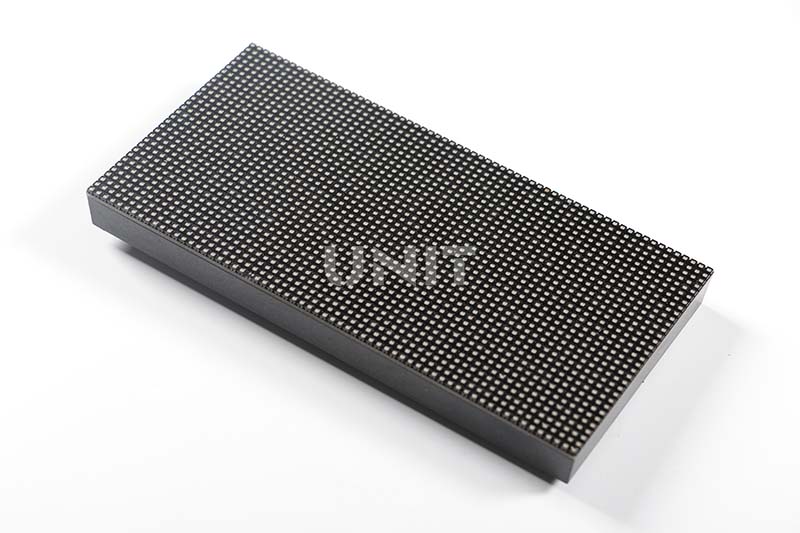

160x80mm LED P2.5 Indoor Module-Front View

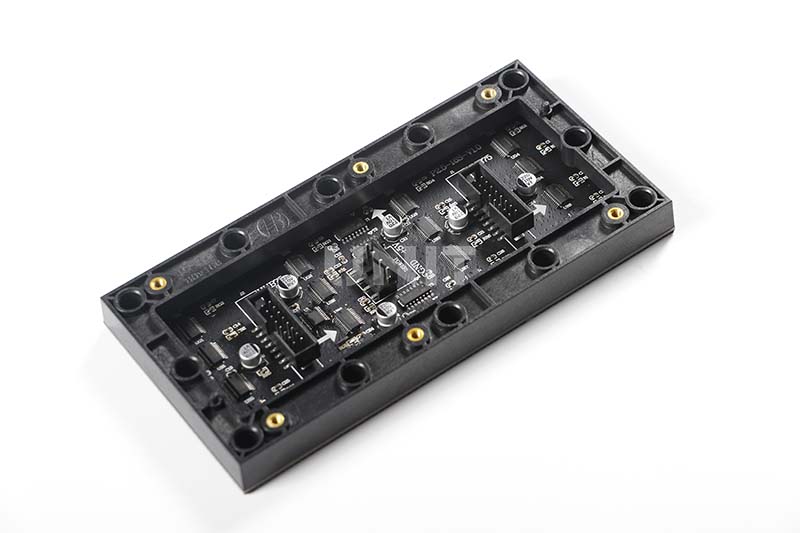

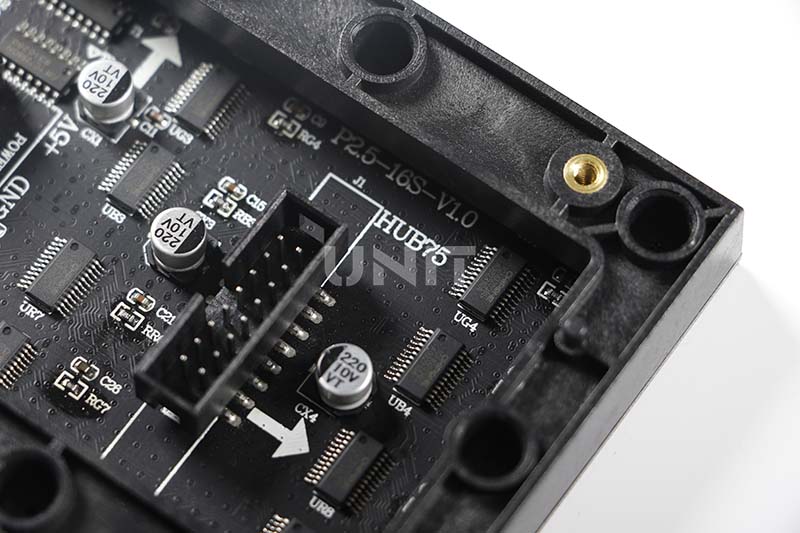

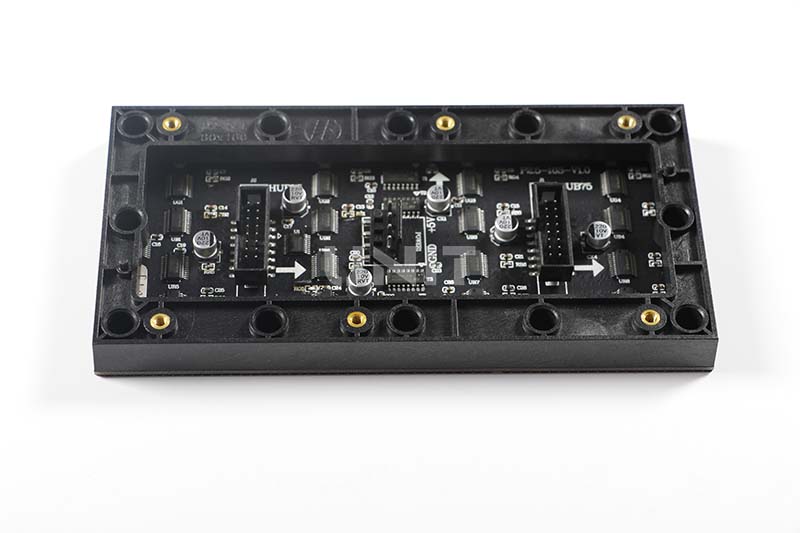

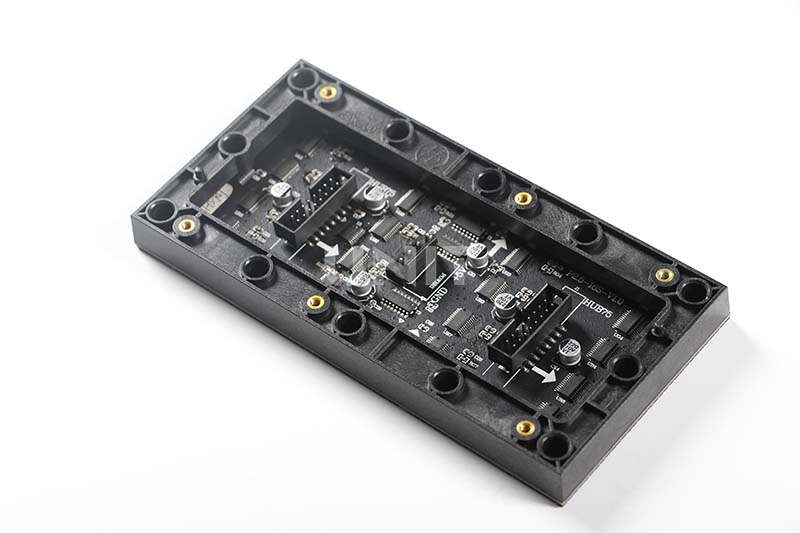

160x80mm LED P2.5 Indoor Module-Back View
