UNIT TRANSPARENT LED DISPLAY SOLUTIONS
UNIT LED offers a full range of indoor and outdoor transparent LED screens, including OR & IF & GS & WAVE Series see-through screens.
Designed for versatility and high transparency, our LED displays have been continuously enhanced to deliver superior performance. Ideal for applications such as architectural glass facades, curtain walls, retail stores, bars, and shopping malls, effectively catering to diverse creative display needs.
OR Series
1000*500mm
IP65 Waterproof Level
More Creative Shapes
More Features
IF Series
Support Customize
High Transparency Design
Support Seamless Splicing
More Features
GS Series
Outdoor Grille LED Display
Ultra Thin & Light
SMD & DIP Both Available
More Features

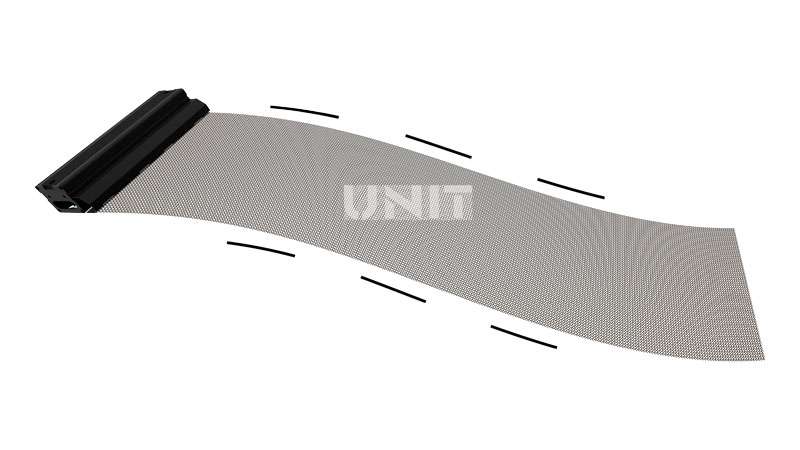

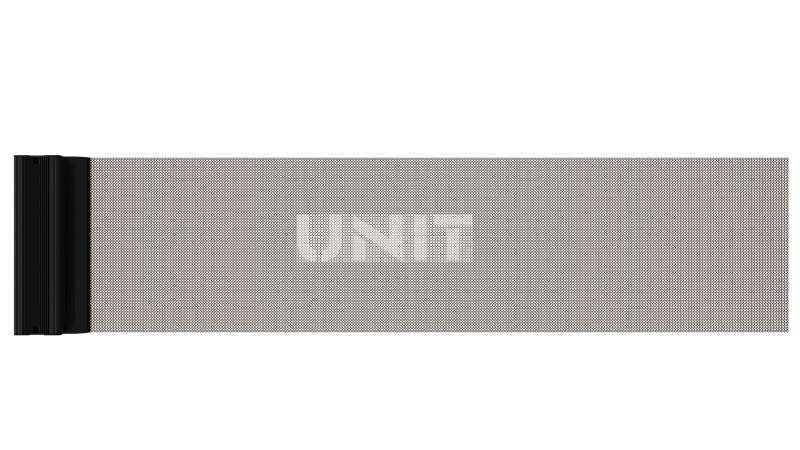

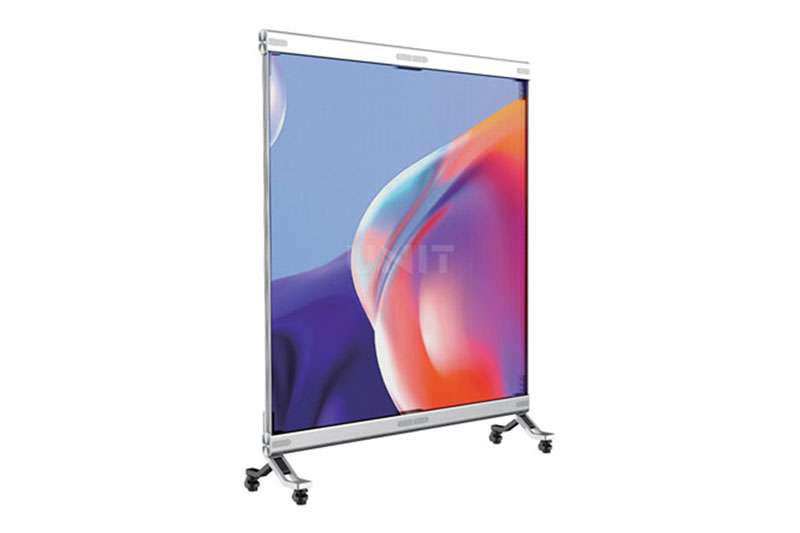

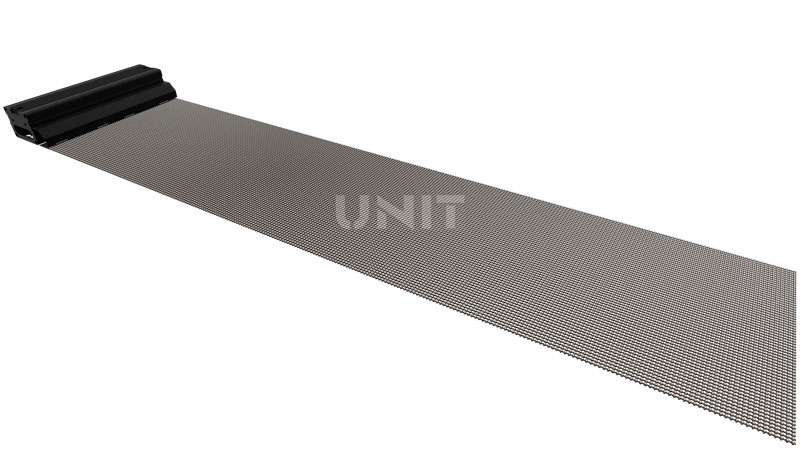

Wave Series
Holographic Invisible Screen
Different Installations
High Refresh Rate 3840Hz
More Features
Coming Soon
Coming Soon
LED SCREEN PRICE CALCULATOR
Just fill the sizes, and get your LED Screen budget right now!
Width
Height
Application
PRODUCT OVERVIEW
As a leading transparent LED display manufacturer, UNIT LED transparent screen continuously develops, upgrades, optimizes, and transforms.
Our products feature high transparency, ultra-lightweight design, smart control, simplicity, plug-and-play functionality, high refresh rates, energy savings, and more.

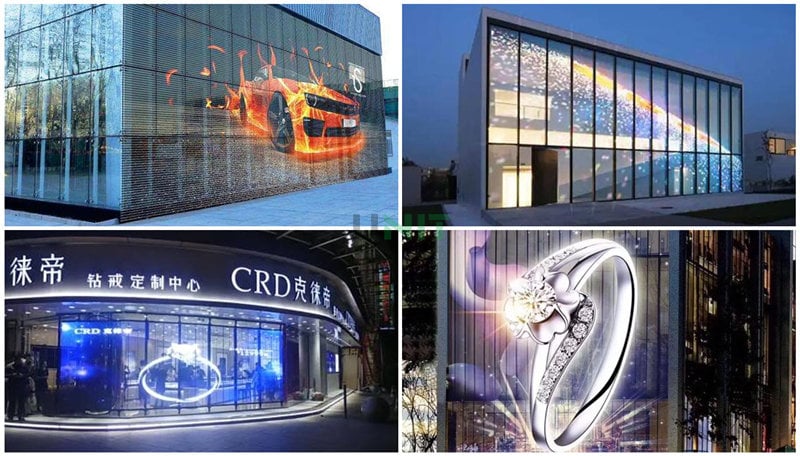

UNIT LED provides various transparent LED displays for various applications, including building glass windows, building glass walls, stores, bars, exhibitions, and shopping centers.

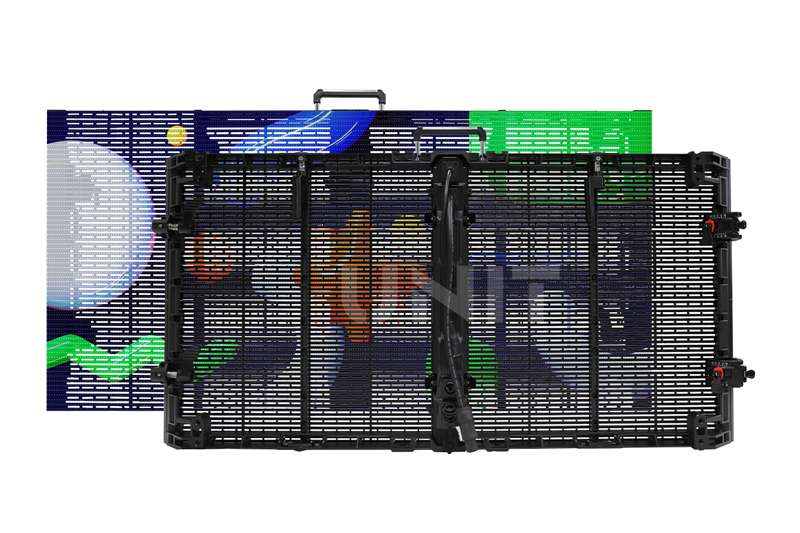

OR Series Outdoor Rental Transparent LED Display
OR Series Outdoor Transparent LED Screen
Exceptionally Slim & Lightweight: At just 1000 × 500 × 36 mm cabinet design, its CNC-machined die-cast aluminum design ensuring easy transport and fast setup.
Unmatched Transparency & Clarity: With transparency rates up to 85% and ultra-high refresh rates (up to 3840 Hz), it delivers clear, flicker-free visuals in bright outdoor settings.
Fully Weatherproof: IP65-rated front and rear protection guards against water and dust, allowing uninterrupted performance even in outdoor environments.

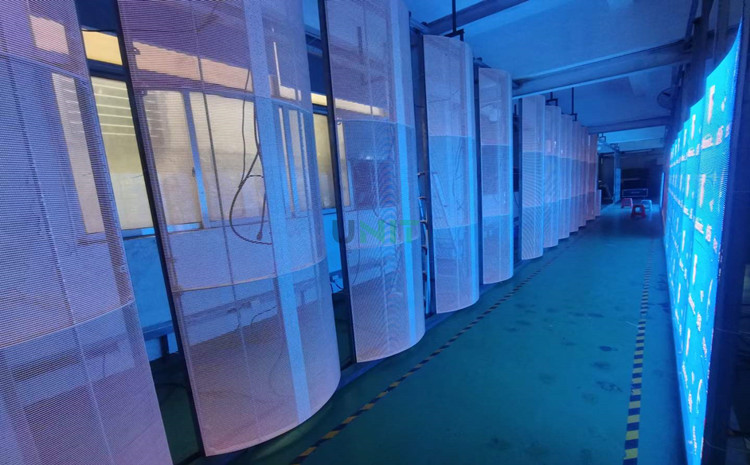

Creative Design Flexibility: Supports both inward and outward curved installations for custom stage shapes and immersive visual layouts.
Dual-Service Access: Modules and power units are accessible from both the front and rear, enabling faster maintenance and minimal downtime during events.
Inquiry Now

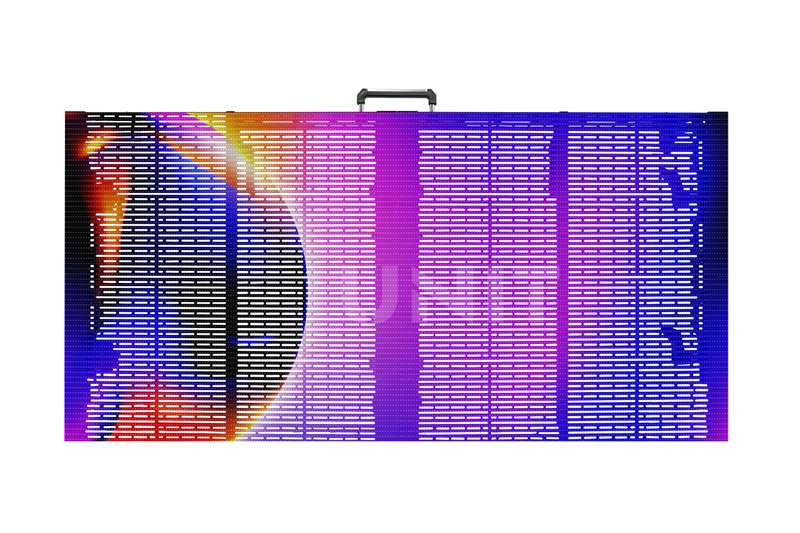

Front View

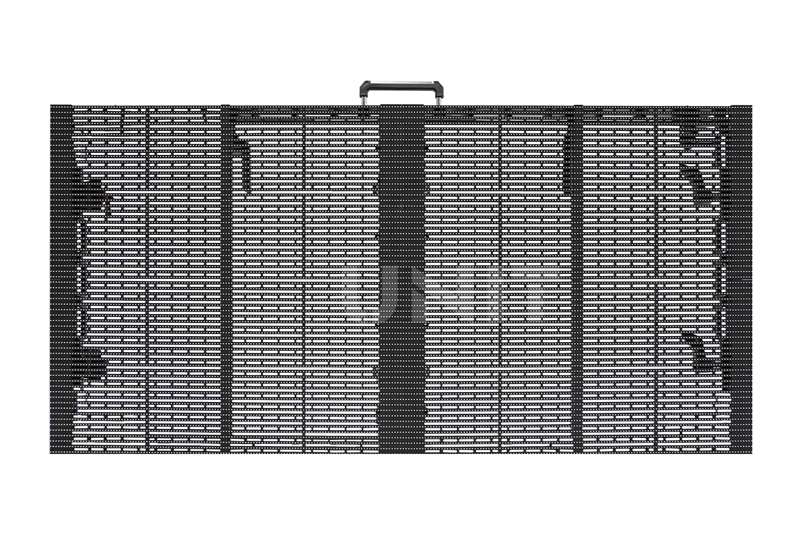

Front View

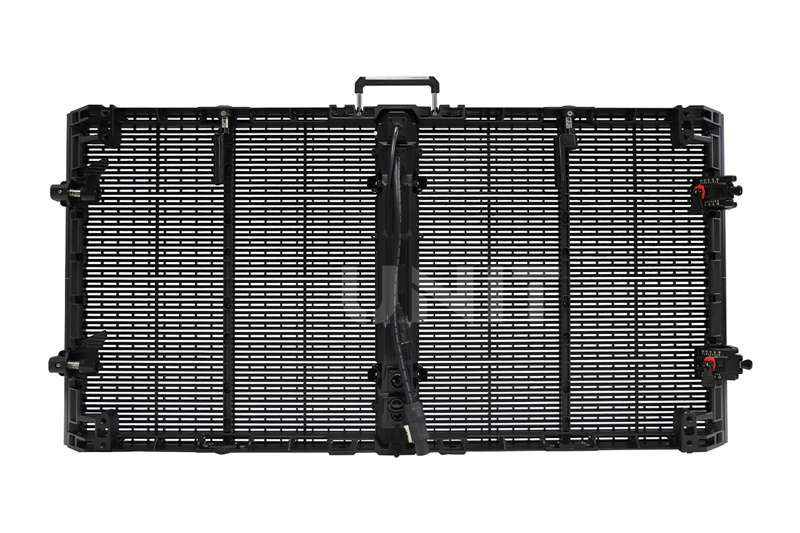

Back View

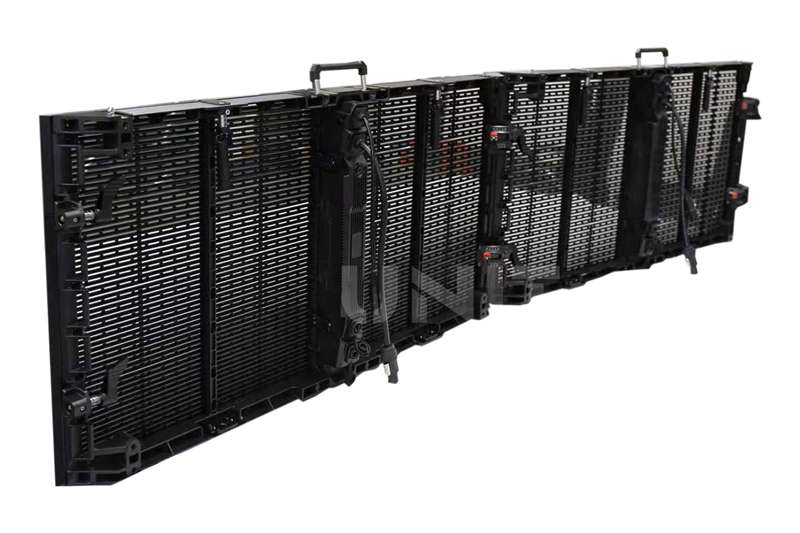

Side View

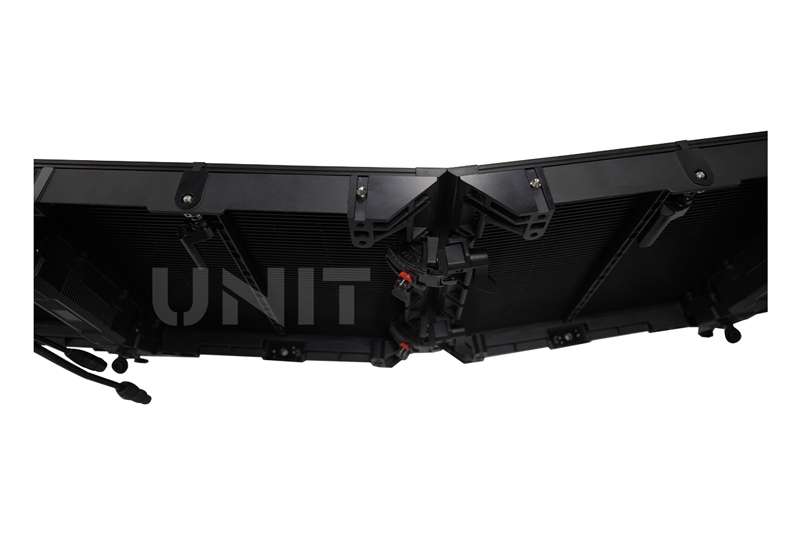

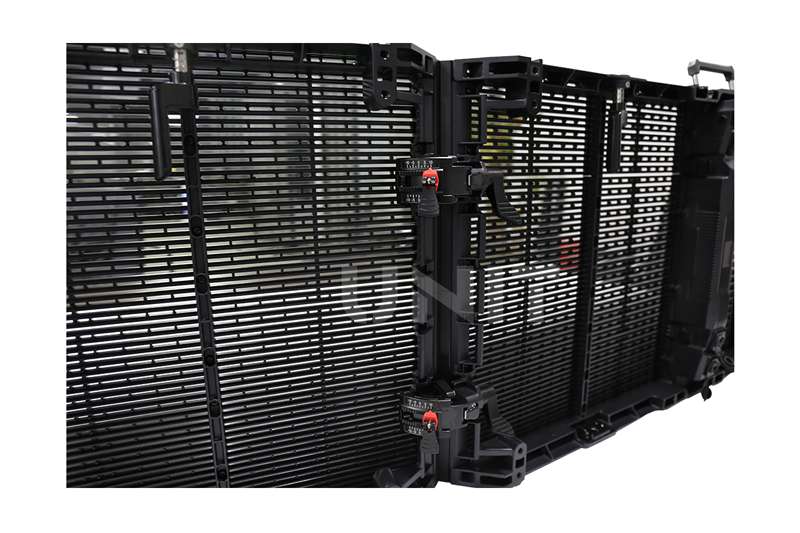

Details
Details
Specification
| Pixel Pitch (nm) | H: 3.9 / V: 7.8 | H: 7.8 / V: 7.8 |
| Physical Pixel Density (dots/m²) | 32,768 | 16,384 |
| Transparency Rate | 55%~85% | 55%~85% |
| Physical Pixel per Single Cabinet | 256 × 64 | 128 × 64 |
| Display Resolution (m²) | 256 × 128 | 128 × 128 |
| Module Dimensions (mm) | 500 × 125 | 500 × 125 |
| Module Resolution (m²) | 128 × 16 | 64 × 16 |
| Average Power Consumption (W/m²) | 260 (Dynamic Mode) | 260 (Dynamic Mode) |
| Display Brightness (nits) | 4000-4500 | 4000-4500 |
| Cabinet Dimensions (mm) | 1000 × 500 | 1000 × 500 |
| Cabinet Weight (kg) | 7.5 kg | 7.5 kg |
| Refresh Rate (Hz) | 1920 / 3840 | 1920 / 3840 |
| LED Package | SMD1921 | SMD1921 |
| Pixel Composition | IR1G1B | IR1G1B |
| Driver IC | ICM20385/2153-8S | ICM20385/2153-4S |
| LED Control System | Nova | Nova |
| Display Interfaces | DVI/HDMI/DP/Ethernet/USB/WiFi/Internet Cloud Control | DVI/HDMI/DP/Ethernet/USB/WiFi/Internet Cloud Control |
| Grayscale Levels | 65,536 levels | 65,536 levels |
| Protection Rating | IP65 | IP65 |
| Anti-Ghosting Circuit | Equipped | Equipped |
| Power Supply Parameters | >90% Efficiency PFC, Wide Voltage 100-240V AC, DC5V 80A | >90% Efficiency PFC, Wide Voltage 100-240V AC, DC5V 80A |
| Module Voltage | DC 4.6-5V | DC 4.6-5V |
| Input Voltage | 100-240V AC ±10V | 100-240V AC ±10V |
| Operating Temp./Humidity | -20°C to 50°C, 10%-90% RH (Non-condensing) | -20°C to 50°C, 10%-90% RH (Non-condensing) |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum |
| Installation Method | Hanging/Stacking Installation/Fixed Installation | Hanging/Stacking Installation/Fixed Installation |
| LED Lifespan | 100,000 hours (to complete failure) | 100,000 hours (to complete failure) |
| Maintenance Method | Rear Maintenance | Rear Maintenance |
Download Product Manual

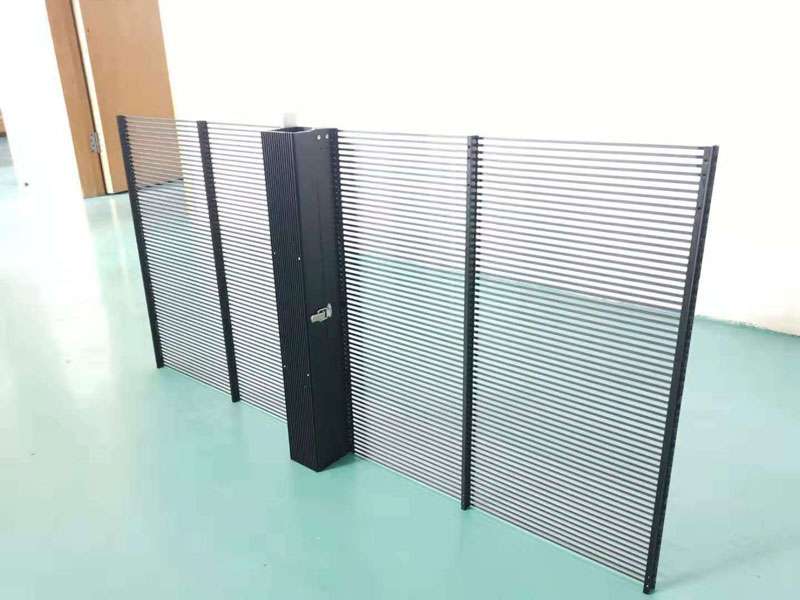

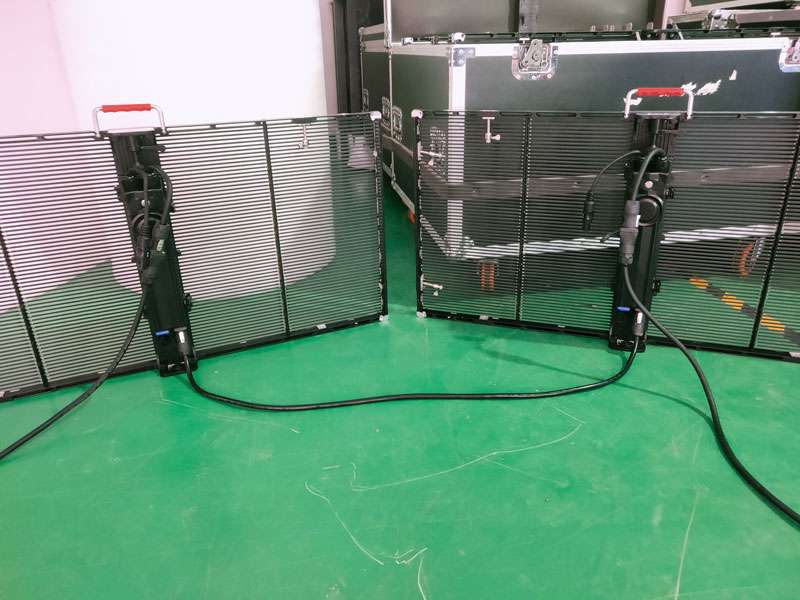

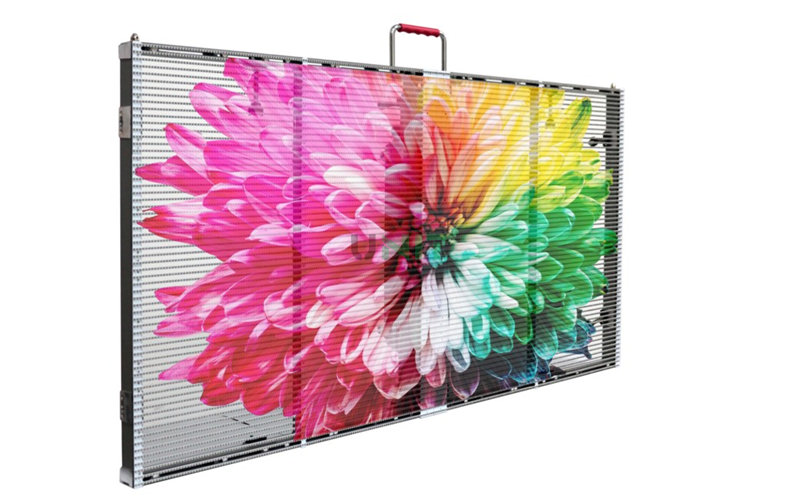

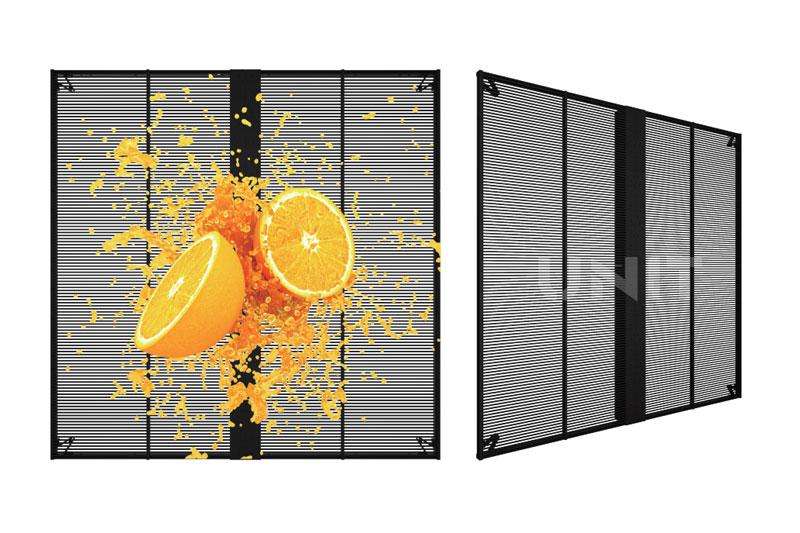

IF Series Indoor Transparent LED Display

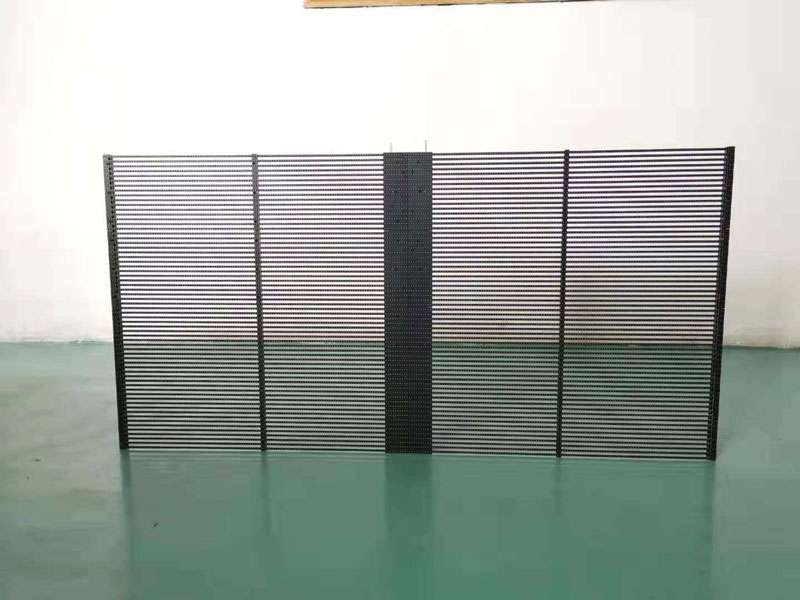

IF Series Indoor Transparent LED Display
Crystal-Clear Transparency up to 75%: Deliver attention-catching content without blocking natural light or sightlines.
Super High Brightness (up to 5000 nits): Ensure sharp, readable visuals in diverse indoor lighting scenarios.
Ultra-High Refresh Rate (3840 Hz): Enjoy smooth, flicker-free video and animation ideal for camera capture and close-range viewing.
Deep Contrast Ratio (5000:1) & 16-bit Grayscale: Experience rich colors and nuanced details that command attention.
Lightweight, Modular Design: Each 1000×500/1000 mm die-cast aluminum cabinet weighs ~10 kg/m²; supports front-module maintenance and rear access for power/receiving units.
Inquiry Now
Specification
| Pixel Pitch/Brightness | P2.6-5.2mm High brightness | P2.6-5.2mm Low brightness |
| Pixel Pitch | P2.6-5.2mm | P2.6-5.2mm |
| Drive Mode | 12 Scan | 12 Scan |
| Module Size (WxH) | 500*125mm | 500*125mm |
| Module Resolution | 192*24dots | 192*24dots |
| Module Pixel | 4608dots | 4608dots |
| Cabinet Size (WxH) | 1000*500mm | 1000*500mm |
| Cabinet Resolution | 384*96dots | 384*96dots |
| Transparency | 50% | 50% |
| Module Quantity | 8pcs | 8pcs |
| Pixel Density | 73728 dots/㎡ | 73728 dots/㎡ |
| Material | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 5KG | 5KG |
| Brightness | 5000cd/㎡ | 1200cd/㎡ |
| Viewing Angle | Horizontal 140°, Vertical 140° | Horizontal 140°, Vertical 140° |
| Minimum Viewing Distance | ≥3m | ≥3m |
| Gray Scale | 16bit | 16bit |
| Refresh Rate | 1920/3840HZ | 1920/3840 |
| Frame Rate | 60fps | 60fps |
| Input Voltage | DC5-3.5V/AC85-240V | DC5-3.5V/AC85-240V |
| Power Consumption (Max/Average) | 800/200W/㎡ | 800/200W/㎡ |
| Screen Weight | 10kg/㎡ | 10kg/㎡ |
| Average Fault-Free Time | >10,000 hours | >10,000 hours |
| Service Life | ≥100,000 hours | ≥100,000 hours |
| IP Protection Level | IP30 | IP30 |
| Temperature | -40℃~+40℃ | -40℃~+40℃ |
| Humidity | 15%-90%RH | 15%-90%RH |
| Maintenance Mode | Front and back maintenance | Front module maintenance, back maintenance for power box and receiving card |
| Installation Mode | Hanging/Fixed installation | Fixed installation |
| Operating System | Novastar | Novastar |
| Pixel Pitch/Brightness | P2.8-5.6mm High brightness | P2.8-5.6mm Low Brightness |
| Pixel Pitch | P2.8-5.6mm | P2.8-5.6mm |
| Module Size | 500*125mm | 500*125mm |
| Module Resolution | 176*22dots | 176*22dots |
| Module Pixel | 3872dots | 3872dots |
| Cabinet Size (WxH) | 1000*1000mm | 1000*1000mm |
| Cabinet Resolution | 352*176dots | 352*176dots |
| Transparency | ≥75% | ≥75% |
| Module Quantity | 16pcs | 8pcs |
| Pixel Density | 61952 dots/㎡ | 61952 dots/㎡ |
| Material | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 10KG | 10KG |
| Brightness | 5000 | 1200 |
| Viewing Angle | Horizontal 140°, Vertical 140° | Horizontal 140°, Vertical 140° |
| Minimum Viewing Distance | ≥3m | ≥3m |
| Gray Scale | 16bit | 16bit |
| Refresh Rate | 1920/3840HZ | 1920/3840HZ |
| Frame Rate | 60fps | 60fps |
| Input Voltage | DC5-3.5V/AC85-240V | DC5-3.5V/AC85-240V |
| Power Consumption (Max/Average) | 800/220W/㎡ | 800/220W/㎡ |
| Screen Weight | 10kg/㎡ | 10kg/㎡ |
| Average Fault-Free Time | >10,000 hours | >10,000 hours |
| Service Life | ≥100,000 hours | ≥100,000 hours |
| IP Protection Level | IP30 | IP30 |
| Temperature | -10℃~+40℃ | -10℃~+40℃ |
| Humidity | 15%-90%RH | 15%-90%RH |
| Maintenance Mode | Front maintenance | Front maintenance for LED module, back maintenance for power supply box and receiving card |
| Installation Mode | Hanging, fixed installation | Hanging, fixed installation |
| Operating System | Novastar | Novastar |
| Pixel Pitch | P3.91-7.82 | ||
| Low Brightness | Middle Brightness | High Brightness | |
| Physical Density | 32768PX/㎡ | ||
| Module Size | 500*125mm | ||
| Module Resolution | 128*16dots | ||
| Cabinet Size | 1000*500mm*75mm | ||
| Cabinet Resolution | 256*64dots | ||
| Number of Modules | 8pcs | ||
| Brightness (cd/㎡) | 600cd/㎡ | 1500-2000cd/㎡ | ≥5000cd/㎡ |
| Transparency | ≥65％ | 65% | |
| Gray Scale | 16bit | 15bit | |
| Refresh Rate (Hz) | 1920Hz/3840Hz | ||
| Waterproof Level | IP30 | ||
| Viewing Angle | 140° | 120° | |
| Viewing Distance (m) | 5m-12m | ||
| Power Requirements | DC5-3.5V/AC110-240V | ||
| Average Power Consumption (W) | 160W/㎡ | 160W/㎡ | 240w/m² |
| Peak Power Consumption (W) | 400W/㎡ | 400W/㎡ | 800w/m² |
| Weight (kg/m²) | 10kg/m² | ||
| Installation Method | Hanging/Fixed Installation | ||
| Maintenance Method | Front Maintenance for Modules; Rear Maintenance for Power Box and Receiving Cards | ||
| Screen Lifespan (hours) | ≥100,000h | ||
| Environmental Requirements | -40℃~+40℃; 15%-90%RH | -10°C～+40°C; 15%～90%RH | -40°C～+60°C; 15%～90%RH |
| Pixel Pitch | P7.8-7.8mm | |
| Low Brightness | High Brightness | |
| Physical Density | 16384PX/㎡ | |
| Module Size | 500*125mm | |
| Module Resolution | 64*16dots | |
| Cabinet Size | 1000*500mm*75mm | |
| Cabinet Resolution | 128*64dots | |
| Number of Modules | 8pcs | |
| Brightness (cd/㎡) | ≥600cd/㎡ | ≥5000cd/㎡ |
| Transparency | 68% | |
| Gray Scale | 15bit | |
| Refresh Rate (Hz) | 1920Hz/3840Hz | |
| Waterproof Level | IP30 | |
| Viewing Angle | 120° | |
| Viewing Distance (m) | 6m-100m | |
| Power Requirements | DC5-3.5V/AC85-240V | |
| Average Power Consumption (W) | 160w/m² | 220w/m² |
| Peak Power Consumption (W) | 400w/m² | 800w/m² |
| Weight (kg/m²) | 10kg/m² | |
| Installation Method | Hanging/Fixed Installation | |
| Maintenance Method | Front Maintenance for Modules; Rear Maintenance for Power Box and Receiving Cards | |
| Screen Lifespan (hours) | ≥100,000h | |
| Environmental Requirements | -10°C～+40°C;15%～90%RH | |
| Pixel Pitch | P10.42-10.42mm | |
| Low Brightness | High Brightness | |
| Physical Density | 9216PX/㎡ | |
| Module Size | 500*125mm | |
| Module Resolution | 48*12dots | |
| Cabinet Size | 1000*1000*75mm | |
| Cabinet Resolution | 96*96dots | |
| Number of Modules | 16pcs | |
| Brightness (cd/㎡) | 600-800cd/㎡ | ≥5000cd/㎡ |
| Transparency | 75% | |
| Gray Scale | 15bit | |
| Refresh Rate (Hz) | ≥1920Hz/3840Hz | 2880Hz |
| Waterproof Level | IP30 | |
| Viewing Angle | 120° | |
| Viewing Distance (m) | 10m-200m | |
| Power Requirements | DC5-3.5V/AC85-240V | |
| Average Power Consumption (W) | 160w/m² | 220w/m² |
| Peak Power Consumption (W) | 400w/m² | 800w/m² |
| Weight (kg/m²) | 10kg/m² | |
| Installation Method | Hanging/Fixed Installation | |
| Maintenance Method | Front Maintenance for Modules; Rear Maintenance for Power Box and Receiving Cards | |
| Screen Lifespan (hours) | ≥100,000h | |
| Environmental Requirements | -10°C～+40°C;15%～90%RH | |
Download Product Manual

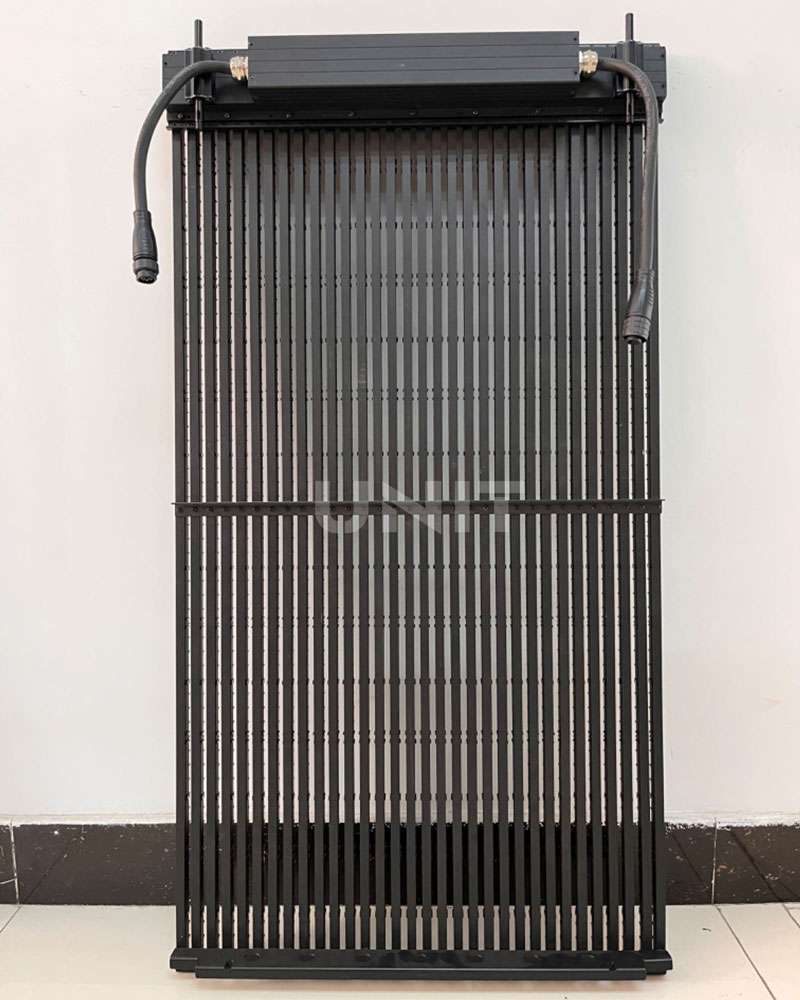

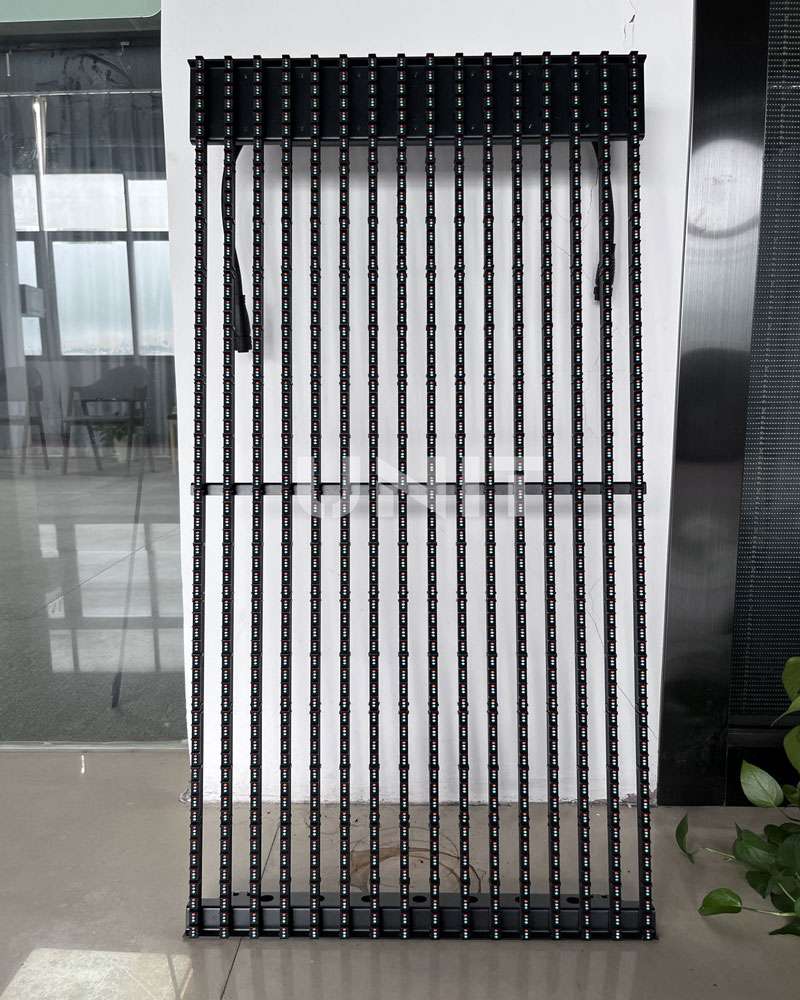

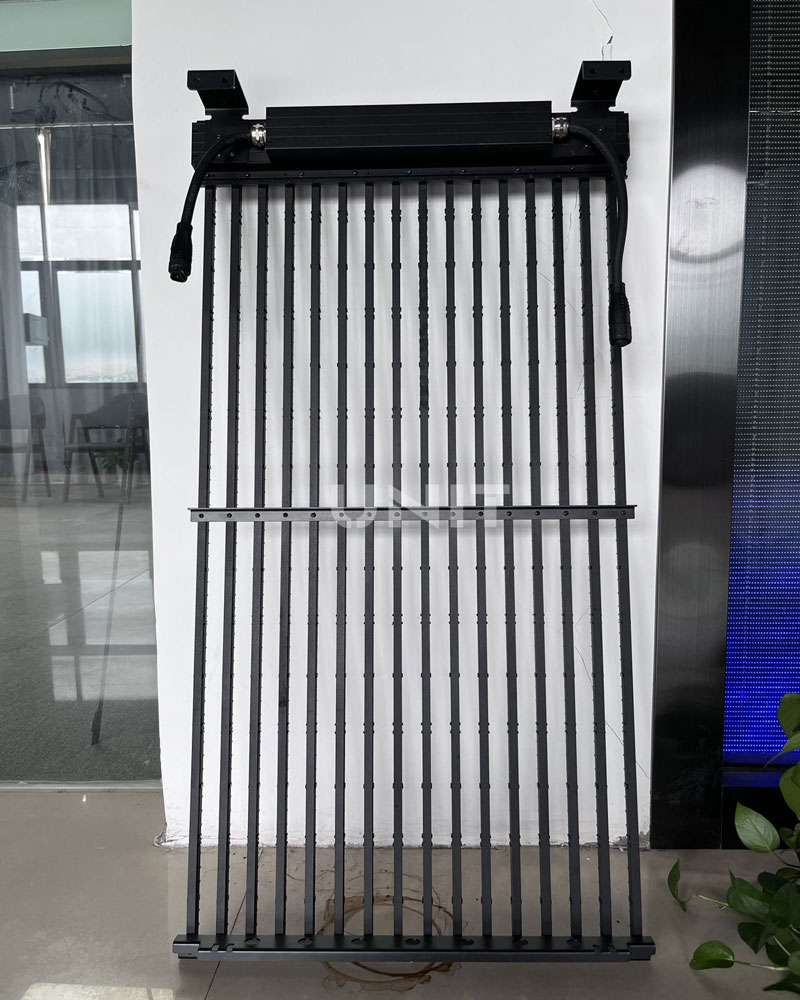

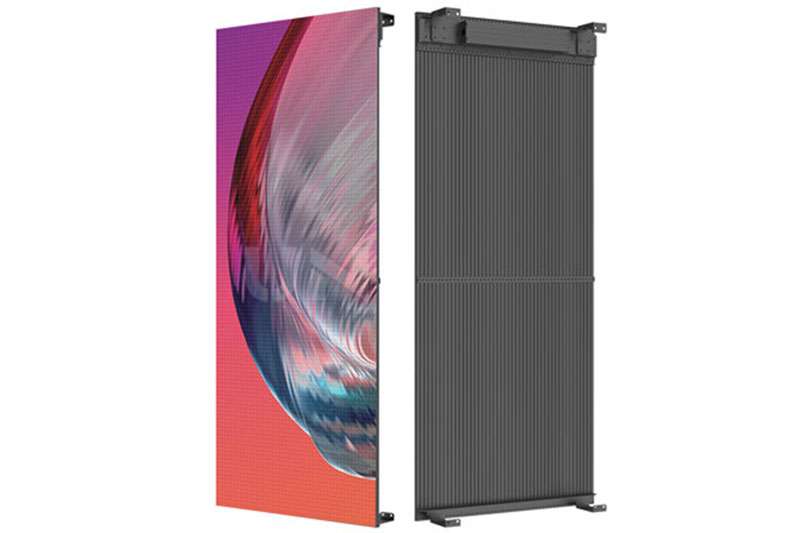

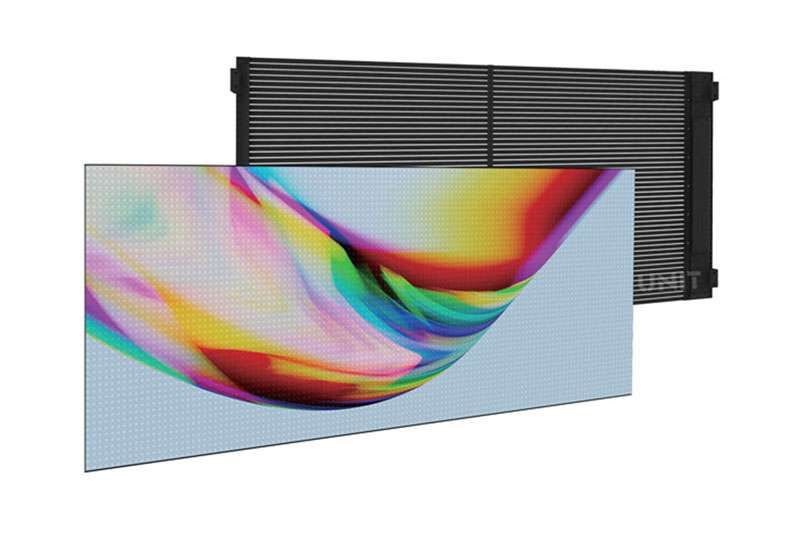

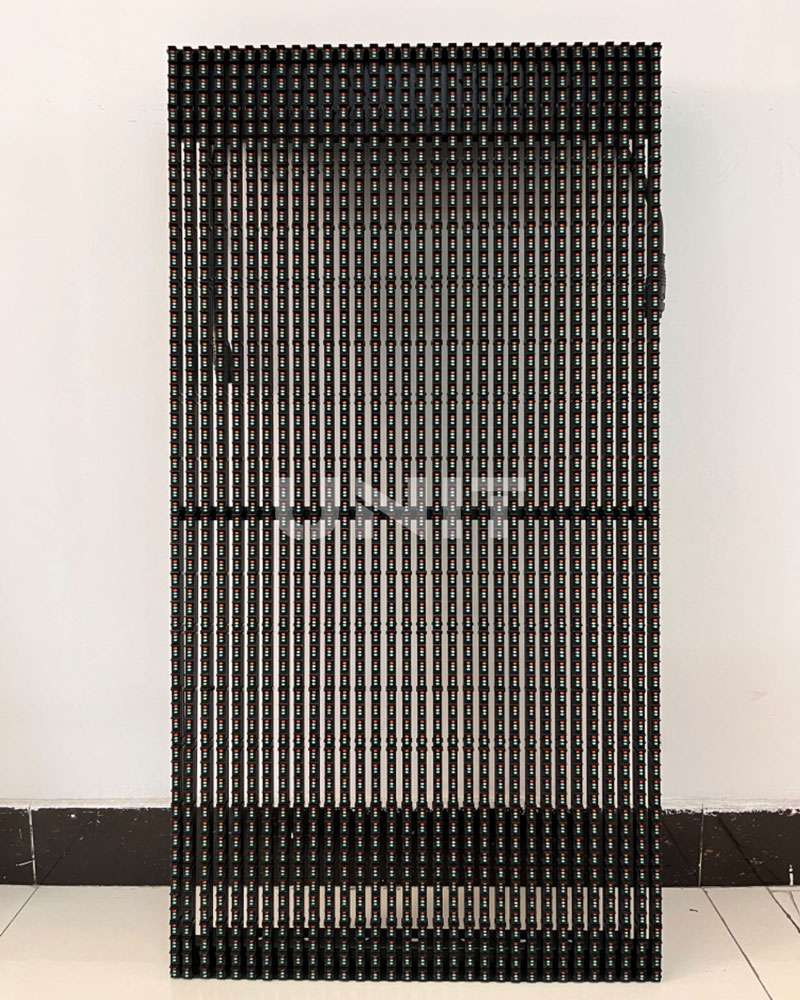

GS Series Outdoor Grille LED Display

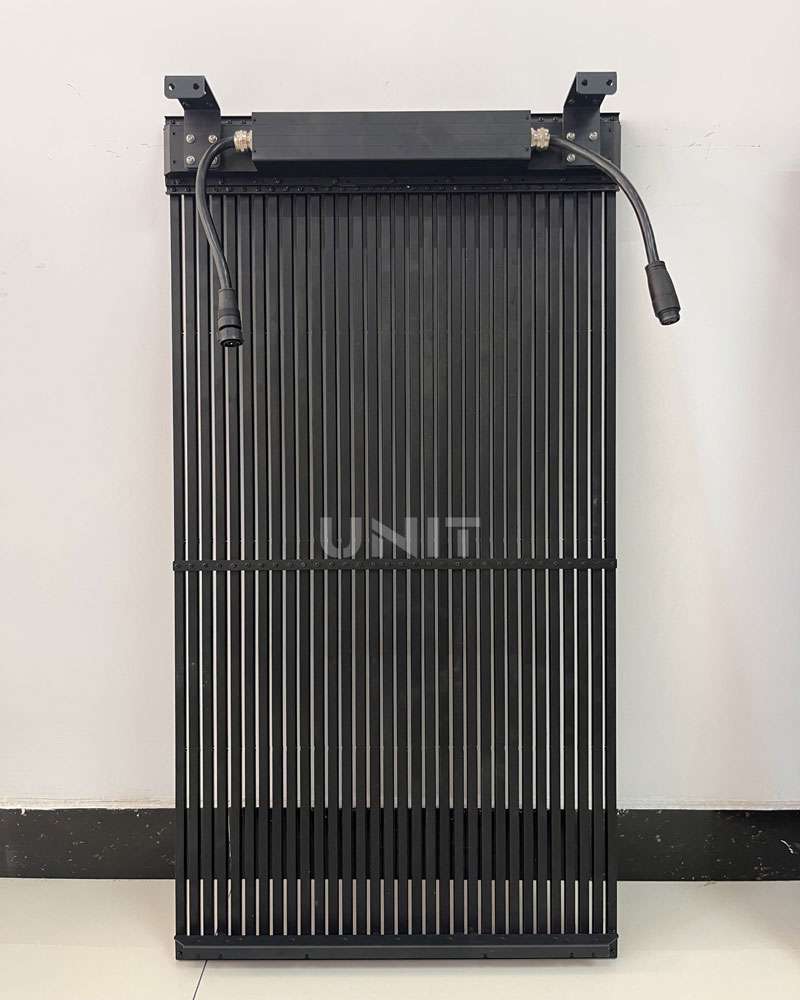

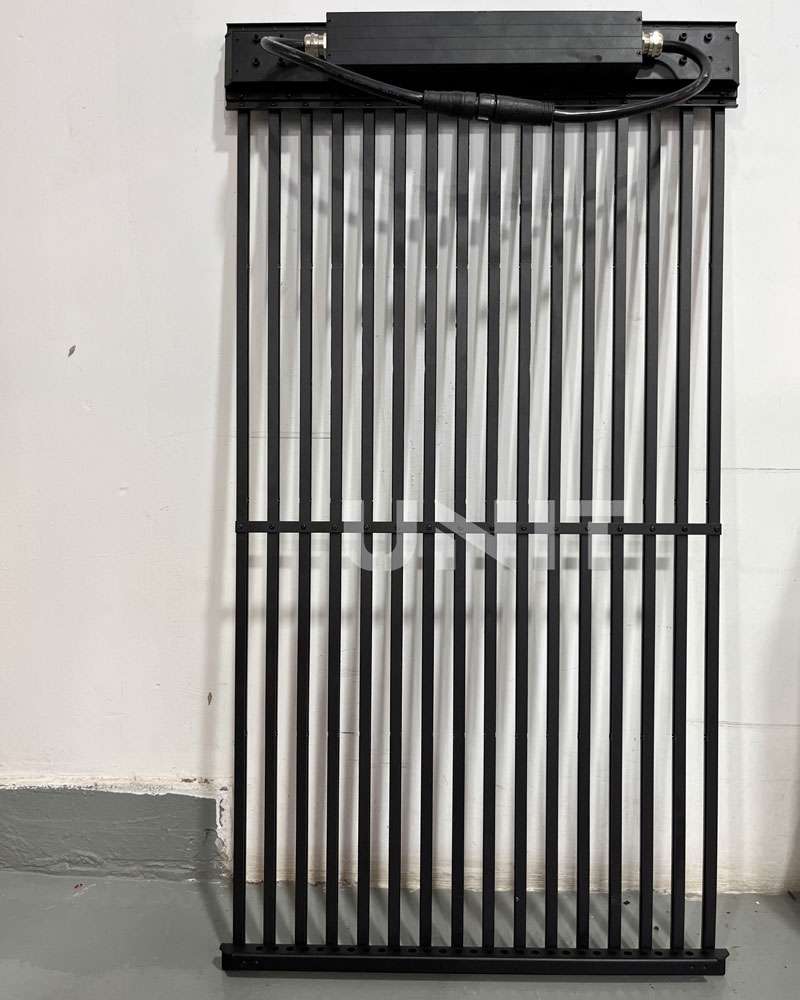

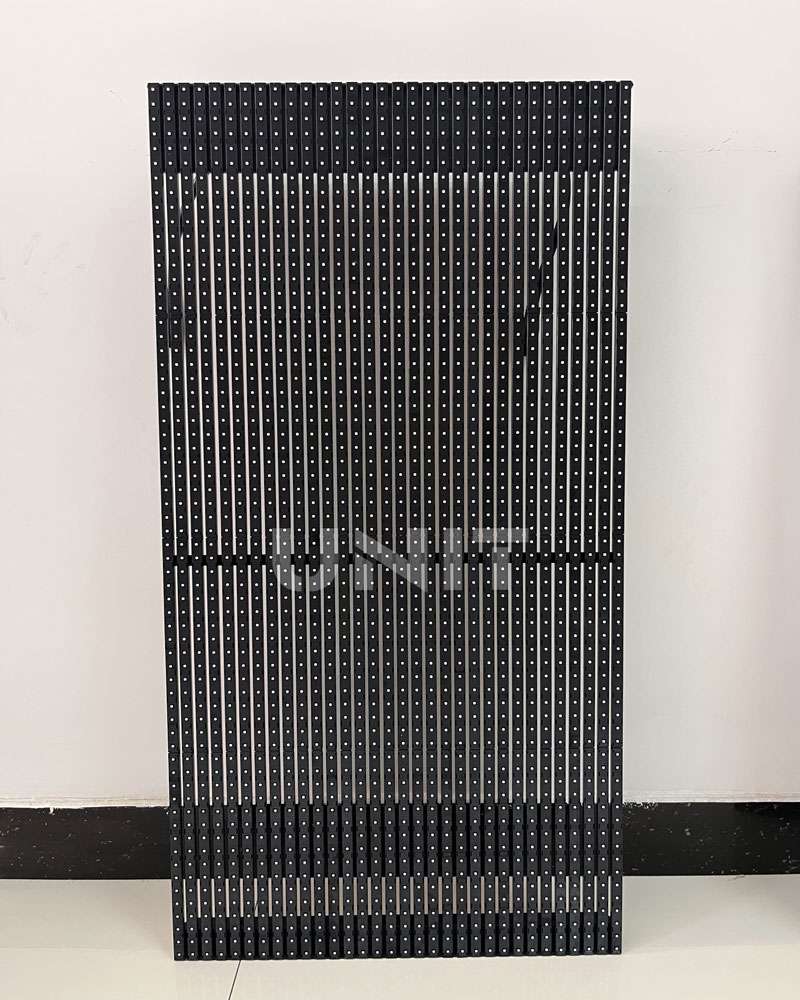

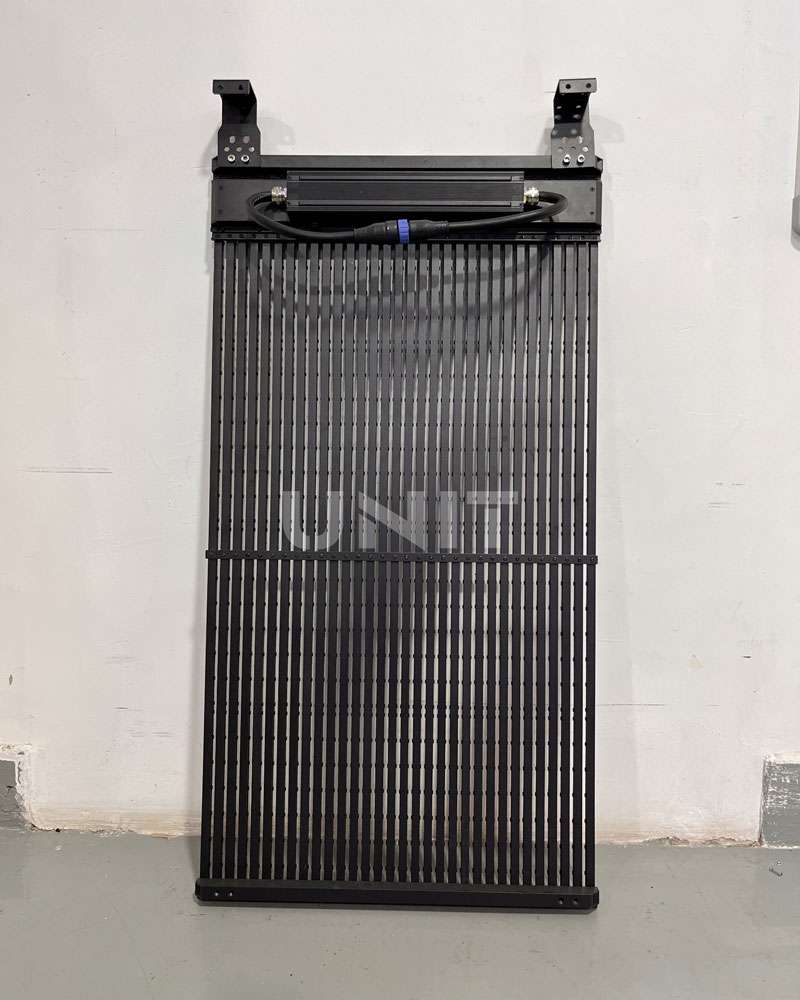

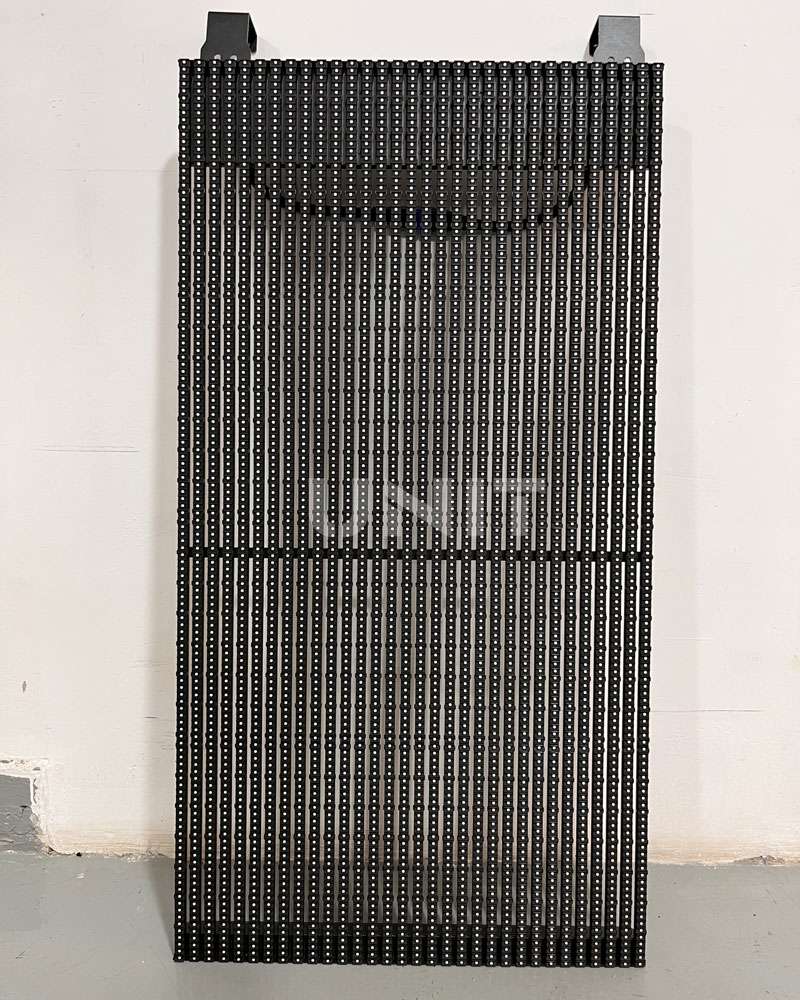

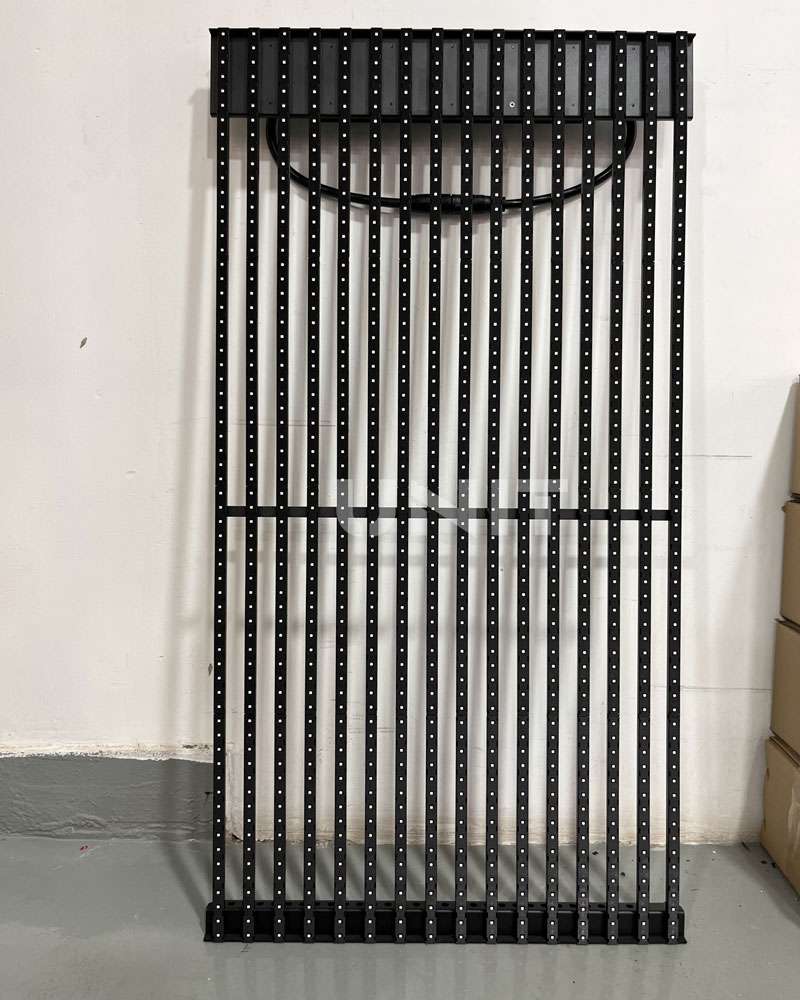

GS Series Outdoor Grille LED Display SMD
Featherweight, Ultra-Slim Profile: The large-format cabinet (1000x250mm and 1000x500mm, 70 mm thick) weighs just ~2.5kg/7.5kg, streamlining transport, installation, and structural load planning.
High Transparency & Visual Clarity: With transparency levels up to ~55%, the SMD grille display delivers luminous imagery while allowing natural light and architectural details to show through.
Striking Brightness & Smooth Performance: Capable of reaching 6,000–7,300 cd/㎡ brightness and refresh rates up to 3840 Hz, it ensures vivid, camera-ready visuals even under direct sunlight or camera capture.
Engineered for Durability & Water Resistance: Built with 6063 aluminum frames treated for UV and weather resistance, and waterproofed SMD lamp beads sealed in silicone glue with mask protection, it offers IP65-level protection.
Dual-Sided Maintenance Access: Supports both front and rear servicing for modules and power units, minimizing downtime and simplifying field maintenance.
Inquiry Now
Specification
| Name | Specification | |||
| Model | P7.81-15.6 | P15.6-15.6 | P15.6-31.25 | P31.25-31.25 |
| Color | Full color | Full color | Full color | Full color |
| Pixel Pitch | W7.81mm*H15.625mm | W15.625mm*H15.625mm | W15.625mm*H31.25mm | W31.25mm*H31.25mm |
| Light | 3535 (1R1G1B) | 3535 (1R1G1B) | 3535 (1R1G1B) | 3535 (1R1G1B) |
| Pixel/㎡ | 8192 | 4096 | 2084 | 1024 |
| Viewing Angel(M) | 8M-47M | 15M-75M | 15M-125M | 32M-125M |
| Transparency | ≤25% | ≤25% | ≤55% | ≤55% |
| Max Power Consumption/㎡ | 800W | 800W | 600W | 400W |
| Avg Power Consumption/㎡ | 250W | 250W | 200W | 150W |
| Cabinet Size（mm） | W1000*H250* D70mm W1000*H500*D70mm | W1000*H250* D70mm W1000*H500*D70mm | W1000*H250* D70mm W1000*H500*D70mm | W1000*H250* D70mm W1000*H500*D70mm |
| Cabinet Resolution | 128*16 128*32 | 64*16 64*32 | 64*8 64*16 | 32*8 32*16 |
| Brightness | 6000CD-7300CD/㎡ | 6000CD-6500CD/㎡ | 40000CD-4500CD/㎡ | 2500 CD-3000CD/㎡ |
| Fresh Rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Protection Level | IP65 | IP65 | IP65 | IP65 |
| Greyscale | 12bit | 12bit | 12bit | 12bit |
| Brightness Adjustment | 256 Level | 256 Level | 256 Level | 256 Level |
| Screen Material | Aluminum frame + light bar | Aluminum frame + light bar | Aluminum frame + light bar | Aluminum frame + light bar |
| Driver IC | FM/MY | FM/MY | FM/MY | FM/MY |
| Input Voltage | DC48-70V | DC48-70V | DC48-70V | DC48-70V |
| Working Environment | -10 ~ 45°C | -10 ~ 45°C | -10 ~ 45°C | -10 ~ 45°C |
| Installation | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service |
| Warranty | 3 Years Warranty | 3 Years Warranty | 3 Years Warranty | 3 Years Warranty |
| Cabinet Weight |
2.5kg 7.5KG |
2.2kg 6.5KG |
1.9kg 5.5KG |
1.6kg 4.5KG |
GS Series Outdoor Grille LED Display DIP
Feather-Light & Sleek Design: The ultra-thin modular cabinet (1000 × 500 mm, only 70.5 mm thick) is incredibly lightweight—6.5 kg (P31.25×31.25), 7.5 kg (P15.625×31.25), or 9.5 kg (P15.625×15.625).
Built for Durability with Elegance: Crafted from rugged 6063 aluminum alloy (sprayed or anodized finish) and equipped with waterproof DIP lamp beads sealed with silicone and protective masks, it delivers superior reliability and weather resistance.
High Transparency & Visual Impact: With transparency ranging from approximately 36% up to 90%, depending on the pixel pitch, your display content remains vivid without obstructing views, perfectly harmonizing digital content with architectural aesthetics.
Robust Image Clarity & Smooth Performance: Choose from pixel pitches of P15.625, P31.25, and P50 for optimized viewing distances. The screen delivers stunning brightness (up to 12,000 cd/㎡), maintains smooth visuals with refresh rates between 1920 Hz and 3840 Hz, and supports 12-bit grayscale for rich color depth.
Versatile Installation Options: Whether using bracket stands, adhesive mounting, or hanging setups, the GS grille display adapts seamlessly. Its module-friendly design also supports convenient rear servicing, trimming downtime and simplifying maintenance.
Inquiry Now
Specification
| Name | Specification | |||
| Model | P15.625-15.625 | P15.625-31.25 | P31.25-31.25 | Customized |
| Light Color | Full Color | Full Color | Full Color | Full Color |
| Pixel Pitch | W15.62mm*H15.62mm | W15.62mm*H31.25mm | W31.25mm*H31.25mm | Customized |
| Lamp Beads | 346 (1R1G1B) | 346 (1R1G1B) | 346 (1R1G1B) | 346 (optional RGB quantity) |
| Resolution | 64*32 | 64*16 | 32*16 | – |
| Processing Method | DIP | DIP | DIP | DIP |
| Pixels/㎡ | 4096 | 2048 | 1024 | – |
| Best viewing distance(M) | ＞16M | ＞16M | ＞31M | – |
| Transparency | 36% | 68% | 75% | 36%~90% |
| Max power consumption/㎡ | 800W | 600W | 400W | – |
| Playback power consumption/㎡ | 250W | 200W | 150W | – |
| Cabinet Size（mm） | W500*H1000*D70.5mm | W500*H1000*D70.5mm | W500*H1000*D70.5mm | – |
| Brightness | 8000CD-12000CD/㎡ | 6000CD-7000CD/㎡ | 3000CD-4000CD/㎡ | – |
| Screen Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | – |
| Packaging Mode | Organic silicone packaging | Organic silicone packaging | Organic silicone packaging | Organic silicone packaging |
| Protection Level | IP65 | IP65 | IP65 | IP65 |
| Grayscale | 12bit | 12bit | 12bit | 12bit |
| Brightness Adjustment | 256 Level | 256 Level | 256 Level | 256 Level |
| Screen Material | Aluminum frame + Light bar | Aluminum frame + Light bar | Aluminum frame + Light bar | Aluminum frame + Light bar |
| Driver IC | FM6129/MY9866 | FM6129/MY9866 | FM6129/MY9866 | FM6129/MY9866 |
| Control System | Colorlight/Nova | Colorlight/Nova | Colorlight/Nova | Colorlight/Nova |
| Input Voltage | AC110~240V 50Hz | AC110~240V 50Hz | AC110~240V 50Hz | AC110~240V 50Hz |
| Working Environment | -20 ~ 50°C | -20 ~ 50°C | -20 ~ 50°C | -20 ~ 50°C |
| Installation Method | Rear Service | Rear Service | Rear Service | Rear Service |
| Warranty | 3 Years Warranty | 3 Years Warranty | 3 Years Warranty | 3 Years Warranty |
| Cabinet Weight | 9.5kg | 7.5kg | 6.5kg | – |
Download Product Manual
Wave Series Holographic Transparent LED Display
Wave Series A Holographic LED Display
Ultra-Thin & Lightweight Design: This holographic transparent LED display is exceptionally slim (around 75 mm thick) and lightweight, facilitating easy transport and installation.
Frameless, Invisible Appearance: It features a frameless, bar-free construction, delivering a virtually invisible look when mounted on glass or in public spaces.
High Transparency: Offers up to ~80% visual transparency, enabling excellent see-through clarity while still displaying content.
Flexible & Adaptable Modules: The display’s standard modules can be bent or cut, making them suitable for curved surfaces or custom-shaped installations.
Multiple Size Options: Available in at least two sizes: 1000 × 1000 mm and 2000 × 2000 mm, giving flexibility for different spatial requirements.
Versatile Application Scenarios: Well-suited for creative and high-impact installations in locations such as retail storefronts, shopping malls, exhibition halls, and other commercial venues.
Inquiry Now
Specification
| Name | A3-2 | A3-4 |
|---|---|---|
| Pixel Pitch (mm) (horizontal/vertical) | 3.91/3.91 | 3.91/3.91 |
| Pixel Density (dot/m²) | 65536 | 65536 |
| Transparency Rate | 80% | 80% |
| Display Dimension (mm) (w*h) | 1000*2000 | 2000*2000 |
| Profile Dimension (mm) (w*h) | 1021×2452×500 /1021×2230×75 | 2021×2452×500 /2021×2230×75 |
| Resolution (dot) (w*h) | 256×512 | 512×512 |
| Weight (kg/set) | 40 | 60 |
| Brightness(cd/m²) | ≥3000 | |
| Scanning Mode | Static Driving (Single pixel single control) | |
| Encapsulation Type | Light Board & Driving Board Integrated | |
| Lifespan | ≥ 100,000.00 hours | |
| Pixel Configuration | 16bit | |
| Maximum Power Consumption (w/m²) | 1000 | 1000 |
| Average Power Consumption (w/m²) | 375 | |
| Control System | Colorlight / Novastar | |
| Input Voltage | AC100~240V 50/60Hz | |
| Working Voltage for Module | DC4.2V ±0.2V | |
| Working Temperature | Temperature -20℃ ~ 50℃ | |
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | |
| Storage Temperature | Temperature -20℃ ~ 60℃ | |
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | |
| Protection Degree | IP20 | |
| Frame Material | Aviation Aluminum Alloy | |
| Installation Environment | Indoor | |
| Packing Way | Pearl Cotton+Wooden case/Airbox | |
Wave Series M Holographic LED Display
Transparent & Exceptional Image Quality: Evenly spaced pixel arrangements (P3.91/3.91 or P6.25/6.25 horizontal/vertical) deliver high definition with stable images supported by static scanning and integrated lamp drivers. Includes 16-bit grayscale for delicate and rich color depth.
High Brightness & Contrast: Up to 5000 cd/m² brightness and a contrast ratio of 9000:1, ensuring vivid and striking visuals.
Ultra-Thin & Lightweight Design: Only 1.7 mm thick with a weight of approximately 5 kg/m², allowing seamless mounting, especially ideal for transparent glass surfaces.
High Transparency: Offers up to 90% visibility, making the display nearly invisible when not active.
Flexible Size Options & Modular Structure: Panel dimensions include 250 × 1000 mm, 250 × 1171 mm, 250 × 1175 mm, and 250 × 1475 mm, supporting versatile installation configurations.
Wide Range of Applications: Suitable for both indoor and outdoor scenarios, including commercial showcases, glass curtain walls, creative retail windows, exhibition halls, conference venues, museums, and more.
Inquiry Now
Specification
| Name | M3 | M6 |
| Pixel Pitch (mm) (horizontal/vertical) | 3.91/3.91 | 6.25/6.25 |
| Pixel Density (dot/m²) | 65536 | 25600 |
| Transparency Rate | 80% | 90% |
| Display Dimension (mm) (w*h) | 250×1000/250×1171 | 250×1175/250×1475 |
| Profile Dimension (mm) (w*h) | 250×1025/250×1200 | 250×1200/250×1500 |
| Resolution (dot) (w*h) | 64×256/64×300 | 40×188/40×236 |
| Weight (kg/set) | 6 | 5 |
| Brightness(cd/m²) | ≥3000 | ≥5000 |
| Scanning Mode | Static Driving (Single pixel single control) | |
| Encapsulation Type | Light Board & Driving Board Integrated | |
| Lifespan | ≥ 100,000.00 hours | |
| Pixel Configuration | 16bit | |
| Maximum Power Consumption (w/m²) | 1000 | 1000 |
| Average Power Consumption (w/m²) | 375 | |
| Control System | Colorlight / Novastar | |
| Input Voltage | AC100~240V 50/60Hz | |
| Working Voltage for Module | DC4.2V ±0.2V | |
| Working Temperature | Temperature 0~50℃ | |
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | |
| Storage Temperature | Temperature -20℃ ~60℃ | |
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | |
| Protection Degree | IP20 | |
| Frame Material | / | |
| Installation Environment | Indoor | |
| Installation Way | Pearl Cotton+Wooden case/Airbox | |
Download Product Manual
TRANSPARENT LED SCREEN CASES
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
CONTACT US
Have LED projects? Please feel free to contact us at any time, we will respond to you in 24 hours.
Name
Phone
Message
Send
Transparent LED Display Screen – 2026 Buying Guide & New Price！
If you want to buy a novel LED display screen to decorate your window or glass curtain wall, then don’t miss the transparent LED display with super high transparency and excellent display effect!
A transparent LED Display is an advanced digital display solution that delivers high-brightness visual content while maintaining a high level of transparency. Unlike traditional LED video walls that completely block the background, transparent LED screens allow light and visibility to pass through, making them ideal for glass facades, retail windows, shopping malls, airports, exhibitions, and architectural installations.
This guide organizes the most comprehensive transparent LED screen purchase guide for you, including price, cabinet material, application fields, etc.
Just keep reading and learn the most complete guide for buying your transparent LED window display.
Table of Contents
1. What is Transparent LED Display?

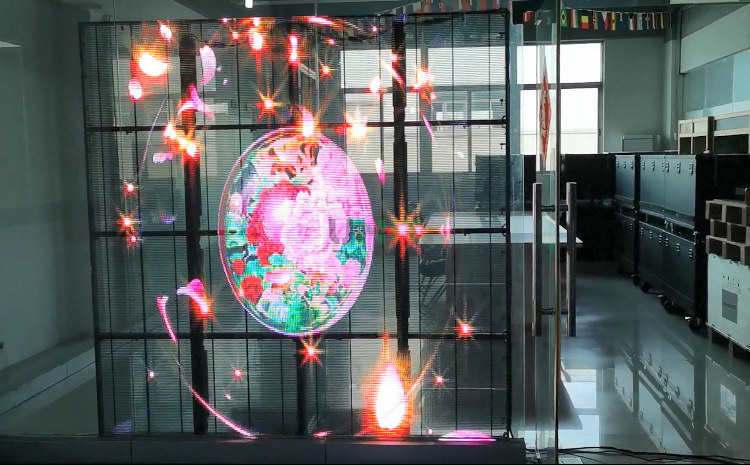

A transparent LED display is a type of LED screen designed with a lightweight, open-frame structure that allows a certain percentage of light to pass through. Transparency rates typically range from 60% to 90%, depending on pixel pitch and panel design.
A transparent LED screen is an optoelectronic product based on the innovation of a traditional LED display. It has carried out the targeted transformation of the patch manufacturing process, lamp bead packaging, and control system.
The LED transparent screen commonly has more than 75% transparency. High transparency reduces the blocking of the line of sight by the LED screen. So you can see the scene behind the display. From a distance, the picture seems to be suspended on the glass.
1.1 What Does Transparent LED Display Screen Solve?

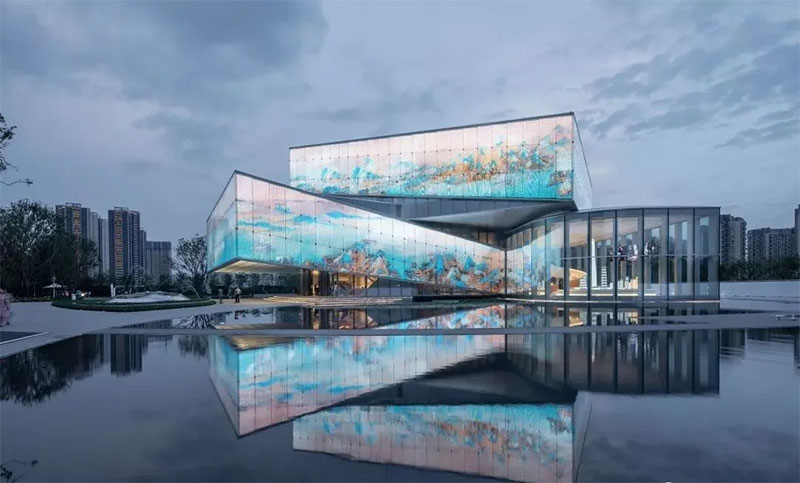

The emergence of transparent LED walls addresses some of the pain points of traditional display screens.
It is true that LED display screens are a great help for advertising and have brought huge commercial value to people. However, when the outdoor LED screen is not functioning, it is out of harmony with the surrounding building environment.
And the transparent LED display screen realizes an invisible display. Its super-high permeability is integrated with the building’s curtain wall. Even when not working, it will not spoil the beauty of the building.
1.2 How to Achieve Transparent Display on LED Screen?
There are currently two methods.

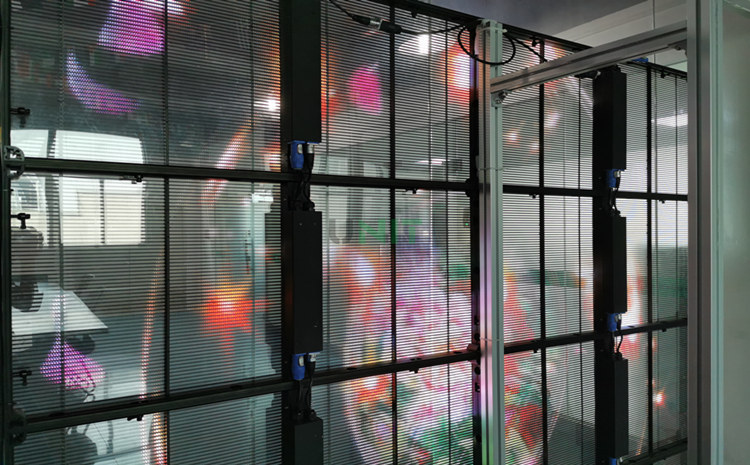

One is to add a hollow design to the traditional LED module and match the new patch, drive, and control system to realize the optimization and innovation of the display screen, such as conventional LED transparent screens and transparent LED film screens.
The second is a product that is directly spliced through light strips/light points, such as LED grid screen and LED light strip screen. This LED product is suitable for long-distance and large-area viewing and does not require high definition.
They are mainly suitable for large-area lighting display projects, such as urban light shows, large-scale landmark displays, etc.
2. Features of Transparent LED Display
Why are global brands like Apple, Nike, and Tesla increasingly opting for transparent LED walls over traditional billboards?
Transparent LED displays are designed to combine high-impact visual performance with architectural aesthetics. Compared with conventional LED screens, they offer a unique balance between visibility, brightness, and transparency.
Below are the key features that make transparent LED displays a preferred solution for modern digital signage and architectural applications.
① High transparency
According to different dot pitches, the light transmittance of the led display transparent is between 50% and 90%.
The LED screen with ultra-high transmittance will not affect the lighting function of the glass curtain wall while displaying the picture.
② Small footprint and lightweight
The screen body only needs a simple steel frame structure. At the same time, the adhesive transparent led display does not take up space after installation.
It will not interfere with other facilities near the glass curtain wall.
③ Easy maintenance
Indoor maintenance is fast and convenient. Save your manpower and material resources. The screen consumes little power and does not require traditional cooling systems.
④ Save costs
On the one hand, the screen body only needs a simple steel frame structure, which can save a lot of costs.
On the other hand, the screen is lightweight and easy to install. There is no need for complex supporting light structures during installation, which can save your installation costs.
⑤ Simple operation and strong controllability
It can be connected with a computer, graphics card, and remote transceiver through a network cable, or you can control the screen wirelessly through a remote cluster, and change the video content at any time.
3. What is LED Transparent Film?
Transparent LED film screen belongs to the new generation of LED display products.
Transparent display film allows for color richness and detail in motion images without compromising location lighting and aesthetics.
3.1 Characteristics
A. High transparency effect. The higher permeability ensures the lighting requirements and perspective range of lighting structures such as floors, glass facades, and Windows, as well as the original lighting perspective function of the glass curtain wall.
B. Beautiful. When the transparent LED film is extinguished, the film is not noticeable and blends completely into the glass.
C. Energy saving. led transparent film is designed with highly integrated circuits and has ultra-low power consumption, which is 50 percent lower than traditional displays
D. Easy installation. Modular box splicing installation, easy maintenance, the light strip can be directly removed from the front.
E. Intelligence. A wide range of brightness adjustments can meet the needs of various environments.
F. Super light cabinet. Aluminum profile box, ultra-thin design, weighs only 12kg/㎡.
LED film displays can be easily attached to glass surfaces without the need for any complex structure.
3.2 Implementation Principle
LED transparent display film, on the basis of the traditional transparent screen, the patch production process, lamp bead packaging, and control system have been improved.
The hollowed-out design reduces the obstruction of the structural components to the view and maximizes the perspective effect.
4. Transparent LED Screen Cabinet Material
Knowing the pros and cons of different enclosures can help you make a better choice.
Next, let’s take stock of several kinds of transparent LED display screen cabinets currently on the market.
|
Type |
Advantages |
Disadvantages |
Weight |
|
Aluminum material |
1. It can be used for standard products and customized product box sizes 2. Small density, light weight, good strength, good heat dissipation, easy installation 3. Able to carry out creative customization of special-shaped screens. |
The production cycle is slow and the price is expensive. |
12kg/m² |
|
Die-casting aluminum cabinet |
1. Standardized production process, short production cycle 2. Lightweight, reasonable structure, high splicing density 3. It is mainly used for renting places, such as stage dances and exhibitions. |
It is not easy to customize, and customized demand items are not applicable. |
12kg/m² |
|
Acrylic cabinet |
1. The permeability is better than that of the aluminum profile cabinet 2. Better transparency effect |
1. Poor heat resistance 2. Low plasticity |
/ |
|
Carbon fiber cabinet |
1. Light and thin, high-temperature resistance and corrosion resistance 2. Fully modular design, more convenient maintenance, and maintenance 3. It is suitable for large-area installation in the field of stadiums and outdoor advertising lights. |
The cost is high and the price is expensive |
9kg/m² |
At present, LED transparent screens mostly use aluminum profile cabinets.
Secondly, acrylic LED screen cabinets have gradually gained popularity in recent years. I believe that there will be more cabinets with new materials in the future.
Transparent LED Screen Cabinet: Silvery-White or Black?
We mentioned above that the most common aluminum cabinets are mainly silver white and black. Then, is it better to use silver-white or black for the LED transparent screen cabinet?
According to the differences in application scenarios, silver-white and black cabinets have their advantages and disadvantages.
First of all, if the windows or glass curtain walls need to have higher permeability, more silver-white cabinets are used.
Secondly, consider the coordination between the display screen and the environment.
Black cabinets are often used at auto shows. Regardless of the short distance, the playback time is long.
The ambient light of the auto show is complex, and an anti-glare design is required.
The black light and black mask design can solve the welding defects of the led light surface, to achieve the best visual effect.
The advertisement design only needs to express the displayed content, and the unnecessary background is black. A black box is more suitable.
It is beneficial to highlight the advertising screen and reduce visual fatigue.
5. Transparent LED Screen Price
In recent years, with the advancement of transparent display technology, more and more LED display manufacturers have launched transparent LED displays.
Transparent LED screen prices generally maintain a stable range.
Transparent LED display is influenced by many factors. UNIT LED introduces the following three main factors to you.
(1) Screen Cabinet (lamp bead, IC, box)
a. Lamp beads
Different brands of lamp beads have different quality and different prices. The lamp bead is the main luminous component of led display screens.
High-quality beads determine the clarity of the screen. The number of beads affects the pixel spacing.
Common brands include NationStar, Kinglight, and HongSun.
b. IC
The higher the number and function of ICs, the higher the price. IC affects the refresh rate of the screen. Different specifications of driver IC bring different refresh rates.
Common IC driver brands are MARCOBLOCK, CHIP ONE, Hemingway Electronics, Fuman Electronics, Mingyang, and so on.
MY9868 is usually used for transparent LED displays and grille LED screens.
c. Box materials and power supply
As mentioned above, there are differences in the price of different materials. The price of a carbon fiber cabinet is higher than other boxes.
(2) Pixel pitch
For different pixel pitch, the product price difference is large. Generally speaking, a smaller space means a higher price.
The common pixel pitch of transparent screen: 3.91-7.82mm, 3.91-5mm, 6.25-6.25mm, 7.82-7.82mm, 7.82-15.64mm, 10.4-10.4mm.
(3) Custom or not
If you have additional customization needs, your price budget needs to be higher.
Especially need to order arcs, triangles, irregular structures, and other irregular structures of the transparent screen.
UNIT LED has extensive experience in manufacturing profiled transparent LED display panels. We have completed many projects, welcome to consult.
Contact Us
6. Different Types of Transparent LED Panel
Transparent LED screens come in various types, each designed for specific installation requirements and applications.
Below are the main categories and their characteristics:
(1) Glass Wall Transparent Screens
Transparent glass LED displays are designed to seamlessly integrate into building glass facades without obstructing natural light.
Glass LED screens are thin, lightweight, and highly transparent. When not in use, they are invisible from a distance.
Installation methods include attaching the screen directly inside or outside the glass wall.
They are widely used in commercial complexes, airports, and exhibition centers for advertising and information display.
(2) Frame-Based Transparent Screens
Frame-based transparent LED screens are modular and easy to assemble, offering moderate transparency compared to glass wall screens.
See-through LED screens are installed using metal frames attached to walls, windows, or freestanding structures.
They are often used in shopping malls, stage setups, and retail window displays.
(3) Transparent Grid LED Screens
Grid-type LED screens consist of horizontal or vertical LED light bars, providing the highest level of transparency.
These screens are extremely lightweight and wind-resistant. It is suitable for large-scale outdoor installations.
They are typically mounted on building exteriors using simple brackets or hung with cables. It’s ideal for architectural lighting effects and massive outdoor advertisements.
(4) Flexible Transparent LED Screen
The flexible transparent LED diplay screen is tailored to fit unique architectural designs. Such as curved walls, spheres, or wave-like structures.
The seamless, custom fit ensures a smooth and immersive display experience.
Installation often needs precision-engineered brackets and support structures.
These are perfect for creative setups in museums, tech expos, or branded events where aesthetics are paramount.
(5) Hanging Transparent Screens
Hanging LED transparent displays are lightweight and suitable for suspended installation. They can be displayed on both sides, maximizing visibility and versatility.
These transparent LED video walls are typically installed in high-traffic areas such as shopping mall atriums or event venues.
Because space optimization and visibility from multiple angles are key for these places.
Each type of transparent LED screen is designed with specific functionalities and advantages. They offer excellent visual effects from architectural integration to creative branding and advertising.
7. Where Can Transparent Glass LED Display Be Used?
Transparent glass LED displays are widely adopted across commercial, architectural, and public environments. Their ability to deliver dynamic visual content without blocking light or visibility makes them a versatile solution for modern digital communication.
(1) Retail Shop Window
The window along the street is becoming the new darling of brand advertising.
A transparent LED window display will not obstruct people’s sight while displaying attractive pictures.
This kind of application scene has a small area and novel display effects. Dynamic content attracts more pedestrians’ attention. So, it is popular in the major brand jewelry industry, luxury brands, and retail businesses.
Please check more shopping mall LED display solutions.
(2) Glass Curtain Wall
With high transparency, the LED transparent screen is integrated with the wall glass. The transparent bank makes the LED screen cabinet has a good light transmission. It can be installed indoors and viewed outdoors.
LED light strip screens on the exterior walls of high-rise buildings are a good choice for high buildings. It is the first choice for creating dynamic display landscapes of landmarks. It is suitable for building a super large outdoor LED display.
(3) Bar, KTV
Investing in LED transparent screens in bars, nightclubs, KTV and other entertainment venues will bring you more traffic.
You can customize various transparent creative led displays according to your needs.
(4) Glass Trestle
Interactive transparent LED screens are mostly used in shopping plazas and glass walkways.
Cool interactive effects and high transparency bring visitors a more exciting experience. It is one of the means for scenic spots and shopping malls to attract passenger flow.
(5) Sightseeing Elevator and Mall Atrium
To meet the advertising needs in the shopping mall, there are transparent LED video walls to play advertisements in the atrium of the shopping plaza and the sightseeing elevator.
It can also play a role in decoration and beautification while advertising.
8. 4 Reasons for Choosing Transparent LED Display for Shop
Digital transparent window LED displays are the perfect solution to the problem of video display in retail windows.
It makes the shop advertising more vivid and more three-dimensional.
① Attract customer attention
Digital transparent LED window displays with high transparency turn the glass into a display screen.
Brightly-colored pictures and video content can quickly draw attention to them. It is suitable for some shopping malls with traffic or shops facing the street.
② Enhance store image
Window LED displays are widely used in some high-end stores. For example, car 4S stores, jewelry stores, shopping malls, and booths.
The cool transparent display helps to enhance the image and grade of the store.
③ Good lighting
Up to 85% transparency allows the transparent display to not obstruct the view of the customer.
Customers can see the products in the store directly through the glass and panes, thus increasing the store’s attention rate and entry rate.
Good transparency does not affect the lighting inside the store.
④ Advertising campaign
You can display dynamic videos and video content on window LED displays to promote your store.
Through computer control, you can change the advertising content at any time, very convenient.
The transparent led video wall is used as a permanent advertising space for the store and can be used for branding and advertising.
9. Conclusion
Knowing all about the transparent LED display, are you excited about it? Seize this opportunity to give your beloved shop a new look!
Name
Phone
Message
Send
