High-Performance OF1000 Outdoor LED Display
OF1000
OF1000 Series High Quality Outdoor LED Display
-High-Precision Aluminum Cabinet
-Lightweight and Fast Installation Design
–IP65 Front and Rear Protection
-Energy-Saving Common Cathode Design
–Advanced Heat Dissipation System
-Dual Front and Rear Maintenance
-Multiple Installation Options

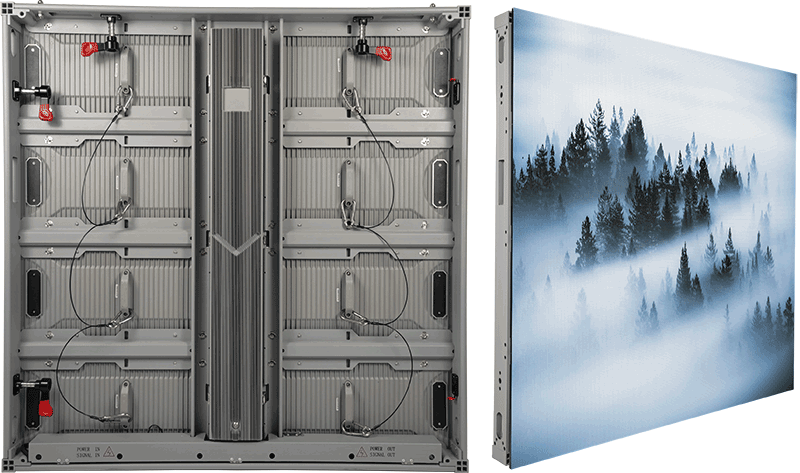

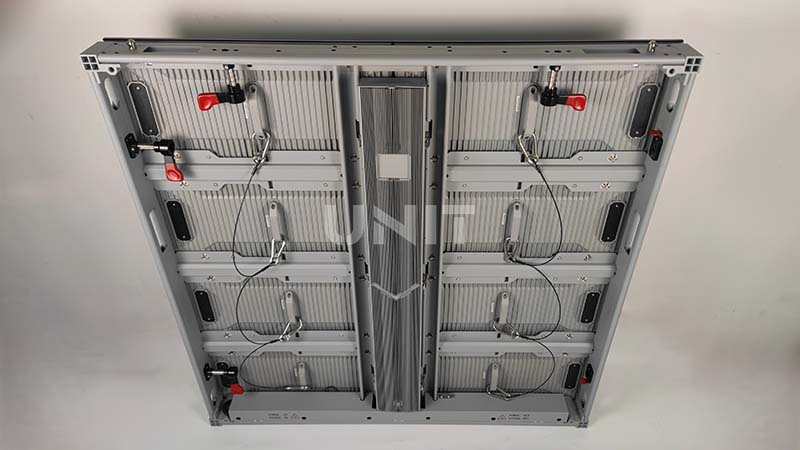

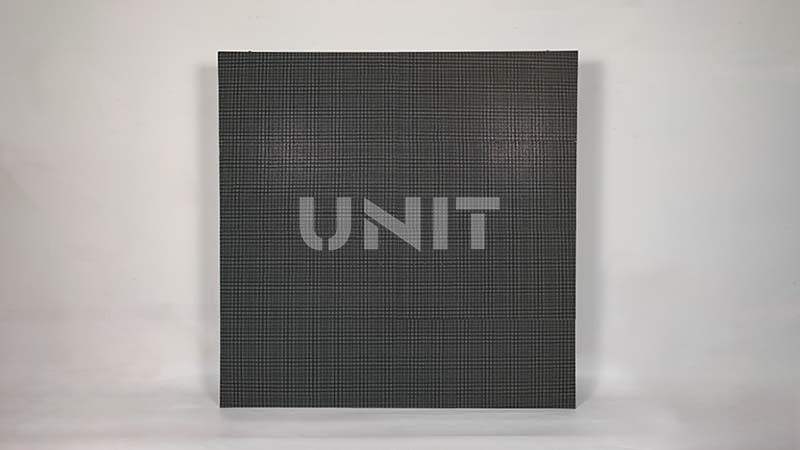

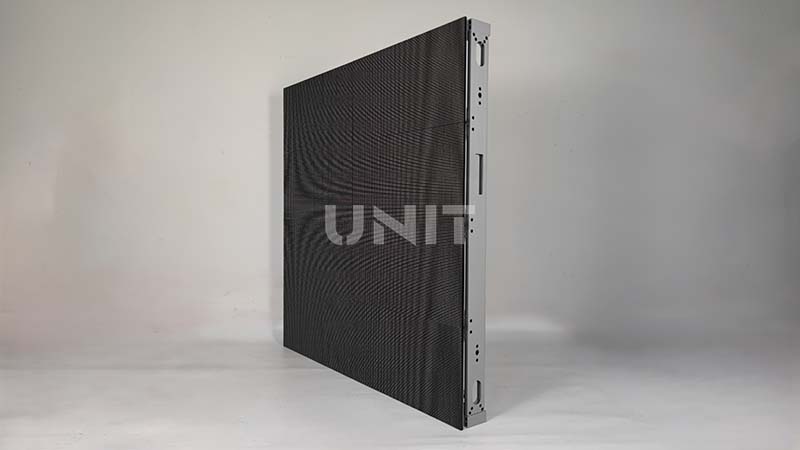

OF1000 Outdoor LED Display

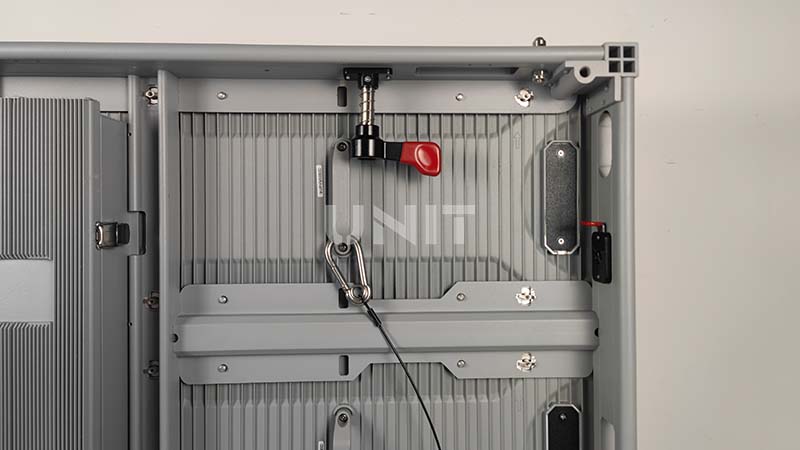

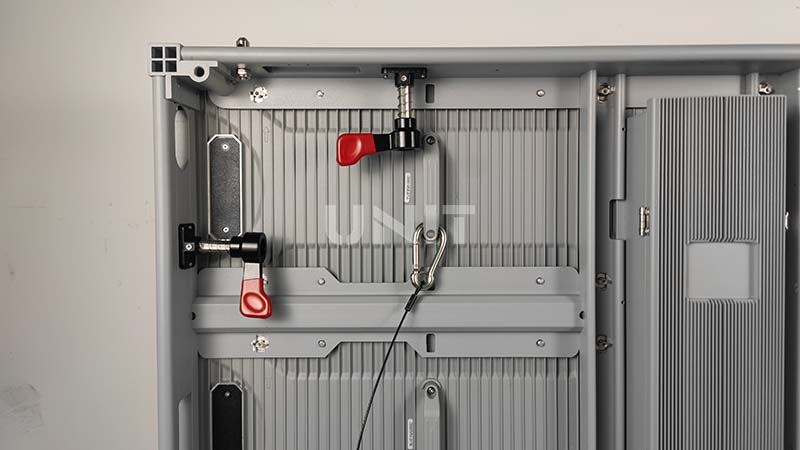

The OF1000 Series supports full front or full rear maintenance. Each cabinet comes with built-in handles and safety ropes to prevent module drops.
It also adapts to various installation methods, including fixed outdoor structures, hanging, bare setups, 90° right-angle splicing, and rounded corner designs.
Inquiry Now

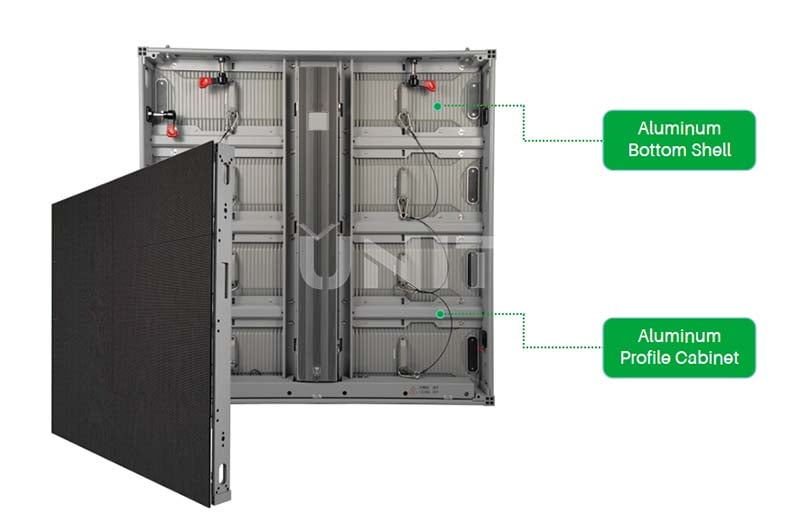

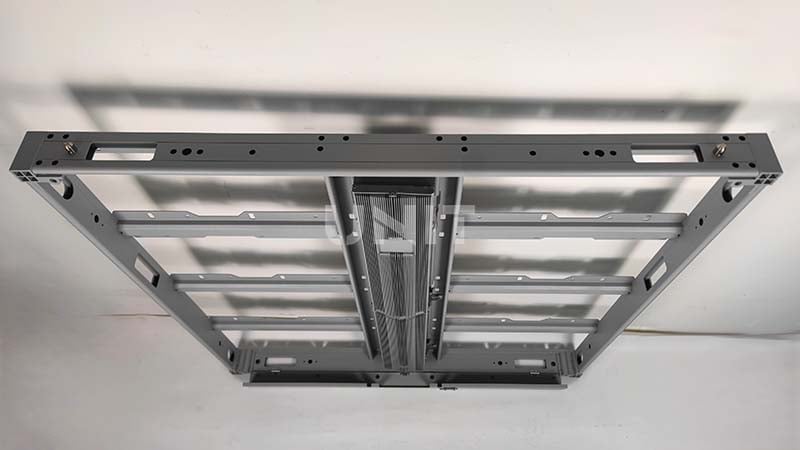

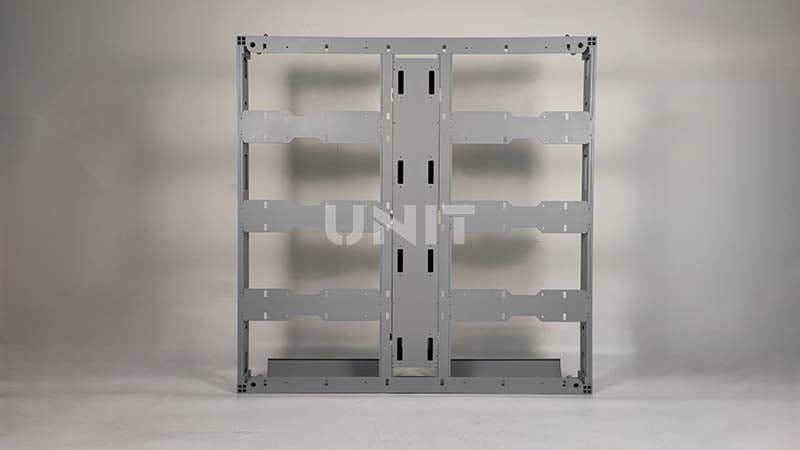

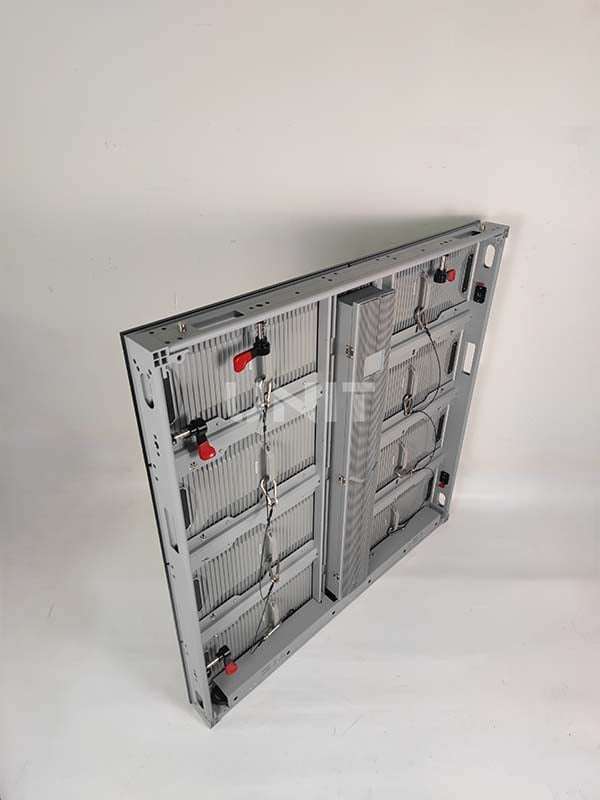

High-Precision Aluminum Cabinet
The OF1000 Series outdoor LED display feature a robust aluminum profile cabinet and aluminum module back shell (P4.81 uses a plastic back shell),
ensuring exceptional flatness, reduced deformation, and seamless panel alignment for a flawless visual experience.
Lightweight and Fast Installation Design
Weighing just 30.5KG/m², the OF1000 LED displays are equipped with fast locks and handle holes on all sides,
making installation quick, easy, and highly efficient — ideal for rapid event setups and takedowns.
Sleek Sony Gray Color Design
The OF1000 outdoor LED display adopts a Sony gray color design that reflects more solar radiation, reducing heat absorption.
Its soft, clean, and bright tone blends perfectly with most architectural styles, enhancing the overall aesthetics of installations.
Inquiry Now

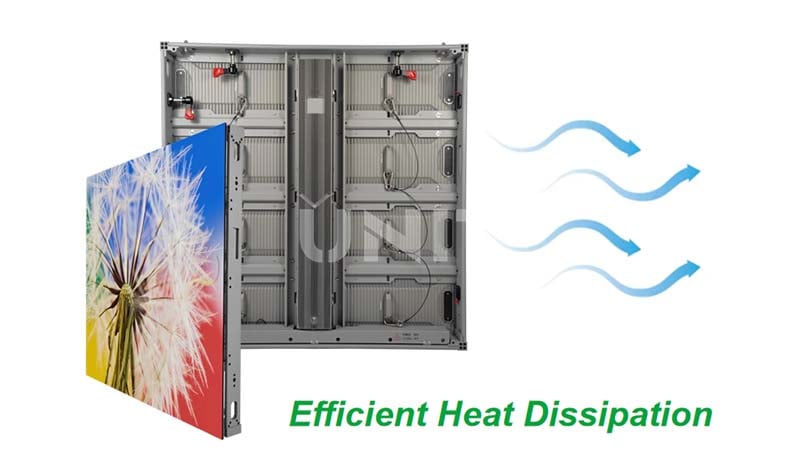

Advanced Heat Dissipation System
OF1000 outdoor LED display utilizes a comprehensive cooling solution, including silent ball-bearing fans, convection air vents,
unobstructed internal airways, direct-contact power supply cooling, enhanced aluminum fins, V-shaped airflow channels, and aluminum module back shells
achieving rapid heat dissipation, reducing component aging, and extending product lifespan.
IP65 Front and Rear Protection
Designed for outdoor environments, the OF1000 Series boasts an IP65 rating on both the front and rear sides.
It supports bare installation without additional protection, delivering reliable performance in rain, snow, and harsh weather conditions.
Inquiry Now
Energy-Saving Common Cathode Design
Supporting a wide AC input range of 100V–240V, the OF1000 Series employs a common cathode low-voltage energy-saving design,
cutting power consumption by over 40% compared to traditional systems. This ensures lower heat generation, improved efficiency, and longer service life.

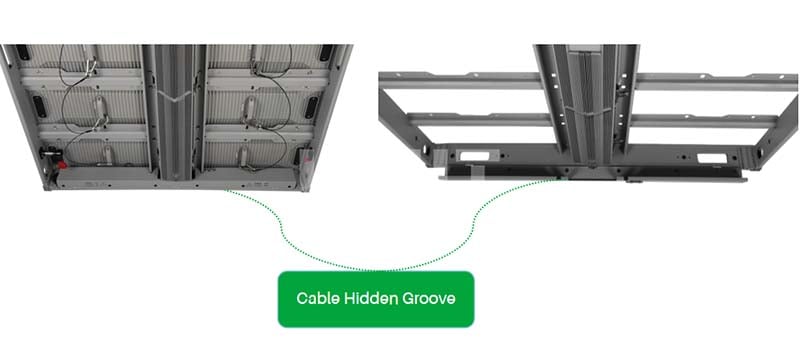

Hidden Cabling and Waterproof Aviation Connectors
Power and signal cables are neatly routed with a hidden design, and aviation-grade connectors with protective tail caps enhance waterproofing and durability.
This improves both the appearance and the installation efficiency of the LED rental screens.

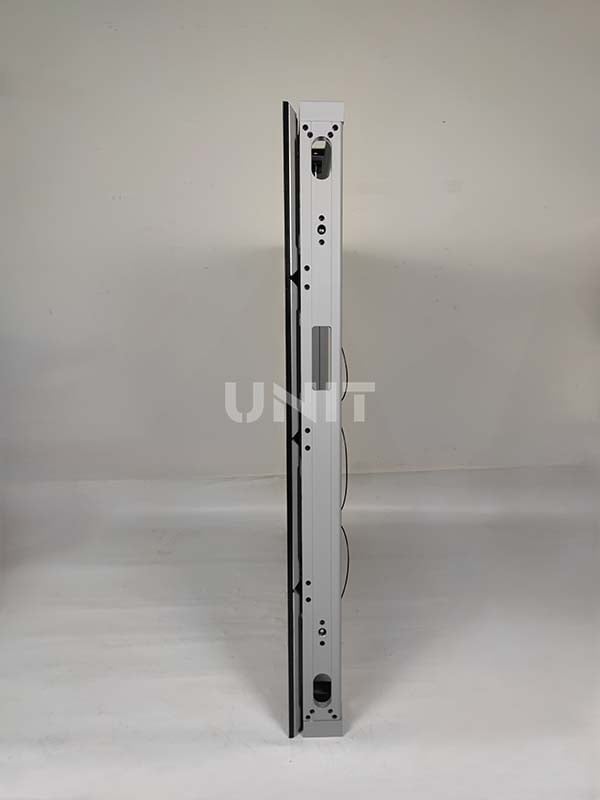

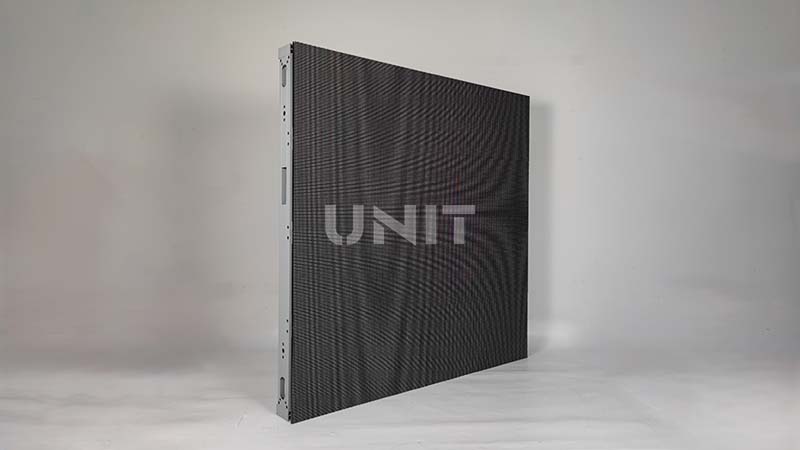

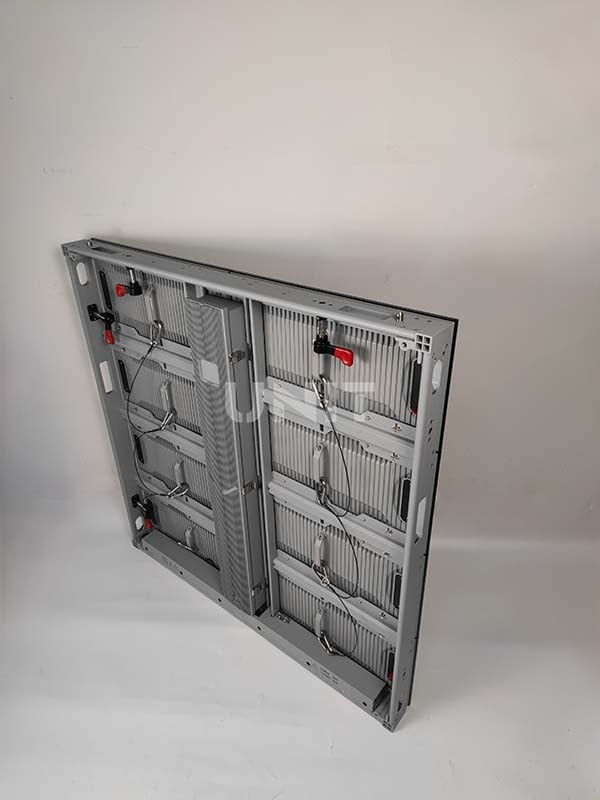

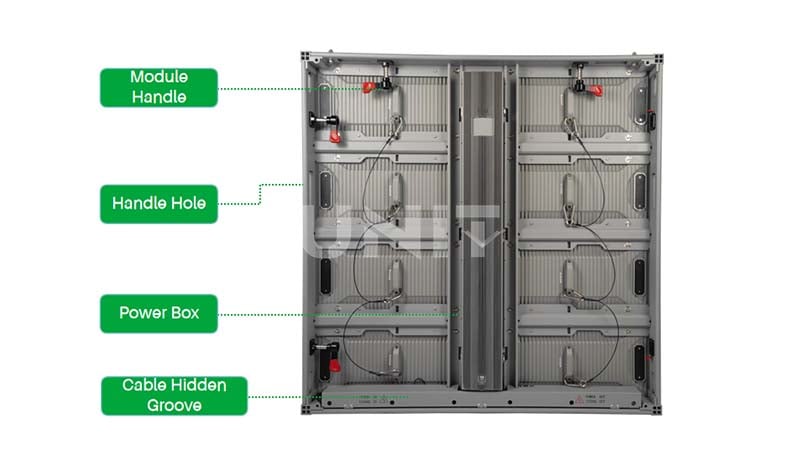

OF1000 LED Cabinet
https://youtu.be/jLdgJstjPpEhttps://youtu.be/WmoyxQzlZnghttps://youtu.be/3e3KV4T4p0s
OF1000 Series High-quality LED Display
- Energy-Saving Common Cathode Design
- SMD 3 in 1 LED Encapsulation Technology
- Front Service and Rear Service
- High Protection Aluminum Cabinet Panel
- Advanced Heat Dissipation System
- CE,Rohs Approved
- 3 Years Warranty and 3% Spare Part
Get Price Now
Specification
| Model | P3.91 | P6.25 | P7.81 | P10.42 |
| Pixel pitch | 3.91 | 6.25 | 7.81 | 10.42 |
| SMD type | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Panel resolution(dots/pc) | 256×256 | 160×160 | 128×128 | 96×96 |
| Module resolution | 128X64 | 80X40 | 64X32 | 48X24 |
| Material of Panel | Profiled aluminum | |||
| Module dimension | 500X250 | |||

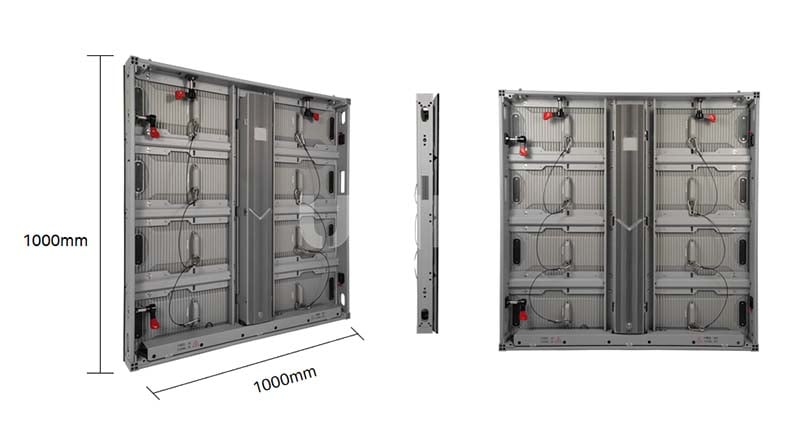

| Panel size(mm) | 1000x1000x87 | |||
| Protective Grade | IP65 | |||
| Flatness(mm) | ≤0.1 | |||
| Maintenance mode | Front & Rear | |||
| Weight of cabinet (kg/m2) | 30.5 | |||
| Brightness(nits) | 6000 | ≥6000 | ≥6000 | ≥6000 |
| Color temperature(K) | 8000-10000 optional | |||
| Viewing angle(V/H) | 160°/160° | |||
| Contrast ratio | 4000:1 | |||
| Drive mode | 1/8 scale | 1/5 scale | 1/4 scale | 1/2 scale |
| Refresh rate | ≥3840Hz | |||
| Max power consumption(W/m2) | 510 | 530 | 530 | 530 |
| Avg. power consumption(W/m²) | 150-200 | 150-200 | 150-200 | 150-200 |
Products
P3.91
128*64 dots/module
500*250mm module
1000*1000 cabinet
P4.81
104*52 dots/module
500*250mm module
1000*1000 cabinet
P6.25
80*40 dots/module
500*250mm module
1000*1000 cabinet
P7.81
64*32 dots/module
500*250mm module
1000*1000 cabinet
P10.42
48*24 dots/module
500*250mm module
1000*1000 cabinet
