Indoor Fixed LED Display
FIXED
Customized Size Indoor Fixed LED Display
Customized Size as customer requirement, Steel or Aluminum cabinet design, High brightness, Indoor Fixed Installation LED Display, high flatness, excellent display effect.
Inquiry Now
Features
Specification
Related Products
Low Brightness and High Grayscale

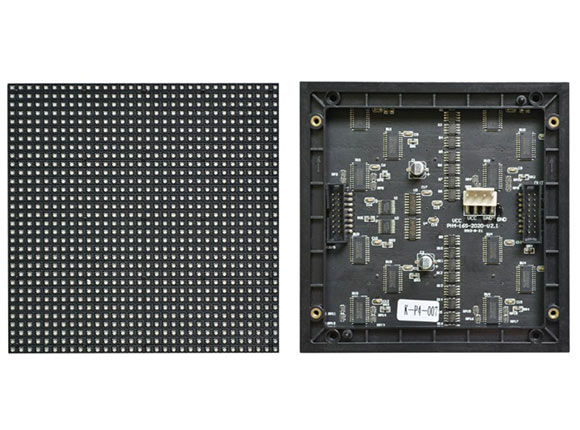

The SMD Encapsulation technology with High Refresh Rate and High Grey Grade with Reliable Driving IC. Unit Indoor Fixed LED display
has vivid and smoother pictures when in use. Compared with outdoor fixed LED display, indoor fixed LED screen has a lower brightness.
Inquiry Now
Uniform color, High contrast, Beautiful Picture
As the UNIT’s first standard indoor fixed LED display. Its stability not only has obtained customers’ reputation but also has been highly praised and appreciated by other led display manufacturers.
High Efficieny Cooling
With 4 aerofoil fans in each cabinet. UNIT indoor fixed series LED display can cool immediately when in use.

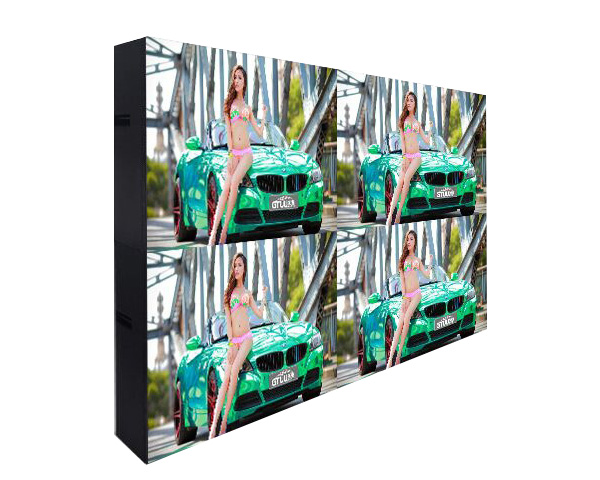

Seamless, No gaps
Fine standard cabinet with no obvious gaps between the cabinets. Non-deformability function keeps the screen in good shape and smoothly.
Using dot-to-dot calibration technology makes the image clearer and the layering stronger.
Inquiry Now

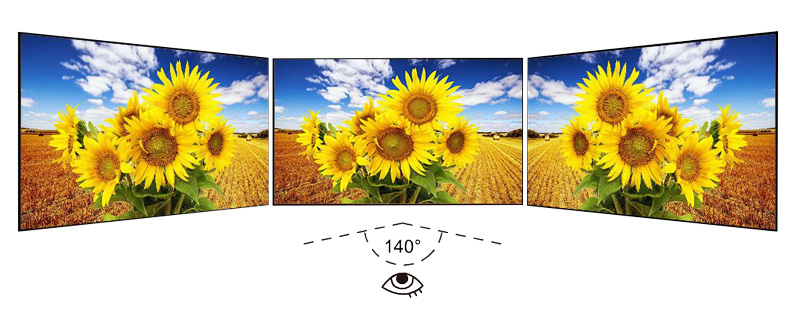

Super Wide Viewing Angle
Support fixed installation for advertisement, adding flying bar, connectors and fast lock for rental installation,
adding rubber cushion and bracket for perimeter installation LED display

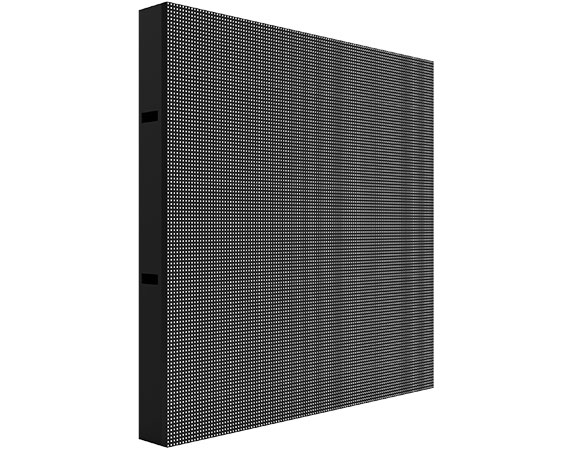

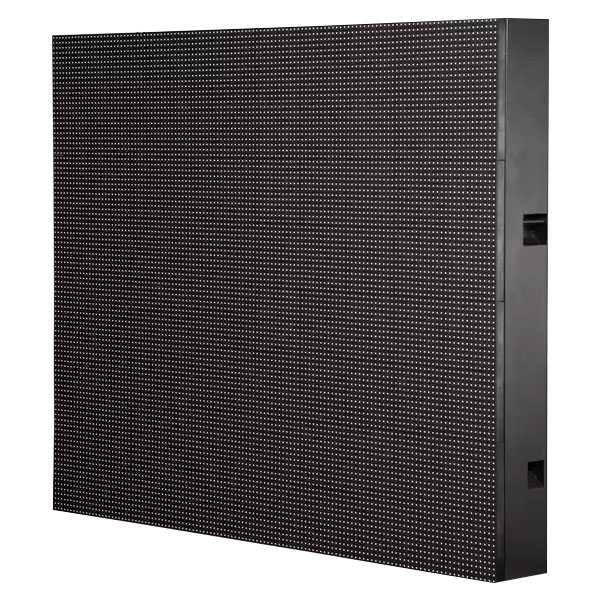

Indoor Fixed Installation LED Display
Customized Size as Customer’s Requirement
SMD 3 in 1 LED Encapsulation technology

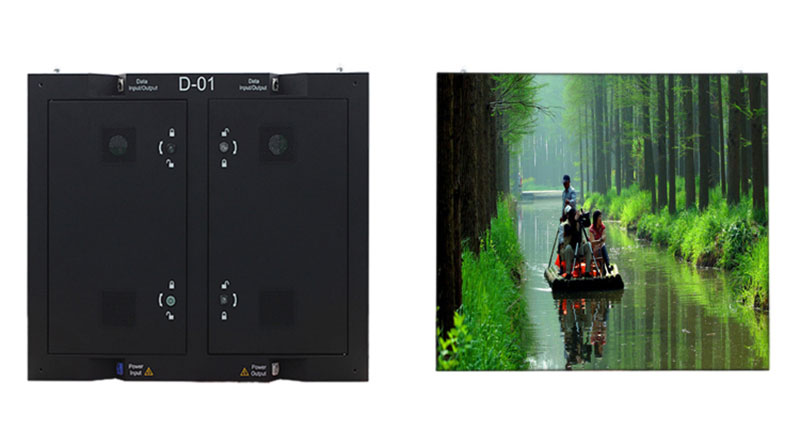

Dual Service with Front or Rear Maintenance
Steel or Aluminum cabinet design
CE,Rohs Approved
3 Years Warranty and 5% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
Specification
| ITEM | UNIT | P2mm | P3mm | P4mm | P5mm | P6mm | P10mm |
| LED Type | N/A | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | SMD3528 |
| Pixel Pitch | mm | 2 | 3 | 4 | 5 | 6 | 10 |
| Ingress Protection | IP | IP54 | |||||
| Viewing Distance | meter | 2 | 3 | 4 | 5 | 6 | 10 |
| Scan Way | N/A | 1/40 | 1/32 | 1/16 | 1/16 | 1/16 | 1/4 |
| Module Dimension | mm | 256*128 | 192*192 | 256*128 | 320*160 | 192*192 | 320*160 |
| Module Pixel | Pixel | 128×64 | 64×64 | 64×32 | 64×32 | 32×32 | 32×16 |
| Cabinet Dimension | mm | Customized Size | |||||
| Cabinet Resolution | Pixel | Depend on the size of Cabinet | |||||
| Module Maintenance | N/A | Front or Rear | |||||
| Cabinet Material | N/A | Steel or aluminum | |||||
| Cabinet Weight | KG | 50kg/m2 | |||||
| Brightness | Nits | 800~1000 | |||||
| Refresh rate | Hz | 1920/3840 | |||||
| Digital Processing | Bit | 14/16 | |||||
| Gray Scale | Level | 16384 | |||||
| Colors | Million | 687 | |||||
| Color Temperature | Deg.K | 4,500-8,500 Adjustable | |||||
| Brightness Control | N/A | 255 | |||||
| Contrast Ratio | N/A | 4000:1 | |||||
| Viewing Angle H | Deg. | 140 | |||||
| Viewing Angle V | Deg. | 140 | |||||
| AC Speration | V | AC90~264 | |||||
| Power Consumption(Max/Avg) | W/m2 | 800/250 ( Estimate ) | |||||
| Storage Tem. | F/C | -4 ~ 140F/-20C ~ +60C | |||||
| Storage Humidity | RH | 10% ~ 85% | |||||
| Operating Tem. | F/C | -4F ~ 140F/-20C ~ +60 | |||||
| Operating Humidity | RH | 10% ~ 85% | |||||
| Lift time(50% brightness) | Hour | 100,000 | |||||
| Control Mode | N/A | Video Sync | |||||
Download Spec Sheet
Products
P2128×64 dots/module
256*192mm/module
Customized Size
P364×64 dots/module
192*192mm/module
Customized Size
P464×32 dots/module
256*128mm/module
Customized Size
P564×32 dots/module
320*160mm/module
Customized Size
P632×32 dots/module
192*192mm/module
Customized Size
P1032×16 dots/module
320*160mm/module
Customized Size
P3.9164×64 dots/module
250*250mm/module
Customized Size
P4.8152×52 dots/module
250*250mm/module
Customized Size
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
