P1.86mm Indoor SMD LED Module
Pixel Pitch:1.86mm
LED Type: SMD1515
Module Size: 320*160 mm
In Stock
Description
P1.86mm indoor led display module 320mmx160mm Best Color Uniformity High Refresh Rate 172×86dots Pixel SMD LED Screen Panel.
FEATURES:

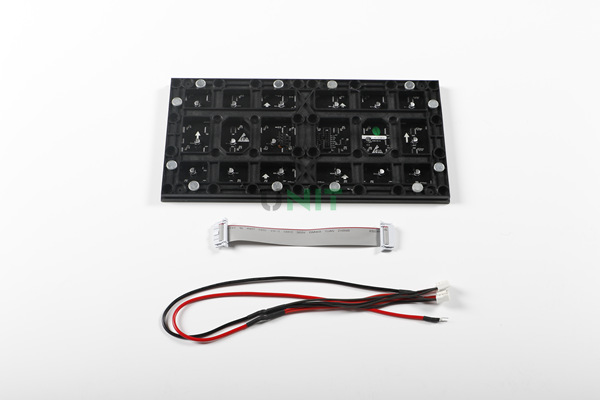

- LED Module Including the Data & Power Cables.
- Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
- High Contrast for led display.
- Driving LEDs with constant current.
High-quality SMD
Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level
Strict Aging Testing
UNIT provides72 hours aging test and 24 hours video aging to ensure the LED display moudles have best stability.
| Items | Parameter |
|---|---|
| Product Model | P1.86mm Indoor LED Module |
| Module size | 320mmx160mm |
| resolution ratio | 172*86dots |
| Pixel pitch | 1.86 mm |
| Pixel configuration | RGB 3in1 |
| Driving method | Constant Current Driving,1/43 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD1515 (Black LED) |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥3840HZ |
| Brightness in White Color (cd/m2): | 800-1000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤300W/m2 (MAX 700) |
| Viewing Angle | 140(Horizontal),140(Vertical) |
| Best Viewing Distance | 1.8m-18m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
More Details

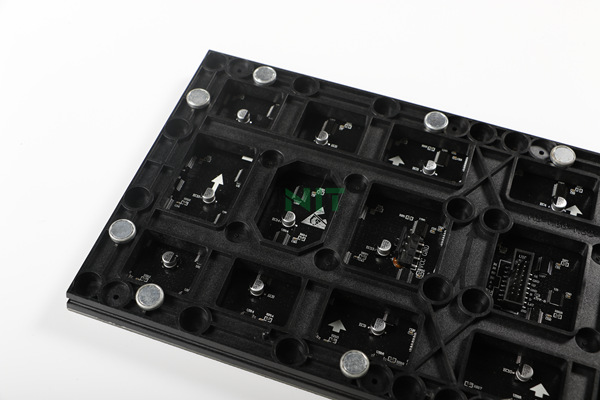

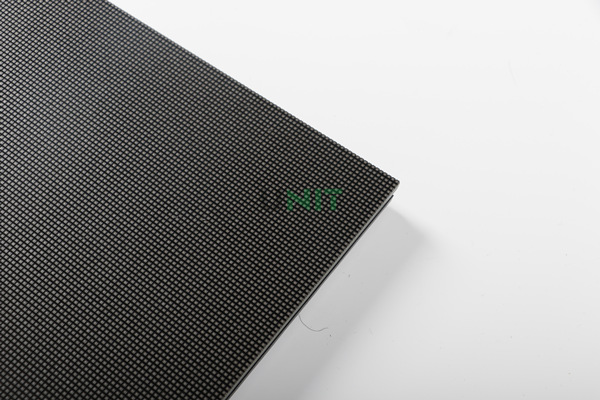

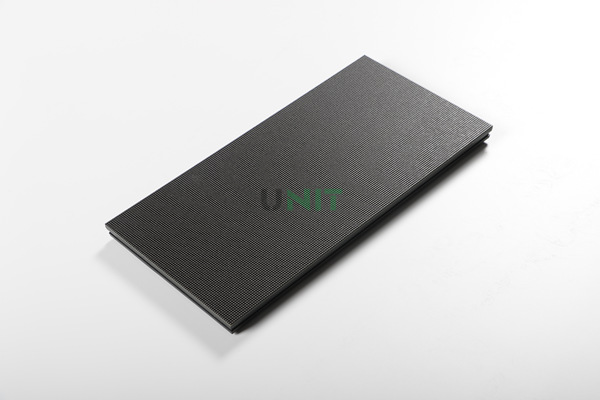

320*160mm indoor p1.86 SMD led module details
