UNIT ES960 Series Energy Saving LED Display
ES960 (320*320mm Module)
960X960mm Series Energy Saving LED Display

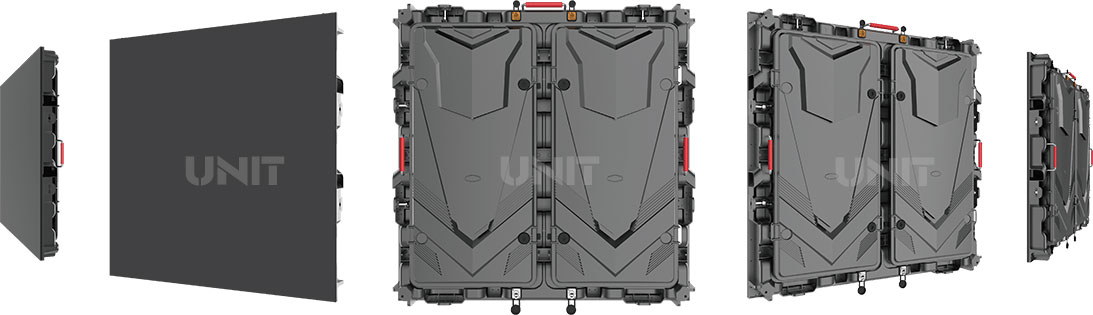

Magnesium alloy cabinet design, Energy Saving LED Display, Standard size cabinet with 960*960mm dimension, 320mm*320mm module size. high flatness, easy to install and disassemble
Inquiry Now
Features
Specification
Related Products
Energy Saving LED Screen
ES960 Series Energy Saving LED Display is UNIT latest outdoor energy saving LED screen, the displaty cabinet size is 960*960mm dimension,
the led display module size is 320*320mm. ultra low heat and has excellent performance in improving energy efficiency and environment protection.
Inquiry Now
PRODCUT FEATURES
1. Using R / GB to separate power supply, current is accurately distributed to the lamp beads, reducing power consumption.
2. Reduce the temperature, no need for air conditioning, save cost.
3. Reduce power consumption, save electricity and energy, reduce costs greatly.
4. Uniform heat distribution, constant color temperature, no color deviation, no color block, good consistency.
5. The screen cabinet has low heat, which is about 16 ℃ lower than the common LED display product

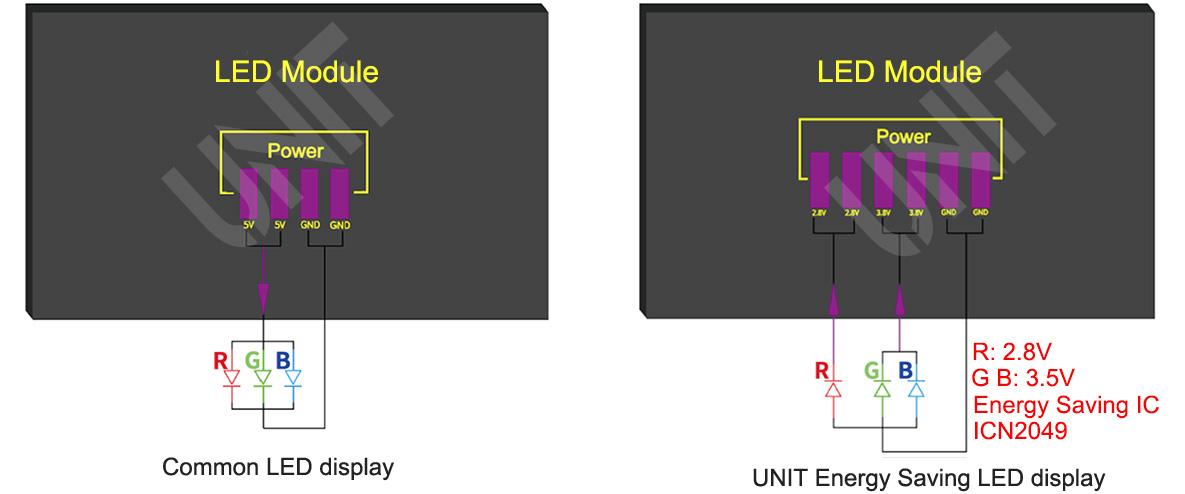

Common Cathode LED display
UNIT ES960 series Energy saving is power supplied separately with R and GB, which means that the voltage and current are accurately distributed to the red, green and blue lamp beads. The current passes through the lamp beads and then to the negative electrode of the IC. The separate power supply scheme effectively reduces the power consumption and greatly reduces the heat generated during the operation of the display screen.
Perfect Structure
UNIT ES960 Series energy saving LED display is made by hard magnesium alloy cabinet, fashion design and top class product structure for better heat dissipation and low heat. The heat of the display is uniform, the color temperature is constant, and no color block in the display at all, and the picture display effect is excellent. energy consumption is maximized without reducing LED display brightness and contrast .
Inquiry Now

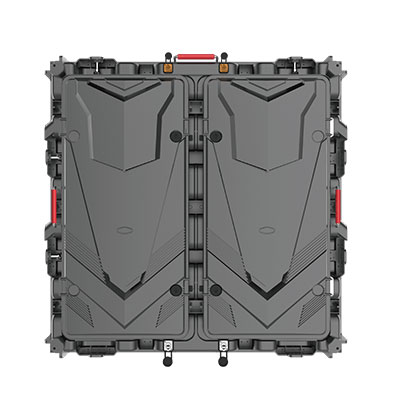

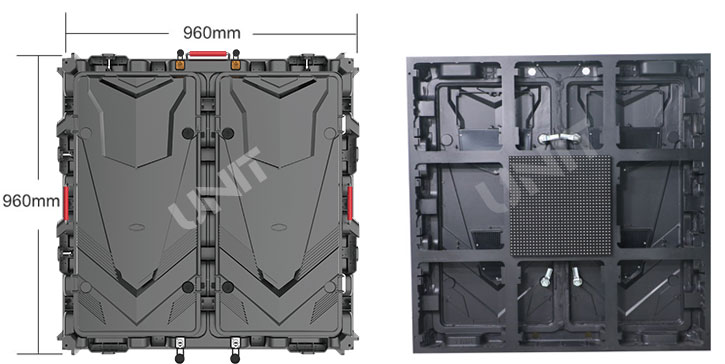

Standard Size Cabinet
960*960mm standard cabinet design with 320*320mm LED module panel. the led module features frontal service

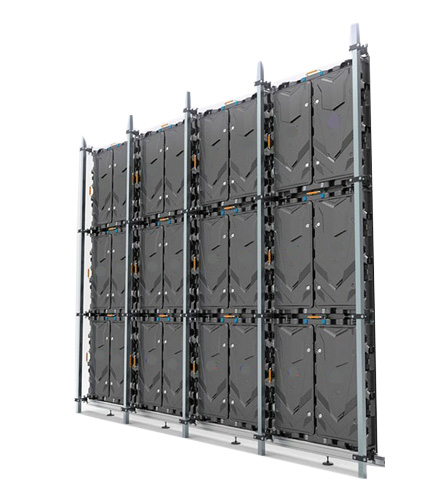

Accurate cabinet alignment, high precise assembly
Equipped with Unit’s unique lock, the position of each cabinet can be precisely adjusted from Six directions, left or right, up or down, front or back,
every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultraflat and seamless cabinet alignment.
ES960 Outdoor Energy Saving LED Display
960*960mm Cabinet Standard Size
SMD 3 in 1 LED Encapsulation technology
Outdoor power saving LED Display
Dual Servie with Frontal and Rear
CE,Rohs Approved
3 Year Warranty and 5% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
Specification
|
Pixel Pitch |
P4mm |
P5.33mm |
P6.67mm-ES |
P8mm-ES |
P10mm-ES |
|
LED |
SMD1921 |
SMD1921 |
SMD2727 |
SMD3535 |
SMD3535 |
|
Module size |
320*320mm |
||||
|
Module resolution (dot) |
80*80 |
60*60 |
48*48 |
40*40 |
32*32 |
|
Density |
62500 |
35156 |
22477 |
15625 |
10000 |
|
LED Cabinet Size |
960*960mm (Customized Size Avaliable) |
||||
|
Cabinet Weight |
26kg/Magnesium Alloy LED Cabinet |
||||
|
Material |
Magnesium Alloy/Steel/Aluminum |
||||
|
Brightness |
>5000 nits |
>5000 nits |
>5500 nits |
>5500 nits |
>5500 nits |
|
Avg power consumption |
380W |
360W |
280W |
240W |
280W |
|
Max power consumption |
950W |
900W |
650W |
600W |
650W |
|
Best Viewing Distance |
4-40m |
5-55m |
6-66m |
8-80m |
10-100m |
|
Fresh frequency |
1920-3840HZ |
||||
|
Protective grade |
Waterproof IP65 Front and Back |
||||
|
Maintain Way |
Frontal & Rear Service-Dual Mode |
||||
|
Scan Method |
1/16S |
1/7S |
1/6S |
1/5S |
1/2S |
|
Certificates |
CE,RoHs,FCC |
||||
|
Warranty |
3 Years Warranty |
||||
Download Spec Sheet
Products
P480*80 dots/module
240*240 dots/cabinet
Energy Saving
P5.3360*60 dots/module
180*180 dots/cabinet
Energy Saving
P6.6748*48 dots/module
144*144 dots/cabinet
Energy Saving
P840*40 dots/module
120*120 dots/cabinet
Energy Saving
P1032*32 dots/module
96*96 dots/cabinet
Energy Saving
