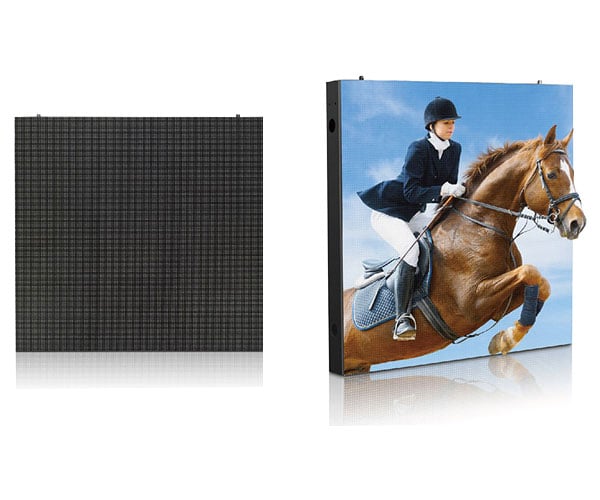

Outdoor Fixed LED Display

FIXED

Customized Size Outdoor Fixed LED Display

Customized Size as customer requirement, Steel or Aluminum cabinet design, High Brightness, Outdoor Fixed Installation LED Display, high flatness, excellent display effect.

Inquiry Now

Features



Specification



Related Products

Home

High Brightness, Excellent Image Video

The SMD Encapsulation technology with high brightness makes the Unit Outdoor Fixed LED display
has a vivid and smoother picture when in use. To achieve the best visual performance of
outdoor LED display, we use the best driving IC with a high refresh rate and high grey level with the latest technologies.

Inquiry Now

SMD LED with Best Color Uniformity and High Brightness.

For the outdoor LEDs, we choose the best driving IC with high reliability and contrast, wide view angle, and good consistency,
which meet the need for high brightness, high refresh rate, high gray scale, and keep natural color at one time with best color uniformity.

High Efficieny Cooling

There are 4 aerofoil fans in each cabinet to make the UNIT Outdoor Fixed LED display cool immediately.
entilation volume is 6.6 cubic meters per minute, air circulation 25 times every minute inside the cabinet

Seamless, No gaps

Fine standard cabinet with no obvious gaps between the cabinets. Non-deformability function keeps the screen in good shape and smooth.
using dot-to-dot calibration technology makes the image clearer and the layering stronger.

Inquiry Now

IP65 Protection Level

All weather for the outdoor environment. With UNIT unique protection technology to make the display reach the level of IP65,
can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet, and steady.
Dustproof, Waterproof, and Corrosion Resistant

Super Wide Viewing Angle

Support fixed installation for advertisement, adding flying bar, connectiors and fast lock for rental installation,
adding rubber sushion and bracket for perimeter installation LED display.

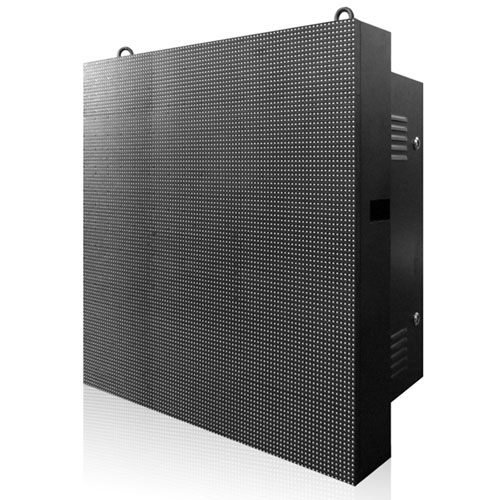

Outdoor Fixed Installation LED Display

Customized Size as Customer’s Requirement

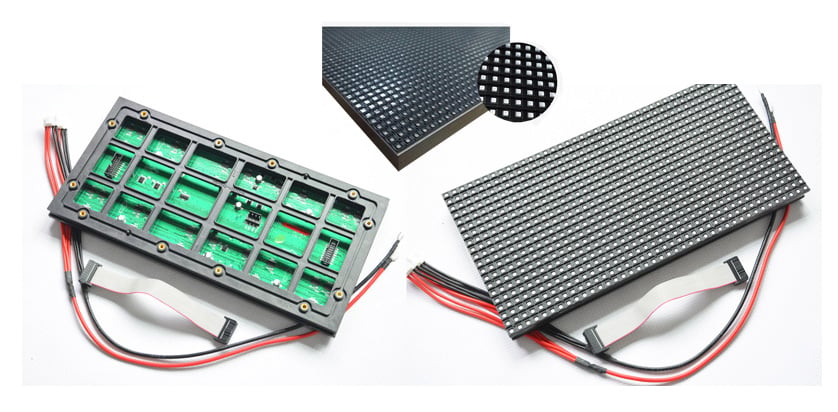

SMD 3 in 1 LED Encapsulation technology

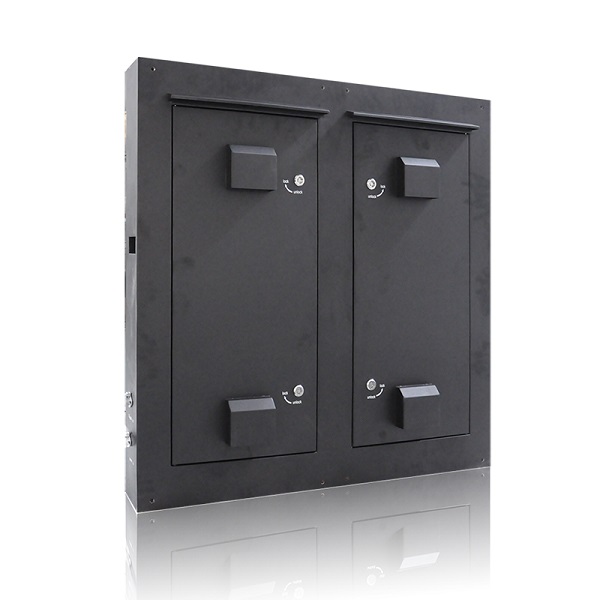

Dual Service with Front or Rear Maintenance

Steel or Aluminum Cabinet Design

CE,Rohs Approved

3 Years Warranty and 5% Spare Part

Find More

Get Price Now

Name

Phone

Email

Message

Send

Specification

Item		P8mm	P3mm	P4mm	P5mm	P6mm	P10mm
LED Type	N/A	SMD3535	SMD1415	SMD1921	SMD2525	SMD3535	SMD3535
Pixel Pitch	mm	8	3	4	5	6	10
Ingress Protection	IP	IP65
Viewing Distance	meter	8	3	4	5	6	10
Scan Way	N/A	1/4	1/16	1/16	1/8	1/8	1/4
Module Dimension	mm	256*128	192*192	256*128	320*160	192*192	320*160
Module Pixel	Pixel	32×16	64×64	64*32	64*32	32*32	32*16
Cabinet Dimension	mm	Customized Size
Cabinet Resolution	Pixel	Depend on the size of Cabinet
Module Maintenance	N/A	Front or Rear
Cabinet Material	N/A	Iron Material
Cabinet Weight	KG	50kg/m2
Brightness	Nits	≥6.000cd/m2
Refresh rate	Hz	960-2000Hz
Digital Processing	Bit	14/16
Gray Scale	Level	16384
Colors	Million	687
Color Temperature	Deg.K	5000-9300 adjustable
Brightness Control	N/A	255
Contrast Ratio	N/A	4000:1
Viewing Angle H	Deg.	150
Viewing Angle V	Deg.	160
AC Speration	V	AC90-264
Power Consumption(Max/Avg)	W/m2	800/250(Estimate)
Storage Tem.	F/C	-4~140F/-20C~+60C
Storage Humidity	RH	10%~85%
Operating Tem.	F/C	-4F~ 140F/-20C~+60
Operating Humidity	RH	10%~85%
Lift time(50% brightness)	Hour	100.000
Control Mode	N/A	Video Sync



Download Spec Sheet

Products

P364×64 dots/module
192*192mm/module
Customized Size

P464×32 dots/module
256*128mm/module
Customized Size

P564×32 dots/module
320*160mm/module
Customized Size

P632×32 dots/module
192*192mm/module
Customized Size

P832×16 dots/module
256*128mm/module
Customized Size

P1032×16 dots/module
320*160mm/module
Customized Size
