LC60F Series Foldable Poster LED Display | All-in-One LED Poster

Lightweight & Integrated Design LED Poster

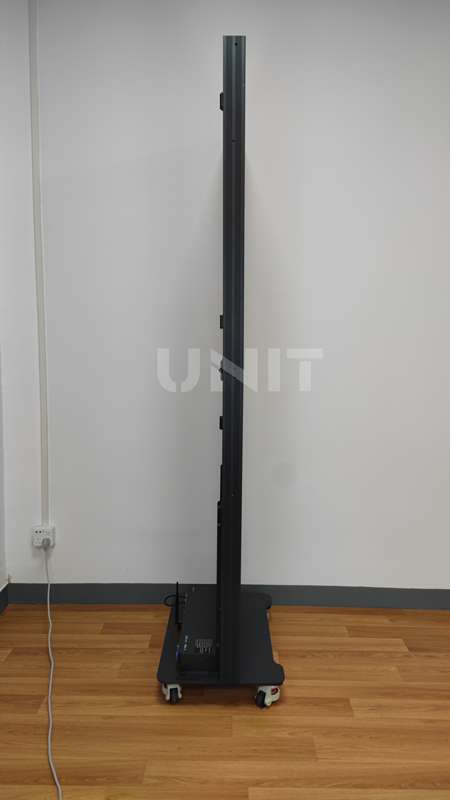

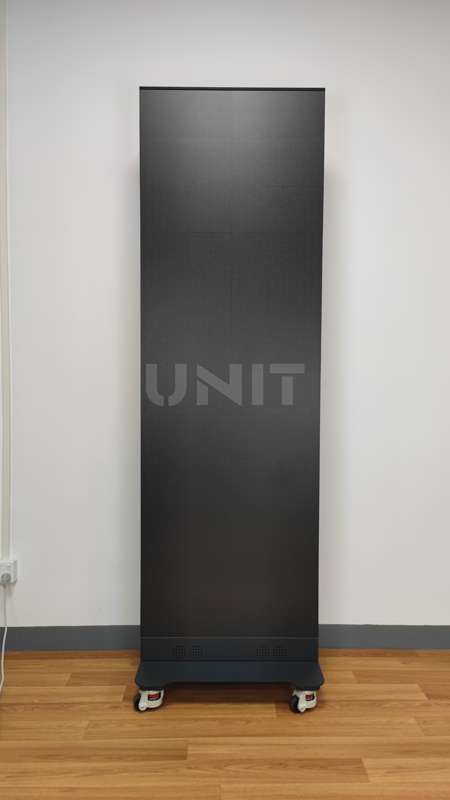

UNIT LC60F features a segmented die-cast aluminum cabinet design, weighing only 58kg and making it lighter and thinner than traditional LCD digital signage.

With a 660×2121×440mm product dimensions, the 640×1920mm display area, its all-in-one design enables plug-and-play functionality for quick setup and effortless transportation, impactful visuals in various commercial environments.

Inquiry Now

New

Precision-Crafted & Stable Structure

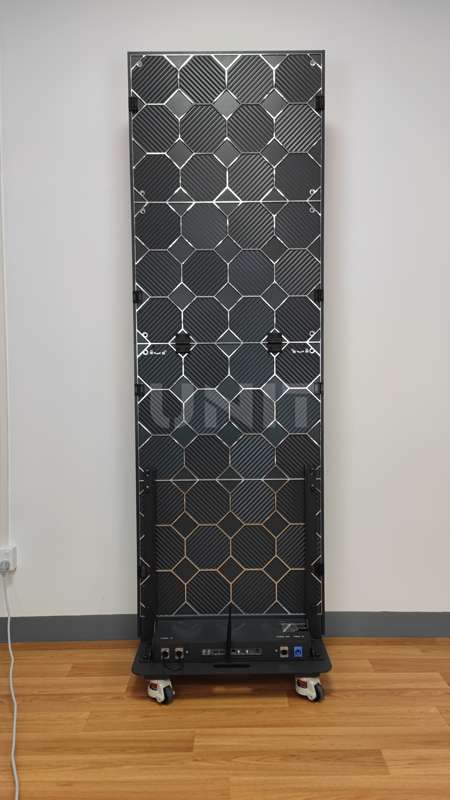

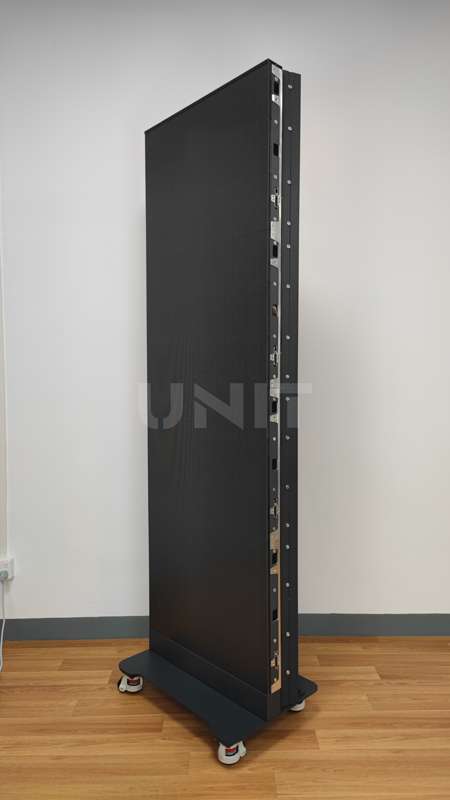

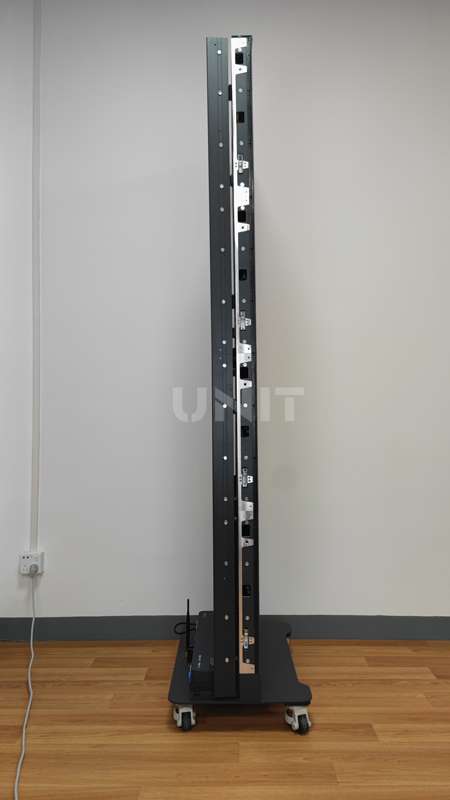

Equipped with a cold-rolled steel base and CNC-processed die-cast aluminum cabinet, the LC60F ensures excellent stability and flatness.

The precise structural design guarantees seamless screen alignment when used in multi-screen setups.

Inquiry Now

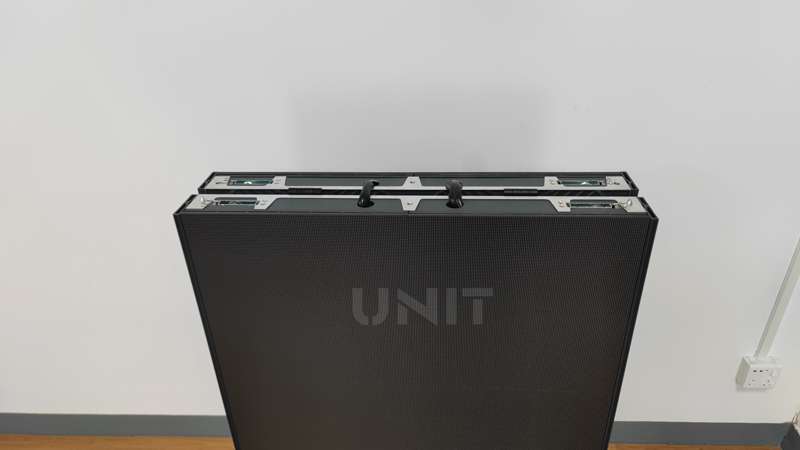

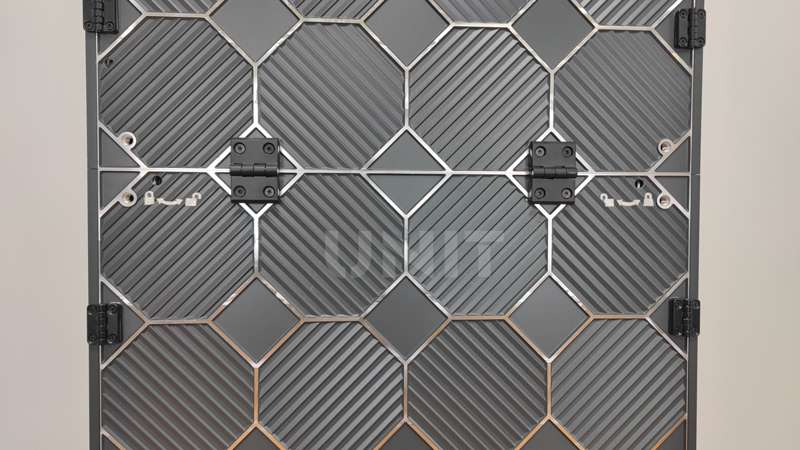

Foldable & Seamlessly Splice Display

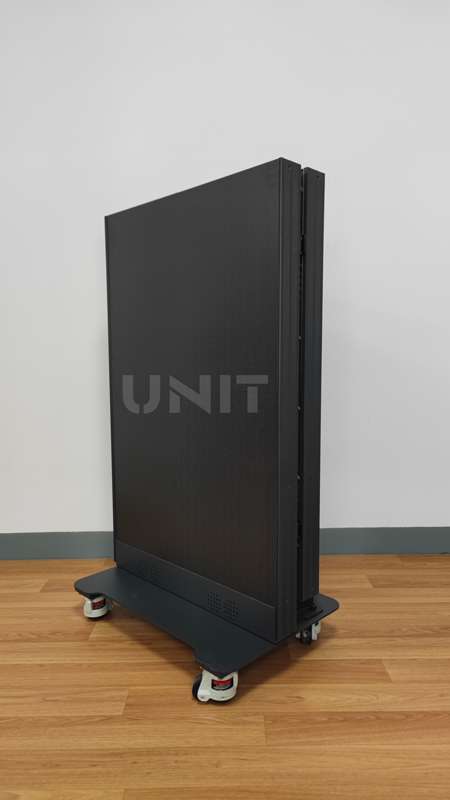

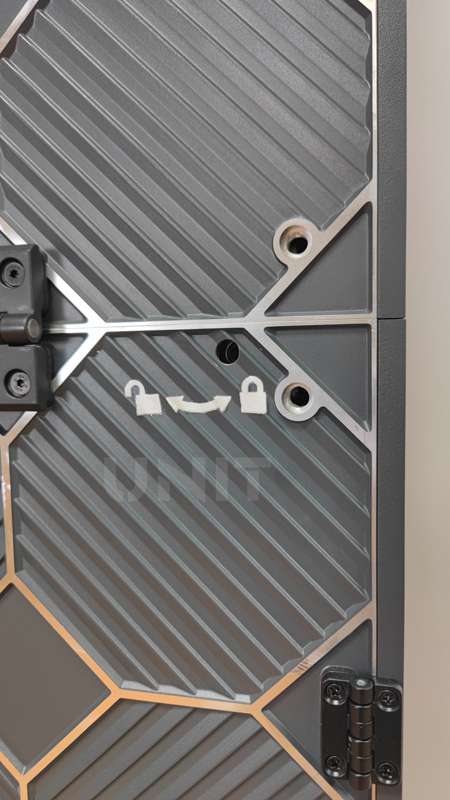

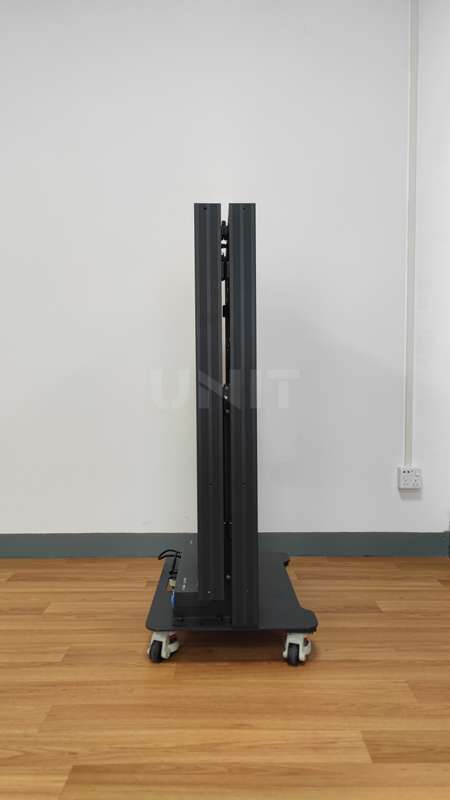

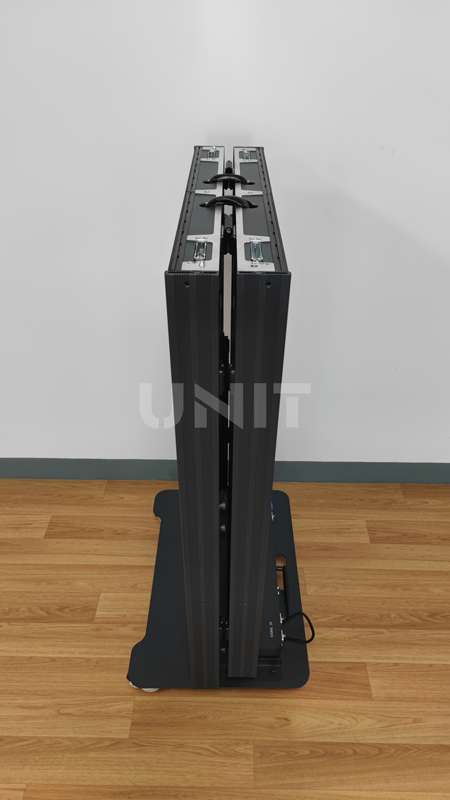

Supports half-fold transformation, allowing a single-sided screen to instantly become double-sided, maximizing advertising exposure.

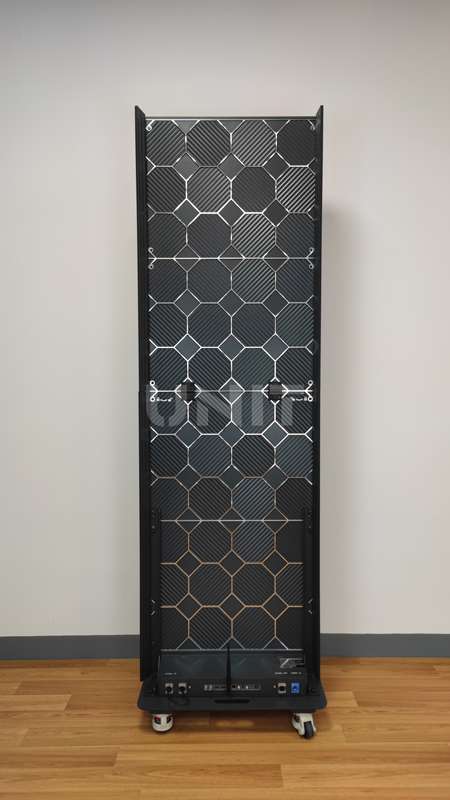

Multiple screens can also be seamlessly spliced to create larger video walls with protective edges and a flip-cover design for easy maintenance.

Inquiry Now

High Performance & Stability

Utilizing premium LED lamp beads, LC60F provides high brightness, low power consumption, and long lifespan, maintaining excellent visual performance even under prolonged operation.

Powered by an industrial-grade embedded motherboard and a quad-core CPU (≥1.4GHz), LC60F series LED poster supports 4K video decoding, ensuring smooth operation, fast processing, and virus-free performance for continuous 24/7 use.

Inquiry Now

Smart Network Control

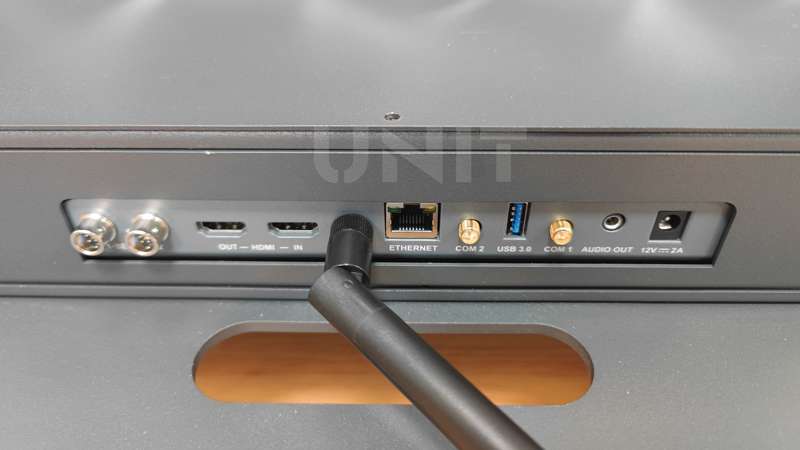

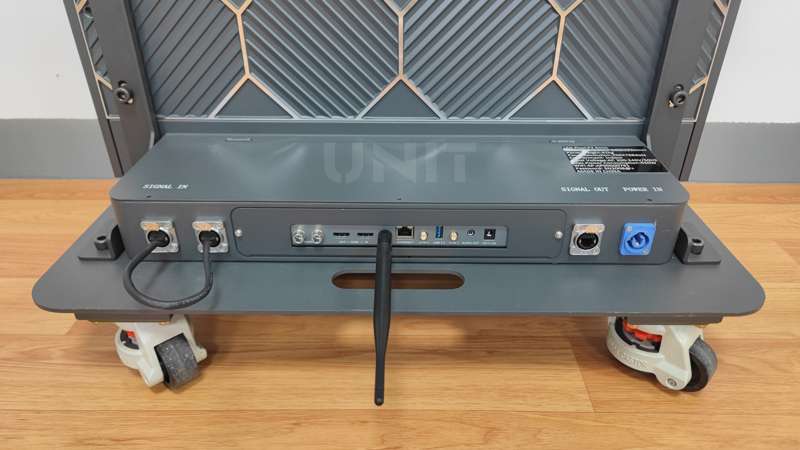

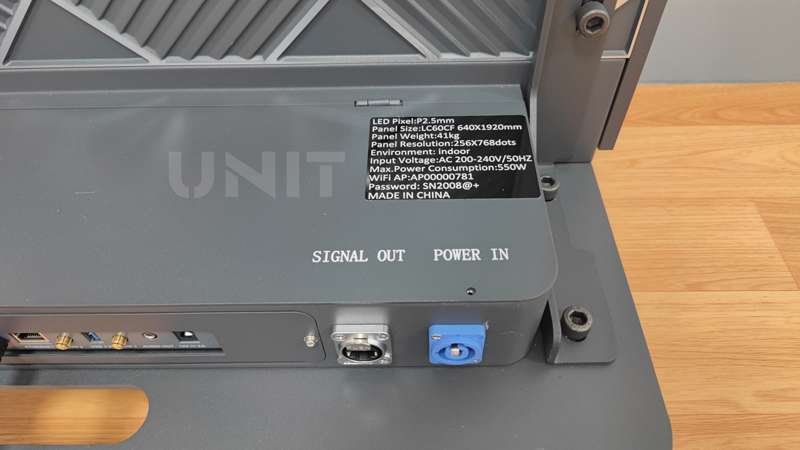

Manage multiple LED posters remotely through a centralized cloud platform. Easily edit and schedule content, customize playback windows, and control displays via WiFi, 4G/5G, RJ45, or USB — anytime, anywhere.

Inquiry Now

Enhanced Mobility & Easy Transport

LC60F series is equipped with heavy-duty universal wheels, each supporting over 50kg. These durable wheels feature adjustable leveling feets, making it easy to move the display and align multiple units during splicing.

It also comes with a standard flight case featuring a ramp design, ideal for rental applications.

Inquiry Now

Smart and Convenient Operation

UNIT LC60F series supports dual WiFi mode, smart split-screen display, and advanced color management, allowing automatic or manual fine-tuning of brightness and saturation.

It also includes remote control, scheduled reboot, and automatic brightness adjustment for maximum flexibility.

Inquiry Now

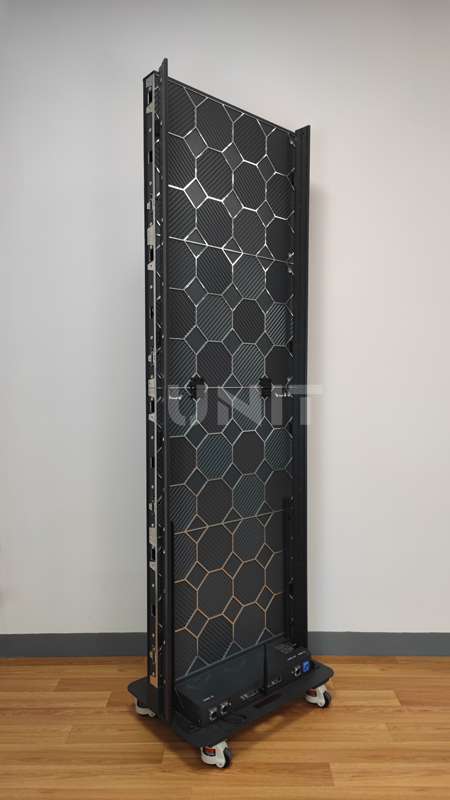

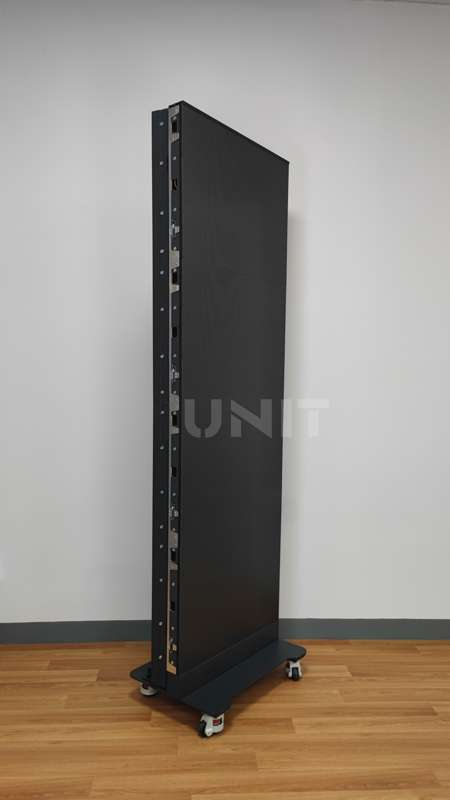

Full Front Maintenance Design

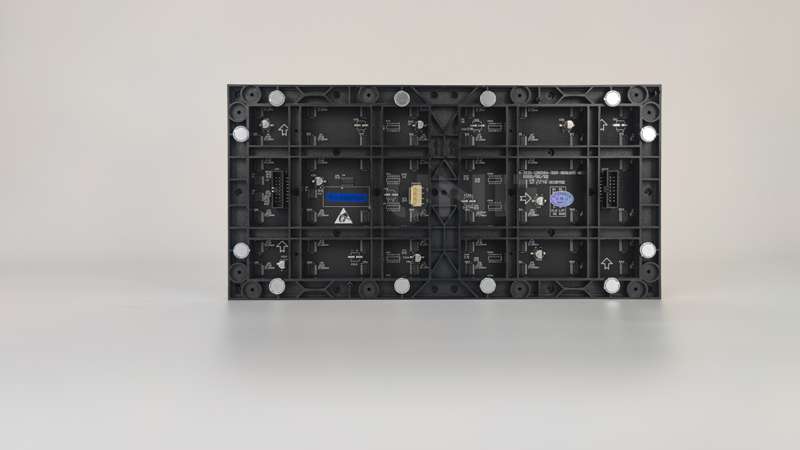

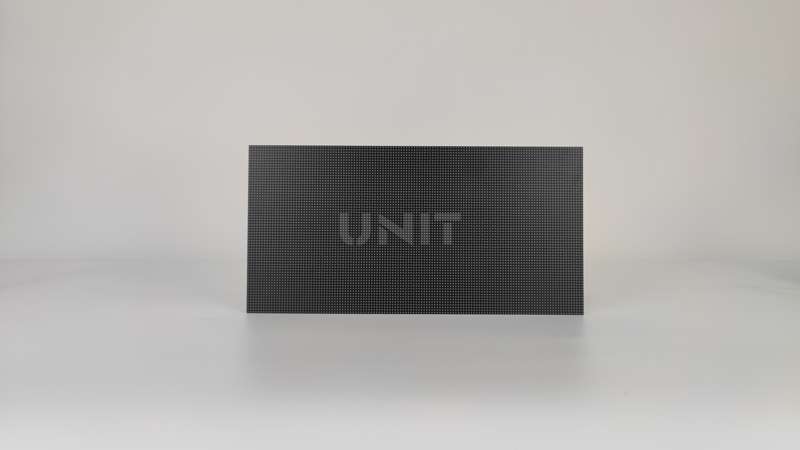

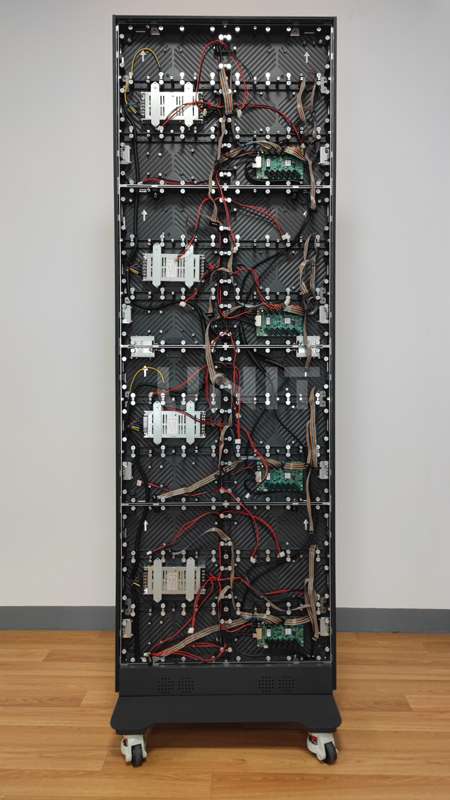

LC60F poster LED display features magnetic module installation, allowing LED panels to be easily attached or removed without any complex tools.

It supports full front maintenance, eliminating the need to remove the back panel and making servicing quick and convenient for users.

Inquiry Now

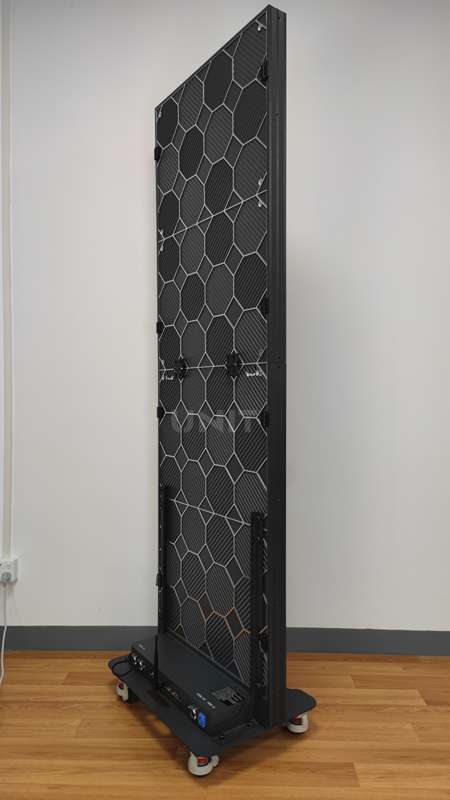

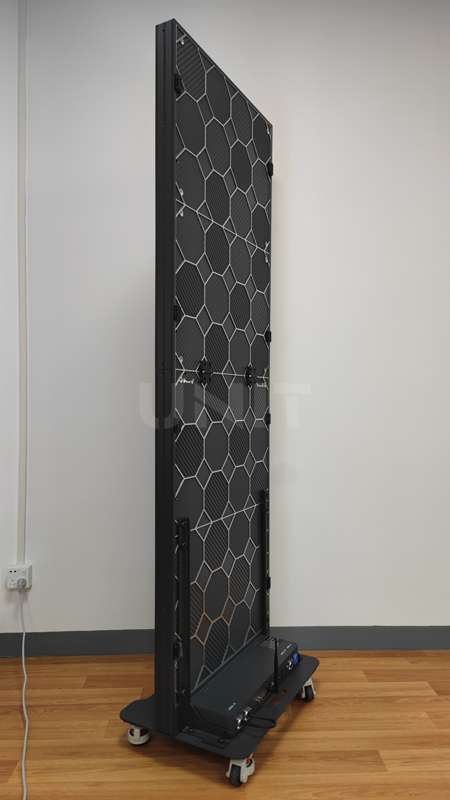

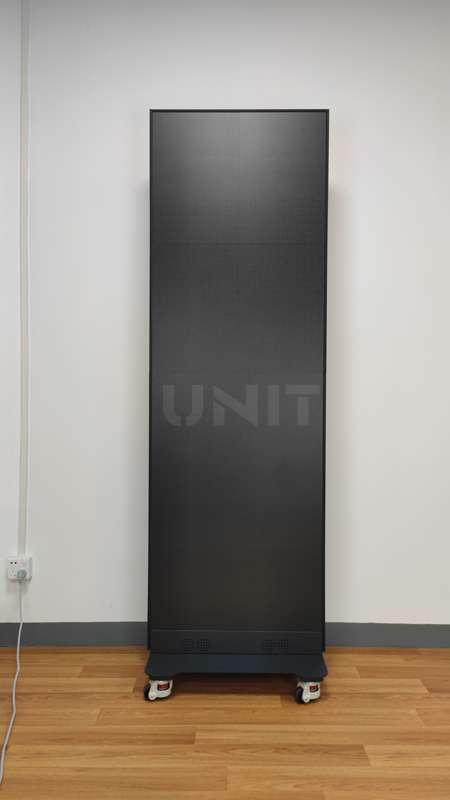

LC60F Details

Specification

LC60F Series
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020
Pixel Pitch (mm)	P1.25 (GOB)	P1.538 (GOB)	P1.86	P2	P2.5
Product Size (W×H×D) (mm)	660 × 2121 × 440
Display Size (W×H) (mm)	640 × 1920
Resolution (W×H)	512 x 1536	416 x 1248	344 x 1032	320 x 960	256 x 768
Weight (kg)	58
Material	Die-cast frame + sheet metal base
Module Size (W×H) (mm)	320 × 160
Brightness (nit)	600
Refresh Rate (Hz)	3840
Color Temperature (K)	9000 ± 1000
Viewing Angle (H/V) (°)	140 / 140
Driving Method	1/64 Scan	1/52 Scan	1/43 Scan	1/40 Scan	1/32 Scan
AC Operating Voltage (V)	AC 200~240 (wide voltage optional)
Power (Max/Average) (W/set)	490 / 163
Storage Temperature (°C)	-40 ~ +60
Operating Temperature (°C)	-10 ~ +40
Storage Humidity (RH)	10% ~ 90%
Operating Humidity (RH)	10% ~ 90%
Protection Level (Front/Rear)	IP40 / IP40
LED Lifespan (H)	100,000
Module Maintenance	Front maintenance
Power & Other Maintenance	Front maintenance
Seamless Splicing	Supported
Folding	Fold backward in half
Sound	Supported (optional)
Installation	Floor standing, assembled
