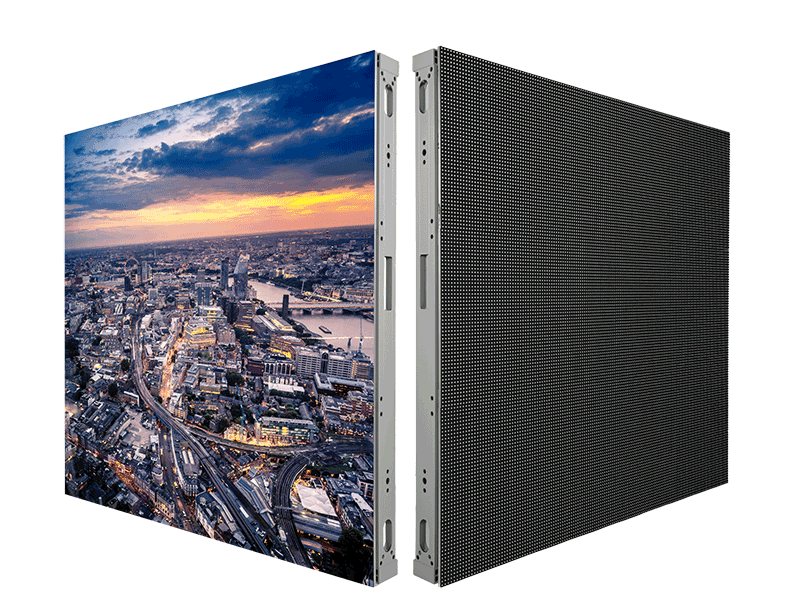

UNIT EV960 Series Energy Saving LED Display
EV960 (480*320mm Module)
960X960mm Series Energy Saving LED Display
-High Protection Aluminum Chassis Panel Design
-Energy Saving LED Display
-Advanced Heat Dissipation System
-Standard Size Cabinet With 960*960mm Dimension
-480mm*320mm Module Size
-Easy to Install and Disassemble

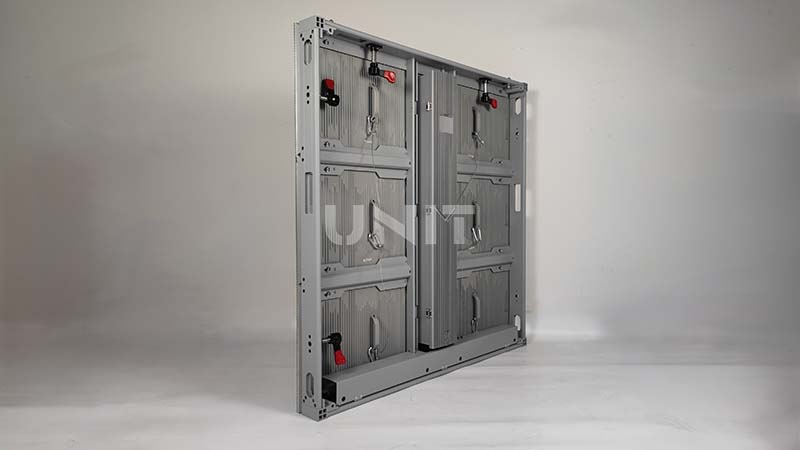

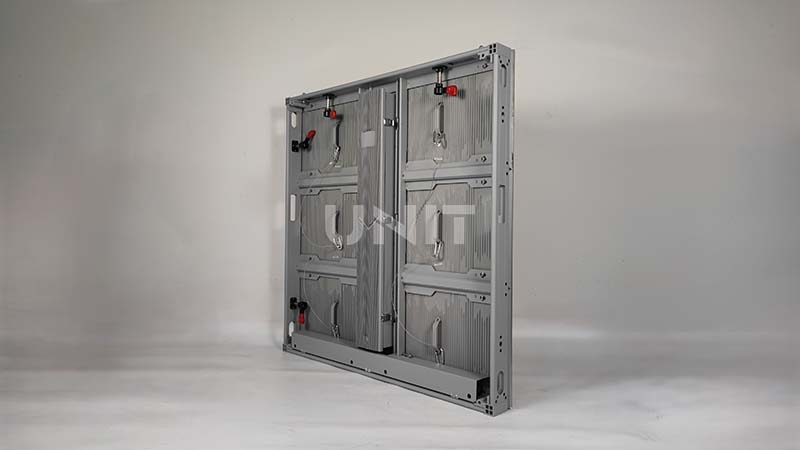

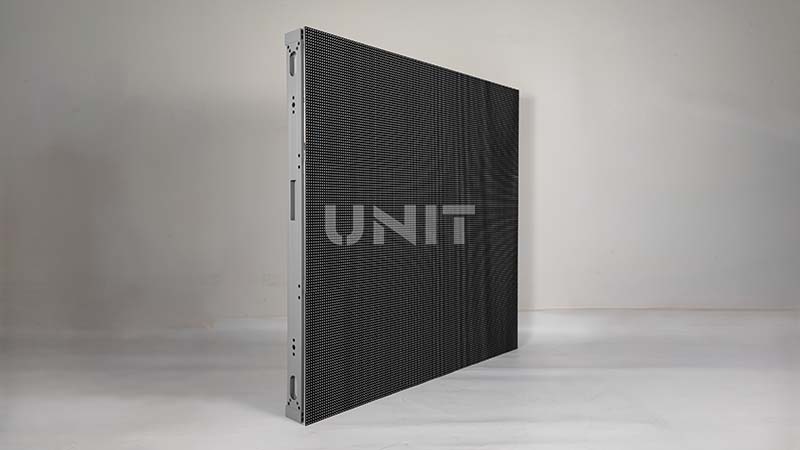

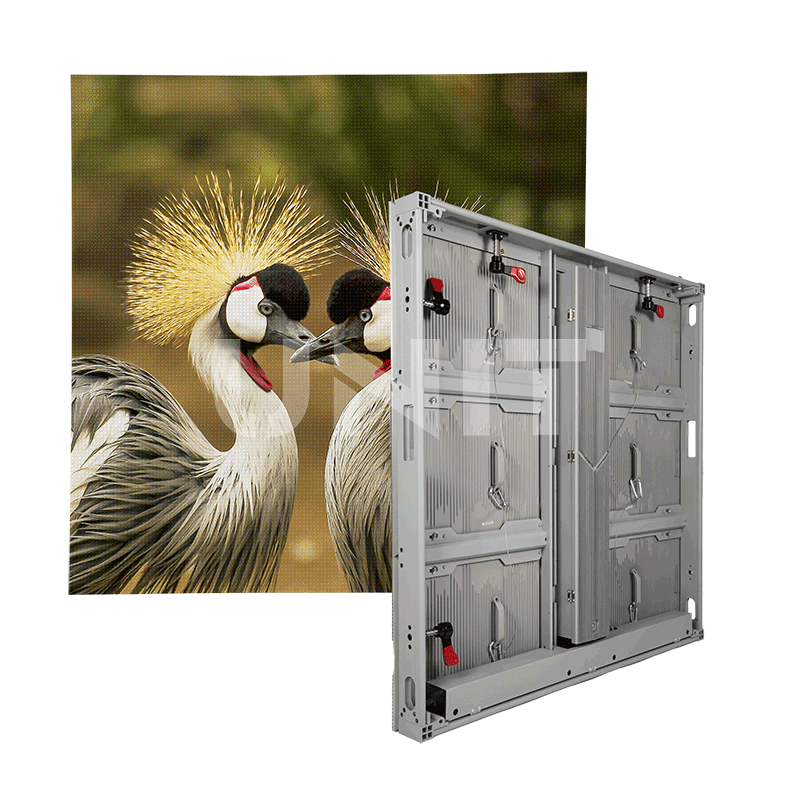

EV960 Outdoor LED Display
Unique panel design with 480*320mm and 960*960mm cabinet size, Ultra-thin thckness with 87mm design
Weight: 28.5KG/㎡ for Aluminum frame
More size 960*960/960*640/1440*960mm is Available
Energy-Saving Common Cathode System
Equipped with PFC-enabled power supplies and supporting a wide AC input range of 100V–240V, the EV960 Series adopts an energy-efficient common cathode design.
Compared to traditional common anode systems, it reduces power consumption by over 40%, significantly lowers heat generation.
Enhances overall performance stability, and prolongs the lifespan of the LED display.
Inquiry Now

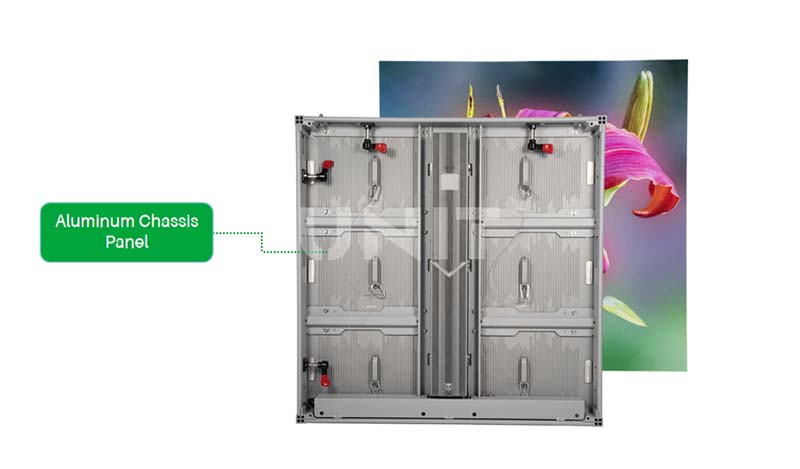

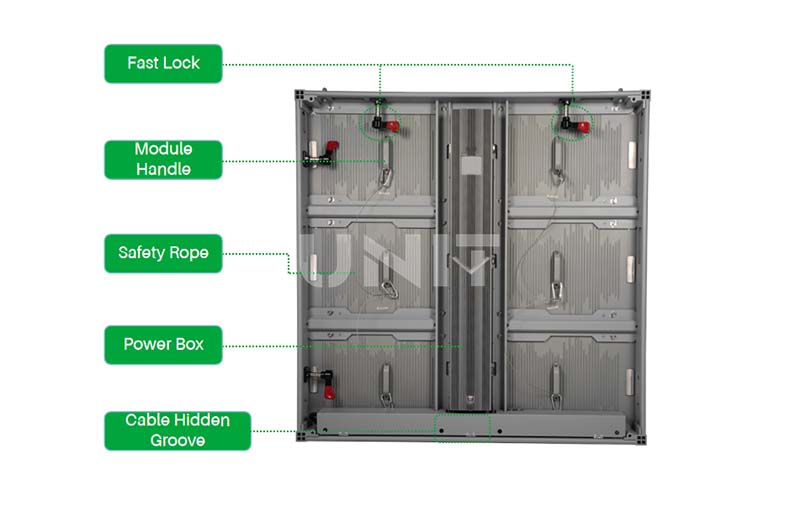

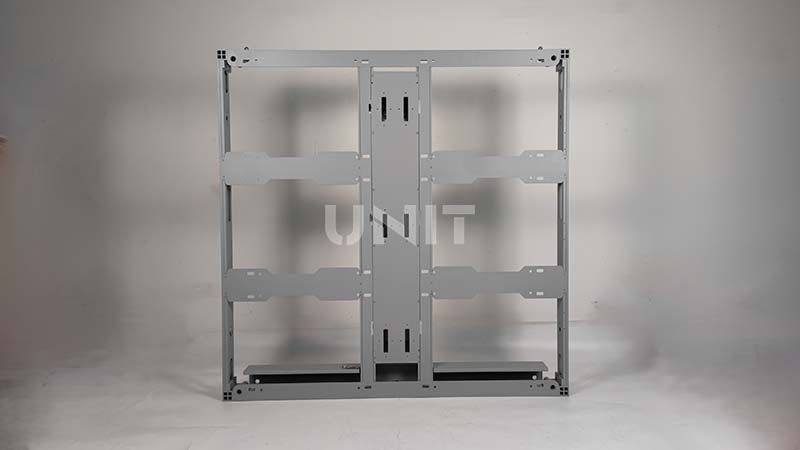

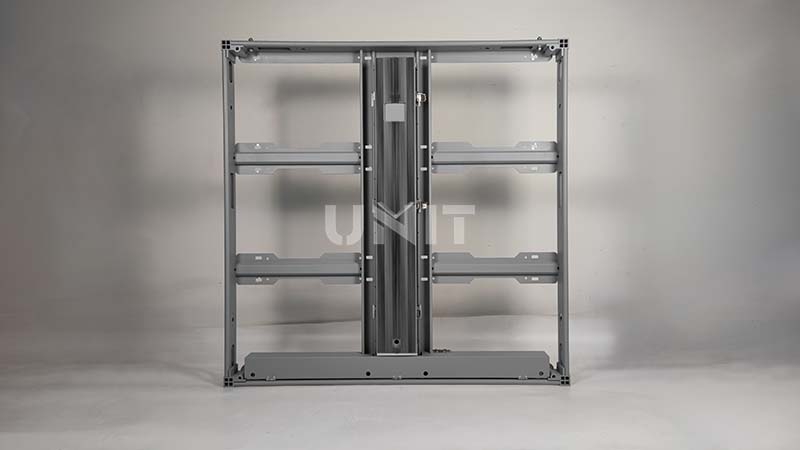

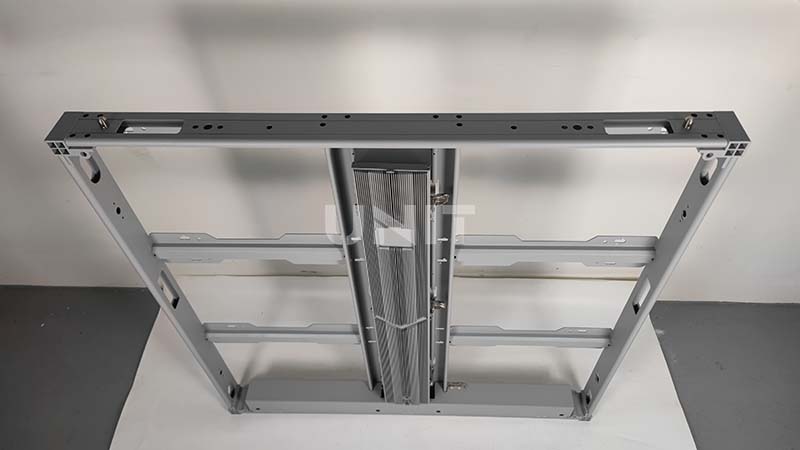

Aluminum Chassis Panel
EV960 energy saving LED display adopts Aluminum Chasis design for panel.
Aluminum chassis adopt edge lock without screwing design. full sealed design, to protect its internal components.
Elegant Design
Cable-less deisgn, Power and data cables are hidden at the bottom of the panel.
Hard Connection: BTB connector replaces data and power cables, high stability.
High Protective Performance
Aluminum material, high temperature durability, fast heat dissipation. The whole product can Reach 5VB fireproofing level.

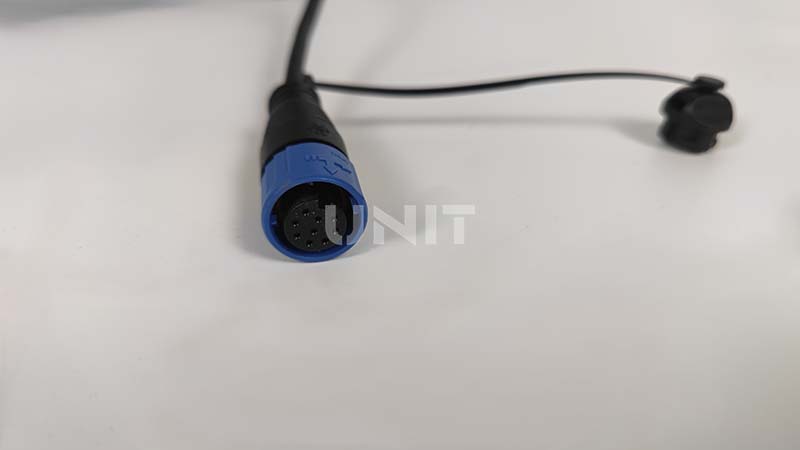

Full sealed die-casting aluminum module chassis. Waterproof connectors(between modules),
Drain hole is designed at the bottom of the panel to prevent ponding.
The high standard of Waterproofing Can be immersed in the specified water pressure for a long time.
Inquiry Now

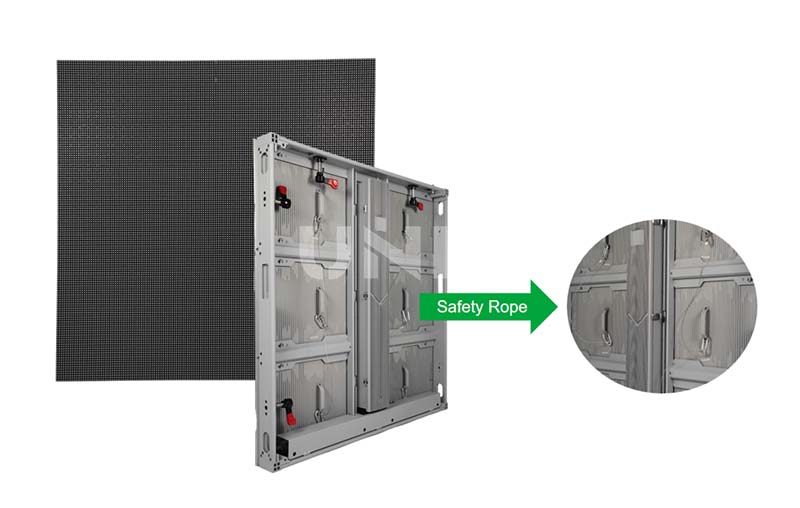

Safety Harness Design
Each LED module is equipped with a safety harness to prevent the module from falling and hitting people.

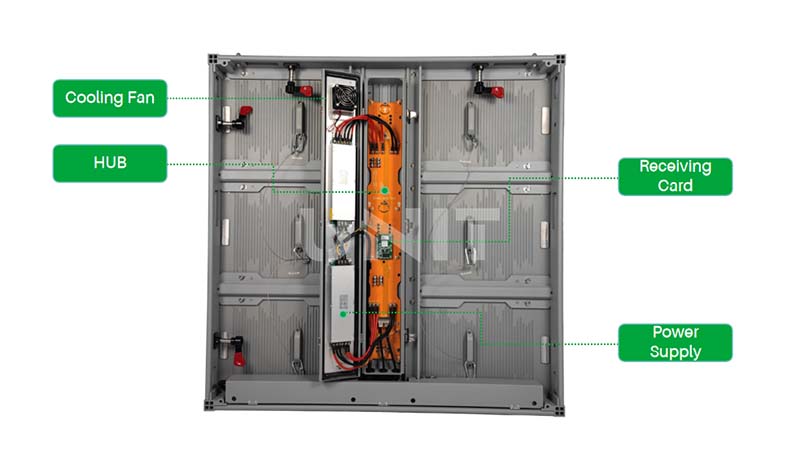

Seven-Layer Efficient Cooling Design
Silent fans, convection vents, V-shaped aluminum fins, and die-cast module shells work together for rapid heat dissipation,
preventing overheating and extending product lifespan.

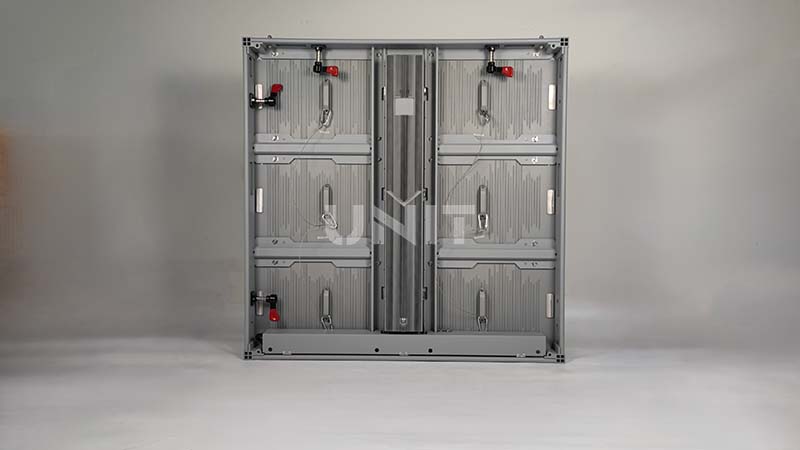

Dual Service with Frontal and Rear Maintenance
Dual service mode of front and rear design to save you maintenance cost.
The LED panel can be assemble and disassemble easily and quickly.
Inquiry Now
High IP65 Protection for All-Weather Use
Both front and rear panels are rated IP65, allowing direct outdoor installation and reliable performance in rain, snow, and harsh environments.
Image Gallery

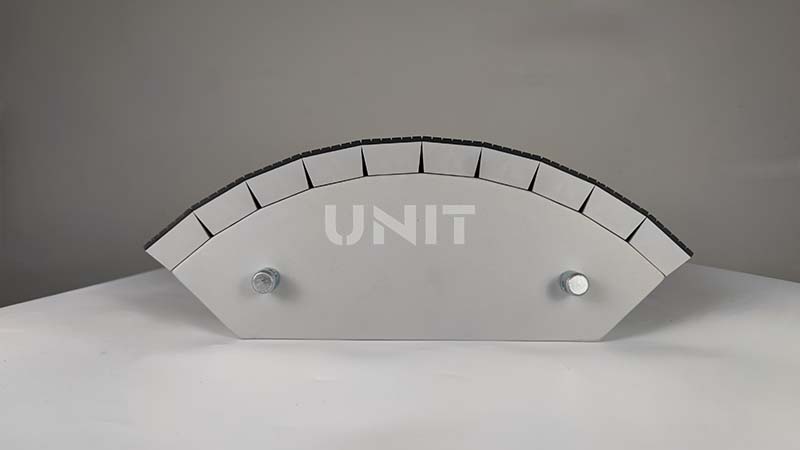

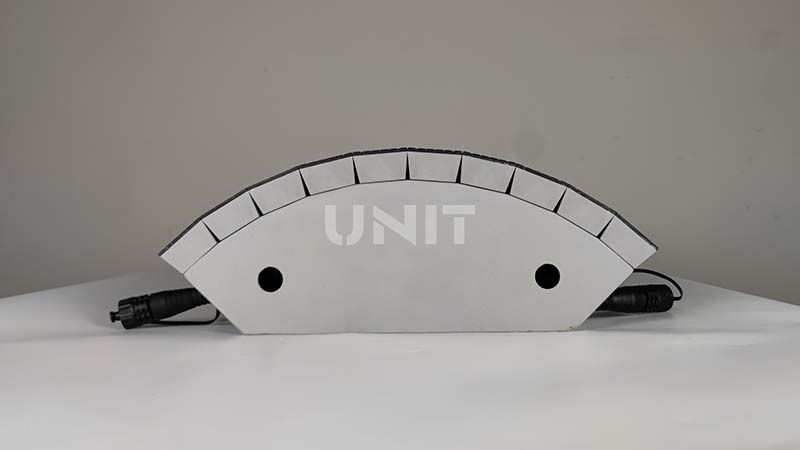

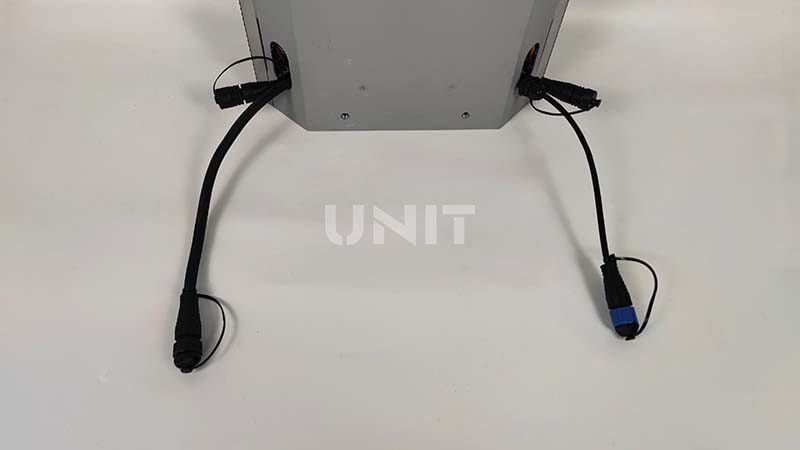

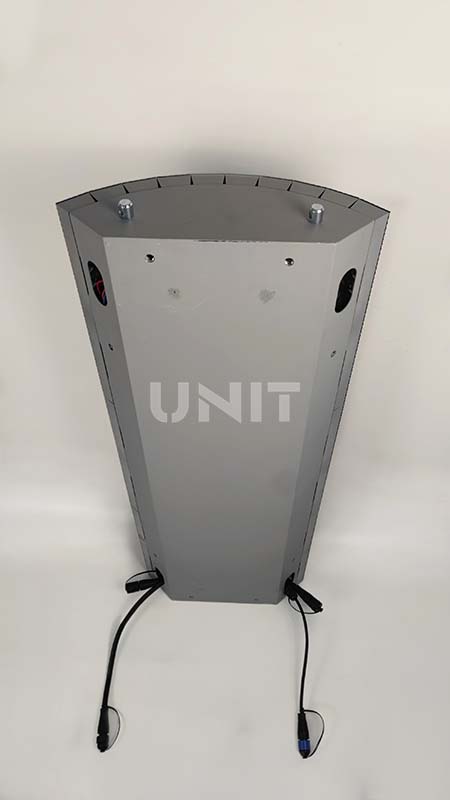

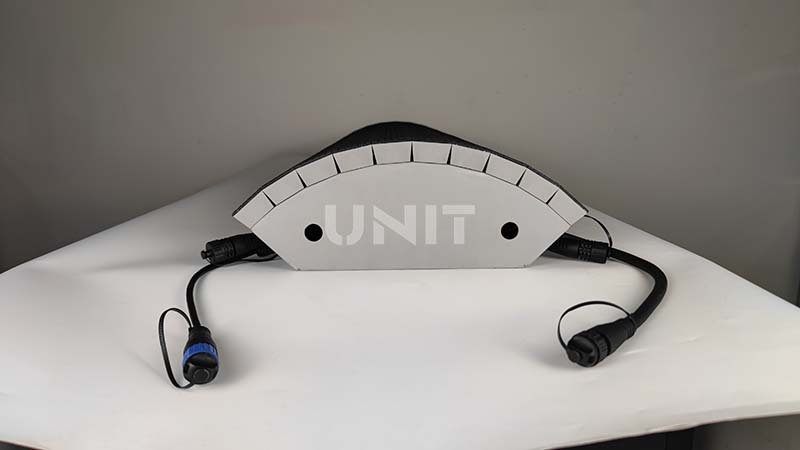

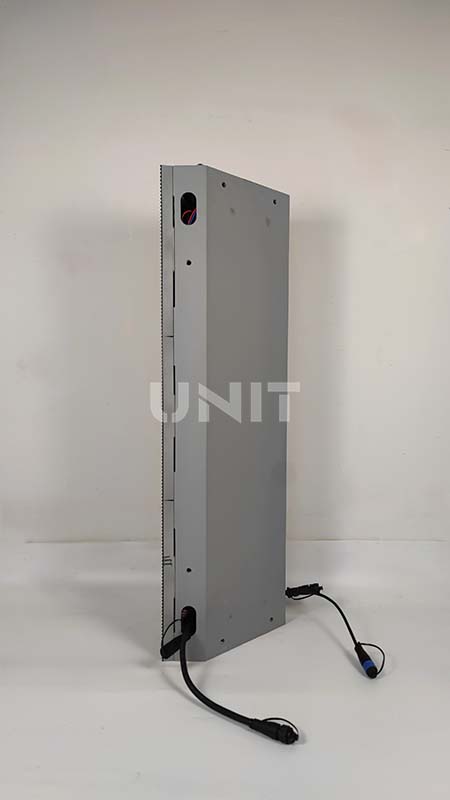

EV960 Curved LED Display
Video Center
https://youtu.be/qajXtG0I4fQhttps://youtu.be/DVwE50UqzfQhttps://youtu.be/hnXO5c-t9lIhttps://youtu.be/N3-OoiAhi2M?si=cDxWu0C9PMCg-fczhttps://youtu.be/xhBkJqucRH8?si=P7ZJJ0m9pxGDu5Z3https://youtu.be/flK4r3AGqes?si=thFH4jV4JvTptVbl
EV960 Energy Saving LED Display
- 960*960mm Cabinet Standard Size
- SMD 3 in 1 LED Encapsulation technology
- Energy saving LED Screen
- 480*320mm Panel Design
- CE,Rohs Approved
- 3 Years Warranty and 3% Spare Part
Get Price Now
Specification
|
Model name |
P5.7 |
P6.67 |
P8 |
P10 |
|
Pixel Pitch (mm) |
5.7 |
6.67 |
8 |
10 |
|
Pixel Density (dot/m2) |
168×168 |
144×144 |
120×120 |
96×96 |
|
LED sealing Type |
SMD2727 |
SMD2727 |
SMD2727 |
SMD3535 |
|
Module Size (mm * mm) |
480*320 |
480*320 |
480*320 |
480*320 |
|
Module Resolution (PX* PX) |
84×56 |
72*48 |
60*40 |
48*32 |
|
Brightness (cd/m2) |
5500 |
6000 |
6500 |
6500 |
|
Grey Scale（bit） |
≥14 |
≥14 |
≥14 |
≥14 |
|
Refresh Rate (Hz) |
3840 |
3840 |
3840 |
3840 |
|
Maximum Cabinet Power Consumption (W) |
550 |
550 |
550 |
550 |
|
Average Cabinet Power Consumption (W) |
150 |
150 |
150 |
150 |
|
Cabinet Size (mm * mm) |
960*960 |
960*960 |
960*960 |
960*960 |
|
Cabinet Weight (Kg) |
26.5KG |
26.5KG |
26.5KG |
26.5KG |
|
Cabinet Thickness(mm) |
87 |
87 |
87 |
87 |
|
Horizontal Viewing Angle (Deg) |
160 |
|||
|
Vertical Viewing Angle (Deg) |
140 |
|||
|
Input Voltage (V) |
110-220V/200-240V |
|||
|
Working Temperature (℃) |
-20~ +40 |
|||
|
Working humidity（RH） |
10%~90% |
|||
|
Storage temperature range |
-40~ +80 |
|||
|
Operation humidity (RH): |
10%~90% |
|||
|
Waterproof Level |
IP65 |
|||
|
working life |
50000h |
|||
|
Working Environment: |
Outdoor |
|||
|
Installation Method |
Fixed Installation |
|||
Products
P5.7
84*56 dots/module
480*320mm Panel
960*960mm Cabinet
P6.67
72*48 dots/module
480*320mm Panel
960*960mm Cabinet
P8
60*40 dots/module
480*320mm Panel
960*960mm Cabinet
P10
48*32 dots/module
480*320mm Panel
960*960mm Cabinet
