MY Series Rental LED Screen

UnitLED’s new design MY series rental LED screen. It incorporates many aesthetic elements, adopts high-strength die-casting aluminum,
and has a better performance with a high-definition visual display. Winner of 2023 IF design award.

Inquiry Now

Lightweight and Thin

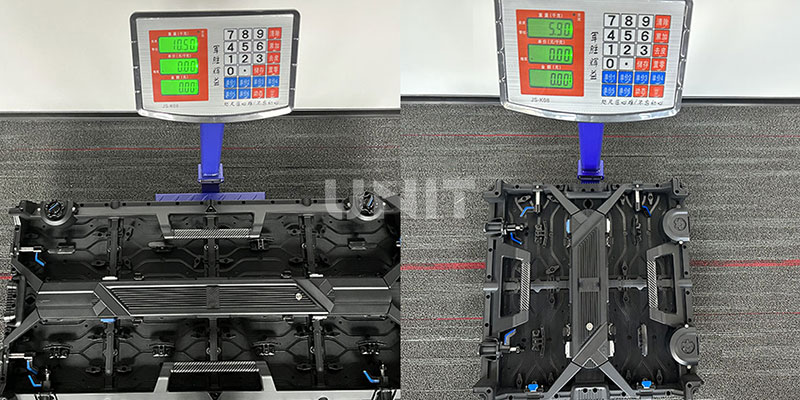

Portable and good stability with weight of 6kg for 500*500mm cabinet and 11kg for 500*1000mm cabinet. The feature of lightweight makes the LED display easy to carry,
transport, and install, saving a good amount of money on your labor costs.

Inquiry Now

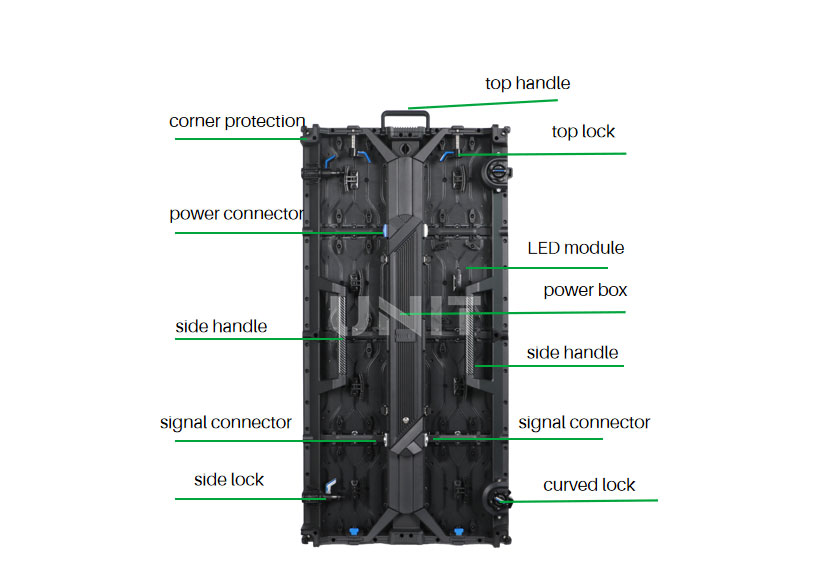

Perfect Structure

UNIT has the domestic top design team, the design innovation has its own unique philosophy. Innovative structural design, avant-garde body lines
Give you extraordinary experience. Excellent product came in all details from corner protection, top handle, curved lock, back cover, LED module, and so on.

Inquiry Now

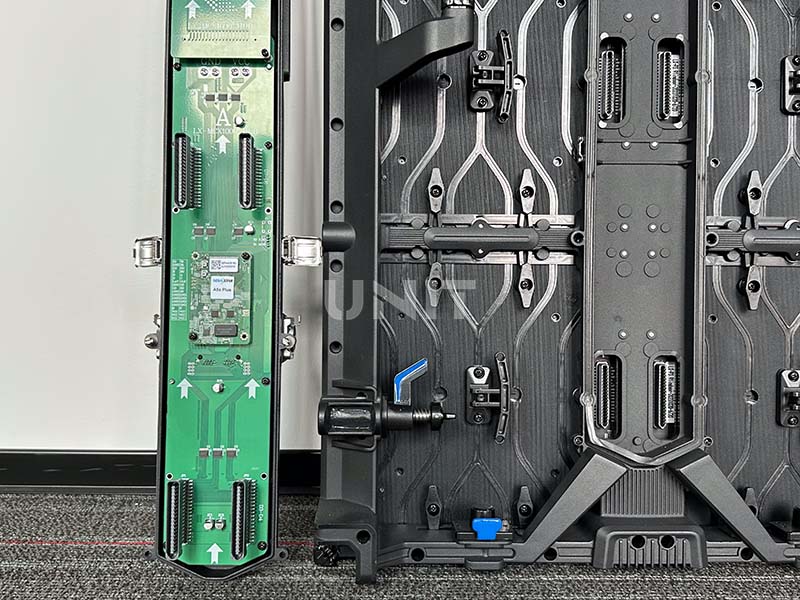

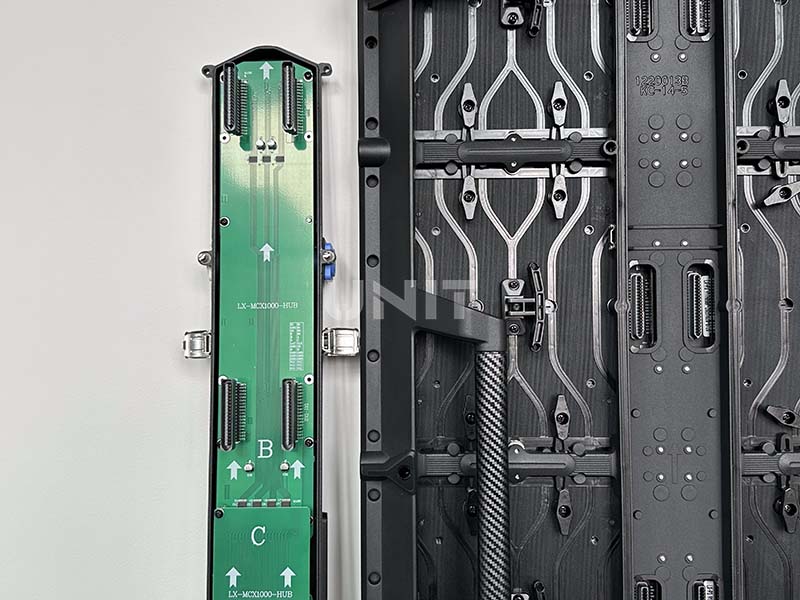

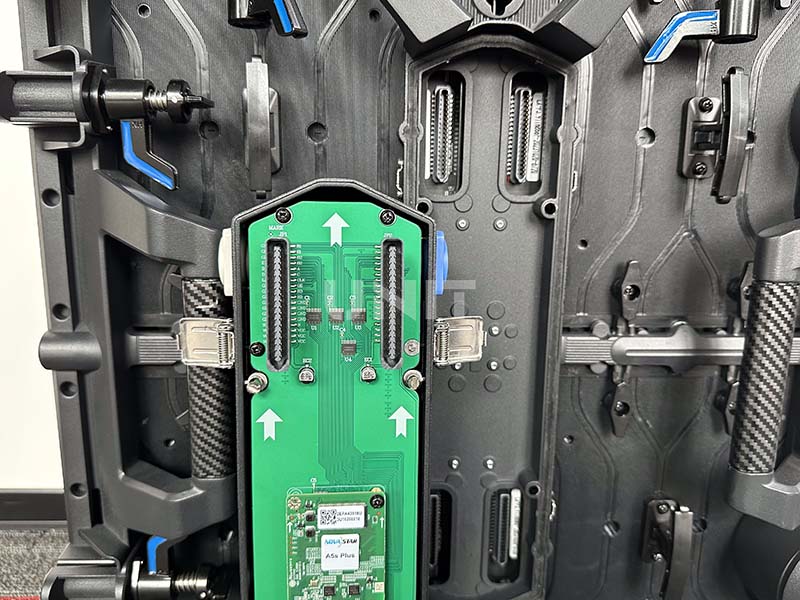

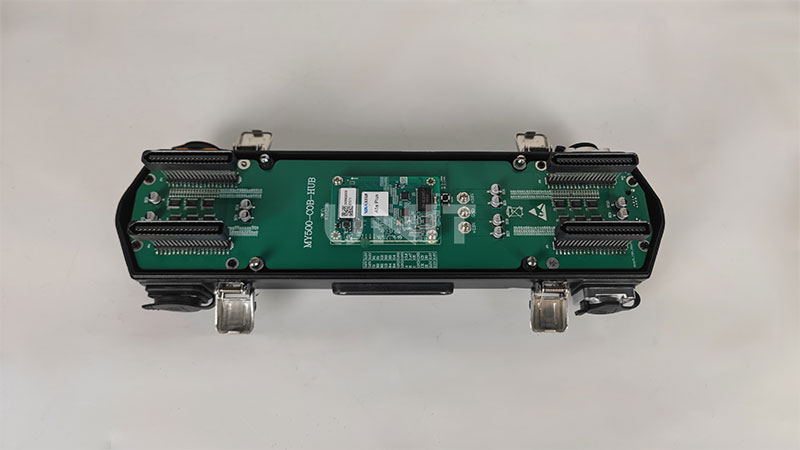

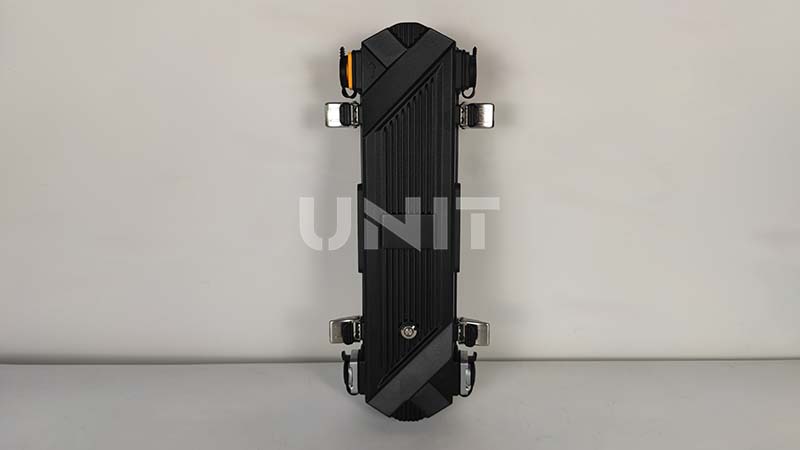

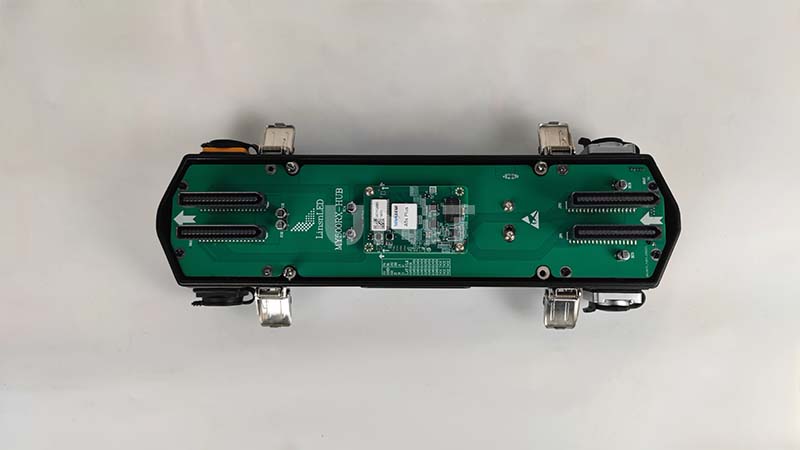

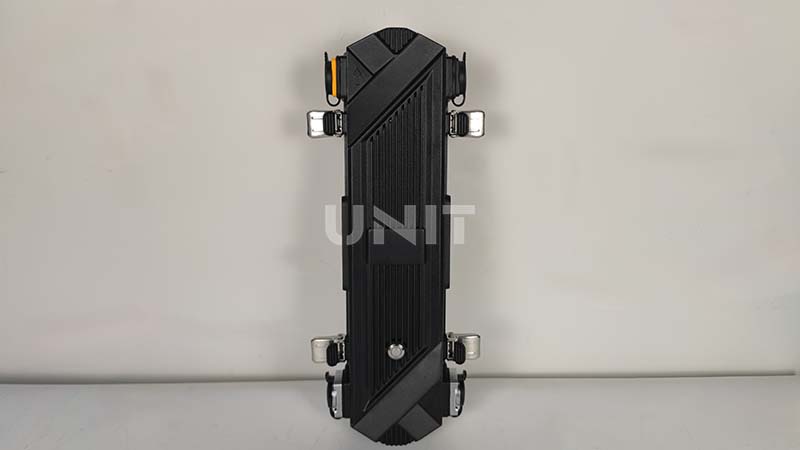

Detachable Back Cover Box

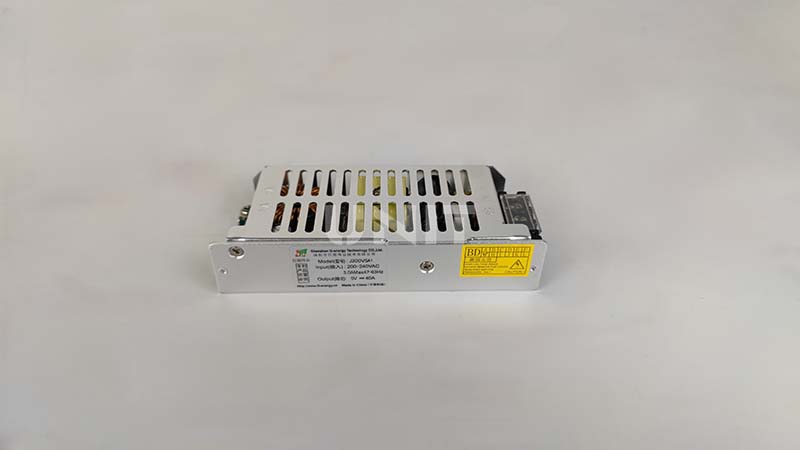

Adopts optimized control box with quick removable without any tools optional. The detachable back cover box

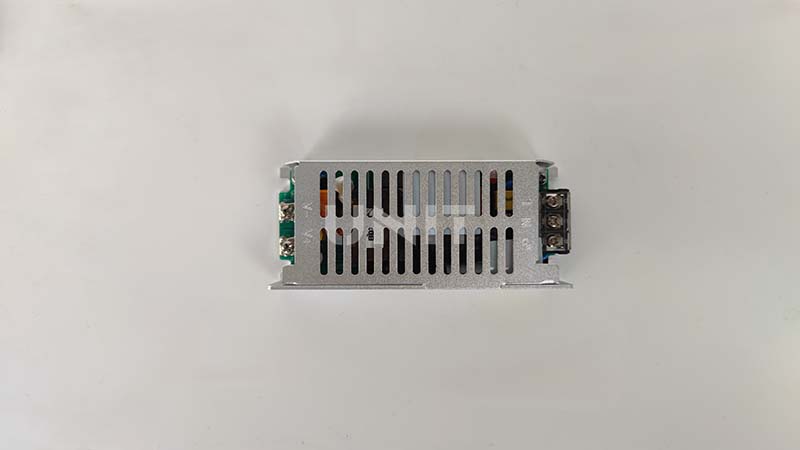

(includes power supply and control cards) is removable quickly for replacement and maintenance.

Inquiry Now

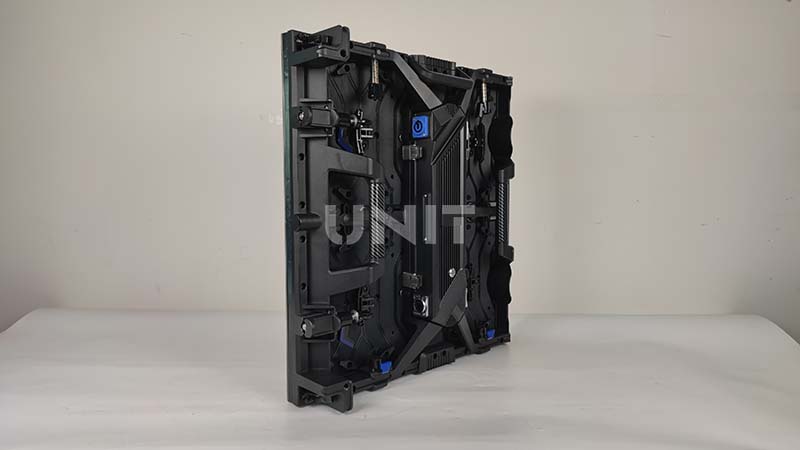

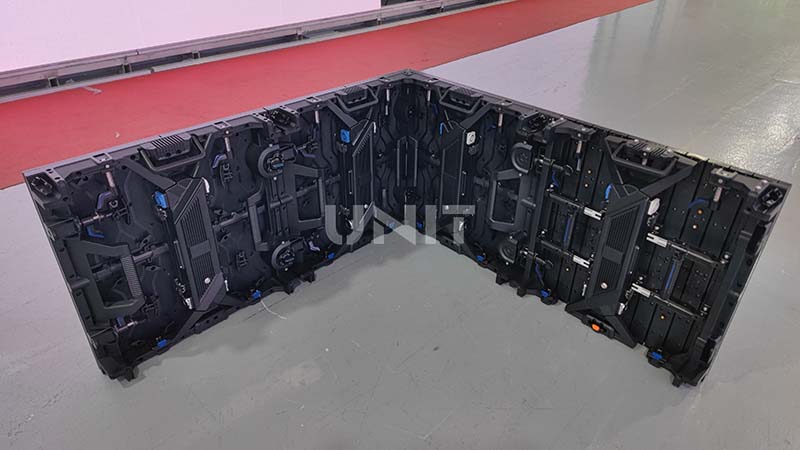

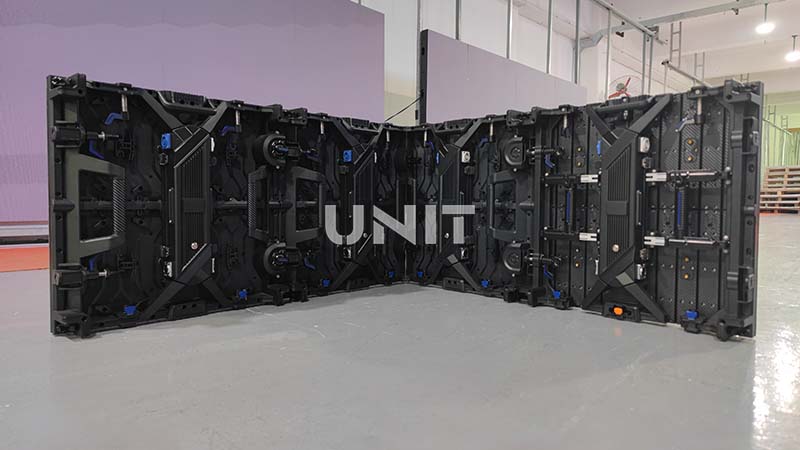

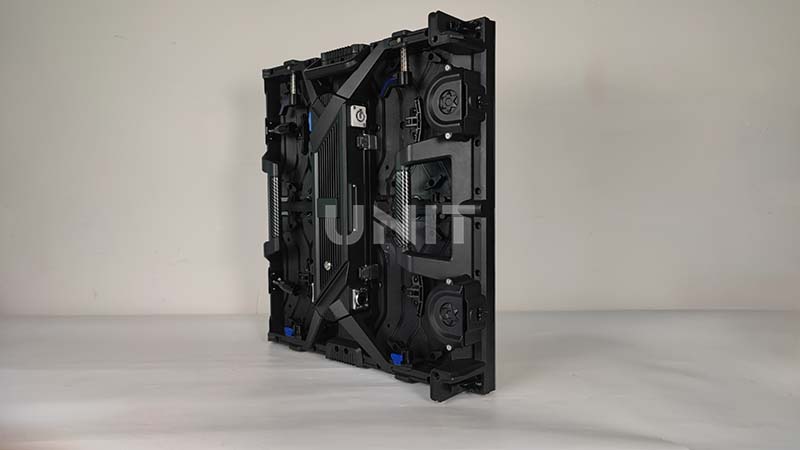

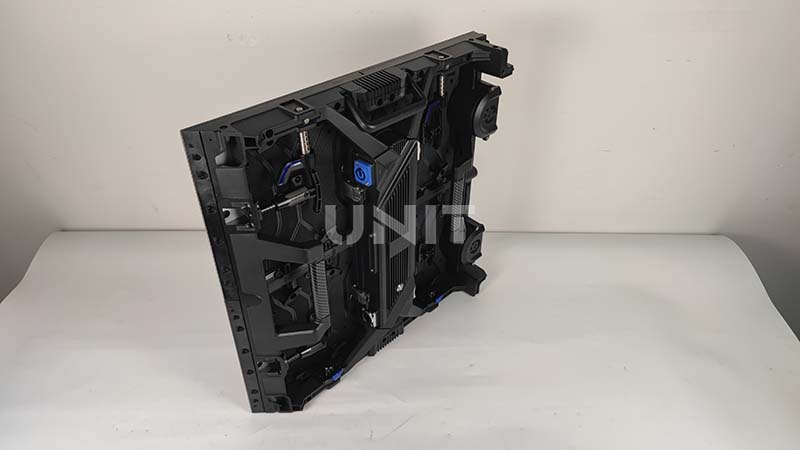

Right Angle Installation (Optional)

Enables the installation of LED displays at a 90° right angle to accommodate specific buildings and unique applications.
With higher stitching strength and right-angle visual sensory seamless display.

Inquiry Now

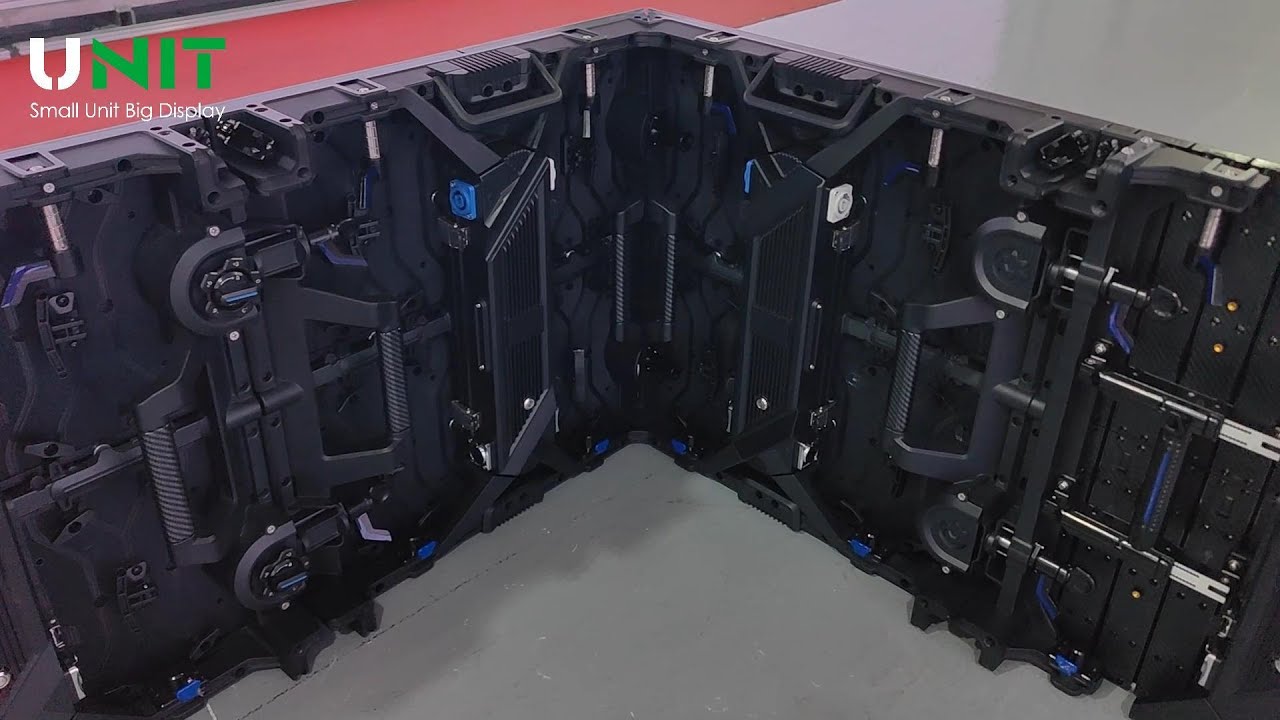

The Splicing of Right-Angle, Flexible, and Curved Cabinets

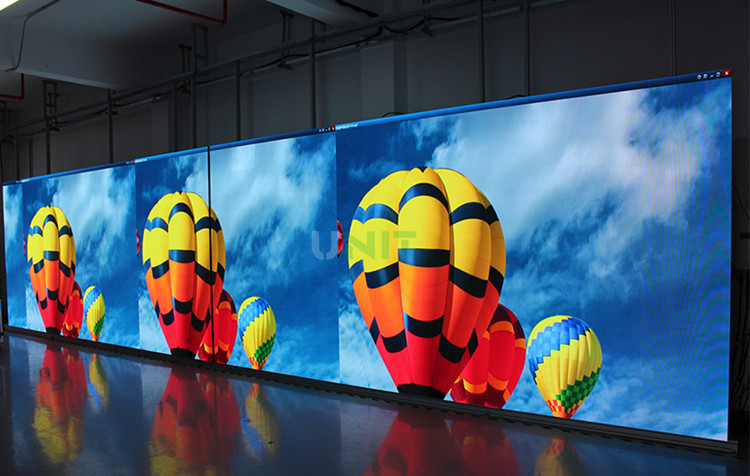

Seamless Display and Better Visual Effects

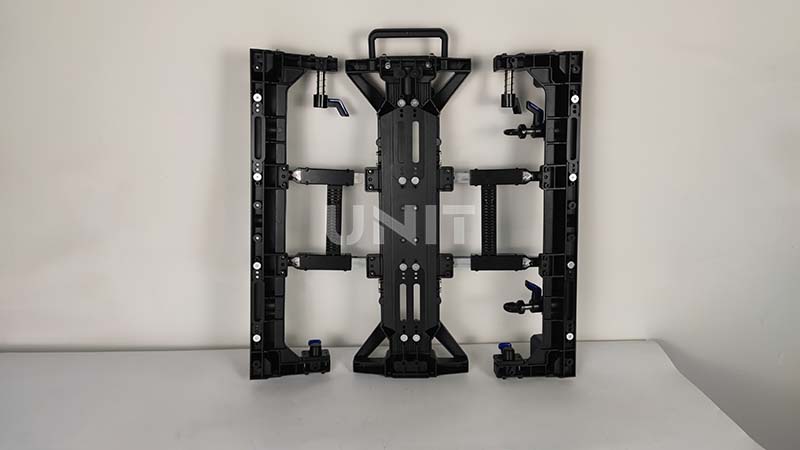

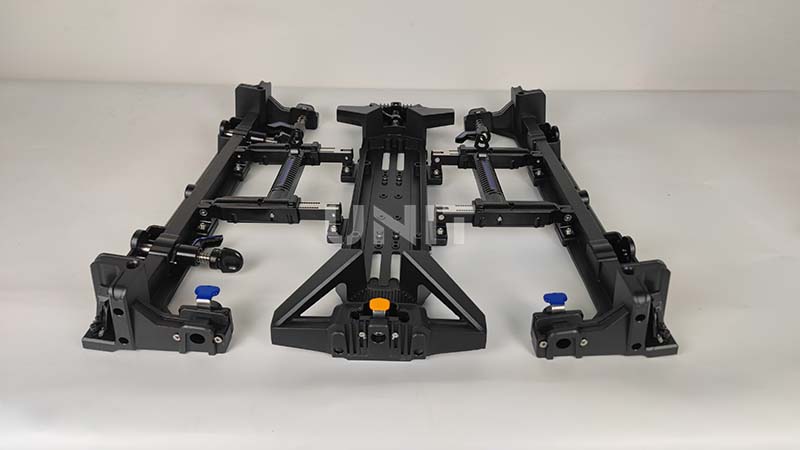

The high-precision aluminum cabinet frame makes the image and video display seamlessly stitched together, the video picture delicate and smooth,
bringing maximum visual enjoyment. The high-definition and delicate picture brings the audience a new sensory experience.

Inquiry Now

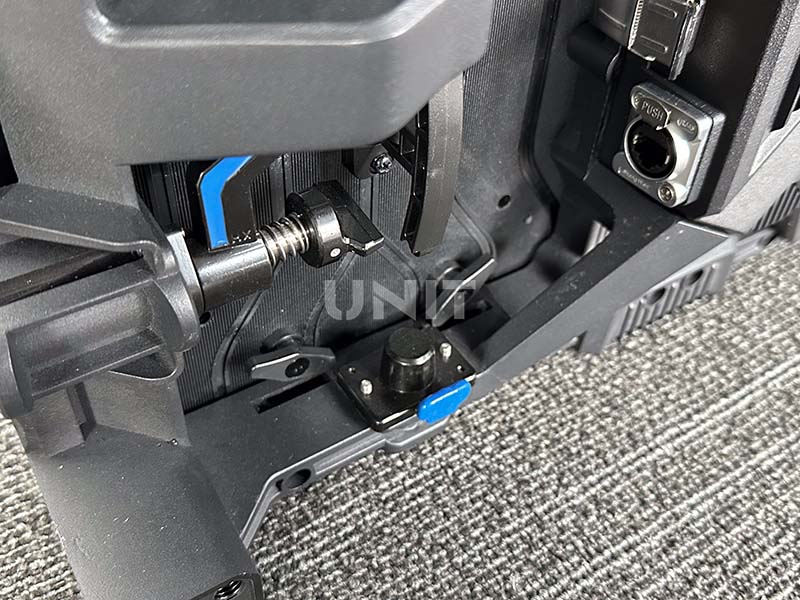

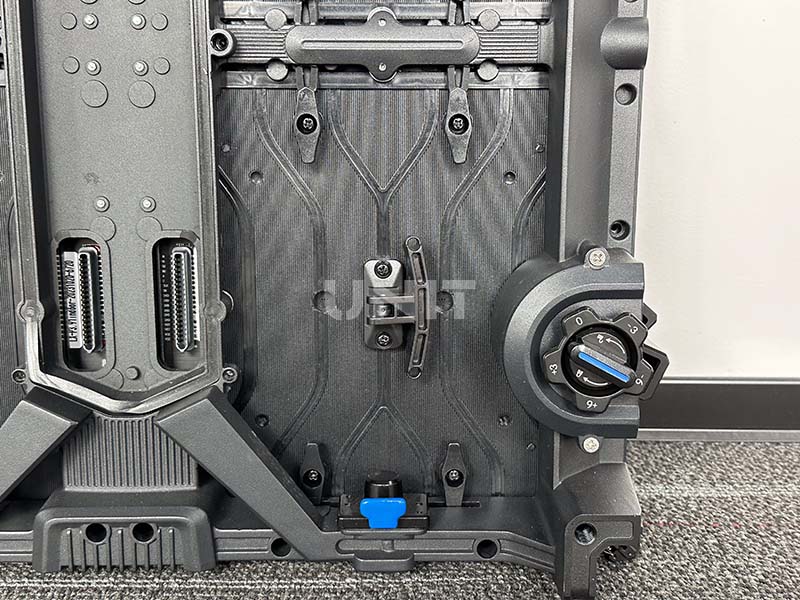

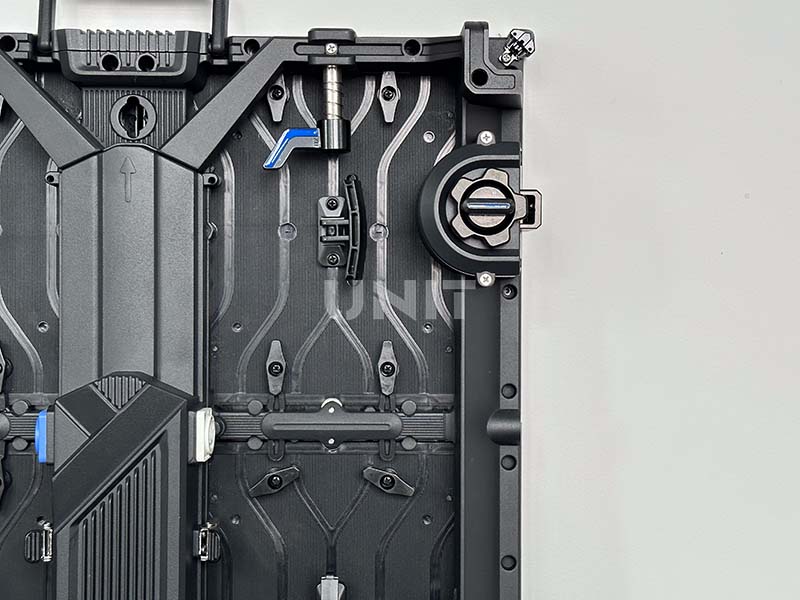

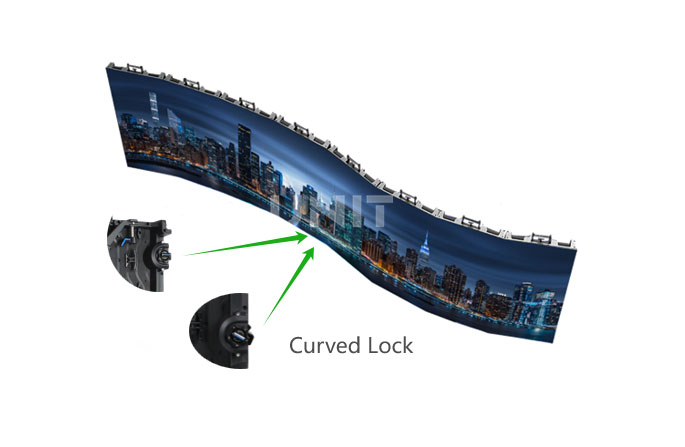

High Precision Curve Lock (Optional)

High precision curve lock design is easy for curved installation, more accurate, easy to use, and quickly adjust curve degrees.

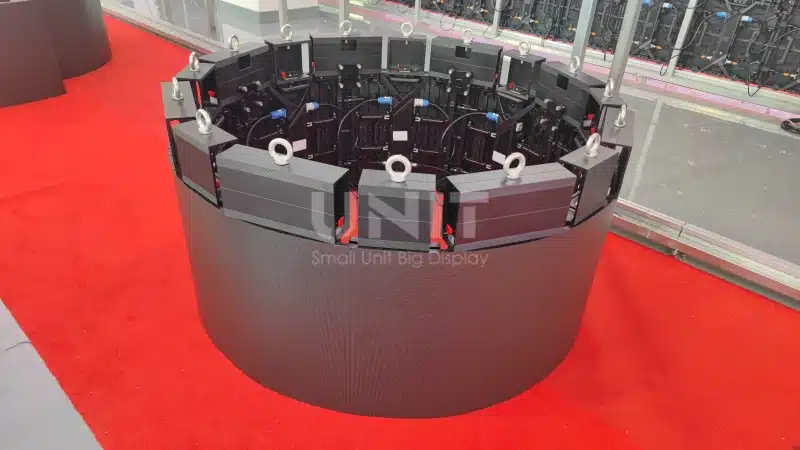

Curved with every 3° between -6°and 6°, Totally 60 cabinets to build a circular LED display.

Inquiry Now

High Refresh Rate, High Contrast, High Gray Scale

UNIT MY series rental LED display features high contrast, high refresh rate, and high gray scale.
The LED display with vivid image, clean video display, and gorgeous picture quality.

Inquiry Now

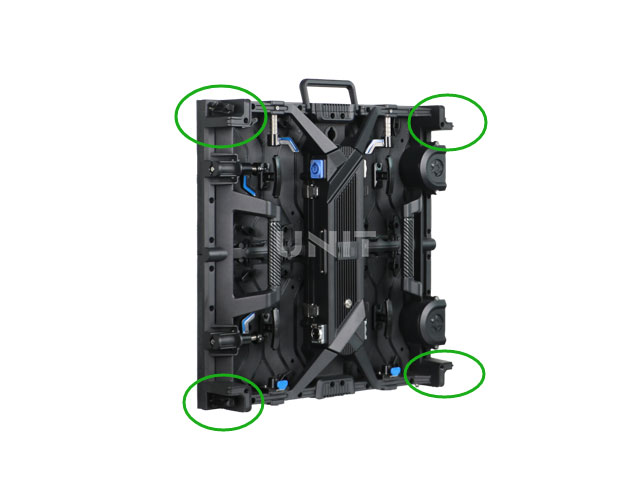

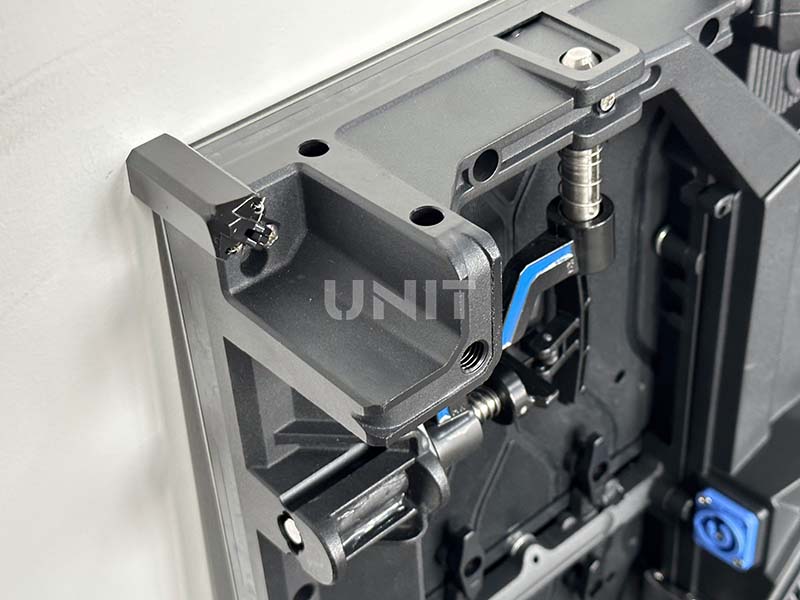

Corner Protector for LEDs

UNIT MY series rental LED panel has corner protection on all four corners. It prevents the box from any damage during various operations such as transportation and installation. Excellent design protects the LED box to the greatest extent.

Inquiry Now

Image Gallery

MYS500 Flexible LED Cabinet Details

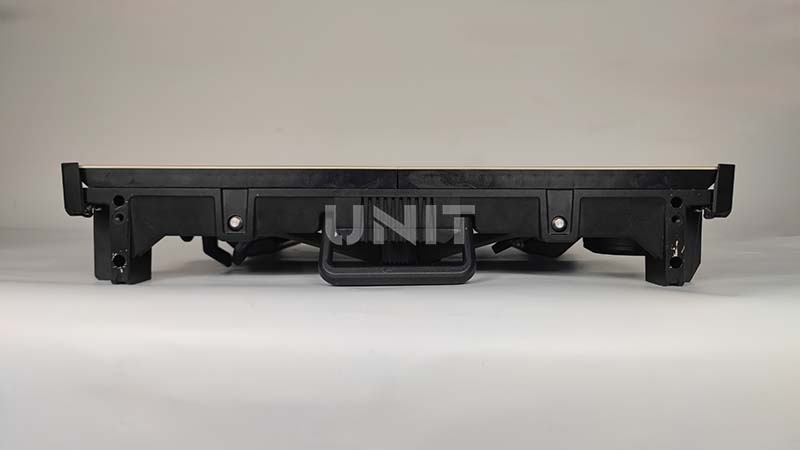

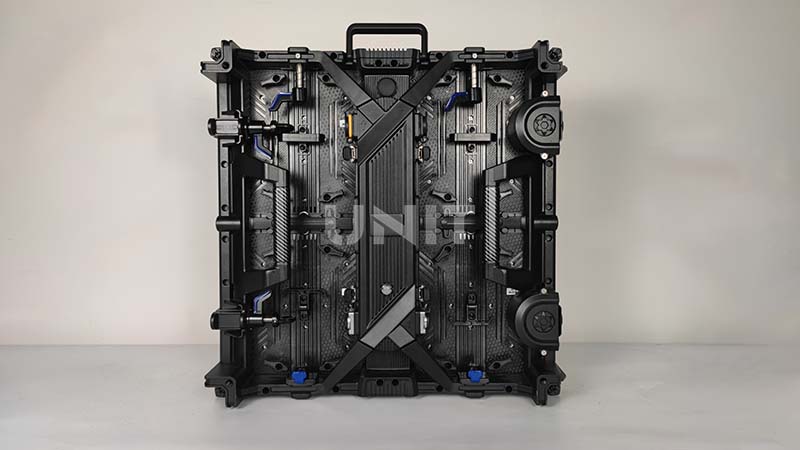

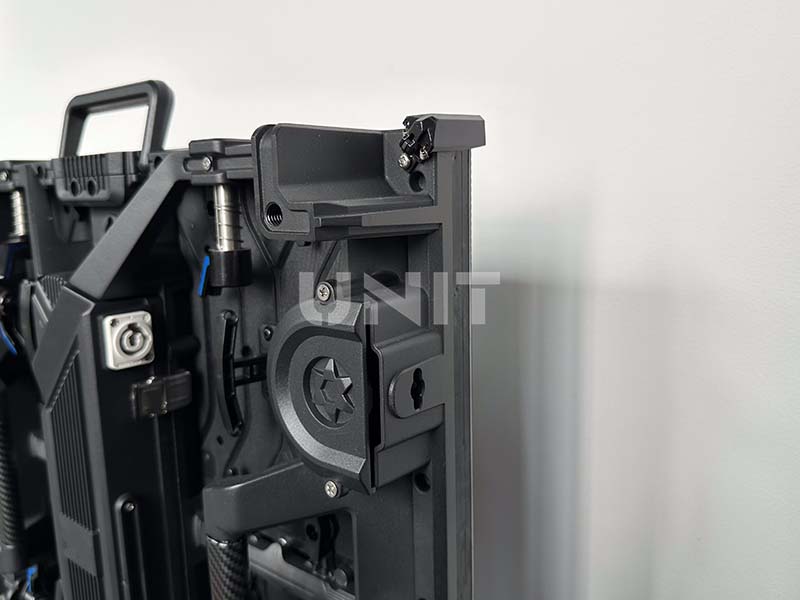

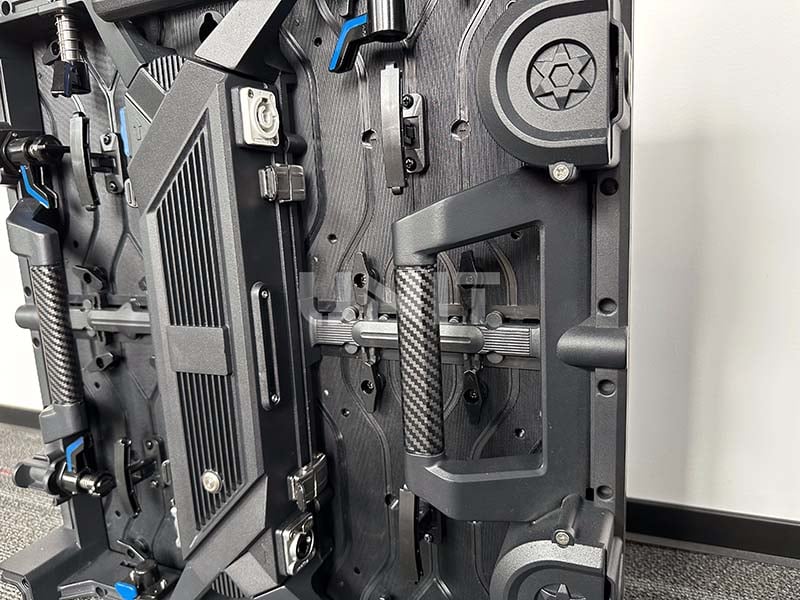

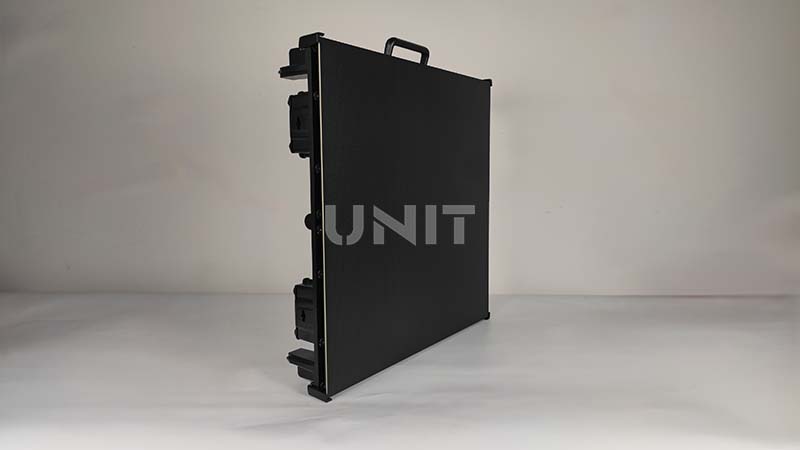

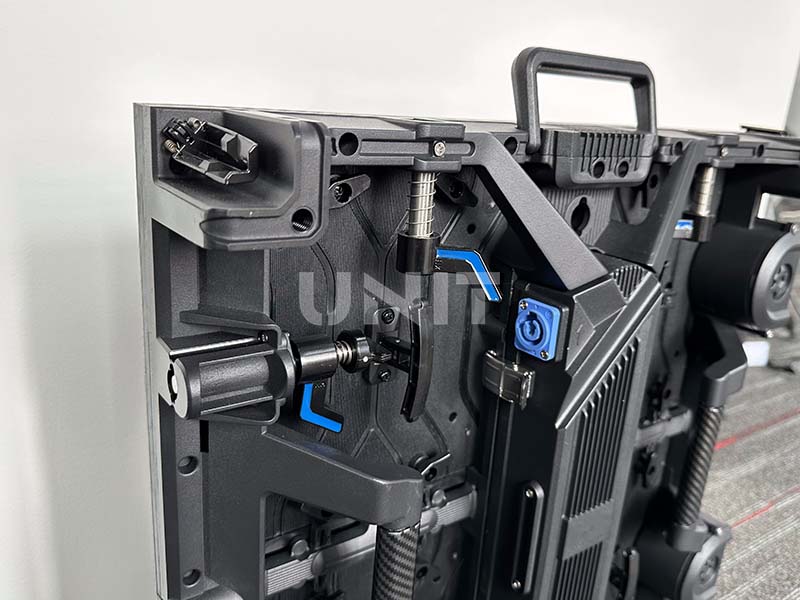

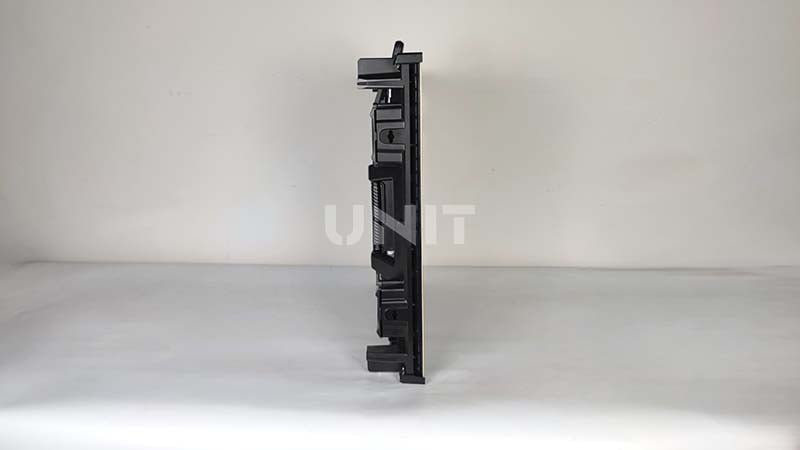

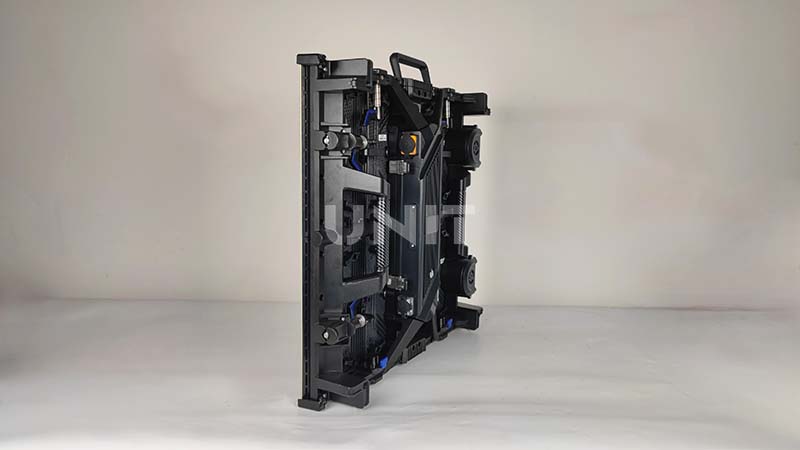

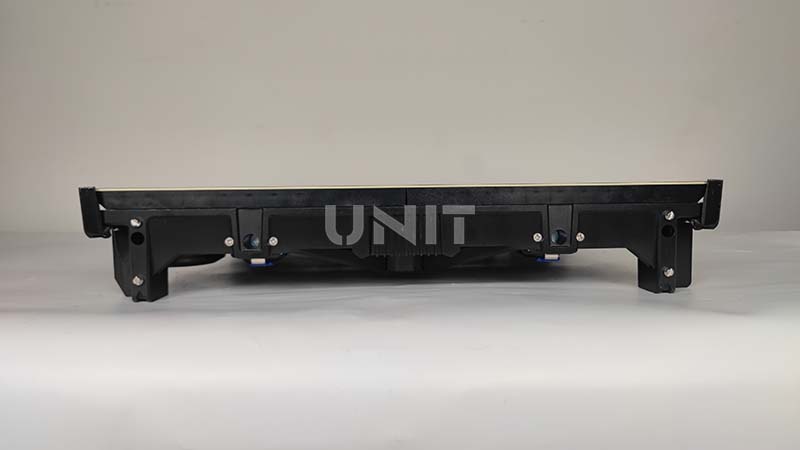

MY500 COB LED Cabinet Details

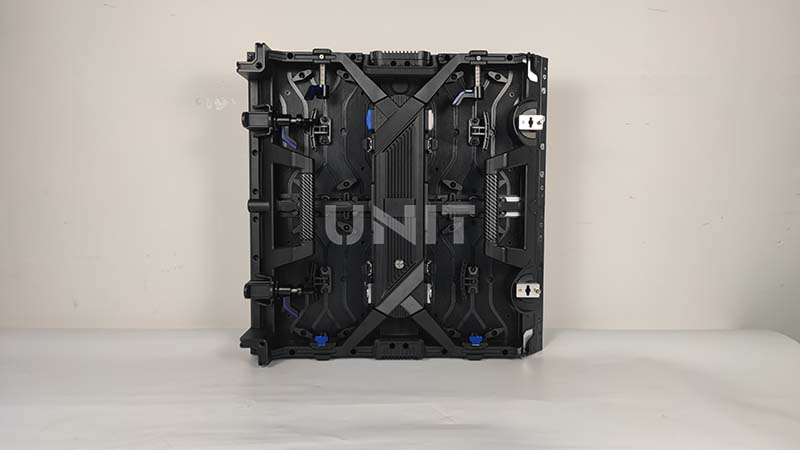

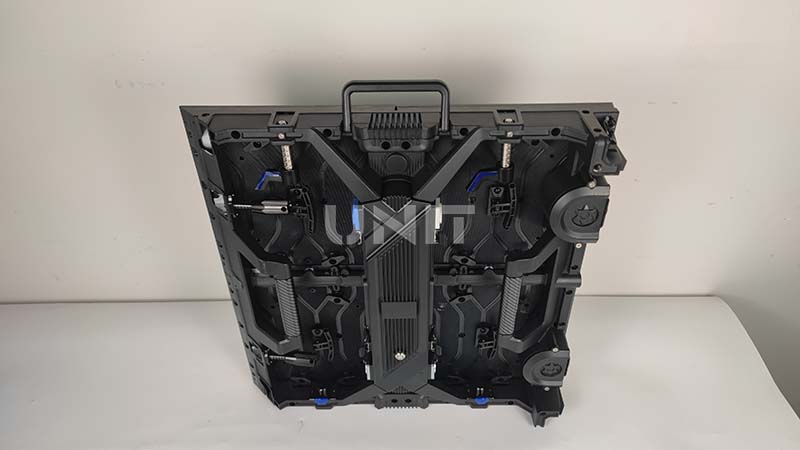

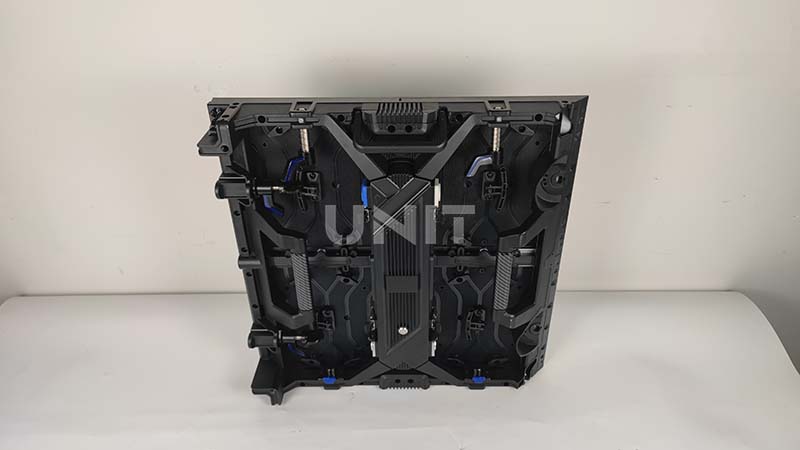

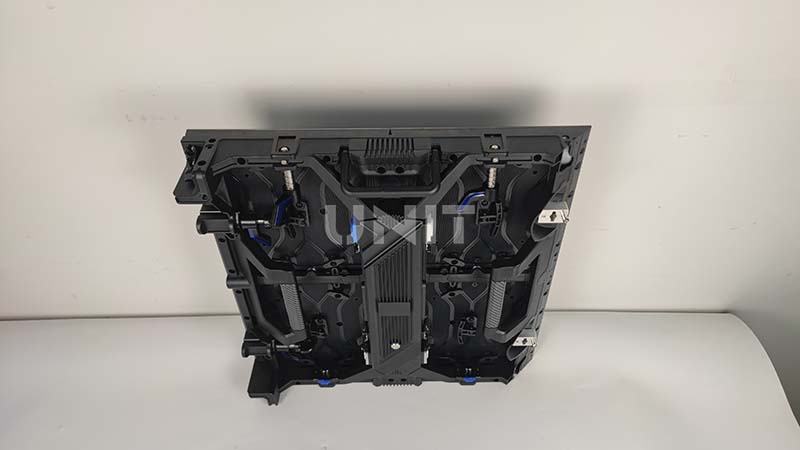

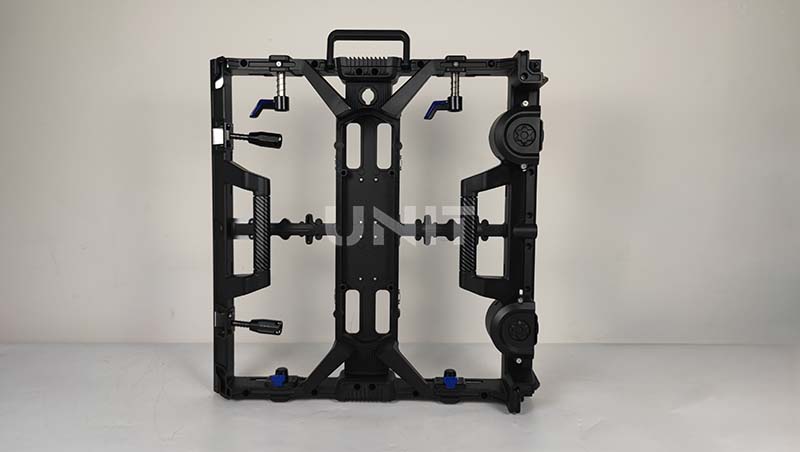

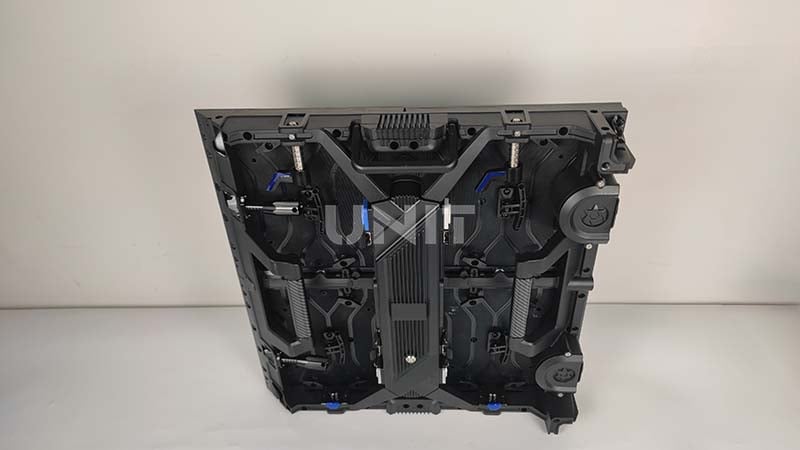

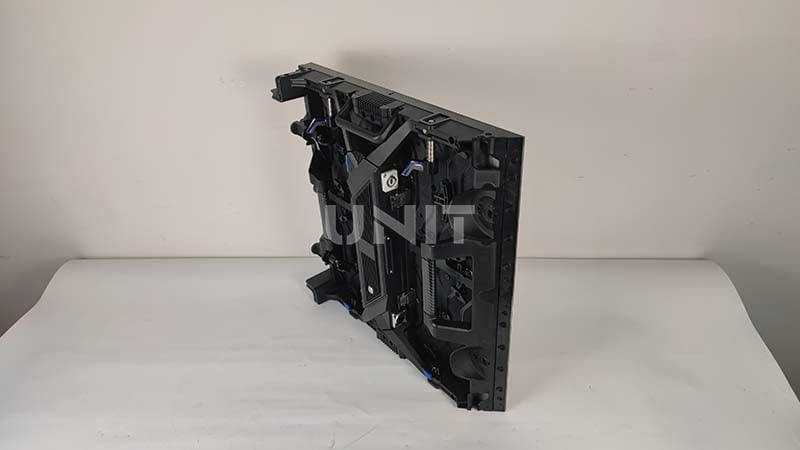

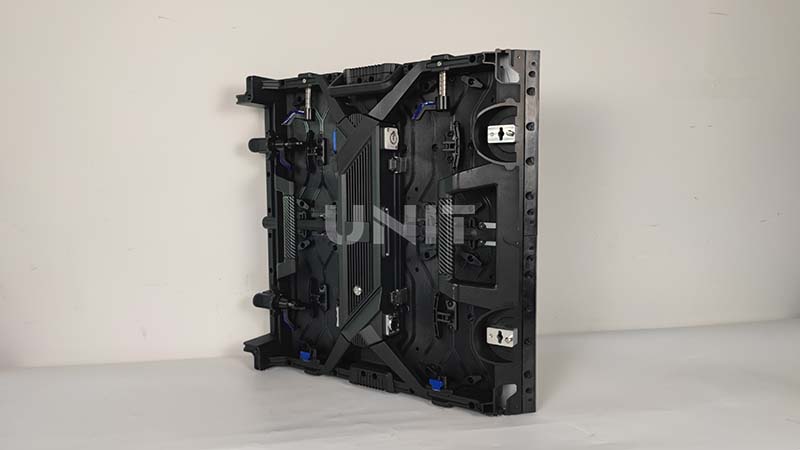

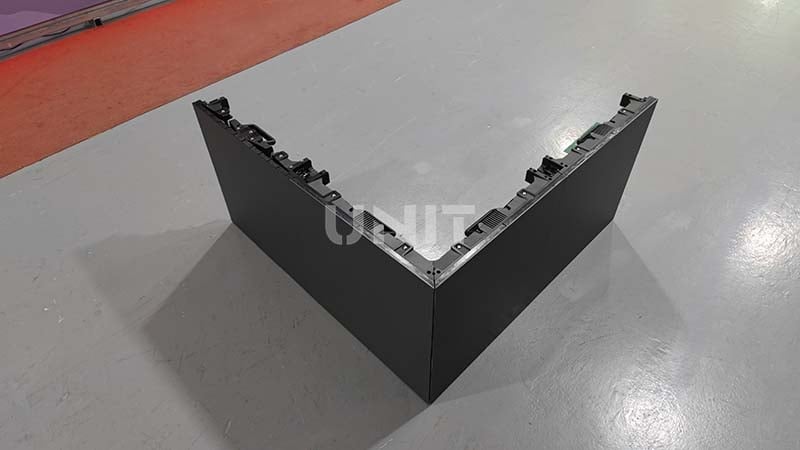

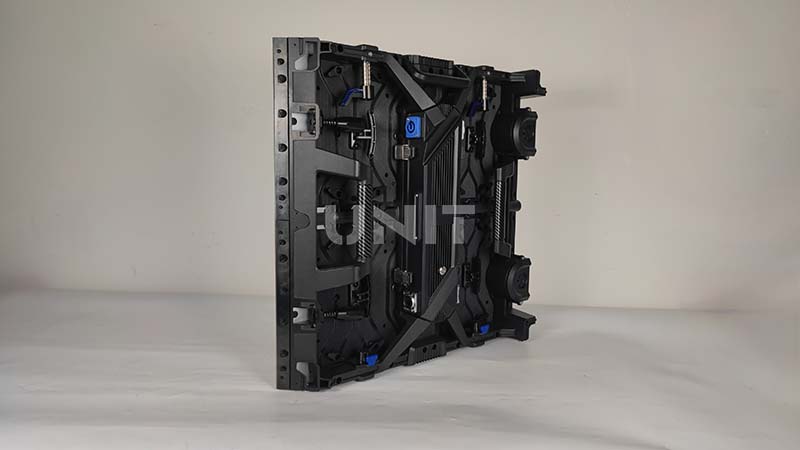

Cut Edge Cabinets for Right-angle Display

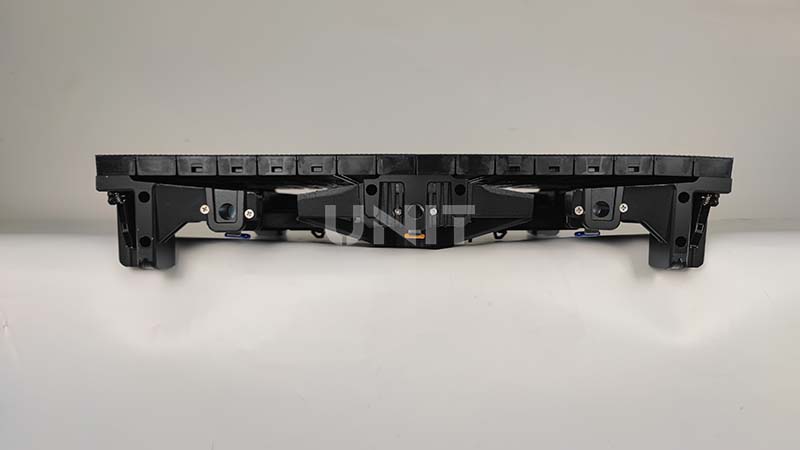

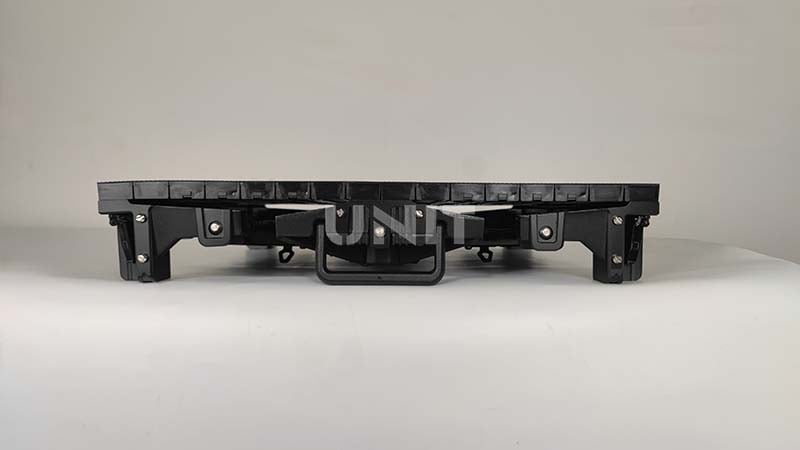

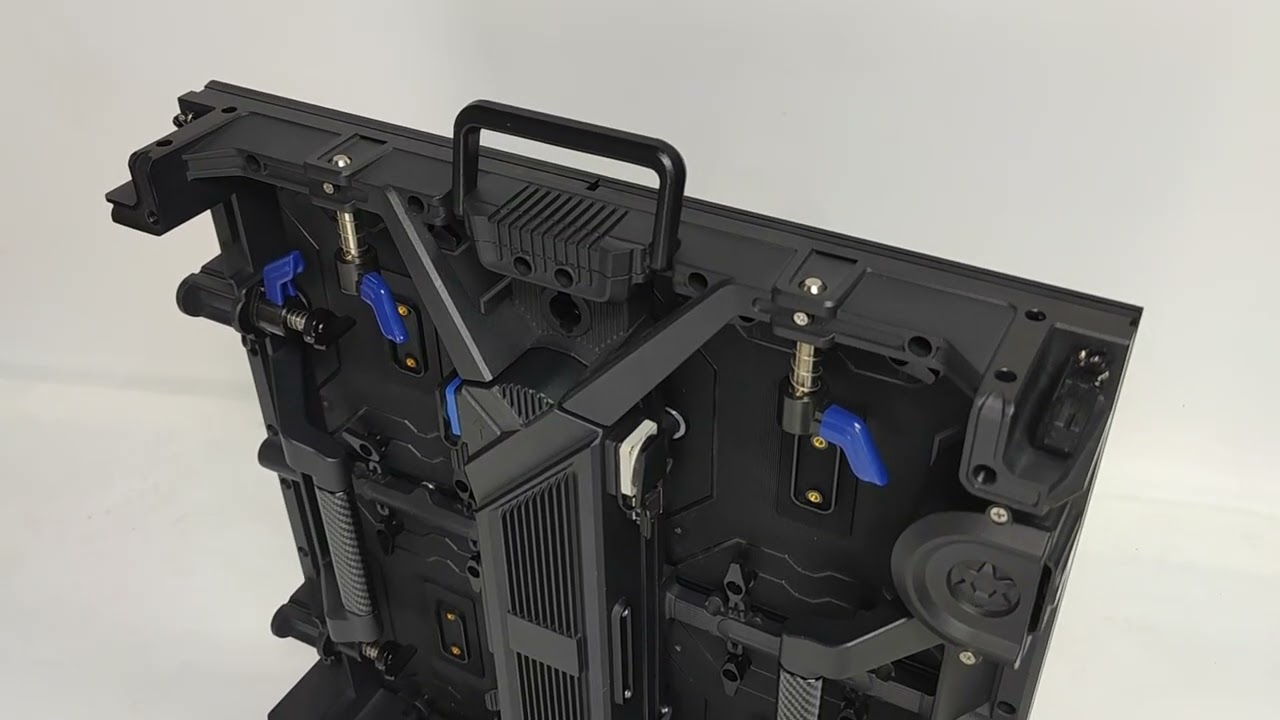

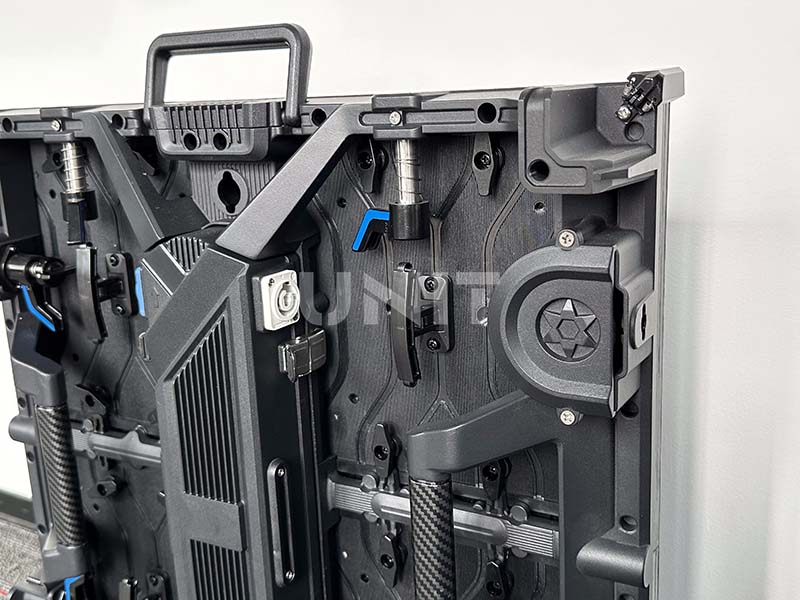

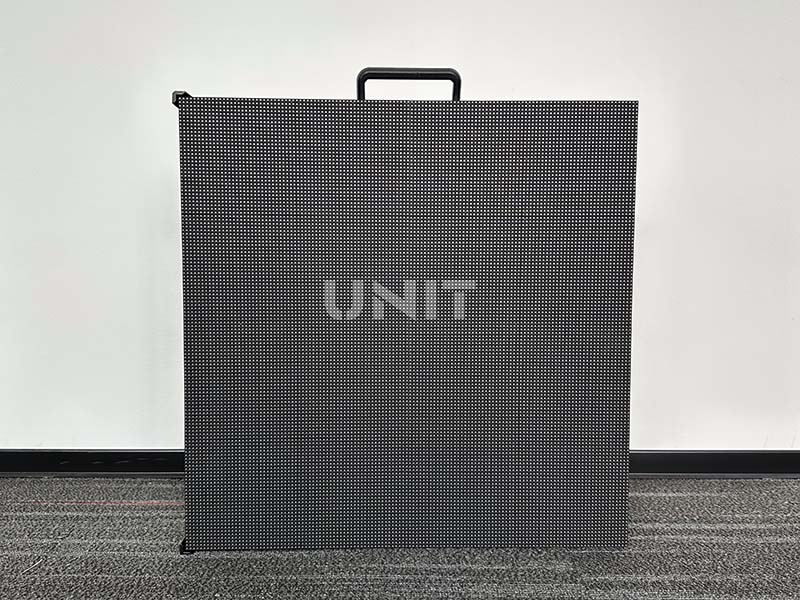

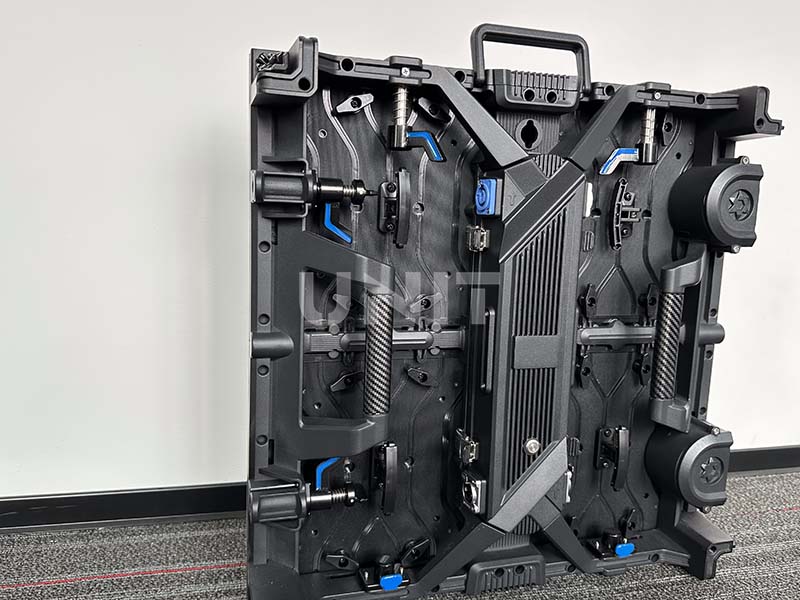

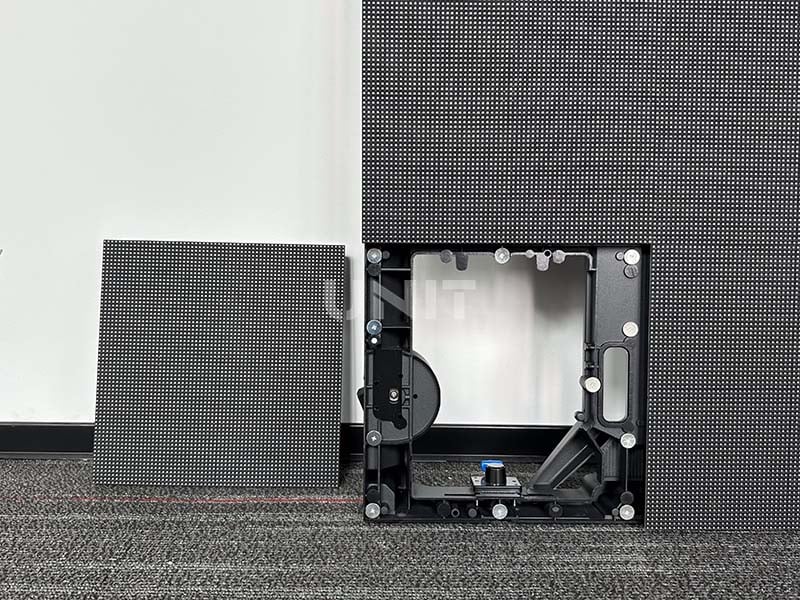

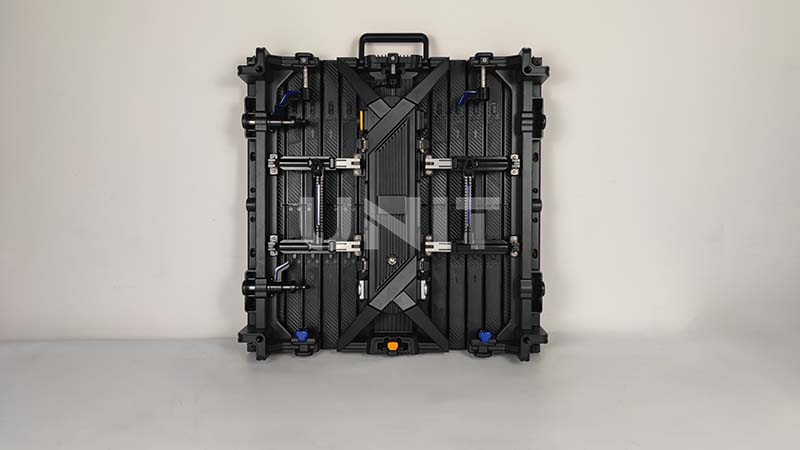

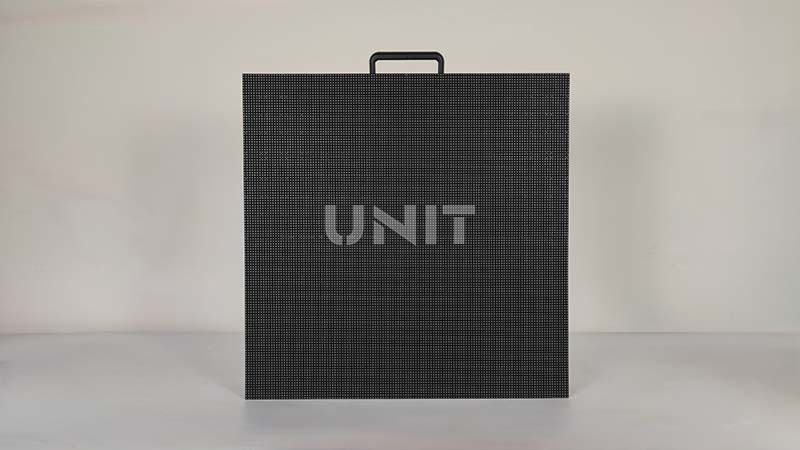

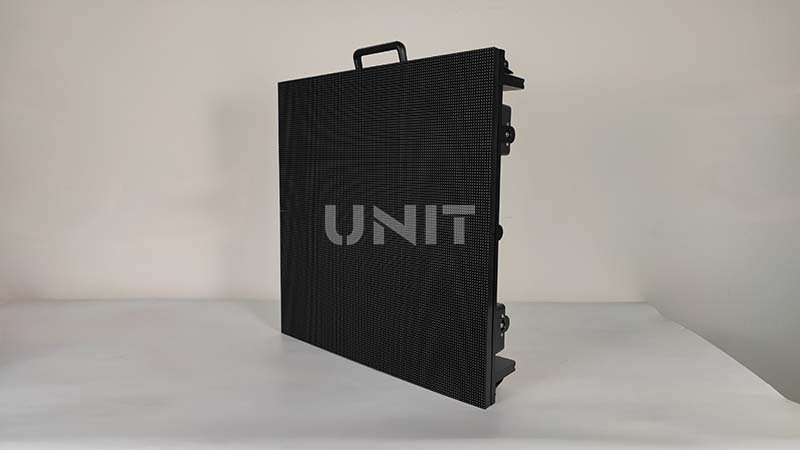

500*500mm Cabinet Details

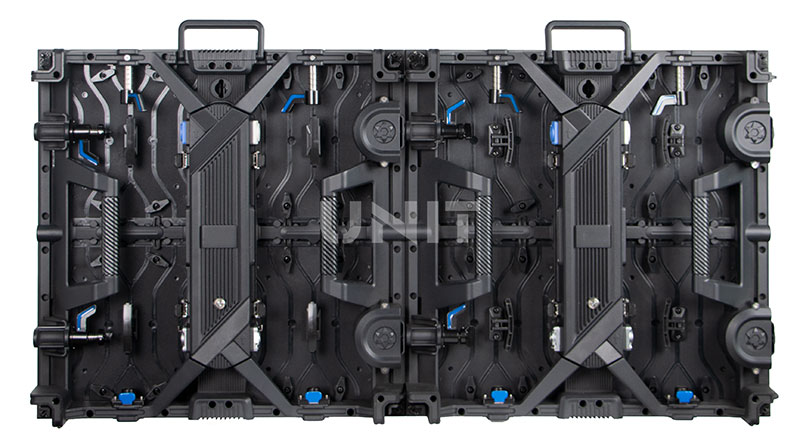

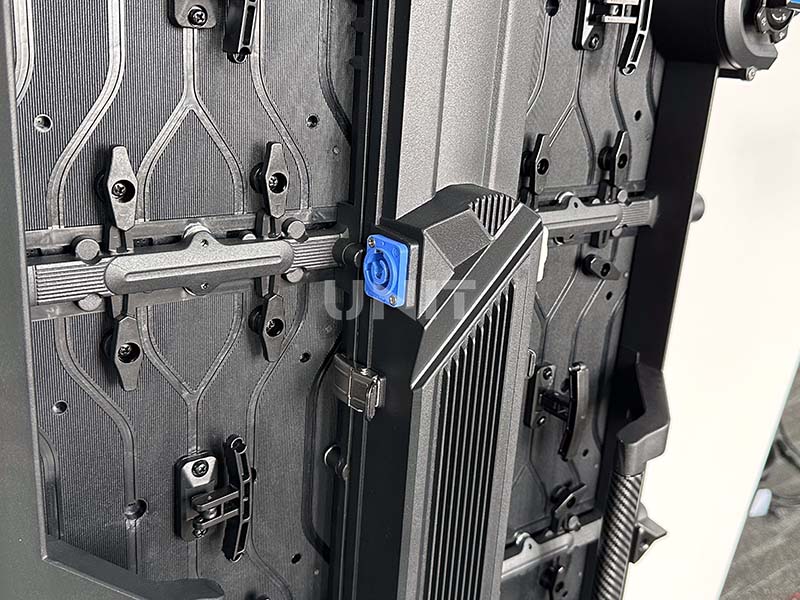

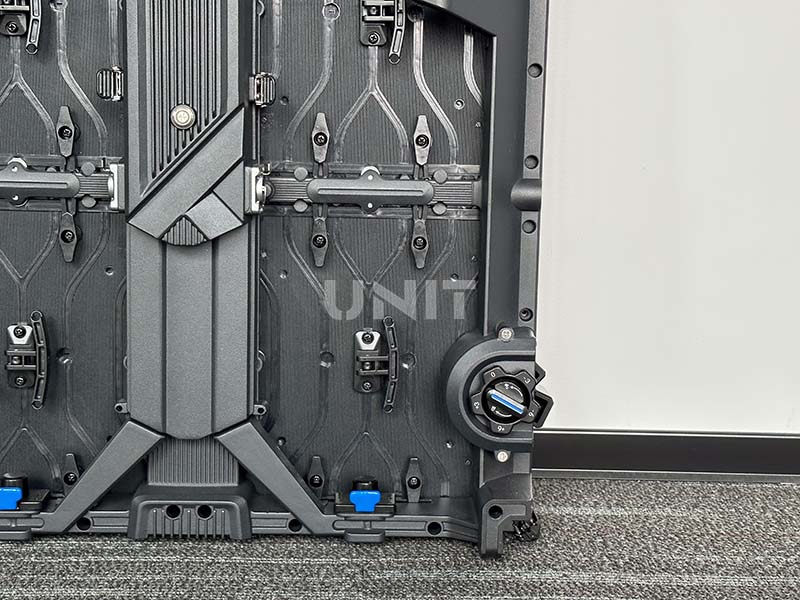

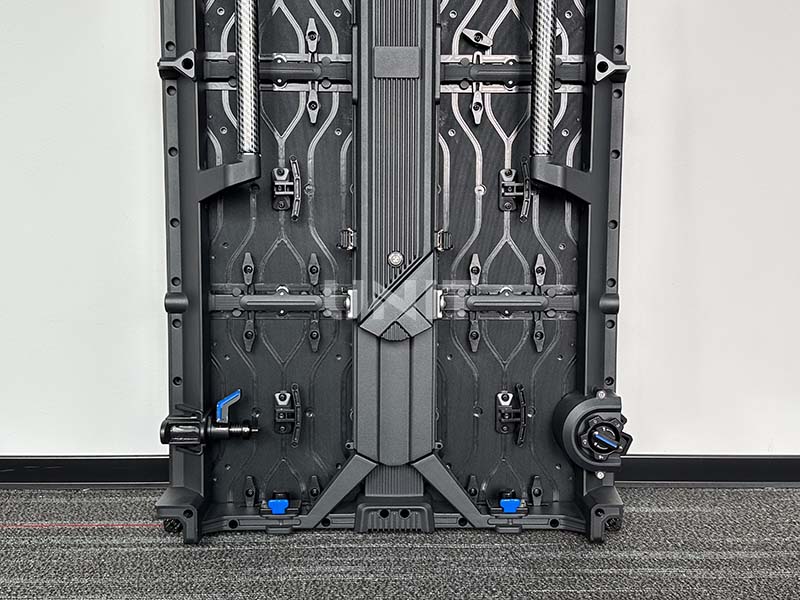

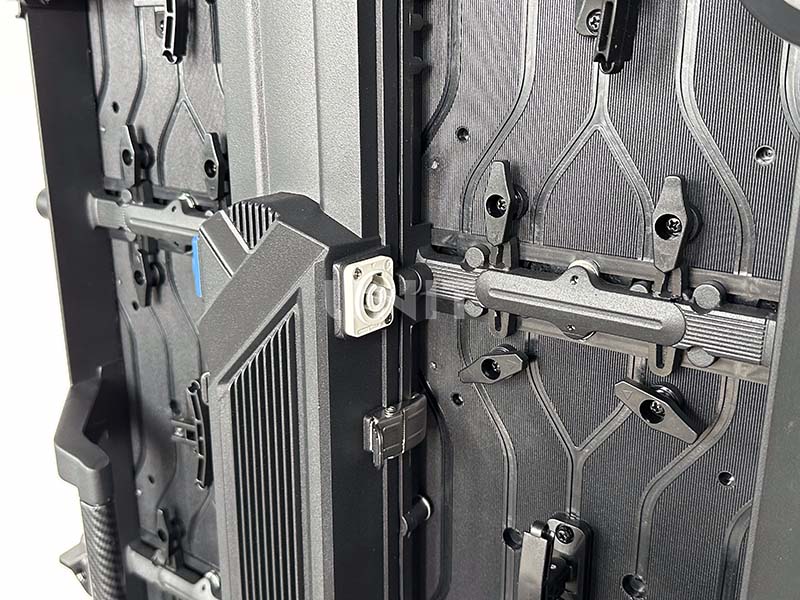

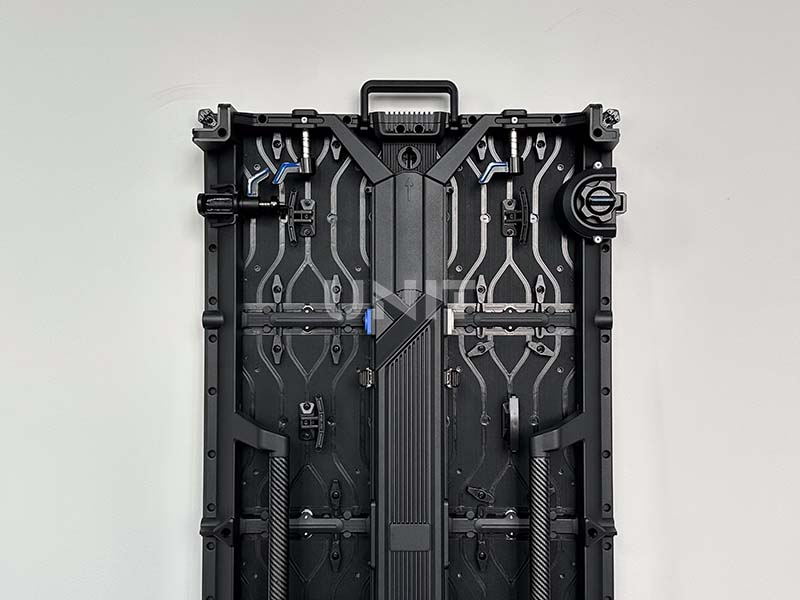

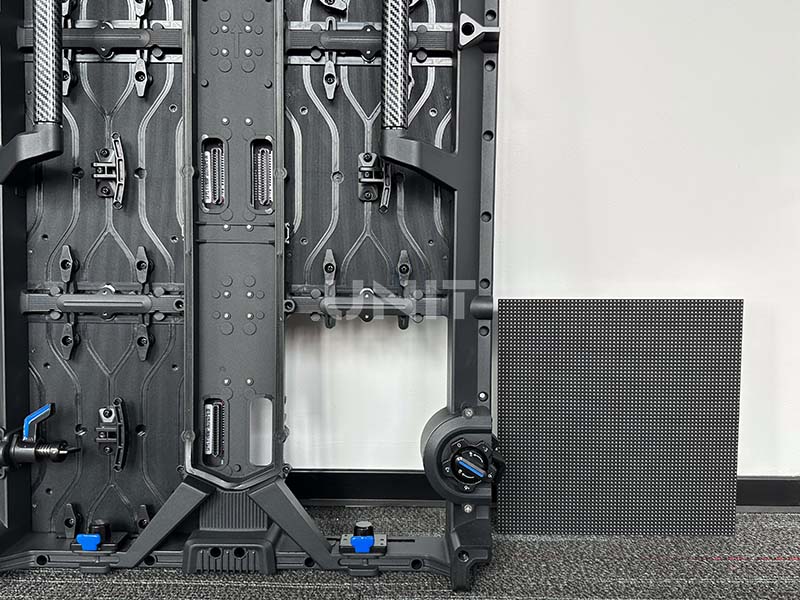

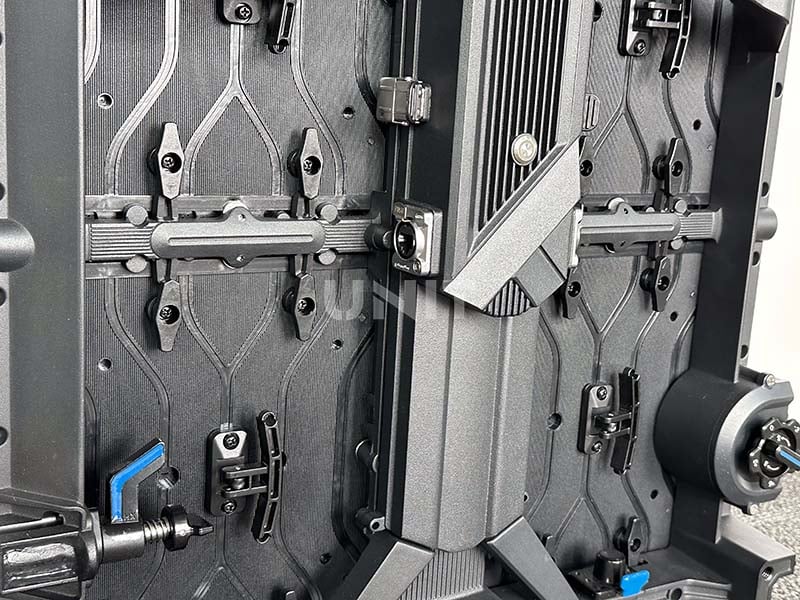

500*1000mm Cabinet Details

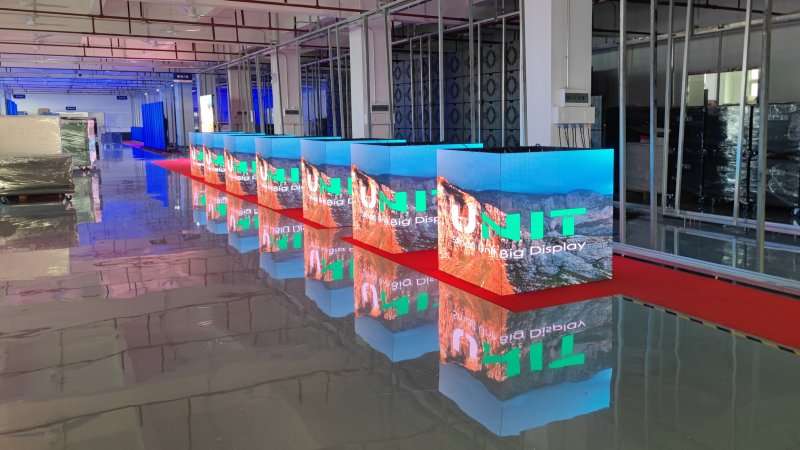

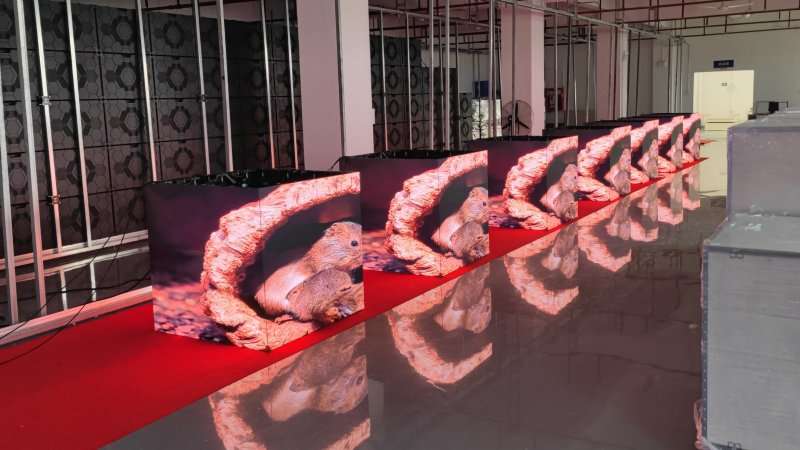

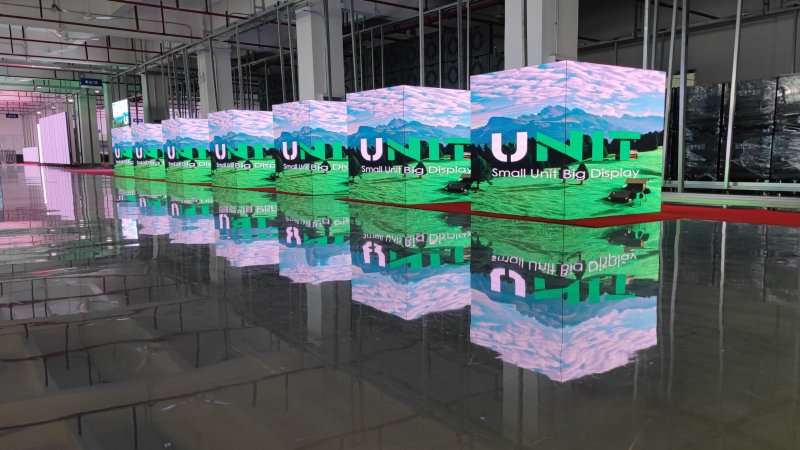

MY P2.604 Cube LED Screen

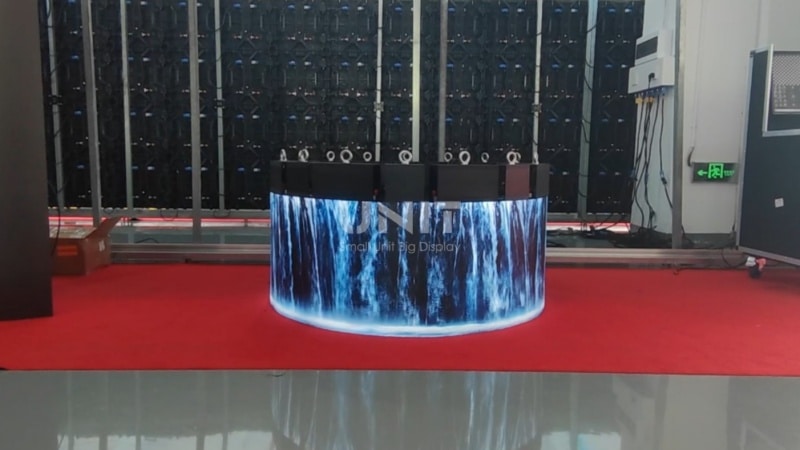

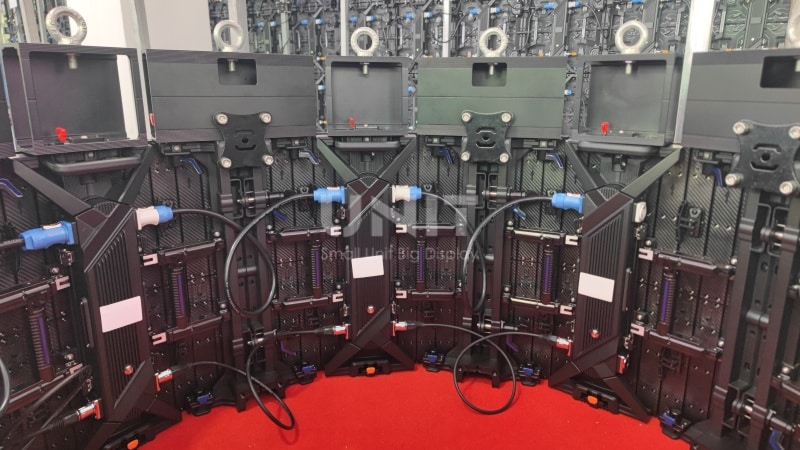

MY Circular LED Screen

Video Center

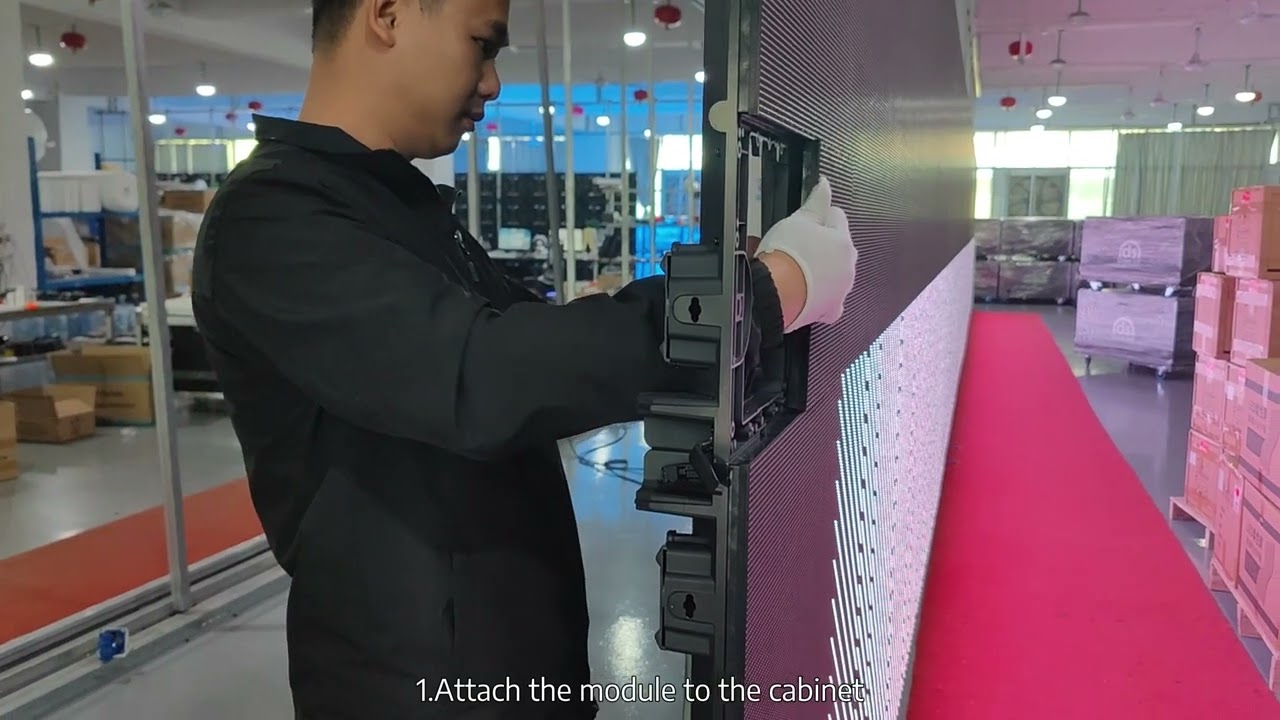

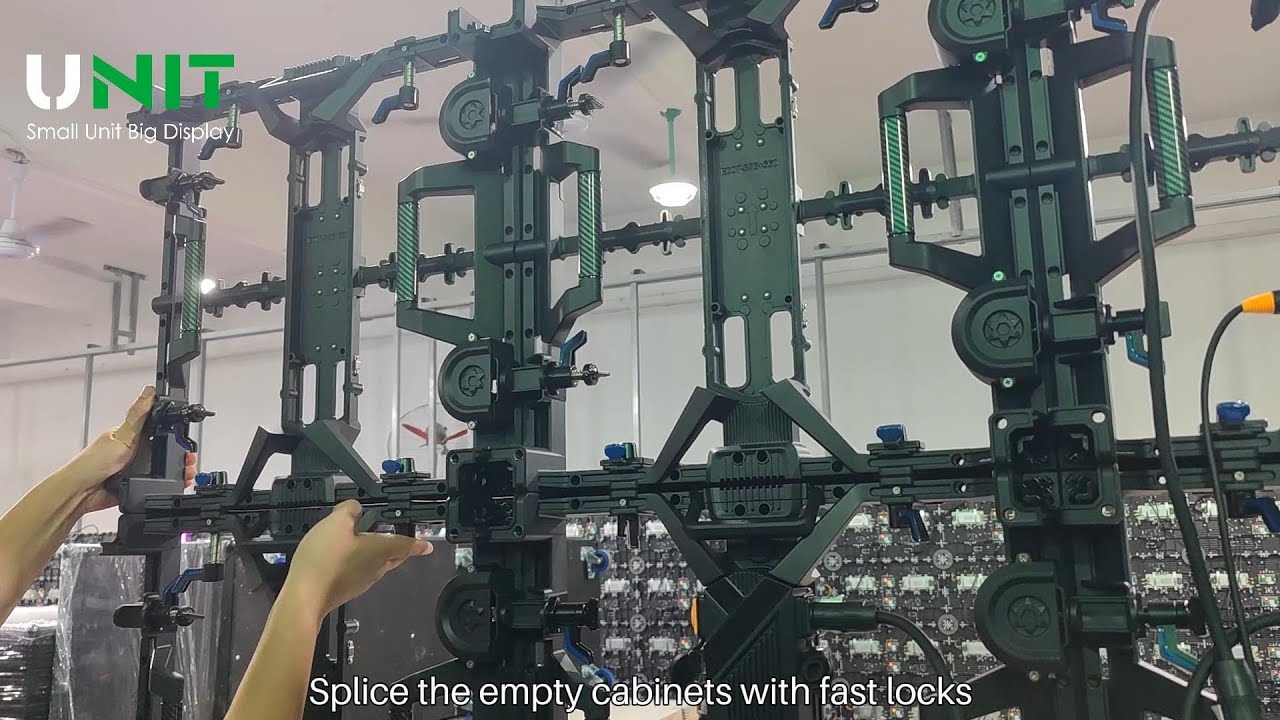

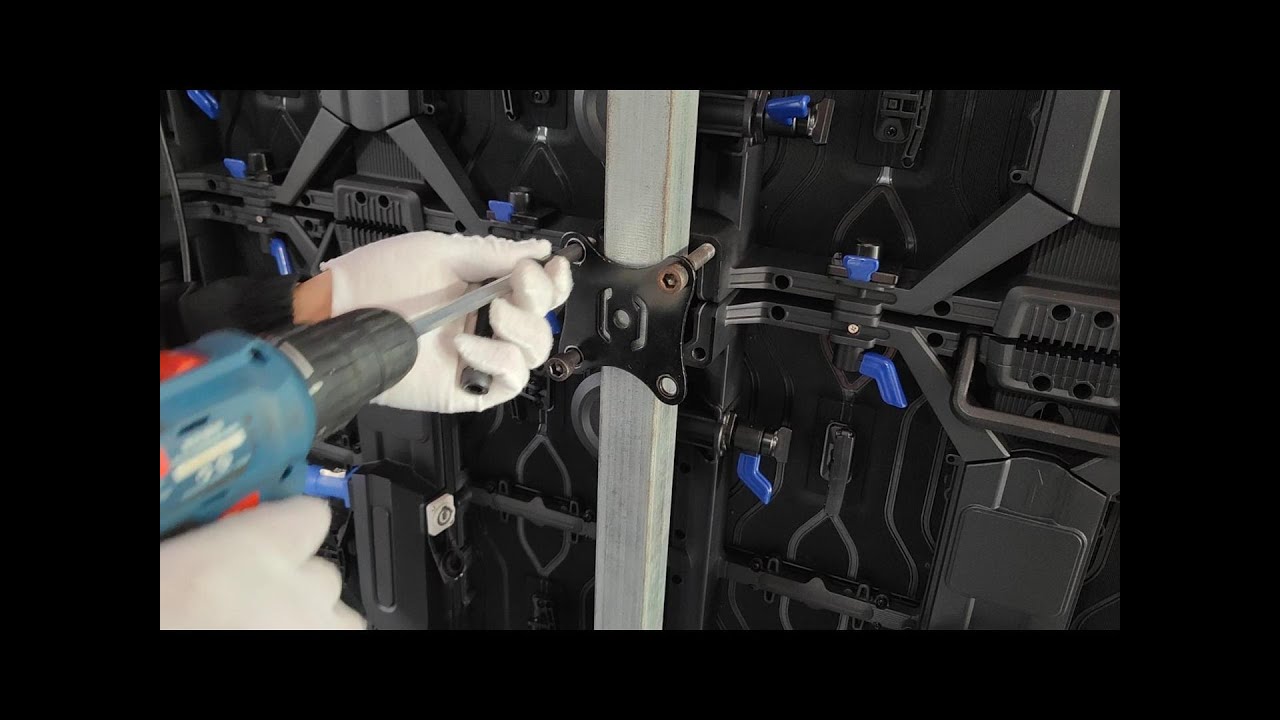

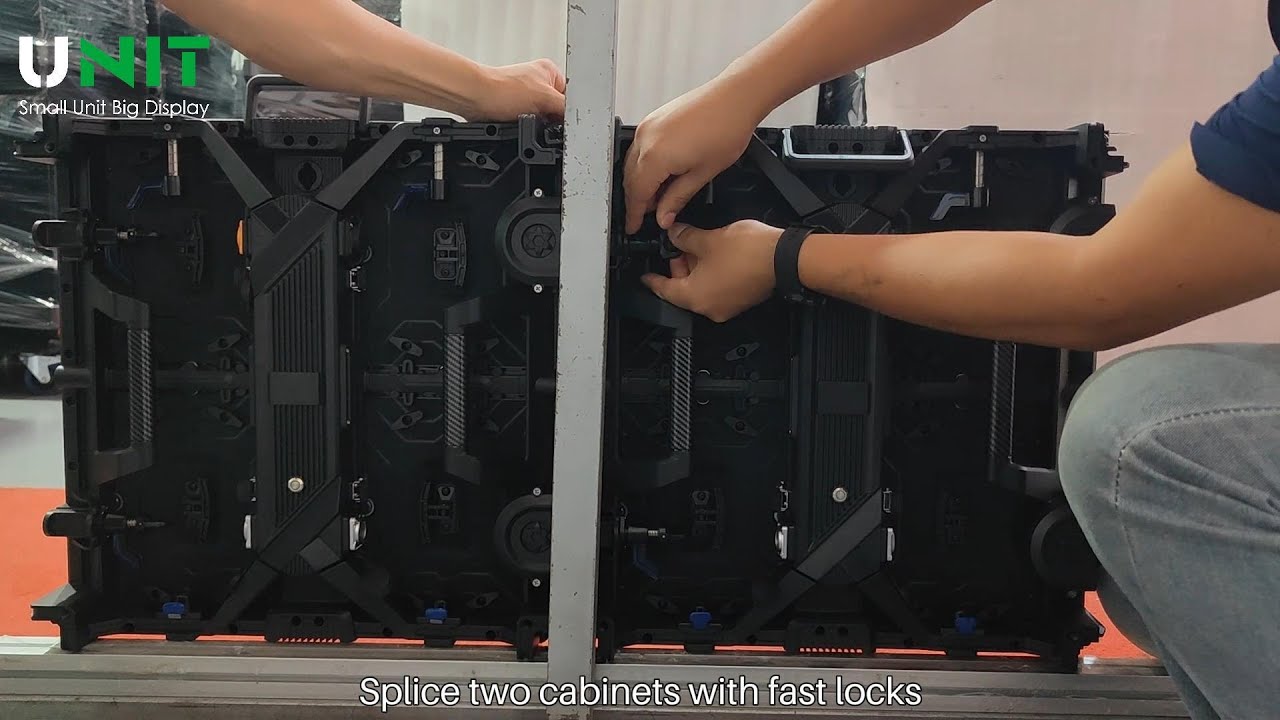

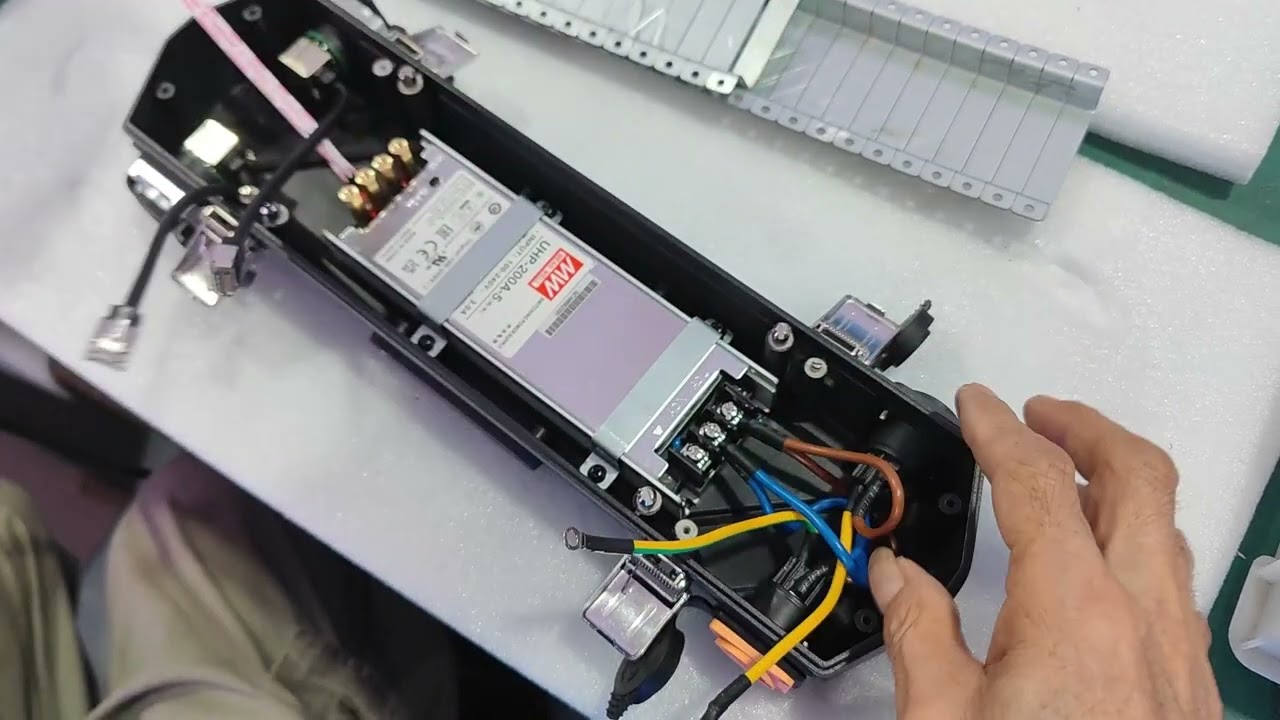

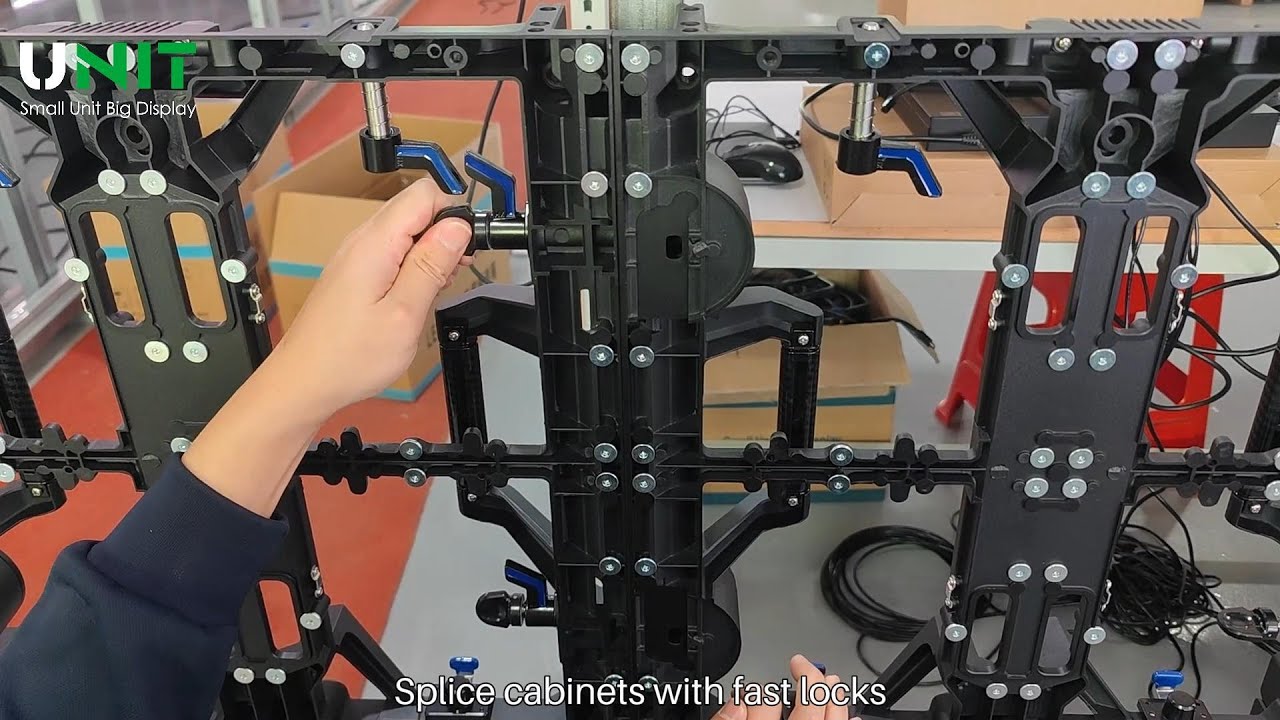

How to Use or Maintain?

MY Series Rental LED Display

IF Design Award 2023

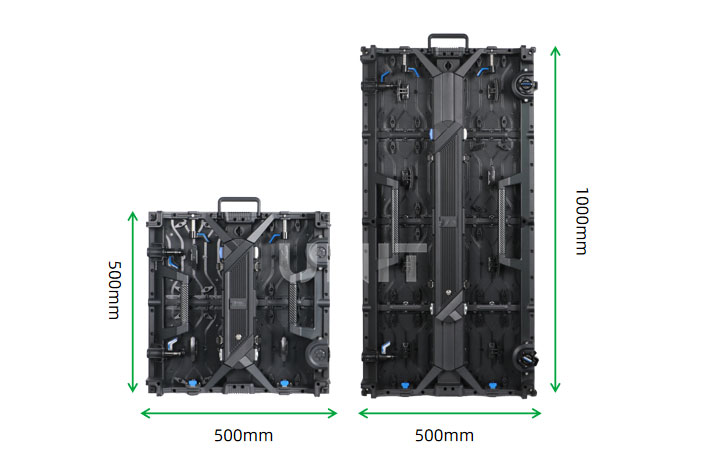

500*500/1000mm Cabinet Standard Size

Front or Rear Dual Service

Support Right Angle Installation (Optional)

Indoor & Outdoor is Available

Detachable Back Cover Box

3 Years Warranty and 5% Spare Part

Find More

Get Price Now

Name

Phone

Email

Message

Send

Specification

Indoor
Outdoor

Indoor

Pixel pitch	P1.5625mm	1.953mm	2.604mm	2.976mm	3.91mm
Pixels per cabinet(500*500mm)	320×320 (HxV)	256×256 (HxV)	192×192 (HxV)	168×168 (HxV)	128×128 (HxV)
Pixels per cabinet(500*1000mm)	320×640 (HxV)	256×512 (HxV)	192×384 (HxV)	168×336 (HxV)	128×256 (HxV)
LED lifetime	100,000h
Brightness	Indoor: 600-800nits

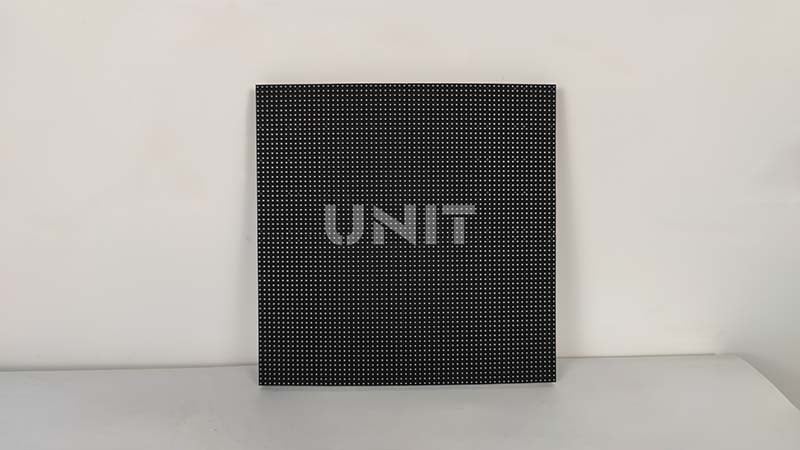

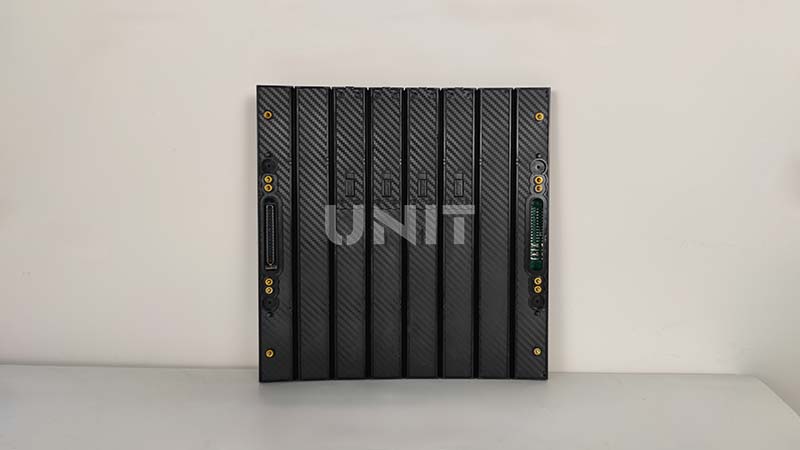

Module size	250*250mm
Module resolution	160*160dots	128*128dots	96*96dots	84*84dots	64*64dots
Refresh rate	3840-7,680Hz
Hor. viewing angle	140° +/-5° (@50% brightness)
Vert. viewing angle	140° +/-5° (@50% brightness)
Brightness uniformity	>98%
Dimming	0-100%
Grey Level	14 bits
Avg Power consumption	270 W/m²
Max Power consumption	450 W/m²
Operation power voltage	100-240V/50-60Hz
Operational temperature	-10°C to +40°C/14°F to 104°F
Operational humidity	10-80%
IP rating	IP50 for indoor
Dimensions	500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD)
Weight	6kg (500 x 500mm cabinet)/11kg (500 x 1000 mm cabinet)
Serviceability	Frontal & rear service for indoor, rear service for outdoor.
Certifications	CE, UL, FCC class A, RoHS, WEE, REACH

Outdoor

Pixel pitch	2.604mm	2.976mm	3.91mm	4.81mm
Pixels per cabinet (500*500mm)	192×192 (HxV)	168×168 (HxV)	128×128 (HxV)	104×104 (HxV)
Pixels per cabinet (500*1000mm)	192×384 (HxV)	168×336 (HxV)	128×256 (HxV)	104×208 (HxV)
LED lifetime	100,000h
Brightness	Outdoor: 4500-5000 nits
Module size	250*250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Refresh rate	3840-7,680Hz
Hor. viewing angle	140° +/-5° (@50% brightness)
Vert. viewing angle	140° +/-5° (@50% brightness)
Brightness uniformity	>98%
Dimming	0-100%
Grey Level	14 bits
Avg Power consumption	384 W/m²
Max Power consumption	640 W/m²
Operation power voltage	100-240V/50-60Hz
Operational temperature	-10°C to +40°C/14°F to 104°F
Operational humidity	10-80%
IP rating	IP65 for outdoor
Dimensions	500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD)
Weight	6kg (500 x 500mm cabinet) / 11kg (500 x 1000mm cabinet)
Serviceability	Frontal & rear service for indoor, rear service for outdoor.
Certifications	CE, UL, FCC class A, RoHS, WEE, REACH
