UNIT EV960 EX Series High-quality LED Display
EX960 Series
EX960 Series Outdoor LED Display
Light Metal Alloy Material, Energy Saving LED Display, Standard Cabinet with 960*960mm/640*640mm dimension, Easy to Install and Disassemble, Support 3D Screen & Perimeter LED Screen
Inquiry Now
Features
Specification
Related Products

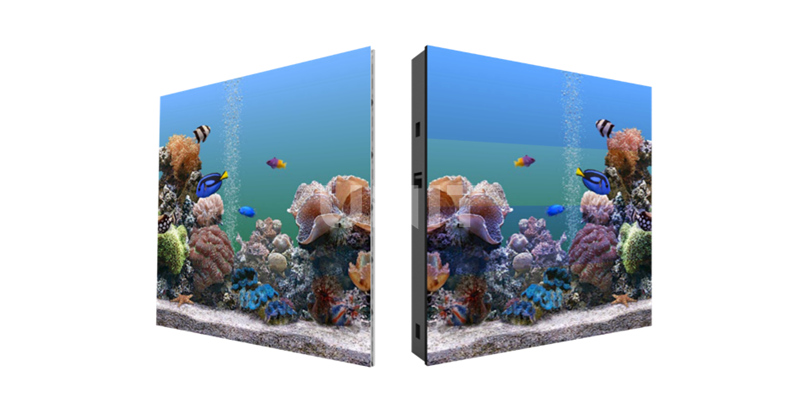

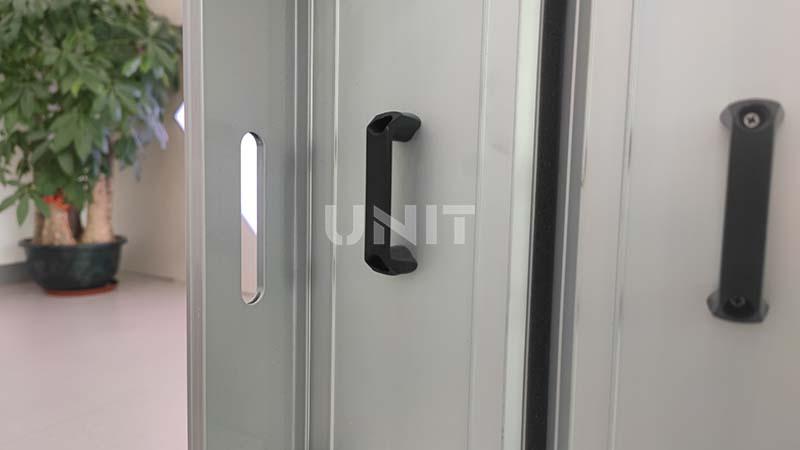

Super Light Design
With various innovative technologies, the EX960 series high-quality LED display is coming!

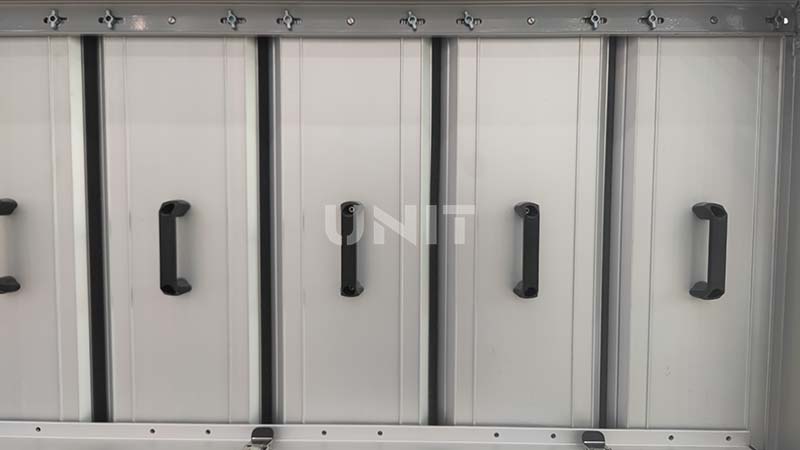

A single LED panel can independently become a display unit, breaking the traditional design of the cabinet display unit.
The light weight and thin LED cabinet is convenient for transportation, installation, and maintenance.
Inquiry Now

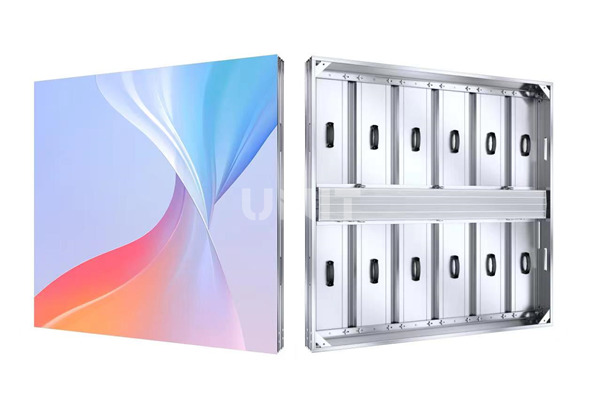

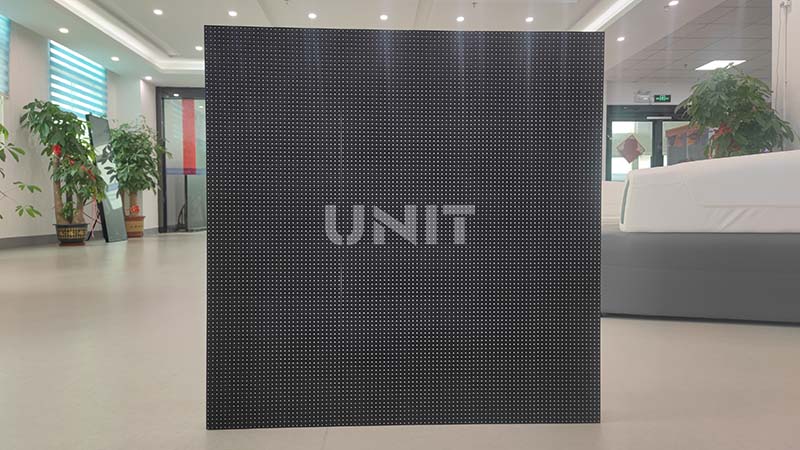

Two Size Available

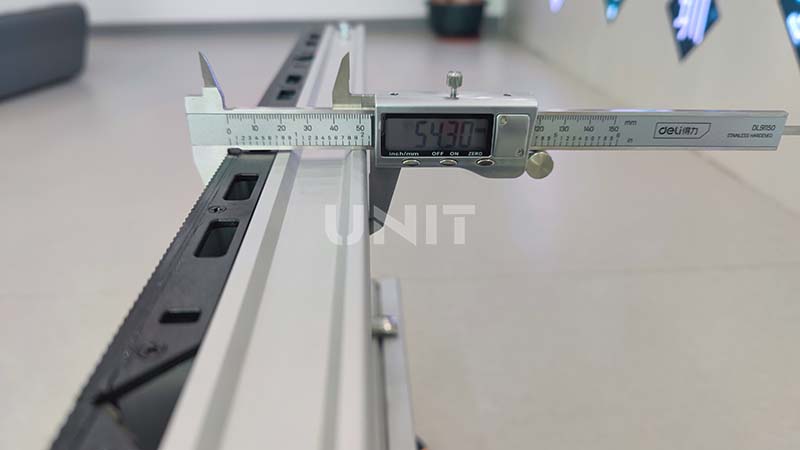

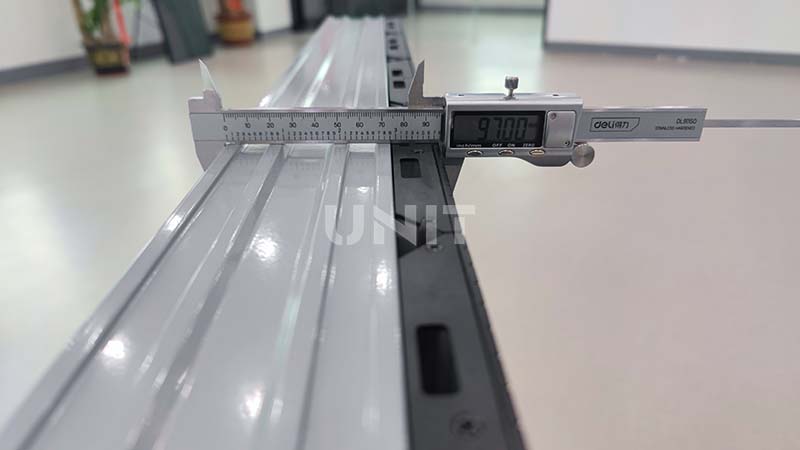

With 960*960*90mm and 640*640*90mm sizes available. Ultra-thin thickness with 90mm design.

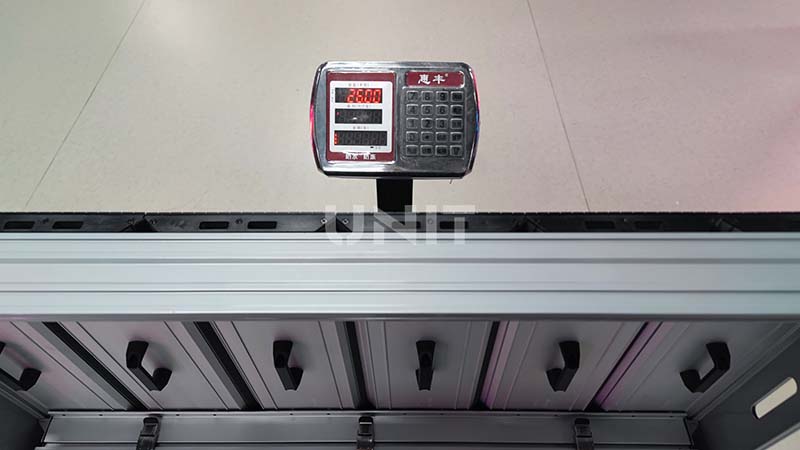

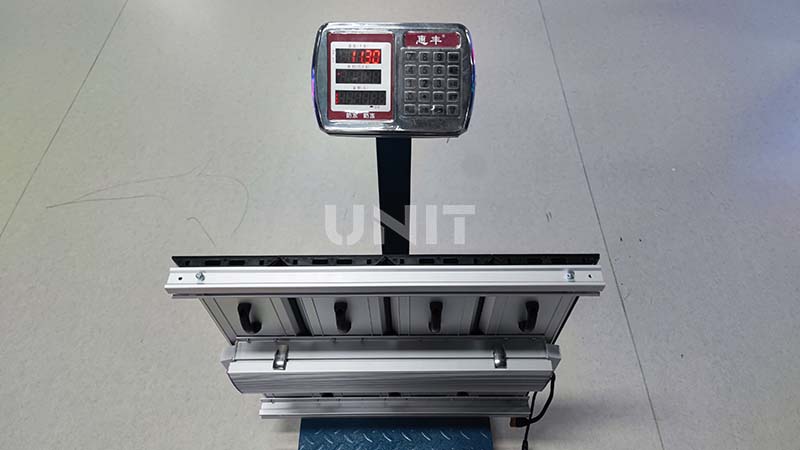

Weight: 13kg for 640*640 cabinet and 27kg for 960*960 cabinet. EX960 series 1600*960mm sport perimeter LED display is also available.
Light metal alloy material has high safety, temperature resistance and corrosion resistance. Perfect for outdoor direct installation.
Actively Dissipate Heat
The energy saving LED panel has a light metal alloy radiator and thermal conduction channel, which can actively dissipate heat,
realize a green environment, and increase service life.
No air conditioner, no fan, less maintenance, low power consumption, low heat.

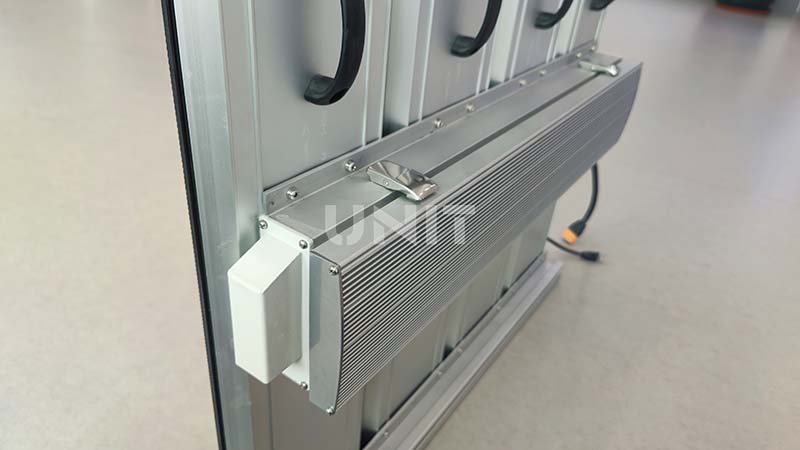

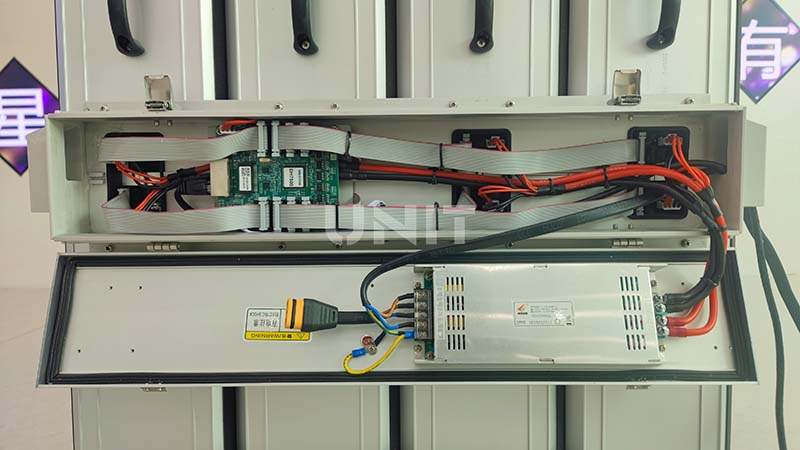

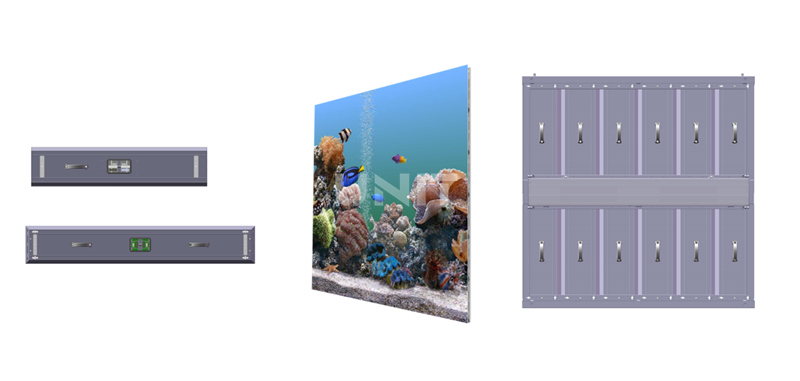

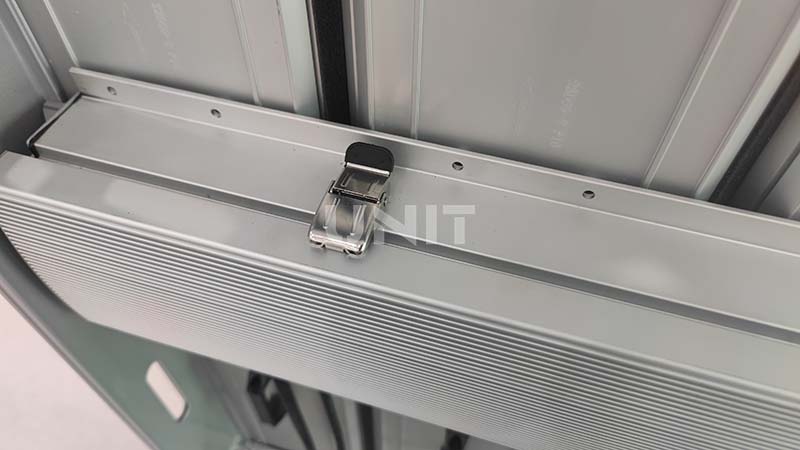

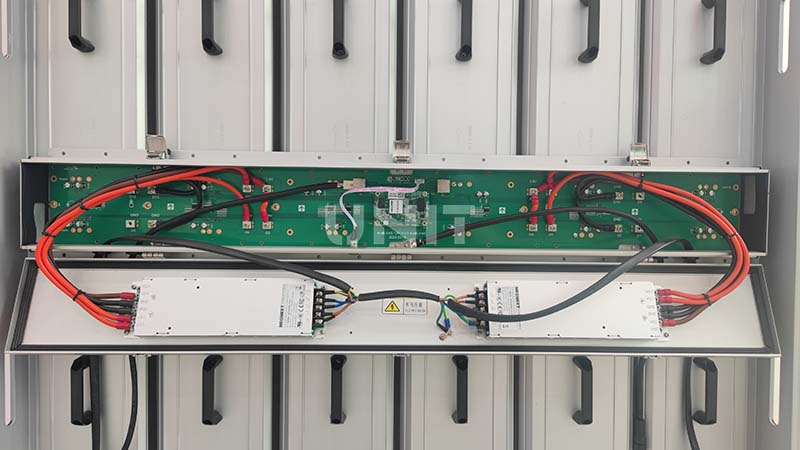

Light Integrated Power ＆ Control Box
Light metal alloy integrated power control box, independent and detachable. Thin and light, easy to maintain.
Unit-integrated protective control box has neat threading and a high waterproof level.
No need for air conditioning, integrated fanless power supply & control systems make it easy to dissipate heat with strong weather resistance.
Inquiry Now
Easy Installation
The outer frame steel frame is designed with a self-guiding positioning plate, which is easy to assemble and greatly improves the flatness.
Progressive locking device, with locking prompt tone, more humanity.

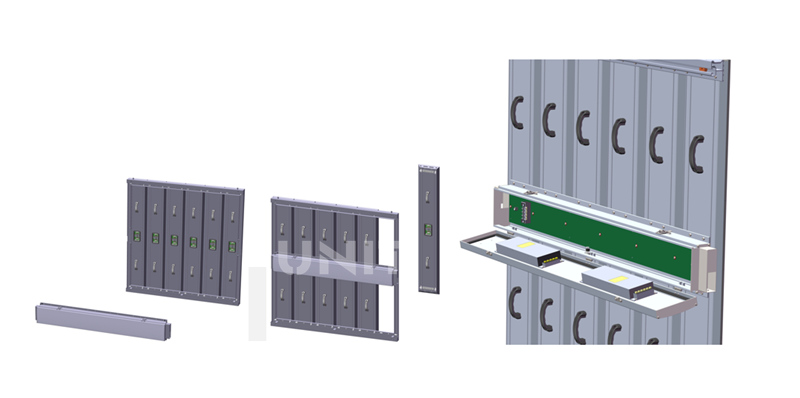

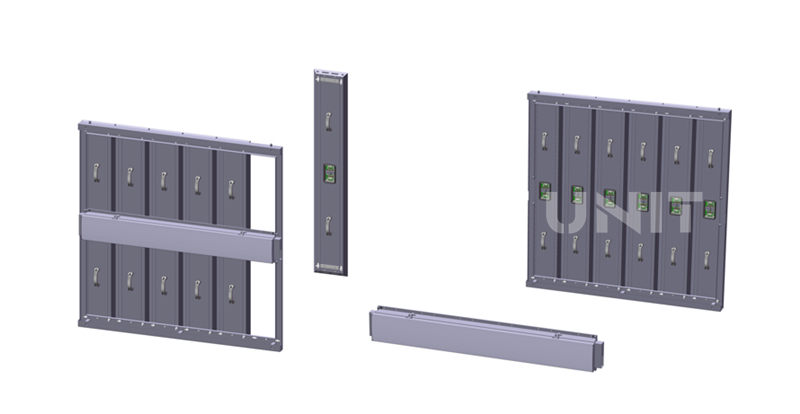

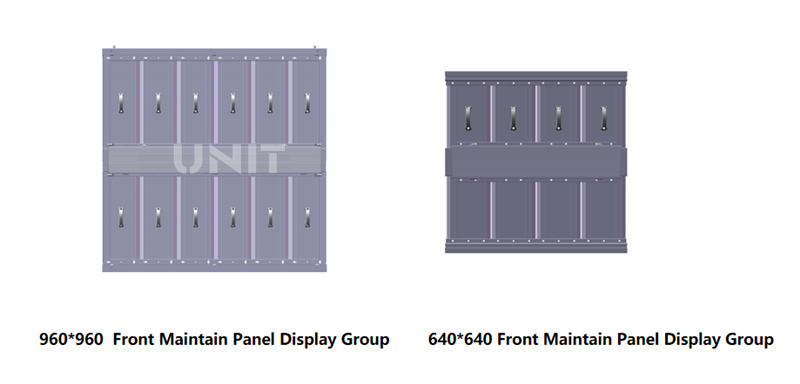

Front and Rear Maintenance
The lightweight and integrated rotary lock pin design realizes the rear and front installation and maintenance. Simplify operation and reduce construction difficulty
Remove the panel from the front side, then remove the cover plate, then the power & control box can be repaired and maintained.
Inquiry Now

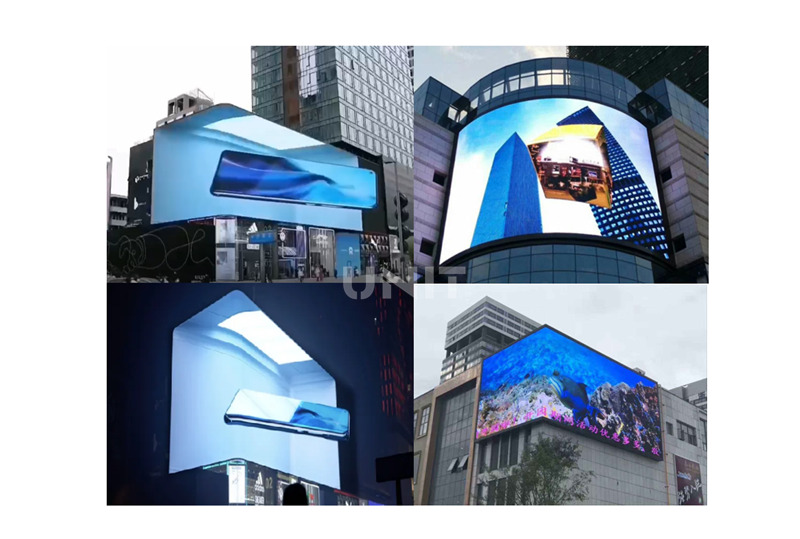

Support 3D LED Display
EX960 series high-quality LED display can be spliced into any arc and any angle for outdoor 3D billboards. It has more installation scenarios and wider application

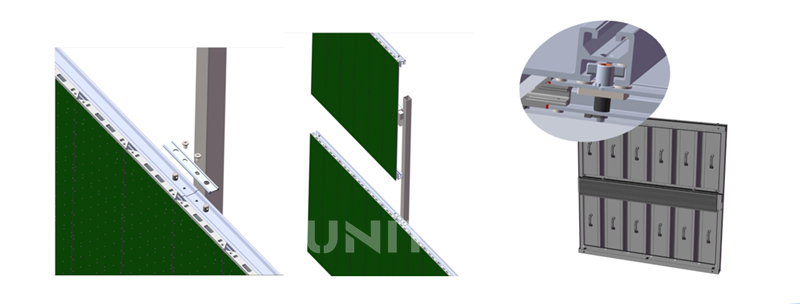

Automatic Positioning & High Fault Tolerance

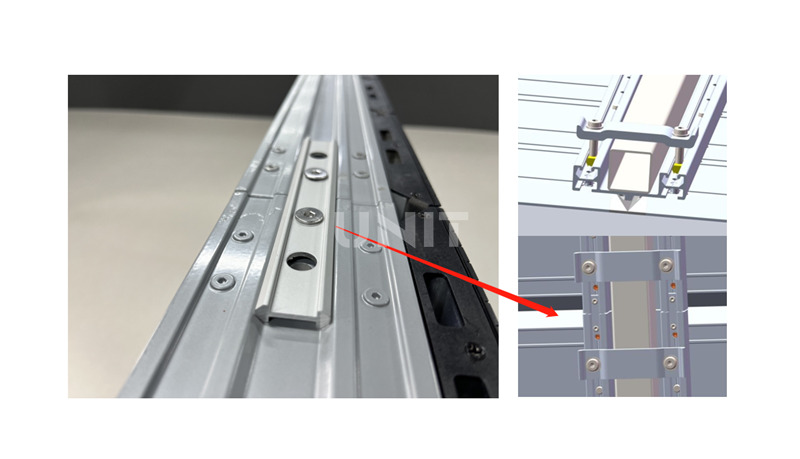

The steel frame has the upper and lower positioning guide plates and positioning screws. When the panel is fixed on the steel frame,
an adjustable range of 7mm above and below shall be reserved, with high fault tolerance and easy assembly.
EX960 High-quality LED Display
960*960/640*640mm LED Cabinet
SMD 3 in 1 LED Encapsulation technology
P2.5mm, P3.076mm, P4mm, P5mm, P6.67mm, P8mm, P10mm
IP65 Protection Level on Rear & Front Side
CE,Rohs Approved
3 Year Warranty and 5% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
EX960 Series Related Videos

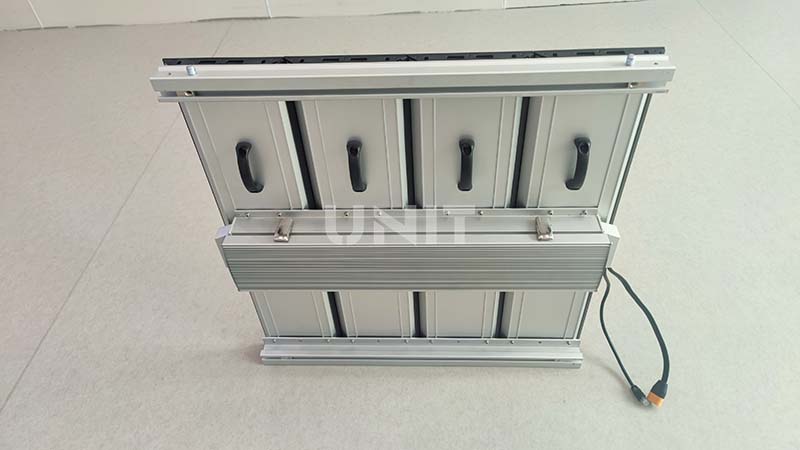

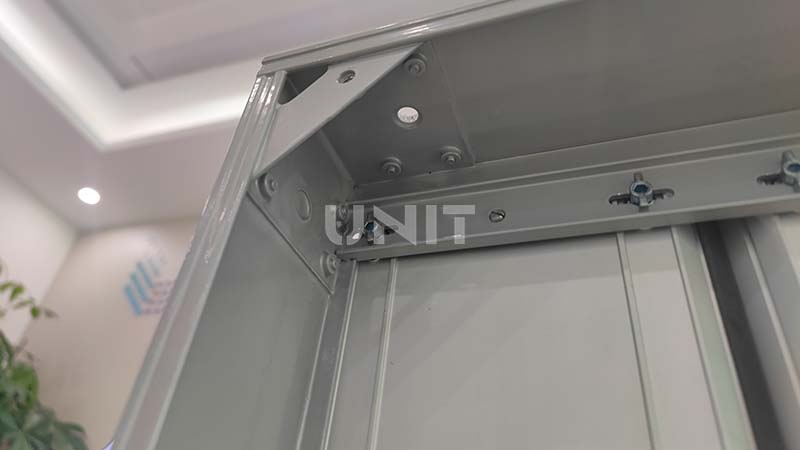

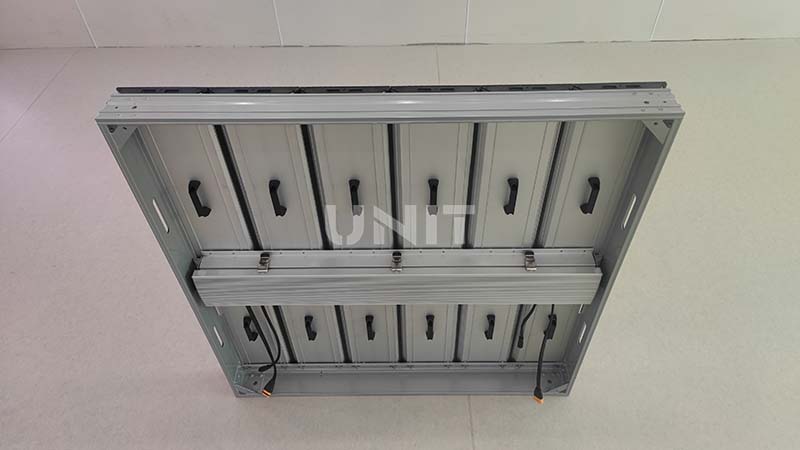

More Cabinet Details

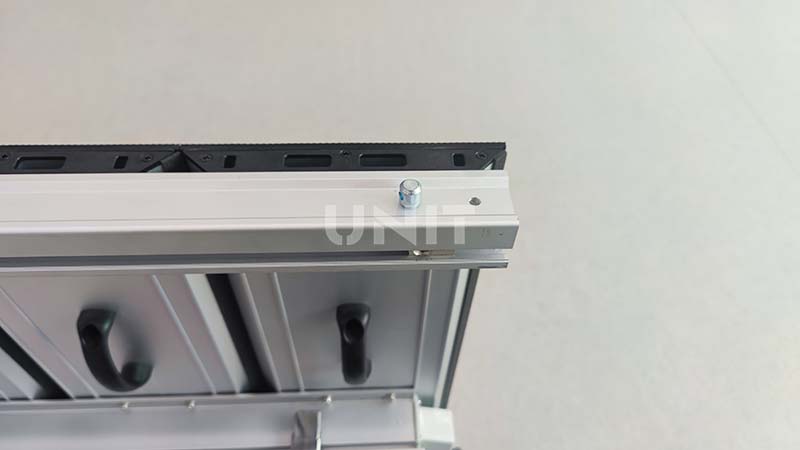

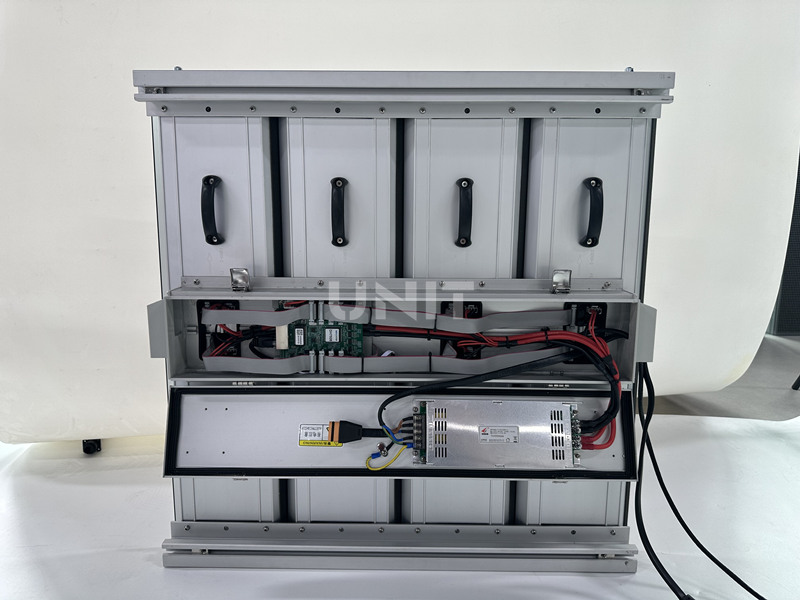

EX960 Series 640*640mm Cabinet
EX960 Series 960*960mm Cabinet

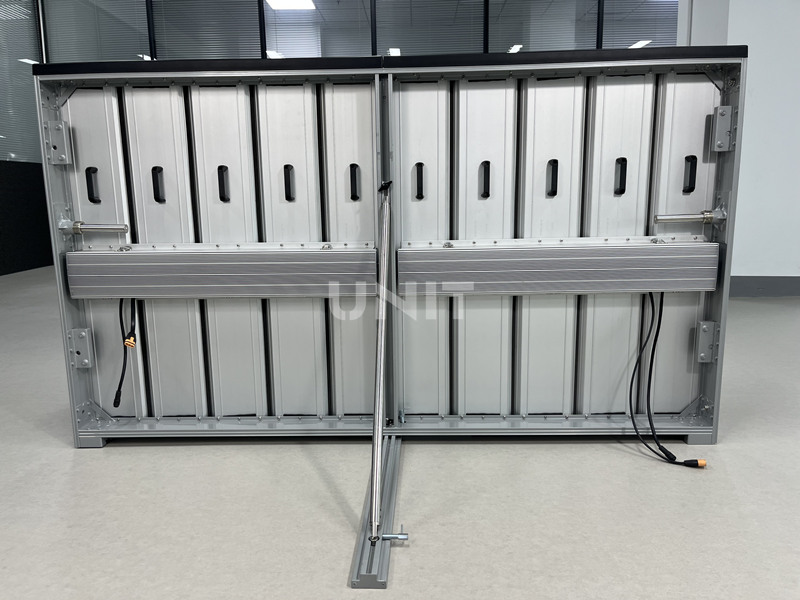

1600*960mm Perimeter LED Display
Specification
|
Pixel pitch |
2.5mm |
3.076mm |
4mm |
5mm |
6.67mm |
8mm |
10mm |
|
Panel Size |
640*640*90mm |
960*960*90mm |
|||||
|
Panel Resolution |
256x256dots |
208x208dots |
240x240dots |
192x192dots |
144x144dots |
120x120dots |
96x96dots |
|
LED |
1415 SMD |
1415 SMD |
1921 SMD |
1921 SMD |
2727 SMD |
2727 SMD |
2727 SMD |
|
Unit Size |
640*160mm |
960*160mm |
|||||
|
Unit Resolution |
256x64dots |
208x52dots |
240x40dots |
192x32dots |
144x24dots |
120x20dots |
96x16dots |
|
Weight |
13KG±2 |
27KG±2 |
|||||
|
Weight |
Light metal alloy material |
||||||
|
Service Way |
Front and Rear |
||||||
|
Brightness |
≥5000 cd/㎡ |
≥6000 cd/㎡ |
|||||
|
Max Power consumption |
600W/㎡ |
500W/㎡ |
|||||
|
Avg Power consumption |
200W/㎡ |
150W/㎡ |
|||||
|
Working voltage |
100-240V / 50-60Hz |
||||||
|
Operating Environment |
Outdoor |
||||||
|
Refresh rate |
≥3840Hz |
||||||
|
Operation power voltage |
100-240V / 50-60Hz |
||||||
|
Operational temperature |
-40°C to +60°C / 14°F to 104°F |
||||||
|
Operational humidity |
10-80% |
||||||
|
IP rating |
IP65 |
||||||
|
Warranty |
3 years standard product warranty |
||||||
Products
P2.5256*256 dots/Panel
640*160mm Panel
640*640mm Cabinet
P3.076208*208 dots/Panel
640*160mm Panel
640*640mm Cabinet
P4240*240 dots/Panel
960*160mm Panel
960*960mm Cabinet
P5192*192 dots/Panel
960*160mm Panel
960*960mm Cabinet
P6.67144*144 dots/Panel
960*160mm Panel
960*960mm Cabinet
P8120*120 dots/Panel
960*160mm Panel
960*960mm Cabinet
P1096*96 dots/Panel
960*160mm Panel
960*960mm Cabinet
