160X160mm P10 DIP LED Module Panel
Previous slide
Next slide
Outdoor P10 DIP LED Module Panel
Pixel Pitch: P10mm
LED Type: DIP346
Module Size: 160*160 mm
Model Pixel: 16*16 Pixels
In Stock
CE, RoHS, FCC Approved
Description
Outdoor P10mm DIP LED module display panel has the Best Color Uniformity and High Refresh Rate 16x16dots Pixel LED Screen Panel.
FEATURES:
- DIP LED Module Including the Data & Power Cables.
- Epistar LEDs, 2 Years Warranty, Ship in 24 hours, Free Online Support.
- High Contrast for LED display.
- Driving LEDs with a constant current.
High-quality DIP
Using high quality RBG led lamp bead, no damge lamp, uniform current, same brightness.
Strict Aging Testing
UNIT provides72 hours aging test and 24 hours video aging to ensure the LED display moudles have best stability.
|
LED Module: |
|
|
Pixel Pitch: |
10mm DIP LED |
|
Module Size: |
160mmx160mm |
|
Module Resolution: |
16×16 dots |
|
Driver Mode |
1/4 Scan |
|
Warranty Time: |
2 Years |
|
Certificates: |
CE,RoHS |
|
Electricity Parameter: |
|
|
Physical density: |
10000 pixels/m2 |
|
Brightness: |
6500 – 6800 nits |
|
Brightness adjusted: |
100 grade by software, or by Auto-optic induced |
|
Best view distance: |
≥ 6m |
|
Best view angle: |
Horizontal ±110°, Vertical ±110° |
|
Color processing: |
16bit |
|
Color temperature(k): |
5000 — 9500 (choice by user) |
|
Whole display flatness: |
≤ 1mm juncture |
|
Working temperature: |
-20°C ~ +50°C |
|
Refresh frequency: |
≥ 300Hz |
|
Humidity(RH): |
≤ 90 ~ 95% |
|
Protection grade: |
IP65 Waterproof |
|
Working Voltage: |
DC 5V |
|
Power supply: |
AC 110 / 220V, 50/60Hz |
|
Average power consumption: |
550 w/m2 |
|
Max power consumption: |
800 w/m2 |
|
Screen lifetime: |
100000 hours |
More Details

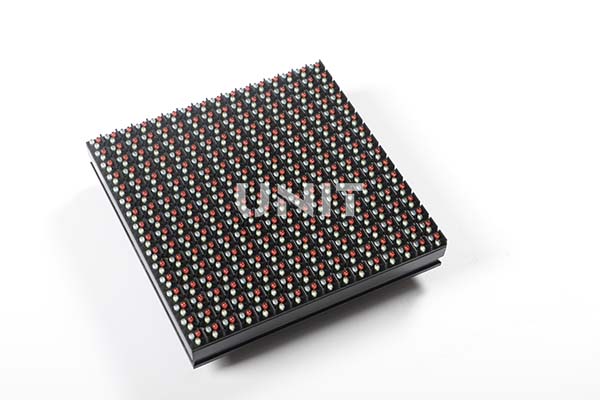

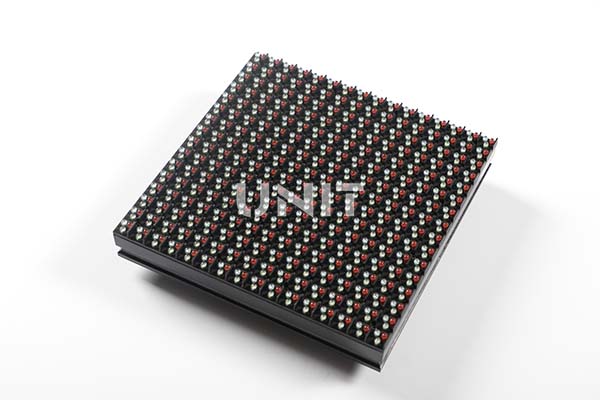

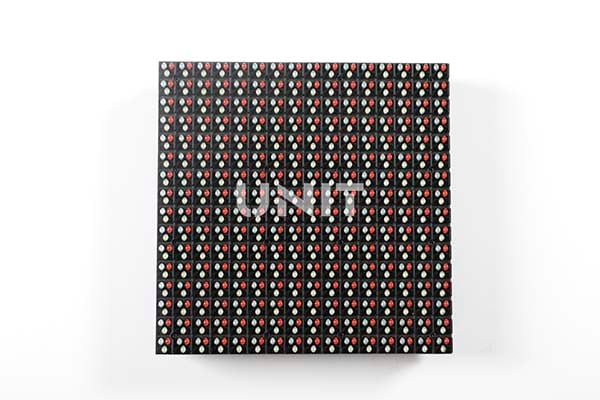

p10 dip led module-front view

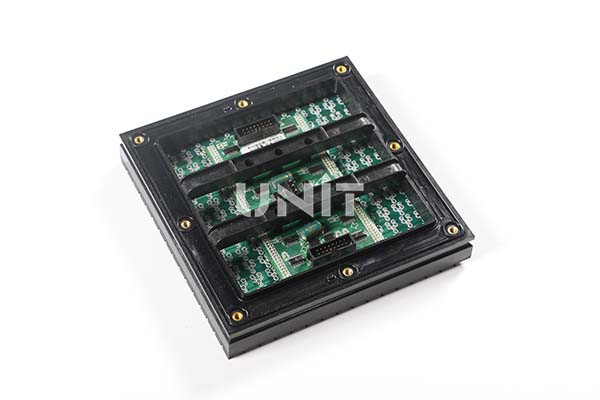

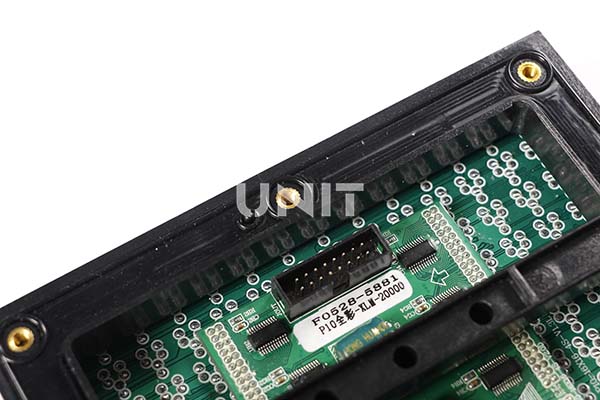

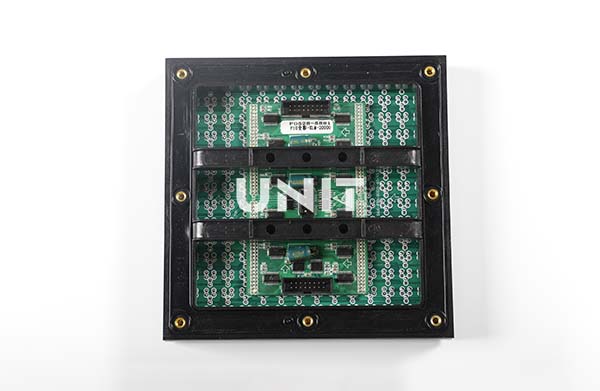

p10 dip led module-back view
Contact Us
Order outdoor led modules? Please feel free to contact us at any time, and we will respond to you within 24 hours.
P10 DIP LED Module Video
https://youtu.be/9GhhsXlHEn0?si=o9jWkkDTU8E-B6oR
