Right-angle P2.5 Indoor LED Display Module 160x160mm
Right-angle P2.5 Indoor LED Display Module
Pixel Pitch: 2.5mm
LED Type: SMD2121
Module Size: 160*160 mm
Module Resolution: 64*64
2 Years Warranty
Description
Right-angle P2.5 indoor LED display module supports 90-degree right-angle splicing. It is very suitable for scenes that require right-angle installation.
Whether it is a pillar screen or a Rubik’s Cube screen, the right-angle module has good performance.
FEATURES:
- LED Module Including the Data & Power Cables.
- Epistar LEDs, 2 Years Warranty, Ship in 24 hours, Free Online Support.
- High Contrast for LED display.
- Driving LEDs with a constant current.
High-quality SMD
Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level
Strict Aging Testing
UNIT provides72 hours aging test and 24 hours video aging to ensure the LED display moudles have best stability.
|
Pixel Pitch |
2.5mm |
|
Pixel Configuration |
SMD3in1 |
|
Module Resolution |
64×64 pixels |
|
Module Pixles |
4096 pixels |
|
Module Size |
160x160mm |
|
Screen Brightness |
≥1000cd/m2 |
|
Driving Method |
1/32 scan |
|
Mini Viewing Distance |
2.5m |
|
Max. Power Consumption |
700W/m2 |
|
Average Power Consumption |
280W/m2 |
|
Gray Level |
14bits input, 4096 levels(212) |
|
Display Color |
16M |
|
Frame Frequency |
≥60Hz |
|
Refresh Frequency |
≥1920Hz |
|
Uninterrupted Working Hours |
≥72 hours |
|
Screen Life-span |
≥100,000 hours |
|
MTBF |
≥5,000 hours |
|
Discrete Blind Spot Rate |
<1/10000 |
|
Continuous Blind Spot Rate |
None |
|
Blind Spot Rate |
<1/10000 |
|
Screen Plainness |
<±1mm |
|
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
|
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH |
|
Control Mode |
Synchronous display with control PC by DVI |
|
Control System |
DVI video card + full color control card + fiber system( optional) |
|
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
|
Interface |
Standard Ethernet |
|
Transmission Distance |
Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
More Details

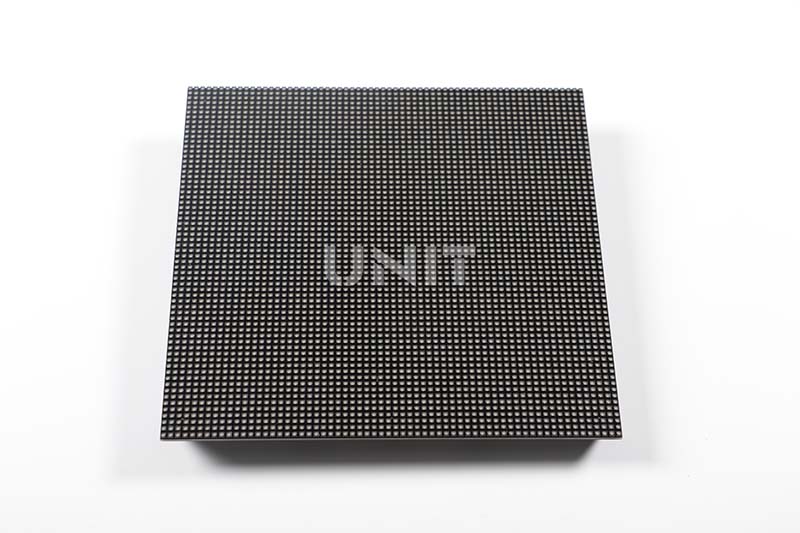

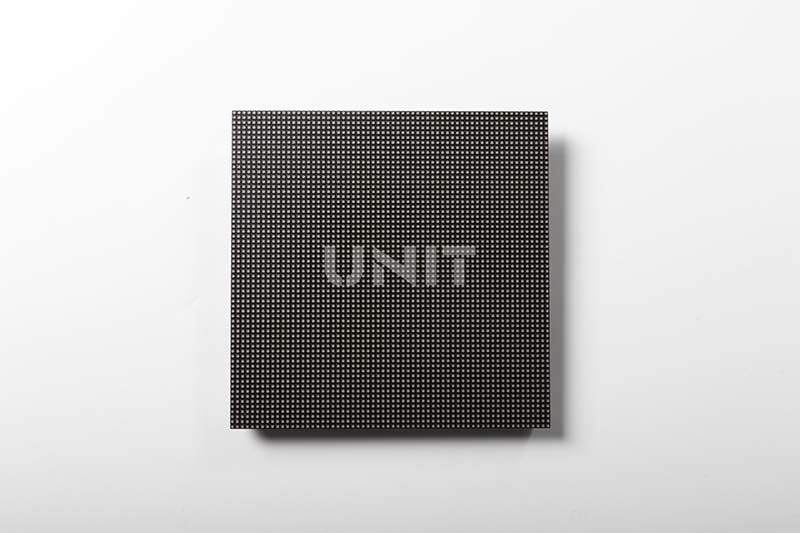

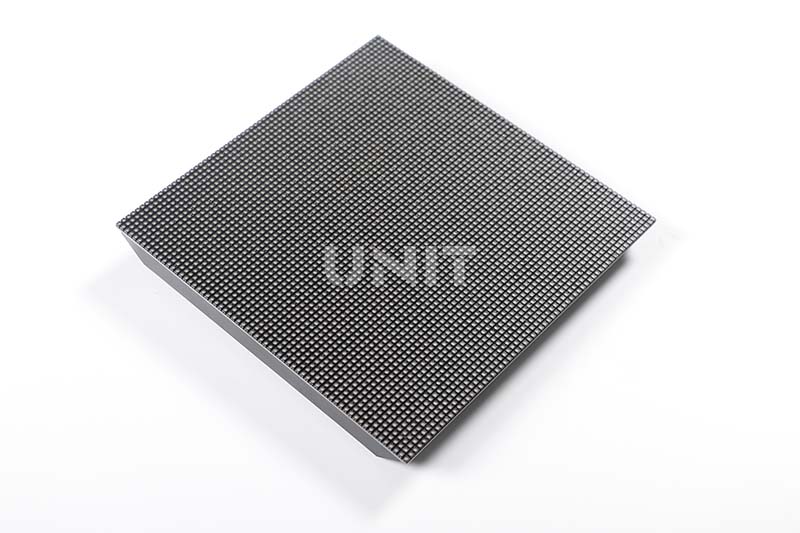

Right-angle P2.5 Indoor LED Display Module-Front View

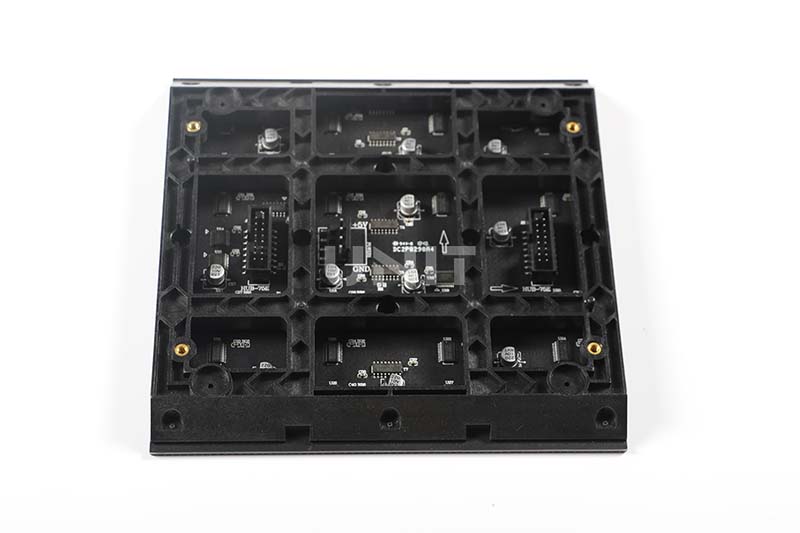

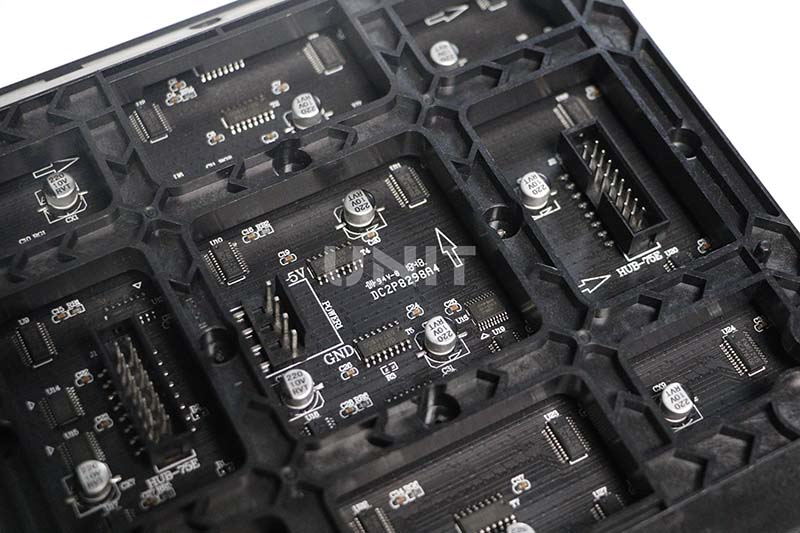

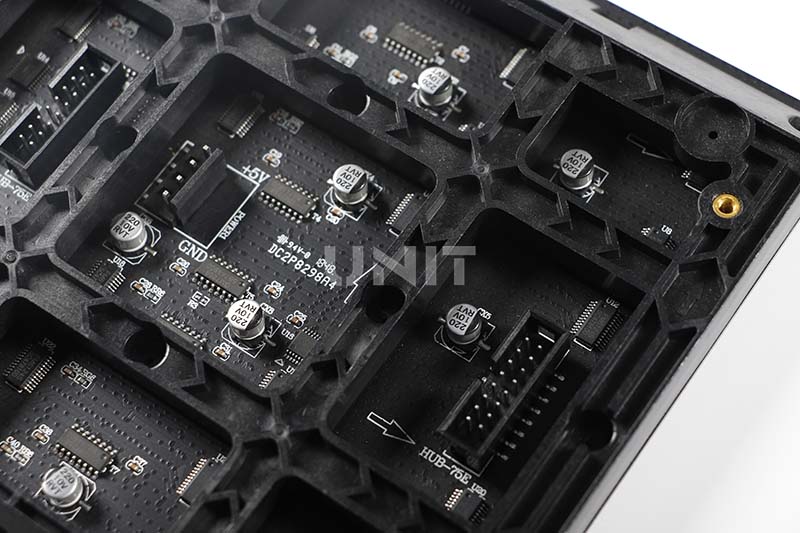

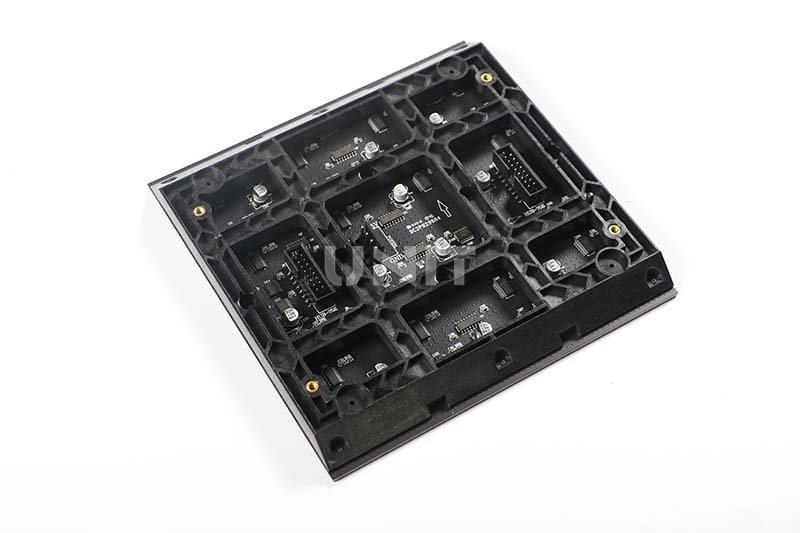

Right-angle P2.5 Indoor LED Display Module-Back View
