240x120mm P1.667mm Soft Flexible LED Module
P1.667mm Soft Flexible LED Module
Pixel Pitch: P1.667mm
LED Type: SMD 1212
Module Size: 240*120 mm
Model Pixel: 144*72 Pixels
In Stock
CE, RoHS, FCC Approved
Inquiry Now
Description
P1.667mm Soft Flexible LED Module with 240*120mm and 144*72 Dots. High flexibility and excellent visual effects for any indoor creative LED display projects!
FEATURES:
1. Soft Flexible LED Module Including the Data & Power Cables.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours, Free Online Support.
3. High Contrast for creative LED display.
4. High flexibility & fine pixel pitch

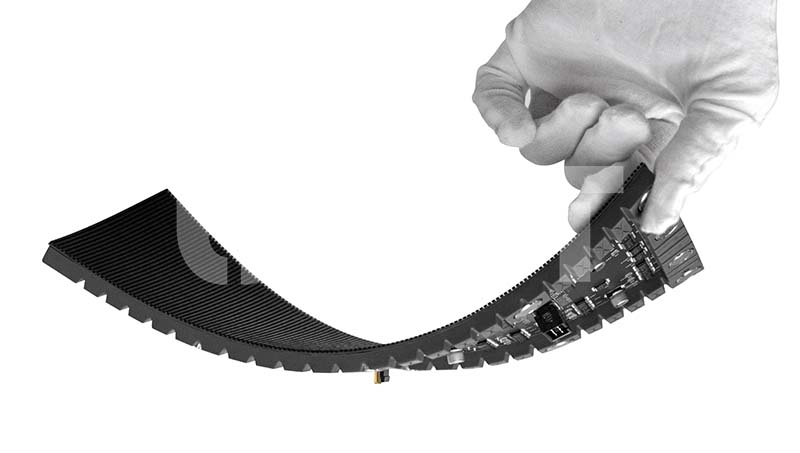

P1.667mm Inner Arc View

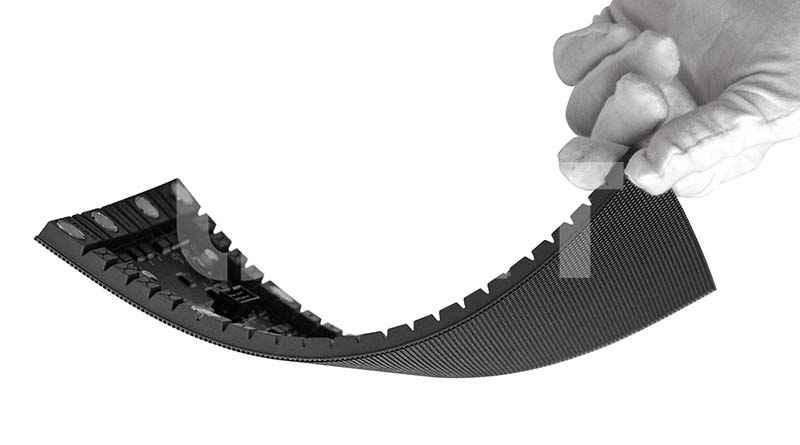

P1.667mm Outer Arc View
Soft Flexible LED Module
1. Flexibility
Flexible LED modules are made of flexible materials that can be bent and folded to adapt to various curved surfaces and shapes, such as circles, arcs, and even irregular shapes.
This allows them to adapt to a variety of special design needs, such as cylindrical buildings, curved walls, etc.
2. Thin, light, and portable
Compared with traditional rigid LED modules, flexible LED modules are thinner and more portable, lighter in weight, and easier to carry and install.
It makes them more advantageous in applications that require frequent movement or installation in special locations, such as event stages, exhibition displays, billboards, etc.
3. Highly customizable
Flexible LED modules can be customized in size, shape and pixel density according to actual needs to achieve personalized design and customized applications.
Whether it is a small commercial display or a large stage backdrop, it can be customized according to the specific situation.
4. Good visual effects
Flexible LED modules have excellent visual effects, such as high brightness, high contrast, and wide viewing angles.
They can provide clear, bright, and realistic image and video display effects in various environments to attract the audience’s attention.
5. Energy saving and environmental protection
Flexible LED modules use LED as the light source and have environmentally friendly features such as low energy consumption, long life, and mercury-free.
Compared with traditional lighting equipment, they are more energy-saving and environmentally friendly and are in line with the concept of sustainable development.
6. Anti-seismic and compression resistance
Flexible LED modules use flexible substrates, which have certain anti-seismic and compressive properties and are not easily damaged by external impact or extrusion.
They are suitable for places that require high anti-seismic properties, such as stages, exhibitions, etc.
Specification
| Model | P1.667 |
| Pixel Pitch | 1.667mm |
| Module Spec | 240x120mm |
| Resolution | 144×72 |
| Lamp Size | SMD1010-1212 |
| Brightness | 650-700cd |
| Refresh Rate | ≥3840Hz |
| Scan Mode | 1/36S |
| Input Voltage | 5V |
| Max Current | 3.2A |
| Max Power Consumption | 16W |
| Weight | 0.195kg |
| Thickness | 8.6mm |
