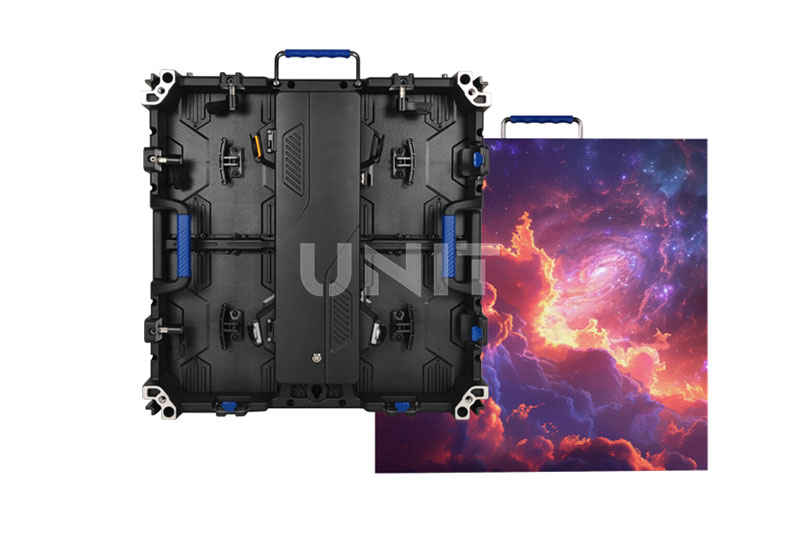

MS Series Rental LED Screen

UNIT MS Series rental LED display incorporates many aesthetic elements. Adopts high-strength die-casting aluminum, better performance with high-definition visual display.

Lightweight and Thin

Portable and good stability with a weight of 7.25kg for a 500*500mm cabinet and 12.5kg for a 500*1000mm cabinet with a thickness of 80mm.

The two sizes of cabinets can be seamlessly spliced. The lightweight cabinet makes the LED display easy to carry, transport, and install, saving a good amount of money on your labor costs.

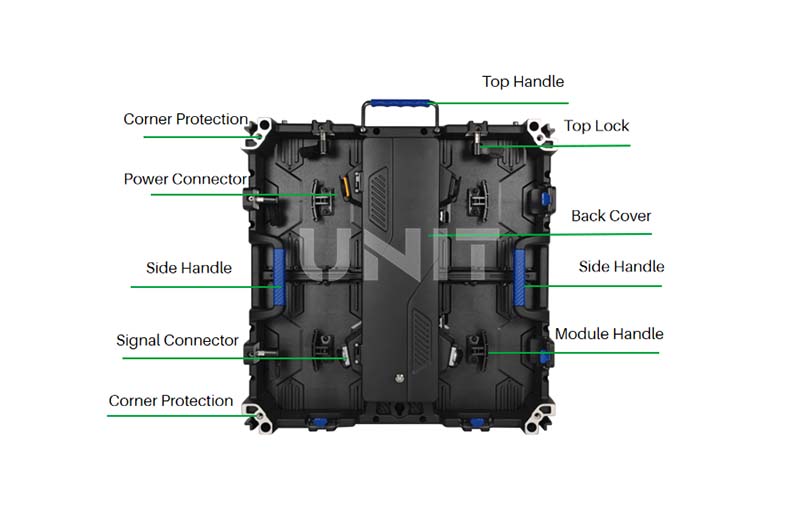

Perfect Structure

UNIT has the domestic top design team, and the design innovation has its unique philosophy, with some core technologies.

Innovative structural design and avant-garde body lines give you an extraordinary experience.

Excellent product came in all details from corner protector, side/top handle, back cover, LED module, and so on.

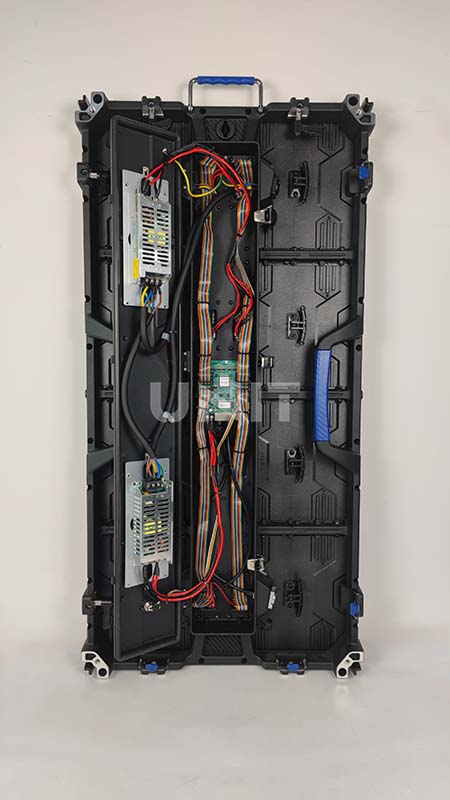

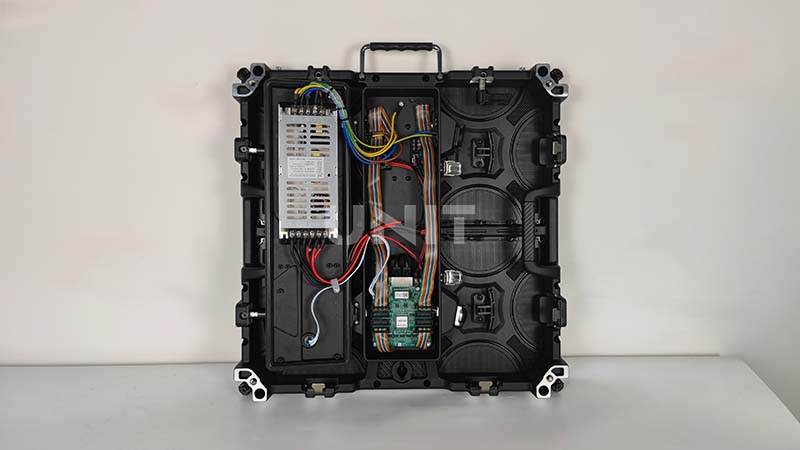

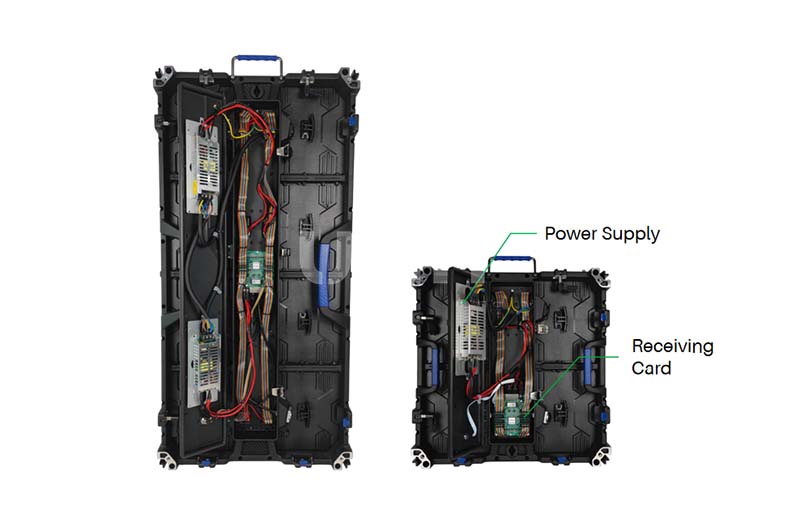

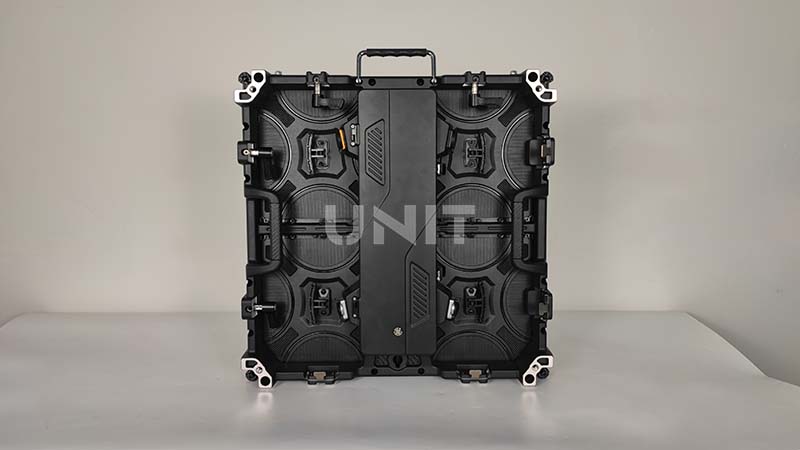

MS Cabinet Internal Details

Precision wiring, modular design, and front/rear maintenance support.

Efficient heat dissipation ensures long-lasting, stable performance for high-end events and conferences.

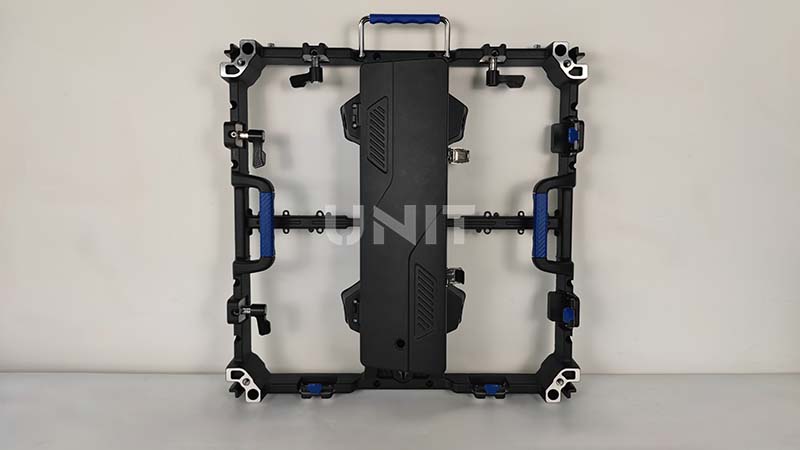

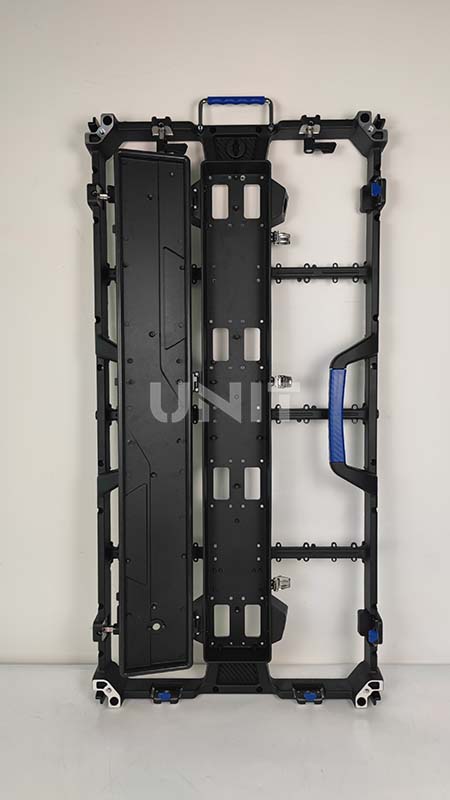

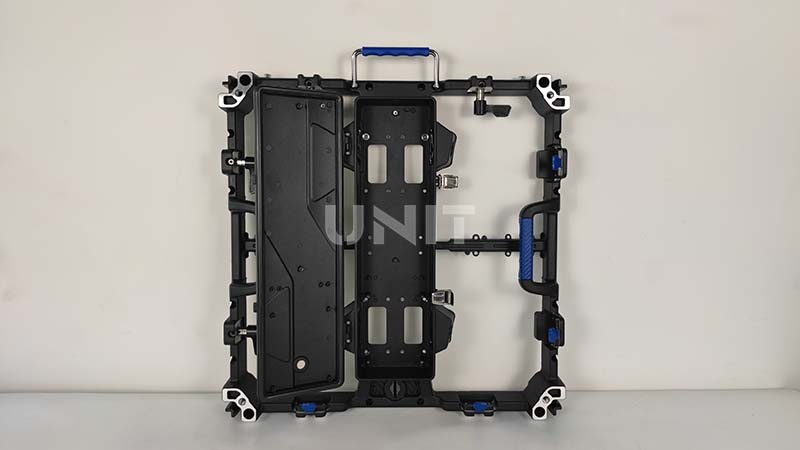

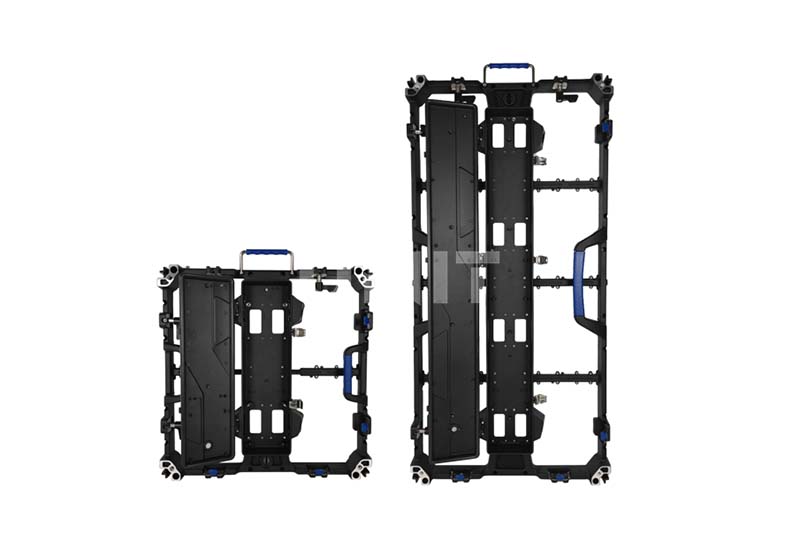

MS LED Rental Screen Cabinet Frame

Lightweight and durable aluminum design ensures quick installation and seamless splicing, perfect for rental applications.

Strong, stable, and built for efficiency.

Frontal & Rear Service Indoor, Rear Service For Outdoor

MS series rental LED display is a dual maintenance product, not only 100% front accessible but also can do rear service. You can use special tools to remove the magnetic LED panels from the front side in 5 seconds. Easy and convenient, saving your cost and labor.

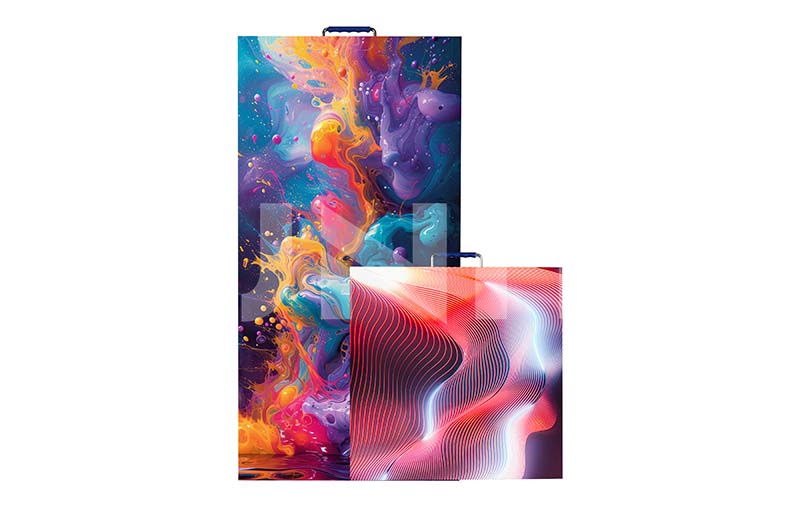

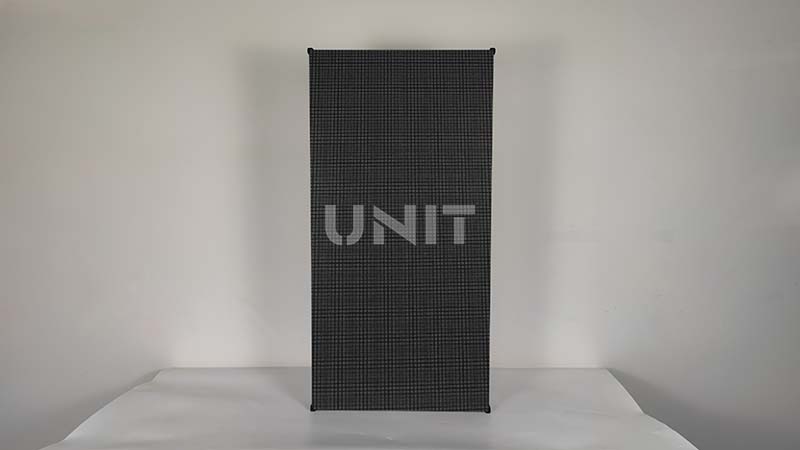

Seamless Display and Better Visual Effects

High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience you desire from any angle. The picture quality confronts viewers with an entirely new sensory experience.

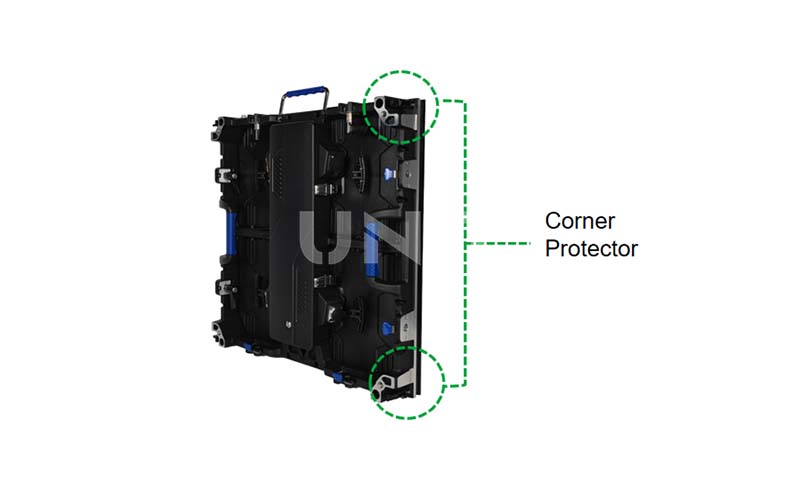

Corner Protector

MS rental LED screen adopts four corner guards to effectively prevent the LED panel from being damaged.

Ensures safer and more convenient during transportation, installation, operation, disassembly and assembly.

MS Series Rental LED Display

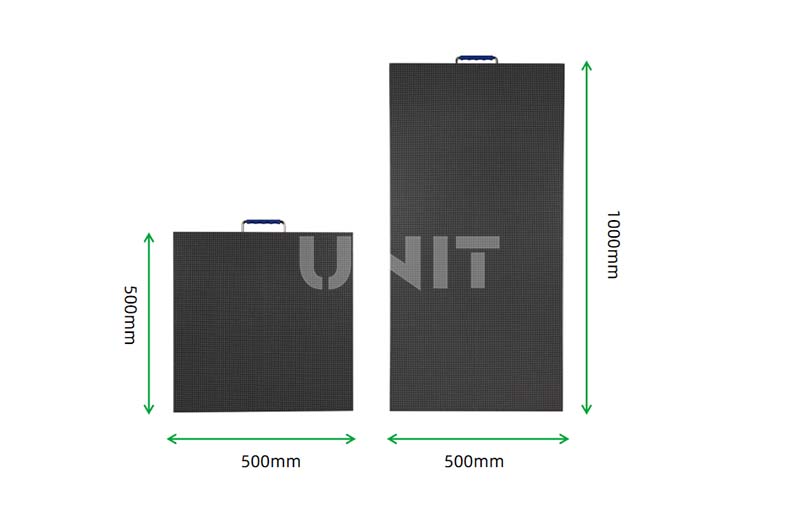

500*500/1000mm Cabinet Standard Size

SMD 3 in 1 LED Encapsulation Technology

Frontal & Rear Service for Indoor. Rear Service for Outdoor

Removable back cover

Indoor: P1.953/P2.604/P2.976/P3.91mm

Outdoor: P2.604/P2.976/P3.91/P4.81mm

CE,Rohs Approved

3 Years Warranty and 5% Spare Part

Find More

Get Price Now

Name

Phone

Email

Message

Send

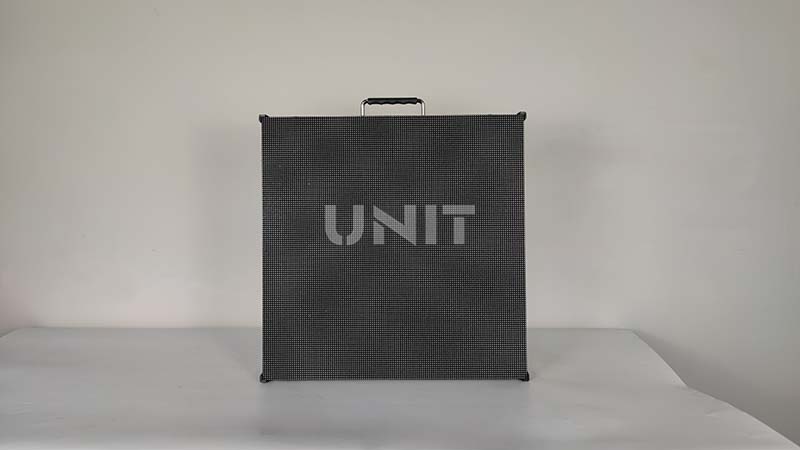

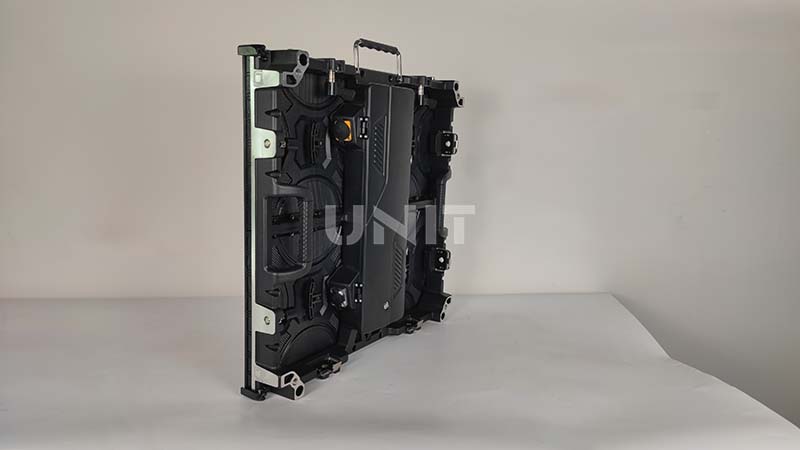

MS500*500mm LED Cabinet

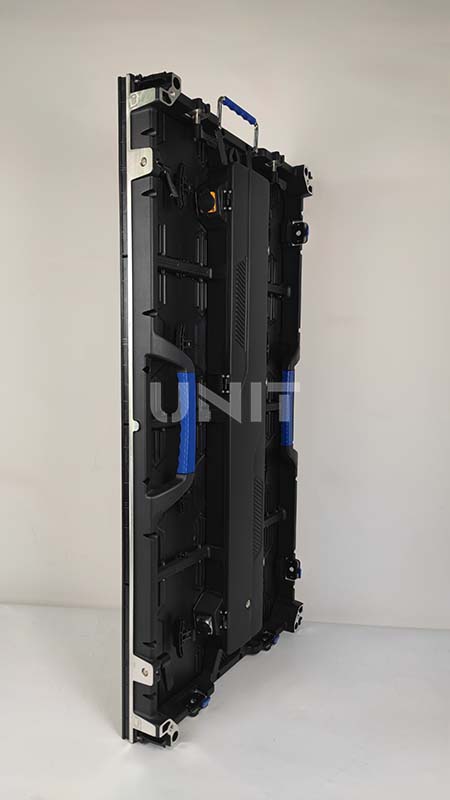

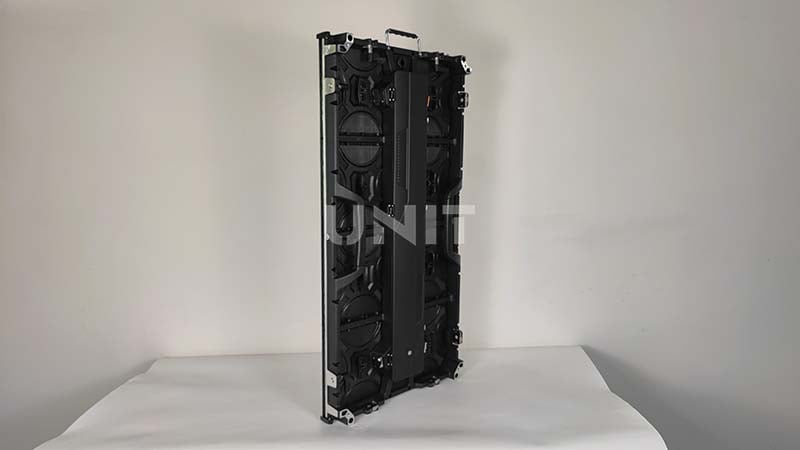

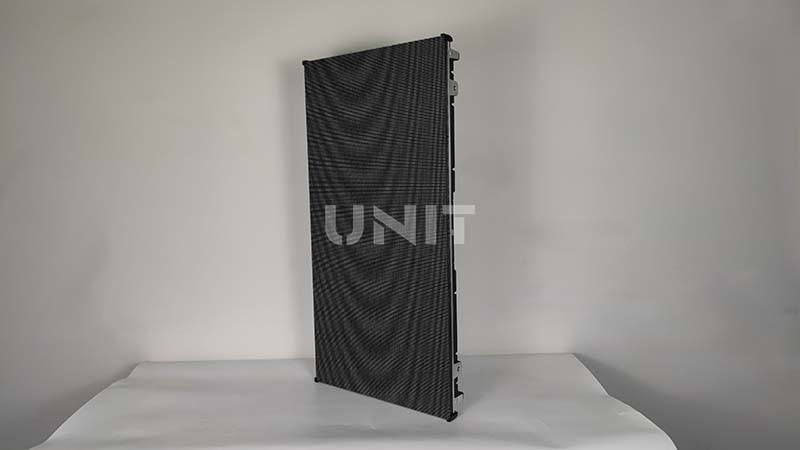

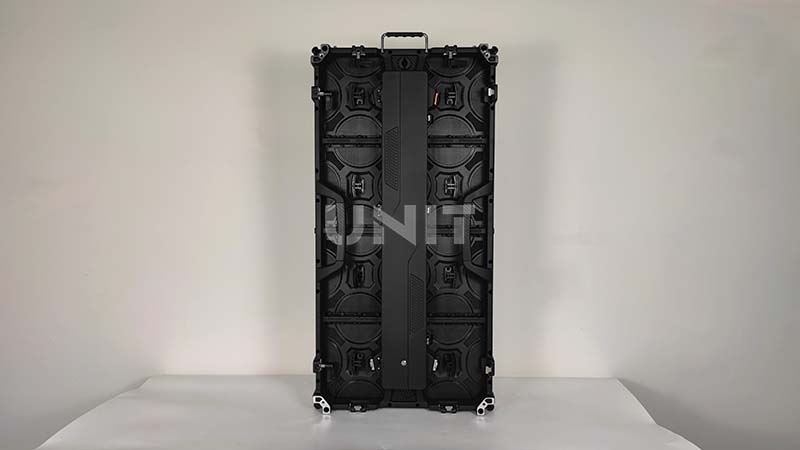

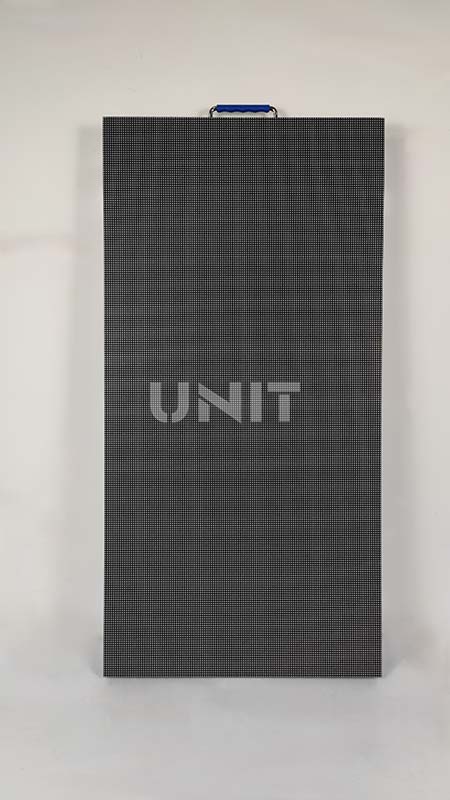

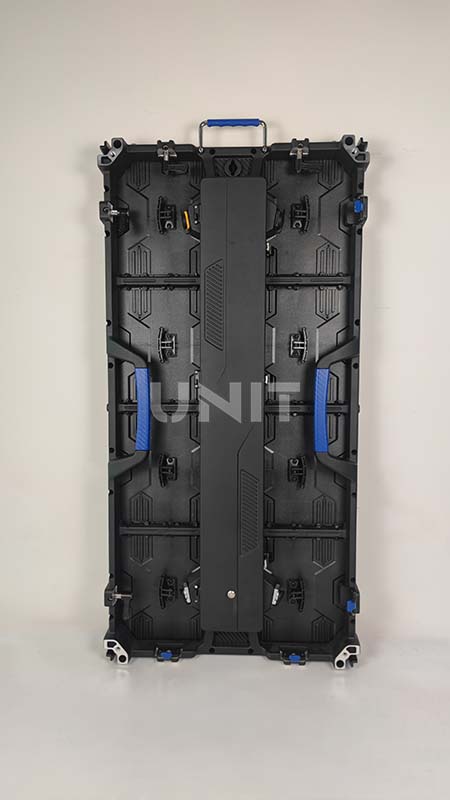

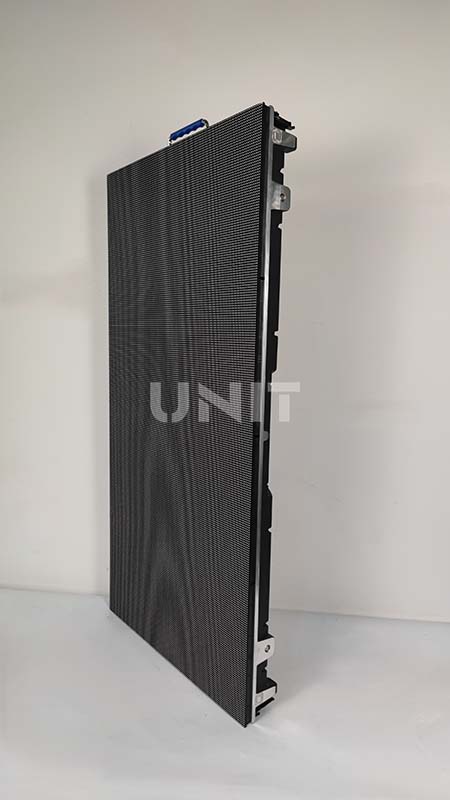

MS500*1000mm LED Cabinet

MS Series Video Center

Specification

Indoor
Outdoor

Indoor

Pixel pitch	1.953mm	2.604mm	2.976mm	3.91mm
Pixels per cabinet(500*500mm)	256×256 (HxV)	192×192 (HxV)	168×168 (HxV)	128×128 (HxV)
Pixels per cabinet(500*1000mm)	256×512 (HxV)	192×384 (HxV)	168×336 (HxV)	128×256 (HxV)
LED lifetime	100,000h
Brightness	Indoor: 600-800nits

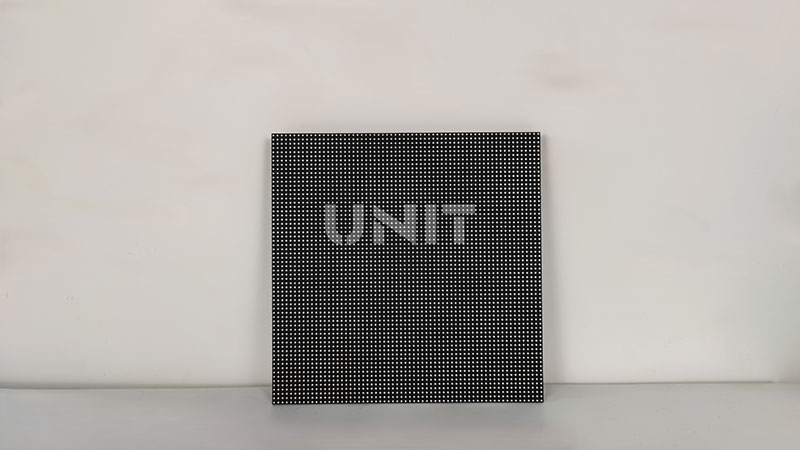

Module size	250*250mm
Module resolution	128*128dots	96*96dots	84*84dots	64*64dots
Refresh rate	3840-7,680Hz
Hor. viewing angle	140° +/-5° (@50% brightness)
Vert. viewing angle	140° +/-5° (@50% brightness)
Brightness uniformity	>98%
Dimming	0-100%
Grey Level	14 bits
Avg Power consumption	200 W/m²	200 W/m²	225 W/m²	225 W/m²
Max Power consumption	400 W/m²	400 W/m²	450 W/m²	450 W/m²
Operation power voltage	100-240V/50-60Hz
Operational temperature	-10°C to +40°C/14°F to 104°F
Operational humidity	10-80%
IP rating	IP50 for indoor, IP65 for outdoor
Dimensions	500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD)
Weight	7.25kg (500 x 500mm cabinet)/12.5kg (500 x 1000 mm cabinet)
Serviceability	Frontal & rear service for indoor, rear service for outdoor.
Certifications	CE, UL, FCC class A, RoHS, WEE, REACH



Outdoor

Pixel pitch	2.604mm	2.976mm	3.91mm	4.81mm
Pixels per cabinet (500*500mm)	192×192 (HxV)	168×168 (HxV)	128×128 (HxV)	104×104 (HxV)
Pixels per cabinet (500*1000mm)	192×384 (HxV)	168×336 (HxV)	128×256 (HxV)	104×208 (HxV)
LED lifetime	100,000h
Brightness	Outdoor: 4500-5000 nits
Module size	250*250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Refresh rate	3840-7,680Hz
Hor. viewing angle	140° +/-5° (@50% brightness)
Vert. viewing angle	140° +/-5° (@50% brightness)
Brightness uniformity	>98%
Dimming	0-100%
Grey Level	14 bits
Avg Power consumption	320 W/m²	320 W/m²	320 W/m²	320 W/m²
Max Power consumption	640 W/m²	640 W/m²	640 W/m²	640 W/m²
Operation power voltage	100-240V/50-60Hz
Operational temperature	-10°C to +40°C/14°F to 104°F
Operational humidity	10-80%
IP rating	IP65 for outdoor
Dimensions	500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD)
Weight	7.25kg (500 x 500mm cabinet) / 12.5kg (500 x 1000mm cabinet)
Serviceability	Frontal & rear service for indoor, rear service for outdoor.
Certifications	CE, UL, FCC class A, RoHS, WEE, REACH
