EX1600-S Series LED Perimeter Display Screen
EX1600-S
EX1600-S Series LED Perimeter Display
-Light Metal Alloy Material
-Energy Saving LED Display
-Standard Cabinet with 1600*960mm Dimension
-Support LED Perimeter Display
-High Waterproof & Anti-impact Ability
-High Definition, High Refresh Rate≥3840Hz
Inquiry Now
Features
More Details
Specification

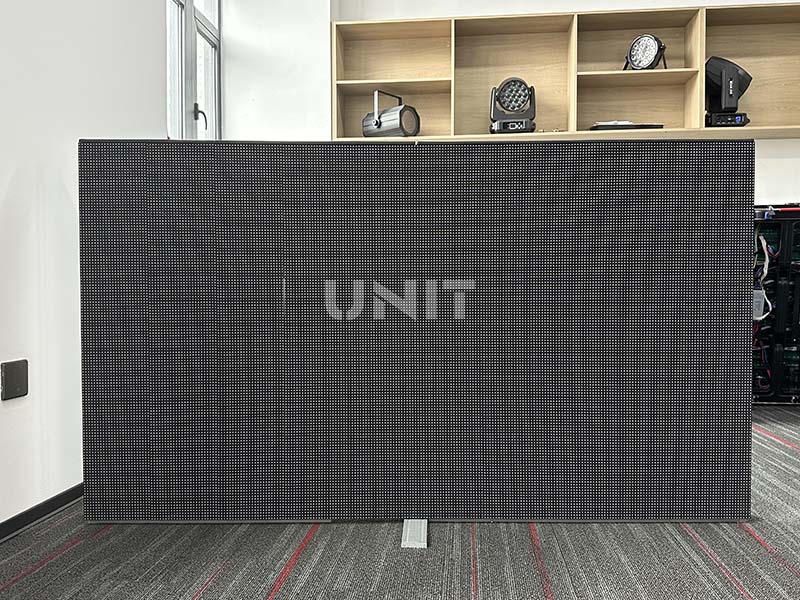

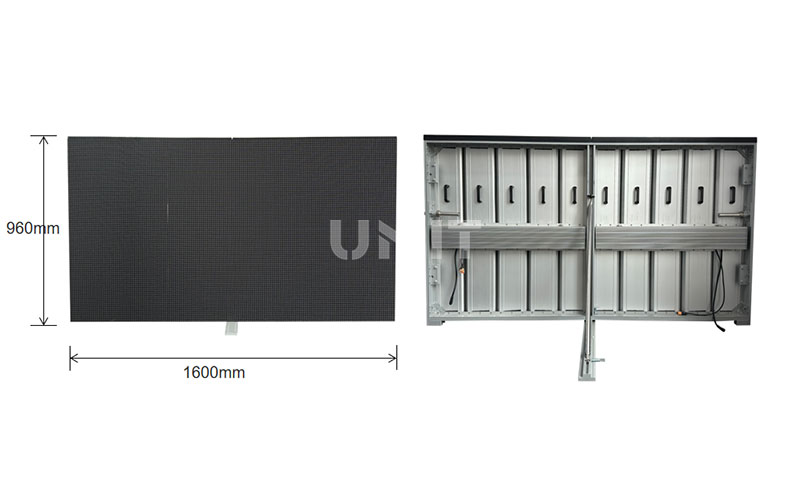

1600*960mm LED Perimeter Display

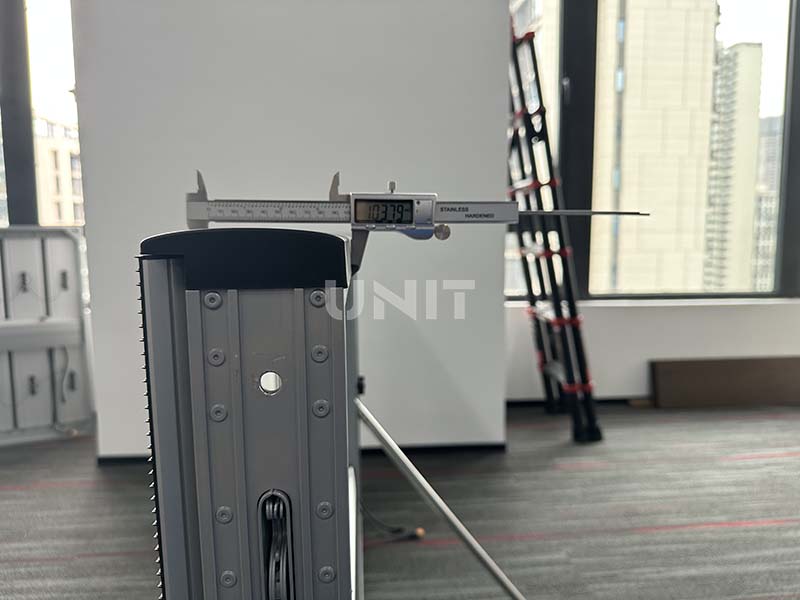

EX1600-S LED perimeter display is 1600*960mm. Ultra-thin thickness with 104mm design
This large size ensures clear and readable content display, whether for advertisements or live scores, in any venue.
Inquiry Now

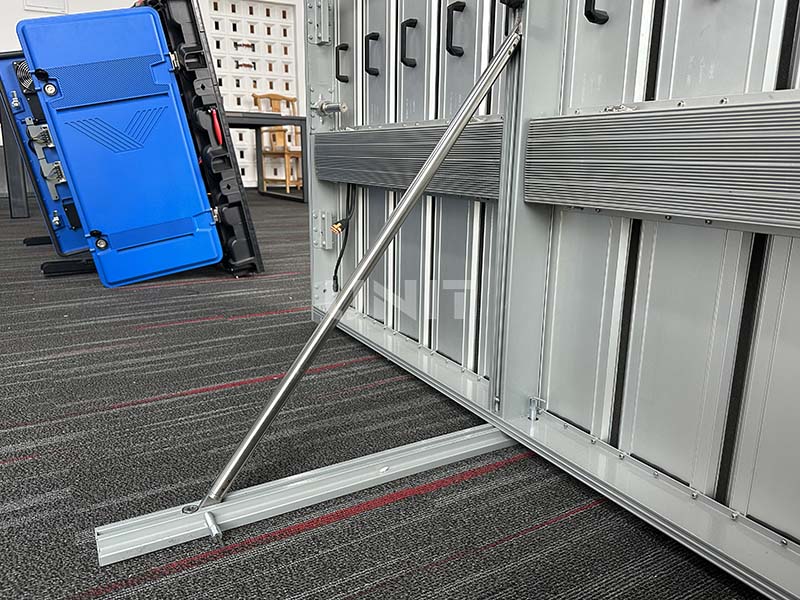

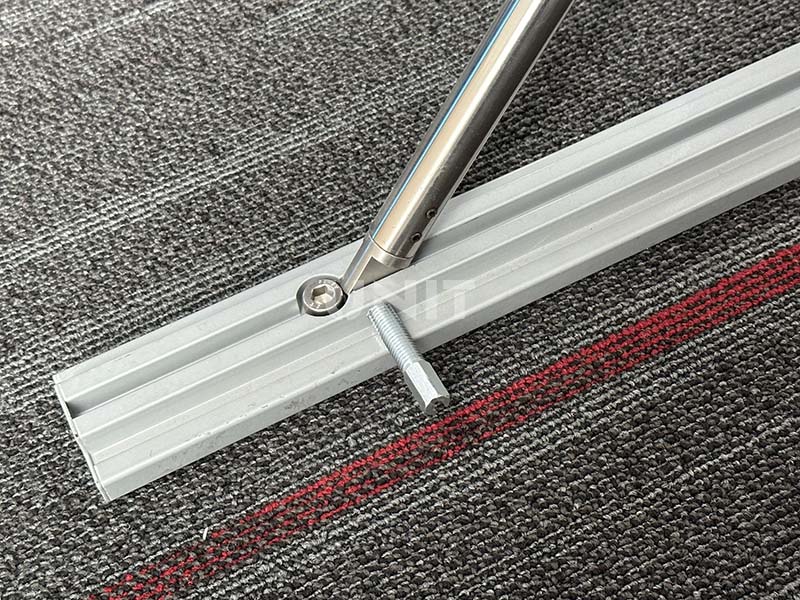

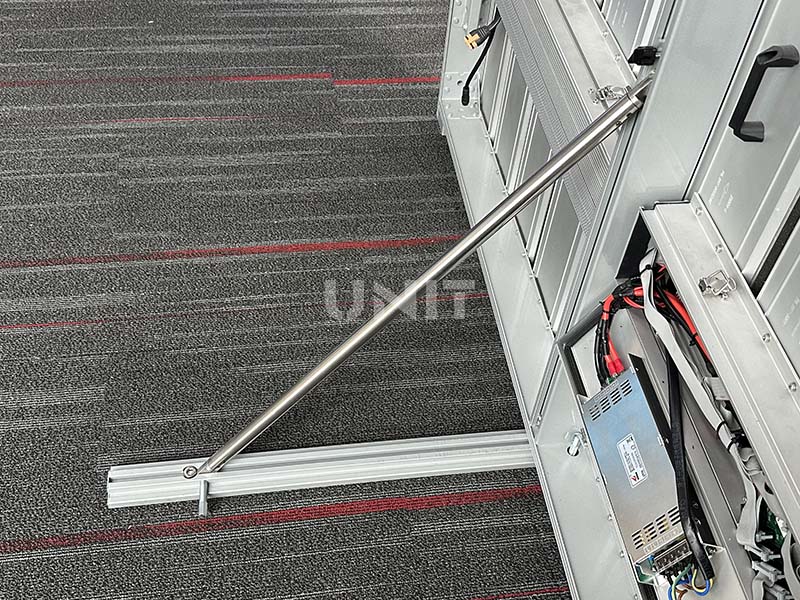

0-90° Adjustable Bracket
EX1600-S LED sports display is equipped with an adjustable bracket that can tilt from 0 to 90 degrees. This design allows flexible use in different venues and scenarios,
ensuring the best viewing angle. For example, during events, the display can be tilted to accommodate the audience’s viewing angle, providing the most comfortable viewing experience.

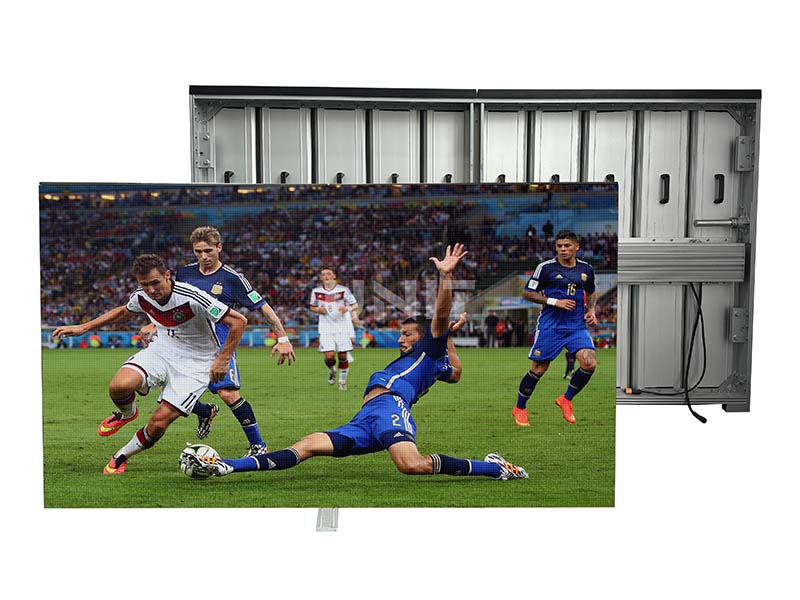

Designed for Sports Events
High brightness and waterproof and dustproof capabilities ensure reliable operation in various weather conditions. The screen is also impact-resistant, able to withstand external impacts such as ball strikes, ensuring safe and stable operation during matches.

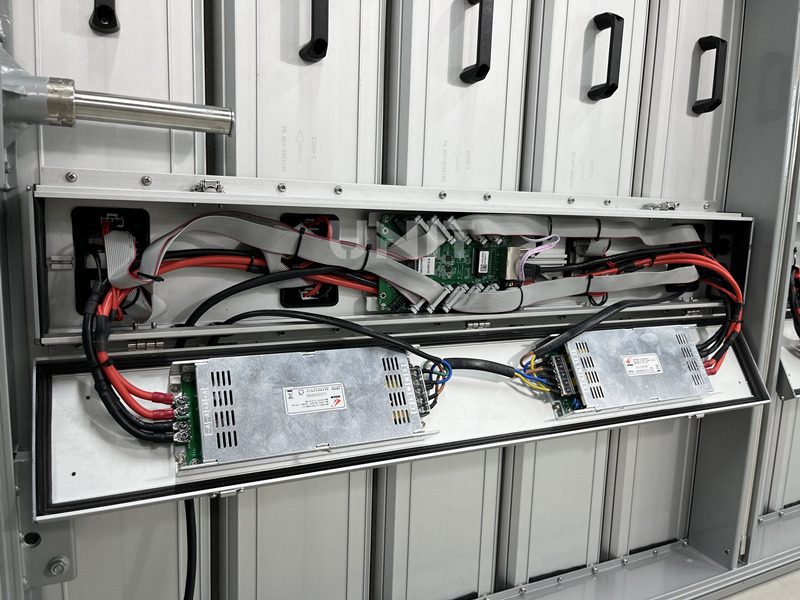

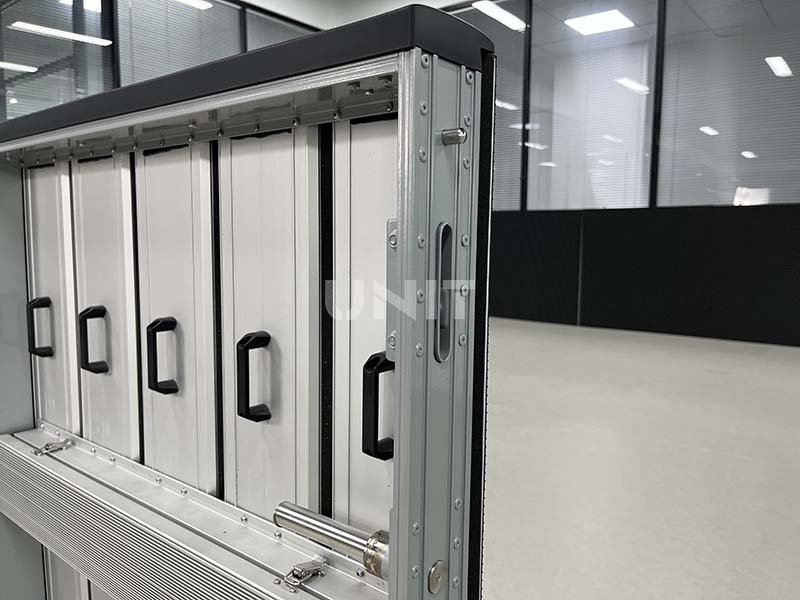

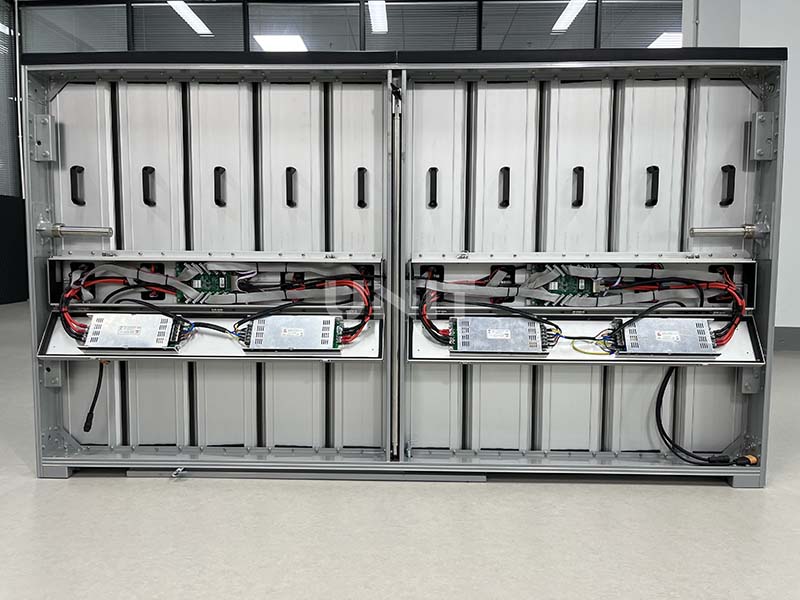

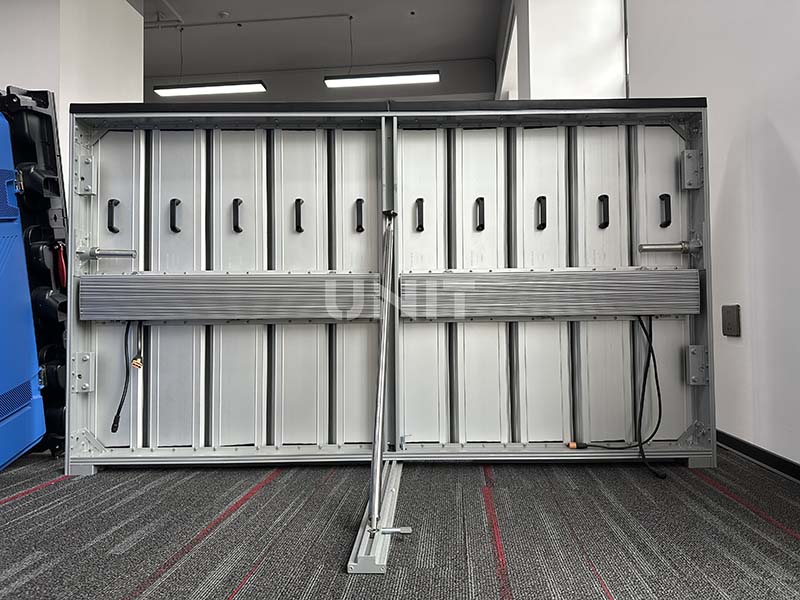

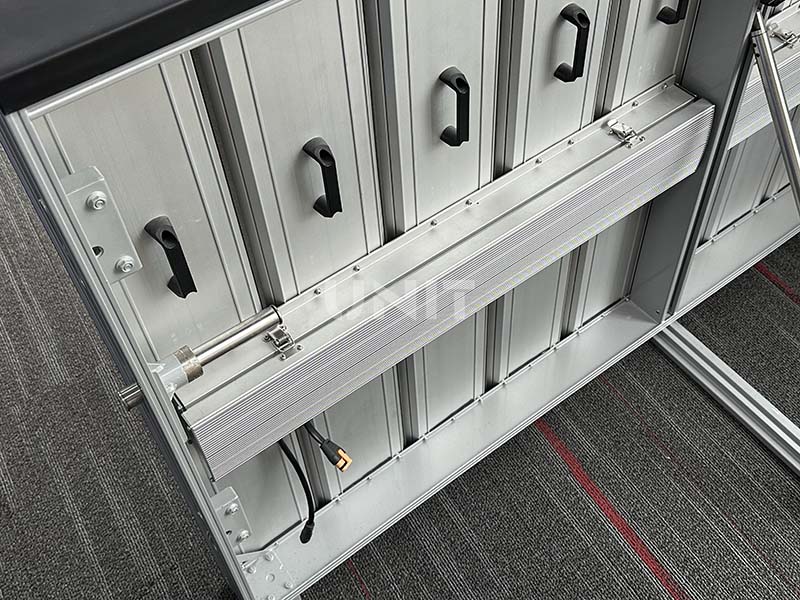

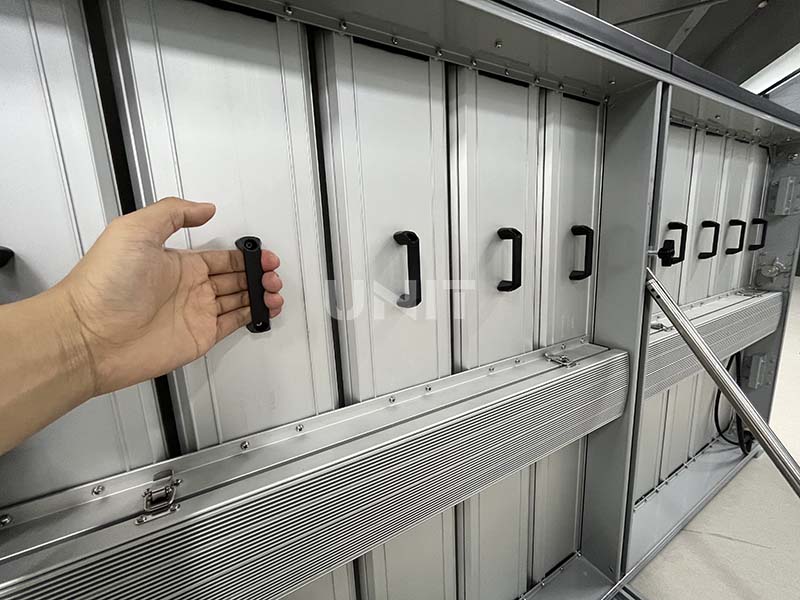

Front and Rear Maintenance
Front maintenance allows for quick repair and maintenance from the front of the screen, while rear maintenance allows for convenient inspection and replacement from the back of the screen. This greatly reduces maintenance time and complexity, ensuring continuous and stable display during events.
Inquiry Now

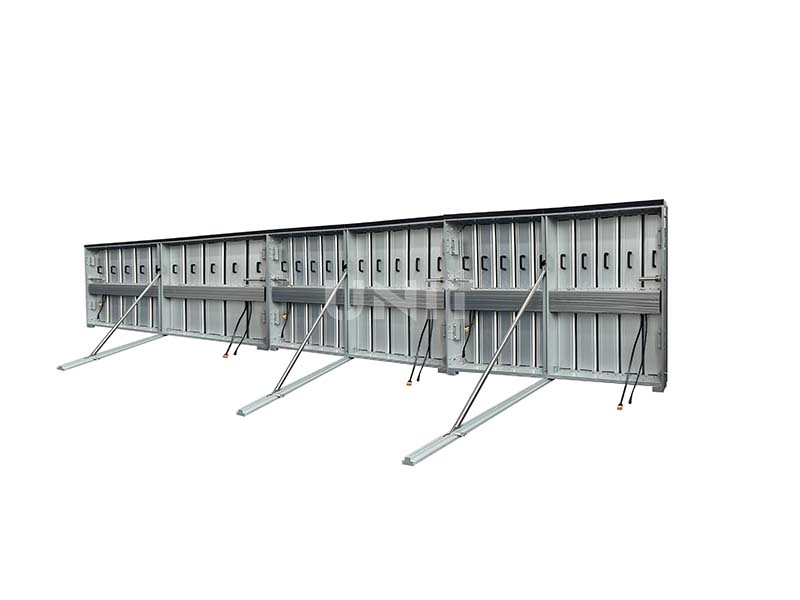

Seamless Splicing
EX1600-S LED perimeter display uses seamless splicing technology, ensuring tight connections between cabinets with no visible gaps,
providing a smooth and continuous overall display.
Automatic Positioning & High Fault Tolerance
The steel frame has the upper and lower positioning guide plates and positioning screws. When the panel is fixed on the steel frame,
an adjustable range of 7mm above and below shall be reserved, with high fault tolerance and easy assembly.

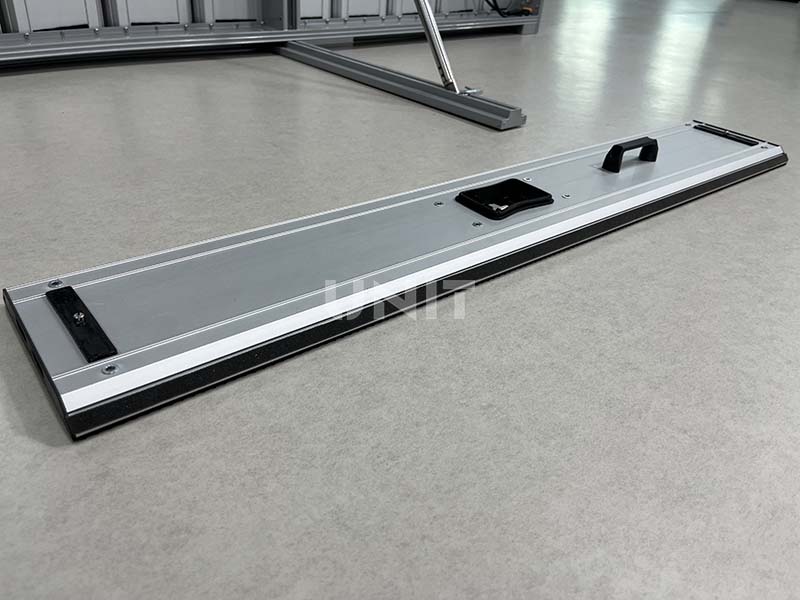

EX1600-S LED Perimeter Display
1600*960mm LED Cabinet
Light Metal Alloy Material
SMD 3 in 1 LED Encapsulation technology
P6.67mm, P8mm, P10mm
Stable Structure for Perimeter LED Display
CE,Rohs Approved
Find More
Get Price Now
Name
Phone
Message
Send
EX1600-S Series Related Videos
More Cabinet Details
Specification
| Pixel pitch | 6.67mm | 8mm | 10mm |
| Panel Resolution | 240x144dots | 200x120dots | 160x96dots |
| LED | 2727 SMD | 2727 SMD | 2727 SMD |
| Unit Size | 1600*960mm | ||
| Unit Resolution | 144x24dots | 120x20dots | 96x16dots |
| Material | Light metal alloy material | ||
| Service Way | Front and Rear | ||
| Brightness | ≥6000 cd/㎡ | ||
| Max Power consumption | 800W/㎡ | ||
| Avg Power consumption | 350-400W/㎡ | ||
| Working voltage | 100-240V / 50-60Hz | ||
| Operating Environment | Outdoor | ||
| Refresh rate | ≥3840Hz | ||
| Operation power voltage | 100-240V / 50-60Hz | ||
| Operational temperature | -40°C to +60°C / 14°F to 104°F | ||
| Operational humidity | 10-80% | ||
| IP rating | IP65 | ||
| Warranty | 3 years standard product warranty | ||
