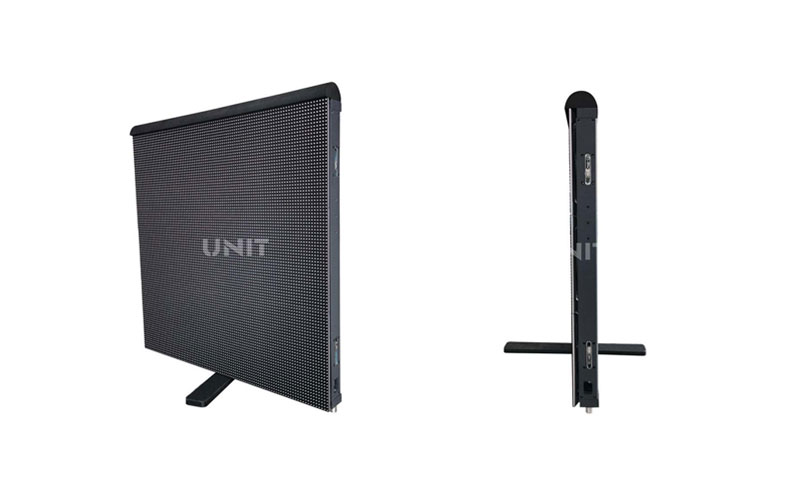

UNIT EV960-S Perimeter LED Display
EV960-S
960*960 Perimeter LED Display
-High Protection Aluminum Chassis Panel Design
-Energy Saving LED Display
-Standard Size Cabinet With 960*960mm Dimension
-480mm*320mm Module Size
-Perfect Design for Sports Perimeter
Inquiry Now
Features
Specification
Related Products
Sports Perimeter LED Screen
EV960-S Series Energy Saving sports stadium LED Display is Unit latest Common Cathode Aluminum Display with size of 960*960mm.
High IP66 waterproof level. Unique panel design with 480*320mm size. Ultra low heat and power consumption, saving and excellent visual experience
Inquiry Now

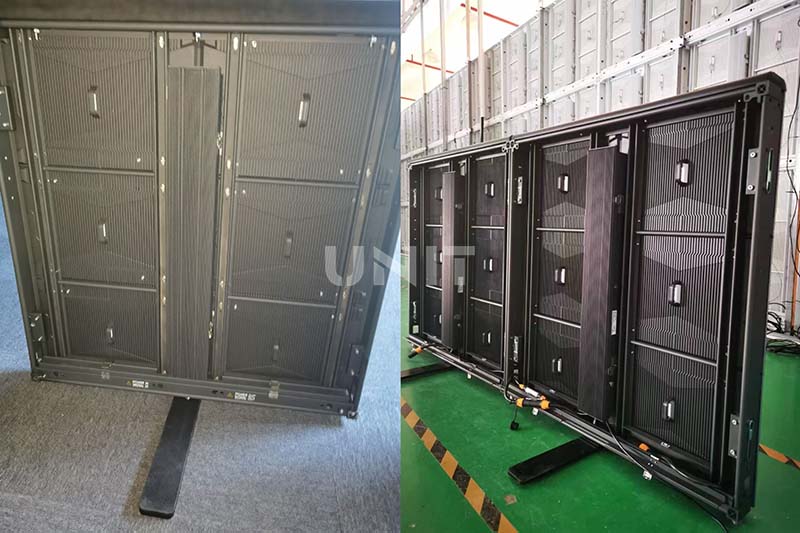

Aluminum Chassis Panel
EV960-S perimeter LED display adopts Aluminum Chasis design for panel.
Aluminum chassis adopt edge lock without screwing design. full sealed design, to protect its internal components.

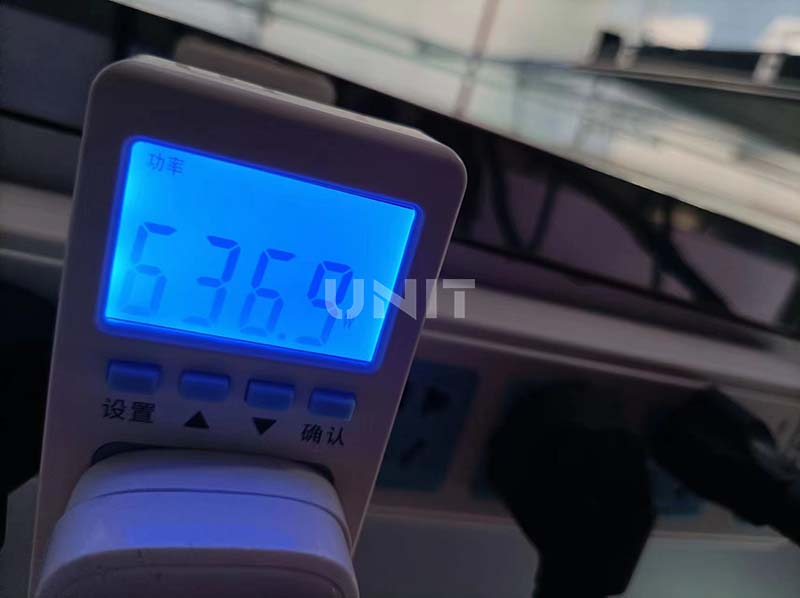

Energy Saving Sports Stadium LED Display
The CCES technology and dual voltage output can
save more power consumption, thus saving your
electricity cost.
Dual services avaliable, EV960-S LED panels support real maintenance that does not need back room.
And more installation methods supported such as
wall-mounting method.
High Protective Performance
Aluminum material, high temperature durability, fast heat dissipation. The whole product can Reach 5VB fireproofing level.
Full sealed die-casting aluminum module chassis. Waterproof connectors(between modules),

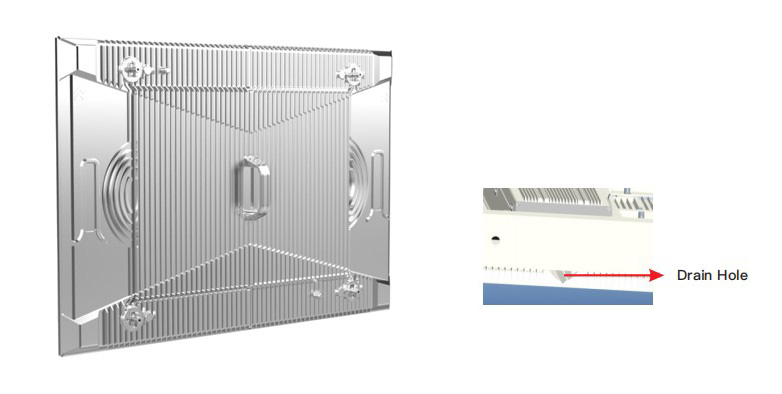

Drain hole is designed at the bottom of the panel to prevent ponding.
The high standard of Waterproofing Can be immersed in the specified water pressure for a long time.
Inquiry Now
Saving Maintenance Cost
High protection ability includes waterproof and fireproof ability (TUV certificates and IP66 certificates).
You can also be benefit from the easy maintenance and installation design.

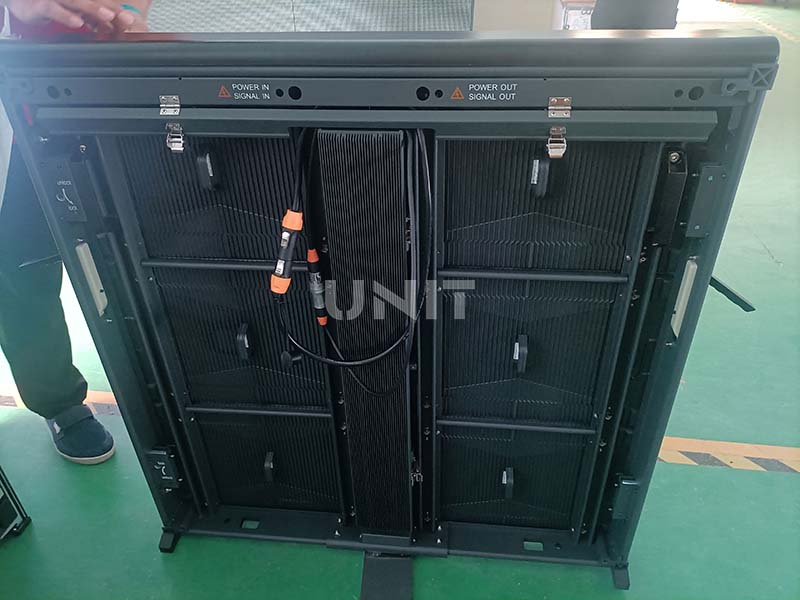

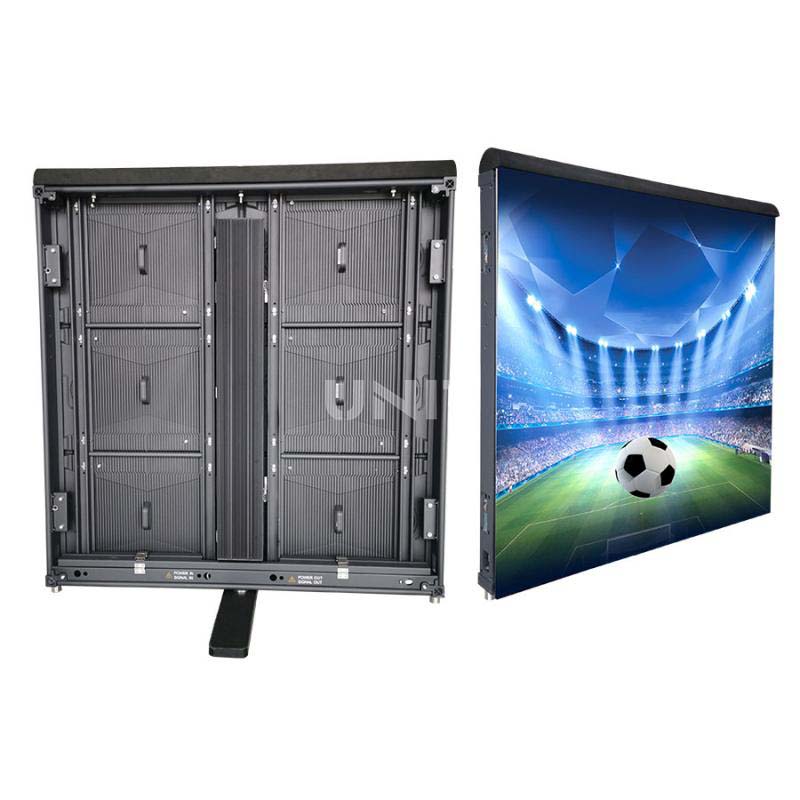

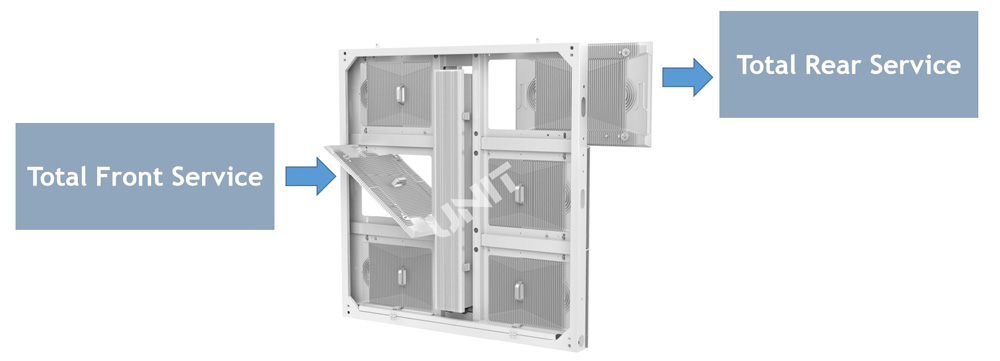

Dual Service with Frontal and Rear Maintenance
Dual service mode of front and rear design to save you maintenance cost.
The LED panel can be assemble and disassemble easily and quickly.
Inquiry Now

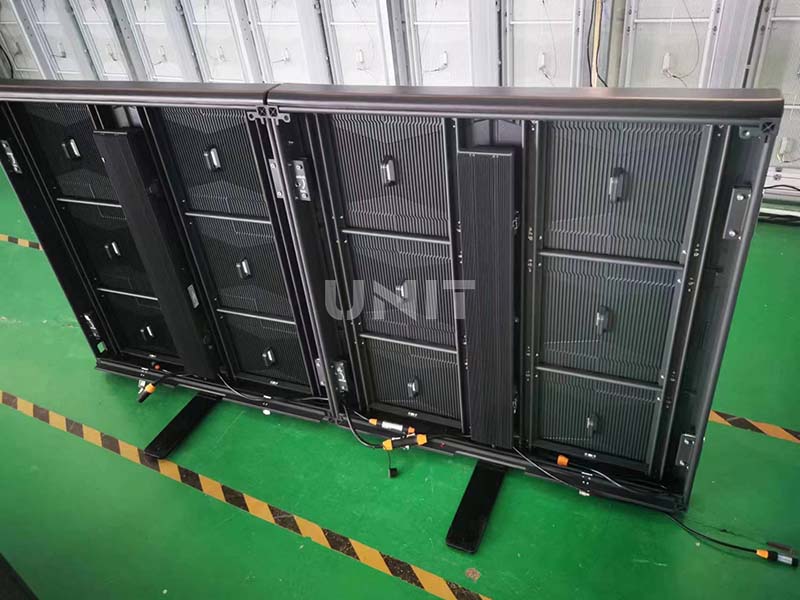

Sleamless Splicing
The die-cast aluminum module achieves seamless splicing and high flatness.
the LED display has no gaps and the LED screen with Excellent display.

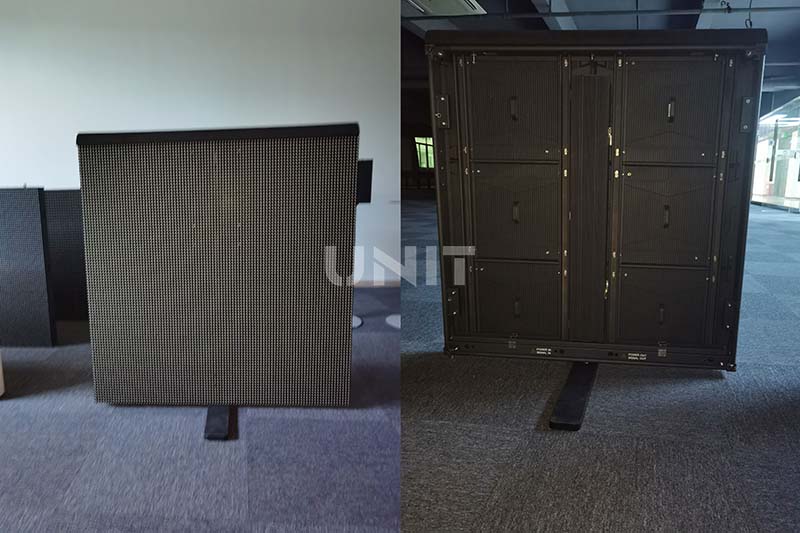

Image Gallery
EV960-S Series Video Center
EV960-S Perimeter LED Display
960*960mm Cabinet Standard Size
SMD 3 in 1 LED Encapsulation technology
Energy saving LED Screen
480*320mm Panel Design
High Protection Aluminum Chassis Panel Design
CE, Rohs Approved
Find More
Get Price Now
Name
Phone
Message
Send
Specification
| Model name | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 6.667 | 8 | 10 |
| Pixel Density (dot/m2) | 22500 | 15625 | 10000 |
| LED sealing Type | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 6000 | 6500 | 6500 |
| Grey Scale（bit） | ≥14 | ≥14 | ≥14 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 550 | 550 | 550 |
| Average Cabinet Power Consumption (W) | 150 | 150 | 150 |
| Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (Kg) | 28KG | 28KG | 28KG |
| Cabinet Thickness(mm) | 75 | 75 | 75 |
| Horizontal Viewing Angle (Deg) | 160 | ||
| Vertical Viewing Angle (Deg) | 140 | ||
| Input Voltage (V) | 110-220V/200-240V | ||
| Working Temperature (℃) | -20~ +40 | ||
| Working humidity（RH） | 10%~90% | ||
| Storage temperature range | -40~ +80 | ||
| Operation humidity (RH): | 10%~90% | ||
| Waterproof Level | IP67 | ||
| working life | 50000H | ||
| Working Environment: | Outdoor | ||
| Installtion Method | Fixed Installation | ||
Products
P6.6772*48 dots/module
480*320mm Panel
960*960mm Cabinet
P860*40 dots/module
480*320mm Panel
960*960mm Cabinet
P1048*32 dots/module
480*320mm Panel
960*960mm Cabinet
