UNIT OF960 Series Outdoor LED Display Screen
OF960
OF960 Series High Quality Outdoor LED Display
High Protection Die-casting Aluminum Module Design, Front service design for easy installation and disassembly, Ultra lightweight LED cabinet, HD visual effect

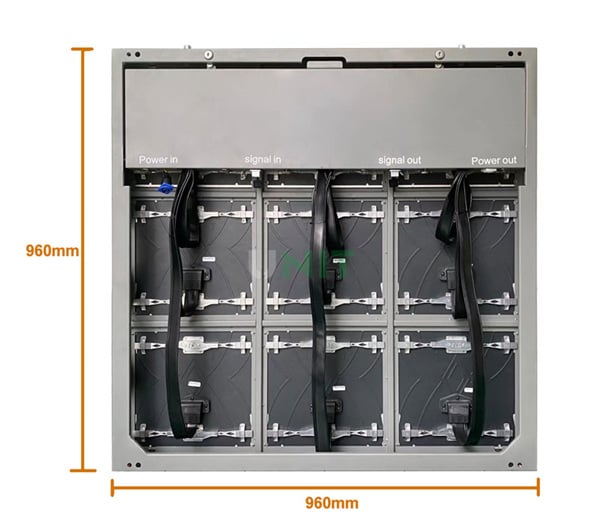

960*960mm LED Display Cabinet
UNIT OF960 Series high-quality LED display has stable display effect with front service function, Unique cabinet design with 960*960mm size,
High-quality 320*320mm LED display module. Ultra-low heat, high efficiency, and high protection.
Inquiry Now

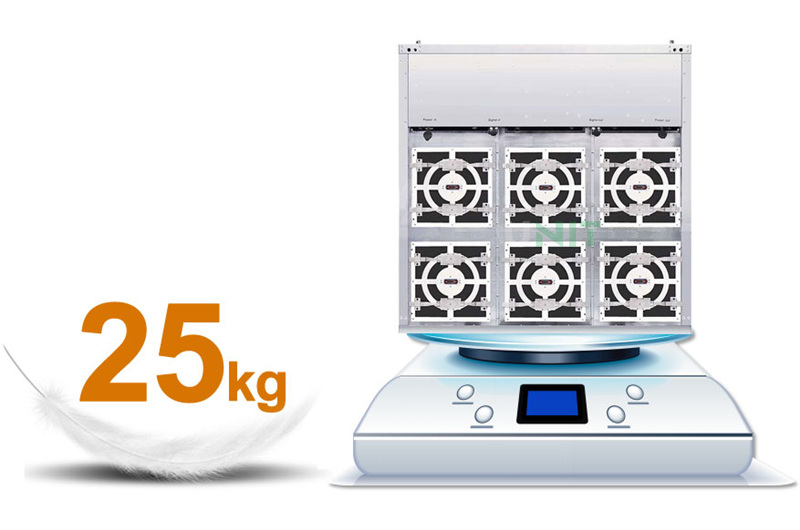

Ultra-lightweight LED Cabinet
Ultra Lightweight design with 25kg, High precision cabinet frame make seamless splicing image and video display.

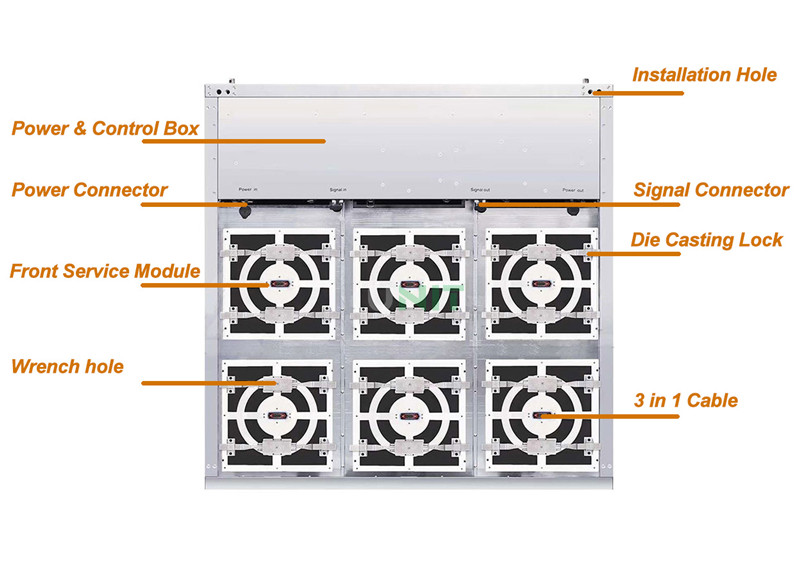

Perfect Cabinet Design
Unique cabinet design with power & control box, installation hole, power connector, signal connector, front service module, die casting lock,
wrrench hole, and 3 in 1 cable. These designs ensure stable performance and easy operation of the display.

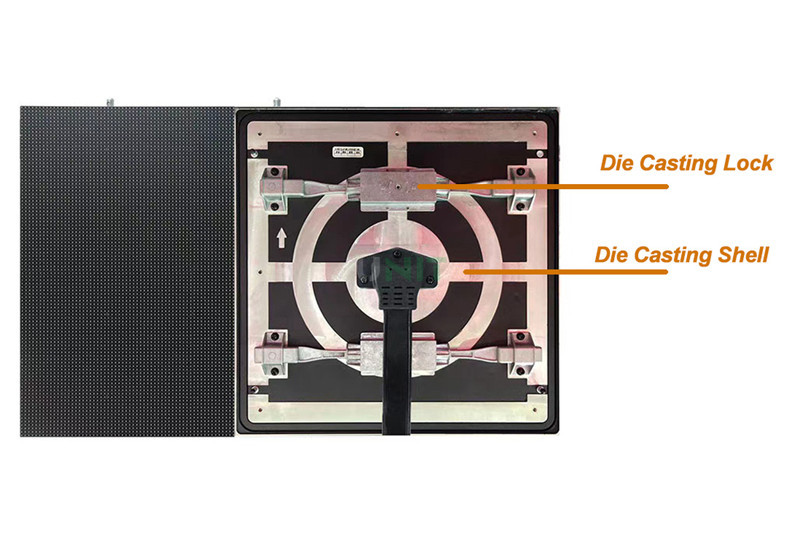

320*320mm Die Casting Module
OF960 series LED display signage adopts 320*320mm Die Casting Modules. High quality die-casting material ensures the stability of LED display in outdoor environment.
The die-cast housing allows for better cooling and the die-cast latches allow for longer durability.

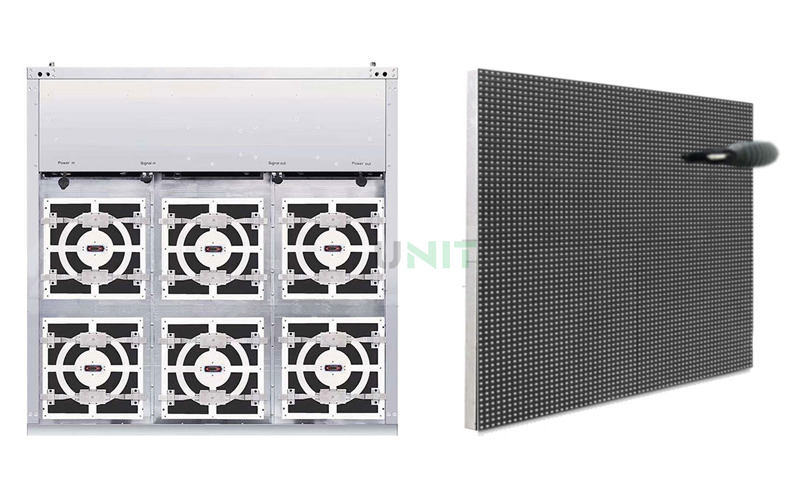

Dual Service Design
UNIT OF960 series 960*960mm LED display is designed with dual access feature.
Support front maintenance and rear maintenance, can be applied to different environment.
Inquiry Now

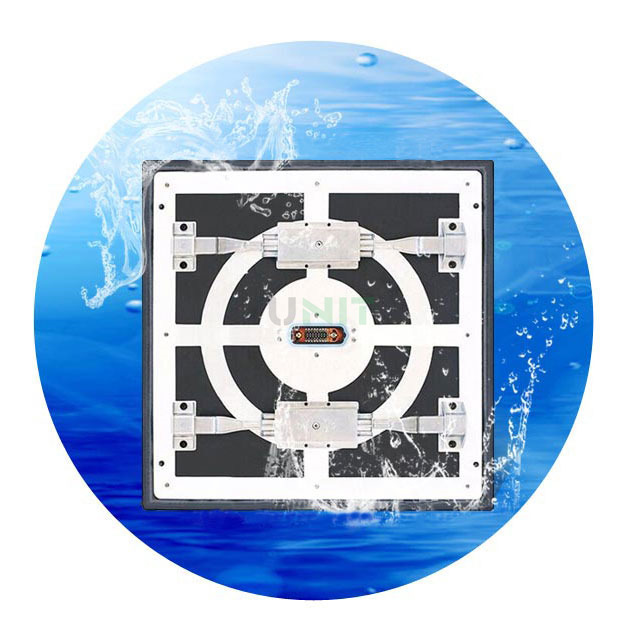

High Waterproof Level
Fully sealed design provides ultra-high water resistance. IP67 high waterproof level.
Excellent protection performance makes this product can be used in a variety of strict environments very well.
Ultra HD Visual Effect
Single-point color correction technology, to achieve a true color reduction, smaller pixel pitch, and high refresh rate.
Brighter, high-contrast LEDs give your audience a more realistic view of the world.
OF960 Series Images
OF960 SeriesOF960 Series
Previous
Next
OF960 SeriesOF960 Series
Previous
Next
https://youtu.be/GBKpHN7AWu4
OF960 Series High-quality LED Display
- 960×960mm Cabinet Size
- SMD 3 in 1 LED Encapsulation Technology
- Front Service and Rear Service Design
- Die-casting Aluminum LED Module
- CE,Rohs Approved
- 3 Year Warranty and 5% Spare Part
Get Price Now
Specification
| Model | P5.33 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 5.33 | 6.67 | 8 | 10 |
| Pixel Matrix Per Sq.m | 35200 | 22477 | 15625 | 10000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness (nits) | 5500 | 6000 | 5500 | 6500 |
| Scan | 44567 | 44567 | 44566 | 44563 |
| Module Dimension | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft |
| Cabinet Dimension | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft |
| Cabinet Resolution | 180×180 | 144×144 | 120×120 | 96×96 |
| Cabinet Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Cabinet Weight |
Steel: 32kg Aluminum: 25kg |
Steel: 32kg Aluminum: 25kg |
Steel: 32kg Aluminum: 25kg |
Steel: 32kg Aluminum: 25kg |
| Power Con. (Max / Avg) | 561 / 196w/sq.m | 690 / 230 w/sq.m | 690 / 230w/sq.m | 690 / 230 w/sq.m |
| Service Access | Front & Back | Front & Back | Front & Back | Front & Back |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| IP Rate | IP67 | IP67 | IP67 | IP67 |
| Operation Temperature | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° |
| Input Voltage (AC) | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V |
Products
P5.33
180*180 cabinet resolution
320*320mm module
960*960 cabinet
P6
144*144 cabinet resolution
320*320mm module
960*960 cabinet
P8
120*120 cabinet resolution
320*320mm module
960*960 cabinet
P10
96*96 cabinet resolution
320*320mm module
960*960 cabinet
Tech Support
UNIT LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
