UNIT EV1000 Series Energy Saving LED Display
EV1000 (250/500*250mm module)
500X1000mm Series Energy Saving LED Display
-High Protection Aluminum Chassis Panel Design
-Energy Saving LED Display
-Standard Size Cabinet with 500*1000mm Dimension
-Easy to Install and Disassemble
-Front and Rear Service
Inquiry Now
Features
Specification
Related Products

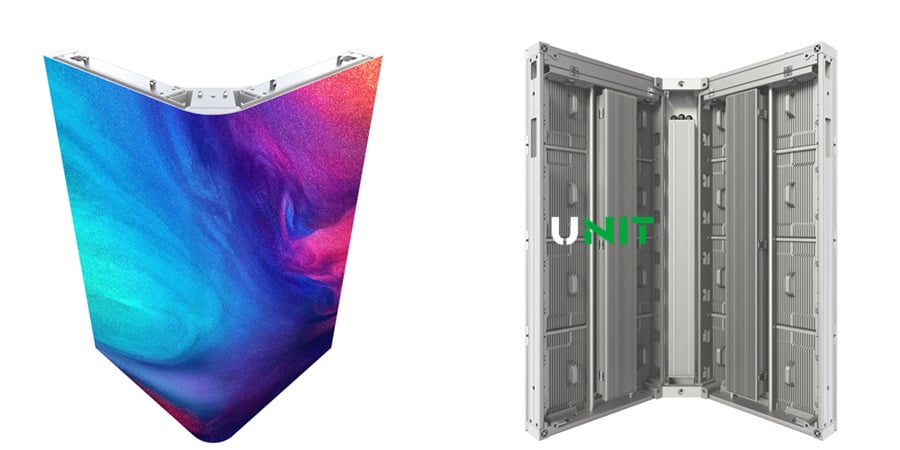

3D LED Screen
UNIT EV1000 Series energy-saving LED display is the latest high-quality LED display. And it can be used for 3D LED billboard.
Inquiry Now

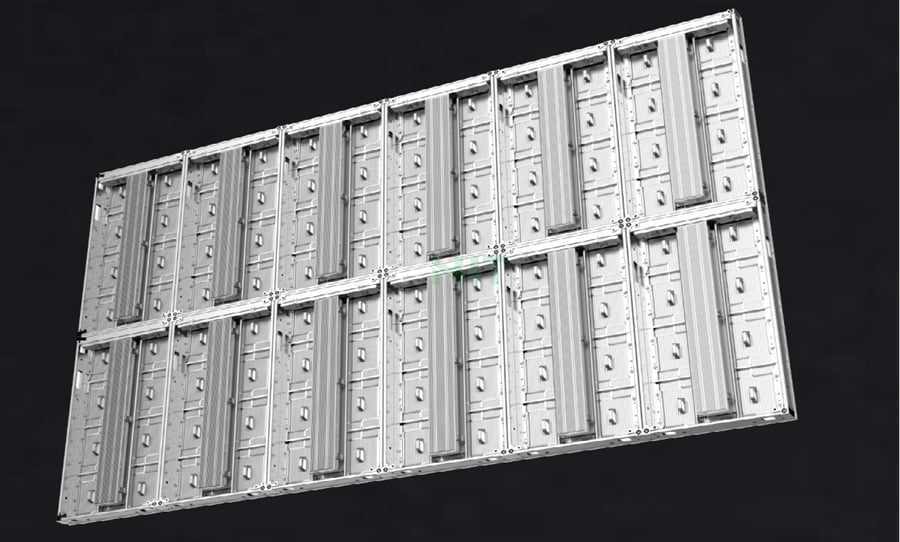

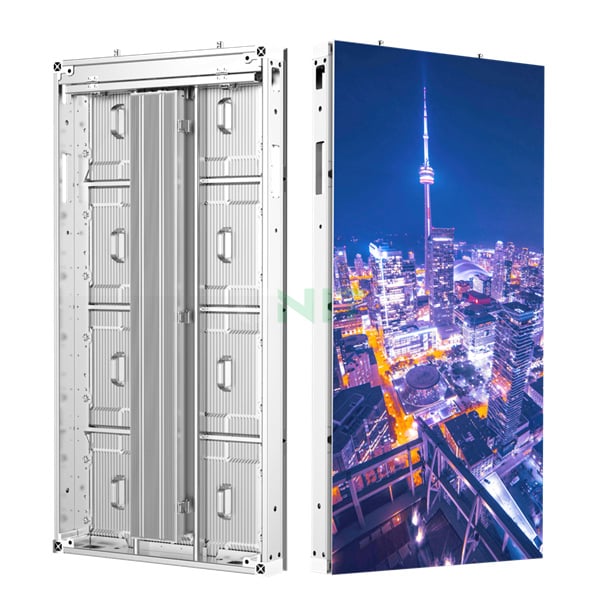

500*1000mm Cabinet Design
as a Common Cathode Aluminum Display, UNIT EV1000 series LED display cabinet size is 500*1000mm. Unique panel design with 250/500*250mm size.
Ultra-low heat and power consumption, saving and excellent visual experience. Weight: 34KG/㎡ . Thickness: 80mm

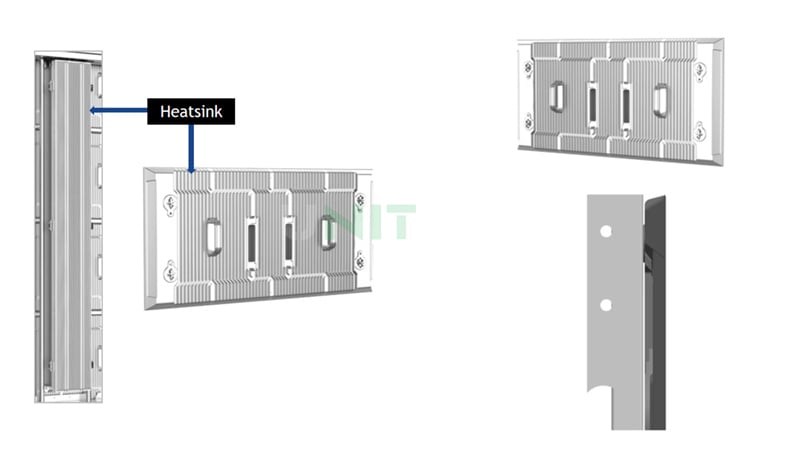

Fast Cooling Technology
Aluminum module chassis. IC and PCB hidden design, directly heat transfer with the module chassis, achieve the best effect of heat dissipation.
Heat dissipation gap between the module and the cabinet, better heat dissipation effect.

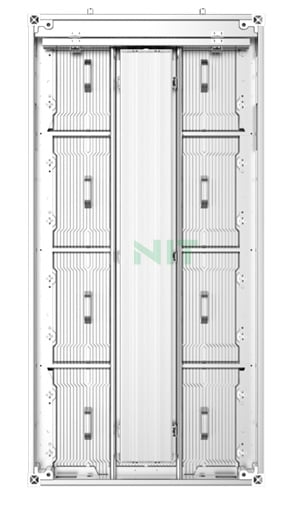

All white cabinet
The heat absorption can be minimized under direct sunlight.

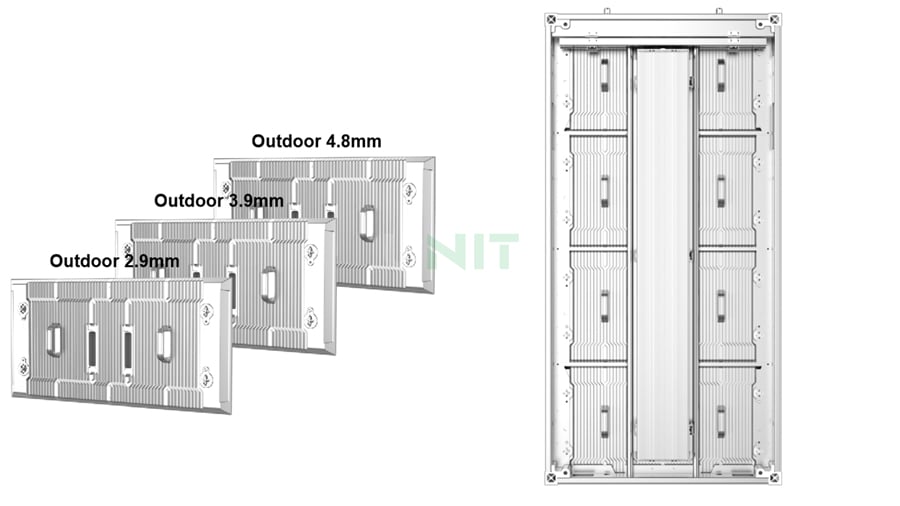

Various Pitches
Same Panel Design, Easy to make the stock and renew the screen. Various Pitches for P4.8mm, P3.9mm, P2.9mm
Inquiry Now
Front and Rear Service
Design with dual service design with frontal & rear ways, easy operation and fast replacement.

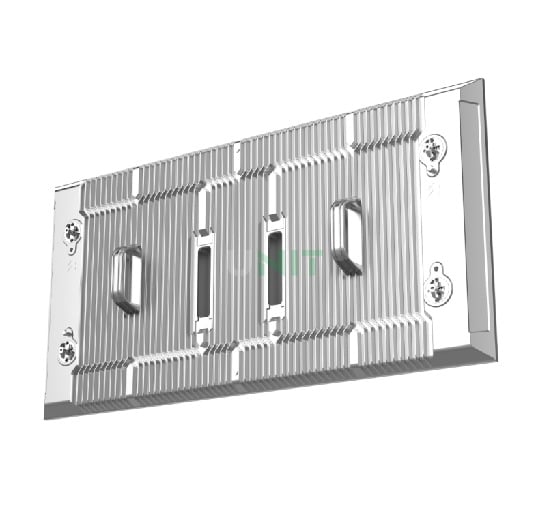

High-quality LED Module
Full waterproof, Fully-sealed design and Die-casting aluminum module chassis to offer Protecting Rating (front and rear): IP66.
Protective Performance
Excellent flame rating, Die-casting Aluminum material, high-temperature durability, Corrosion protection, Reach 5VB fireproofing level.
Protection Level from High to Low in UL94:
5VB>V0>V1>V2>HB
Image Gallery
Video Center
EV1000 Energy Saving LED Display
500*1000mm Cabinet Standard Size
SMD 3 in 1 LED Encapsulation technology
Energy saving LED Screen
250/500*250mm Panel Design
Dual Service with Frontal and Rear Maintenance
CE, Rohs Approved
3 Years Warranty and 3% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
Specification
|
Item Number |
P2.9 |
P3.9 |
P4.8 |
|
Pixel Pitch |
2.97 |
3.91 |
4.81 |
|
Pixel Density |
112896 |
65536 |
43264 |
|
LED Arrangement |
SMD1515 |
SMD1921 |
SMD1921 |
|
Refresh Rate |
3840 |
3840 |
3840 |
|
Cabinet Size/mm |
500*1000 |
500*1000 |
500*1000 |
|
Module Size/mm |
250*250 |
500*250 |
500*250 |
|
Module Resolution |
84*84 |
128*64 |
108*52 |
|
Brightness(nits) |
4500 |
6500 |
6500 |
|
Max Consumption |
700 |
760 |
760 |
|
Ave Consumption |
280 |
300 |
300 |
|
View Angle/Horizontal |
140 |
140 |
140 |
|
View Angle/Vertical |
140 |
140 |
140 |
|
Grey Scale(Bit) |
≥14 |
≥14 |
≥14 |
|
Protecting Rating |
IP66 |
IP66 |
IP66 |
|
Certificate |
EMC, CE, ETL, FCC, CB |
EMC, CE, ETL, FCC, CB |
EMC, CE, ETL, FCC, CB |
Download Product Manual
Products
P2.984*84 dots/module
250*250mm Panel
250*1000mm Cabinet
P3.9128*64 dots/module
500*250mm Panel
500*1000mm Cabinet
P4.8108*52 dots/module
500*250mm Panel
500*1000mm Cabinet
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
