320x320mm DIP 3in1 P10 RGB LED Panel
DIP Three-in-one P10 RGB LED Panel
Pixel Pitch: P10mm
LED Type: 3in1 DIP
Module Size: 320*320 mm
Model Pixel: 32*32 Pixels
In Stock
CE, RoHS, FCC Approved
Description
DIP Three-in-one P10 RGB LED Panel with 320*320mm and 32*32 Dots. Durable, waterproof, and high-brightness
FEATURES:
1. DIP LED Module Including the Data & Power Cables.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours, Free Online Support.
3. High Contrast for LED display.
4. Driving LEDs with a constant current.
3in1 DIP
Using high quality RBG led lamp bead, no damge lamp, uniform current, same brightness.
Strict Aging Testing
UNIT provides72 hours aging test and 24 hours video aging to ensure the LED display moudles have best stability.
3in1 DIP LED Module
“Three-in-one” refers to integrating red, green, and blue LED chips in the same LED package.
Each LED module usually contains multiple three-in-one DIP LED chips, which can respectively emit red, green, and blue colors of light through control circuits.
By adjusting the brightness and proportion of these three colors, the LED display can present images and videos in various colors.
The three-in-one DIP LED module is usually used for outdoor LED displays because it is durable, waterproof, high-brightness, and can adapt to the needs of outdoor environments.
This kind of LED module has been widely used in billboards, large-screen displays, and other fields, providing high-quality visual effects.
|
LED Module: |
|
|
Pixel Pitch: |
P10mm DIP 3in1 LED |
|
Module Size: |
320mmx320mm |
|
Module Resolution: |
32×32 dots |
|
Driver Mode |
1/4 Scan |
|
Warranty Time: |
2 Years |
|
Certificates: |
CE, RoHS |
|
Electricity Parameter: |
|
|
Physical density: |
20000 pixels/sq.m. |
|
Brightness: |
10000 nit |
|
Brightness adjusted: |
100 grade by software, or by Auto-optic-induced |
|
Best view distance: |
≥ 10m |
|
Best view angle: |
Horizontal ±110°, Vertical ±110° |
|
Color processing: |
16bit |
|
Color temperature(k): |
5000 — 9500 (choice by user) |
|
Whole display flatness: |
≤ 1mm juncture |
|
Working temperature: |
-20°C ~ +50°C |
|
Refresh frequency: |
≥ 300Hz |
|
Humidity(RH): |
≤ 90 ~ 95% |
|
Protection grade: |
IP65 Waterproof |
|
Working Voltage: |
DC 5V |
|
Power supply: |
AC 110 / 220V, 50/60Hz |
|
Average power consumption: |
350 w/m2 |
|
Max power consumption: |
800 w/m2 |
|
Screen lifetime: |
100000 hours |
More Details

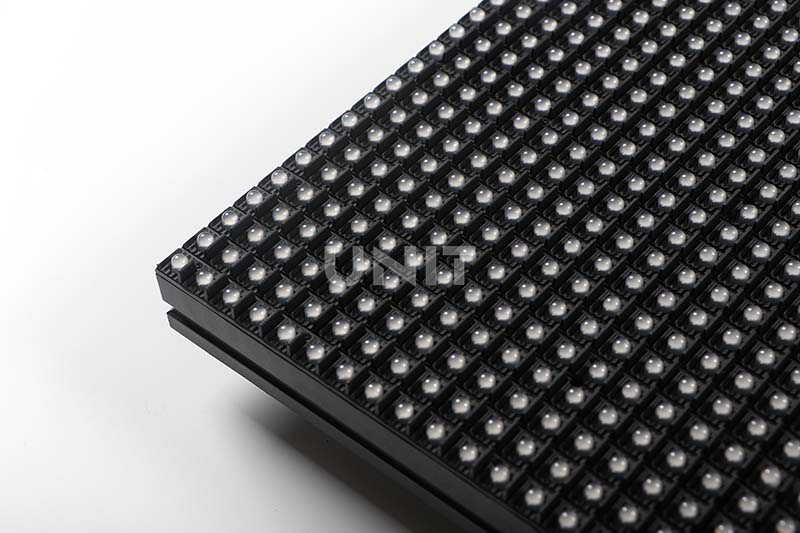

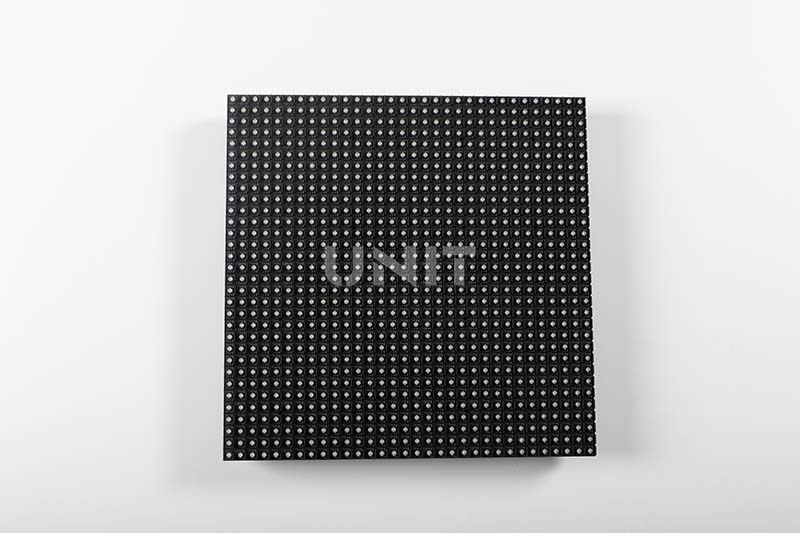

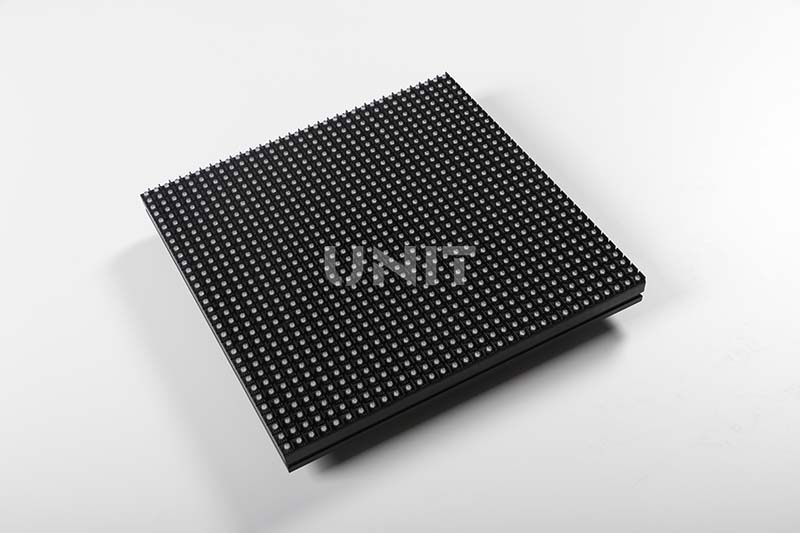

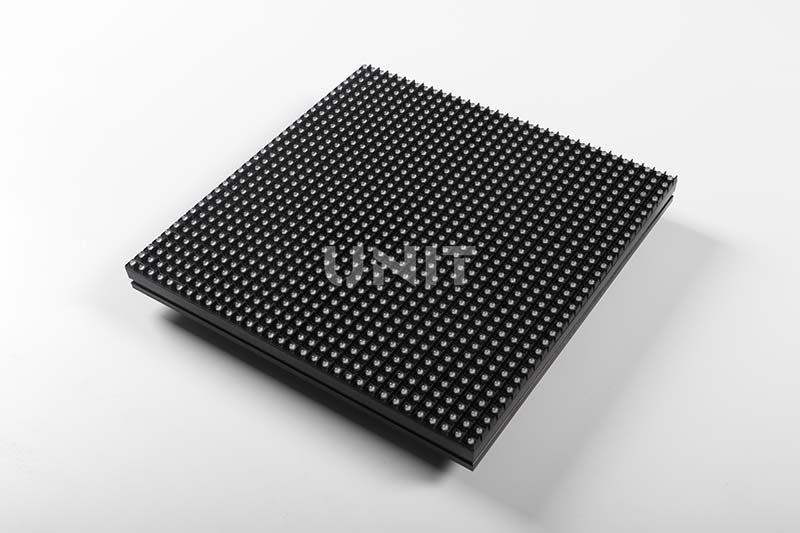

DIP Three-in-one P10 RGB LED Panel-front view

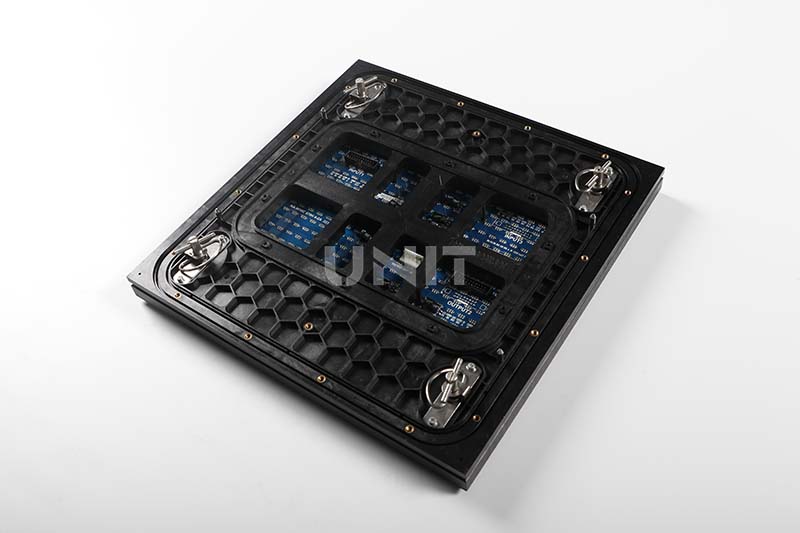

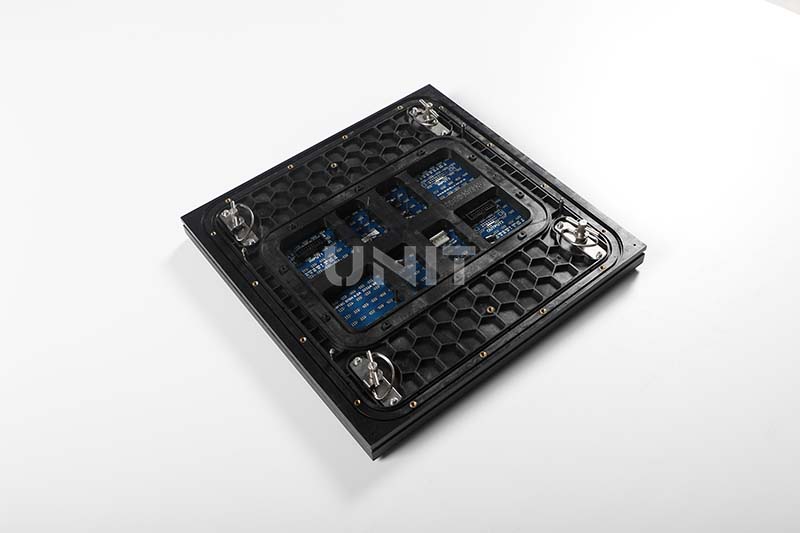

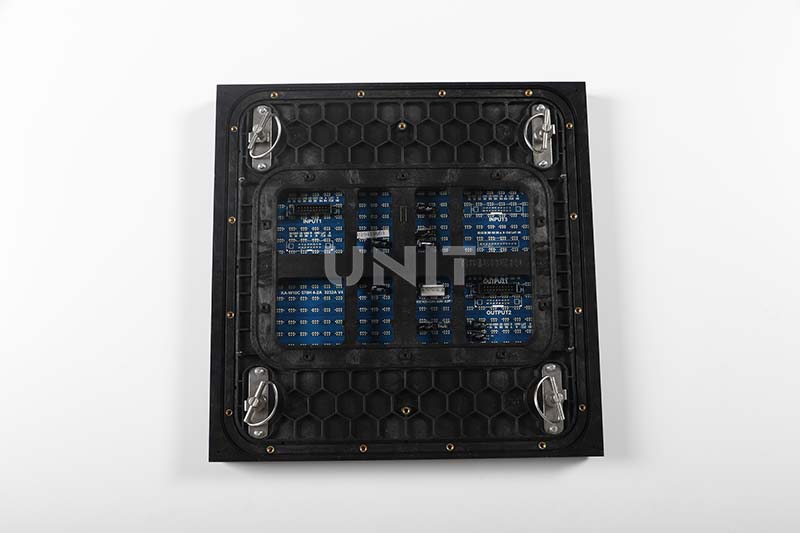

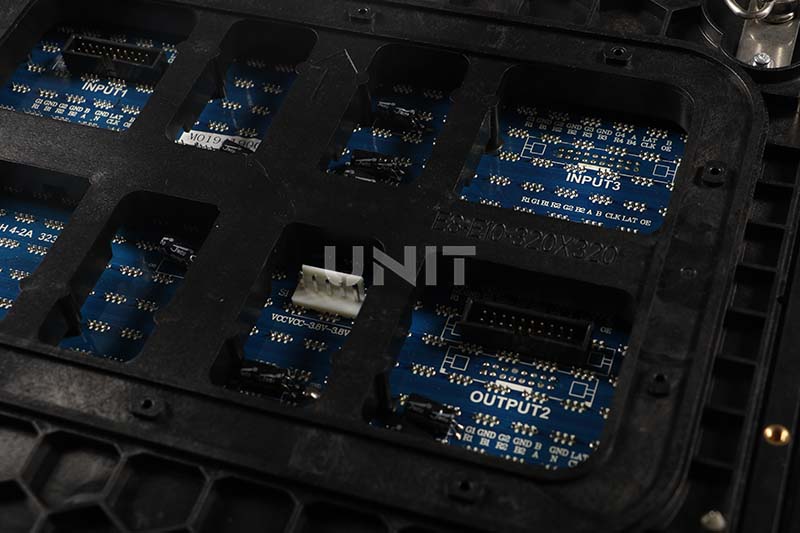

DIP Three-in-one P10 RGB LED Panel-back view
