UNIT MA250 Series Double-Sided LED Display
MA250
250X1000mm Indoor LED Display Screen
Frontal service indoor LED display screen, Ultra-thin and ultra-light cabinet, Supports split-screen multi-module display, Good color saturation and contrast
Inquiry Price Now
Features
Specification
Related Products
UNIT 250x1000mm Indoor LED Display
The new product 250×1000mm series LED display is suitable for LED video walls for indoor applications. Fine pixels, perfect design. Front-end service for LED power supplies, cards, and modules in an ultra-lightweight, die-cast aluminum cabinet design. Size 250*1000mm, good flatness, easy to install and disassemble.
Inquiry Price Now
Ultra-light & Ultra-thin Cabinet

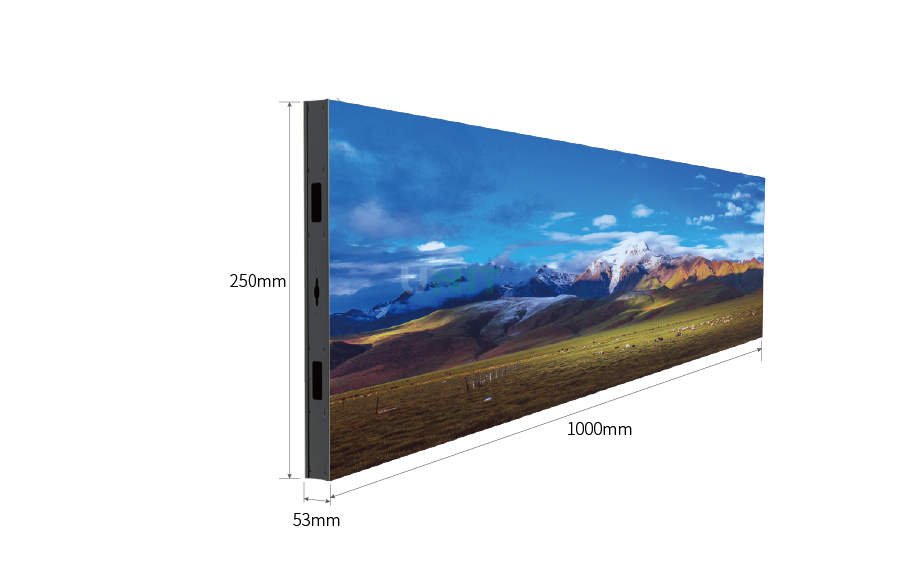

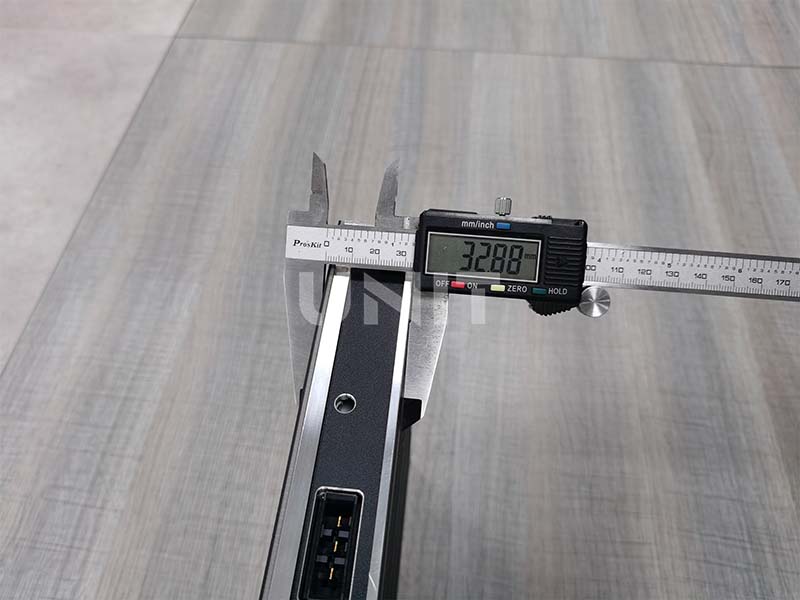

UNIT MA250 Double-sided LED display panel size is 1000X250X53mm. The weight of a single cabinet is only 5.8kg.
The ultra-light and ultra-thin cabinet is convenient for transportation and installation, saving labor costs.
The cabinet size can be customized, such as 250X500mm, 250X1000, etc.
Perfect Structure
The appearance of the aluminum profile box is stylish and simple, ultra-thin, and beautiful. The aluminum cabinet frame is characterized by high strength and precision. At the same time has excellent heat dissipation performance.

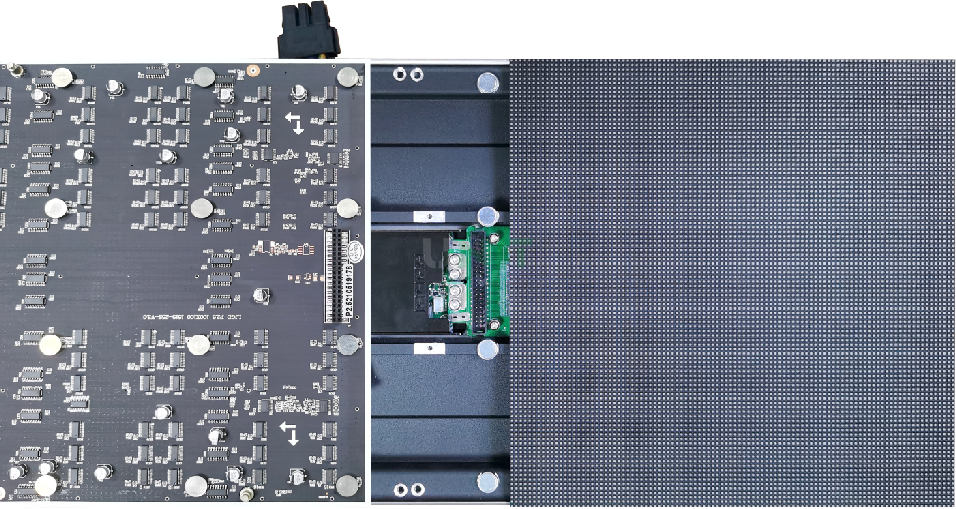

Hard Connection & No Cables
The design of the hard connection between the module and the cabinet completely gets rid of the shackles of the wires.
Modules and cabinets are absorbed by multiple magnetic columns, which are firm and do not fall off.
The hard connection design makes MA250 indoor fixed LED display more reliable and safer.
Inquiry Price Now
Full Front Service
The front maintenance design saves your labor and costs. The perfect design is reflected in many aspects: humanized maintenance tools, cabinet connections, and power ports.
The magnetic LED module can be quickly removed from the front with maintenance tools. Both the power box and the receiving card support front maintenance.

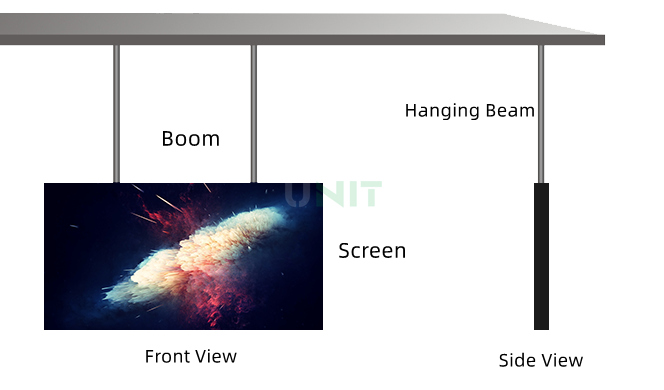

Hanging Installation
Ultra-light and ultra-thin UNIT 250x1000mm LED Display is very suitable for hanging installation.
UNIT double-sided display allows more people to see your content.
With the use and popularity of LED screens, single-sided screens have become more and more unable to meet people’s special needs due to their limited viewing range. Especially in commercial advertising, double-sided screens have gradually replaced single-sided ones and have been widely recognized.
MA250 Indoor LED Display
250*1000mm Cabinet Standard Size
Support Split-screen Multi-module Display
SMD 3 in 1 LED Encapsulation Technology
Front or Rear Dual Maintanance
Aluminum Cabinet Frame
CE,Rohs Approved
3 Year Warranty and 5% Spare Part
Find More
Get Your Price Now
Name
Phone
Message
Send
Image Gallery
MA250 Series P2.5mm Pillar LED Screen
MA250 Series Video Center
Specification
|
P1.95 |
P2.5 |
P2.976 |
P3.91 |
|
|
LED Type |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2121 |
|
Physical Density(dot/sqm) |
262144 |
160000 |
112896 |
65536 |
|
Module Resolution |
128X128 |
100X100 |
84X84 |
64X64 |
|
Module Size（mm） |
250X250 |
250X250 |
250X250 |
250X250 |
|
Panel Resolution |
512X128 |
400X100 |
336X84 |
256X64 |
|
Maintenance Mode |
Front |
Front |
Front |
Front |
|
Cabinet Frame |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
Brightness(cd/m²) |
700 |
800 |
800-1000 |
1000-1200 |
|
Color Temperature(K) |
3200-9300 |
3200-9300 |
3200-9300 |
3200-9300 |
|
Grey Level(bit) |
14/16 |
14/16 |
14/16 |
14/16 |
|
View Angle(H/V) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Contrast Ratio |
5000:1 |
5000:1 |
5000:1 |
5000:1 |
|
Frame Frenquency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
|
Drive Mode |
1/32 Scan |
1/25 Scan |
1/28 Scan |
1/16 Scan |
|
Max Power Consumption（w/m²） |
800 |
800 |
800 |
800 |
|
Avg Power Consumption（w/m²） |
100-200 |
100-200 |
100-200 |
100-200 |
|
Power Requirment |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
Related Products
P1.95128*128 dots/module
250*250mm panel
250*1000mm
P2.5100*100 dots/module
250*250mm panel
250*1000mm
P2.97684*84 dots/module
250*250mm panel
250*1000mm
P3.9164*64 dots/module
250*250mm panel
250*1000mm
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
