P2mm Indoor SMD LED Module 160X80 Dots

Previous
Next

P2mm SMD Indoor LED Module

Pixel Pitch: P2mm

LED Type: SMD2121

Module Size: 320*160 mm

Module Resolution: 160*80

In Stock

CE,RoHS,FCC Approved

Inquiry Now

Description

P2mm indoor led display module 320mmx160mm Best Color Uniformity High Refresh Rate 180×80dots Pixel SMD LED Screen Panel.

FEATURES:

1. LED Module Including the Data & Power Cables.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
3. High Contrast for led display.
4. 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.
5. Driving LEDs with constant current.

High-quality SMD

Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level

Strict Aging Testing

UNIT provides72 hours aging test and 24 hours video aging to ensure the LED display moudles have best stability.

Specifications

Model					P2-I-160X80
1.LED
Color	Package		Intensity		View Angle	Wavelength	Test Cond.
Red	SMD 2121		150mcd		140/140	620nm	25℃,20mA
Green	SMD 2121		400mcd		140/140	520nm	25℃,20mA
Blue	SMD 2121		100mcd		140/140	470nm	25℃,20mA
Resolution		160(H)×80(V)
Pitch		2mm
LED Arrangement		SMD2121
Driver Mode		Dynamic 1/32 Duty constant current
Size		320mm×160mm
Mask		Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness				800-1000 (Nits)
View Angle				140 degree ( horizontal)  140degree(vertical)
View Distance				2m-20m
Gray Scale				8bits input, correction with 16bits
Display Color				16.7M
Brightness Adjustment				100 levels
Power Supply
Operation Power				AC100-240V 50-60HZ  Switch-able
Maxim Power Consumption				650 W/m2
Average Power Consumption				280 W/m2
Control System
Correction Scale Level				16bits
Frame Update Frequency				60Hz
Screen Refresh Frequency				480-960Hz
Gamma Correction				-5.0—5.0
Support Input				Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance				Ethernet cable 100m, optical fiber 5km
Support VGA Mode				800×600,1024×768,1280×1024,1600×1200
Color Temperature				5000-9300 adjustable
Brightness Correction				dot by dot, module by module, cabinet by cabinet

More Details

Previous
Next

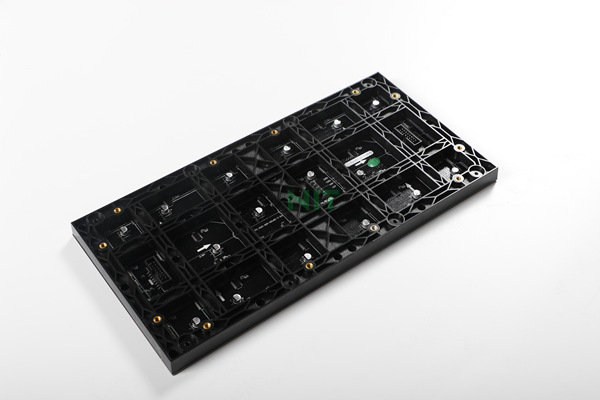

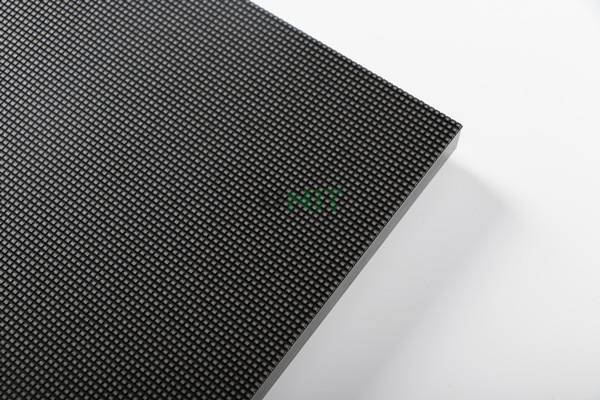

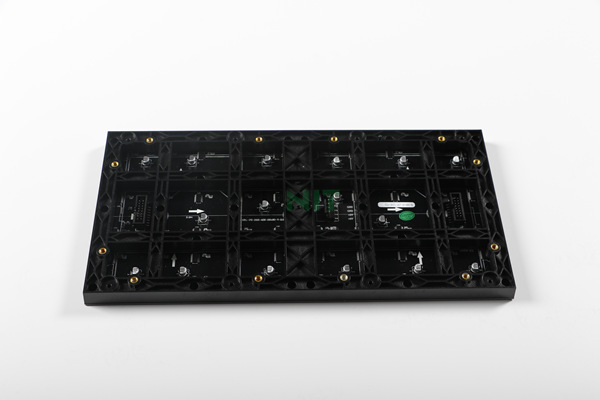

320*160mm indoor p2 SMD led module details

P2mm SMD Indoor LED Display Module Video
