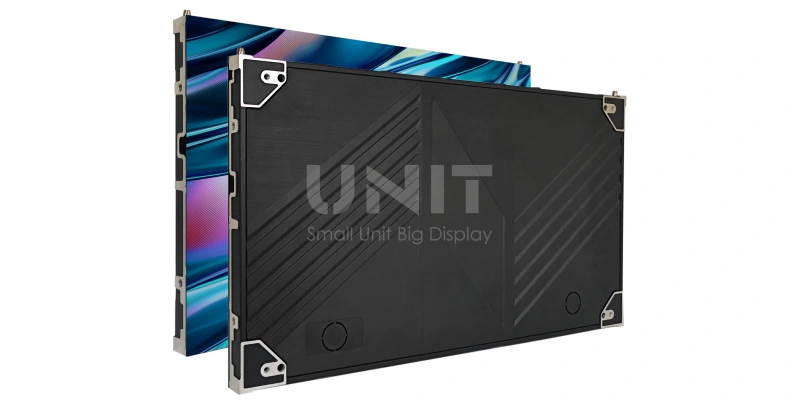

MA600C 16:9 Indoor HD LED Display
MA600 Series
600×337.5mm MA600C HD LED Cabinet
MA600C features a lightweight die-cast aluminum cabinet, supports multiple module sizes and pixel pitches, offers 3840–7680Hz high refresh, 13–16bit grayscale, and full front maintenance, making it ideal for FHD/UHD high-definition display applications.
Strong Compatibility with Lower Upgrade Costs

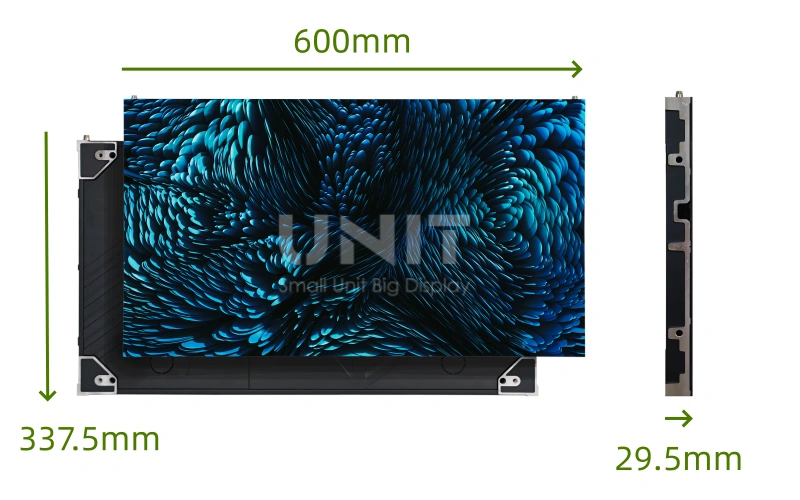

The cabinet size is 600×337.5mm, with a standard 27-inch 16:9 aspect ratio. The cabinet is compatible with 150×168.75 and 300×168.75 module sizes, supporting multiple pixel pitches including P0.9 / P1.25 / P1.56, which makes future upgrades and project adaptation more flexible.
Inquiry Now

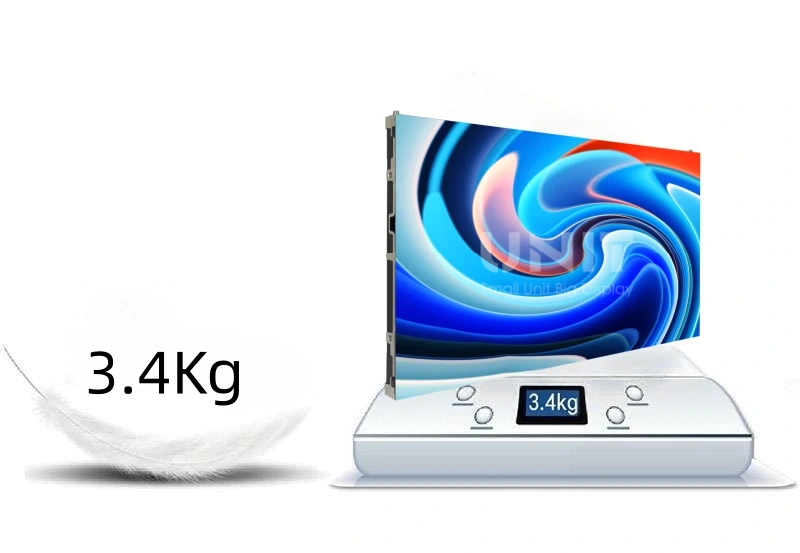

Lightweight Standardized Design for HD Display
The die-cast aluminum cabinet gives MA600C a lightweight yet durable structure, making it easier to install and handle while supporting a cleaner build and more reliable HD display performance.
Inquiry Now

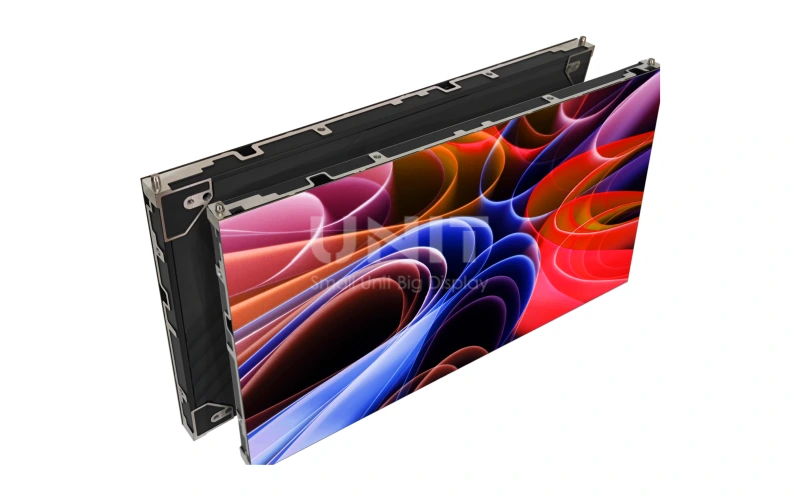

Excellent Display Performance
It supports 3840–7680Hz high refresh rate, 13–16bit high grayscale, and 10000:1 high contrast ratio, delivering smoother motion, finer image quality, and better color and detail reproduction.
Inquiry Now

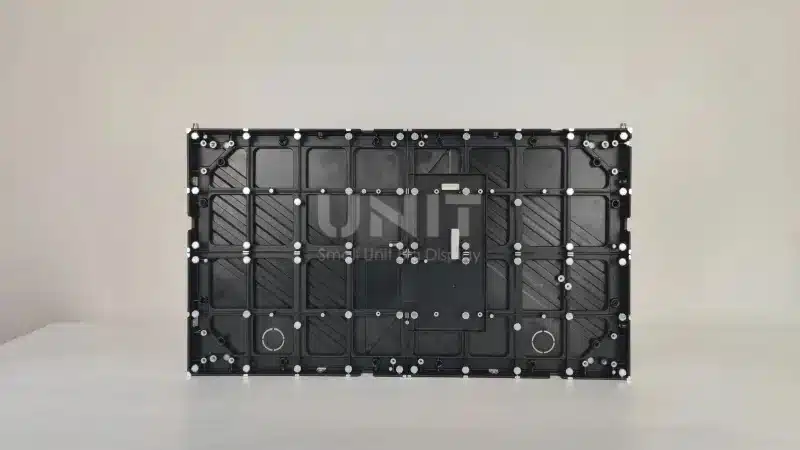

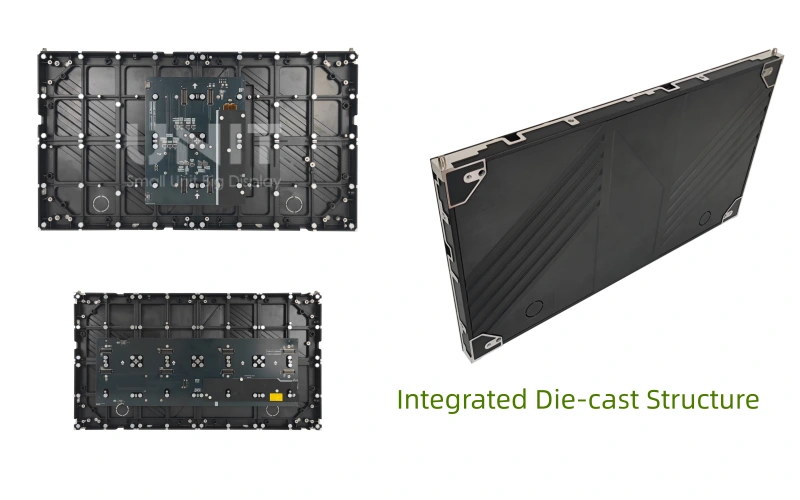

Precision Structure for Easier Splicing and Installation

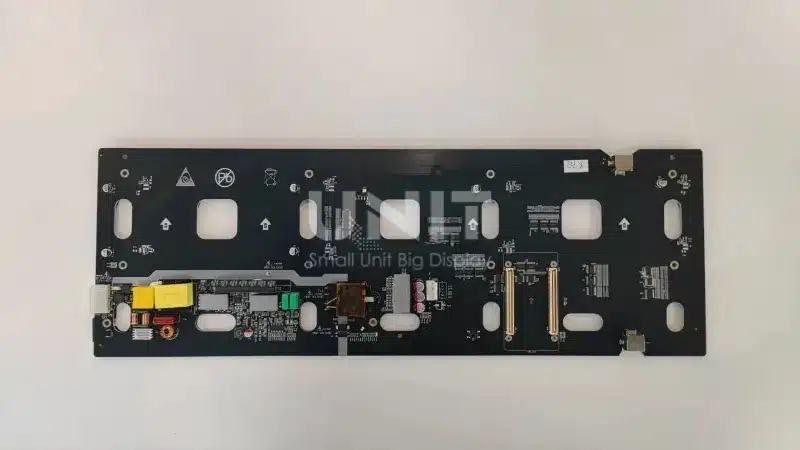

The cabinet features an integrated die-cast structure with CNC machining, offering higher strength, precision, flatness, and dimensional stability. The modules are hard-connected to the HUB and support ±0.5mm fine adjustment in the XYZ directions, effectively reducing panel gaps and improving overall screen uniformity.
Inquiry Now

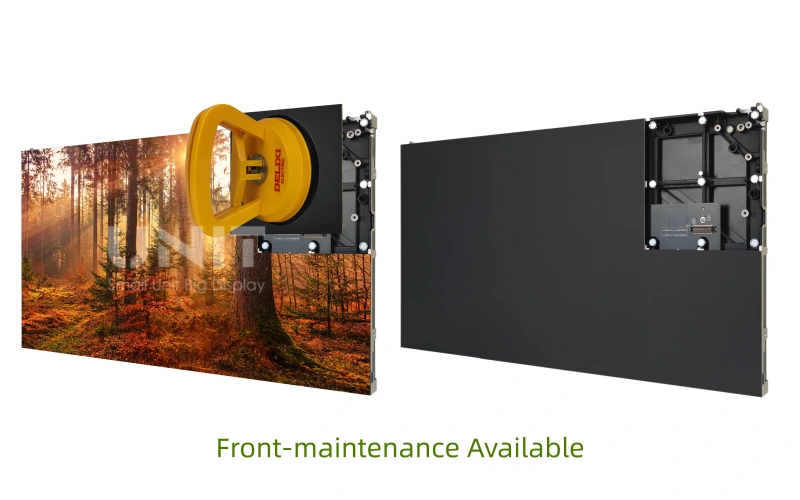

Easier Front-maintenance and Better Reliability
It supports 2-in-1 / 3-in-1 control board solutions, reducing connection parts and potential failure points while improving assembly efficiency and shortening production cycles. It also supports full front installation, full front maintenance, and hot-swapping, with no need to reserve maintenance channels, saving more installation space.
Inquiry Now
16:9 MA600C HD LED Display
- P0.9 / P1.25 / P1.5625 Fine Pitch Available
- 600×337.5mm Cabinet Standard Size
- Standard 27″ 16:9 Display Ratio
- Frontal Service Design
- Ultra Lightweight Cabinet
- High Refresh Rate up to 7680Hz
- 3 Years Warranty and 5% Spare Part
Get Price Now

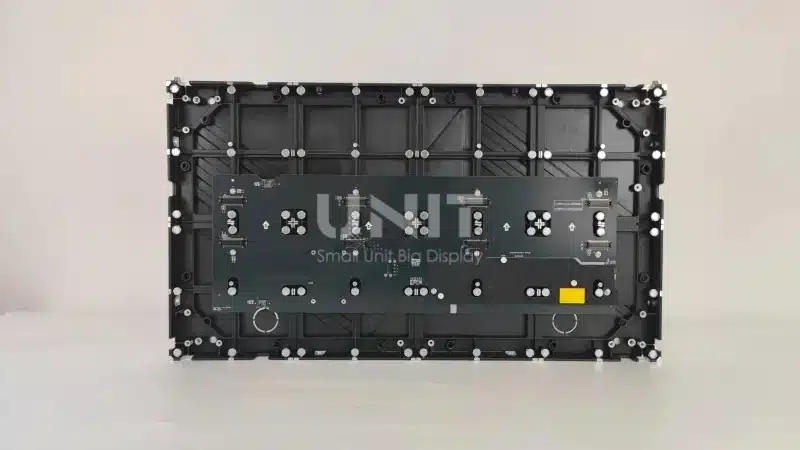

MA600C (Small Board)

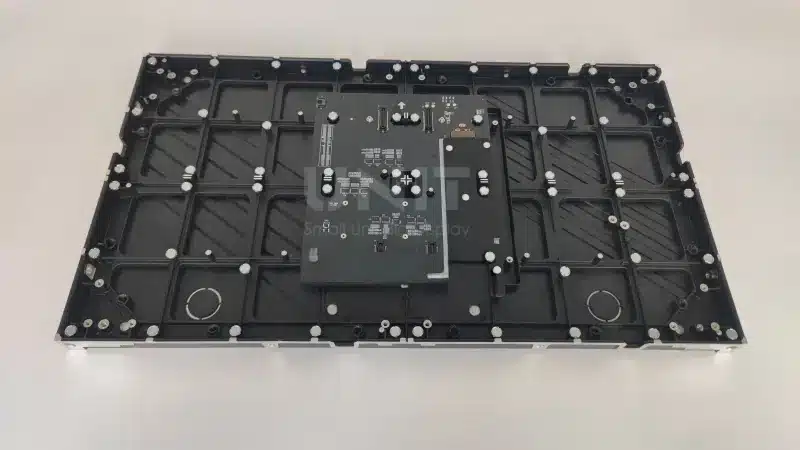

MA600C (Large Board)
Video Center
https://www.youtube.com/watch?v=K2SCn62UzzEhttps://www.youtube.com/watch?v=vHBYZdmv7Ps
Specification
| Parameter | Specification | ||
| Physical | LED Type | Flip-chip | Flip-chip |
| Pixel Pitch (mm) | 0.9375 | 1.25 | |
| Cabinet Size (W×H×D) / mm | 600×337.5×29.5 | 600×337.5×29.5 | |
| Cabinet Resolution | 640×360 | 480×270 | |
| Cabinet Weight (kg) | 3.4 | 3.4 | |
| Cabinet Material | Die-cast aluminum | Die-cast aluminum | |
| Module Size (W×H) / mm | 150×168.75 | 150×168.75 | |
| Optical & Electrical | Brightness (nit) | 600 | 600 |
| Refresh Rate (Hz) | 3840 | 3840 | |
| Color Temperature (K) | 9000±1000 | 9000±1000 | |
| Viewing Angle (H/V) (°) | 170/170 | 170/170 | |
| Drive Method | 1/60 | 1/45 | |
| AC Working Voltage (V) | 100–240 | 100–240 | |
| Power (Max/Avg) (W/m²) | 270/90 | 270/90 | |
| Application | Storage Temperature (℃) | −40 ~ +60 | −40 ~ +60 |
| Operating Temperature (℃) | −10 ~ +40 | −10 ~ +40 | |
| Storage Humidity (RH) | 10% ~ 90% | 10% ~ 90% | |
| Operating Humidity (RH) | 10% ~ 90% | 10% ~ 90% | |
| Protection Level (Front/Rear) | IP61/IP21 | IP61/IP21 | |
| LED Lifespan (H) | 100,000 | 100,000 | |
| Module Maintenance | Front access | Front access | |
| Power & Other Maintenance | Front access | Front access | |
| Installation Method | Front installation | Front installation | |
| Note: Power may fluctuate within ±15%, depending on LED brightness from different production batches. Actual values shall prevail. | |||
| Parameter | Specification | |
| Physical | LED Type | Flip-chip |
| Pixel Pitch (mm) | 1.5625 | |
| Cabinet Size (W×H×D) / mm | 600×337.5×29.5 | |
| Cabinet Resolution | 384×216 | |
| Cabinet Weight (kg) | 3.3 | |
| Cabinet Material | Die-cast aluminum | |
| Module Size (W×H) / mm | 300×168.75 | |
| Optical & Electrical | Brightness (nit) | 600 |
| Refresh Rate (Hz) | 3840 | |
| Color Temperature (K) | 9000±1000 | |
| Viewing Angle (H/V) (°) | 170/170 | |
| Drive Method | 1/45 | |
| AC Working Voltage (V) | 100–240 | |
| Power (Max/Avg) (W/m²) | 250/83 | |
| Application | Storage Temperature (℃) | −40 ~ +60 |
| Operating Temperature (℃) | −10 ~ +40 | |
| Storage Humidity (RH) | 10% ~ 90% | |
| Operating Humidity (RH) | 10% ~ 90% | |
| Protection Level (Front/Rear) | IP61/IP21 | |
| LED Lifespan (H) | 100,000 | |
| Module Maintenance | Front access | |
| Power & Other Maintenance | Front access | |
| Installation Method | Front installation | |
| Note: Power may fluctuate within ±15%, depending on LED brightness from different production batches. Actual values shall prevail. | ||
| Parameter | Specification | ||
| Physical | LED Type | Flip-chip | Flip-chip |
| Pixel Pitch (mm) | 0.9375 | 1.25 | |
| Cabinet Size (W×H×D) / mm | 600×337.5×29.5 | 600×337.5×29.5 | |
| Cabinet Resolution | 640×360 | 480×270 | |
| Cabinet Weight (kg) | 3.4 | 3.4 | |
| Cabinet Material | Die-cast aluminum | Die-cast aluminum | |
| Module Size (W×H) / mm | 150×168.75 | 150×168.75 | |
| Optical & Electrical | Brightness (nit) | 600 | 600 |
| Refresh Rate (Hz) | 3840 | 3840 | |
| Color Temperature (K) | 9000±1000 | 9000±1000 | |
| Viewing Angle (H/V) (°) | 170/170 | 170/170 | |
| Drive Method | 1/60 | 1/45 | |
| AC Working Voltage (V) | 100–240 | 100–240 | |
| Power (Max/Avg) (W/m²) | 270/90 | 270/90 | |
| Application | Storage Temperature (℃) | −40 ~ +60 | −40 ~ +60 |
| Operating Temperature (℃) | −10 ~ +40 | −10 ~ +40 | |
| Storage Humidity (RH) | 10% ~ 90% | 10% ~ 90% | |
| Operating Humidity (RH) | 10% ~ 90% | 10% ~ 90% | |
| Protection Level (Front/Rear) | IP61/IP21 | IP61/IP21 | |
| LED Lifespan (H) | 100,000 | 100,000 | |
| Module Maintenance | Front access | Front access | |
| Power & Other Maintenance | Front access | Front access | |
| Installation Method | Front installation | Front installation | |
| Note: Power may fluctuate within ±15%, depending on LED brightness from different production batches. Actual values shall prevail. | |||
| Parameter | Specification | |
| Physical | LED Type | Flip-chip |
| Pixel Pitch (mm) | 1.5625 | |
| Cabinet Size (W×H×D) / mm | 600×337.5×29.5 | |
| Cabinet Resolution | 384×216 | |
| Cabinet Weight (kg) | 3.3 | |
| Cabinet Material | Die-cast aluminum | |
| Module Size (W×H) / mm | 300×168.75 | |
| Optical & Electrical | Brightness (nit) | 600 |
| Refresh Rate (Hz) | 3840 | |
| Color Temperature (K) | 9000±1000 | |
| Viewing Angle (H/V) (°) | 170/170 | |
| Drive Method | 1/45 | |
| AC Working Voltage (V) | 100–240 | |
| Power (Max/Avg) (W/m²) | 250/83 | |
| Application | Storage Temperature (℃) | −40 ~ +60 |
| Operating Temperature (℃) | −10 ~ +40 | |
| Storage Humidity (RH) | 10% ~ 90% | |
| Operating Humidity (RH) | 10% ~ 90% | |
| Protection Level (Front/Rear) | IP61/IP21 | |
| LED Lifespan (H) | 100,000 | |
| Module Maintenance | Front access | |
| Power & Other Maintenance | Front access | |
| Installation Method | Front installation | |
| Note: Power may fluctuate within ±15%, depending on LED brightness from different production batches. Actual values shall prevail. | ||
