UNIT N43 Series HD LED Display
N43
400X300mm Fine Pixel LED Display Screen
4 : 3 Cabinet Size Design with 400*300mm dimension, high flatness, easy to install and disassemble, High difinition quality in an HD LED display
Inquiry Now
Features
Specification
Related Products
4:3 HD LED Display
It delivers a truly amazing picture in every details with extrodinary pixels producing an image that is High difinition quality in an HD LED display. 16bits gray processing technology, with 65536 grayscale, excessive nature, according to the video picture of extremely fine texture, looked more comfortable.
Inquiry Now

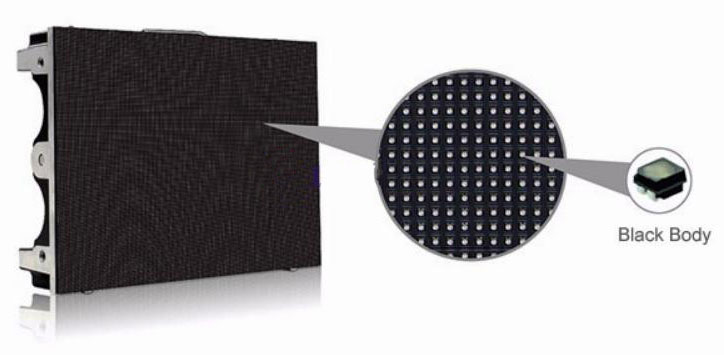

Ultra HD Perfect Picture Quality
High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image

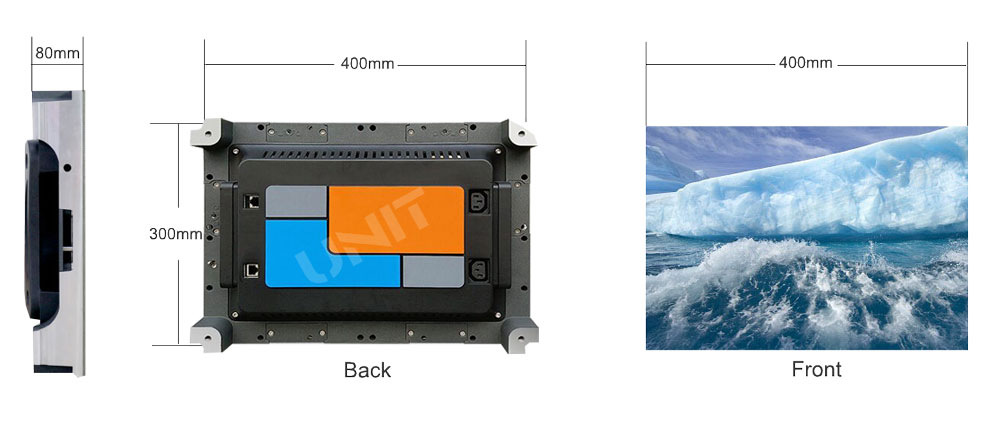

4 : 3 Cabinet Size Design
4:3 design HD LED display. Cabinet’s 4:3 resolution is specialized for command center. Perfect replacement for LCD display. Die cast aluminum cabinet, guarantee you a flat and seamless screen.
Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.
Inquiry Now

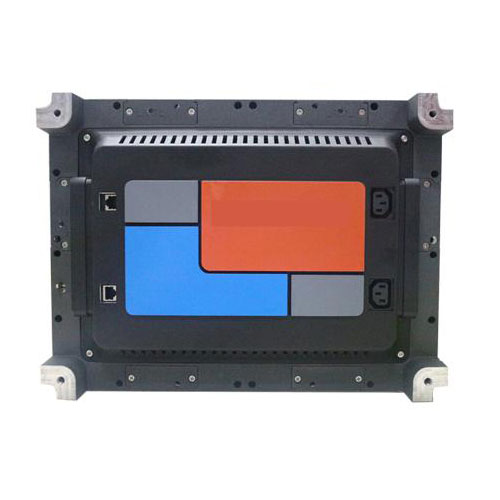

Frontal Service Cabinet Design
Seamless splicing design with fast locks and simplicity internal wiring, which perfectly realizes the splicing of the cabinet.
the LED display has no gaps and the LED screen is ultra high flatness.

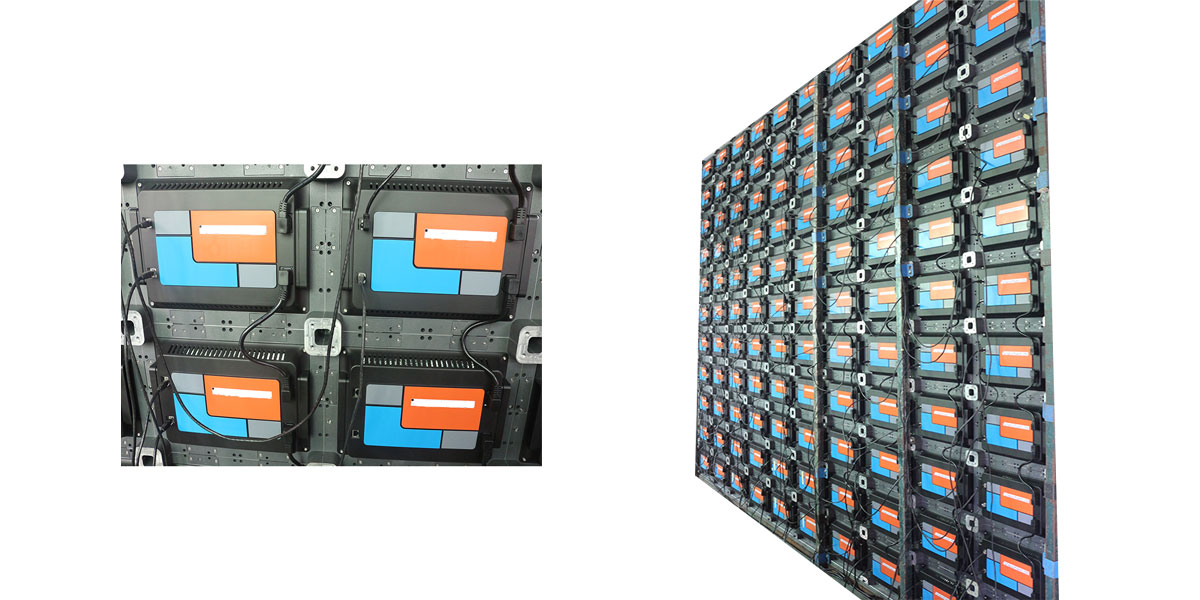

Seamless splicing, Assemble screen freely
Patented connecting piece, and hang pin rotating at 120 degree to lock the case, and gap adjustable to ensure the seamless screen, and rapid installation and removal supported. Only 1/4 of installation time compares with traditional structure.

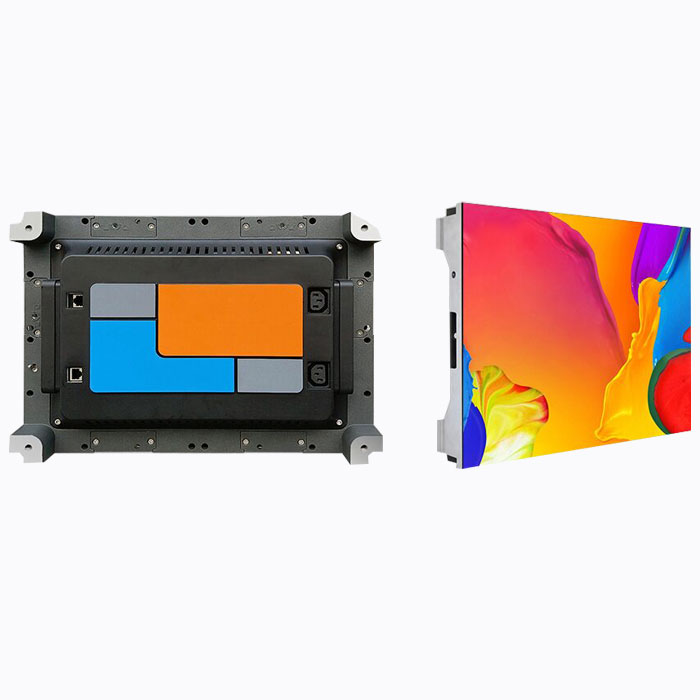

N43 Fine Pixel HD LED Display
400*300mm Cabinet Standard Size
SMD 3 in 1 LED Encapsulation technology
Frontal Service Design
High Refresh Rate to 3840 HZ
CE,Rohs Approved
3 Year Warranty and 5% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
Specification
| Pixel Pitch | 1.25mm | 1.56mm | 1.667mm | 1.923mm | 2.5mm |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pixel Density | 640000 | 409600 | 360000 | 270400 | 160000 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 |
| MAX Power Con | 680w/Sq.m | 640w/Sq.m | 620w/Sq.m | 600w/Sq.m | 580w/Sq.m |
| AVG Power Con | 350w/sq.m320w/sq.m | 320w/sq.m | 300w/sq.m | 280w/sq.m | 260w/sq.m |
| Module Dimension | 200x150mm | 200x150mm | 200x150mm | 200x150mm | 200x150mm |
| Module Resolution | 160×120 dots | 128×96 dots | 120×90 dots | 104×78 dots | 80×60 dots |
| Cabinet Dimension | 400x300x77mm | ||||
| Cabinet Resolution | 320×240 dots | 256×192 dots | 240×180 dots | 208x156dots | 160x120dots |
| Cabinet Weight | 5.85kg | ||||
| Service Access | Front | ||||
| Rotation Angle | -10° and +10° | ||||
| Brightness (nits) | ≥1000 | ||||
| Refresh Rate (HZ) | 3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160 / 160 | ||||
| IP Rate | IP54 | ||||
| Input Voltage (AC) | 110 / 240V | ||||
Download Spec Sheet
Products
P1.56128×96 dots/module
256×192 dots/cabinet
400*300mm Cabinet
P1.667120×90 dots/module
240×180 dots/cabinet
400*300mm Cabinet
P2100×75 dots/module
200×150 dots/cabinet
400*300mm Cabinet
P3.0780×60 dots/module
160×120 dots/cabinet
400*300mm Cabinet
Tech Support
Unit LED has professional technology support team to solve any tech problem for you, tech support covering installation, configuring, and anything about LED display, please check our contact us page.
