LC60S Seamless Splicing LED Digital Banner Display

Digital LC60S LED Poster Display

LC60S LED poster display represents a new generation of digital signage with its lightweight CNC aluminum alloy structure, high refresh, and intelligent control system.

With a display size of 640×1920 mm, product size of 670×2073×465 mm, and weight of only 47 kg, it offers a portable, plug-and-play solution for vibrant advertising in shopping malls, retail stores, exhibitions, and corporate environments.

Inquiry Now

LED poster

Lightweight CNC Aluminum Alloy Structure

Crafted using integrated CNC aluminum alloy, the LC60S ensures precise hole positioning, flat display panels, and a uniform surface without bright or dark lines.

Its one-piece body design makes it easy to transport, install, and use; simply plug in and play.

Inquiry Now

Ultra Slim and Lightweight Design

The extremely ultra-thin cabinet cabinet weighs only 47kg. It helps save space and greatly reduces the difficulty of transportation and installation.

Whether it is a shopping mall, airport, or conference center, the LC60S series can perfectly integrate into different environments.

Inquiry Now

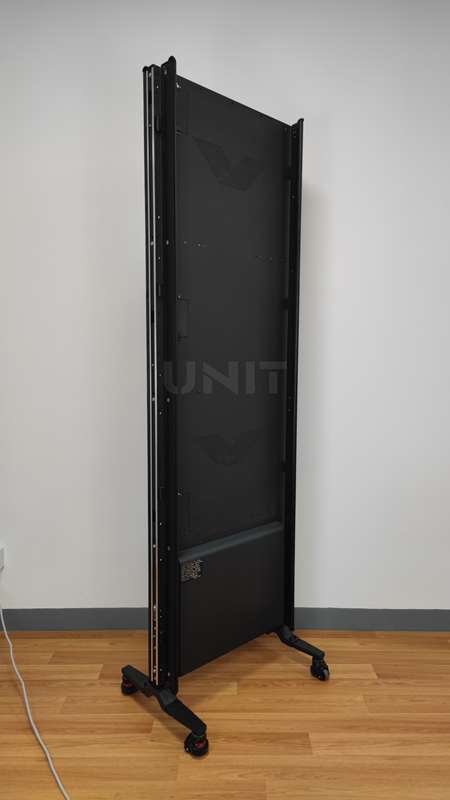

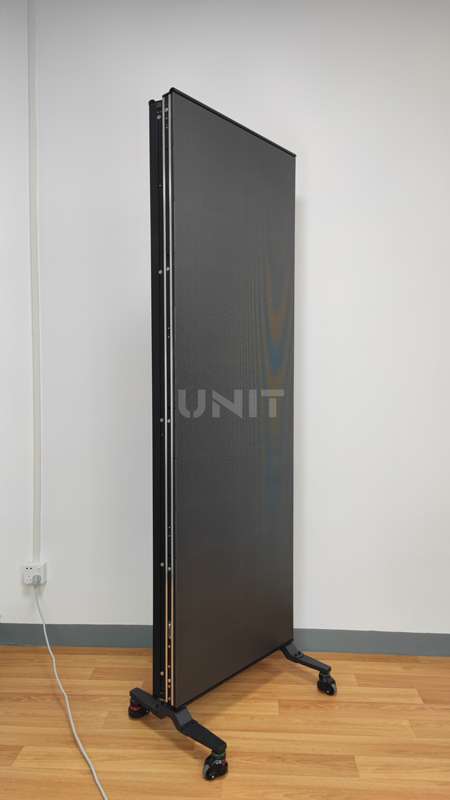

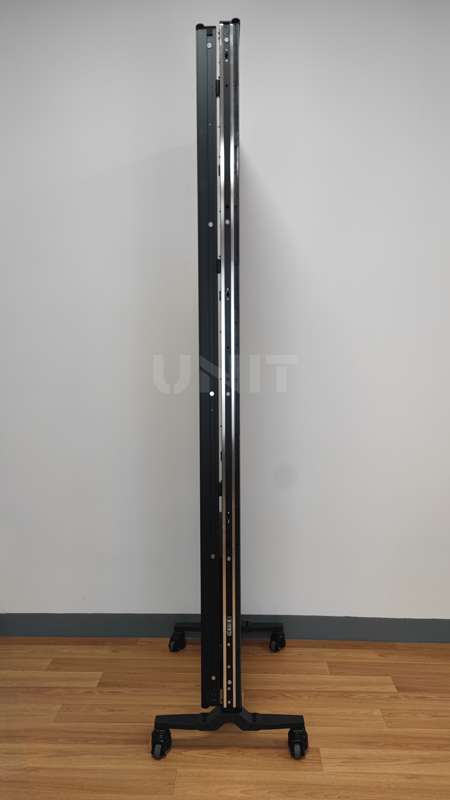

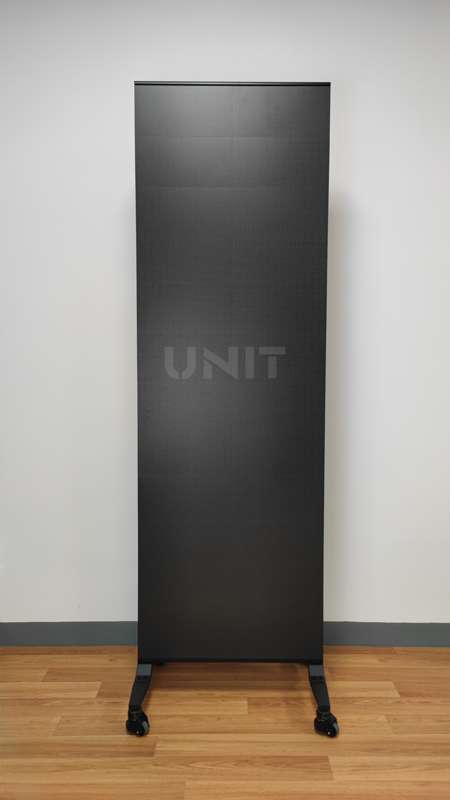

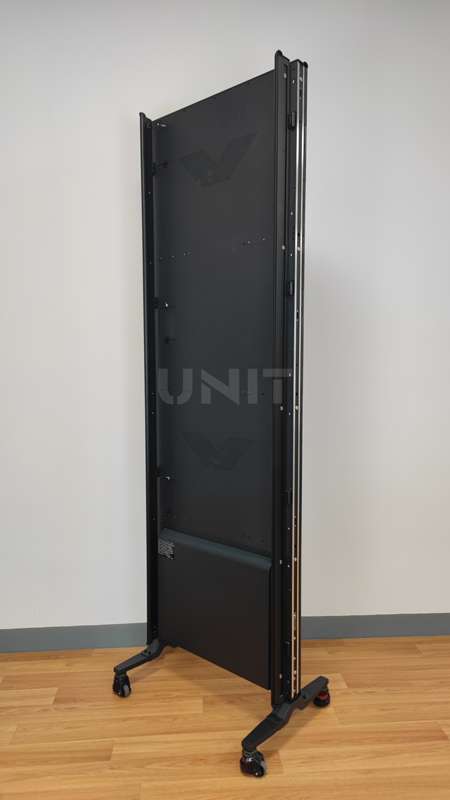

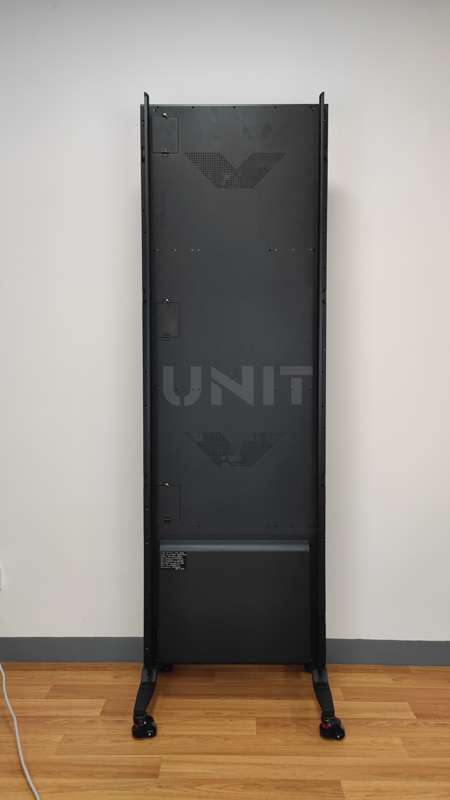

Openable Frame for Seamless Splicing

UNIT LED LC60S series poster LED display supports both single-unit use and multi-screen seamless splicing.

The flip-cover frame design protects LED modules and enables border-free full-screen displays without removing the frame.

Inquiry Now

Excellent Poster Cabinet Structure

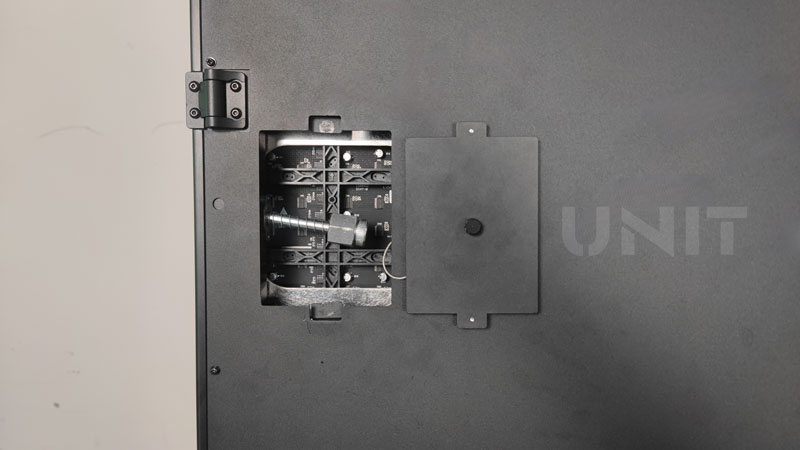

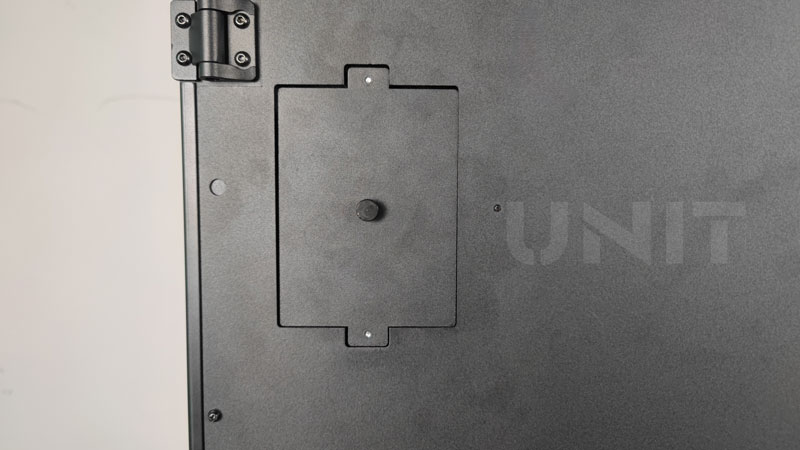

The small window on the back with quick locks ensures fast and stable connection of multiple display units when seamlessly splicing.

The simple power and control box layout makes operation more convenient.

The dual air-flow ventilation system on the back panel ensures fast heat dissipation, stable performance, and extended product lifespan.

Inquiry

Various Types of Signal Input

Digital LED banner display LC60S is compatible with a wide range of signal inputs.

This versatility ensures the screen can be integrated with a wide range of devices including computers, media players, cameras and video sources.

Inquiry

Brilliant Visual Performance

Utilizing premium large-chip LEDs and high-refresh driver ICs, the LC60S achieves 600–800 nits brightness, 14–16-bit grayscale, and 3840–7680 Hz refresh rate, ensuring smooth, vivid, and energy-efficient visuals.

Powered by an embedded quad-core processor (≥1.4 GHz) and supporting 4K video decoding, the LC60S ensures stable, virus-free operation and smooth content playback for commercial use.

Inquiry Now

Foldable Base with Universal Wheels

The reinforced universal wheel base (each wheel supports over 50 kg) offers stability, mobility, and easy level adjustment.

It’s ideal for quick relocation or precise alignment during multi-screen setups.

Inquiry Now

Optional GOB Protection

LC60S LED banner enhances durability with optional GOB coating, P1.25, P1.538 (GOB Necessary), P1.86, P2 & P2.5mm (GOB Optional).
Providing resistance against water, dust, static, moisture, and impact for safer and longer-lasting operation.

Inquiry Now

Smart Cloud Management

LC60S series LED digital banner display supports content management through multiple devices such as iPads, mobile phones, PC.

The built-in media player function supports content storage and playback. Users can easily manage and schedule advertising content through the cloud.

Inquiry

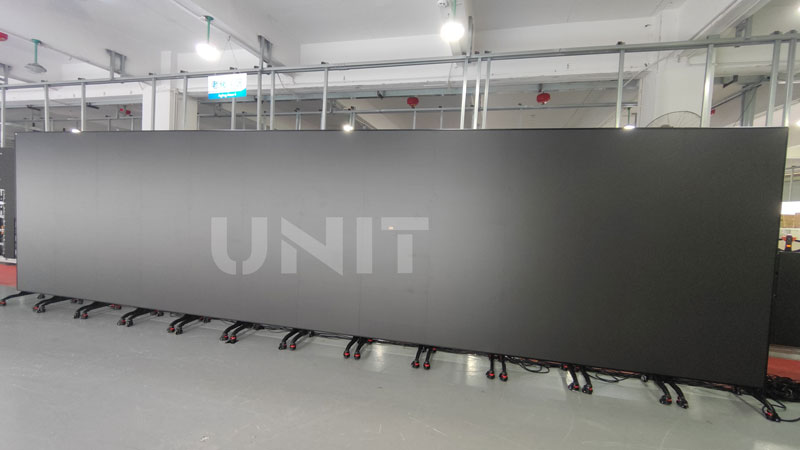

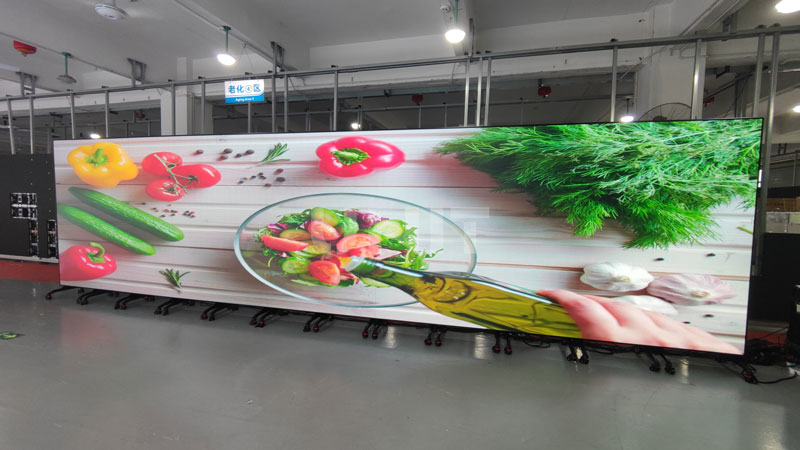

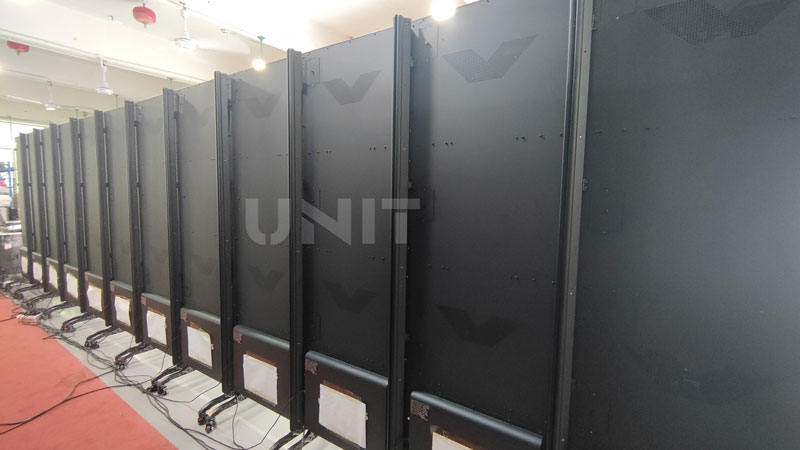

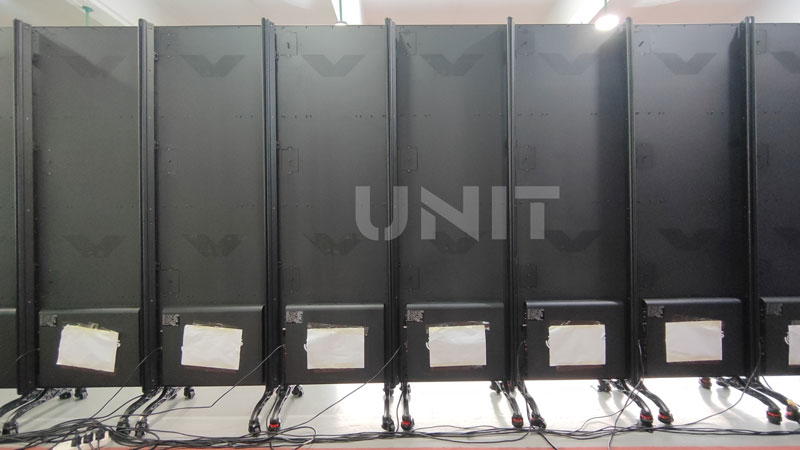

Seamlessly Splice Details

Product Details

LC60S Video Center

Specification

LC60S Series
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020
Pixel Pitch (mm)	P1.25 (GOB)	P1.538 (GOB)	P1.86	P2	P2.5
Product Dimensions (W×H×D) / (mm)	670 × 2073 × 465
Display Size (W×H) / (mm)	640 × 1920
Product Resolution	512 x 1536	416 x 1248	344 x 1032	320 x 960	256 x 768
Product Weight (kg)	47
Product Material	Integrated CNC-molded aluminum alloy cabinet
Module Size (W×H) / (mm)	320 × 160
Brightness (nit)	600
Refresh Rate (Hz)	3840
Color Temperature (K)	9000 ± 1000
Viewing Angle (H/V) (°)	140 / 140
Driving Method	1/64 Scan	1/52 Scan	1/43 Scan	1/40 Scan	1/32 Scan
AC Operating Voltage (V)	AC 200~240 (wide voltage optional)
Power Consumption (Max/Average) (W/set)	490 / 163
Storage Temperature (°C)	-40 ~ +60
Operating Temperature (°C)	-10 ~ +40
Storage Humidity (RH)	10% ~ 90%
Operating Humidity (RH)	10% ~ 90%
Protection Level (Front/Rear)	IP40 / IP20
LED Lifespan (H)	100,000
Module Maintenance	Rear Maintenance
Power & Other Maintenance	Rear Maintenance
Seamless Splicing	Supported
Installation Method	Hanging / Wall-mounted (optional), Floor Stand, Splicing
