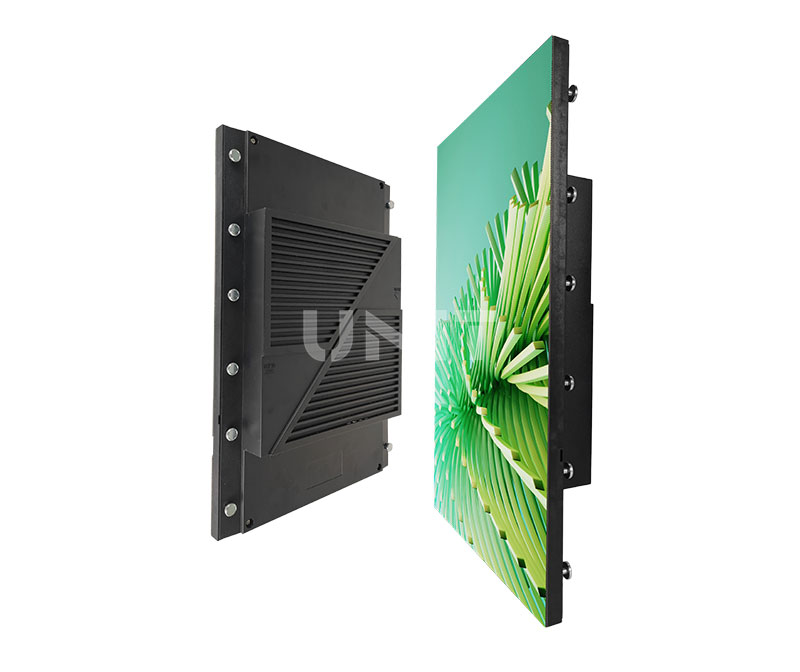

UNIT IF320 Series Indoor LED Display Screen
IF320 Series
Indoor Fixed LED Display Screen
– 320x480mm Standard Size Cabinet
– 3 in 1 High-Integration Board Design
– Cable-Free Hard Connection
– Magnetic Installation
– ≥3840Hz High Refresh Rate
– No Assembly Required, Install Directly
– Temperature and Voltage Monitoring

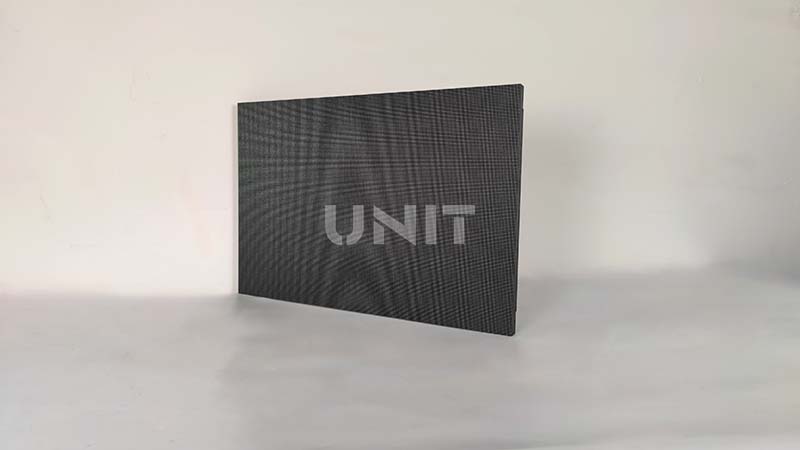

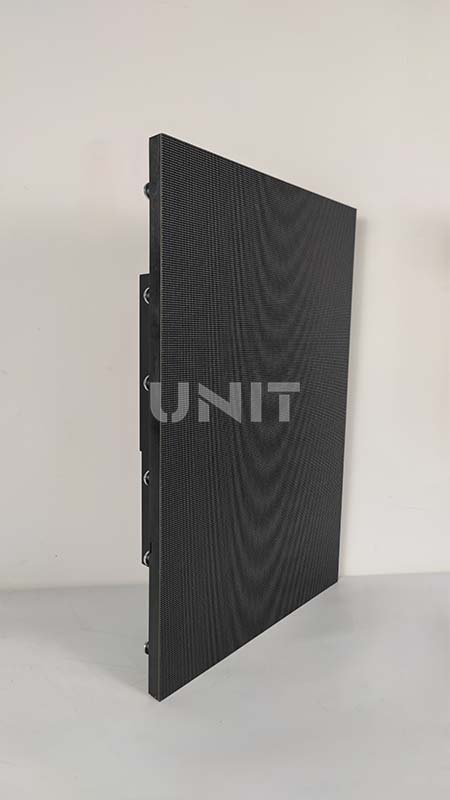

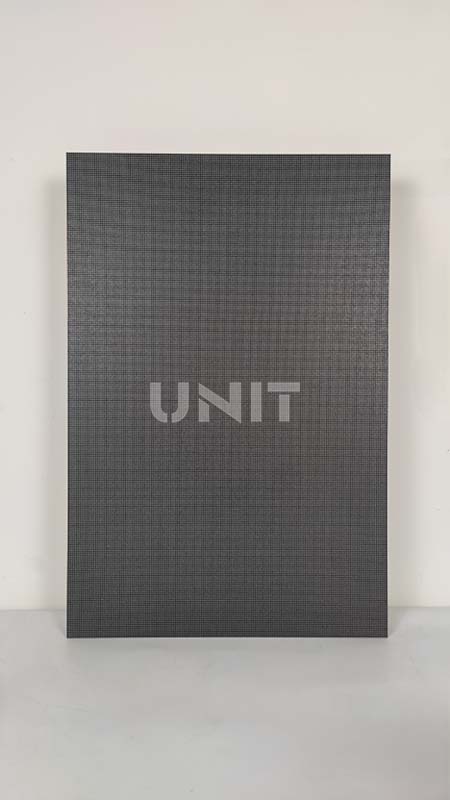

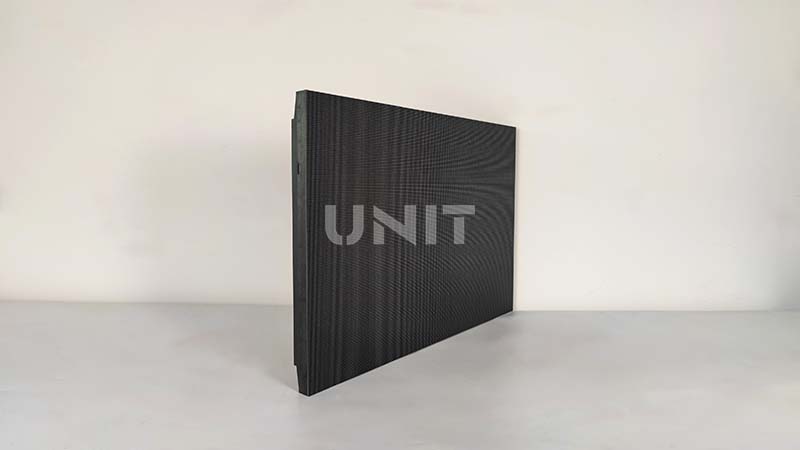

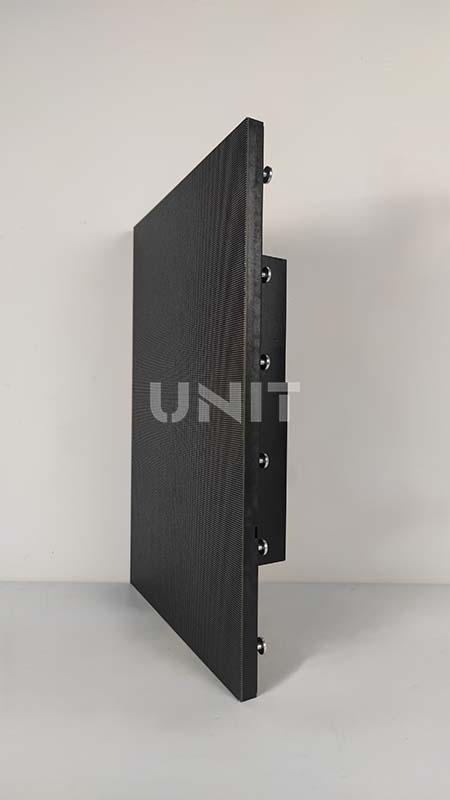

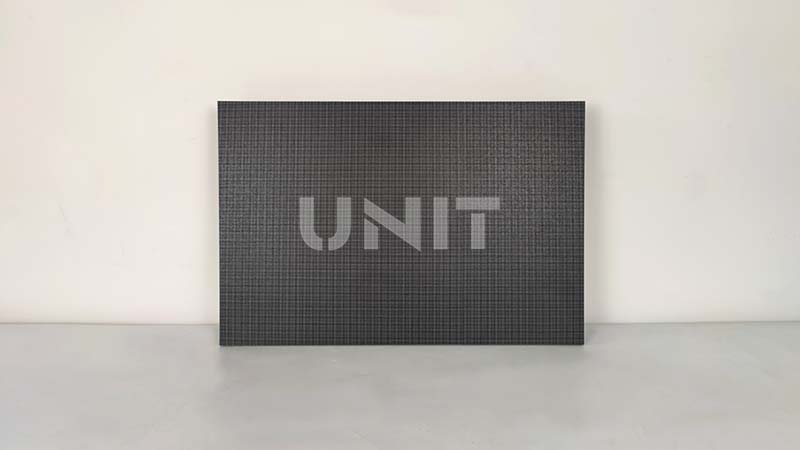

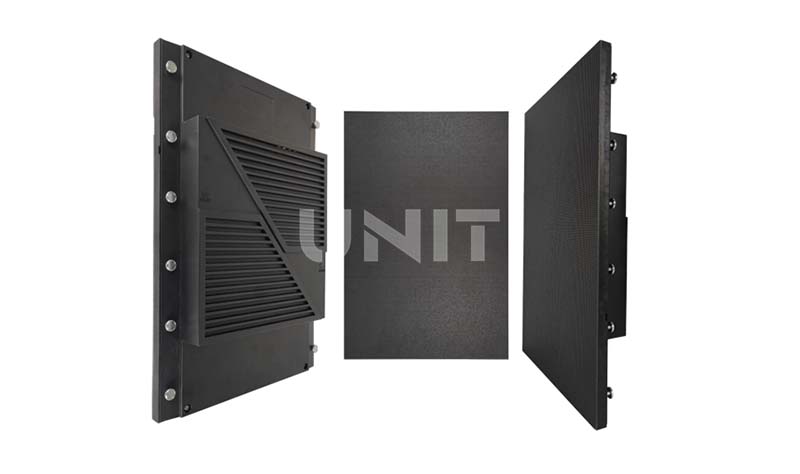

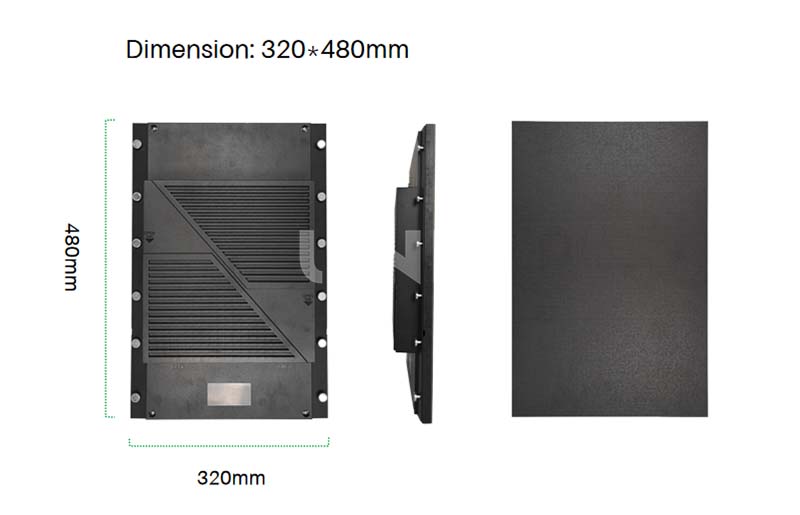

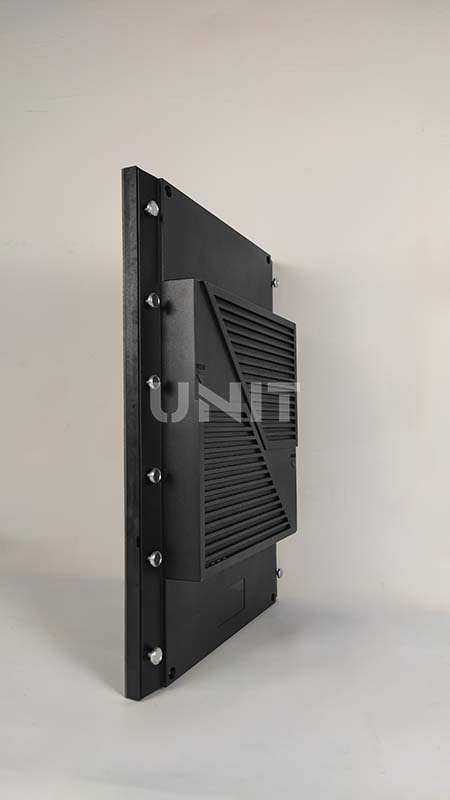

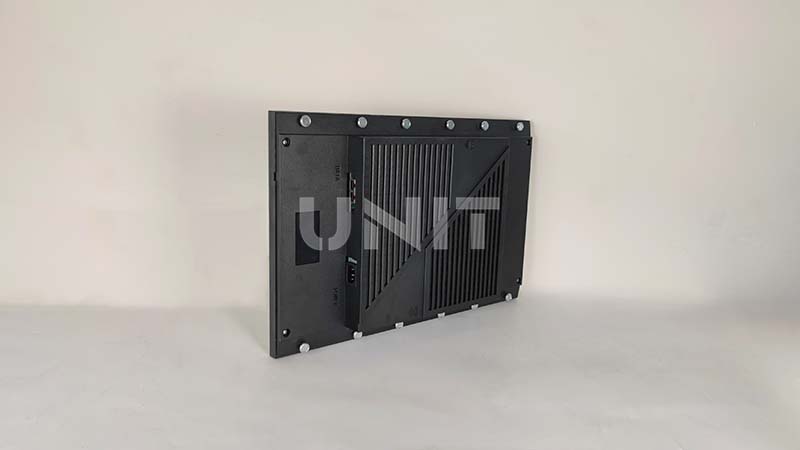

320x480mm Standard Size Cabinet
The size of the IF320 series indoor fixed LED display is 320*480*63mm.
It is designed for indoor fixed installation, with small pixel pitches and high-definition display.
Inquiry Now

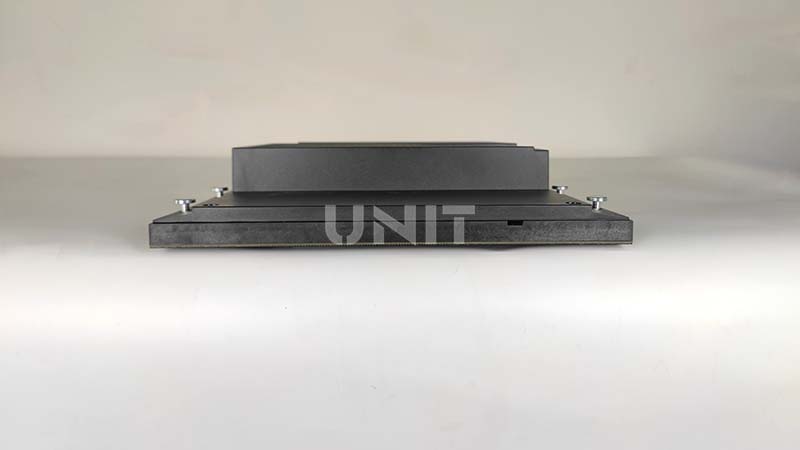

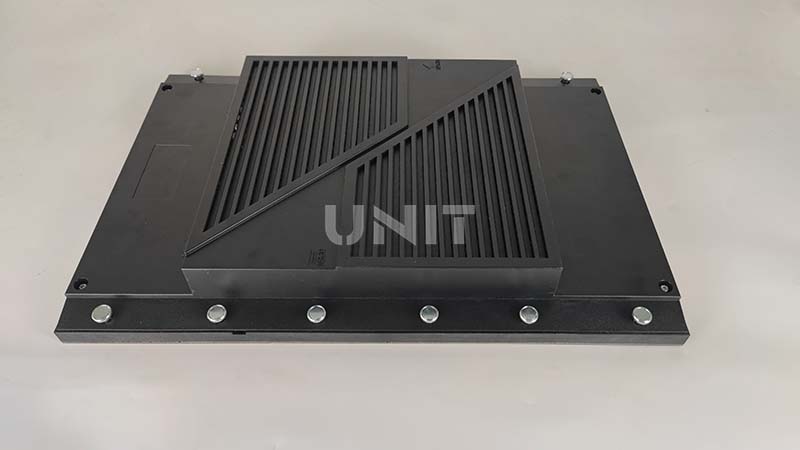

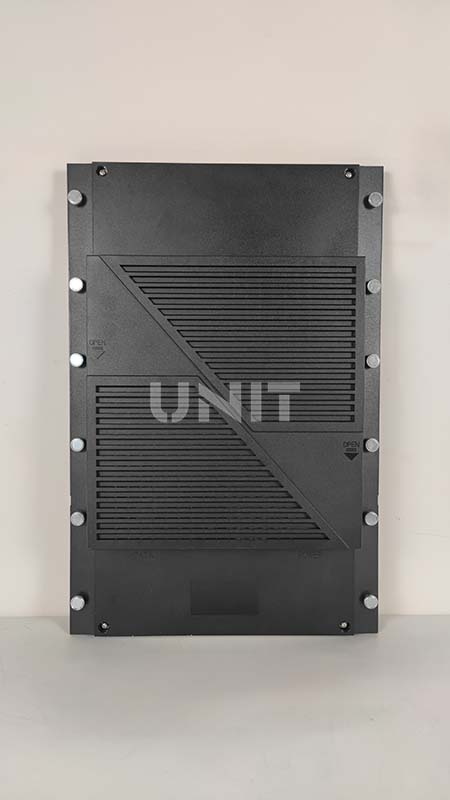

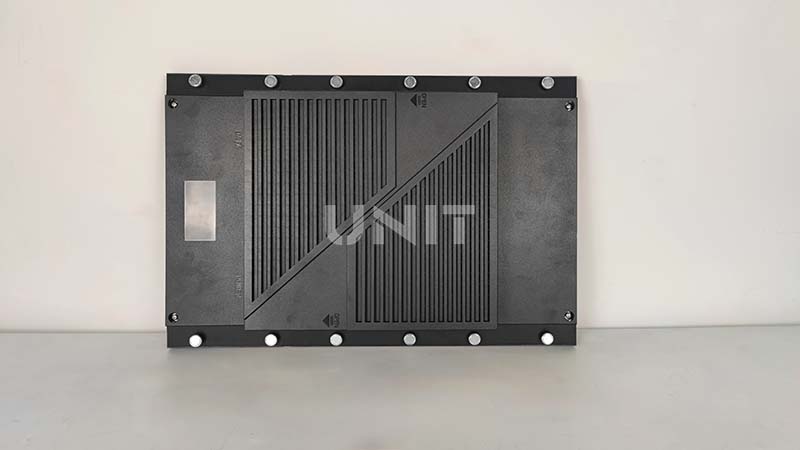

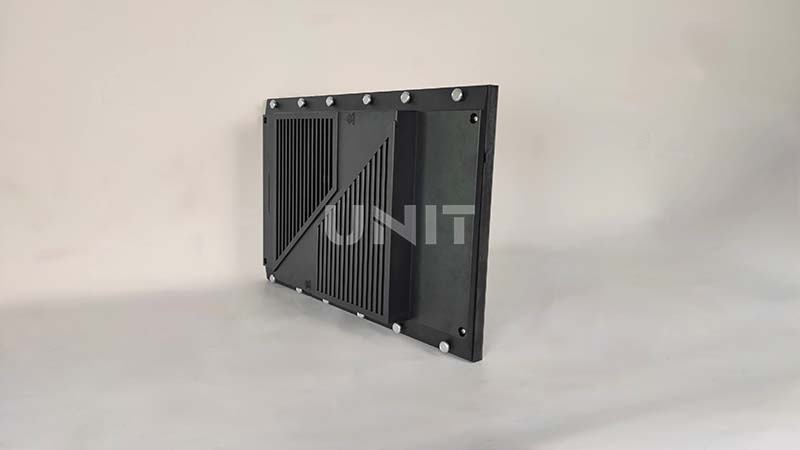

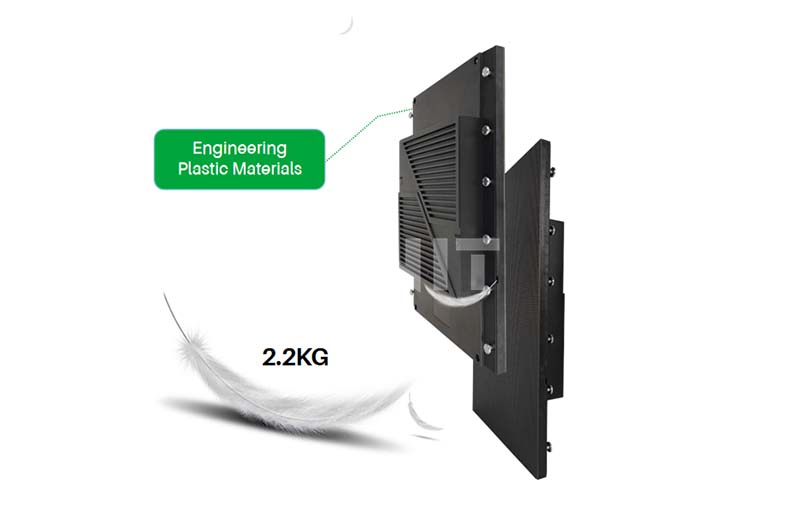

Outstanding Cabinet Design
The IF320 series is made of engineering plastic materials. It has good heat resistance, dimensional stability, and impact strength,
ensuring the flatness and stability of the installation.
The weight of a single cabinet is only 2.2 kg. The product is light and thin, saving transportation and installation costs
Inquiry Now

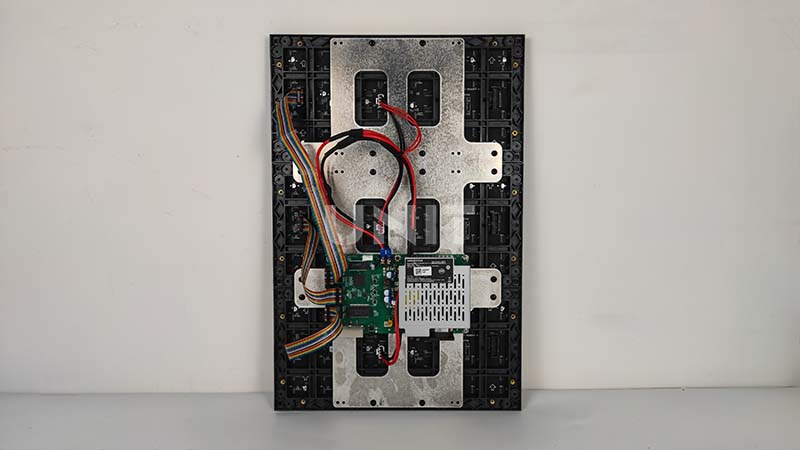

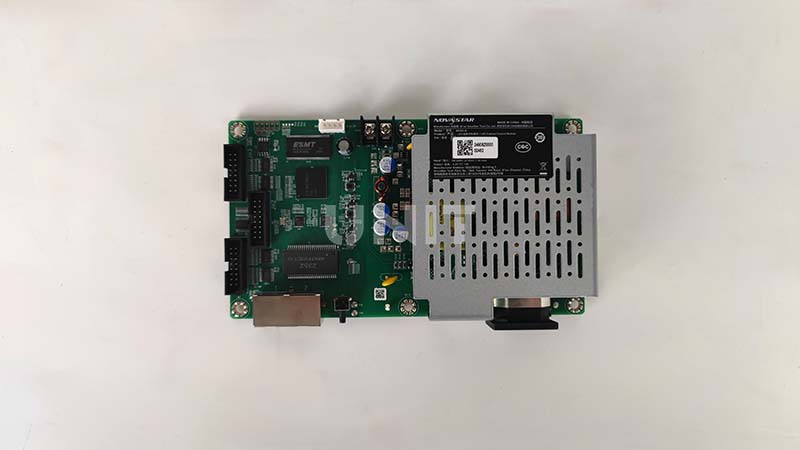

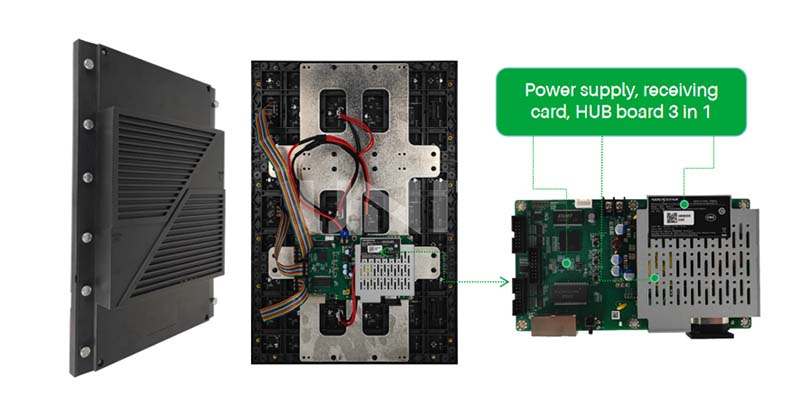

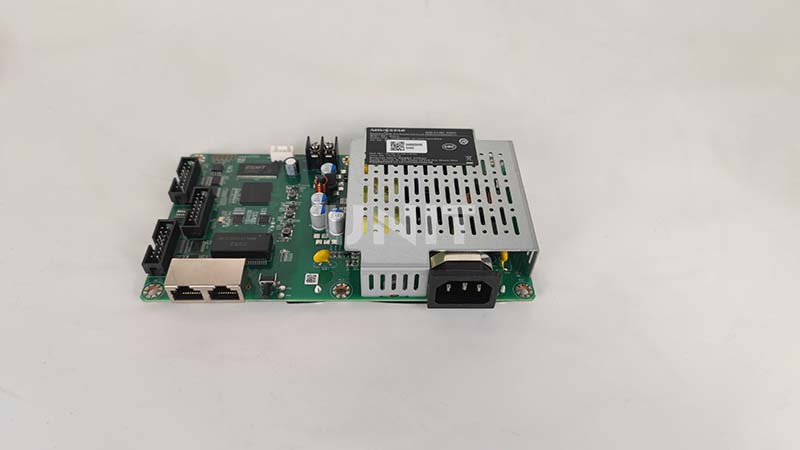

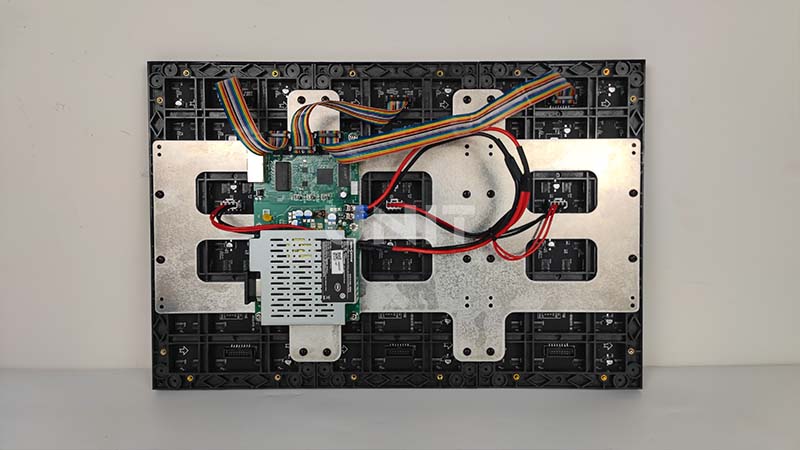

Three-in-one High-Integration Board Design
The power supply, receiving card, and HUB are integrated on a board. It helps to reduce the interface and wire connection between these three modules.
The three-in-one design integrates components and is compatible with multiple pitches, such as P1.5, P1.8, and P2.5.
Inquiry Now

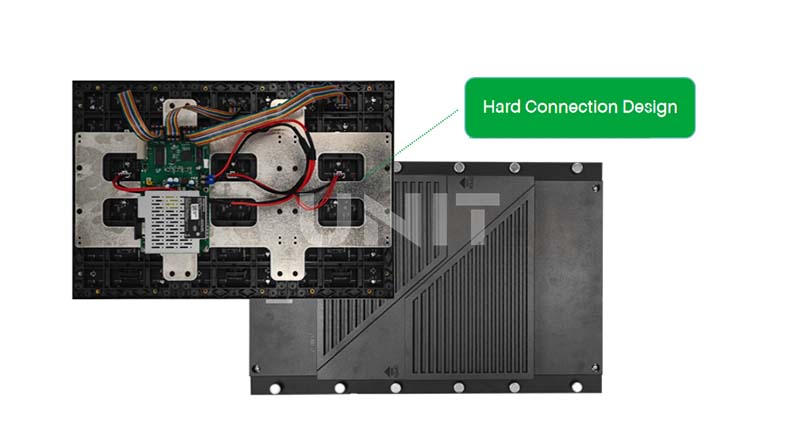

Cable-Free Hard Connection
The IF320 indoor LED display uses a hard connection design. It helps to eliminate loose wiring and improve signal transmission stability.
This not only speeds up installation but also reduces failure rates caused by cable damage.
Inquiry Now
No Assembly Required, Install Directly
The whole machine is shipped from the factory, and you can install it directly. Don’t need to mount the light board on site.
It helps to reduce the steps of bumping the lamp beads and adjusting the gap between the light boards in the cabinet.
Reduce the difficulty of installation and improve the efficiency of installation and maintenance.
Inquiry Now

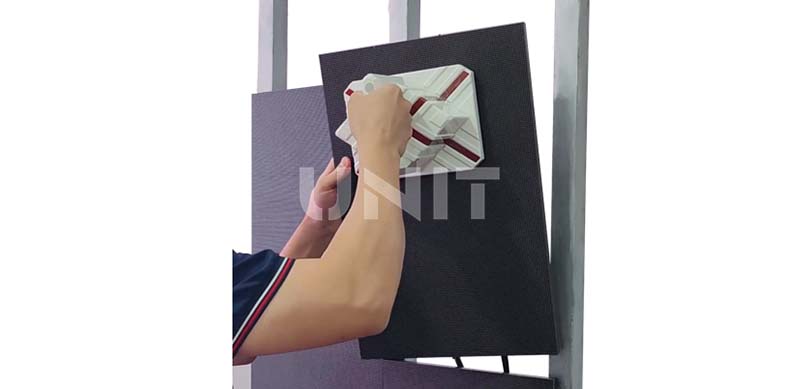

Magnetic Installation
The whole machine is magnetically installed to ensure fast installation and save manpower and time costs.
IF320 supports front maintenance of the whole machine. No additional maintenance channel is required, and assembly and maintenance are simple and convenient.
Inquiry Now

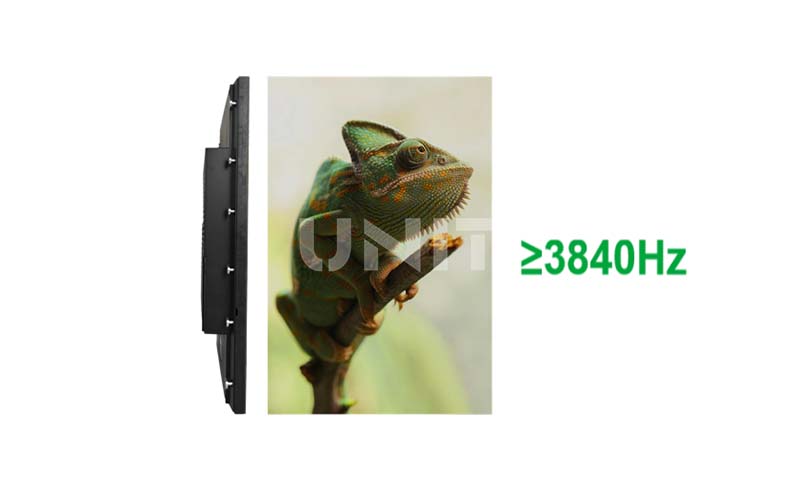

Smooth High-definition Visual Effects
The refresh rate of the IF320 series indoor LED display is ≥3840Hz, and the frame change frequency is 50&60Hz.
Effectively solve the problem of scanning lines for photos. The picture is smooth and has no ghosting.
Inquiry Now
Supports Multiple Functions
Support point-by-point brightness and chromaticity correction, effectively eliminating brightness and chromaticity differences.
With built-in temperature and voltage monitoring, no other peripherals are required, and the working conditions of the screen can be grasped in real time.
Configuration parameters are double-backed up to reduce your after-sales worries
Inquiry Now
IF320 Series More Details
IF320 Series Video Center
https://youtu.be/HCj8I7YJCGUhttps://youtu.be/-w0krwlTBI0https://youtu.be/fCK8j_LQHm4?si=D3T5E1CkR1bQ-_lshttps://youtu.be/uJPQlpfDeX8?si=k2FDVd3Afq3wbUNR
IF320 Indoor LED Display
- 320*480mm Cabinet Standard Size
- Three-in-one High-Integration Board
- Cable-Free Hard Connection
- High-definition Visual Effects
- Supports Magnetic Installation
- CE,Rohs Approved
- 3 Years Warranty and 5% Spare Part
Get Your Price Now
Specification
| Parameters | P1.538 | P1.86 | P2.5 | |
| Physical parameters | LED type | SMD1212 | SMD1515 | SMD2020 |
| Pixel pitch（mm） | P1.538 | 1.86 | P2.5 | |
| Cabinet size (width × height × thickness)/（mm） | 320×480×63 | 320×480×63 | 320×480×63 | |
| Cabinet resolution | 208×312 | 172×258 | 128×192 | |
| Cabinet weight（㎏） | 2.2 | 2.2 | 2.2 | |
| Cabinet material | PC+GF | PC+GF | PC+GF | |
| Module size (width × height)/（mm） | 320×160 | 320×160 | 320×160 | |
| Photoelectric parameters | Brightness（nit） | 600 | 600 | 600 |
| Refresh rate（Hz） | 3840 | 3840 | 3840 | |
| Color temperature（K） | 9000±1000 | 9000±1000 | 9000±1000 | |
| Viewing angle (horizontal / vertical)（°） | 140/140 | 140/140 | 140/140 | |
| Dive mode | Constant current driver IC | |||
| AC working voltage（V） | 100-240 | 100-240 | 100-240 | |
| Power (maximum/average)（W/m²） | 330/108 | 340/113 | 330/110 | |
| Application parameters | Storage temperature（℃） | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating temperature（℃） | ﹣10~﹢40 | ﹣10~﹢40 | ﹣10~﹢40 | |
| Storage humidity（RH） | 10﹪~90﹪ | 10﹪~90﹪ | 10﹪~90﹪ | |
| Operating humidity（RH） | 10﹪~90﹪ | 10﹪~90﹪ | 10﹪~90﹪ | |
| Protection level (front/rear) | IP20/IP21 | IP20/IP21 | IP20/IP21 | |
| LED life（H） | 100000 | 100000 | 100000 | |
| Cabinet maintenance method | Front maintenance | Front maintenance | Front maintenance | |
| Power supply & other maintenance methods | Rear maintenance | Rear maintenance | Front maintenance | |
| Installation method | Front installation | Front installation | Front installation | |
Tech Support
Unit LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
