Bendable LED Screen: Unlock Limitless Display Creativity
Looking for a creative display solution that breaks the limits of traditional screens? A bendable LED screen might be the answer.
From immersive brand storytelling to futuristic display aesthetics, bendable LED technology is becoming the go-to choice for projects that require flexibility without compromising brightness, resolution, or durability.
This article will be your ultimate guide to creating an immersive curved LED screen! Follow us and enter the world of creative LED displays!
Click Here to Jump!
1. What Is a Bendable LED Screen?
2. Key Features & Advantages of LED Bendable Screens
3. Popular Applications of Bendable LED Screen
4. Types of Curved Bendable LED Displays
5. How to Make a Curved LED Display?
6. How to Choose the Right Bendable LED Screen?
As digital signage evolves, the demand for more flexible, eye-catching, and space-efficient display solutions is rising.
Unlike rigid flat panels, bendable LED screens offer a revolutionary way to present content on curved, wavy, or even cylindrical surfaces.
Whether it’s for a stage backdrop, a retail installation, or an architectural feature, bendable LED screens empower designers and integrators to bring bold ideas to life.
1.What Is a Bendable LED Screen?
(1) Definition of Bendable LED Screen
A bendable LED display, often referred to as a flexible LED display, is a display that can be physically bent, twisted, or wrapped around non-flat surfaces.
While both terms are similar, “bendable” usually highlights the screen’s ability to form more extreme curves without affecting image quality. Such as cylindrical shapes or S-curved LED display.
In contrast, “flexible” may also refer to screens that offer slight curvature or installation flexibility.
https://youtu.be/TjZsSblMjpA
(2) Core Components and Structure
The flexibility of a bendable LED display comes from its soft LED modules, which are built using flexible printed circuit boards (FPCBs) and rubber-based materials.
These panels are:
-Ultra-thin and lightweight
-Highly adaptable
-Often equipped with magnetic or snap-on systems for fast mounting
This construction allows the screen to conform to both concave and convex surfaces with ease.
(3) Curvature Possibilities
Bendable LED screens are capable of achieving a wide range of creative forms, including:
–Curved LED display or ceilings
-Wrapped columns or pillars

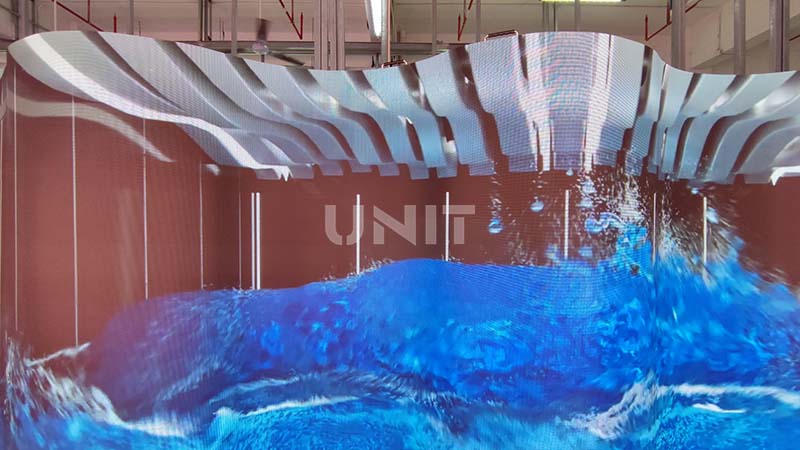

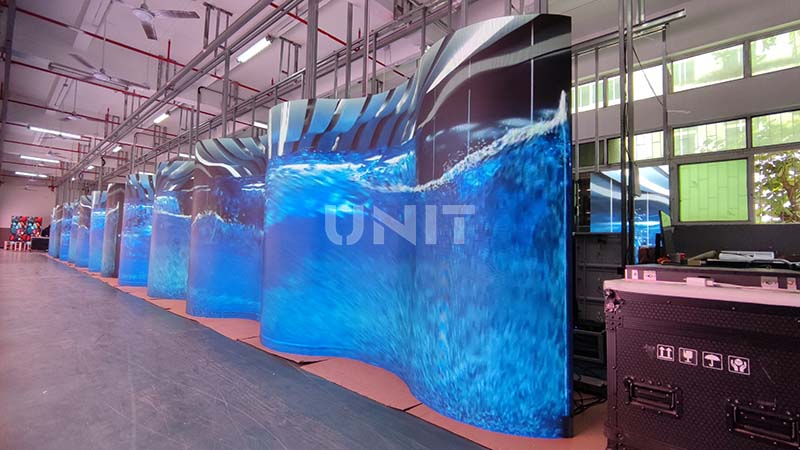

-Wave-like installations or S-shaped structures
-360-degree cylindrical displays
Despite their flexibility, these displays deliver stable image quality, vivid colors, and seamless splicing between modules.
Whether used for stage design, exhibition booths, or architectural integration, bendable LED screens empower creators to go beyond flat surfaces and explore truly immersive digital environments.
2. Key Features & Advantages of LED Bendable Screens
(1) Ultra-Flexibility
Bendable LED screens can adapt to tight curvature radii, allowing them to wrap around columns, archways, and even form wave or spiral shapes.
Whether it’s concave, convex, or S-shaped, the soft LED panel can be molded into virtually any form without pixel distortion or damage.
(2) Lightweight & Thin
Thanks to their lightweight and ultra-slim design, bendable LED screens are ideal for curved structures or installations where space is limited.
Unlike traditional displays, these lightweight LED screens reduce load on supporting frames and are easier to transport and mount.
(3) Creative Freedom
Whether you’re designing a futuristic retail space or an immersive exhibition, a flexible LED display gives you complete creative control.
You can shape the screen to match your brand identity, architecture, or artistic vision—something flat screens simply can’t achieve.
(4) Easy Installation
Modular and magnet-based systems make bendable LED screens quick to deploy.
The soft LED panels can be connected seamlessly, allowing for tool-free, fast setup and maintenance—even on complex or irregular surfaces.
(5) High Brightness & Resolution
Despite their flexibility, these soft LED displays maintain vivid brightness, high contrast, and sharp resolution, ensuring impactful visuals in any lighting environment.
From close-up viewing to long-distance visibility, the performance is consistent.
(6) Durable & Reliable
Bendable LED displays are engineered for long-term use.
With robust materials and tested bending capabilities, they are built to withstand frequent handling, structural stress, and continuous operation in various environments.
Whether for artistic architecture or interactive installations, bendable LED screen offers unmatched adaptability and performance, making them the future of creative LED signage.
3. Popular Applications of Bendable LED Screen
The unique formability of bendable LED screen makes it a popular choice across industries.
Below are some standout application scenarios:
(1) Curved LED Screen for Shopping Malls
Wrap LED displays around pillars or circular columns to create engaging content zones in high-traffic retail environments
Curved LED screens for malls enhance brand exposure without consuming floor space.

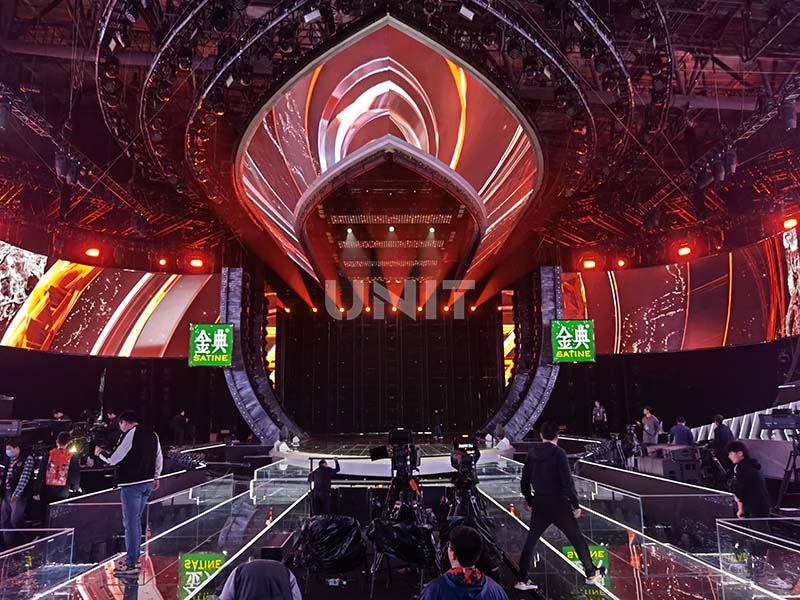

(2) Flexible LED Display for Stage Design
Transform stages with immersive flexible LED displays that curve behind performers or create dynamic, layered visual effects.
Ideal for concerts, live shows, and events seeking a futuristic vibe.
(3) Architectural Facades & Building Exteriors
Bring life to modern architecture by installing bendable LED screen on curved building facades or entrance arches.
The result is a powerful blend of digital media and architectural design.

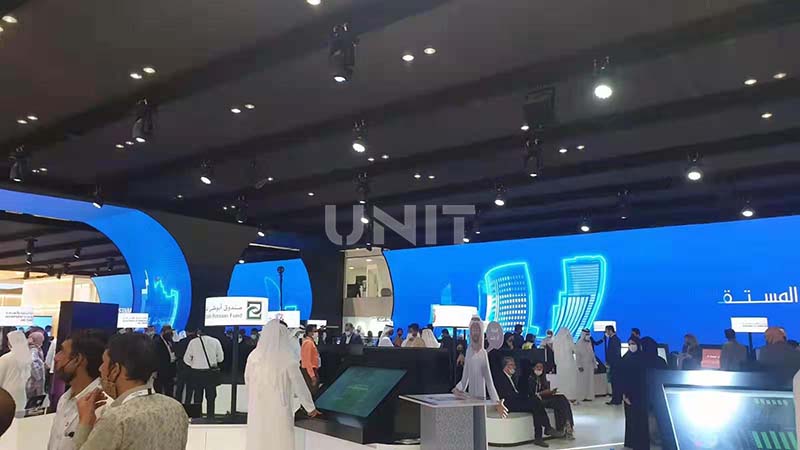

(4) Exhibition Booths & Art Installations
Create eye-catching LED sculptures or interactive installations for exhibitions, museums, or brand experiences.
The flexibility supports any design, from minimalist curves to bold 3D shapes.
(5) Vehicle & Creative Surface Displays
Use bendable LED panels on automotive bodies, trailers, or moving structures for advertising on the go or promotional campaigns with a wow factor.
(6) Retail & Museum Environments
Shape LED screens into curved product walls, circular info zones, or ambient storytelling screens.
Perfect for museums, tech showrooms, or immersive retail spaces.
With limitless design potential and seamless integration into diverse environments, bendable LED screens redefine what’s possible in creative LED signage.
4. Types of Curved Bendable LED Displays
Bendable LED screens come in various forms to meet different design needs.
Whether you’re building a seamless curved wall or a fully immersive 3D installation, understanding the main types of curved displays helps you choose the right solution.
(1) Convex (Outer-Curved) LED Display
A convex LED screen curves outward like the surface of a cylinder.
It is often used on building exteriors, pillars, or stage backgrounds to attract attention and enhance spatial depth.
The outward curve offers excellent viewing angles for large crowds.
https://youtu.be/JLN4efdSwhc

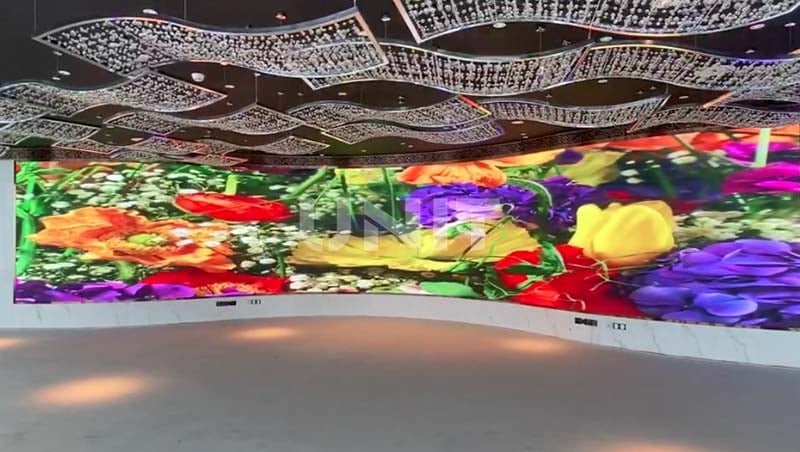

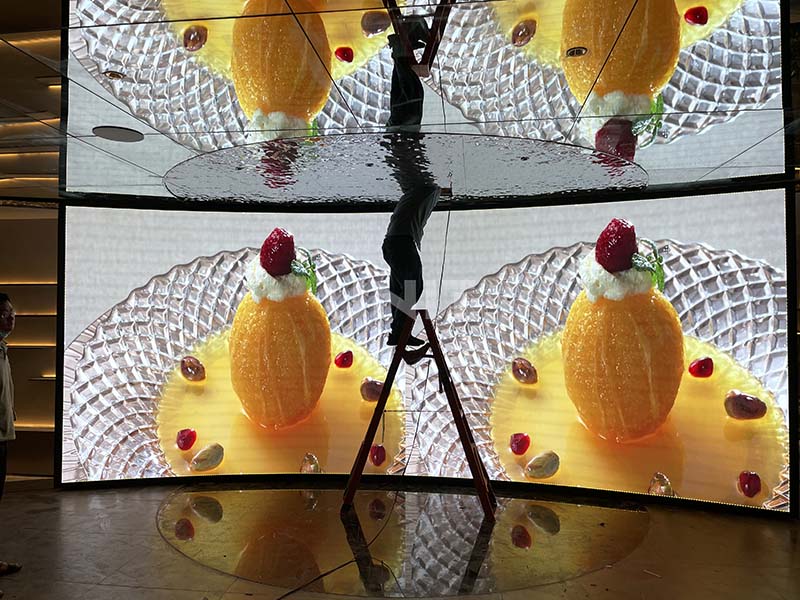

(2) Concave (Inner-Curved) LED Display
Concave LED displays bend inward, creating a wraparound visual effect.
These are ideal for immersive experience zones, command centers, or museum exhibits, where viewers are surrounded by dynamic content on all sides.
https://youtu.be/slZTpzB5jfg

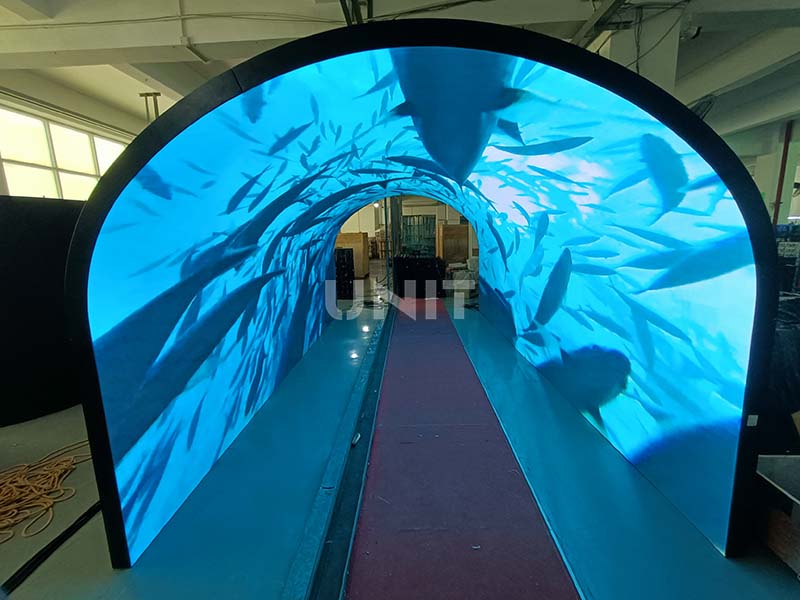

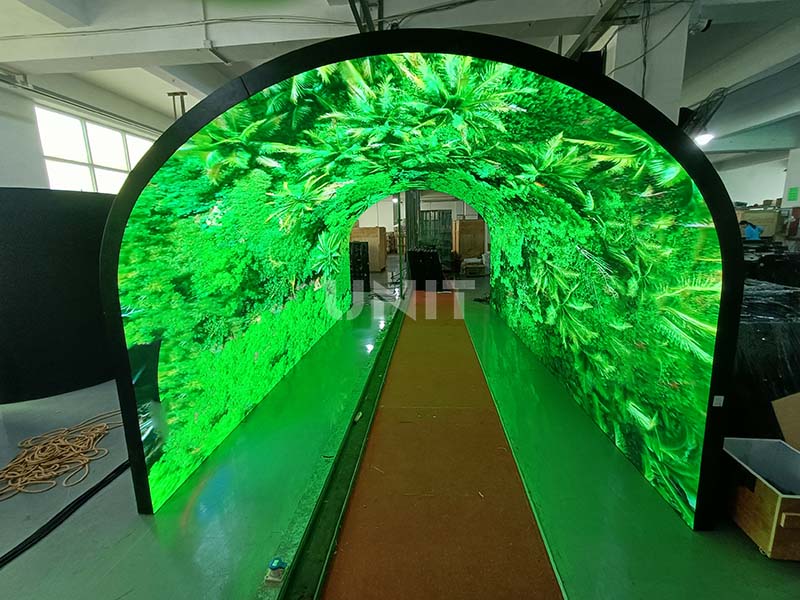

(3) Creative-Shaped LED Screens
Bendable LED technology allows for custom creative LED screens with unique shapes beyond flat or curved forms:

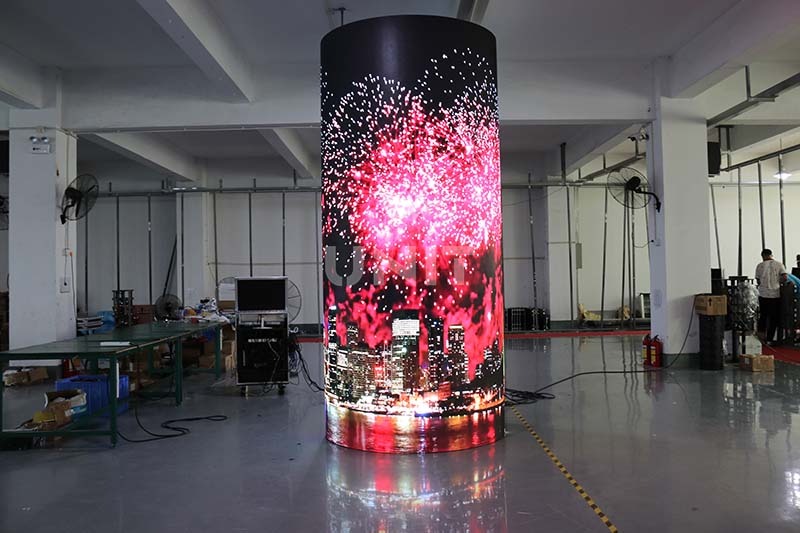

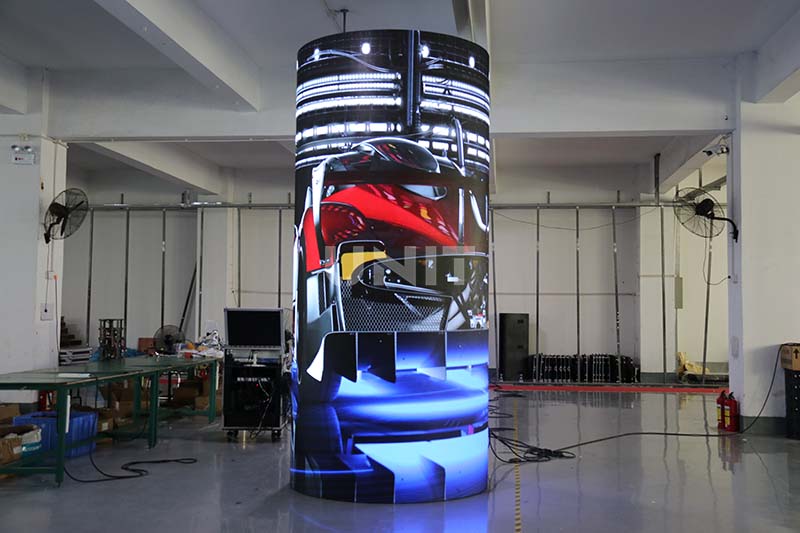

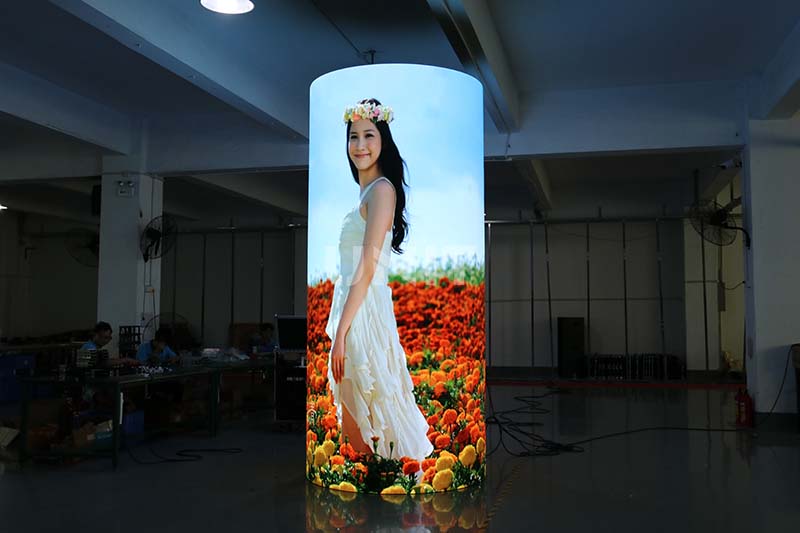

Cylindrical LED Displays
Fully wraparound cylindrical LED screens are common in mall atriums, corporate lobbies, or transportation hubs, offering 360-degree visibility.
Spherical LED Displays
A sphere-shaped LED screen displays content in all directions.
It is often used for science museums, tech showcases, or as a digital art installation.
These creative flexbible LED screens help brands stand out and leave lasting impressions.

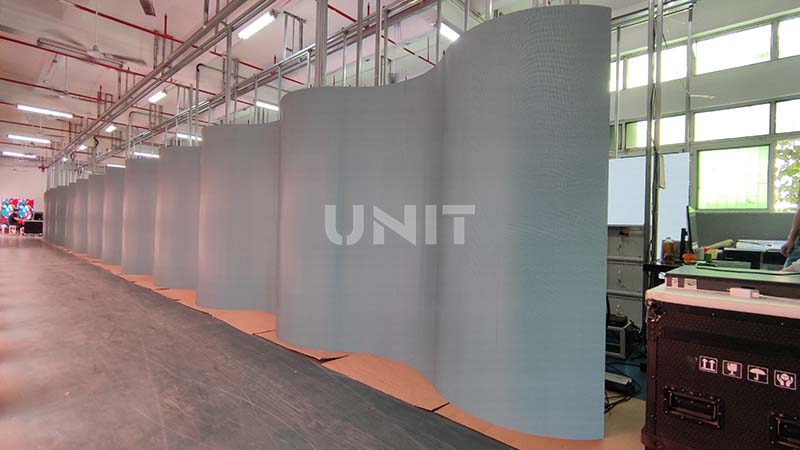

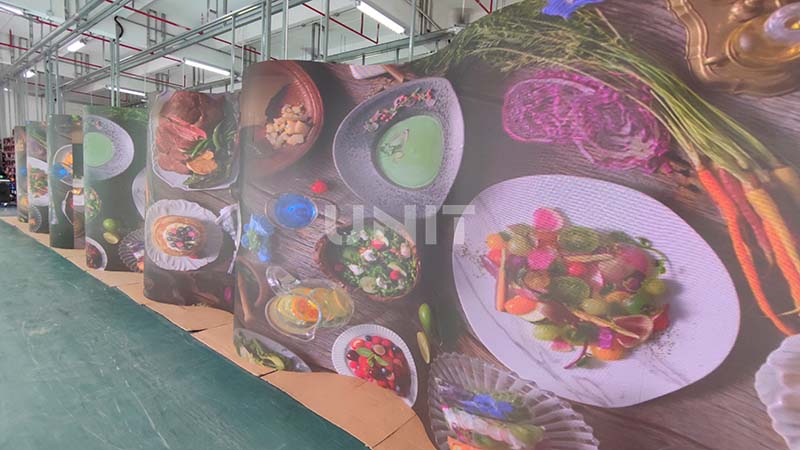

(4) Multi-Faceted Arc LED Screens
Instead of a smooth curve, these displays are built using several flat panels angled slightly to form a segmented arc.
This approach offers a cost-effective solution for curved applications while maintaining a visually continuous flow.
It’s often seen in event booths and exhibition displays.
(5) 3D Curved LED Display
A 3D curved LED display uses curved surfaces and advanced visuals to create a naked-eye 3D effect.
Naked-eye 3D LED billboards are typically installed on building corners or landmarks, making digital content appear to “pop out” in real space.
Perfect for high-impact advertising, this is currently one of the most attention-grabbing uses of bendable LED technology.
From subtle curves to bold architectural features, each type of curved bendable LED display offers new possibilities for storytelling, branding, and space transformation.
5. How to Make a Curved LED Display?

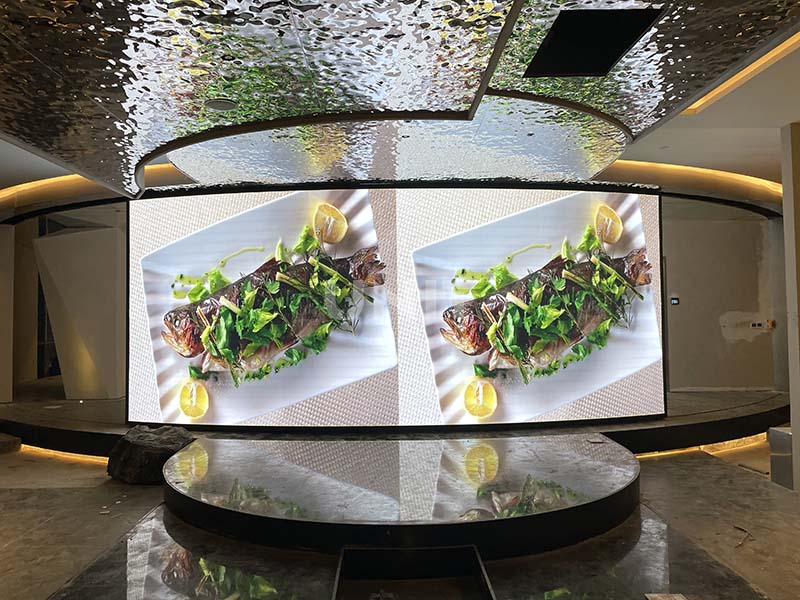

(1) Conventional LED Module
The LED hard module cannot be bent and is suitable for making an inner curved screen with a small angle.
Determine the size of the inner curvature, then make a steel frame or curved box as needed, and then paste the LED hard module on it.
The direction of pasting the board is horizontal or vertical according to the size of the curvature.
Horizontal pasting may result in large joints and uneven curvature of the screen, so hard modules cannot be used for large curvature occasions.
Therefore, in order to ensure that the curvature is as smooth as possible, vertical LED modules can be used, which will achieve better surface smoothness and be easy to assemble into large curvature LED display.
Outdoor Curved LED Display for 3D Billboard
This solution is often used to create naked-eye 3D visual effects on large-scale building facades, especially at intersections or corners.
How it works:
Cabinet Customization
Instead of using flexible LED modules, this method uses custom-angled cabinets to form a smooth convex or concave surface.
Each cabinet may have a slightly different angle to support the overall curve.
Rigid but Seamless
The modules are still rigid, but the installation layout creates a curved appearance.
It’s ideal for outdoor permanent installations where weatherproofing and brightness are critical.
Best for: Large outdoor advertising, building corners, immersive urban installations
EV960 series curved LED display for 3D billboard
EV960 Series
High Protection Aluminum Chassis Panel
Energy Saving LED Display
Advanced Heat Dissipation System
Standard Size Cabinet With 960*960mm
480mm*320mm Module Size
Easy to Install and Disassemble
Learn More!

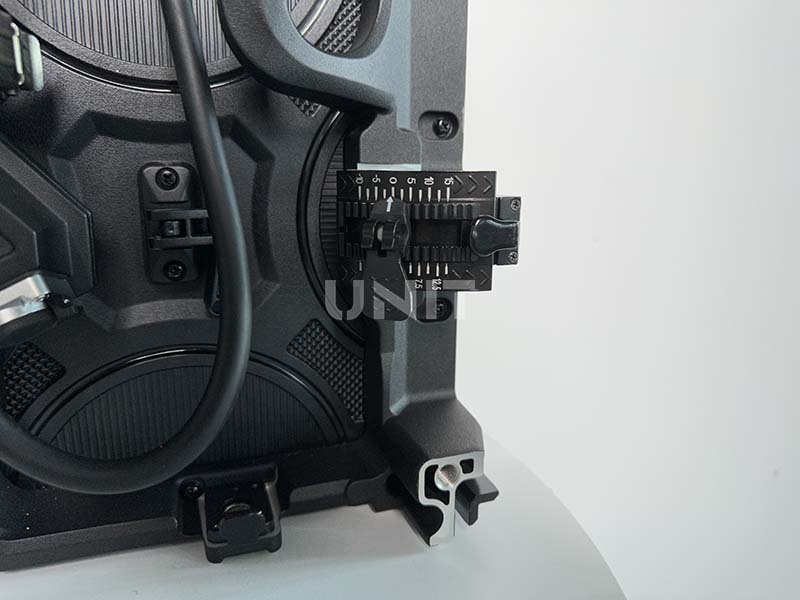

Rental LED Display with Curved LED Lock
This is a popular choice for temporary events, concerts, and stage backgrounds where quick setup and flexibility are key.
How it works:

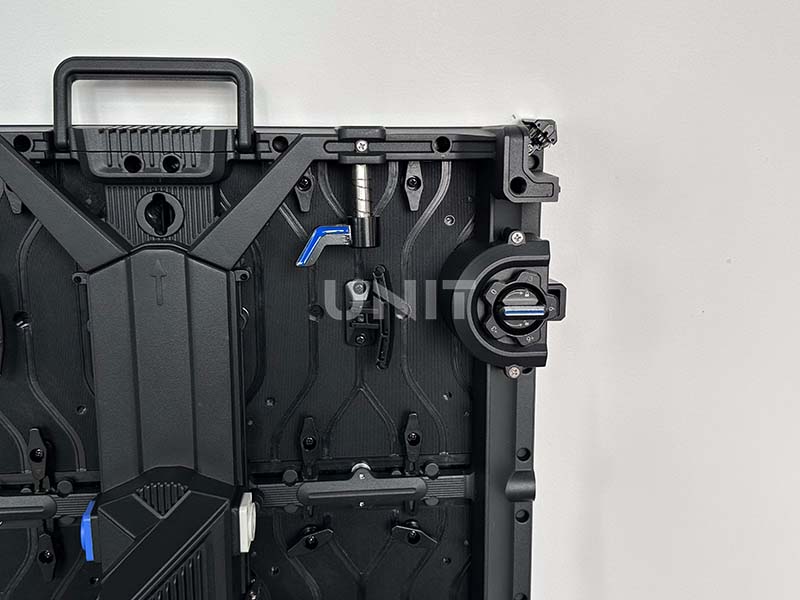

Curved Lock System
These rental LED cabinets are equipped with curved locking mechanisms that allow the user to manually adjust the angle between panels, typically ranging from -10° (concave) to +10° (convex).
No Need for Soft Modules
Even though the screen is made of standard hard modules, the curved locks allow for a flexible structure, enabling the screen to wrap around shapes or form a curved backdrop.
Quick Assembly
Designed for fast setup and takedown, making it perfect for rental environments.
Best for: Stage events, trade shows, dynamic performance backgrounds
https://youtu.be/SkB0hX6yGM0
MX Series
500*500mm & 500*1000mm Cabinet
≥3840 Hz Stunning Visual Effect
Die-cast Aluminum Rental Cabinet
Supports Curved Installation (Optional)
Versatile Installation Options
IP65 Weatherproof for Outdoors
Learn More!

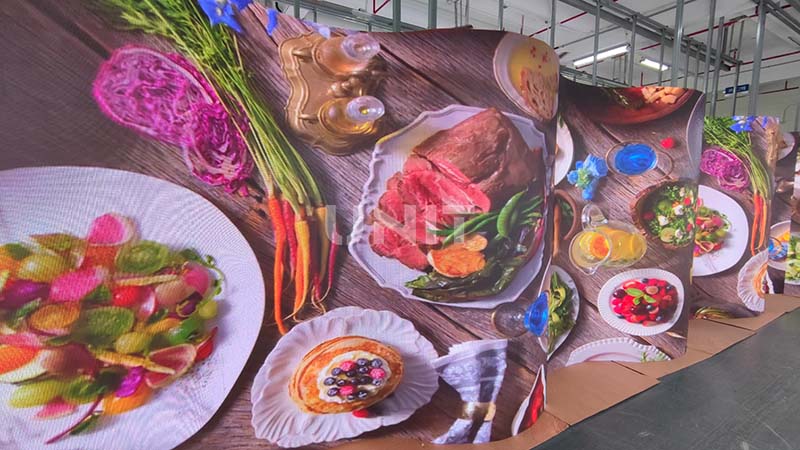

(2) LED Soft Module
If you want to make an outer curved shape, you cannot use conventional LED hard modules, but soft modules can be used.
Soft modules are flexible LED screen modules that can be freely bent and spliced as needed, including curved, circular and even wavy shapes.
This method has the advantages of flexible production and diversified shapes, and can provide a coherent and smooth visual experience.
It is especially suitable for surround or form-fitting display scenes, and can then meet the exhibition hall’s needs for innovative and unique display effects.
(3) Which One is More Cost-effective?
In terms of product stability, the hard module is more durable, and the connection method of the hard module is safer and more reliable, and is not prone to leakage and other problems.
The soft film material and related packaging materials in the soft film group may be affected by environmental factors (such as temperature changes, ultraviolet radiation, etc.) during long-term use and gradually age.
This leads to reduced flexibility, reduced transparency, or discoloration of the soft film.
Under the same area, there is no obvious difference between the soft and hard modules in terms of pixel density, brightness, and color performance.
However, the price of the soft module LED display is much more expensive than that of the hard module.
For customers who pursue display effects and personalization, the soft module is preferred.
If it is a regular commercial plaza, building exterior wall, conference hall, exhibition hall, shopping mall and other occasions, it is better to use a traditional hard module LED display.
6. How to Choose the Right Bendable LED Screen?
Need to wrap your LED screen around a 90-degree corner? Planning a suspended curved display for an exhibition hall?
Choosing the right bendable LED screen starts with understanding your project’s unique needs.
(1) Installation Environment
Indoor or outdoor? Fixed or hanging installation?
Outdoor setups require weatherproofing, high brightness, and robust cabinets, while indoor applications prioritize lightweight and aesthetic flexibility.
(2) Curvature Radius
What’s the desired curve? A tight radius requires softer LED panels, while broader curves may be achieved with segmented cabinets or adjustable curved locks.
(3) Resolution & Viewing Distance
A smaller pixel pitch offers sharper images at close range.
For large, long-distance visuals, P4 or above may be sufficient. Choose the right resolution to balance visual clarity and budget.
(4) Control System Compatibility
Ensure your display is compatible with mainstream LED control systems for seamless content playback, 3D effects, or live synchronization.
(5) Technical Support
Reliable manufacturers offer pre-sale consultation, installation guidance, and after-sales support, critical for complex curved structures.
The more customized your screen, the more important it is to work with an experienced LED supplier who understands your needs.
7. Why Choose UNIT LED?
At UNIT LED, we specialize in providing custom bendable LED display solutions backed by real engineering expertise.
In-House Manufacturing
We own our LED screen factory, ensuring strict quality control and competitive prices.
Custom Design Capability
From S-shaped soft modules to 360° cylindrical displays, we support tailor-made solutions for your creative vision.
https://www.youtube.com/watch?v=j3dA90joOfQhttps://youtu.be/kSmYhTc7ovg
Fast Delivery & Full Support
With a dedicated project team, we offer:
-3D design & technical consulting
-Fast production & delivery
-Installation guidance & after-sales service
Trusted by 100+ Global Clients
Our screens light up malls, museums, concert halls, and buildings in over 100 countries—from Dubai to Los Angeles.
With years of LED industry experience, we’re not just a supplier—we’re your display partner.
8. Conclusion
As the demand for creative and immersive digital displays continues to grow, bendable LED screens are quickly becoming a go-to solution for brands and designers worldwide.
Their unmatched flexibility, lightweight design, and ability to fit any custom structure make them ideal for everything from curved LED screens for malls to flexible LED displays for stages and exhibitions.
Whether you’re looking to wrap content around a pillar, create an S-shaped video wall, or build a 3D LED billboard, a soft LED panel opens up endless possibilities.
Ready to transform your vision into a stunning visual experience? Contact UNIT LED today and explore how our bendable LED screen solutions can bring your ideas to life!
