Indoor 4k LED Video Wall to South Africa
The indoor 4k LED video wall has clear picture quality and high brightness. More and more customers choose indoor small-pitch LED displays to replace LCDs or TVs to obtain a larger display screen and a more vivid viewing experience. With the gradual maturity of LED display technology, high-resolution LED displays with excellent quality can fully meet people’s needs.
Therefore, LED display screens have gradually entered people’s homes from major shopping malls, activity centers, stages, and other fields. And, indoor 4k LED display has gradually become a new choice for people to play movies or TV shows in their homes or private theaters
Today we bring you the latest case of the UNIT N43 series fine pixel pitch led display. N43 series small pixel pitch LED display screen has a high resolution, high contrast, and high brightness. More and more families are pursuing large indoor screens. But the traditional TV size cannot meet their demand. Under this premise, the indoor 4k LED display has gradually become the new favorite of more homes and private theaters. With its modular advantages and ultra-high-definition picture quality, it is hot. Next, let’s experience its charm together!

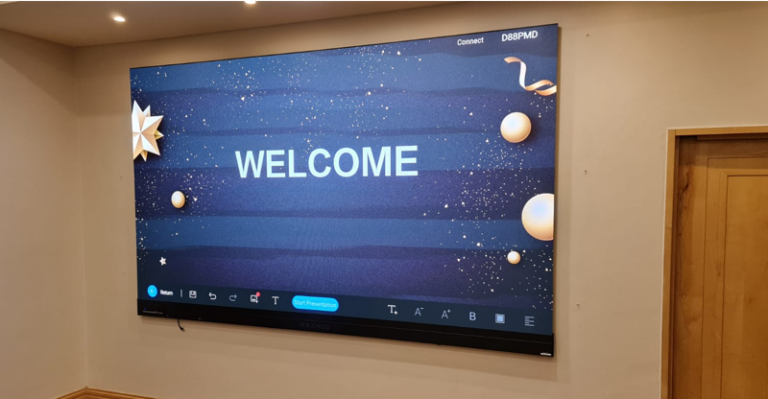

Indoor 4k LED Video Wall to South Africa

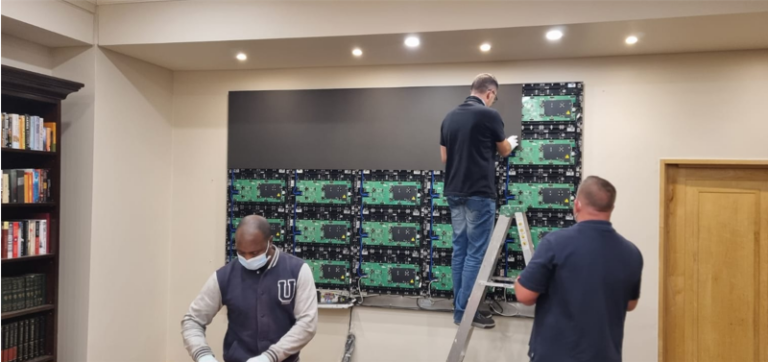

A customer from South Africa chose to build a LED video wall at home. Below are some details of this case.
- Installation Country: South Africa
- Product: N43 Series fine pixel LED display

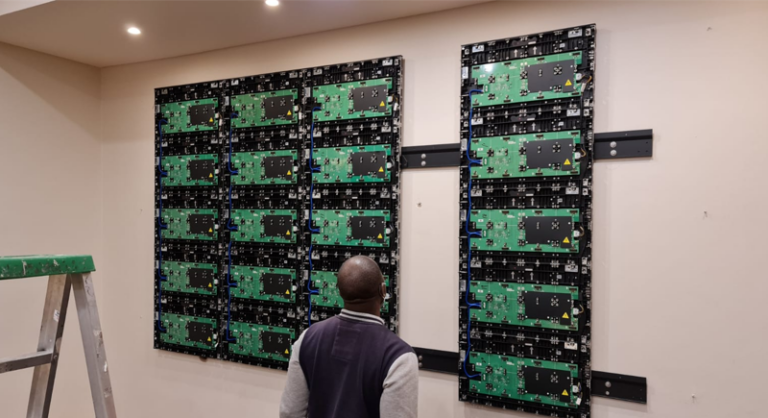

- Pixel Pitch: P1.667mm / 4K
- Pixel Configuration: SMD1010
- Module Dimension: 200*150mm
- Module Resolution: 120*90dots
- Refresh Rate: 3840Hz
- Cabinet Material: Die-Casting Aluminum
- Installation Method: Fixed installation
N43 Fine Pixel LED display-4K LED Video Wall
With a smaller pixel pitch and high-quality lamp beads, an indoor 4k LED video wall is a good choice for movie theaters, and cinemas (commercial or home use). It can bring you reliable and stable display performance. Next, allow us to introduce UNIT’s HD LED display-N43 series to you.
1. 4:3 LED Screen Cabinet

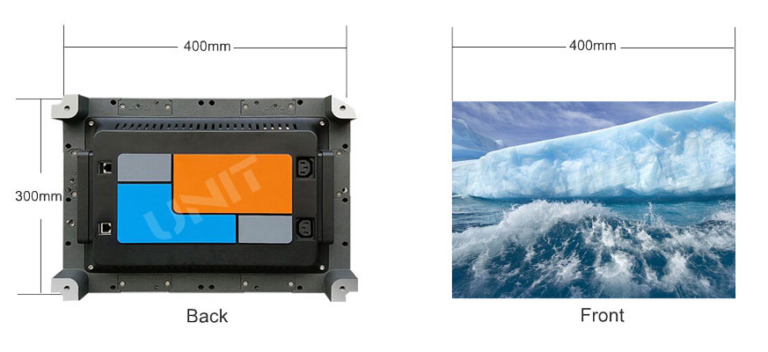

The box size of the N43 series fine pixel pitch LED display is 400×300×80mm. The 4:3 cabinet allows you to easily get a 16:9 large screen. Its single box weighs only 5.85kg. The lightweight box is convenient for transportation and installation while saving your costs.
2. High Definition Quality
Exquisite display effects are inseparable from the support of high-quality components. N43 series indoor fixed 4K LED video wall adopts high-quality SMD1010 light. The high-quality lamp beads use a black body structure and black lampshade to achieve a high contrast ratio of 3000:1 and a more vivid image. We provide solutions for various control systems, including Novastar, Colorlight, Linsn, etc.
3. Modular design
LED displays with a modular design have a significant advantage. You can combine multiple units to get a giant screen. You can achieve it with our N43 series line spacing LED displays. At the same time, the modular design also facilitates the inspection and replacement of bad modules.
4. HDR Version of 4k LED video wall
HDR means High Dynamic Range. 4k led video wall has HDR version. The colors it presents are more vivid, and the objects in the picture are clearer. With the help of HDR, an image processing technology, 4K led display screens to present more realistic images and video content.
5. Easy to maintain
The frontal service cabinet is easy to install and maintain. When you are installing the display, you can install the frame first, and then assemble the module to the frame. If the module fails, remove it directly from the front for inspection and replacement. The cabinet adopts a seamless splicing design, and the internal lines are simple. Compared with the LCD screen, which has obvious splicing gaps, the LED display has the perfect advantage of the integrity of the picture.
Specification of UNIT 4K LED Video Wall
| Pixel Pitch | 1.25mm | 1.56mm | 1.667mm | 1.923mm | 2.5mm |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pixel Density | 640000 | 409600 | 360000 | 270400 | 160000 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 |
| MAX Power Con | 680w/Sq.m | 640w/Sq.m | 620w/Sq.m | 600w/Sq.m | 580w/Sq.m |
| AVG Power Con | 350w/sq.m320w/sq.m | 320w/sq.m | 300w/sq.m | 280w/sq.m | 260w/sq.m |
| Module Dimension | 200x150mm | 200x150mm | 200x150mm | 200x150mm | 200x150mm |
| Module Resolution | 160×120 dots | 128×96 dots | 120×90 dots | 104×78 dots | 80×60 dots |
| Cabinet Dimension | 400x300x77mm | ||||
| Cabinet Resolution | 320×240 dots | 256×192 dots | 240×180 dots | 208x156dots | 160x120dots |
| Cabinet Weight | 5.85kg | ||||
| Service Access | Front | ||||
| Rotation Angle | -10° and +10° | ||||
| Brightness (nits) | ≥1000 | ||||
| Refresh Rate (HZ) | 3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160 / 160 | ||||
| IP Rate | IP54 | ||||
| Input Voltage (AC) | 110 / 240V | ||||
In this article, we bring you the latest case about an indoor 4k LED video wall. Then we show you some features of the N43 series fine pixel pitch LED display. If you are interested in our products, contact us!
