3D LED Display Screen Solution
UNIT 3D LED Display Solution
Looking for the Best 3D LED display screen solution? Here it is！
1. What is 3D LED display Screen?
2. Application of 3D LED Display

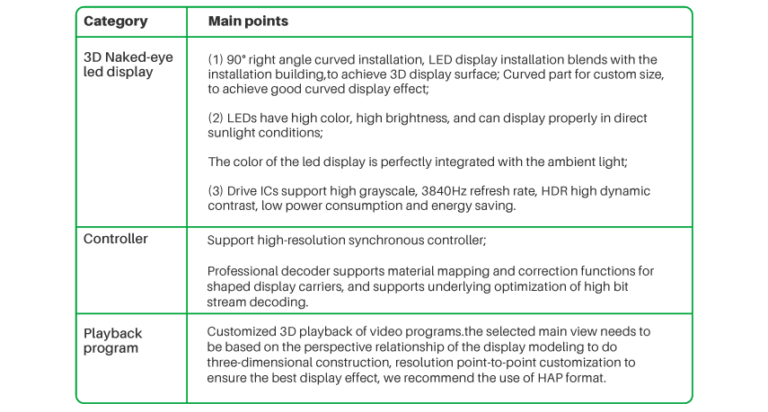

4. What can UNIT LED team bring to you?
5. What information do we need?
1. What is 3D LED display screen?
Naked-Eye 3D LED Displays & 3D LED Billboard are three-dimensional displays that do not require any glasses or extra equipment to view the 3D image. Viewers can see the three-dimensional image with their naked eyes without needing to wear glasses.
Naked-Eye 3D LED Display is designed with multi-view technology
Break its physical space on the basis of ordinary LED display carrier, give the audience an unexpected visual impact The naked eye 3D effect is formed through the principle of two-point perspective of the human eye.
2. Application of 3D LED Display
Naked-eye 3D LED display screen size
Indoor: Above 3sqm
Outdoor: At least 100sqm, height from the ground at the bottom should not be more than 10m
3.Our Solution
4. What can UNIT LED team bring to you?
EV960 VR Outdoor LED Display
- Compatible with P6.67 – 10 pitch.
- 3D Cabinet size is 120×960mm Support front and rear
- maintenance, easy and convenient operation
- Module waterproof design, front and rear waterproof grade IP66 Brightness is 6000-10000 cd/m²,
- the picture is clearly visible under direct sunlight.

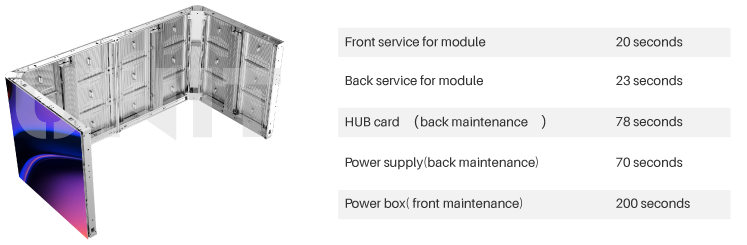

EV960 3D LED Panel
- Curved LED display, allowing seamless splicing;
- Standard size cabinet with 960*960mm dimension;
- Super quick installation and maintenance;
- High Protection Aluminum Chassis Panel Design.
Saving Power
The CCES technology and dual voltage output can save more power consumption, thus saving your electricity cost.
Saving space

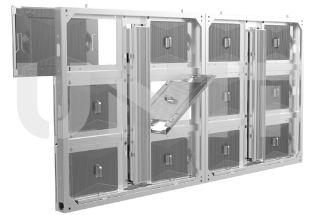

Dual services avaliable, EV960 3D LED panels support real maintenance that does not need back room.And more installation methods supported such as wall-mounting method.
Saving maintenance cost
High protection ability includes waterproof and fireproof ability (TUV certificates and IP66 certificates).
You can also be benefit from the easy maintenance and installation design.
Saving installation cost

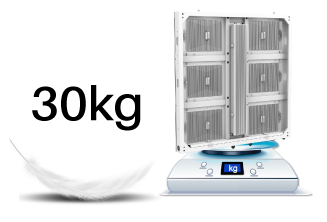

With weight of only 30kg/sqm and depth of only 75mm, the cabinet can save you more transportation costs by needing less room.
Moreover, the weight is only 30Kg/sqm and the thickness only 75mm, meaning you only need less labors to install or disassembly this screen.

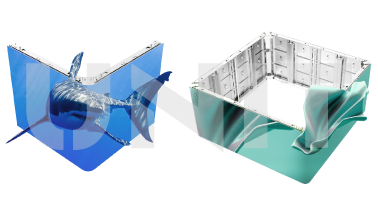

Sleamless Splicing
Seamless splicing, die-casting aluminum modules achieve seamless splicing and high flatness, and LED displays have no gaps, which brings higher quality visual effects for your naked-eye 3D applications

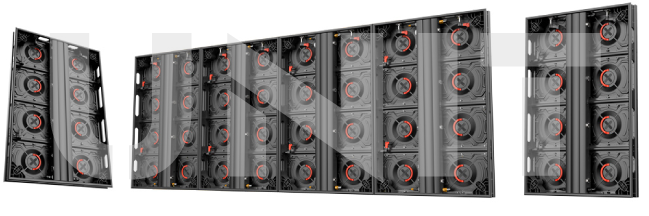

OF800 VR Series Outdoor LED Display
- Compatible with P4.16/P5.0/P6.25/P8.33/P10mm;
- Module size is 50×300mm, 3D Cabinet size is 450×1200mm ;
- Support front and rear maintenance, easy and convenient operation;
- Module waterproof design, front and rear waterproof grade IP65;
- Module is adjustable, small seam, good curved display effect;
- Brightness is 6000-6500cd/m², the picture is clearly visible under direct sunlight.

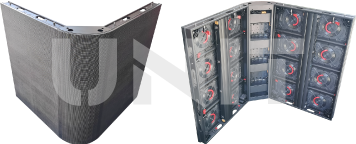

OF800 Curved LED Display Screen
- Curved LED display, allowing seamless splicing;
- Energy-saving ability, saving your electricity cost;
- Unique Cabinet Design with 800×900mm and 800×1200mm ;
- Front service design for easy install and disassemble.

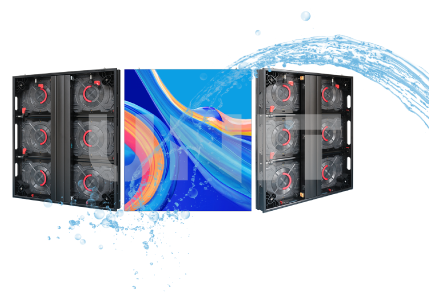

High waterproof ability
IP65 waterproof design with module level. Both frontal and back protection ability can reach IP65.

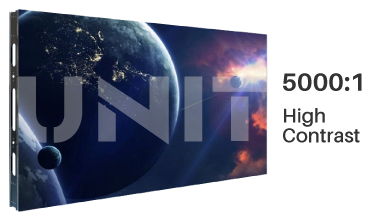

Great visual performance
High brightness level, high definition LED panel, high contrast ratio of 5000:1, and stable performances.
Dual services supported
The maintenance can be fast and easy just with a simple maintenance tool.
You can easily finish the installation, and for a large 3D outdoor LED display, it can save you huge energy no doubt.
Energy-saving
Saves up to 30% electricity power compared with traditional display
Sleamless Splicing
Seamless splicing, die-casting aluminum modules achieve seamless splicing and high flatness, and LED displays have no gaps, which brings higher quality visual effects for your naked-eye 3D applications

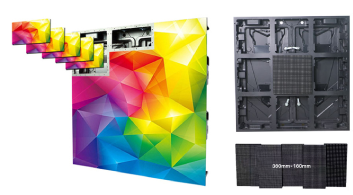

MA960 Series Outdoor LED Display
- Compatible with P4 – 5 – 6.67 pitch.
- Module size is 80×160mm ; 3D Cabinet size is 720-800-960*960mm
- Support rear maintenance, easy and convenient operation
- Module waterproof design, front and rear waterproof grade IP65 Brightness is 6000-10000 cd/m²,
- the picture is clearly visible under direct sunlight.
MA960 Series 3D LED Display
- Curved LED display, allowing seamless splicing;
- Standard size cabinet with 960*960mm dimension;
- Super quick installation and maintenance;
- High Protection Aluminum Chassis Panel Design.
LED Module for Rear Service
960X960mm LED Cabinet Size Supports 320x320mm & 360x160mm front & rear service LED Module.
Ultra low heat and has excellent performance in improving energy efficiency and environment protection
Saving power
The power supply scheme powered by R and GB separately effectively reduces power consumption and greatly reduces the heat generated during display operation.
Energy Saving >50% Desgin

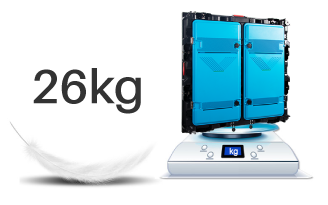

Ultra Lightweight Cabinet
High precision aluminum cabinet frame make seamless splicing image and video display, offering you the perfect visual experience you desire from any angles. The picture quality confronts viewers with an entirely new sensory experience.
Seamless Splicing
Equipped with unique lock, the position of each cabinet can be precisely adjusted from Six directions, left or right, up or down, front or back,so every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultraflat and seamless cabinet alignment.

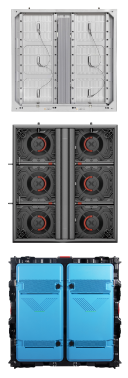

- Structural diagram of the screen (Flat and corner)
- Specifications (Such pixel pitch, screen resolution)
- The length of ABCDF in the figure
- Viewing position photos of videos
- Products and IP roles provide threee-dimension models, etc
- Creative ideas of the video content
- Video content at least 15 seconds
For more information about the 3D LED display screen, please feel free to contact our sales manager or technician, we will make the best 3D LED display solution for you as your request.
