Transform Your Space with Cutting-Edge Floor LED Displays
Get Quotation Now!
What is Dance Floor LED Display?
Welcome to the future of interactive and immersive floor LED display technology!
The LED screen dance floor is designed to revolutionize how you engage with your audience, offering unparalleled visual experiences and versatility.
A Dance Floor LED Display is an innovative solution that combines traditional dance floors’ robustness with LED technology’s visual impact.
Start Here!
LED PANEL PRICE
Just fill the sizes, and get your led screen budget right now !
Width(m)
Height(m)
Project Application
Your Email
Your Telephone
Country
GET YOUR PRICE NOW !
——Advantages of Our Products——
Key Features of LED Screens for Concert
Ultra-thin Design: Ultra-thin design, can be used on floors with restricted height
High Load-bearing Capacity: Solid aluminum structure design, light weight, stronger load-bearing capacity, reaching 2.2T/m²
Unique Design: The cabinet surface is non-slip, waterproof, scratch-proof and anti-collision
High Security: Waterproof IP54/IP45 for Indoor, IP66 for outdoor LED display floor
Gold Plating Process: All connectors, power supplies, cables, etc. are all gold-plated
Special Mask: Made of PC material, UV-resistant, and no color difference when viewed from any angle
High Heat Dissipation: Professional heat dissipation channel design and sheet metal cabinet, heat dissipation
Interactivity: Built-in interactive sensory chip, a variety of interactive materials
Customizable: Mature customized services to meet your personalized needs
VR Solution: Supporting VR immersive LED screen solution

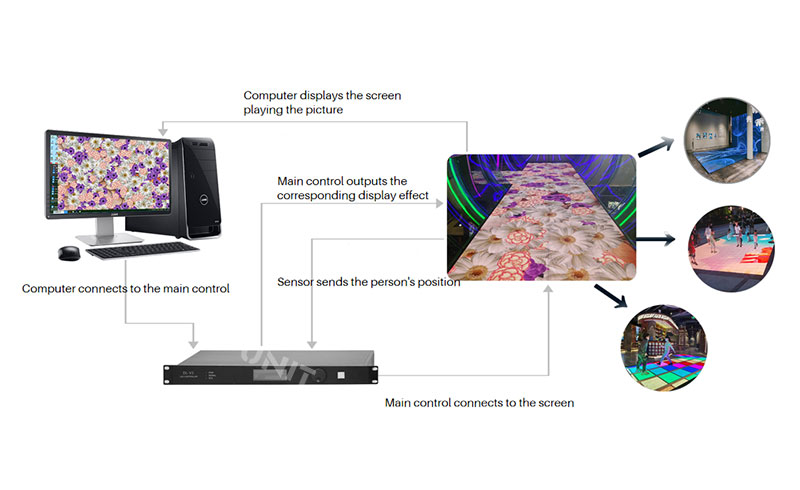

Interactive LED Dance Floor – How It Works?
The interactive floor tile screen adds the induction interactive function based on the LED floor screen.
First, the interactive LED dance floor is equipped with pressure, capacitive, infrared, and other devices.
Then, when a person moves on the interactive dance floor, the sensor can sense the person’s position and respond to the trigger information to the main control.
Finally, the main control logic judges and outputs the corresponding display effect.
Dance Floor LED Screen – How To Install ?

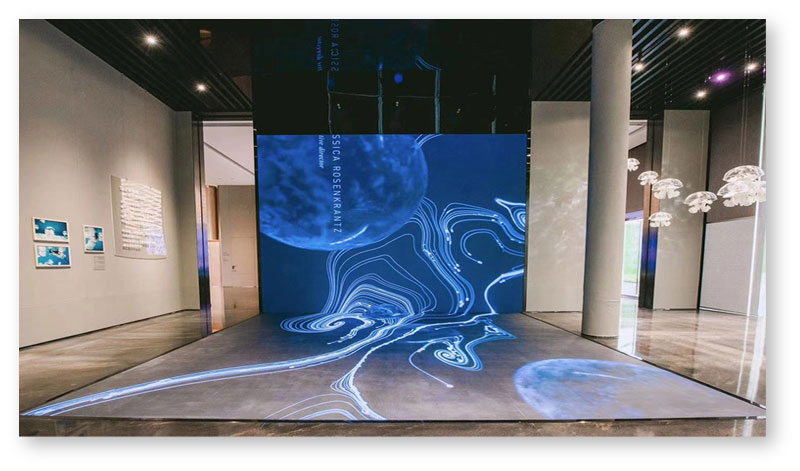

Recessed InstallationMostly used indoors, beautiful

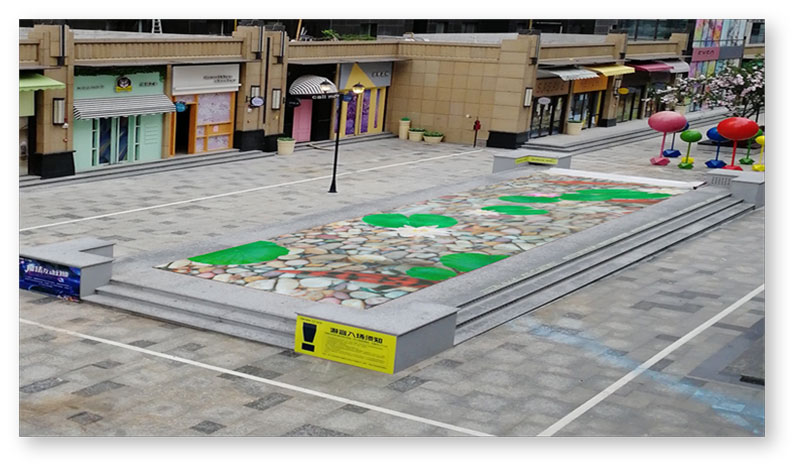

Above Ground InstallationMostly used outdoors, convenient for waterproof and ventilation design
Dance Floor LED Display
Slim & Lightweight Cabinet Design
High Load-bearing Capacity
Interactive LED Floor Screen
Multi-installation Method
CE, Rohs Approved
3 Year Warranty and 5% Spare Part
Find More
Get Price Now
Name
Phone
Message
Send
Where to Use LED Screen Floor?

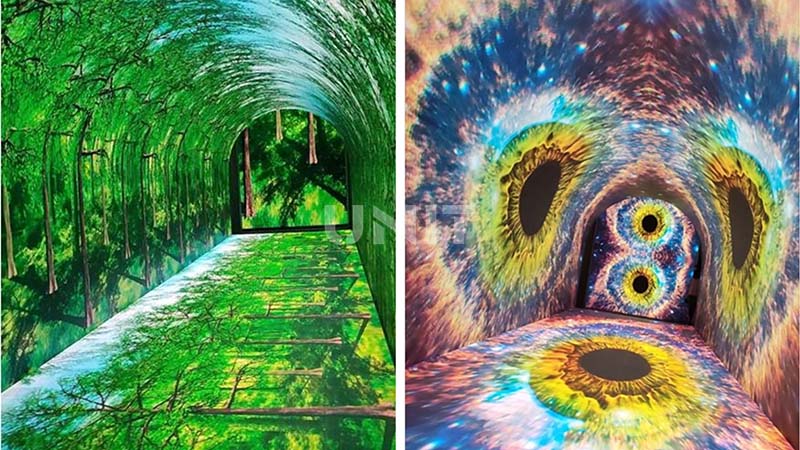

XR Immersive LED Display
Floor LED displays in XR immersive experiences provide high-resolution and dynamically changing ground scenes, creating a realistic virtual environment.
They also support interactive features, enhancing user interaction with the virtual world.

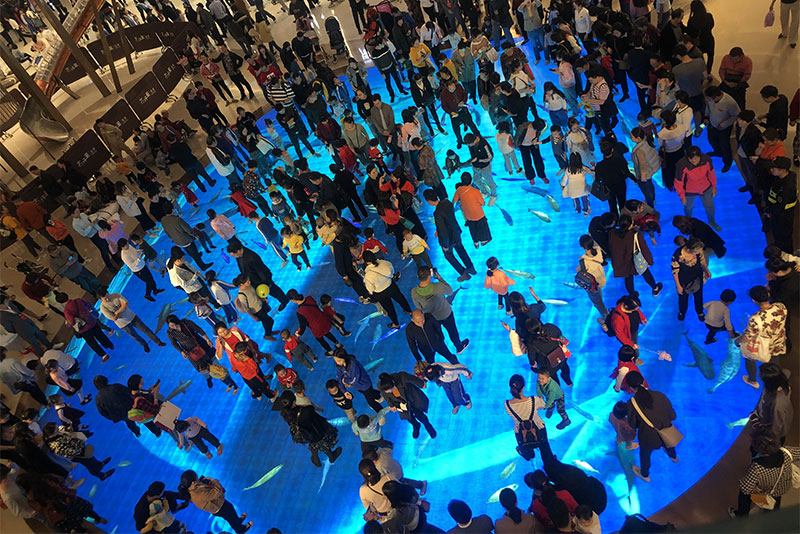

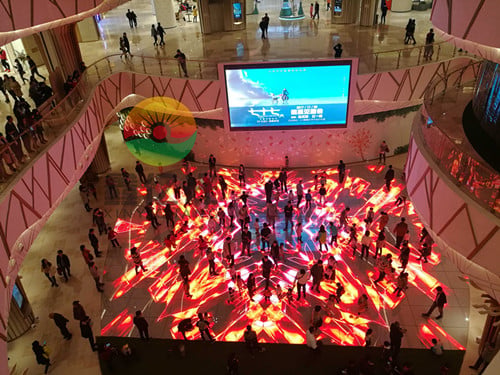

Shopping Malls
LED floor tiles in shopping malls are used to display advertisements and promotional information, attracting customer attention.
Dynamic floor displays not only showcase brands and products but also guide customer flow to specific areas, increasing sales opportunities.
Exhibition Halls
In exhibition halls, LED screen floors enhance the display of exhibits and provide interactive experiences.
They can show dynamic content and multimedia information, making the exhibition more attractive and engaging, thus increasing audience participation.
Nightclubs
In nightclubs, LED dance floor tiles create stunning light effects, enhancing the entertainment atmosphere.
They can synchronize with music and lighting, creating a unique visual experience and elevating the overall vibe and guest enjoyment.

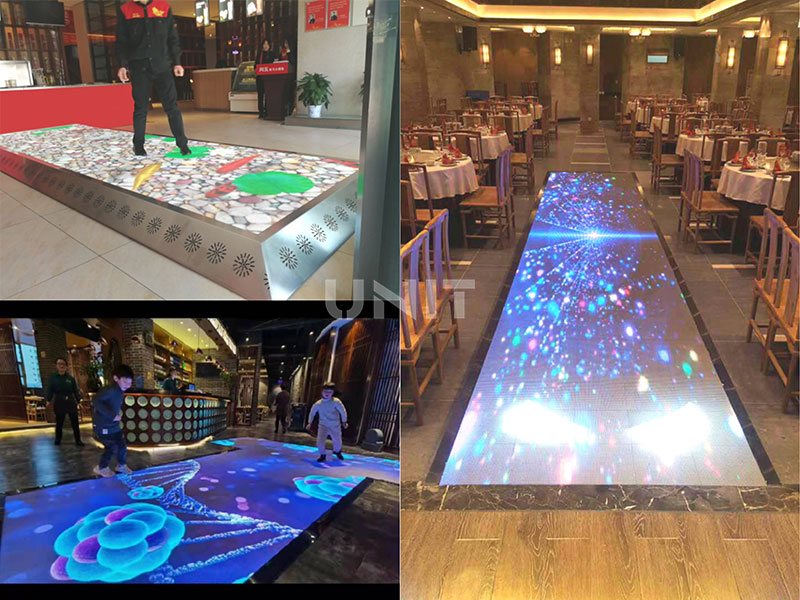

Hotels and Restaurants
In hotels and restaurants, LED dance floors are used for decoration and wayfinding, enhancing the overall guest experience.
They can display welcome messages, dynamic decorative patterns, or directional cues, beautifying the environment and improving service quality.
Floor LED Display PDF
3 Miutes to Know Dance Floor LED Display!
As a popular LED display product in recent years, the Floor LED display has many advantages. At the opening ceremony of the Beijing Winter Olympics not long ago, the enormous LED floor tile screen with a picture quality of up to 16K has made more people feel the crucial role of the LED display in the stage performance.
So what is an LED floor tile screen? How does it compare to other displays product? Why is it so popular? In this article, you can get all of the detailed answers.

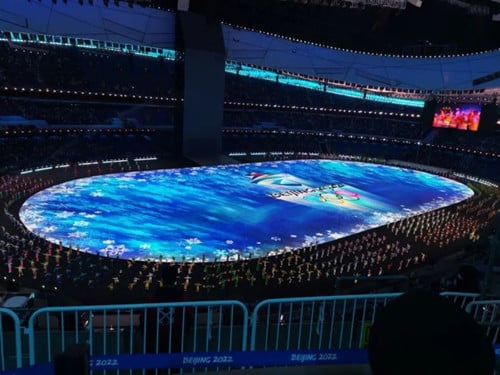

Technology empowering art is a highlight of the opening ceremony of the Beijing Winter Olympics. Audiences from all over the world have seen the comprehensive application of artificial intelligence, AR, naked-eye 3D, and other technologies.
The super large ground screen of the whole Bird’s Nest has achieved a full LED effect, and the picture quality is as high as 16K. The enormous LED floor tile screen with a total area of more than 10,000 square meters has successfully attracted the eyes of the audience with its ultra-clear picture.
Next, let us feel the charm of LED floor screens together!
2. The Introduction Principle of The Interactive LED Floor Displays
3. Features of LED Floor Screen
4. Floor LED Display Parameters
5. Application Scenarios of LED Floor Screen
6. The Performance of LED Floor Display at the Beijing Winter Olympics
7. How About LED Dance Floor Price?
8. How to Choose a High-quality LED floor Tile Display
1. What is Floor LED Display?
The LED floor display is one of the particular LED display products. The most beneficial function is the terrestrial display.
People can stand and move on the display screen. The installation environment of the LED floor tile screens is different from ordinary fixed or rental LED display screens.
Therefore, the LED floor tile screen has a special design for load-bearing, protection performance, and heat dissipation performance.
These designs make it suitable for high-intensity pedaling and long-term operation.
Led floor display were widespread in stage performances in the early days. The traditional stage rental LED display is mainly a three-sided stage, including the main screen and the extended screens on both sides.
Affected by the line of sight, it is difficult for the audience to see the stage floor.
But with the rise of large concerts, large stadiums are favored by organizers. The viewing angle of the audience becomes that of looking down on the stage from a height.
LED floor tile screens are gradually becoming popular. The LED floor tile screen brings a more wonderful viewing experience to the audience.
LED Floor Panels Cabinet
(1) LED Module
The core of the LED screen dance floor is the LED module, which is composed of several LED lights. High-quality LED lamp beads ensure high-definition and brightly colored images.
(2) Control system
The control system is the core component responsible for managing the floor LED panel. It receives the signal from the input source, parses, and passes the appropriate data to the LED module to display the image or video correctly.
(3) Power System
The power system provides the power required by LED floor tiles. Stable power supply is a key factor to ensure the normal operation of LED displays.

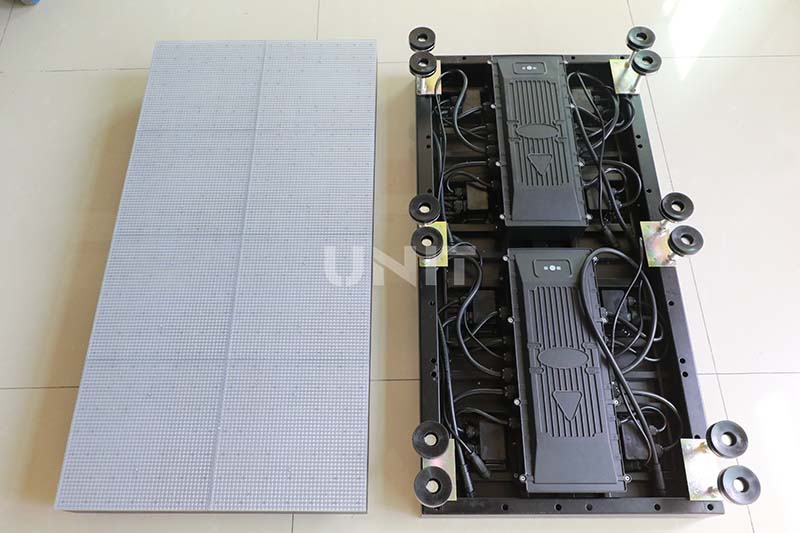

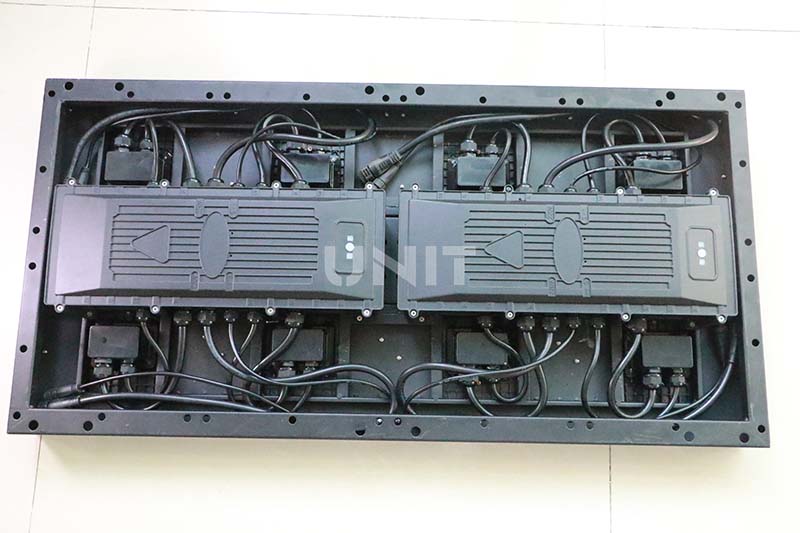

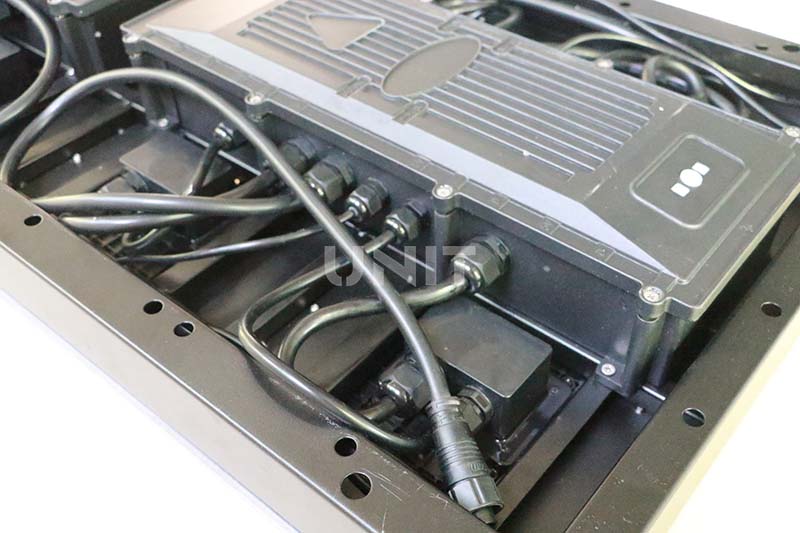

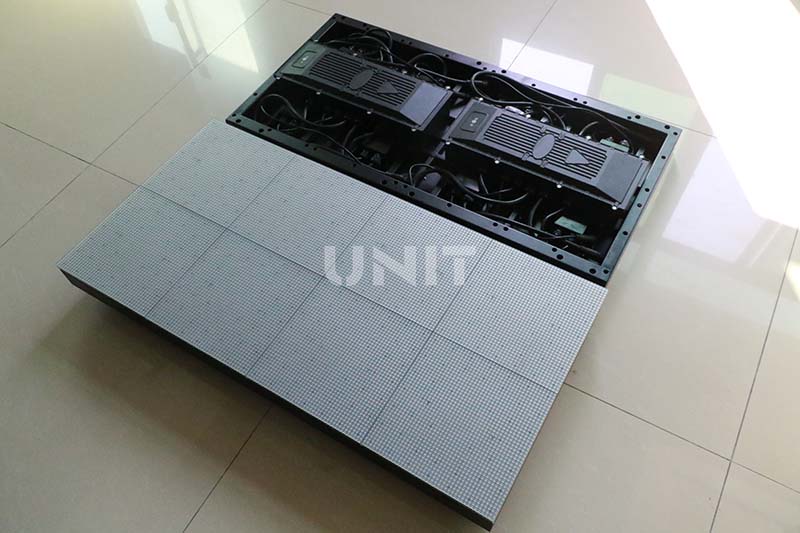

500x1000mm floor screen cabinet
How Does LED Floor Screen Work?
(1) Input Signal Interpretation
Signals from various input sources (e.g. computers, media players, consoles) are interpreted by the control system. These signals include displayed images, videos, or other content.
(2) LED driver
The control system passes the analyzed signal to the floor LED module.
The driving circuit of the LED module converts the signal into the brightness and color of the LED light to accurately present the input image or video.
(3) Brightness and color control
By adjusting the brightness and color of each LED in the LED module, the LED floor screen can control the brightness and color of the overall picture to ensure a clear and vivid display effect.
2. The Introduction Principle of The Interactive LED Floor Displays
Based on the LED display, the interactive LED floor display adds the function of induction interaction.
The built-in sensing system is the key for the interactive LED floor tile screen to sense and respond to people’s movement trajectories.
It can track the movement trajectory, present instant interactive animation effects, and realize unlimited creative possibilities.
The LED floor tile screen system can realize human-screen interaction and create a shocking visual effect. It relies on a variety of advanced technologies to work together.
Its technical principles mainly involve display units, control systems, protective structures, and interactive function realization.
There are many types of sensors in the interactive LED display configuration. Such as pressure sensors, capacitive sensors, infrared sensors.
When a person moves on the LED screen, the sensor can sense the movement and feedback the trigger information to the control device. And then, the control device will output the corresponding display effect after logical judgment.
Composition of Interactive LED Floor Tile Screen
1) Signal acquisition part
The capture display is carried out according to the interactive needs. The capture devices include sensor chips, video cameras, and cameras.
LED floor tile screens often integrate sensor technology to achieve the human-screen interactive effect. Common ones include pressure sensors, infrared sensors, capacitive sensors, etc.
Taking the pressure sensor as an example, when pedestrians step on the floor tile screen, the pressure sensor will sense the pressure change and transmit the signal to the control system.
The control system triggers the corresponding picture changes according to the preset program, such as generating special effects such as water wave diffusion and flower blooming.
The infrared sensor can detect the infrared radiation of the human body to determine the position and movement of pedestrians and realize dynamic response.
2) Signal processing part
This part analyzes the real-time collected data, and the generated data is connected with the virtual scene system.
Mainly includes sending card and receiving card. The sending card encodes and converts computer-generated images, videos and other signals, and transmits them to the receiving card through network cables or optical fibers.
The receiving card decodes the signal and drives the corresponding LED lamp beads to display the corresponding screen.
With the help of video processors and other equipment, the input signal can also be scaled, spliced and processed to adapt to floor LED screens of different resolutions and sizes.
3) Imaging part
Using interactive materials and floor tile display devices to present images in specific locations, LED floor display screens can be used as carriers for interactive image display
4) Auxiliary equipment
Such as transmission lines, installation components, interactive main controls, computers, engineering wiring, audio devices, etc.
5) Protective structure
Because LED floor screens need to withstand external forces such as pedestrians stepping on them and heavy objects rolling on them, they are extremely sophisticated in structural design and material selection.
Its surface is usually made of high-strength, high-transparency tempered glass or polycarbonate (PC) materials, which have the characteristics of wear resistance, anti-slip, and pressure resistance, and can withstand hundreds of kilograms of pressure.
The internal circuit and LED lamp beads are waterproof and dustproof, and the protection level generally reaches IP65 and above, ensuring stable operation in various indoor and outdoor environments.

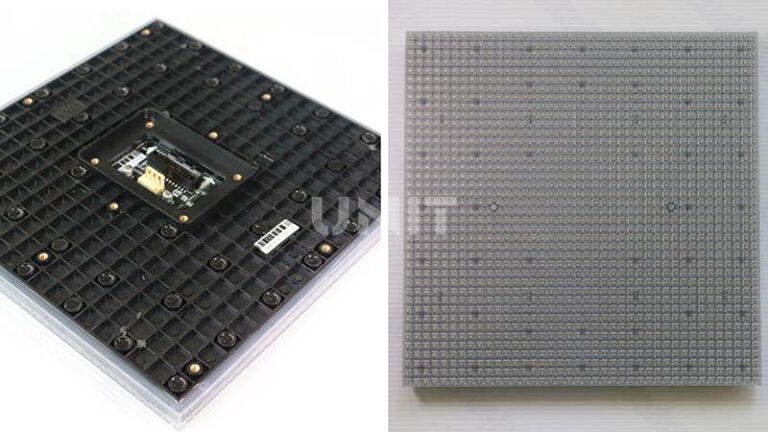

250×250 led module
Human-screen interaction can bring users a more realistic scene experience. Intelligent sensing devices can track people’s movement trajectories.

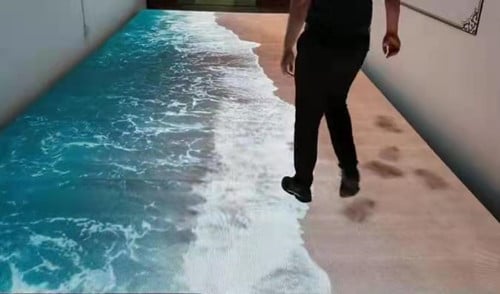

For instance, when people walk on the interactive LED floor tile screen, there will be display effects such as water ripples and flowers opening under the feet.
Of course, the interaction effect is far more than these two types. Through a PC or smartphone, you can switch various interesting interactive materials.
How Does Interactive LED Floor Screen Work?
(1) User interaction detection
Sensor technology senses user interaction actions, such as gestures, touches, or walking.
(2) Data processing
The control unit receives sensor data and performs real-time analysis and processing of user interactions.
(3) LED response
After the control unit determines the nature of user interaction, it adjusts the display content of the LED module accordingly to create an interesting and interactive effect on the user’s actions.
The interactive LED floor screen creates a new experience of interacting with users by combining sensing technology and LED display technology, and is widely used in public places, commercial exhibitions, entertainment venues, and other fields.
Technical Analysis of Different Systems
The technology used in the interactive LED floor tile screen system is mixed virtual reality technology and motion capture technology.
Virtual reality is a technology that generates three-dimensional images through computers, displays a three-dimensional space and interacts with it.
Through mixed reality, users can contact the real environment while manipulating virtual images, thereby enhancing the sensory visual experience.
Features of Each System
1) Practicality
The system can meet various real and potential functions, environments and other needs, and achieve satisfactory results.
2) Reliability
Can provide long-term continuous operation and is stable and reliable.
3) Advancedness
The system’s functions and performance reach the advanced level of the same-level display system.
4) Sustainability
Use high-quality, interactive main control acquisition and other equipment to ensure that the system’s display effect remains unchanged for a long time.
5) Convenience
The system is easy to adjust and use, the operation interface is easy to understand, the operation process is simple, and it can be operated and used after a short training period.
6) Flexibility
The system has flexible hardware reconfiguration capabilities, and the degree of dependence between devices is low. Some devices can be replaced at any time as needed without replacing all devices.
The system can be expanded at any time according to changes in demand (install multiple sets of interactive materials) without wasting original resources.
7) Participation
The system supports a large number of people participating in pedal interaction at the same time, which is suitable for large traffic.
3. Features of LED Floor Screen
As a portable LED display, the LED floor tile screen is powerful. It is light and flexible, easy to install and maintain. It generally adopts the standard box size of 500×500mm. The weight of a single LED cabinet is only about 11kg, which is not too bulky.
Ordinary LED floor tile screen only supports ground display, but manufacturers can add interactive sensing function according to customer’s customized needs and upgrade to interactive LED floor display.
In large-scale stages, concerts, exhibition halls, bars, shopping malls, and other places, led floor tiles are becoming more and more common. Its characteristics are visible in the following aspects:
Strong bearing capacity. Aluminum alloy material and unique structural design make the LED floor tile screen per square meter up to 1.5 tons.
Wear-resistant and non-slip. The PC face shield acts as a protection to prevent screen scratches.
Simpleinstallation method. No special tools are required, just lay the guide rails and align the positioning pins for installation.

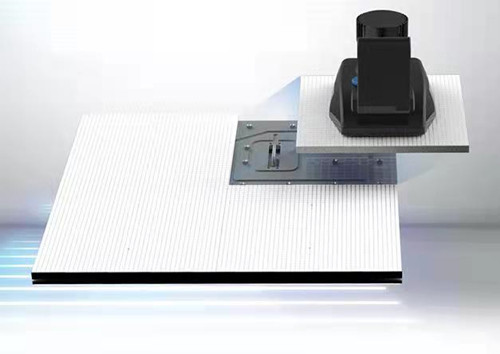

Fast maintenance method.Front maintenance design, magnetic adsorption module, easy to disassemble.
Strong interaction. You can get an interactive LED floor display to increase the interesting interactive effect.

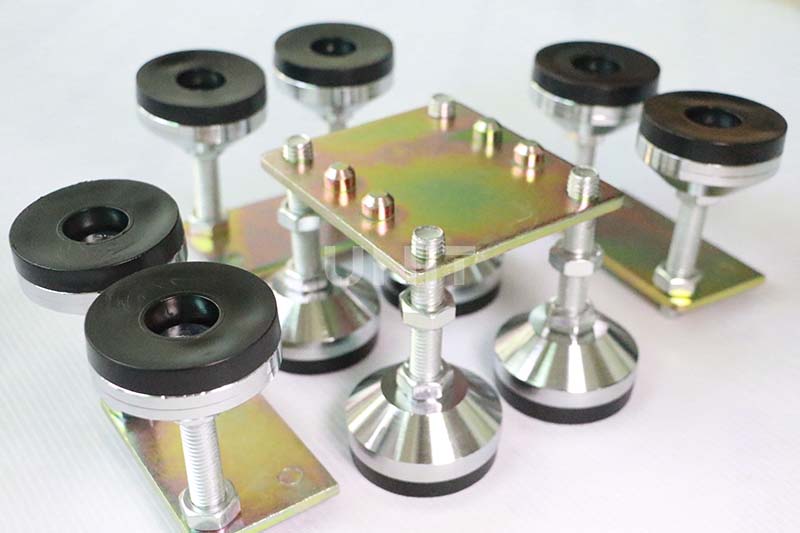

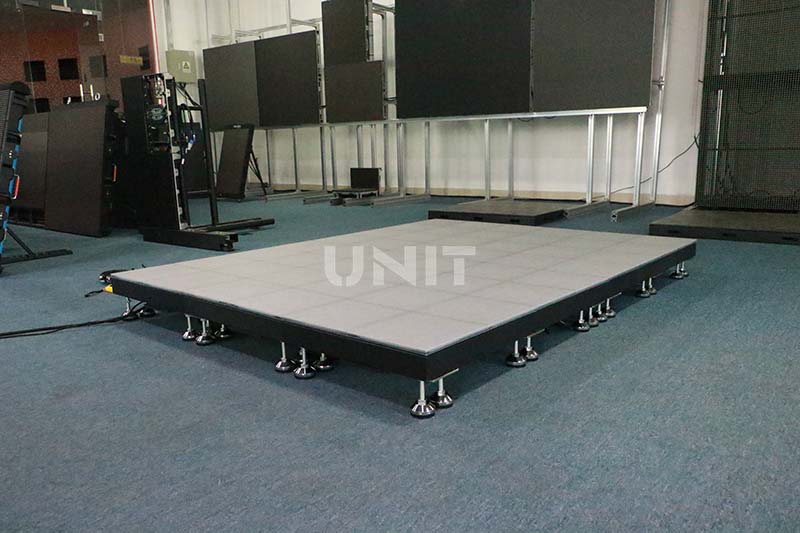

ground support of floor LED screen
Seamless splicing: Multiple LED floor tile screens can be seamlessly spliced together to form a larger display. This design ensures the continuity of images and videos and provides a larger display area.
Customizability: LED floor tile screens often have customizable features, including different sizes, shapes, resolutions, and colors. This enables users to make customized choices based on specific needs and scenarios.
Energy saving and environmental protection: LED floor tile screen uses LED technology, which has lower energy consumption and longer service life than traditional display technology.
This is in line with the trend of energy conservation and environmental protection and reduces usage costs.
Versatility: LED floor tile screens can be used in a variety of applications, including advertising, interior design, virtual filming, event venues, commercial displays, and more. Its versatility makes it a flexible tool.
Interactivity: Some LED floor tile screens have interactive functions, allowing users to interact with the screen.
This opens up more possibilities for areas such as exhibitions, education, and entertainment.
4. Floor LED Display Parameters
The following technical parameters will affect the cost and display effect of the LED floor tiles screen. Let’s find out what they do!
(1) Pixel pitch
In LED screen tiles, pixel pitch is directly related to the clarity and detail of the image. Higher pixel density usually results in more detailed images, improving the user’s visual experience.
In interactive scenes, high pixel density also ensures that images do not appear jagged or blurry when users interact closely with the screen.
(2) Resolution
Higher resolutions generally provide clearer images, especially when showing small details and text.
This is crucial for the information communication of LED floor screens in commercial displays, digital billboards, and other scenarios.
High resolutions use more resources and may cause performance degradation, especially on older hardware.
Therefore, there is a need to balance image quality and device performance when choosing a resolution.
Advantages and challenges of high resolution:
Advantage:
- More detailed images, suitable for close viewing.
- Improve the visual experience, especially on large screens or large displays.
Challenge:
- Requires higher processing power and storage space.
- Costs are higher, including hardware and content production.
How to balance resolution and visual effects?
Reasonable selection of resolution: When selecting LED floor tiles, you need to choose an appropriate resolution based on the specific use and audience distance.
High resolution is suitable for close viewing, while for farther viewers, consider lowering the resolution modestly to improve performance.
Using advanced image processing technology, such as upscaling technology, can improve image quality at low resolutions and balance resolution and visual effects.
(3) Load-bearing performance
Taking into account the need to ensure personal safety and the normal operation of display equipment, the structure of LED floor screens must be strong and have good load-bearing capacity.
In applications on stages or sports venues, good load-bearing capacity can ensure the stability and safety of the equipment to the greatest extent.
(4) Brightness
Backlight is a key component of LED displays. By adjusting the brightness and uniformity of the backlight, you can control the brightness level of the entire screen.
The backlight’s intelligent control system can adaptively adjust under different environmental conditions to ensure consistent visual effects.
Light sensing technology automatically adjusts the brightness of LED tiles by sensing the lighting conditions of the surrounding environment to ensure that clear and visible images can be provided in different lighting environments while achieving energy savings.
5. Application Scenarios of LED Floor Screen

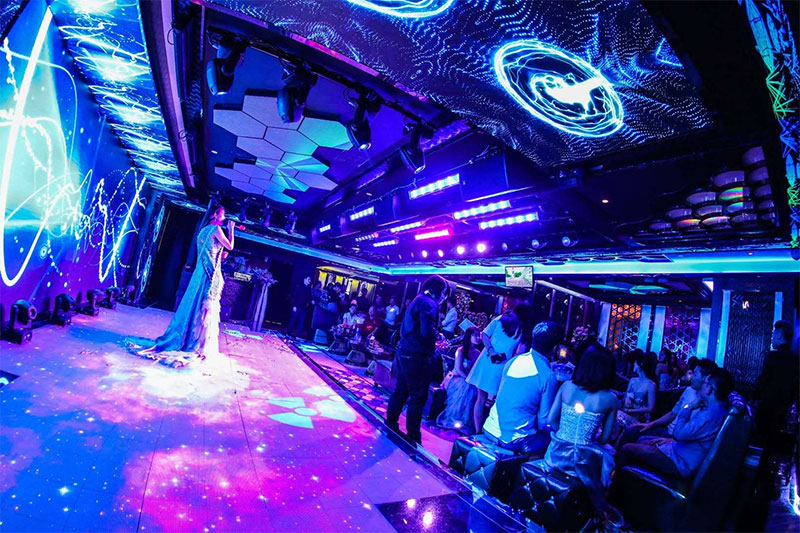

(1) Stage Performance
In some large-scale performances, the organizer will use LED screens to arrange the ground stage to match the content of the stage. The display content of the LED floor display will change with the dance steps of the performers.
With the help of customized lighting and music, they bring the audience a different audio-visual feast. It is a vital way to create an explosive stage. Therefore, a LED floor tile screen is a good partner in stage layouts.
(2) Showroom
The exhibition hall is one of the platforms for displaying modern information technology. The LED display makes the exhibition hall more interesting.
When visitors step on the interactive LED floor tile screen, the sensor will record the perceived information and display interesting effects. This interactive experience helps enhance the visitor’s viewing experience.
(3) Immersive Scene
In various immersive entertainment scenarios, LED floor tiles and flexible LED displays are combined to create an immersive space.
For example, LED displays are used to create a three-dimensional space to display exciting animations of roller coasters. It’s like being there, thrilling and exciting!
(4) Shopping Mall
In general, LED floor tiles are usually working for advertising or game interaction in some shopping malls with high traffic. Good load-bearing performance makes it able to withstand the trampling of many customers.
Novel interactive effects can easily attract more people to stop so that shopping malls can achieve the purpose of advertising. The proper application of LED displays helps a shopping mall become more attractive.
(5) Scenic Spot
The glass plank road is a popular attraction in recent years. According to incomplete statistics, China has opened more than 60 glass plank roads in the past three years.
With its good load-bearing performance and novel interactive special effects, the LED floor display has become the best partner for application in combination with the glass plank road.
When tourists walk on the plank road, broken glass or other special effects will appear under their feet. Its realistic graphics effects add interest to the game.

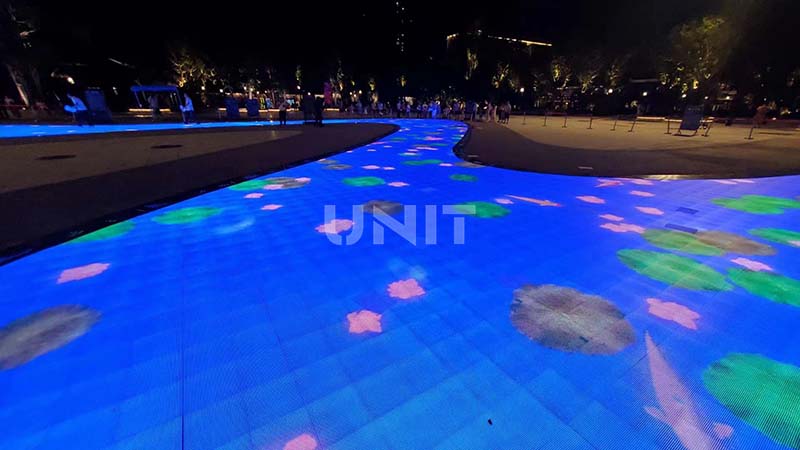

The LED floor tile screen also contributed to scenic night tour exhibition items. It not only attracts the attention of tourists but also contributes to showing the scenery of the scenic spot.
A LED screen is a good helper for building internet celebrity scenic spots and driving the development of the tourism economy.
(6) Museum
The development of science and technology has brought about major changes in museum display and display methods.
For example, high-quality LED displays can be used to display exhibit details in various aspects.

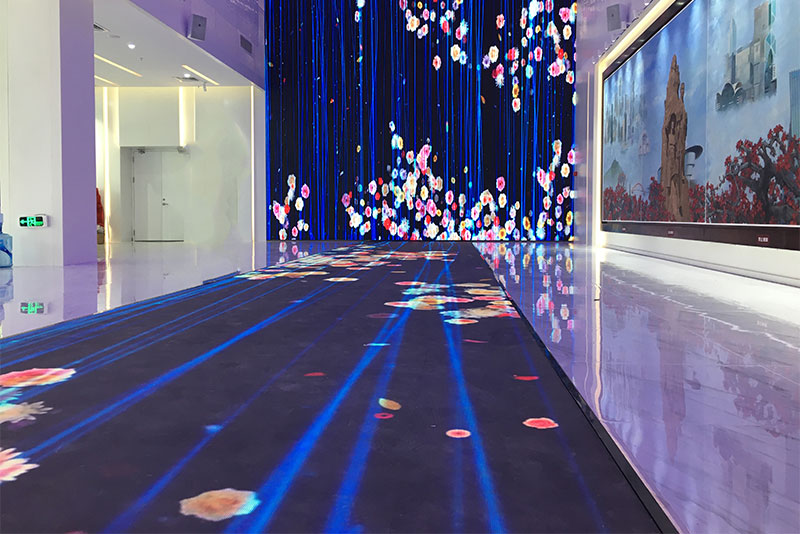

Interactive floor LED display helps museums create multi-functional exhibition halls. The novel interactive experience allows tourists to experience a different visit.
(7) Sports Event Opening Ceremony
LED displays can not only be used to display commercial advertisements or record game situations.
At the opening and closing ceremonies of large-scale sports events, high-resolution LED floor displays bear the important task of spreading culture and displaying technology and art.
In addition to functionality, LED displays are also endowed with more expectations such as personalized interaction and scene experience.
Judging from the opening ceremonies of international sports events such as the Winter Olympics and Universiade, floor LED screens have become an indispensable part of creating stunning visual effects.
(8) Virtual Production LED Wall
The LED floor tile screen can be used as the ground background for virtual shooting. Create various realistic or fictional environments by displaying different images, scenes, or videos.
This technology is called a virtual background or digital background, and it can replace traditional background cloth to provide a more flexible and high-quality shooting background.
It provides creative and technical flexibility in virtual filming, creating more possibilities for producers and directors, and allowing them to better realize their visual ideas.
6. The Performance of LED Floor Display at the Beijing Winter Olympics
At the opening ceremony of the Beijing Winter Olympics, the LED floor tile screen with a total area of more than 10,000 square meters is the largest LED floor display stage in the world.
The LED floor display adopts naked-eye 3D light display technology. With the motion capture interactive system and 3D stage special effects, a dreamy world of ice is created.
Manufacturers also add specially customized face shields. This measure enables the LED floor tile screen to adapt to the low-temperature freezing environment of minus 20 degrees and parent with ice and snow.
The dual-screen system ensures the stability of the equipment and ensures that the performance is foolproof.
7. How About LED Dance Floor Price?
With the development of science and technology, people’s life has become colorful. Various technological achievements have gradually entered people’s daily life.
There are also many use cases where some technologies are combined. At present, the more popular ones are holographic projection, naked-eye 3D, and interactive induction of LED floor tiles.
With the appearance of the LED floor display at the opening ceremony of the Winter Olympics, the LED dance floor price has also become a problem for the public.
As a customized product, the price of a LED floor display is not a fixed number. The manufacturer generally does not indicate the product price. It is because the price of the LED floor tile screen is affected by many factors. In general, the most important influencing factors are as follows:
① Pixel pitch
② The packaging method of lamp beads
③ Project size
④ Supporting requirements
⑤ Packaging and shipping costs
It is precisely because these factors will affect the LED dance floor price that it is difficult for manufacturers to fix the price. In a word, the specific needs of users are the decisive factors affecting the quotation of it.
Users can first indicate the requirements and then obtain quotations from relevant manufacturers. After a comprehensive comparison, make a decision.
8. How to Choose a High-quality LED floor Tile Display
The vigorous development of the multimedia cultural industry has led to an increase in the demand for LED floor tiles from all walks of life.
There are many different brands and types of products on the market. How to choose a suitable LED floor tile screen? The following aspects must be very crucial.
1. Good Bearing Capacity
First of all, a qualified LED display product must have good bearing capacity. More and more people use LED floor displays on occasions with large traffic or in the glass plank road.
Good load-bearing is the key to ensuring the safety of tourists and the operation of display equipment. The bearing capacity of a general led floor tile screen is about 1.5 tons. It is equivalent to the weight of an ordinary car.
2. Protection Level
According to the different installation environments, the protection levels of indoor and outdoor LED floor tiles are also different. The protection level of outdoor LED displays is generally higher than indoor.
Waterproof and non-slip is a standard to measure the quality of LED floor tile screens. The protection level of the UNIT outdoor LED display has reached IP65. The high-quality LED screen has won praise from all over the world.
3. Display Effect
LED display with high-definition picture quality has become people’s pursuit. A good display effect is mainly influenced by the manufacturer’s technology, the quality of the LED lamp beads, and the spacing of the LED lamp beads.
If you want to get high-definition and picture effects, an LED floor tile screen with smaller pixel pitches will be a good choice.
4. Interactive Effects

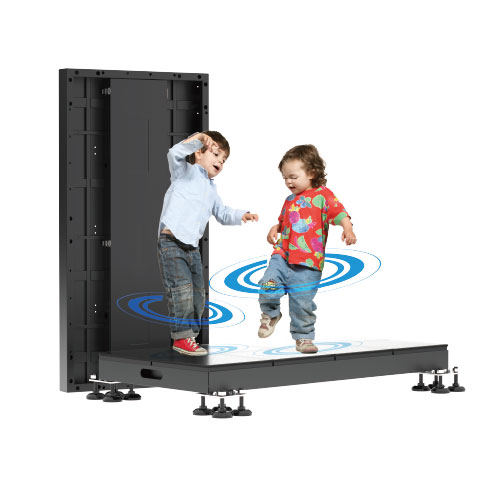

Compared with ordinary LED displays, the most obvious feature of interactive LED floor displays is interactive functions.
Pressure sensors or infrared sensors are the most commonly used sensing technologies for LED floor tiles.
High-quality hardware facilities are matched with corresponding software facilities to jointly present a variety of interactive effects for users.
9. The Bottom Line
The floor LED display can play fixed content according to a predetermined program to match the performance. The birth of the interactive LED floor tile screen is to meet people’s ultimate pursuit of stage choreography effect.
Interactive floor LED tiles are widely used in bar stages, banquet halls, car exhibitions, high-end hotel decoration, outdoor colorful ice rinks, cinemas, stadiums, TV stations, and other occasions.
If you want to know more about the LED display, welcome to contact us!
GET QUOTE NOW
Name
Phone
Message
Send
